EMI Filtering In SMPS Systems – Best Practices And Design Tips

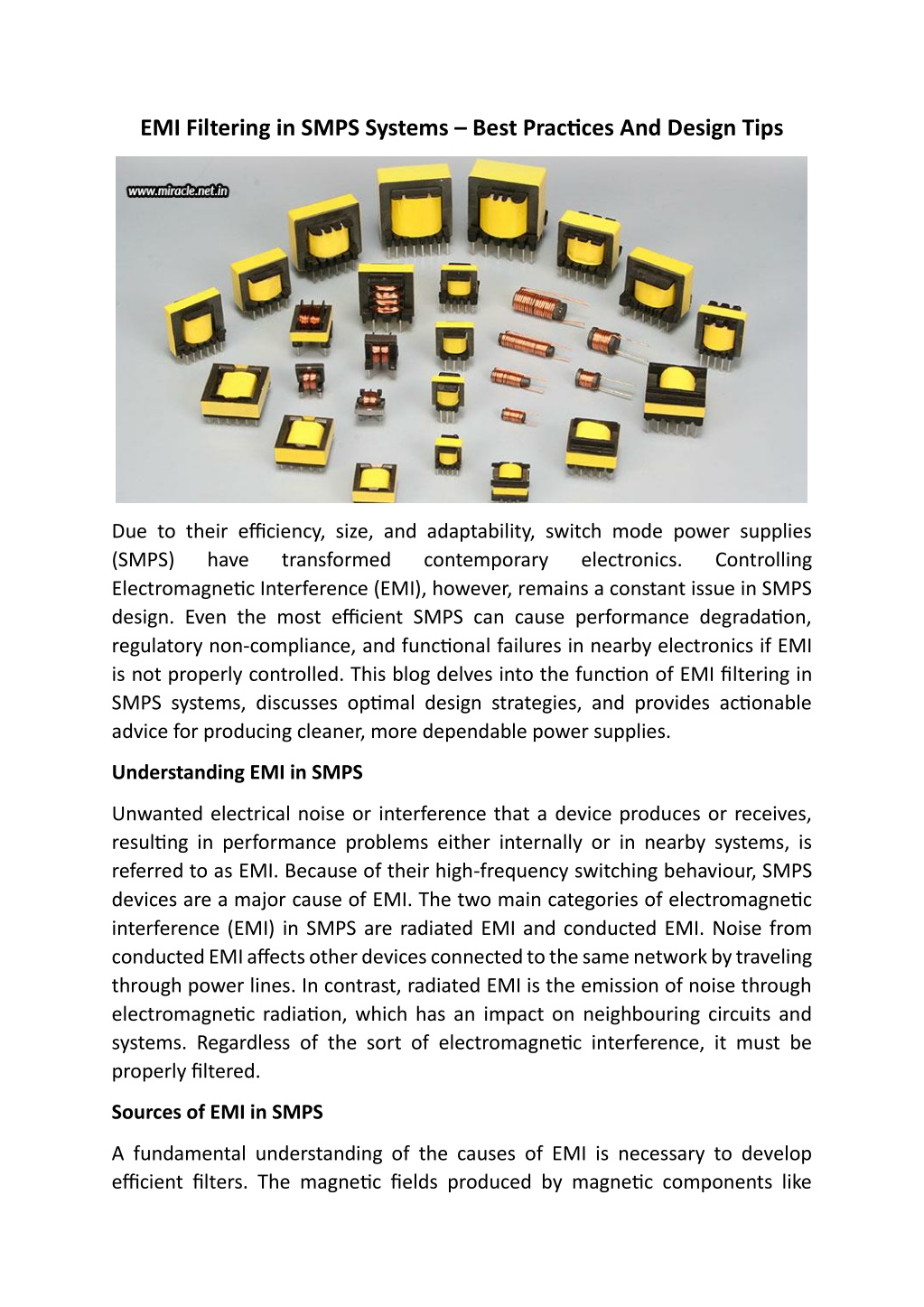

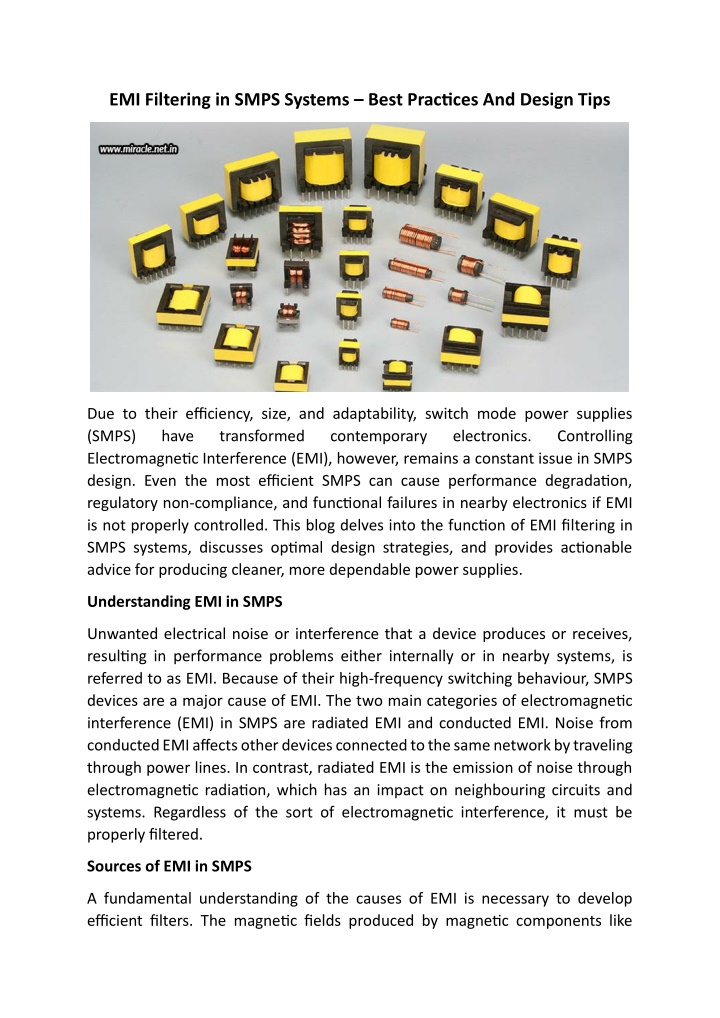

1. EMI Filtering in SMPS Systems – Best Practices And Design Tips Due to their efficiency, size, and adaptability, switch mode power supplies (SMPS) have transformed contemporary Electromagnetic Interference (EMI), however, remains a constant issue in SMPS design. Even the most efficient SMPS can cause performance degradation, regulatory non-compliance, and functional failures in nearby electronics if EMI is not properly controlled. This blog delves into the function of EMI filtering in SMPS systems, discusses optimal design strategies, and provides actionable advice for producing cleaner, more dependable power supplies. electronics. Controlling Understanding EMI in SMPS Unwanted electrical noise or interference that a device produces or receives, resulting in performance problems either internally or in nearby systems, is referred to as EMI. Because of their high-frequency switching behaviour, SMPS devices are a major cause of EMI. The two main categories of electromagnetic interference (EMI) in SMPS are radiated EMI and conducted EMI. Noise from conducted EMI affects other devices connected to the same network by traveling through power lines. In contrast, radiated EMI is the emission of noise through electromagnetic radiation, which has an impact on neighbouring circuits and systems. Regardless of the sort of electromagnetic interference, it must be properly filtered. Sources of EMI in SMPS A fundamental understanding of the causes of EMI is necessary to develop efficient filters. The magnetic fields produced by magnetic components like

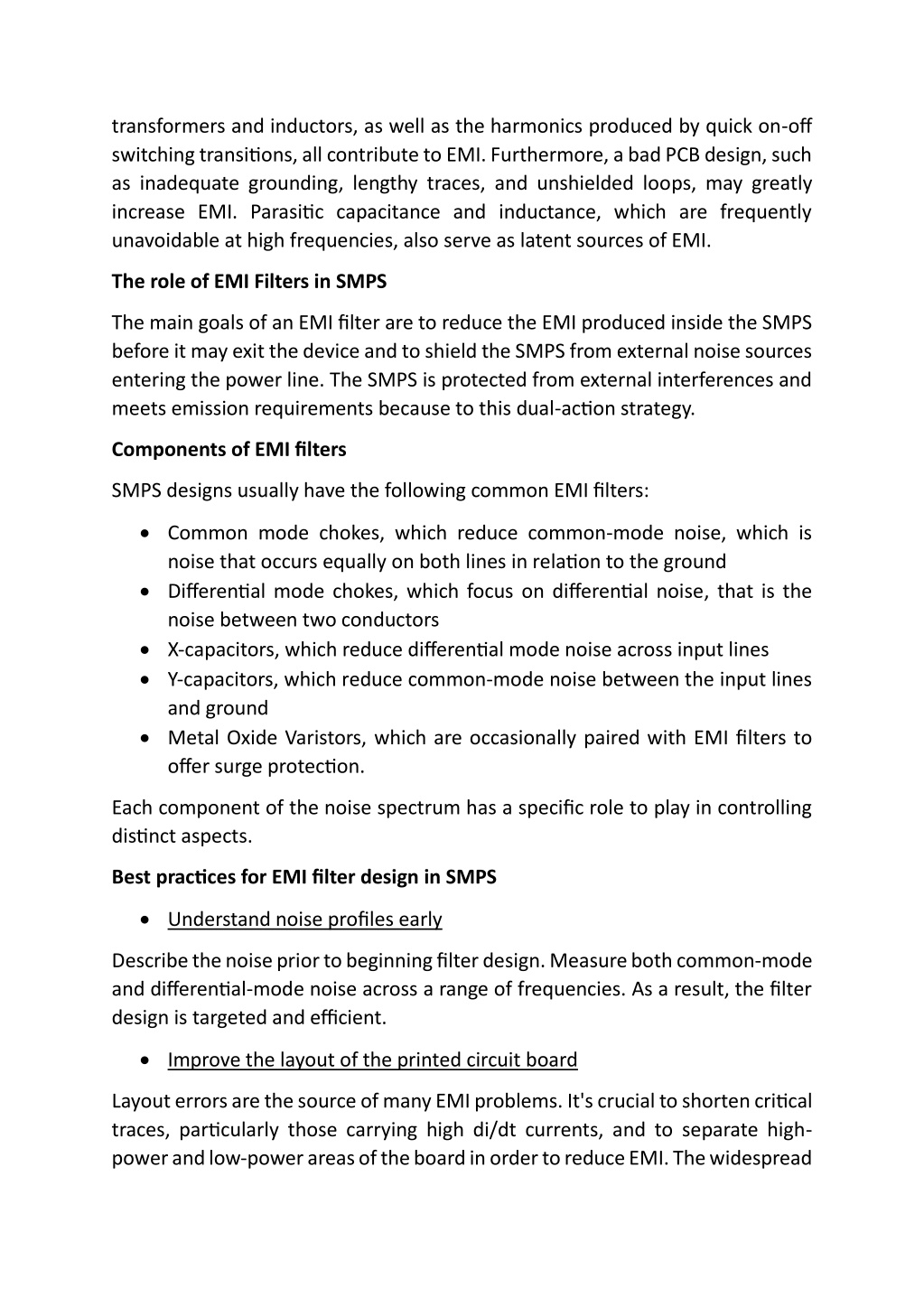

2. transformers and inductors, as well as the harmonics produced by quick on-off switching transitions, all contribute to EMI. Furthermore, a bad PCB design, such as inadequate grounding, lengthy traces, and unshielded loops, may greatly increase EMI. Parasitic capacitance and inductance, which are frequently unavoidable at high frequencies, also serve as latent sources of EMI. The role of EMI Filters in SMPS The main goals of an EMI filter are to reduce the EMI produced inside the SMPS before it may exit the device and to shield the SMPS from external noise sources entering the power line. The SMPS is protected from external interferences and meets emission requirements because to this dual-action strategy. Components of EMI filters SMPS designs usually have the following common EMI filters: •Common mode chokes, which reduce common-mode noise, which is noise that occurs equally on both lines in relation to the ground •Differential mode chokes, which focus on differential noise, that is the noise between two conductors •X-capacitors, which reduce differential mode noise across input lines •Y-capacitors, which reduce common-mode noise between the input lines and ground •Metal Oxide Varistors, which are occasionally paired with EMI filters to offer surge protection. Each component of the noise spectrum has a specific role to play in controlling distinct aspects. Best practices for EMI filter design in SMPS •Understand noise profiles early Describe the noise prior to beginning filter design. Measure both common-mode and differential-mode noise across a range of frequencies. As a result, the filter design is targeted and efficient. •Improve the layout of the printed circuit board Layout errors are the source of many EMI problems. It's crucial to shorten critical traces, particularly those carrying high di/dt currents, and to separate high- power and low-power areas of the board in order to reduce EMI. The widespread

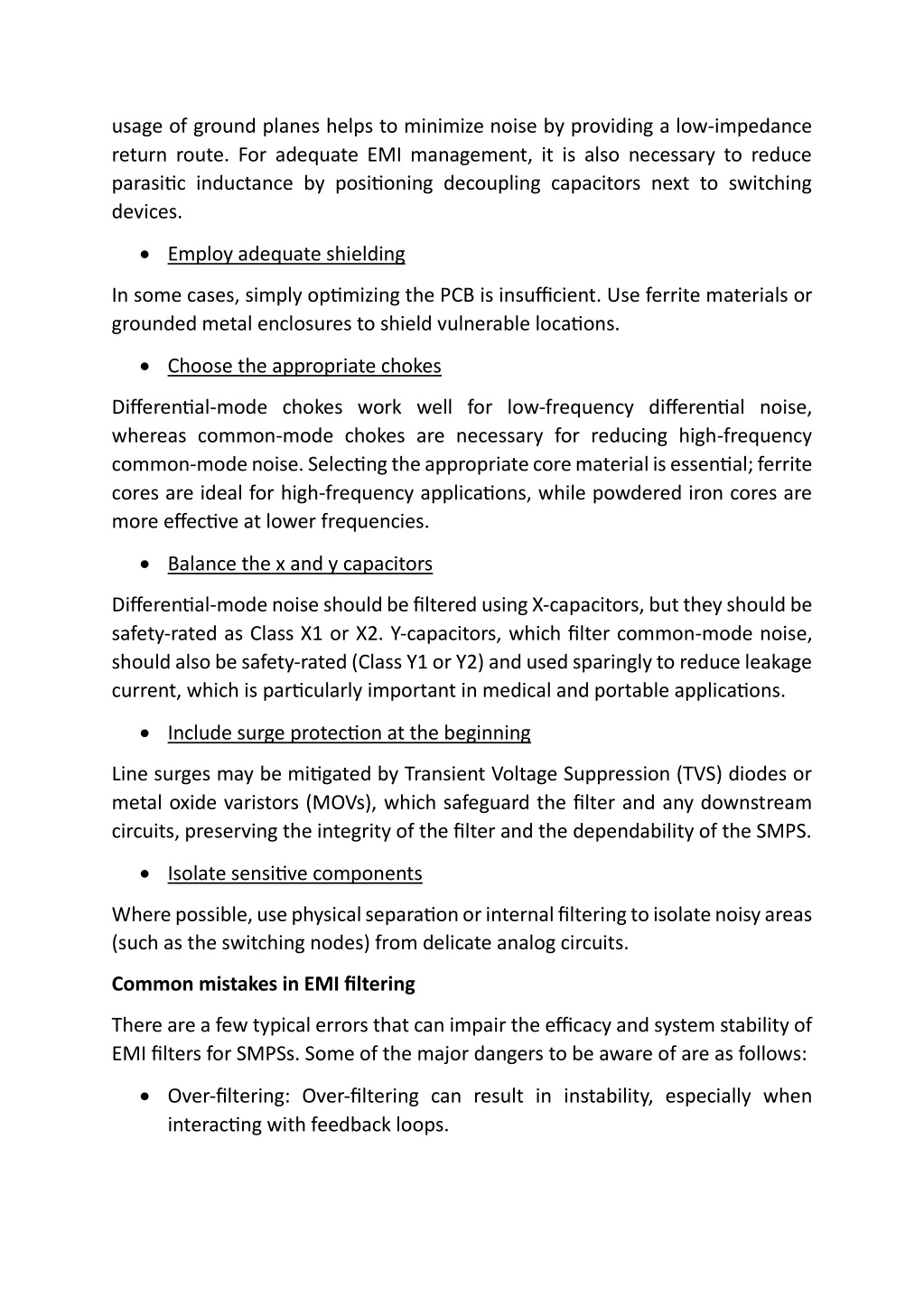

3. usage of ground planes helps to minimize noise by providing a low-impedance return route. For adequate EMI management, it is also necessary to reduce parasitic inductance by positioning decoupling capacitors next to switching devices. •Employ adequate shielding In some cases, simply optimizing the PCB is insufficient. Use ferrite materials or grounded metal enclosures to shield vulnerable locations. •Choose the appropriate chokes Differential-mode chokes work well for low-frequency differential noise, whereas common-mode chokes are necessary for reducing high-frequency common-mode noise. Selecting the appropriate core material is essential; ferrite cores are ideal for high-frequency applications, while powdered iron cores are more effective at lower frequencies. •Balance the x and y capacitors Differential-mode noise should be filtered using X-capacitors, but they should be safety-rated as Class X1 or X2. Y-capacitors, which filter common-mode noise, should also be safety-rated (Class Y1 or Y2) and used sparingly to reduce leakage current, which is particularly important in medical and portable applications. •Include surge protection at the beginning Line surges may be mitigated by Transient Voltage Suppression (TVS) diodes or metal oxide varistors (MOVs), which safeguard the filter and any downstream circuits, preserving the integrity of the filter and the dependability of the SMPS. •Isolate sensitive components Where possible, use physical separation or internal filtering to isolate noisy areas (such as the switching nodes) from delicate analog circuits. Common mistakes in EMI filtering There are a few typical errors that can impair the efficacy and system stability of EMI filters for SMPSs. Some of the major dangers to be aware of are as follows: •Over-filtering: Over-filtering can result in instability, especially when interacting with feedback loops.

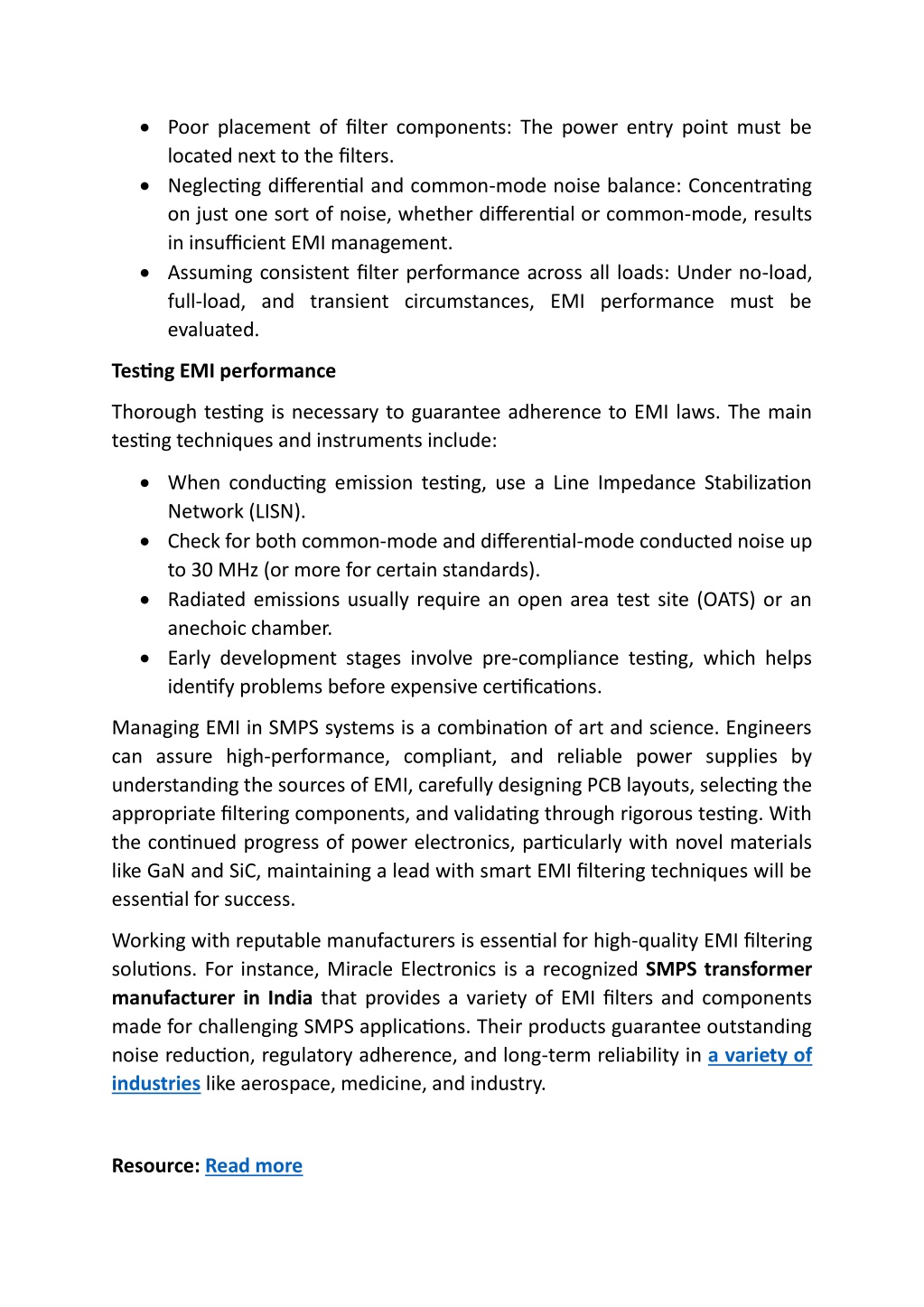

4. •Poor placement of filter components: The power entry point must be located next to the filters. •Neglecting differential and common-mode noise balance: Concentrating on just one sort of noise, whether differential or common-mode, results in insufficient EMI management. •Assuming consistent filter performance across all loads: Under no-load, full-load, and transient circumstances, EMI performance must be evaluated. Testing EMI performance Thorough testing is necessary to guarantee adherence to EMI laws. The main testing techniques and instruments include: •When conducting emission testing, use a Line Impedance Stabilization Network (LISN). •Check for both common-mode and differential-mode conducted noise up to 30 MHz (or more for certain standards). •Radiated emissions usually require an open area test site (OATS) or an anechoic chamber. •Early development stages involve pre-compliance testing, which helps identify problems before expensive certifications. Managing EMI in SMPS systems is a combination of art and science. Engineers can assure high-performance, compliant, and reliable power supplies by understanding the sources of EMI, carefully designing PCB layouts, selecting the appropriate filtering components, and validating through rigorous testing. With the continued progress of power electronics, particularly with novel materials like GaN and SiC, maintaining a lead with smart EMI filtering techniques will be essential for success. Working with reputable manufacturers is essential for high-quality EMI filtering solutions. For instance, Miracle Electronics is a recognized SMPS transformer manufacturer in India that provides a variety of EMI filters and components made for challenging SMPS applications. Their products guarantee outstanding noise reduction, regulatory adherence, and long-term reliability in a variety of industries like aerospace, medicine, and industry. Resource: Read more
