Are Planar Transformers The Future Of SMPS Design

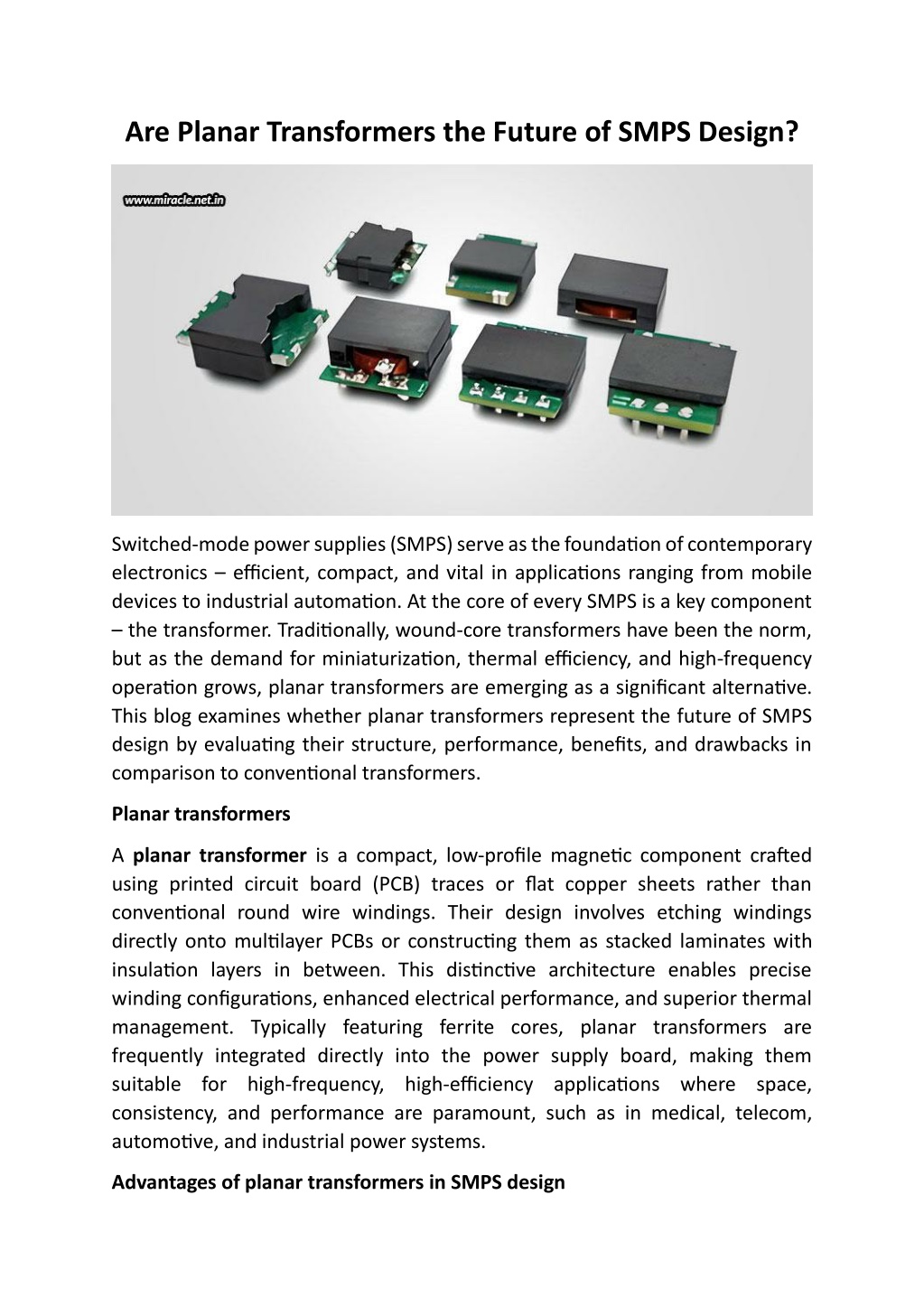

1. Are Planar Transformers the Future of SMPS Design? Switched-mode power supplies (SMPS) serve as the foundation of contemporary electronics – efficient, compact, and vital in applications ranging from mobile devices to industrial automation. At the core of every SMPS is a key component – the transformer. Traditionally, wound-core transformers have been the norm, but as the demand for miniaturization, thermal efficiency, and high-frequency operation grows, planar transformers are emerging as a significant alternative. This blog examines whether planar transformers represent the future of SMPS design by evaluating their structure, performance, benefits, and drawbacks in comparison to conventional transformers. Planar transformers A planar transformer is a compact, low-profile magnetic component crafted using printed circuit board (PCB) traces or flat copper sheets rather than conventional round wire windings. Their design involves etching windings directly onto multilayer PCBs or constructing them as stacked laminates with insulation layers in between. This distinctive architecture enables precise winding configurations, enhanced electrical performance, and superior thermal management. Typically featuring ferrite cores, planar transformers are frequently integrated directly into the power supply board, making them suitable for high-frequency, high-efficiency applications where space, consistency, and performance are paramount, such as in medical, telecom, automotive, and industrial power systems. Advantages of planar transformers in SMPS design

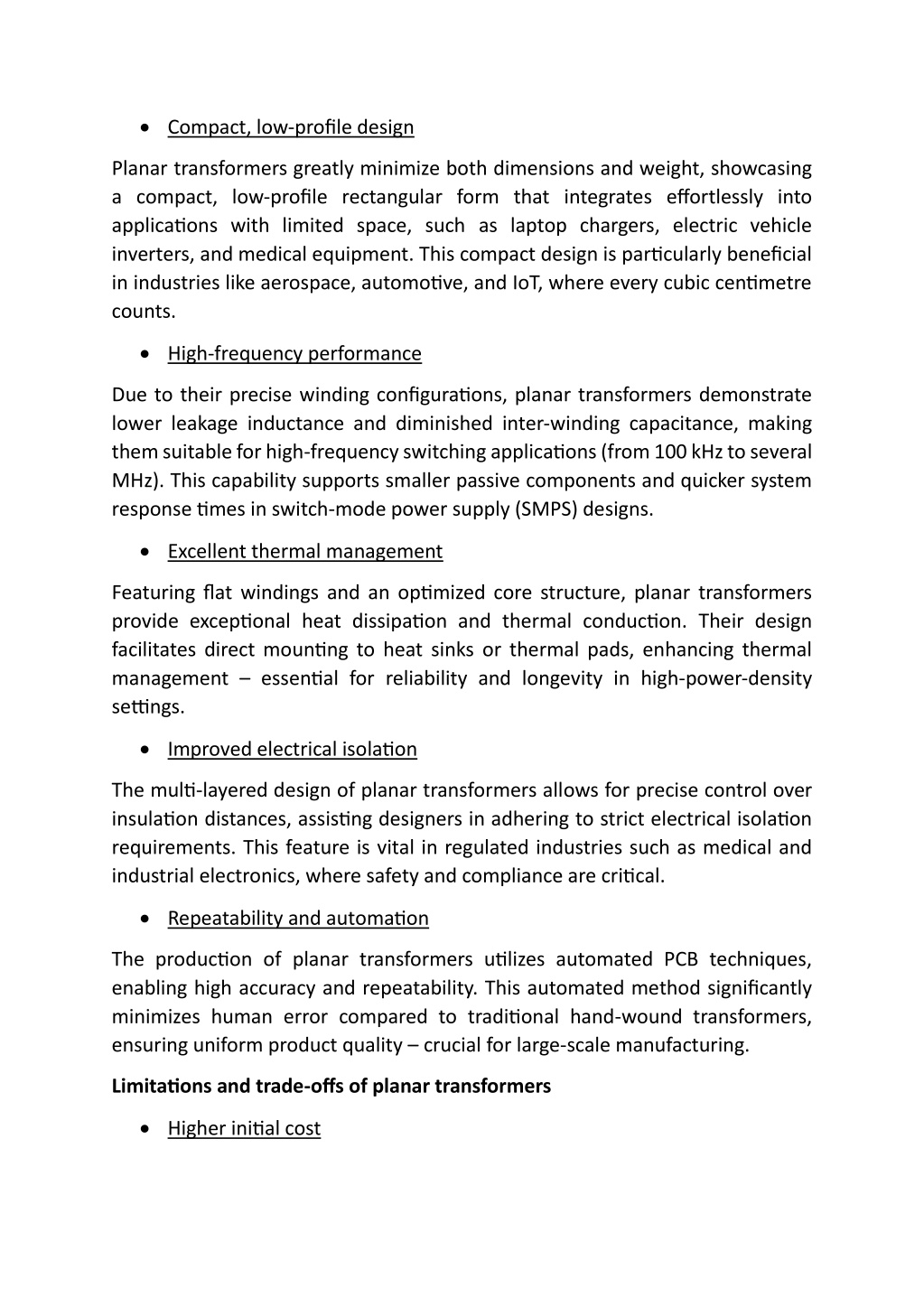

2. •Compact, low-profile design Planar transformers greatly minimize both dimensions and weight, showcasing a compact, low-profile rectangular form that integrates effortlessly into applications with limited space, such as laptop chargers, electric vehicle inverters, and medical equipment. This compact design is particularly beneficial in industries like aerospace, automotive, and IoT, where every cubic centimetre counts. •High-frequency performance Due to their precise winding configurations, planar transformers demonstrate lower leakage inductance and diminished inter-winding capacitance, making them suitable for high-frequency switching applications (from 100 kHz to several MHz). This capability supports smaller passive components and quicker system response times in switch-mode power supply (SMPS) designs. •Excellent thermal management Featuring flat windings and an optimized core structure, planar transformers provide exceptional heat dissipation and thermal conduction. Their design facilitates direct mounting to heat sinks or thermal pads, enhancing thermal management – essential for reliability and longevity in high-power-density settings. •Improved electrical isolation The multi-layered design of planar transformers allows for precise control over insulation distances, assisting designers in adhering to strict electrical isolation requirements. This feature is vital in regulated industries such as medical and industrial electronics, where safety and compliance are critical. •Repeatability and automation The production of planar transformers utilizes automated PCB techniques, enabling high accuracy and repeatability. This automated method significantly minimizes human error compared to traditional hand-wound transformers, ensuring uniform product quality – crucial for large-scale manufacturing. Limitations and trade-offs of planar transformers •Higher initial cost

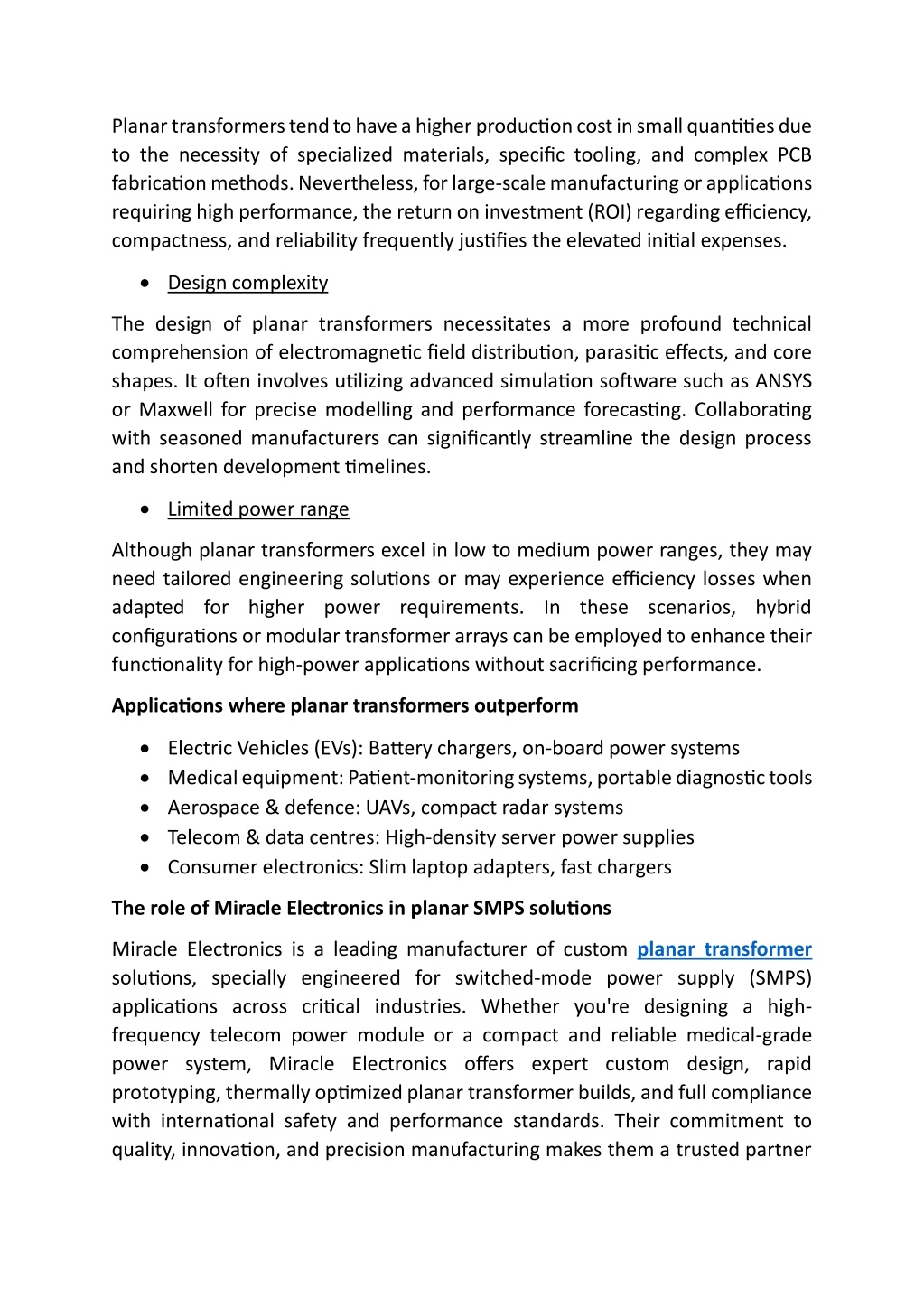

3. Planar transformers tend to have a higher production cost in small quantities due to the necessity of specialized materials, specific tooling, and complex PCB fabrication methods. Nevertheless, for large-scale manufacturing or applications requiring high performance, the return on investment (ROI) regarding efficiency, compactness, and reliability frequently justifies the elevated initial expenses. •Design complexity The design of planar transformers necessitates a more profound technical comprehension of electromagnetic field distribution, parasitic effects, and core shapes. It often involves utilizing advanced simulation software such as ANSYS or Maxwell for precise modelling and performance forecasting. Collaborating with seasoned manufacturers can significantly streamline the design process and shorten development timelines. •Limited power range Although planar transformers excel in low to medium power ranges, they may need tailored engineering solutions or may experience efficiency losses when adapted for higher power requirements. In these scenarios, hybrid configurations or modular transformer arrays can be employed to enhance their functionality for high-power applications without sacrificing performance. Applications where planar transformers outperform •Electric Vehicles (EVs): Battery chargers, on-board power systems •Medical equipment: Patient-monitoring systems, portable diagnostic tools •Aerospace & defence: UAVs, compact radar systems •Telecom & data centres: High-density server power supplies •Consumer electronics: Slim laptop adapters, fast chargers The role of Miracle Electronics in planar SMPS solutions Miracle Electronics is a leading manufacturer of custom planar transformer solutions, specially engineered for switched-mode power supply (SMPS) applications across critical industries. Whether you're designing a high- frequency telecom power module or a compact and reliable medical-grade power system, Miracle Electronics offers expert custom design, rapid prototyping, thermally optimized planar transformer builds, and full compliance with international safety and performance standards. Their commitment to quality, innovation, and precision manufacturing makes them a trusted partner

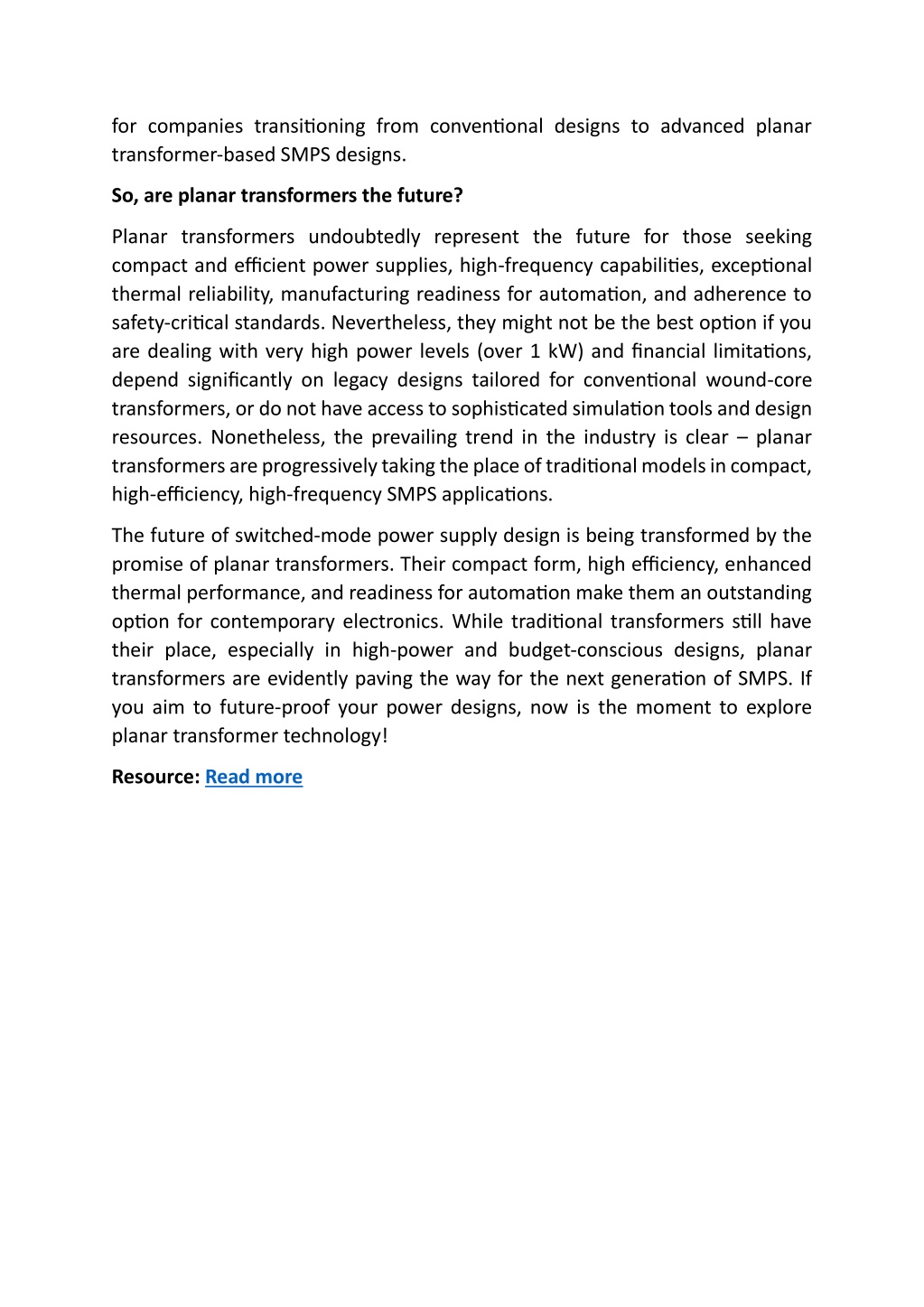

4. for companies transitioning from conventional designs to advanced planar transformer-based SMPS designs. So, are planar transformers the future? Planar transformers undoubtedly represent the future for those seeking compact and efficient power supplies, high-frequency capabilities, exceptional thermal reliability, manufacturing readiness for automation, and adherence to safety-critical standards. Nevertheless, they might not be the best option if you are dealing with very high power levels (over 1 kW) and financial limitations, depend significantly on legacy designs tailored for conventional wound-core transformers, or do not have access to sophisticated simulation tools and design resources. Nonetheless, the prevailing trend in the industry is clear – planar transformers are progressively taking the place of traditional models in compact, high-efficiency, high-frequency SMPS applications. The future of switched-mode power supply design is being transformed by the promise of planar transformers. Their compact form, high efficiency, enhanced thermal performance, and readiness for automation make them an outstanding option for contemporary electronics. While traditional transformers still have their place, especially in high-power and budget-conscious designs, planar transformers are evidently paving the way for the next generation of SMPS. If you aim to future-proof your power designs, now is the moment to explore planar transformer technology! Resource: Read more
