1. How To Choose The Right Size Of Power Cables

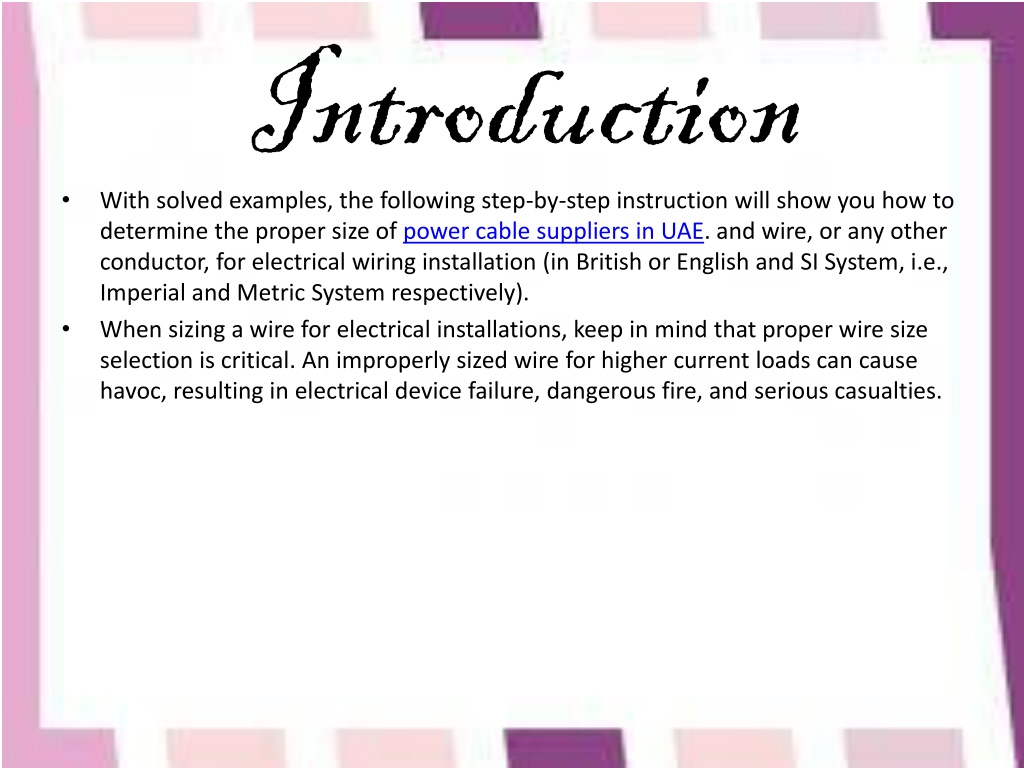

2. With solved examples, the following step-by-step instruction will show you how to determine the proper size of power cable suppliers in UAE. and wire, or any other conductor, for electrical wiring installation (in British or English and SI System, i.e., Imperial and Metric System respectively). • When sizing a wire for electrical installations, keep in mind that proper wire size selection is critical. An improperly sized wire for higher current loads can cause havoc, resulting in electrical device failure, dangerous fire, and serious casualties.

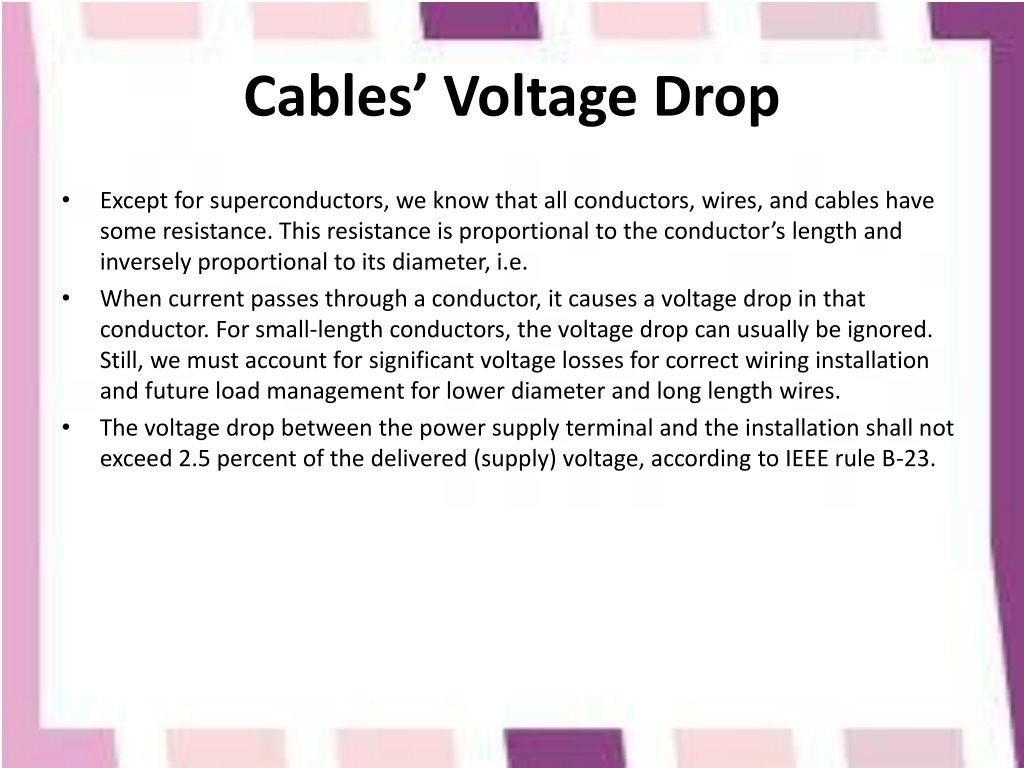

3. Cables’ Voltage Drop • Except for superconductors, we know that all conductors, wires, and cables have some resistance. This resistance is proportional to the conductor’s length and inversely proportional to its diameter, i.e.  • When current passes through a conductor, it causes a voltage drop in that conductor. For small-length conductors, the voltage drop can usually be ignored. Still, we must account for significant voltage losses for correct wiring installation and future load management for lower diameter and long length wires. • The voltage drop between the power supply terminal and the installation shall not exceed 2.5 percent of the delivered (supply) voltage, according to IEEE rule B-23.

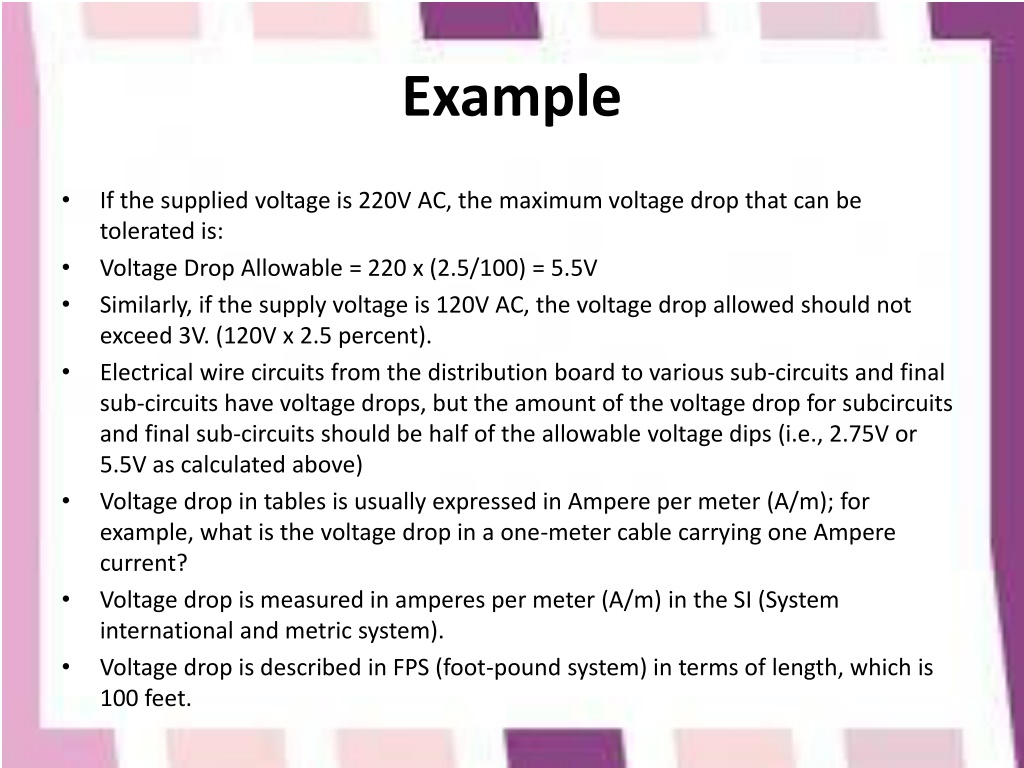

4. Example • If the supplied voltage is 220V AC, the maximum voltage drop that can be tolerated is: • Voltage Drop Allowable = 220 x (2.5/100) = 5.5V • Similarly, if the supply voltage is 120V AC, the voltage drop allowed should not exceed 3V. (120V x 2.5 percent). • Electrical wire circuits from the distribution board to various sub-circuits and final sub-circuits have voltage drops, but the amount of the voltage drop for subcircuits and final sub-circuits should be half of the allowable voltage dips (i.e., 2.75V or 5.5V as calculated above) • Voltage drop in tables is usually expressed in Ampere per meter (A/m); for example, what is the voltage drop in a one-meter cable carrying one Ampere current? • Voltage drop is measured in amperes per meter (A/m) in the SI (System international and metric system). • Voltage drop is described in FPS (foot-pound system) in terms of length, which is 100 feet.

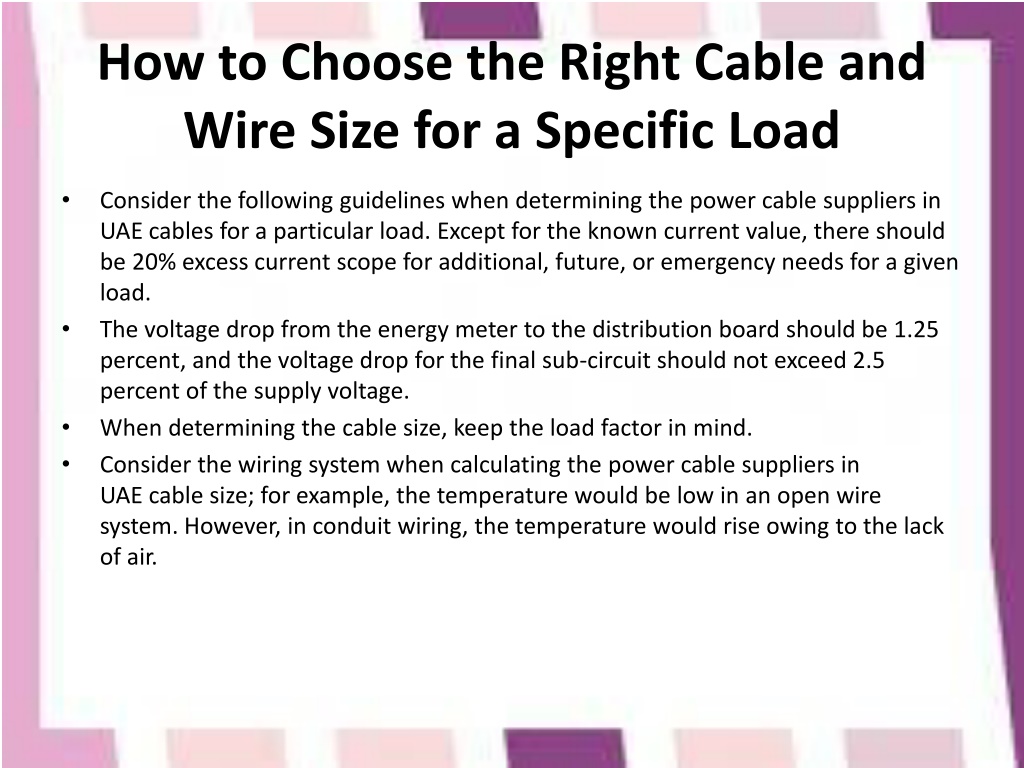

5. How to Choose the Right Cable and Wire Size for a Specific Load • Consider the following guidelines when determining the power cable suppliers in UAE cables for a particular load. Except for the known current value, there should be 20% excess current scope for additional, future, or emergency needs for a given load. • The voltage drop from the energy meter to the distribution board should be 1.25 percent, and the voltage drop for the final sub-circuit should not exceed 2.5 percent of the supply voltage. • When determining the cable size, keep the load factor in mind. • Consider the wiring system when calculating thepower cable suppliers in UAE cable size; for example, the temperature would be low in an open wire system. However, in conduit wiring, the temperature would rise owing to the lack of air.

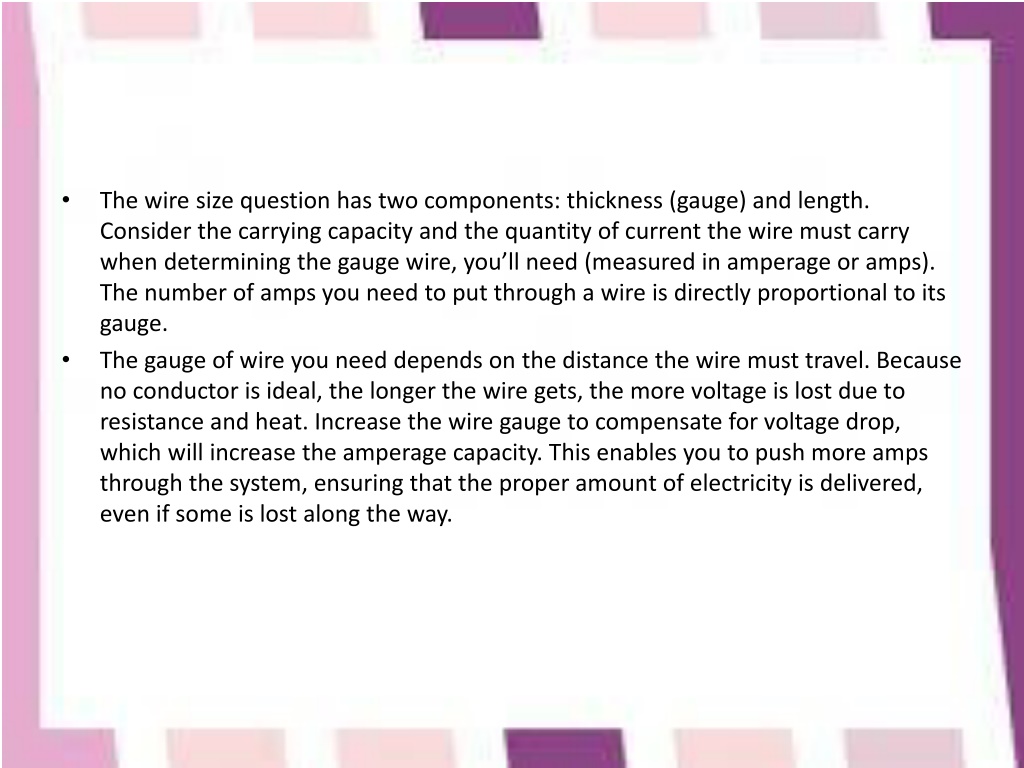

6. The wire size question has two components: thickness (gauge) and length. Consider the carrying capacity and the quantity of current the wire must carry when determining the gauge wire, you’ll need (measured in amperage or amps). The number of amps you need to put through a wire is directly proportional to its gauge. • The gauge of wire you need depends on the distance the wire must travel. Because no conductor is ideal, the longer the wire gets, the more voltage is lost due to resistance and heat. Increase the wire gauge to compensate for voltage drop, which will increase the amperage capacity. This enables you to push more amps through the system, ensuring that the proper amount of electricity is delivered, even if some is lost along the way.

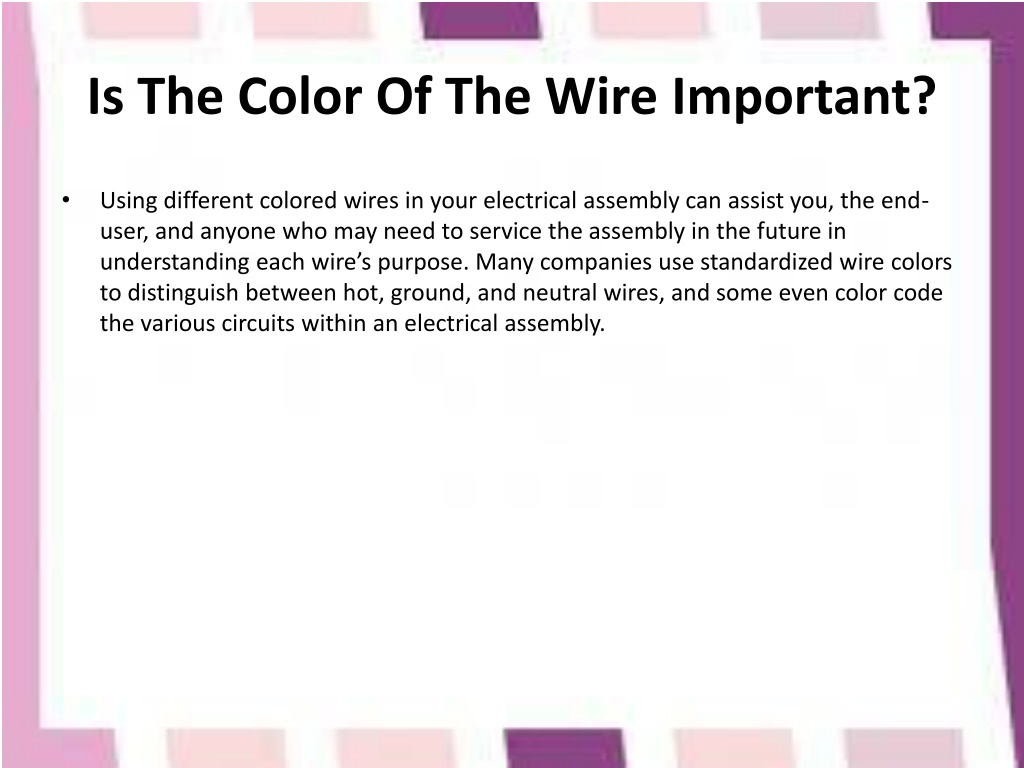

7. Is The Color Of The Wire Important? • Using different colored wires in your electrical assembly can assist you, the end-user, and anyone who may need to service the assembly in the future in understanding each wire’s purpose. Many companies use standardized wire colors to distinguish between hot, ground, and neutral wires, and some even color code the various circuits within an electrical assembly.

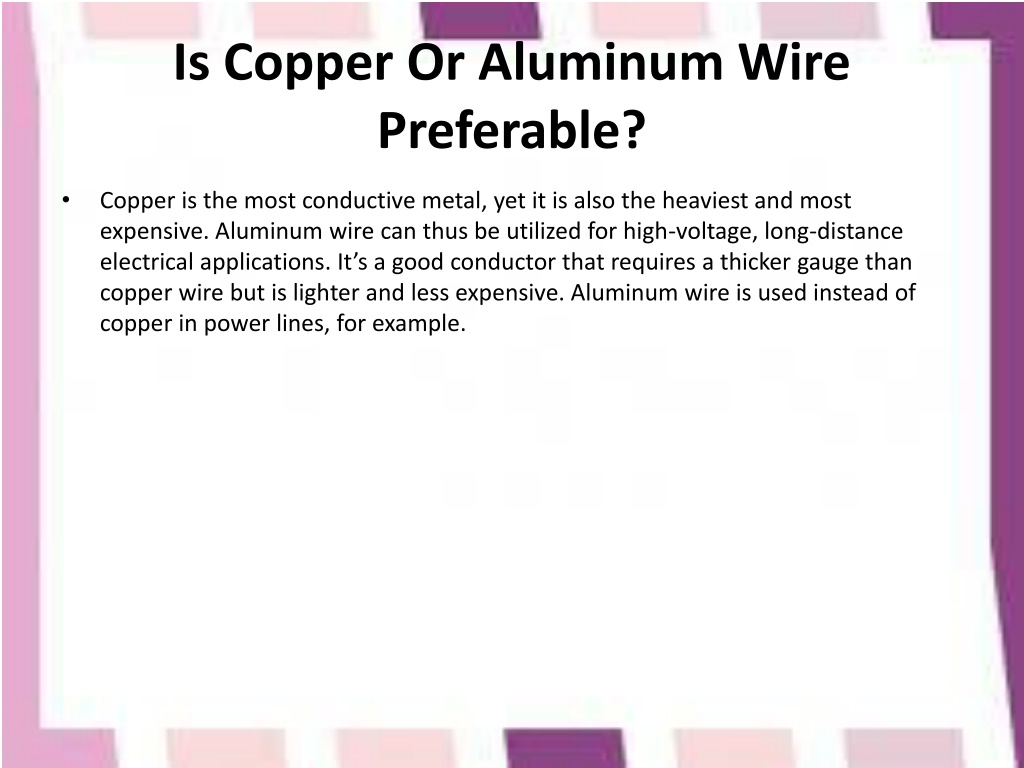

8. Is Copper Or Aluminum Wire Preferable? • Copper is the most conductive metal, yet it is also the heaviest and most expensive. Aluminum wire can thus be utilized for high-voltage, long-distance electrical applications. It’s a good conductor that requires a thicker gauge than copper wire but is lighter and less expensive. Aluminum wire is used instead of copper in power lines, for example.

9. What Degree Of Flexibility Should The Wire Have? • Wire flexibility varies depending on the type of wire used: • Solid core – Low gauge wire has essentially no flexibility; higher gauge wire has more elasticity. • Wire with coarse strands – It is relatively flexible and will hold the shape you give it. • Wire with fine strands – Very malleable; won’t keep its shape. • What is the best wire insulation? • The assembly’s working environment will determine the sort of insulation your wires require. • Voltage • To limit the risk of shock, the insulation must be thicker as the voltage level rises. • Environmental factors to consider.  • UV exposure, severe temperatures, and the presence of chemicals or lubricants can all impact performance.

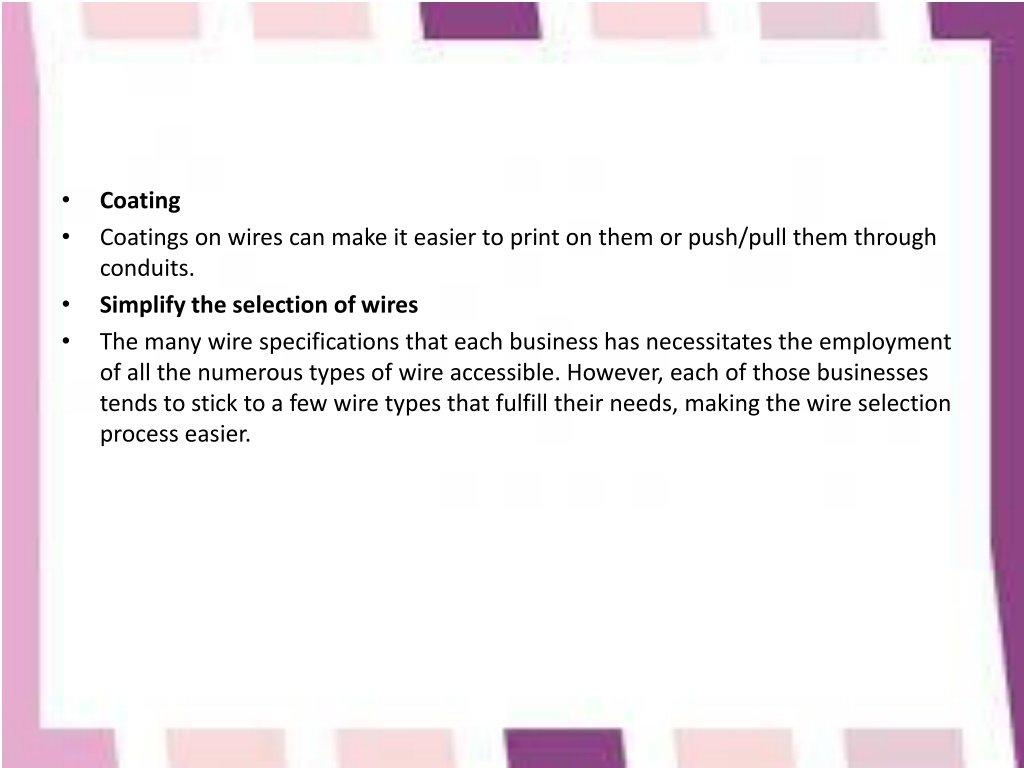

10. Coating • Coatings on wires can make it easier to print on them or push/pull them through conduits. • Simplify the selection of wires • The many wire specifications that each business has necessitates the employment of all the numerous types of wire accessible. However, each of those businesses tends to stick to a few wire types that fulfill their needs, making the wire selection process easier.

11. Conclusion • The automotive industry, for example, mainly uses GXL wire, which is well-suited to the working circumstances found within a car (temperature, abrasion, oils, etc.). MTW (machine tool wire), on the other hand, is widely used in electrical control cabinets since it is rated for a greater voltage and has appropriate insulation for the working environment. If you’re choosingpower cable suppliers in UAE for your electrical installation, you’ll almost certainly need to choose a few other components as well to get the best results.
