Types of Wires Used in Residential Rewiring Projects

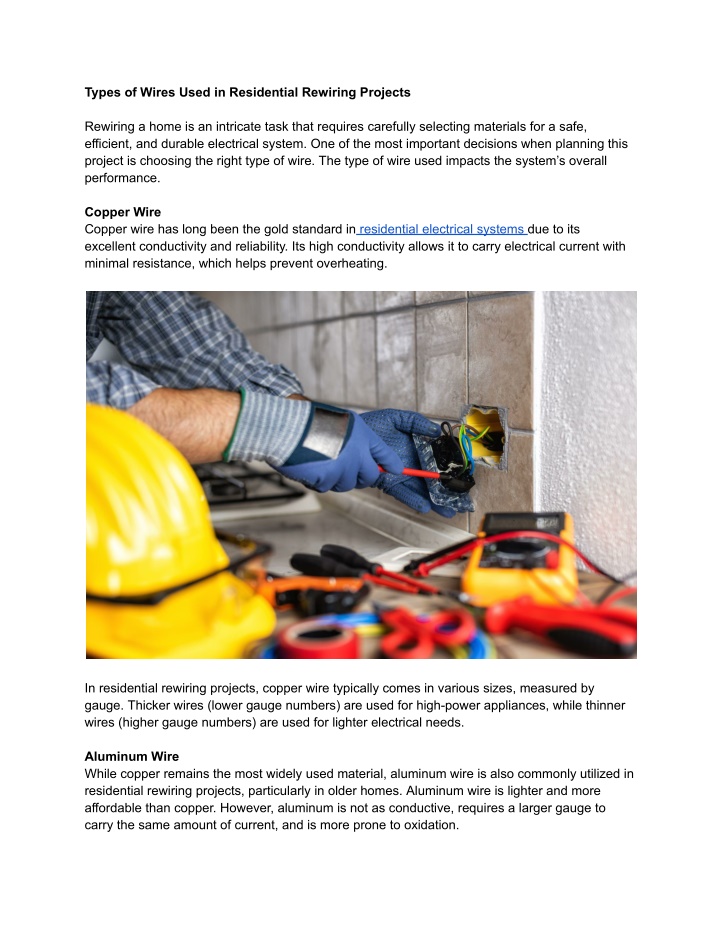

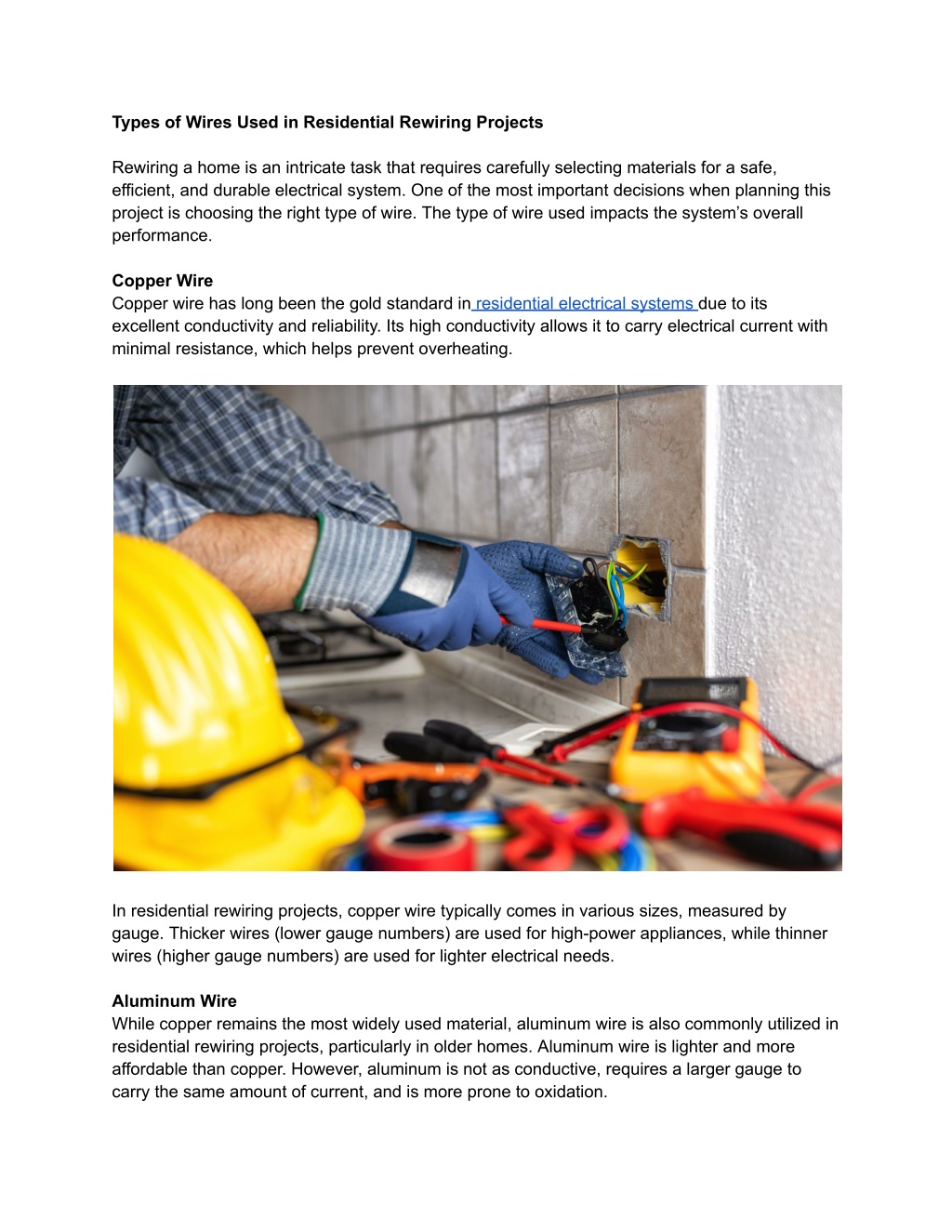

1. Types of Wires Used in Residential Rewiring Projects Rewiring a home is an intricate task that requires carefully selecting materials for a safe, efficient, and durable electrical system. One of the most important decisions when planning this project is choosing the right type of wire. The type of wire used impacts the system’s overall performance. Copper Wire Copper wire has long been the gold standard in residential electrical systems due to its excellent conductivity and reliability. Its high conductivity allows it to carry electrical current with minimal resistance, which helps prevent overheating. In residential rewiring projects, copper wire typically comes in various sizes, measured by gauge. Thicker wires (lower gauge numbers) are used for high-power appliances, while thinner wires (higher gauge numbers) are used for lighter electrical needs. Aluminum Wire While copper remains the most widely used material, aluminum wire is also commonly utilized in residential rewiring projects, particularly in older homes. Aluminum wire is lighter and more affordable than copper. However, aluminum is not as conductive, requires a larger gauge to carry the same amount of current, and is more prone to oxidation.

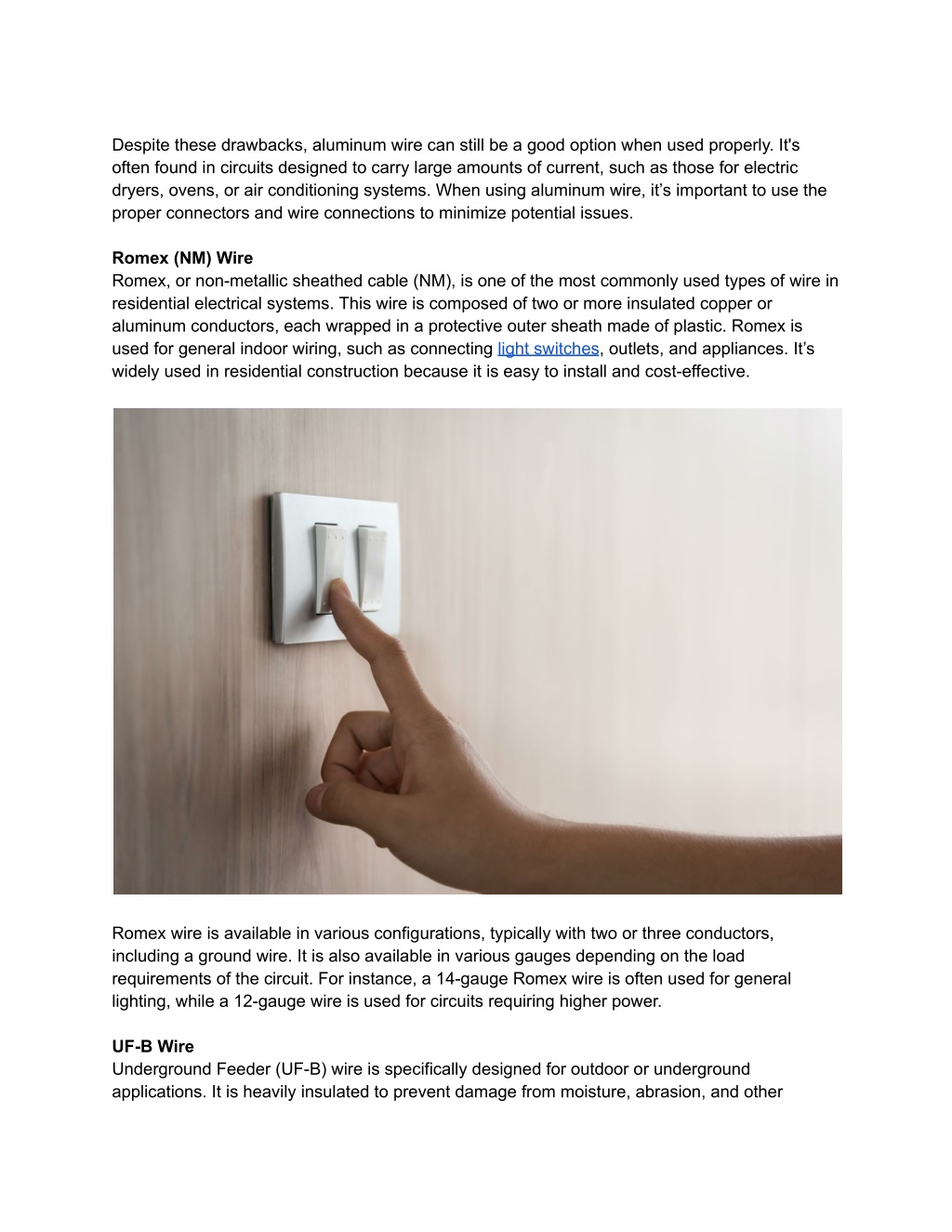

2. Despite these drawbacks, aluminum wire can still be a good option when used properly. It's often found in circuits designed to carry large amounts of current, such as those for electric dryers, ovens, or air conditioning systems. When using aluminum wire, it’s important to use the proper connectors and wire connections to minimize potential issues. Romex (NM) Wire Romex, or non-metallic sheathed cable (NM), is one of the most commonly used types of wire in residential electrical systems. This wire is composed of two or more insulated copper or aluminum conductors, each wrapped in a protective outer sheath made of plastic. Romex is used for general indoor wiring, such as connecting light switches, outlets, and appliances. It’s widely used in residential construction because it is easy to install and cost-effective. Romex wire is available in various configurations, typically with two or three conductors, including a ground wire. It is also available in various gauges depending on the load requirements of the circuit. For instance, a 14-gauge Romex wire is often used for general lighting, while a 12-gauge wire is used for circuits requiring higher power. UF-B Wire Underground Feeder (UF-B) wire is specifically designed for outdoor or underground applications. It is heavily insulated to prevent damage from moisture, abrasion, and other

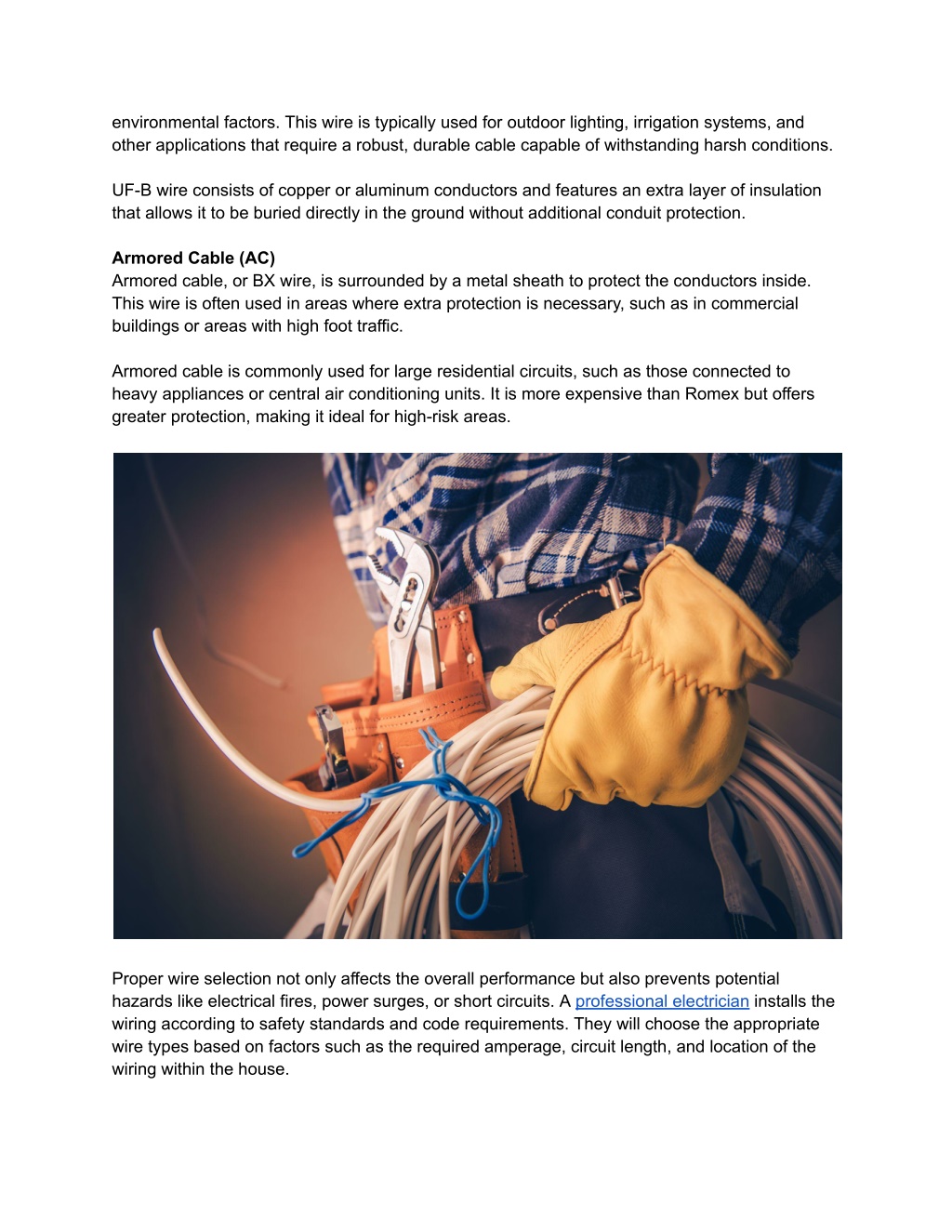

3. environmental factors. This wire is typically used for outdoor lighting, irrigation systems, and other applications that require a robust, durable cable capable of withstanding harsh conditions. UF-B wire consists of copper or aluminum conductors and features an extra layer of insulation that allows it to be buried directly in the ground without additional conduit protection. Armored Cable (AC) Armored cable, or BX wire, is surrounded by a metal sheath to protect the conductors inside. This wire is often used in areas where extra protection is necessary, such as in commercial buildings or areas with high foot traffic. Armored cable is commonly used for large residential circuits, such as those connected to heavy appliances or central air conditioning units. It is more expensive than Romex but offers greater protection, making it ideal for high-risk areas. Proper wire selection not only affects the overall performance but also prevents potential hazards like electrical fires, power surges, or short circuits. A professional electrician installs the wiring according to safety standards and code requirements. They will choose the appropriate wire types based on factors such as the required amperage, circuit length, and location of the wiring within the house.
