GSM Round Cutter RC700

GMS Round cutter is used to determine GSM (Grams per square meter) of any fabric (Woven, Non-woven, or knitted), paper, laminated films, Rexene, and Paper board. This instrument is found in every knitwear industry. In the fabric industry, all fabric quantities are large so the area and mass are not easily calculated so they used various lab instruments. GSM Round Cutter helps cut the fabric in the exact shape and size with the sharp edges of the blades. The quality of the material depends upon the fabric used by the manufacturer. If you want to check the grammage of fabric this instrument is a

Deepak251
Download Presentation

GSM Round Cutter RC700

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

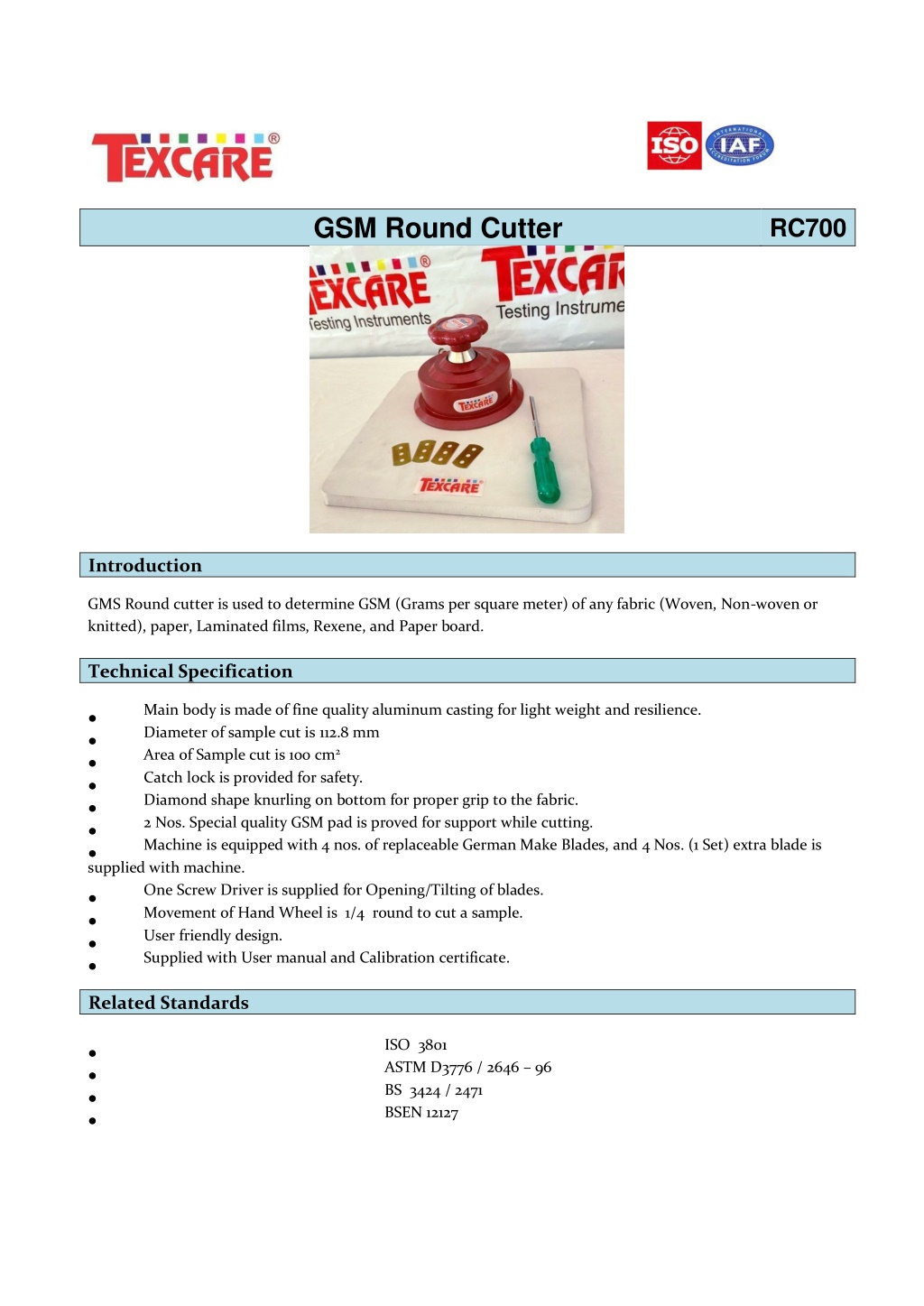

  1. GSM Round Cutter RC700 Introduction GMS Round cutter is used to determine GSM (Grams per square meter) of any fabric (Woven, Non-woven or knitted), paper, Laminated films, Rexene, and Paper board. Technical Specification ● Main body is made of fine quality aluminum casting for light weight and resilience. ● Diameter of sample cut is 112.8 mm ● ● Catch lock is provided for safety. ● Diamond shape knurling on bottom for proper grip to the fabric. ● 2 Nos. Special quality GSM pad is proved for support while cutting. ● Machine is equipped with 4 nos. of replaceable German Make Blades, and 4 Nos. (1 Set) extra blade is supplied with machine. ● One Screw Driver is supplied for Opening/Tilting of blades. ● Movement of Hand Wheel is 1/4 round to cut a sample. ● User friendly design. ● Supplied with User manual and Calibration certificate. Related Standards ● ISO 3801 ● ASTM D3776 / 2646 – 96 ● BS 3424 / 2471 ● BSEN 12127 Area of Sample cut is 100 cm2

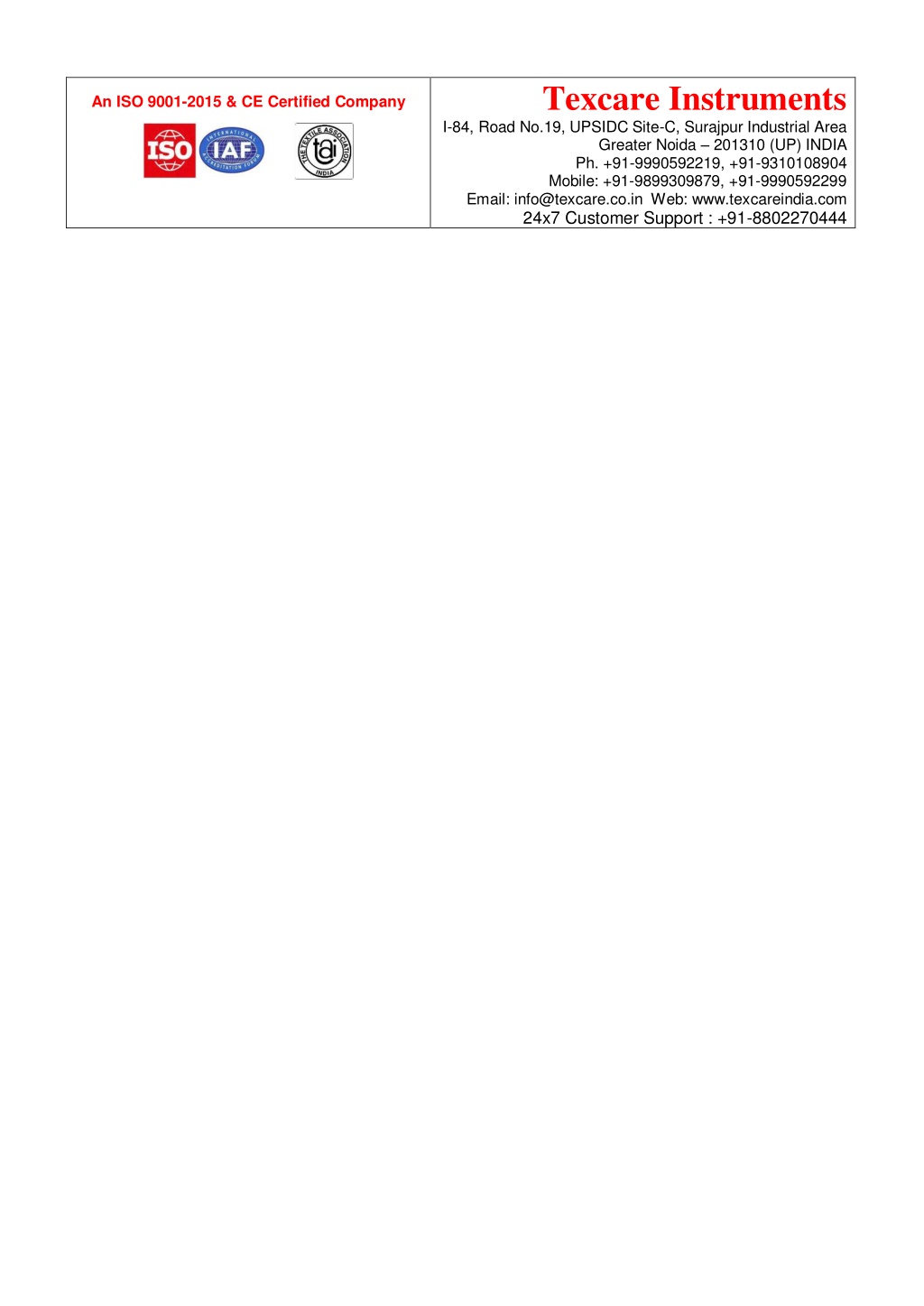

  2. Texcare Instruments I-84, Road No.19, UPSIDC Site-C, Surajpur Industrial Area Greater Noida – 201310 (UP) INDIA Ph. +91-9990592219, +91-9310108904 Mobile: +91-9899309879, +91-9990592299 Email: info@texcare.co.in Web: www.texcareindia.com 24x7 Customer Support : +91-8802270444 An ISO 9001-2015 & CE Certified Company
