GSM Round Cutter (Hydraulic)

Texcare Instruments manufactures a wide range of testing equipment, including the Bursting Strength Tester, Taber Abrasion Tester, and Tensile Testing Machine for HDPE Sacks. Our machines provide industries with highly precise testing results, ensuring compliance with global quality standards. We are committed to continuous improvement, developing advanced solutions that help businesses enhance their quality control processes. With a focus on reliability and efficiency, our instruments are ideal for both laboratory and industrial applications. Texcare Instruments is a trusted name in the indus

Deepak251
Download Presentation

GSM Round Cutter (Hydraulic)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

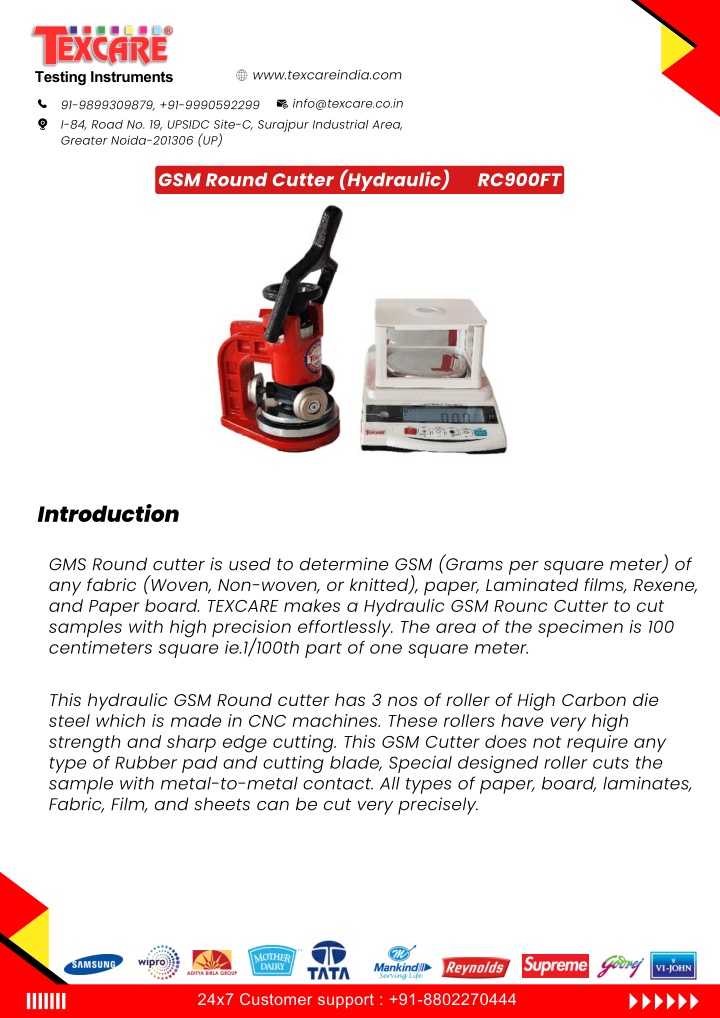

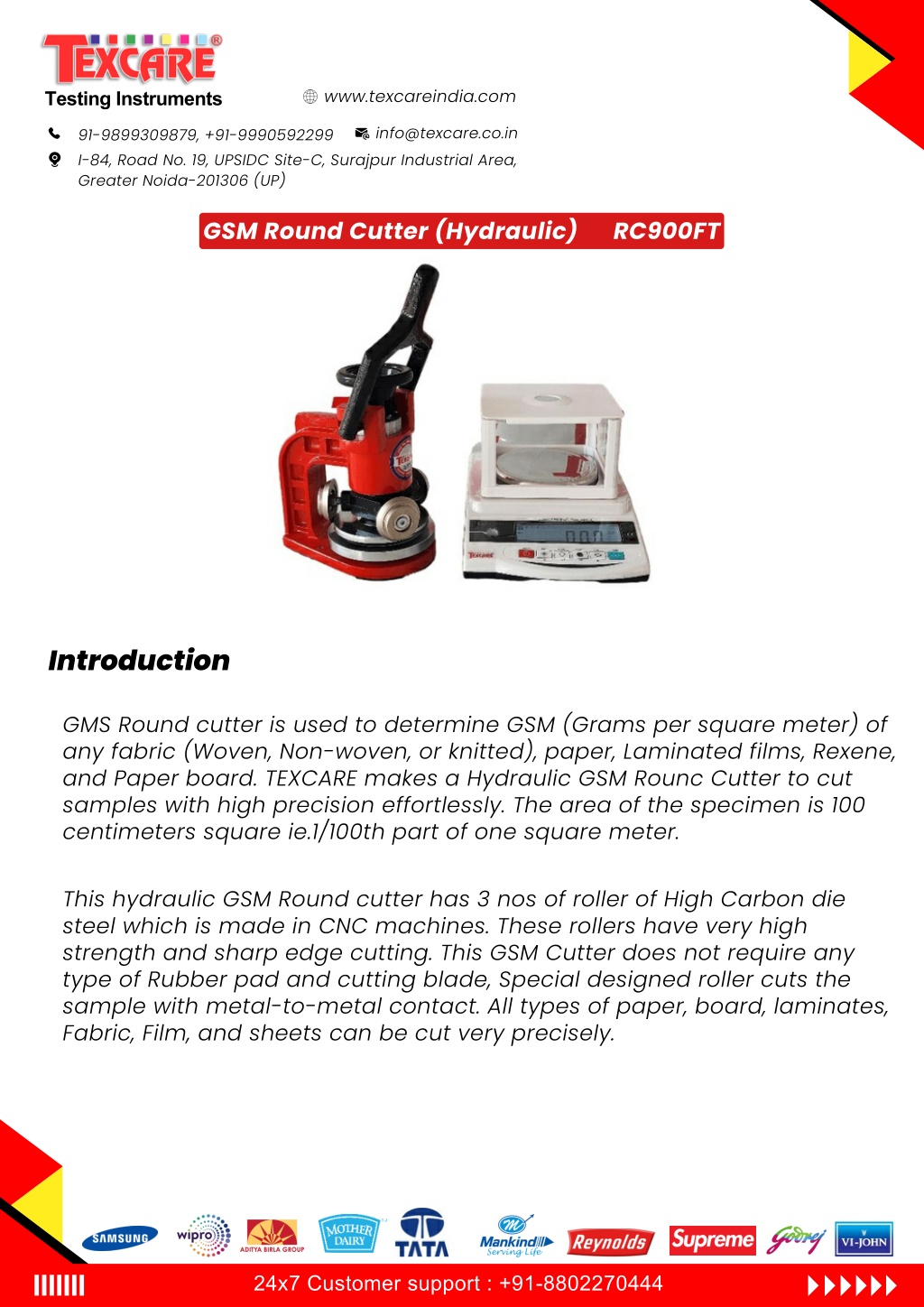

  1. www.texcareindia.com Testing Instruments info@texcare.co.in 91-9899309879, +91-9990592299 I-84, Road No. 19, UPSIDC Site-C, Surajpur Industrial Area, Greater Noida-201306 (UP) GSM Round Cutter (Hydraulic) RC900FT Introduction GMS Round cutter is used to determine GSM (Grams per square meter) of any fabric (Woven, Non-woven, or knitted), paper, Laminated films, Rexene, and Paper board. TEXCARE makes a Hydraulic GSM Rounc Cutter to cut samples with high precision effortlessly. The area of the specimen is 100 centimeters square ie.1/100th part of one square meter. This hydraulic GSM Round cutter has 3 nos of roller of High Carbon die steel which is made in CNC machines. These rollers have very high strength and sharp edge cutting. This GSM Cutter does not require any type of Rubber pad and cutting blade, Special designed roller cuts the sample with metal-to-metal contact. All types of paper, board, laminates, Fabric, Film, and sheets can be cut very precisely. 24x7 Customer support : +91-8802270444

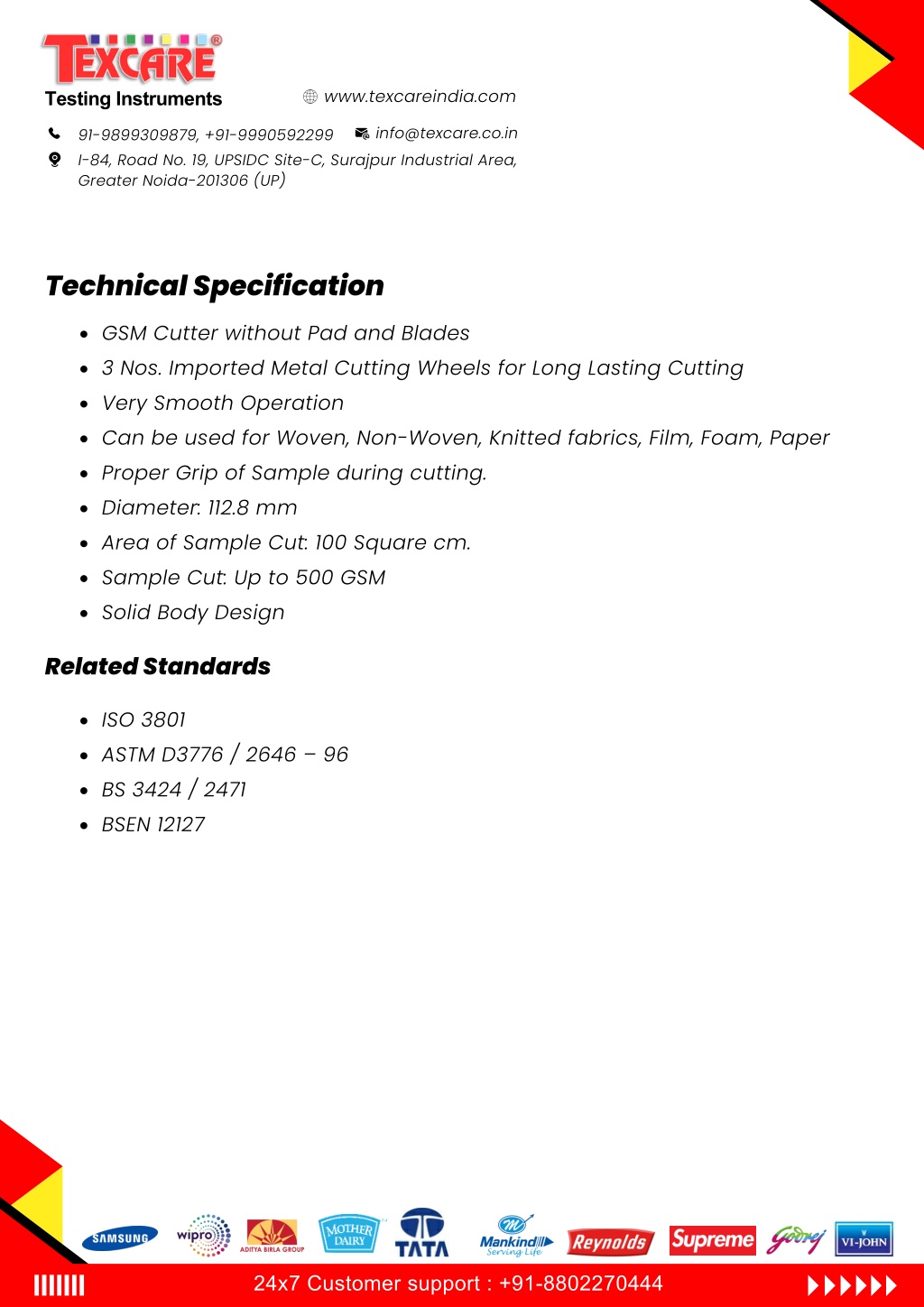

  2. www.texcareindia.com Testing Instruments info@texcare.co.in 91-9899309879, +91-9990592299 I-84, Road No. 19, UPSIDC Site-C, Surajpur Industrial Area, Greater Noida-201306 (UP) Technical Specification GSM Cutter without Pad and Blades 3 Nos. Imported Metal Cutting Wheels for Long Lasting Cutting Very Smooth Operation Can be used for Woven, Non-Woven, Knitted fabrics, Film, Foam, Paper Proper Grip of Sample during cutting. Diameter: 112.8 mm Area of Sample Cut: 100 Square cm. Sample Cut: Up to 500 GSM Solid Body Design Related Standards ISO 3801 ASTM D3776 / 2646 – 96 BS 3424 / 2471 BSEN 12127 24x7 Customer support : +91-8802270444
