De-Mattia Flex Tester

Texcare Instruments is at the forefront of material testing technology, manufacturing industry-leading machines such as the Package Drop Tester, Melt Flow Index, and Button Snap Pull Tester. Our instruments are designed to provide detailed material analysis, helping businesses optimize product quality. We integrate advanced technology into our equipment to ensure precise, reliable, and repeatable testing results. Our solutions are widely used in laboratories and manufacturing facilities, enabling businesses to maintain consistent product performance. Texcare Instruments remains dedicated to pr

Deepak251
Download Presentation

De-Mattia Flex Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

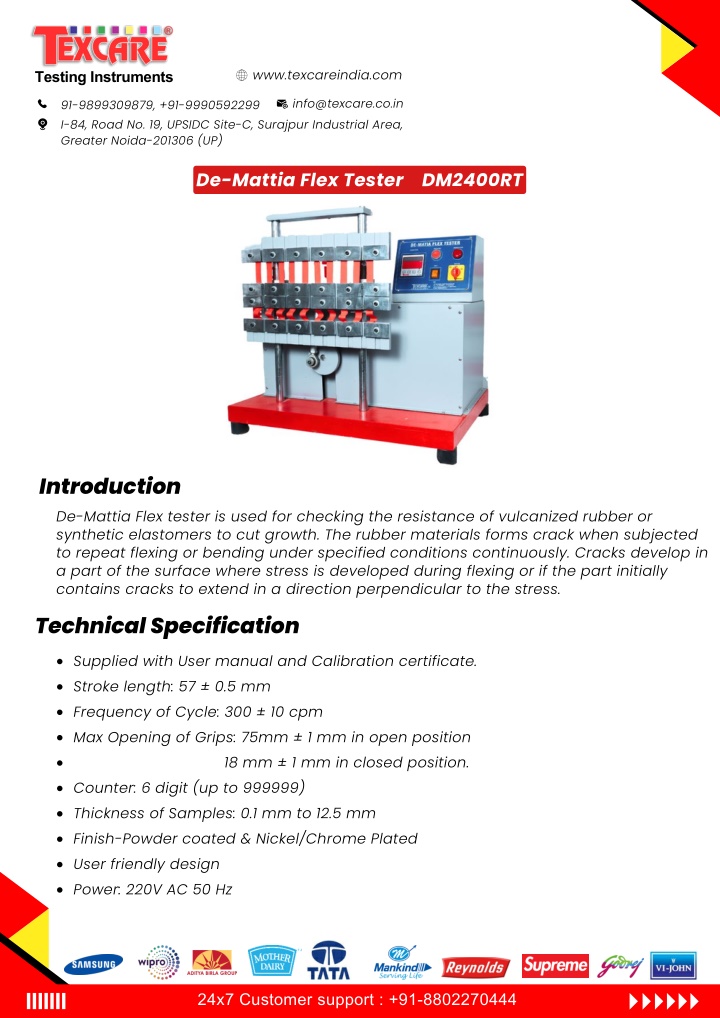

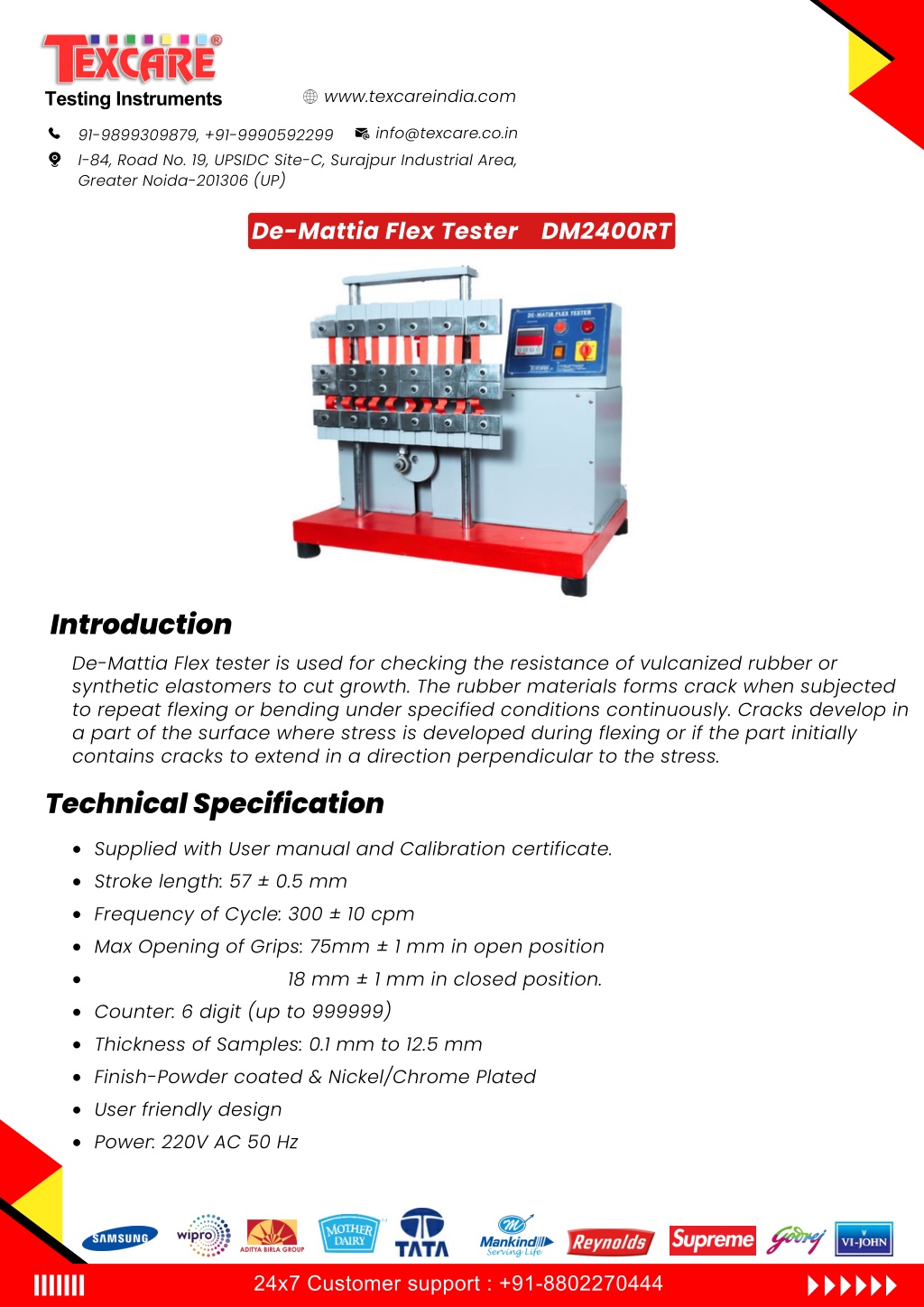

  1. www.texcareindia.com Testing Instruments info@texcare.co.in 91-9899309879, +91-9990592299 I-84, Road No. 19, UPSIDC Site-C, Surajpur Industrial Area, Greater Noida-201306 (UP) De-Mattia Flex Tester DM2400RT Introduction De-Mattia Flex tester is used for checking the resistance of vulcanized rubber or synthetic elastomers to cut growth. The rubber materials forms crack when subjected to repeat flexing or bending under specified conditions continuously. Cracks develop in a part of the surface where stress is developed during flexing or if the part initially contains cracks to extend in a direction perpendicular to the stress. Technical Specification Supplied with User manual and Calibration certificate. Stroke length: 57 ± 0.5 mm Frequency of Cycle: 300 ± 10 cpm Max Opening of Grips: 75mm ± 1 mm in open position 18 mm ± 1 mm in closed position. Counter: 6 digit (up to 999999) Thickness of Samples: 0.1 mm to 12.5 mm Finish-Powder coated & Nickel/Chrome Plated User friendly design Power: 220V AC 50 Hz 24x7 Customer support : +91-8802270444

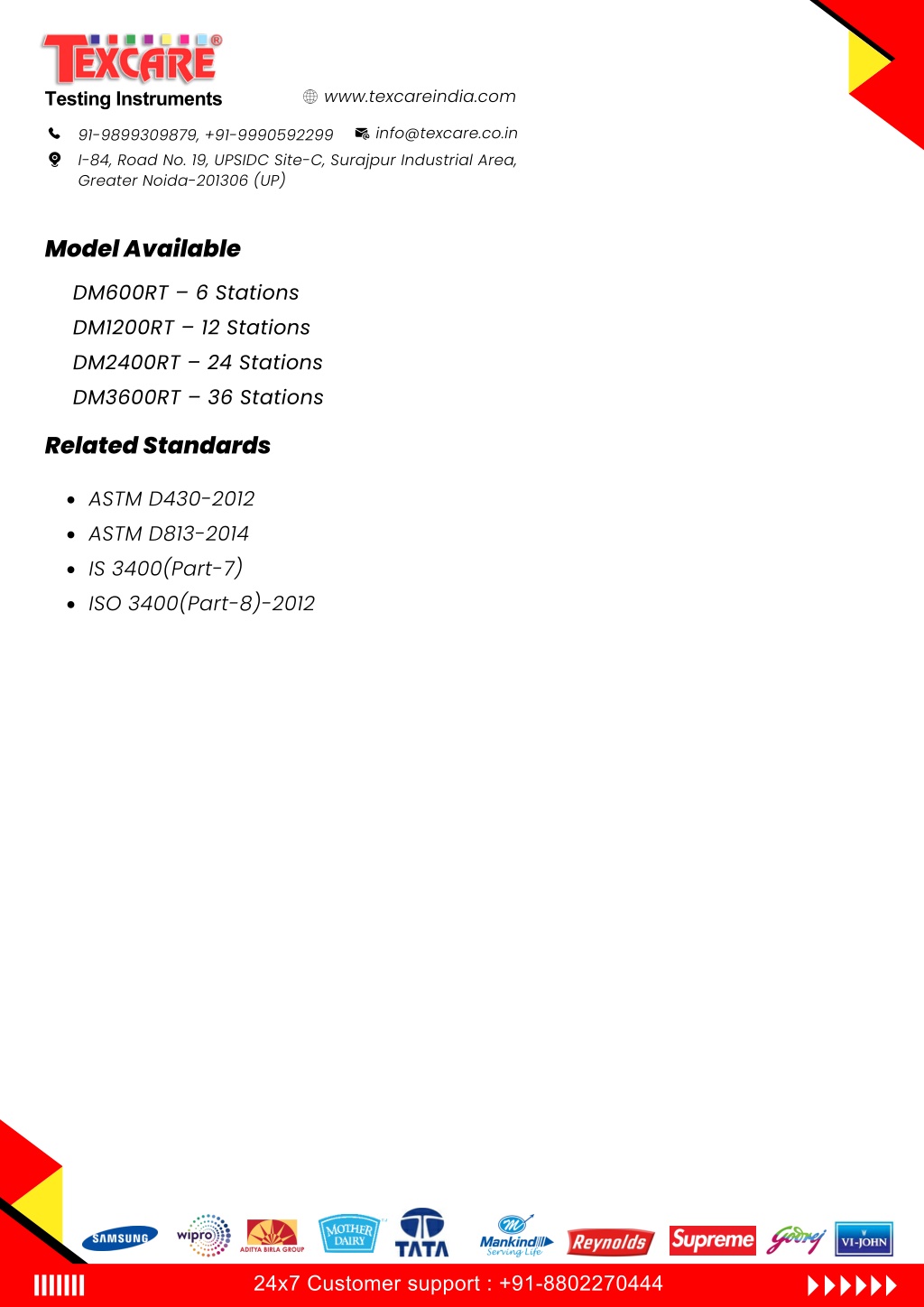

  2. www.texcareindia.com Testing Instruments info@texcare.co.in 91-9899309879, +91-9990592299 I-84, Road No. 19, UPSIDC Site-C, Surajpur Industrial Area, Greater Noida-201306 (UP) Model Available DM600RT – 6 Stations DM1200RT – 12 Stations DM2400RT – 24 Stations DM3600RT – 36 Stations Related Standards ASTM D430-2012 ASTM D813-2014 IS 3400(Part-7) ISO 3400(Part-8)-2012 24x7 Customer support : +91-8802270444
