  1. Introduction to infrared thermography What is thermography and how can we use it? An introduction to the technology and some important applications for it. ITC Level 1 Training © Publ. no. 1560097_G-en_GB

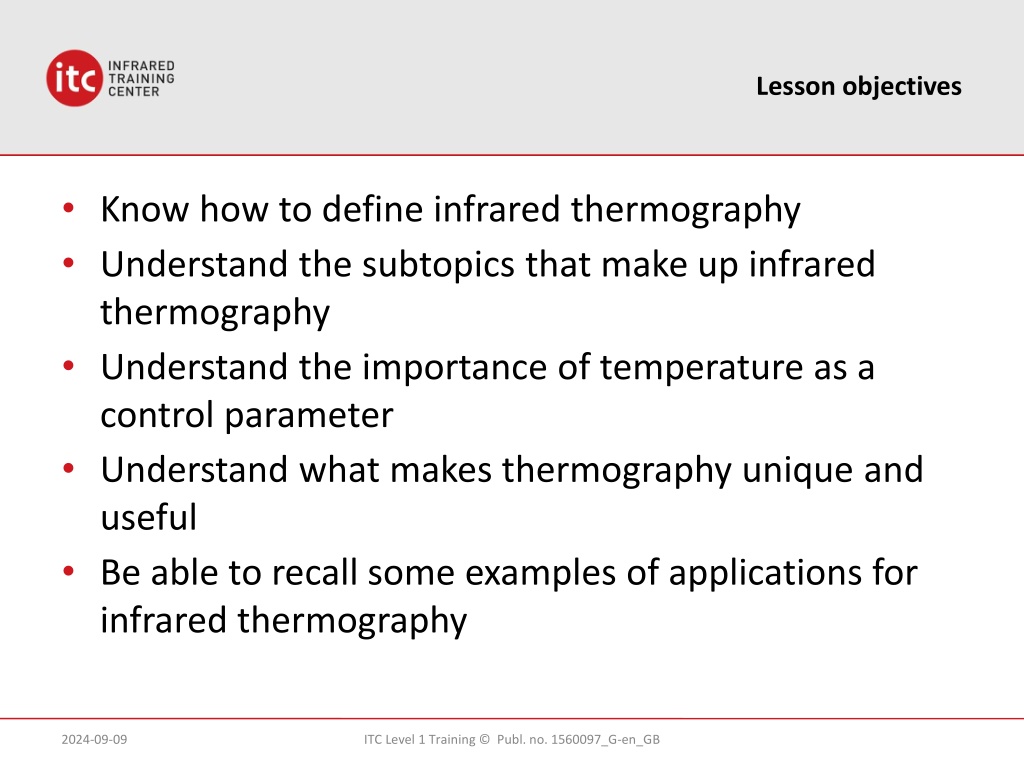

  2. Lesson objectives Know how to define infrared thermography Understand the subtopics that make up infrared thermography Understand the importance of temperature as a control parameter Understand what makes thermography unique and useful Be able to recall some examples of applications for infrared thermography ITC Level 1 Training © Publ. no. 1560097_G-en_GB

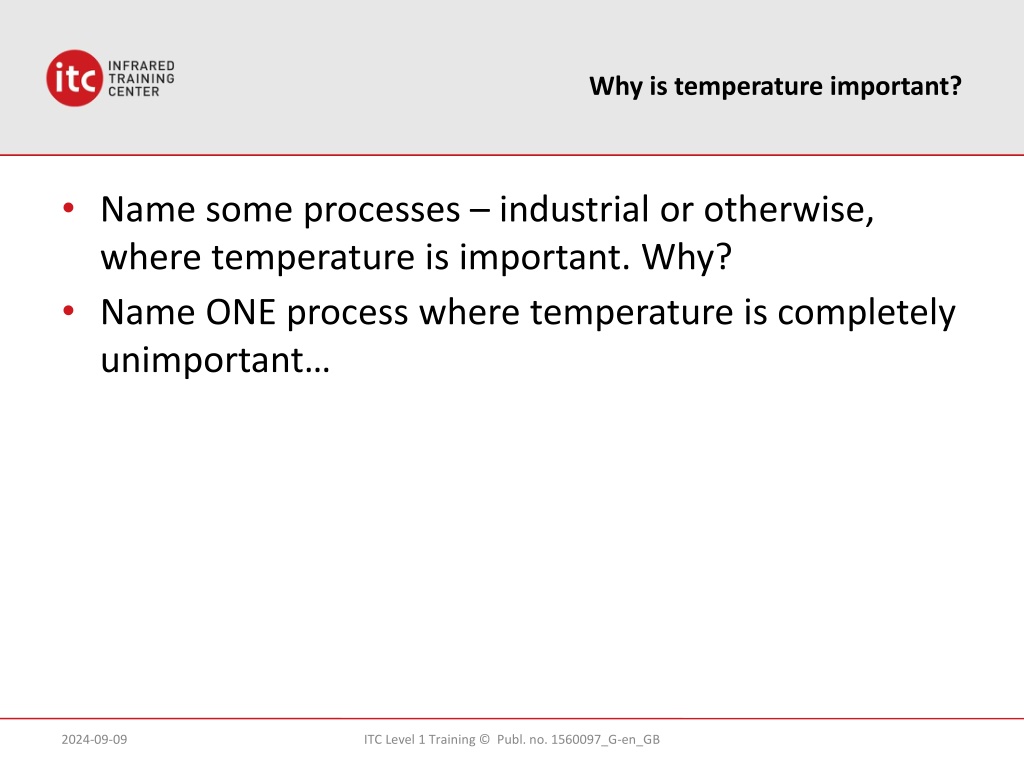

  3. Why is temperature important? Name some processes – industrial or otherwise, where temperature is important. Why? Name ONE process where temperature is completely unimportant… ITC Level 1 Training © Publ. no. 1560097_G-en_GB

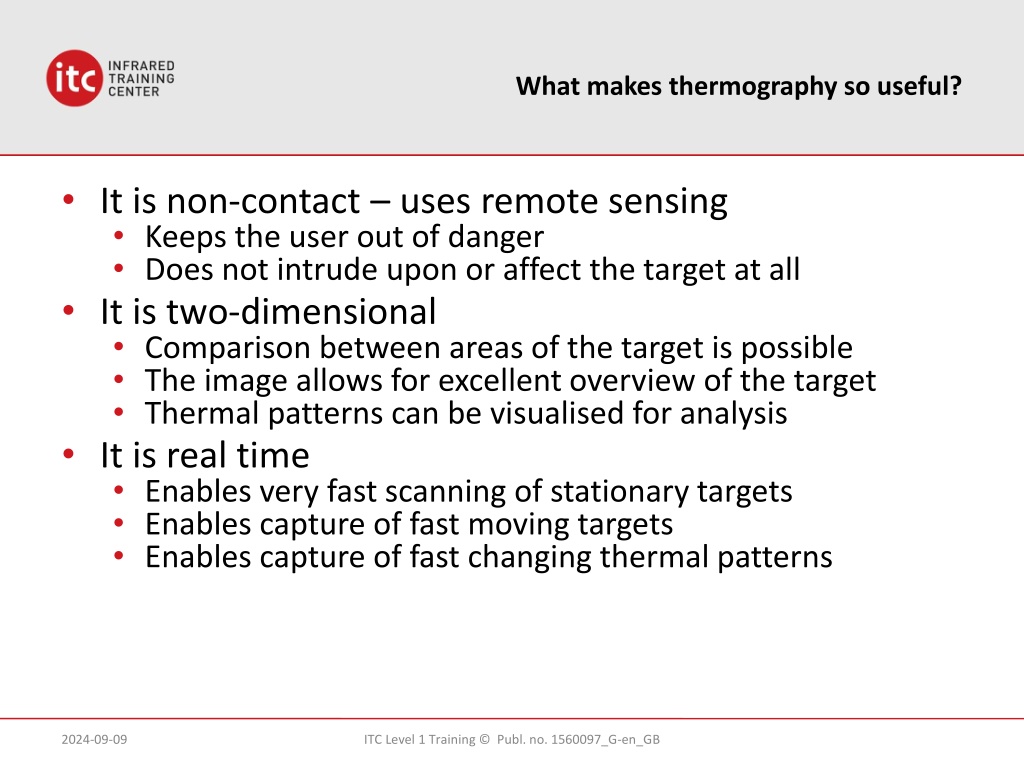

  4. What makes thermography so useful? • It is non-contact – uses remote sensing • Keeps the user out of danger • Does not intrude upon or affect the target at all • It is two-dimensional • Comparison between areas of the target is possible • The image allows for excellent overview of the target • Thermal patterns can be visualised for analysis • It is real time • Enables very fast scanning of stationary targets • Enables capture of fast moving targets • Enables capture of fast changing thermal patterns ITC Level 1 Training © Publ. no. 1560097_G-en_GB

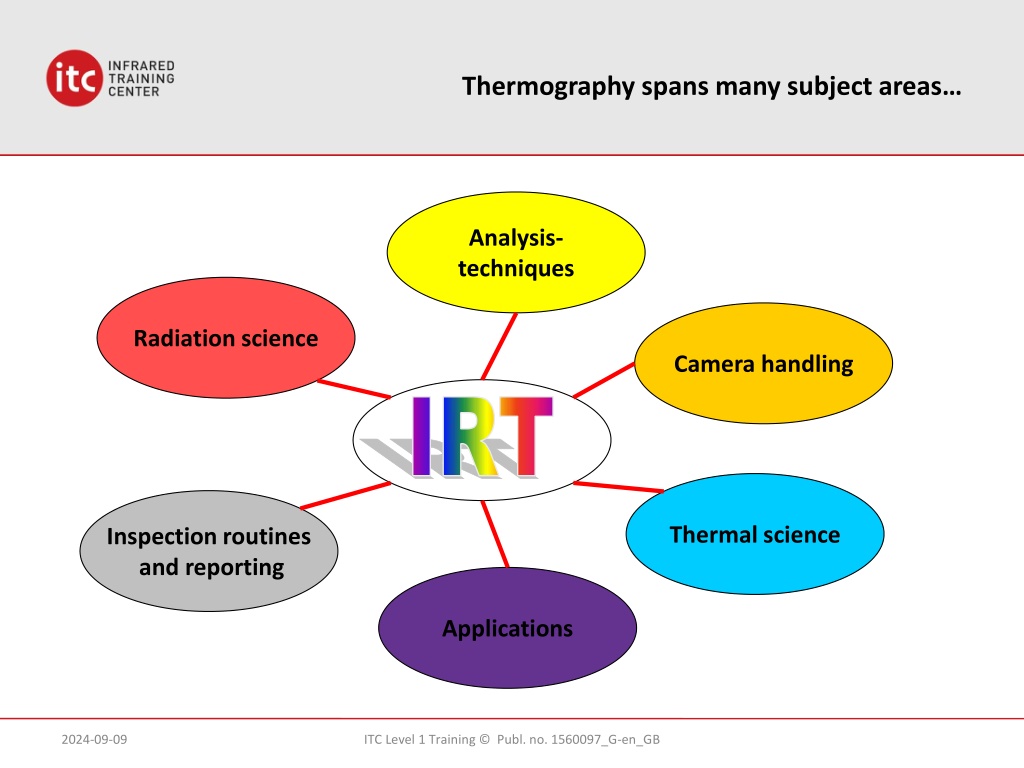

  5. Thermography spans many subject areas… Analysis- techniques Radiation science Camera handling IRT Thermal science Inspection routines and reporting Applications ITC Level 1 Training © Publ. no. 1560097_G-en_GB

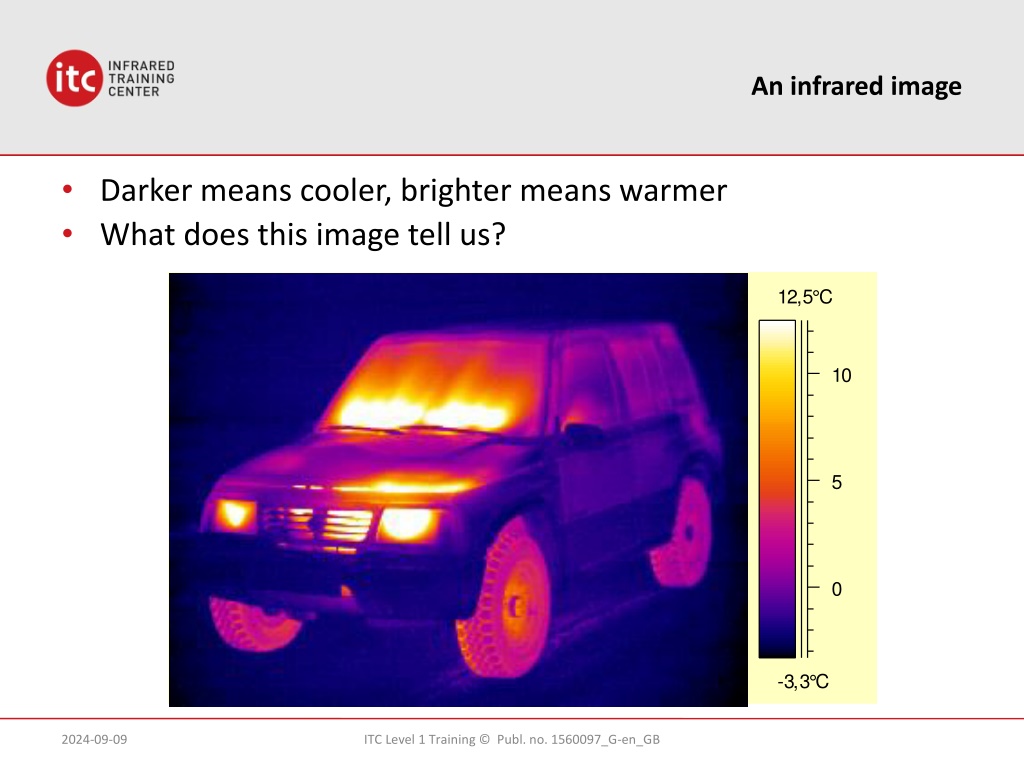

  6. An infrared image • Darker means cooler, brighter means warmer • What does this image tell us? ITC Level 1 Training © Publ. no. 1560097_G-en_GB

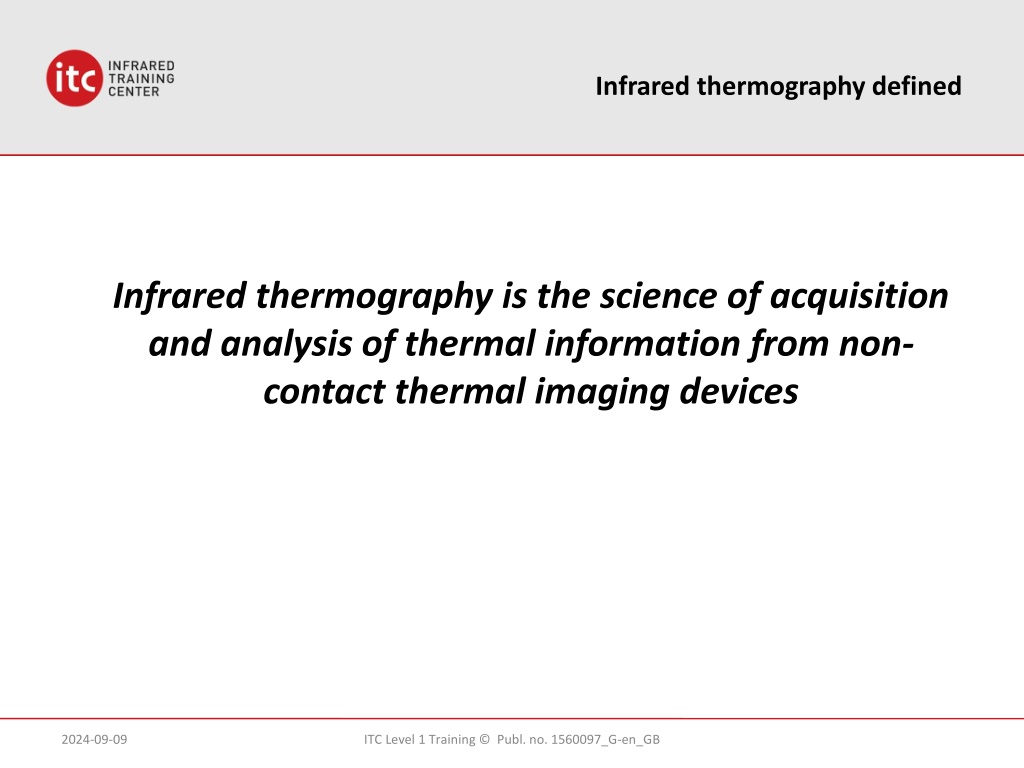

  7. Infrared thermography defined Infrared thermography is the science of acquisition and analysis of thermal information from non-contact thermal imaging devices ITC Level 1 Training © Publ. no. 1560097_G-en_GB

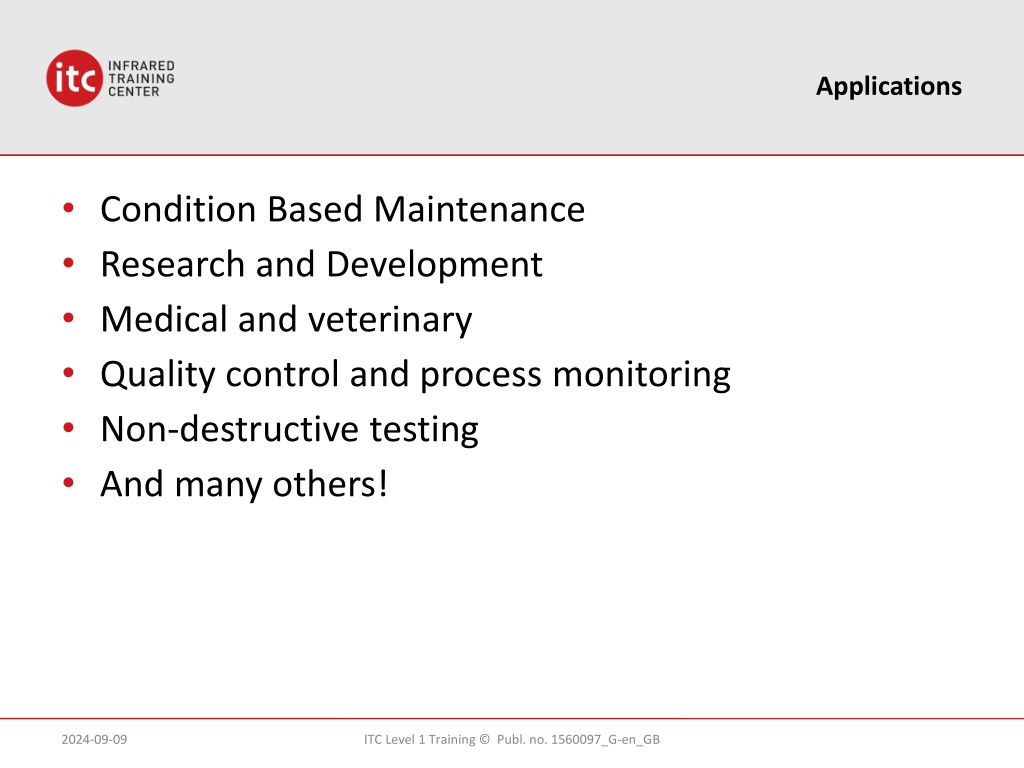

  8. Applications Condition Based Maintenance Research and Development Medical and veterinary Quality control and process monitoring Non-destructive testing And many others! ITC Level 1 Training © Publ. no. 1560097_G-en_GB

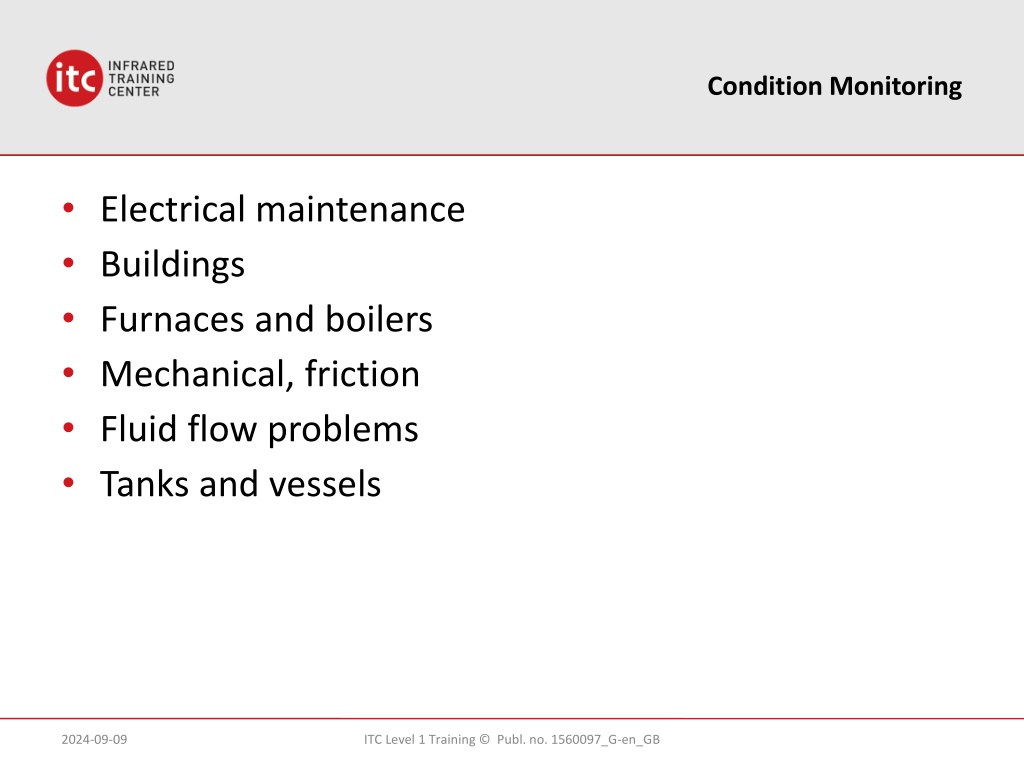

  9. Condition Monitoring Electrical maintenance Buildings Furnaces and boilers Mechanical, friction Fluid flow problems Tanks and vessels ITC Level 1 Training © Publ. no. 1560097_G-en_GB

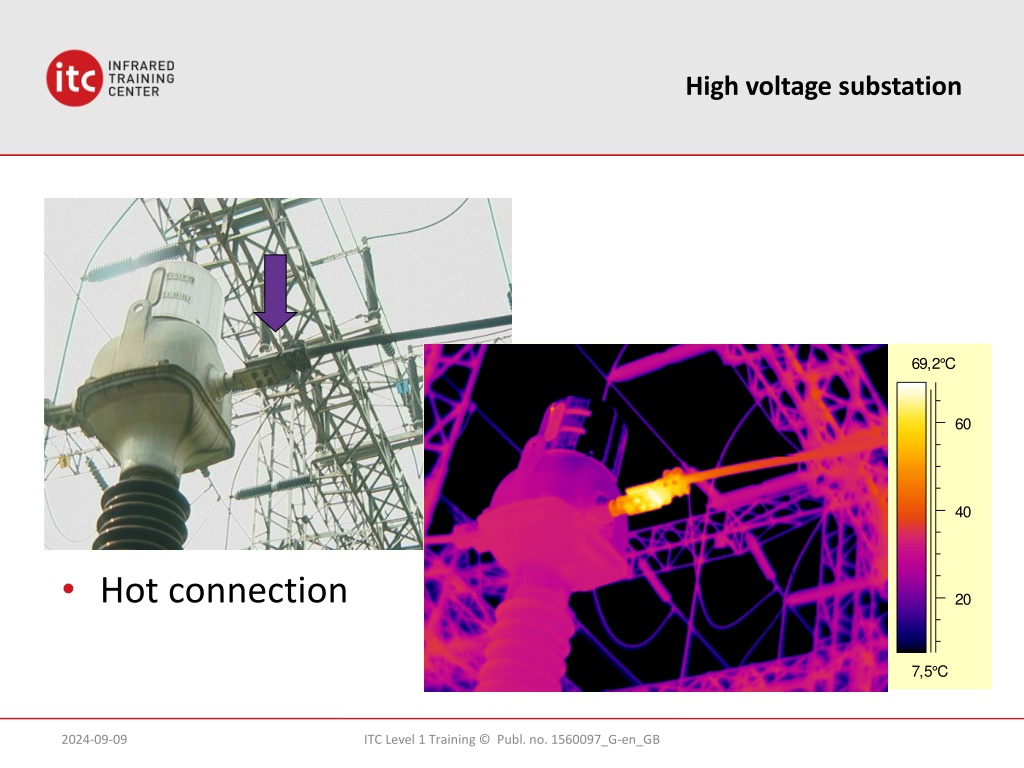

  10. High voltage substation • Hot connection ITC Level 1 Training © Publ. no. 1560097_G-en_GB

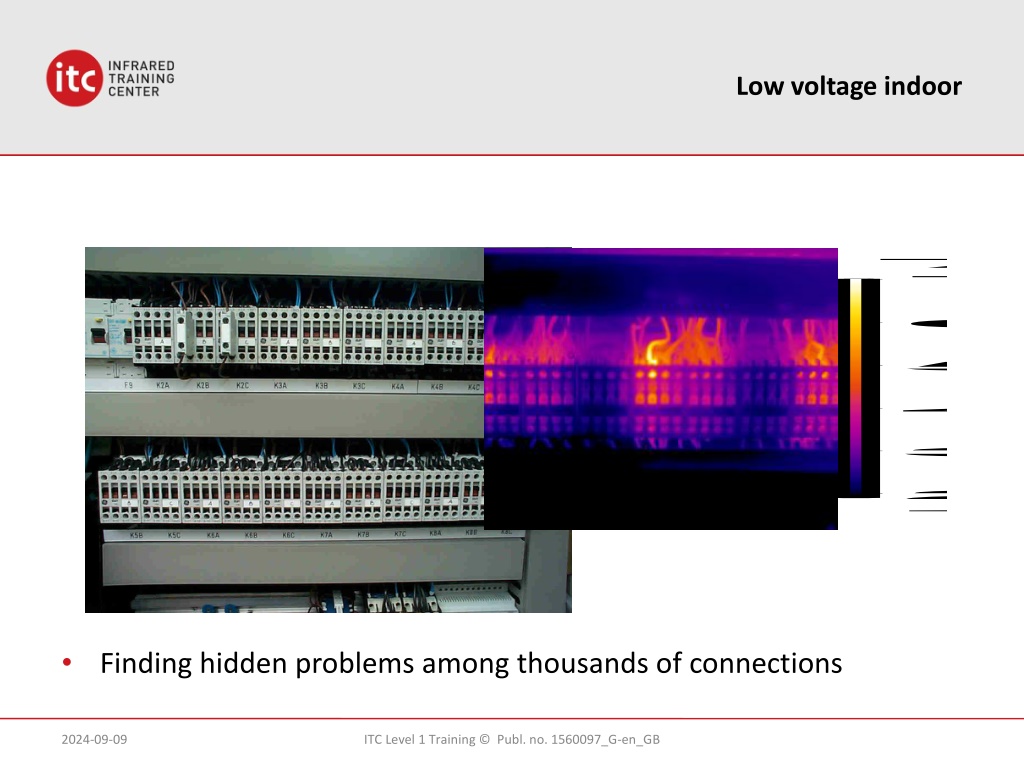

  11. Low voltage indoor • Finding hidden problems among thousands of connections ITC Level 1 Training © Publ. no. 1560097_G-en_GB

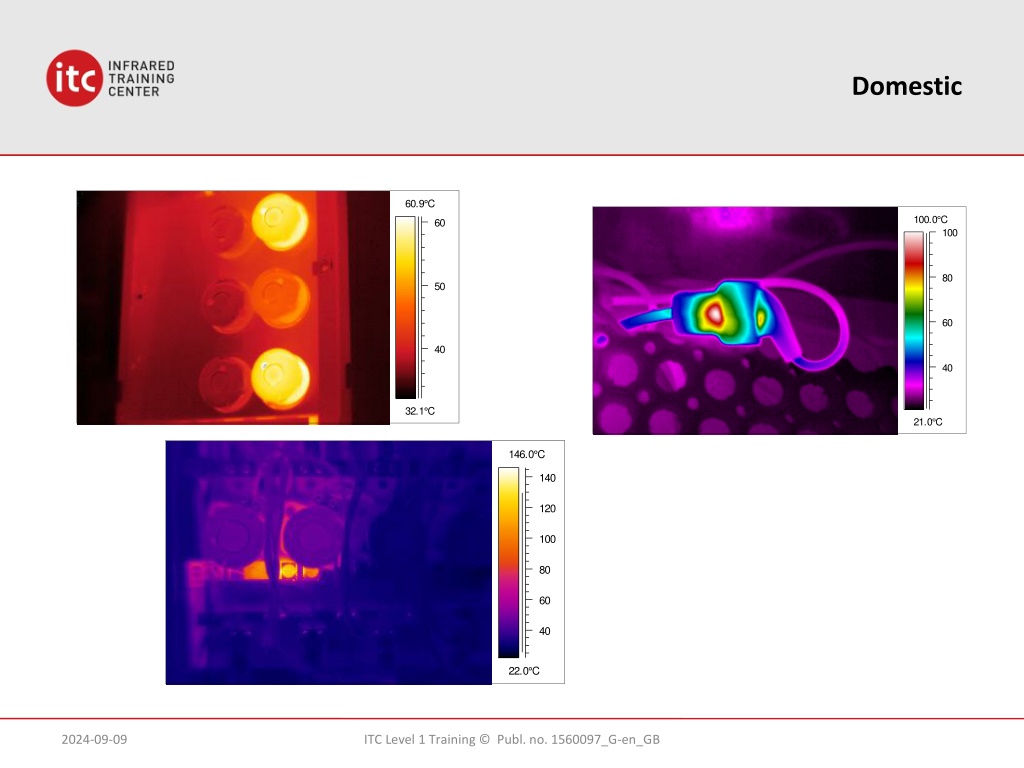

  12. Domestic ITC Level 1 Training © Publ. no. 1560097_G-en_GB

  13. Pipe sediment • Sediment in a pipe creates a cold spot ITC Level 1 Training © Publ. no. 1560097_G-en_GB

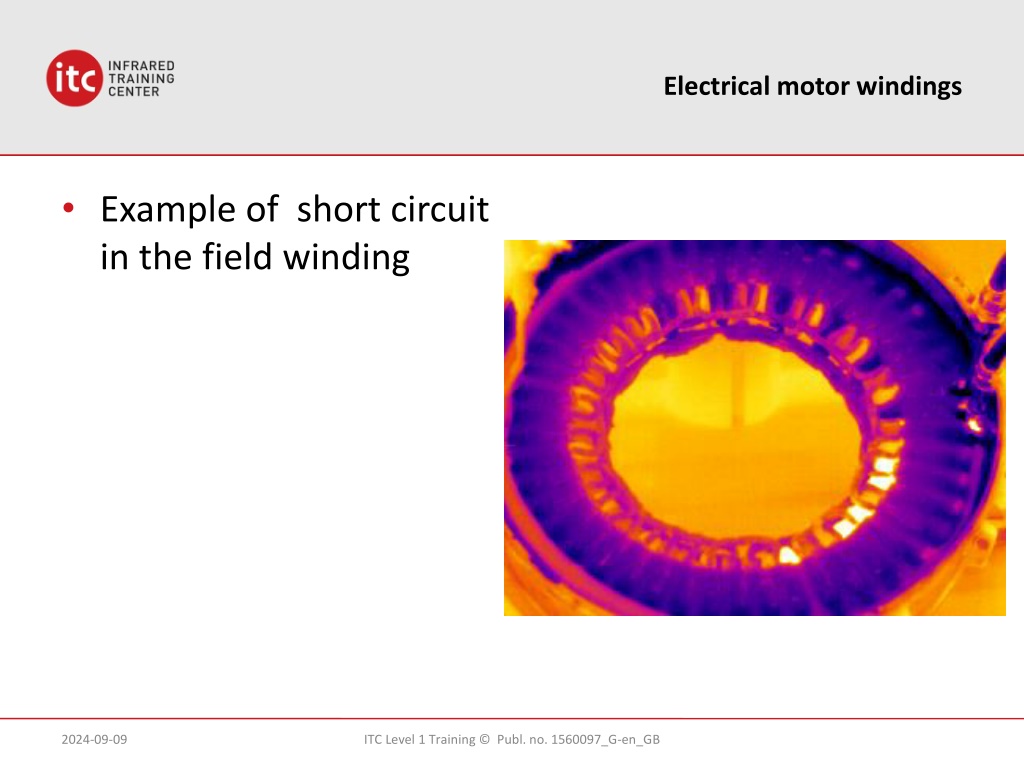

  14. Electrical motor windings • Example of short circuit in the field winding ITC Level 1 Training © Publ. no. 1560097_G-en_GB

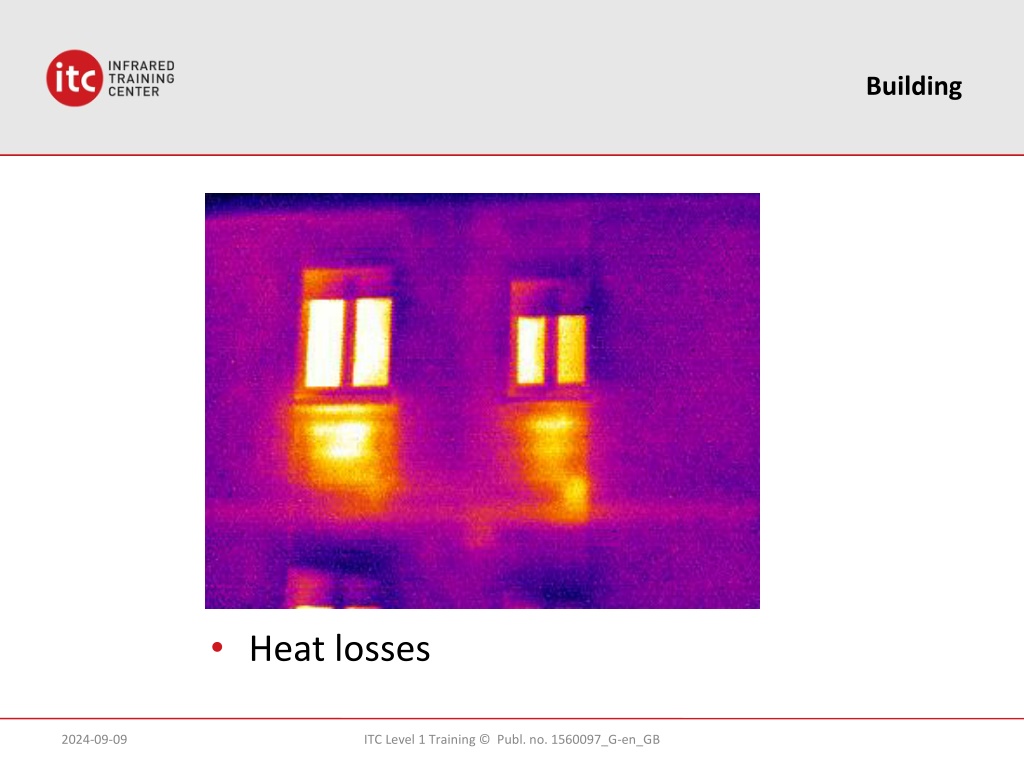

  15. Building Heat losses ITC Level 1 Training © Publ. no. 1560097_G-en_GB

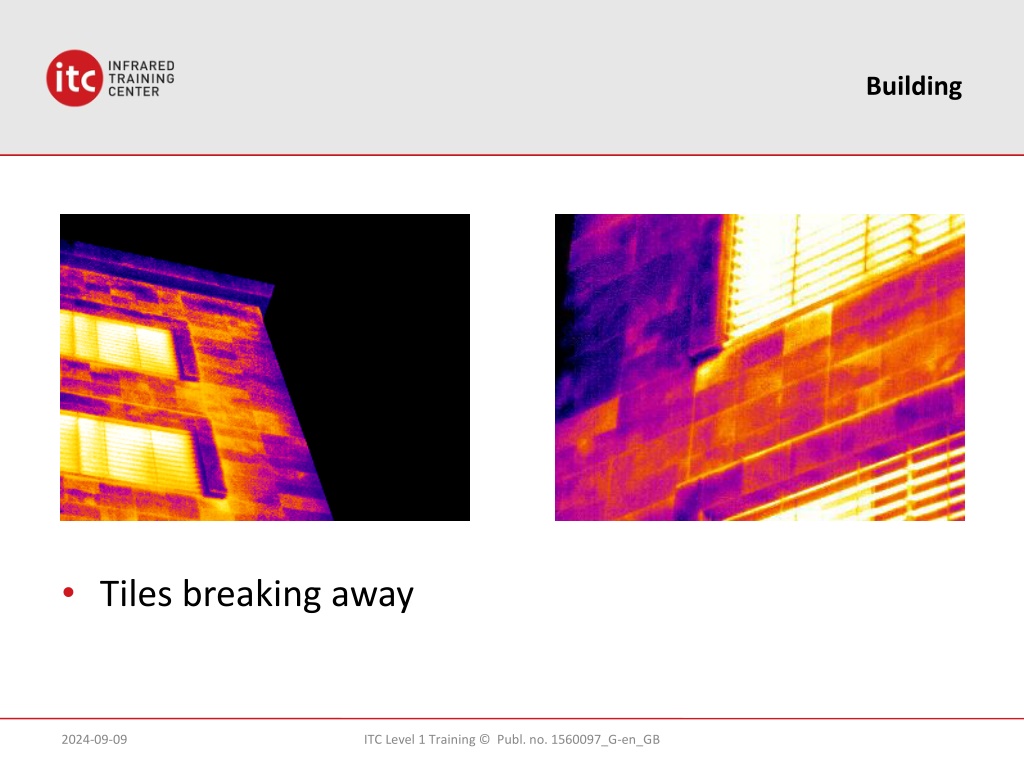

  16. Building Tiles breaking away ITC Level 1 Training © Publ. no. 1560097_G-en_GB

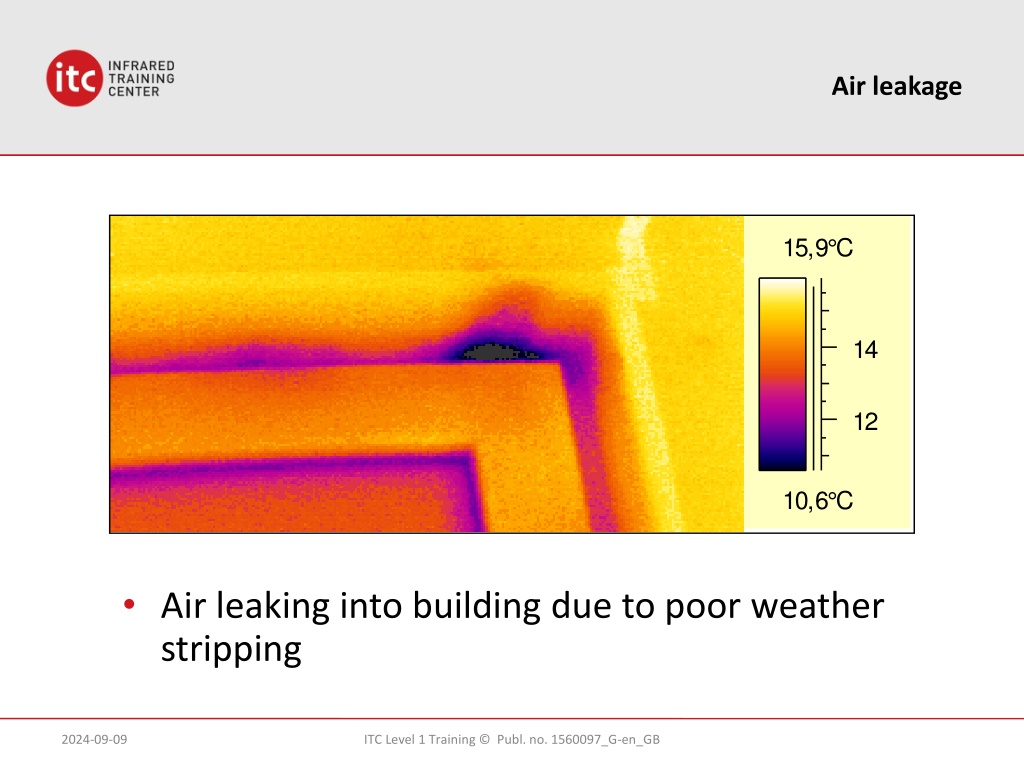

  17. Air leakage Air leaking into building due to poor weather stripping ITC Level 1 Training © Publ. no. 1560097_G-en_GB

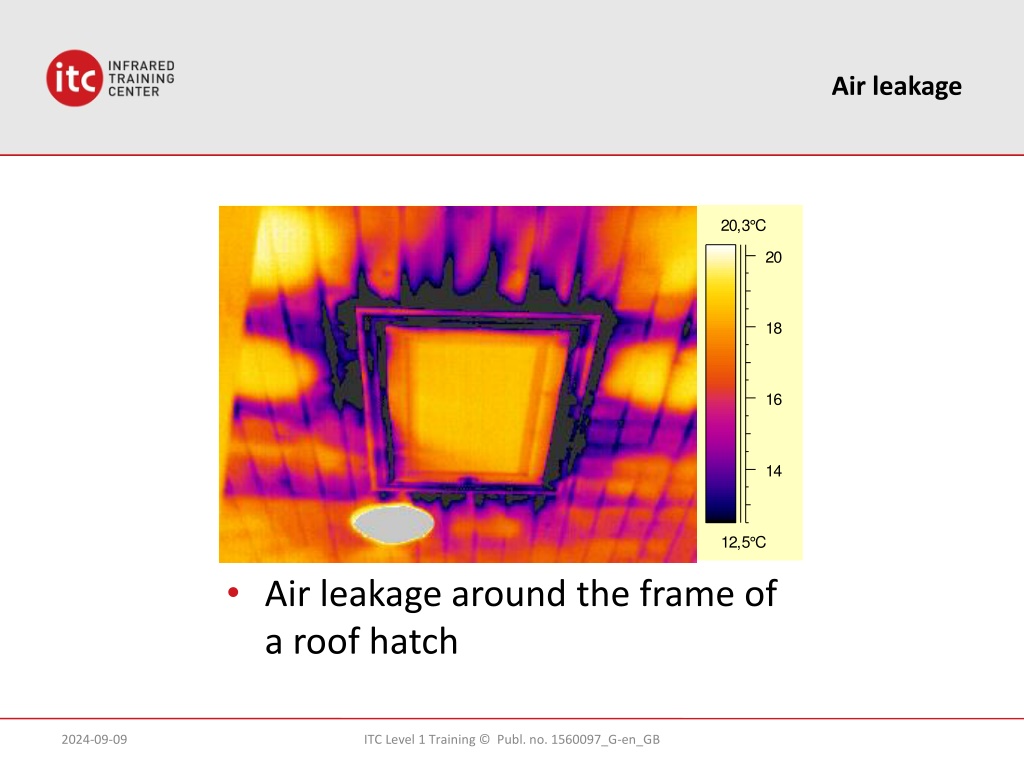

  18. Air leakage Air leakage around the frame of a roof hatch ITC Level 1 Training © Publ. no. 1560097_G-en_GB

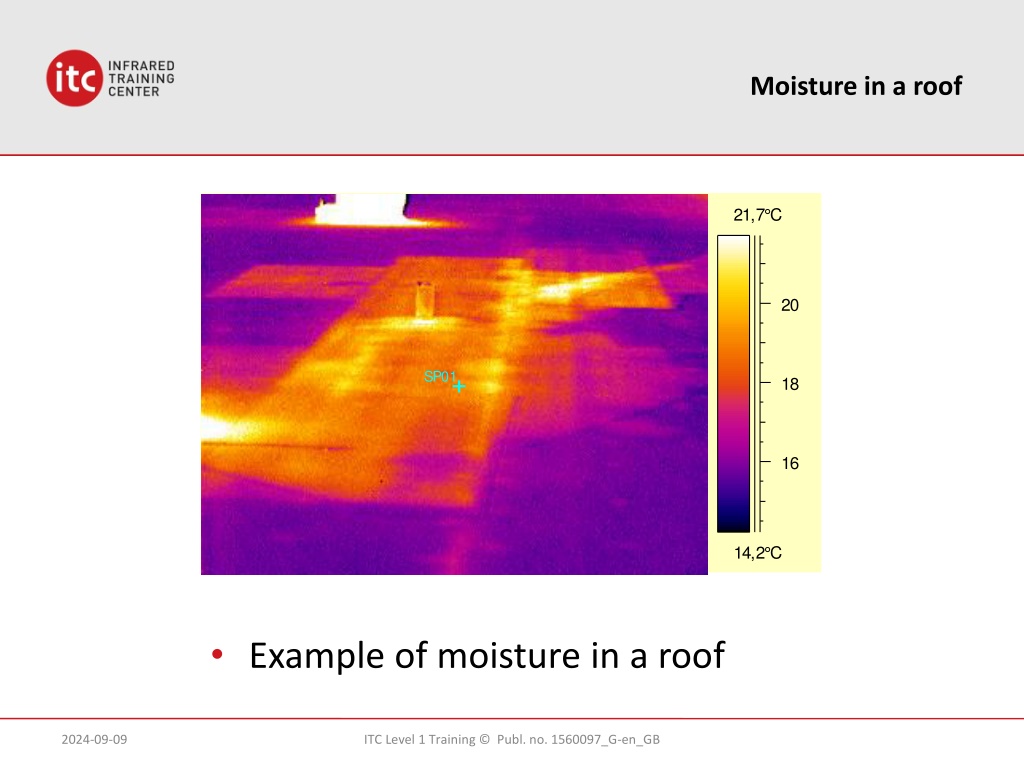

  19. Moisture in a roof Example of moisture in a roof ITC Level 1 Training © Publ. no. 1560097_G-en_GB

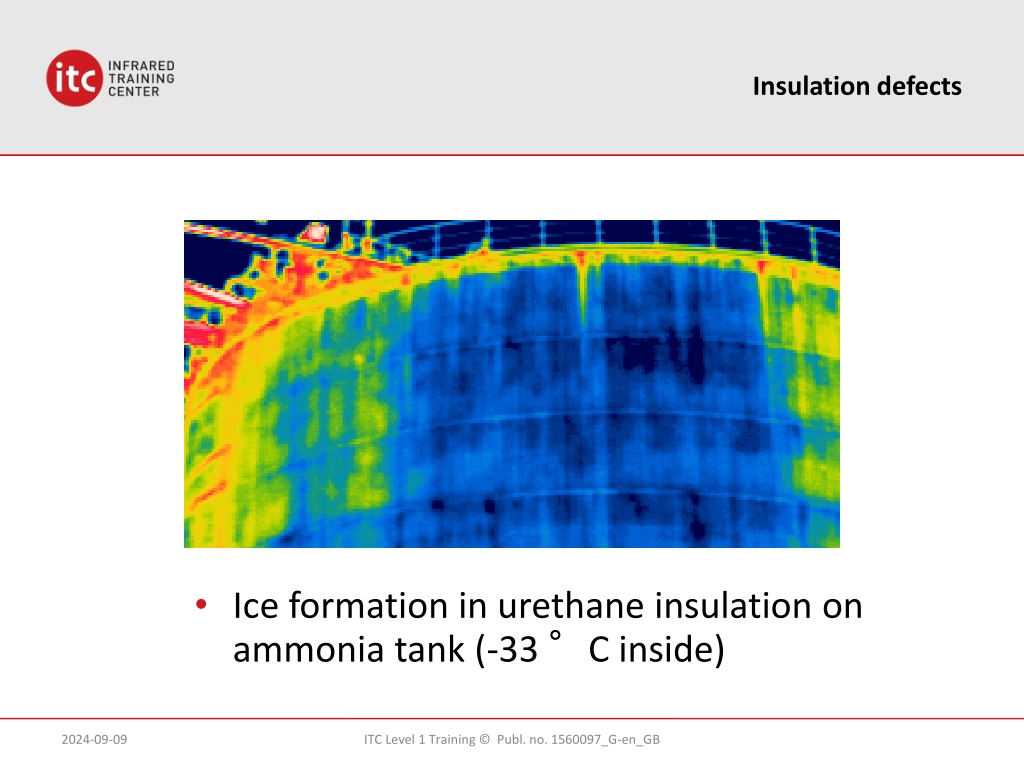

  20. Insulation defects Ice formation in urethane insulation on ammonia tank (-33 °C inside) ITC Level 1 Training © Publ. no. 1560097_G-en_GB

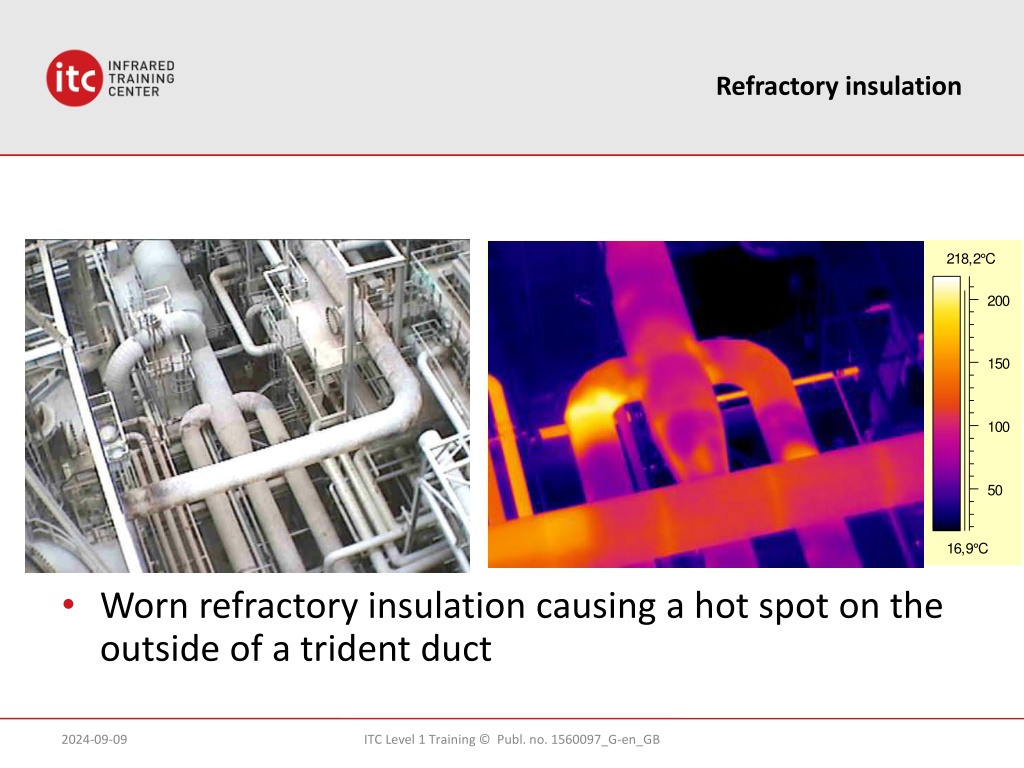

  21. Refractory insulation Worn refractory insulation causing a hot spot on the outside of a trident duct ITC Level 1 Training © Publ. no. 1560097_G-en_GB

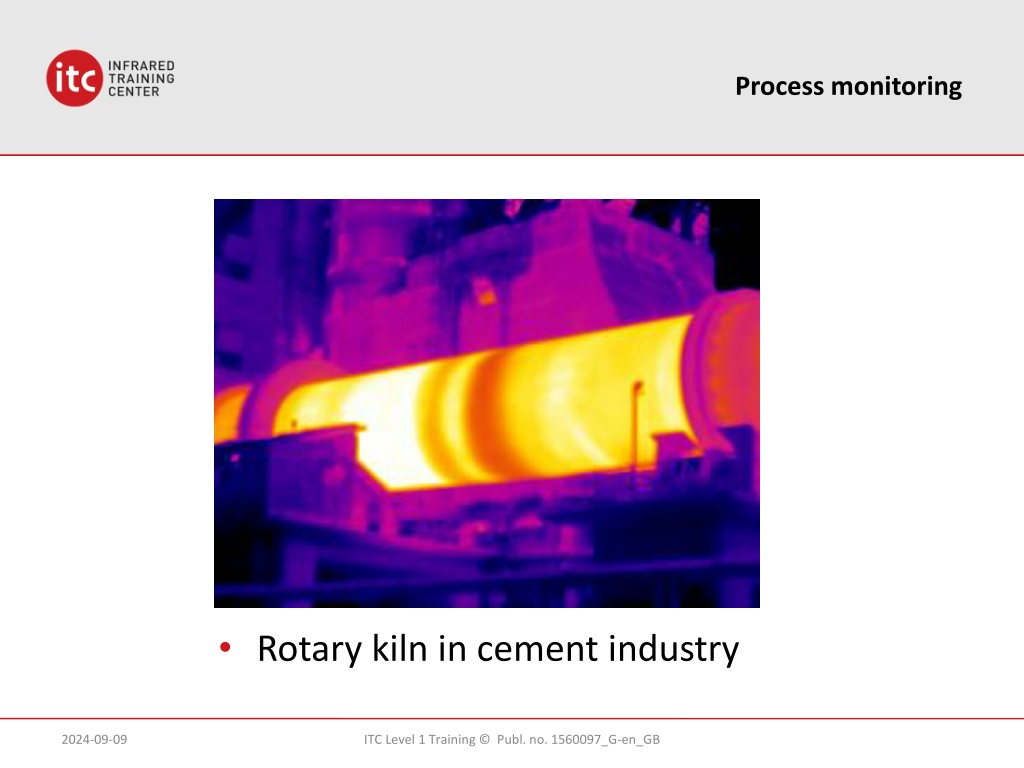

  22. Process monitoring Rotary kiln in cement industry ITC Level 1 Training © Publ. no. 1560097_G-en_GB

  23. Furnaces Furnace tubes and burners ITC Level 1 Training © Publ. no. 1560097_G-en_GB

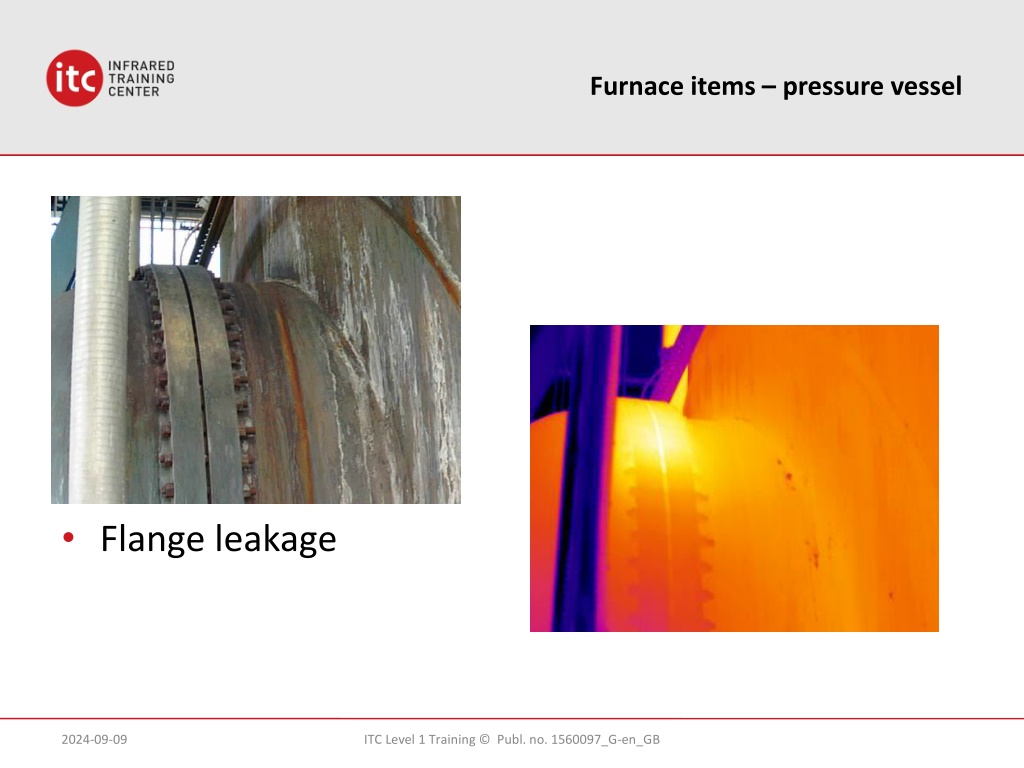

  24. Furnace items – pressure vessel Flange leakage ITC Level 1 Training © Publ. no. 1560097_G-en_GB

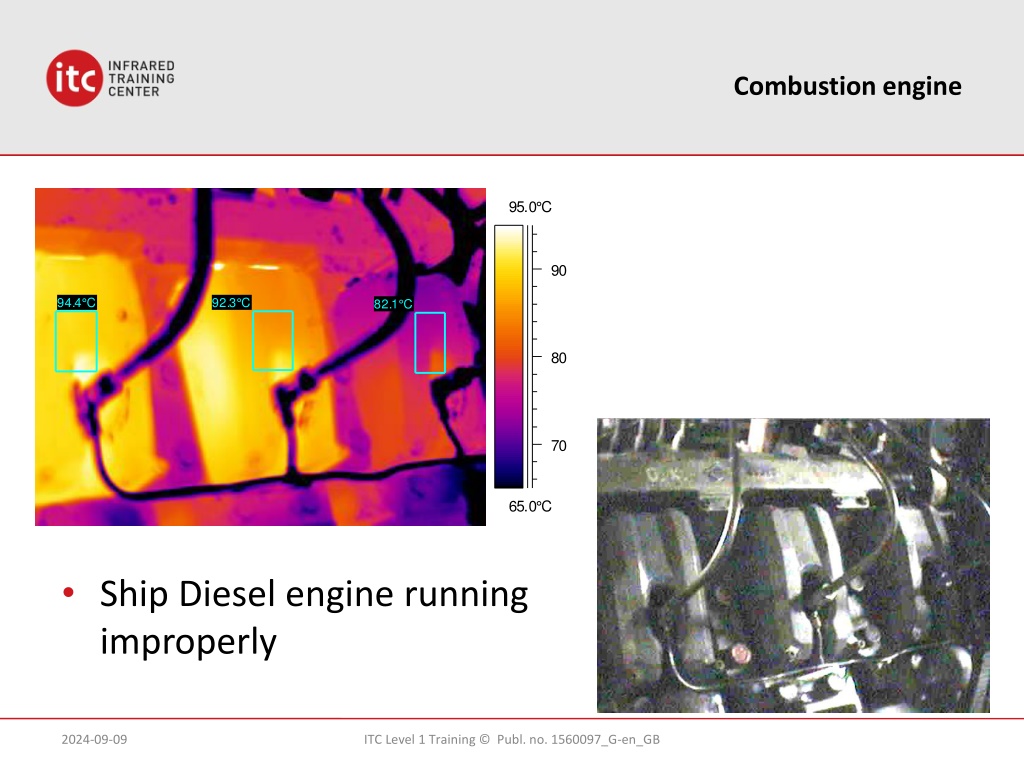

  25. Combustion engine Ship Diesel engine running improperly ITC Level 1 Training © Publ. no. 1560097_G-en_GB

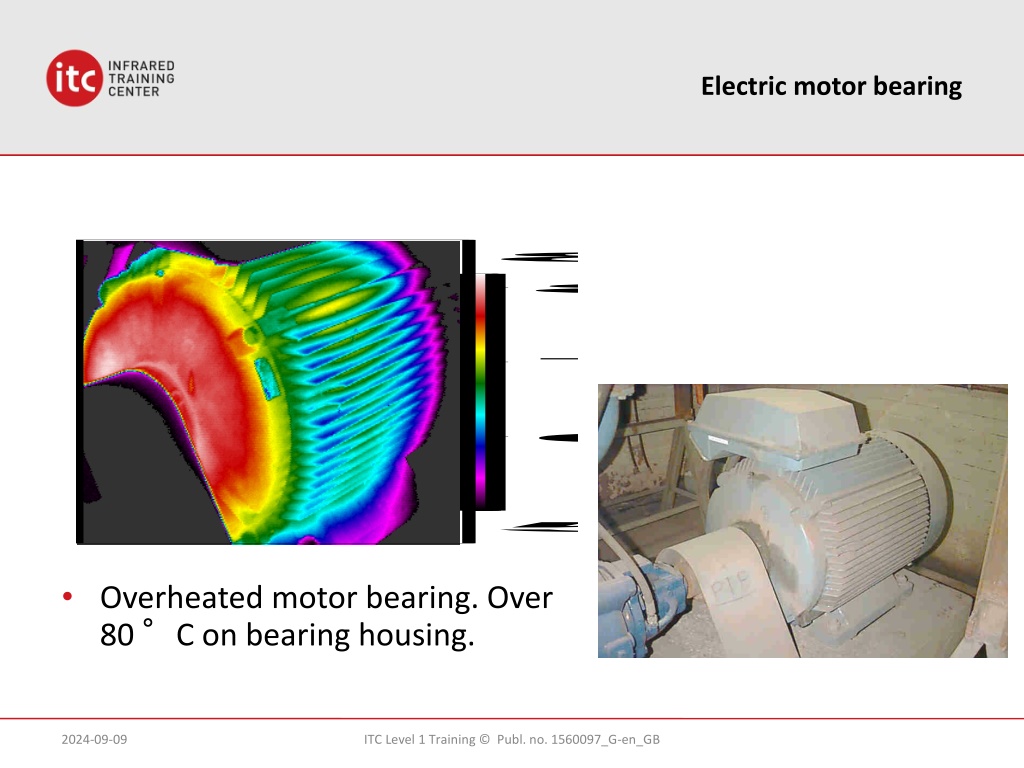

  26. Electric motor bearing Overheated motor bearing. Over 80 °C on bearing housing. ITC Level 1 Training © Publ. no. 1560097_G-en_GB

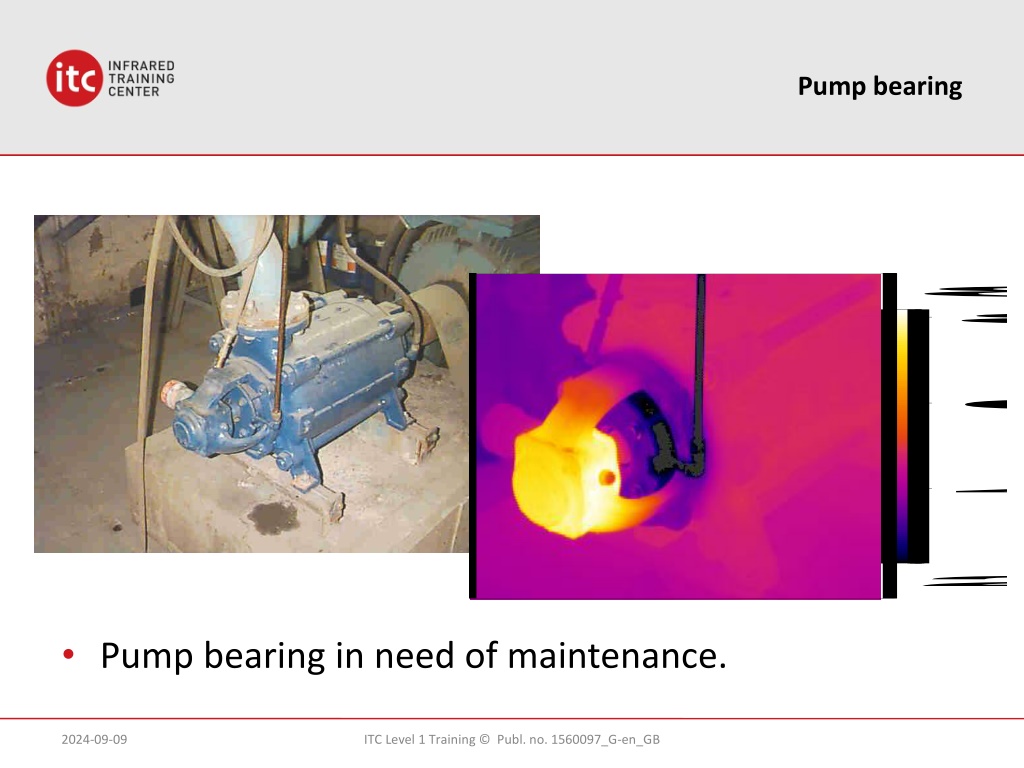

  27. Pump bearing Pump bearing in need of maintenance. ITC Level 1 Training © Publ. no. 1560097_G-en_GB

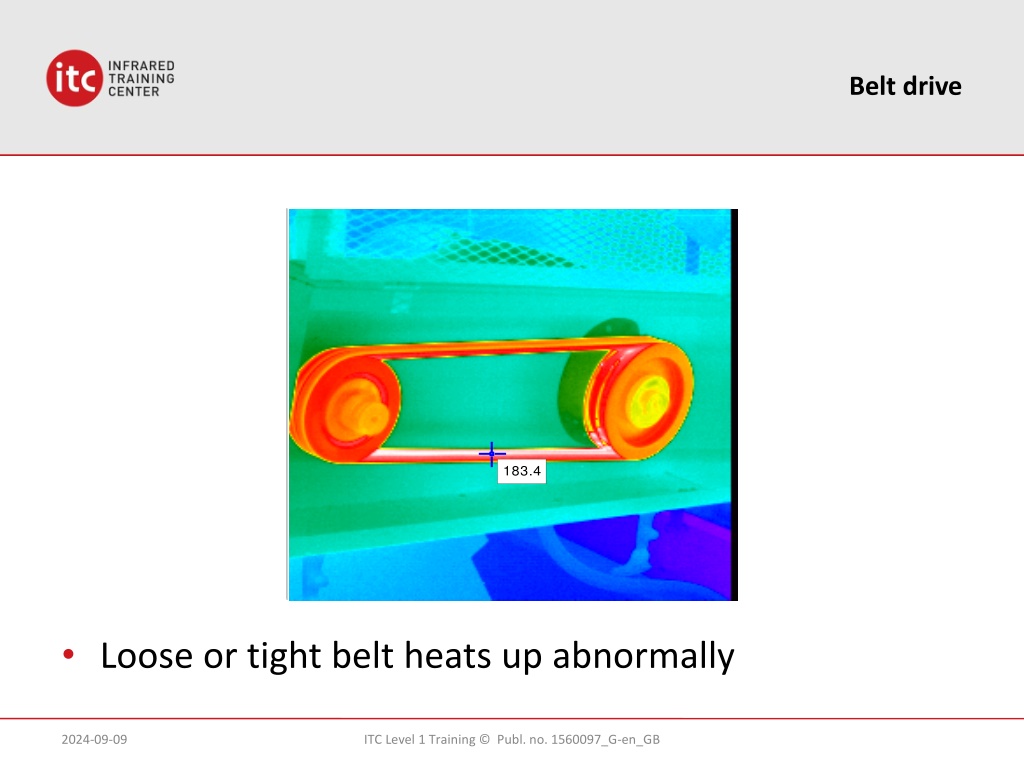

  28. Belt drive Loose or tight belt heats up abnormally ITC Level 1 Training © Publ. no. 1560097_G-en_GB

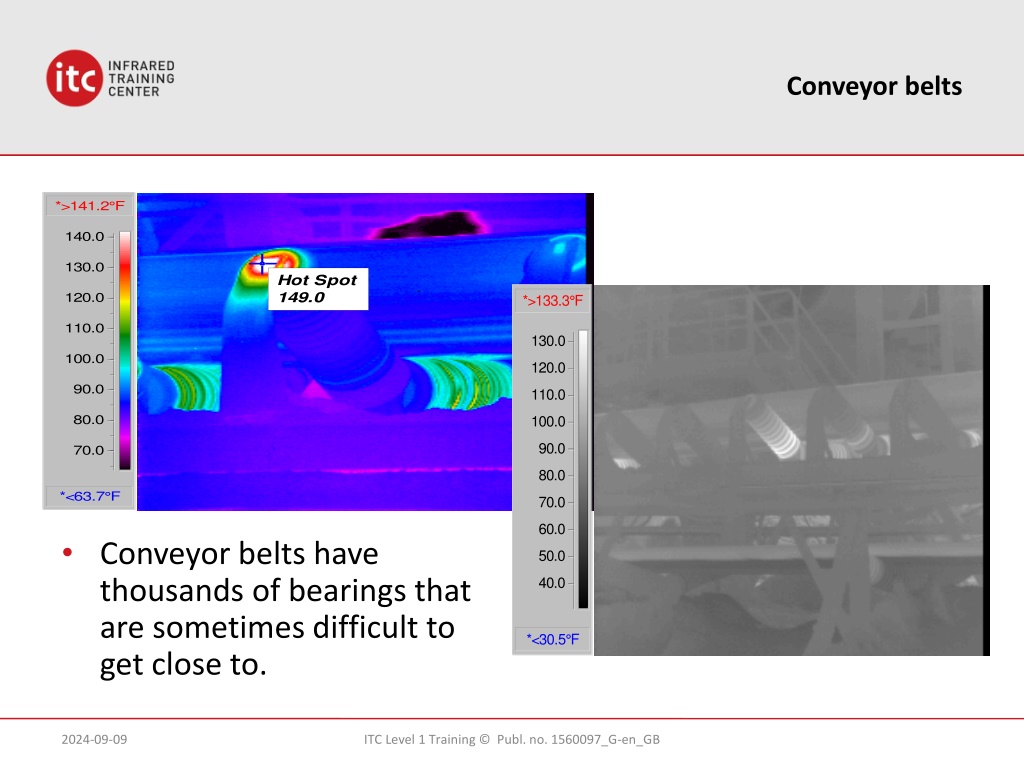

  29. Conveyor belts Conveyor belts have thousands of bearings that are sometimes difficult to get close to. ITC Level 1 Training © Publ. no. 1560097_G-en_GB

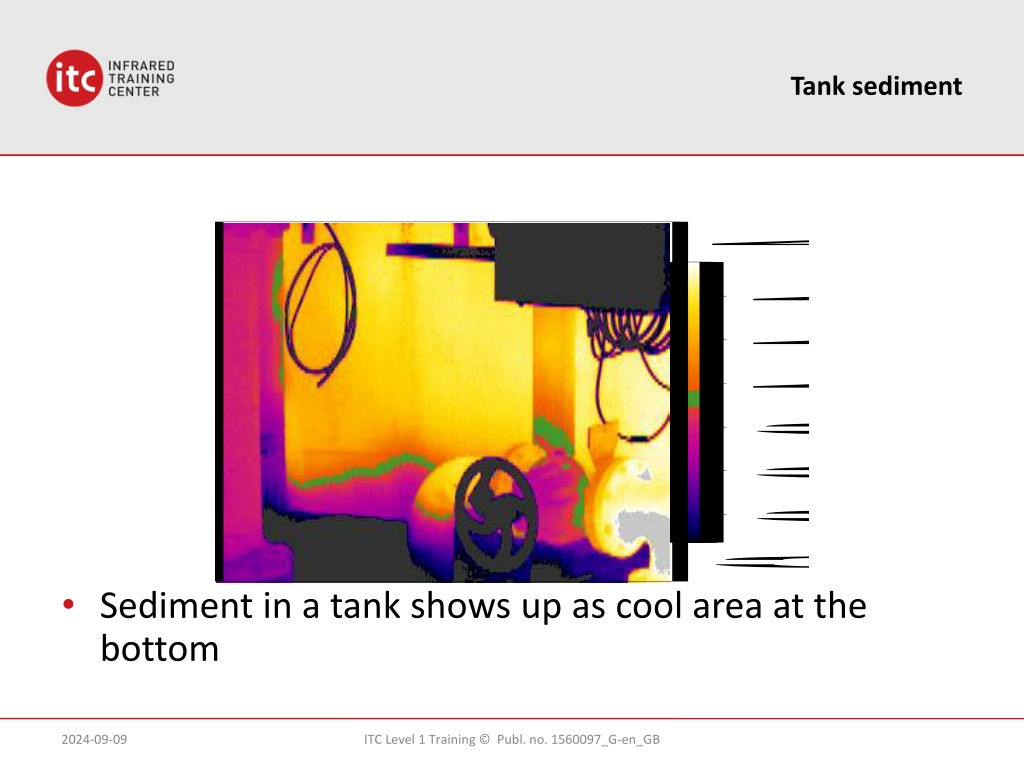

  30. Tank sediment Sediment in a tank shows up as cool area at the bottom ITC Level 1 Training © Publ. no. 1560097_G-en_GB

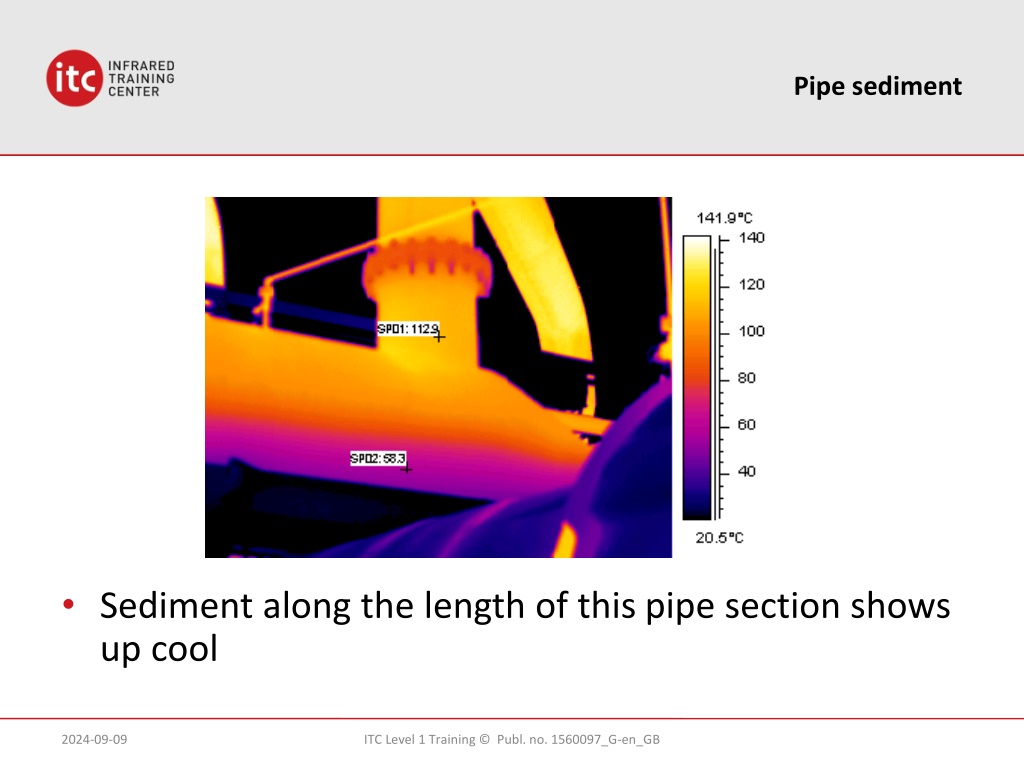

  31. Pipe sediment Sediment along the length of this pipe section shows up cool ITC Level 1 Training © Publ. no. 1560097_G-en_GB

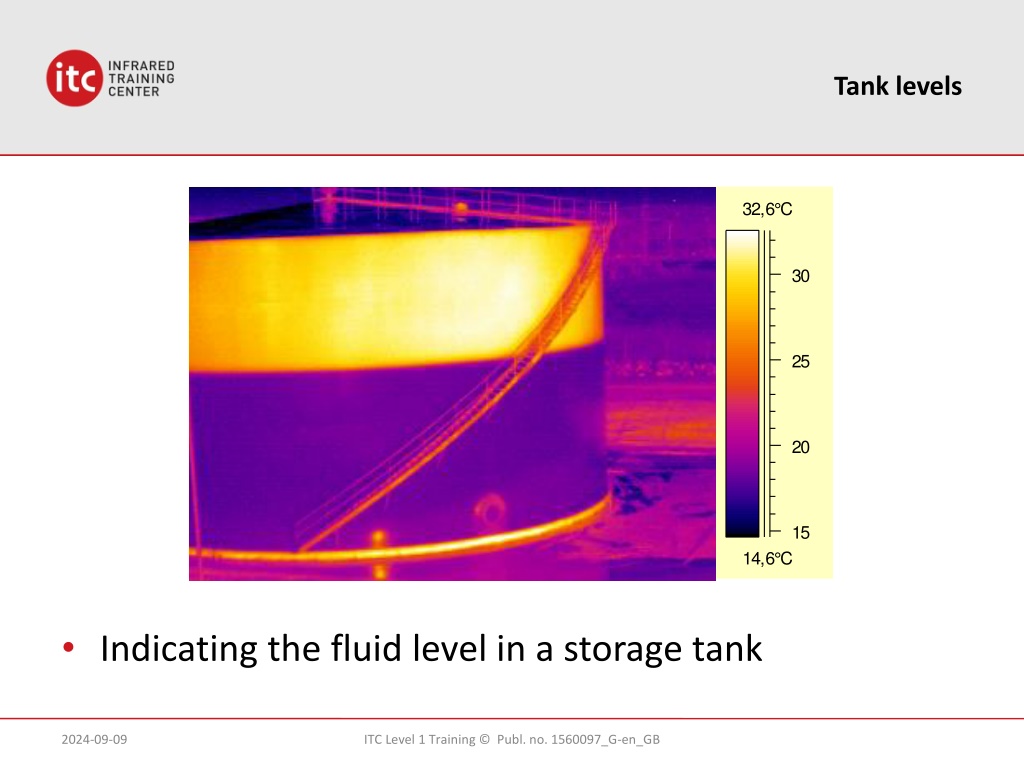

  32. Tank levels Indicating the fluid level in a storage tank ITC Level 1 Training © Publ. no. 1560097_G-en_GB

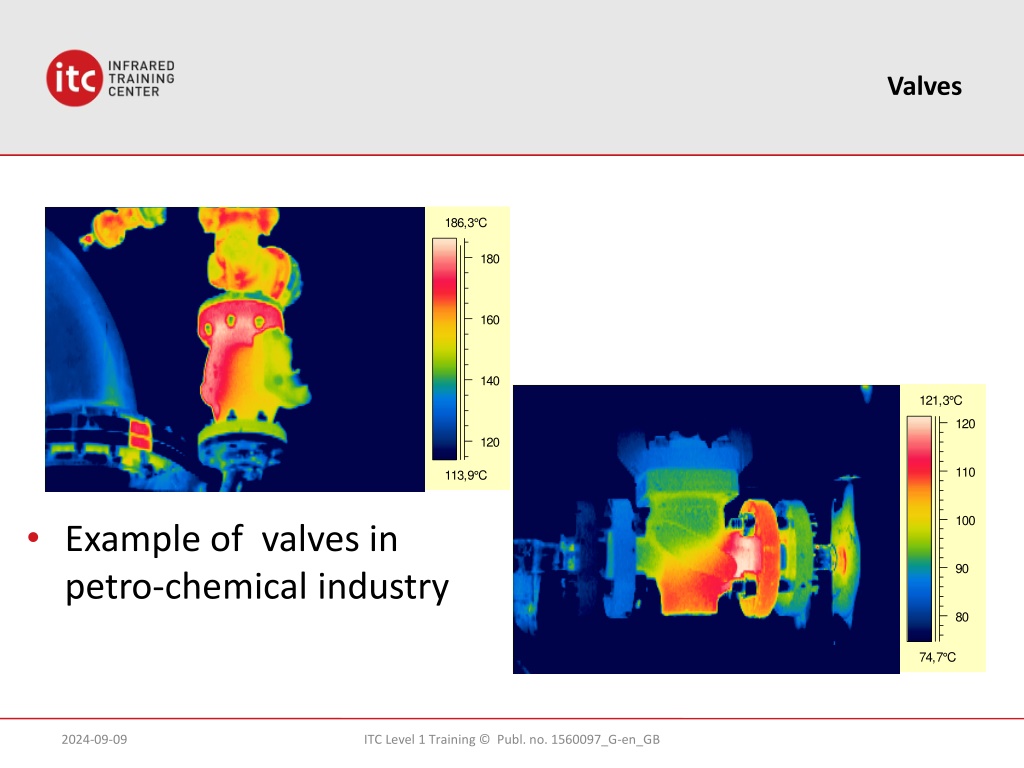

  33. Valves Example of valves in petro-chemical industry ITC Level 1 Training © Publ. no. 1560097_G-en_GB

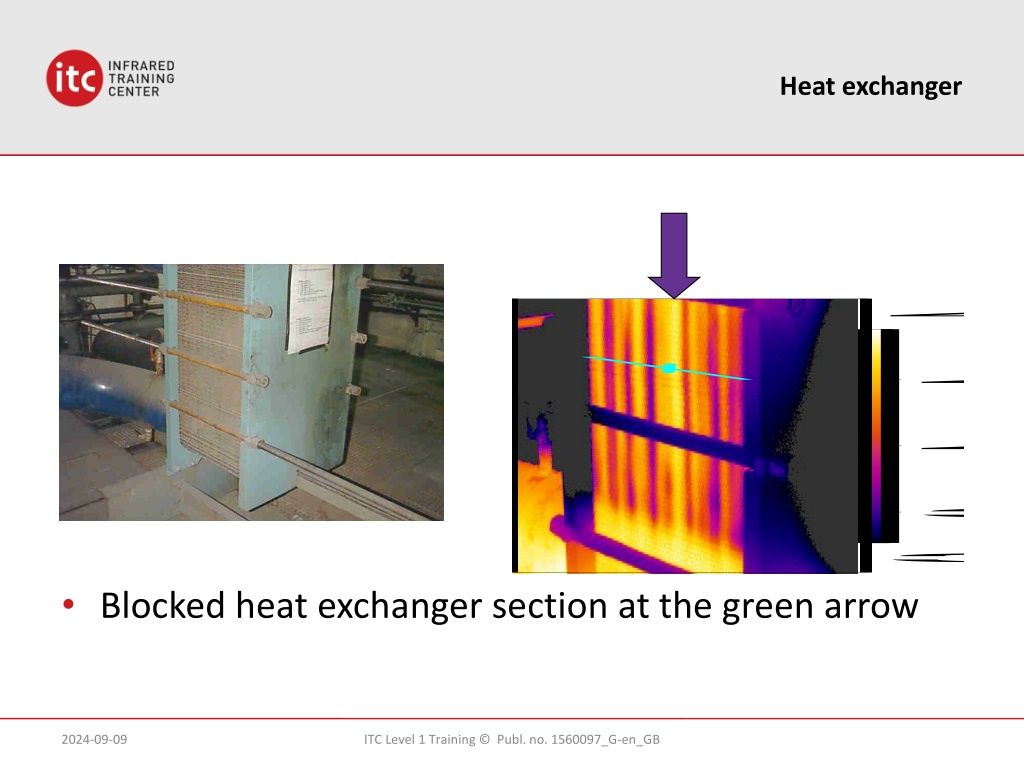

  34. Heat exchanger Blocked heat exchanger section at the green arrow ITC Level 1 Training © Publ. no. 1560097_G-en_GB

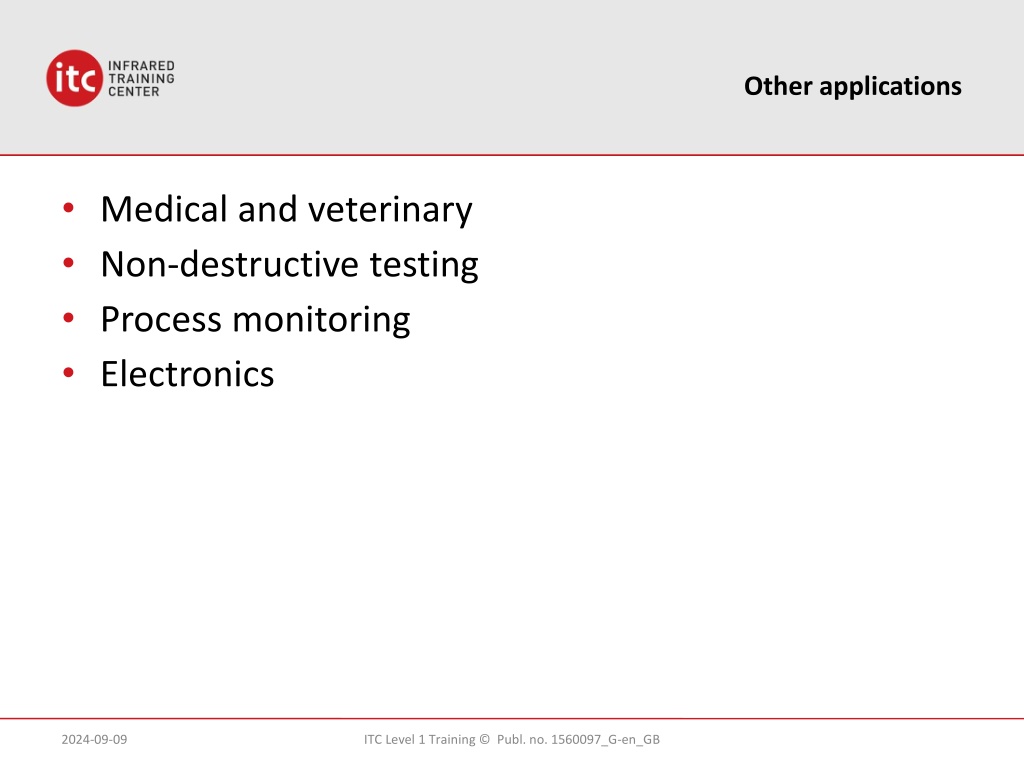

  35. Other applications Medical and veterinary Non-destructive testing Process monitoring Electronics ITC Level 1 Training © Publ. no. 1560097_G-en_GB

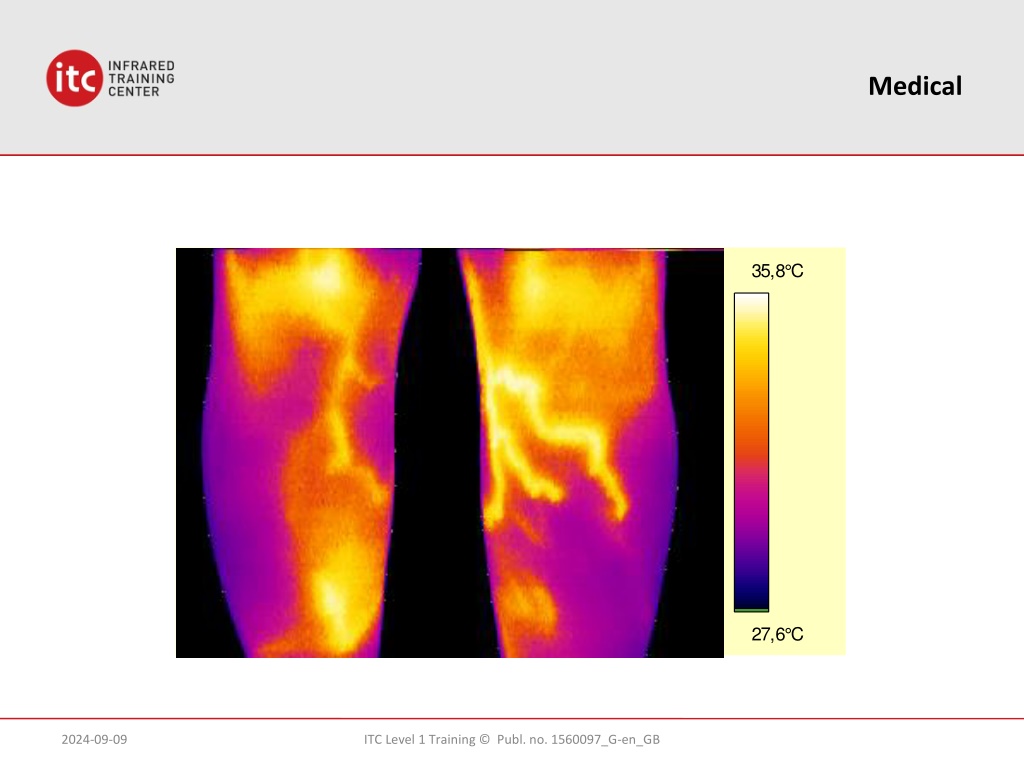

  36. Medical ITC Level 1 Training © Publ. no. 1560097_G-en_GB

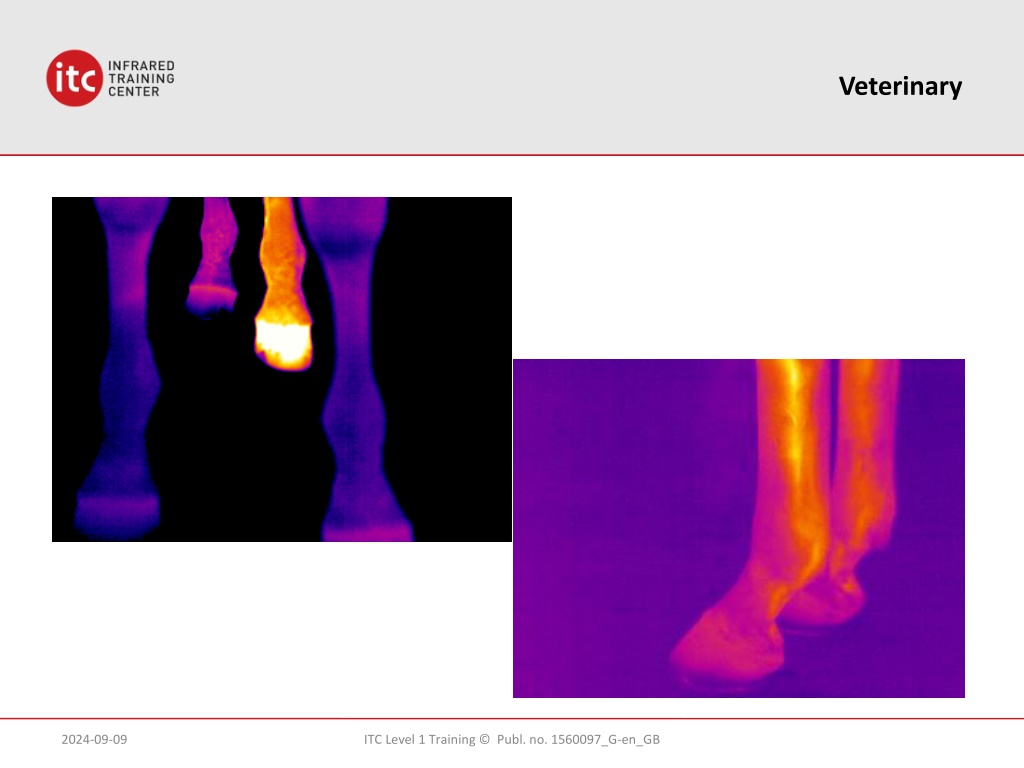

  37. Veterinary ITC Level 1 Training © Publ. no. 1560097_G-en_GB

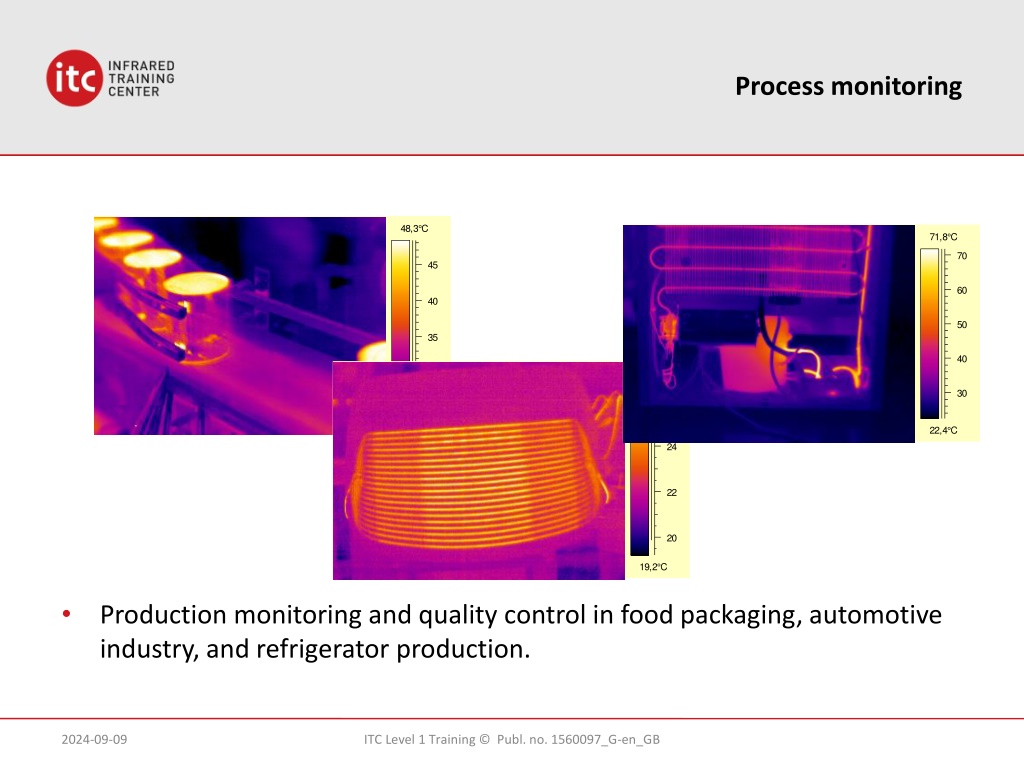

  38. Process monitoring Production monitoring and quality control in food packaging, automotive industry, and refrigerator production. ITC Level 1 Training © Publ. no. 1560097_G-en_GB

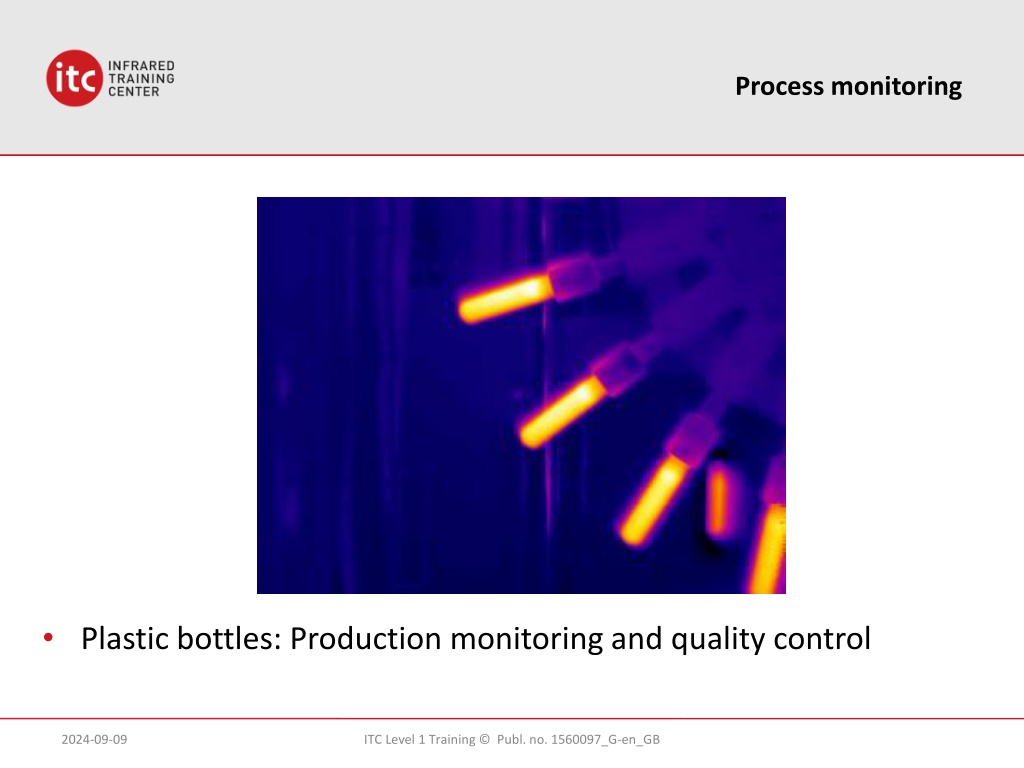

  39. Process monitoring Plastic bottles: Production monitoring and quality control ITC Level 1 Training © Publ. no. 1560097_G-en_GB

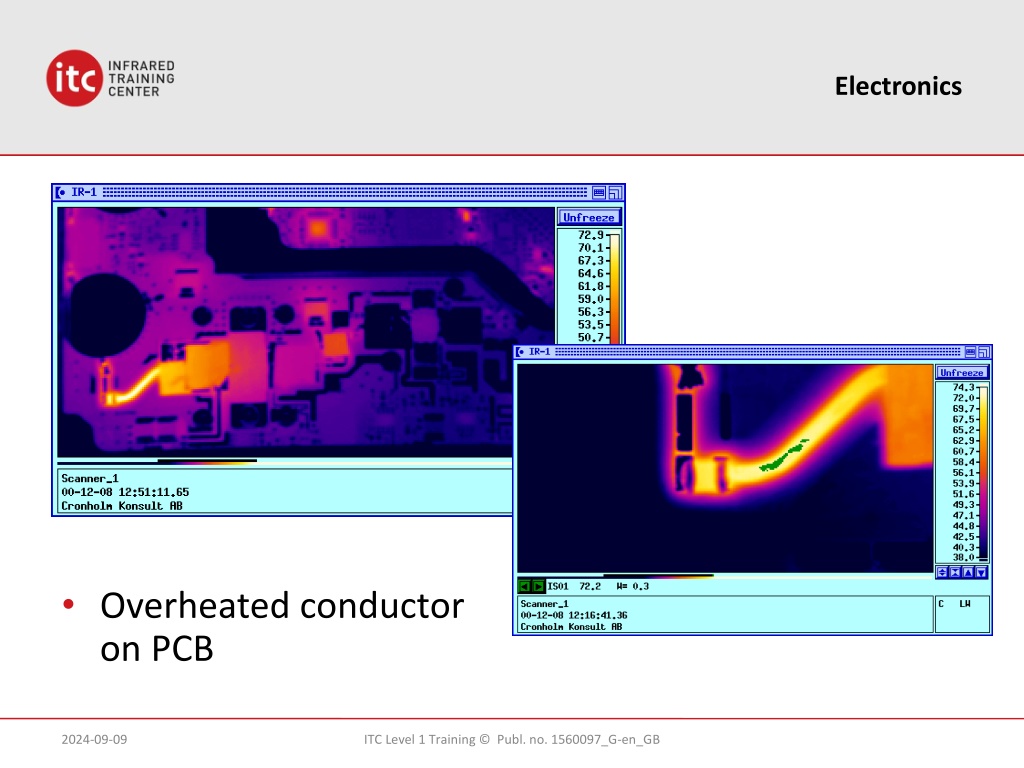

  40. Electronics Overheated conductor on PCB ITC Level 1 Training © Publ. no. 1560097_G-en_GB

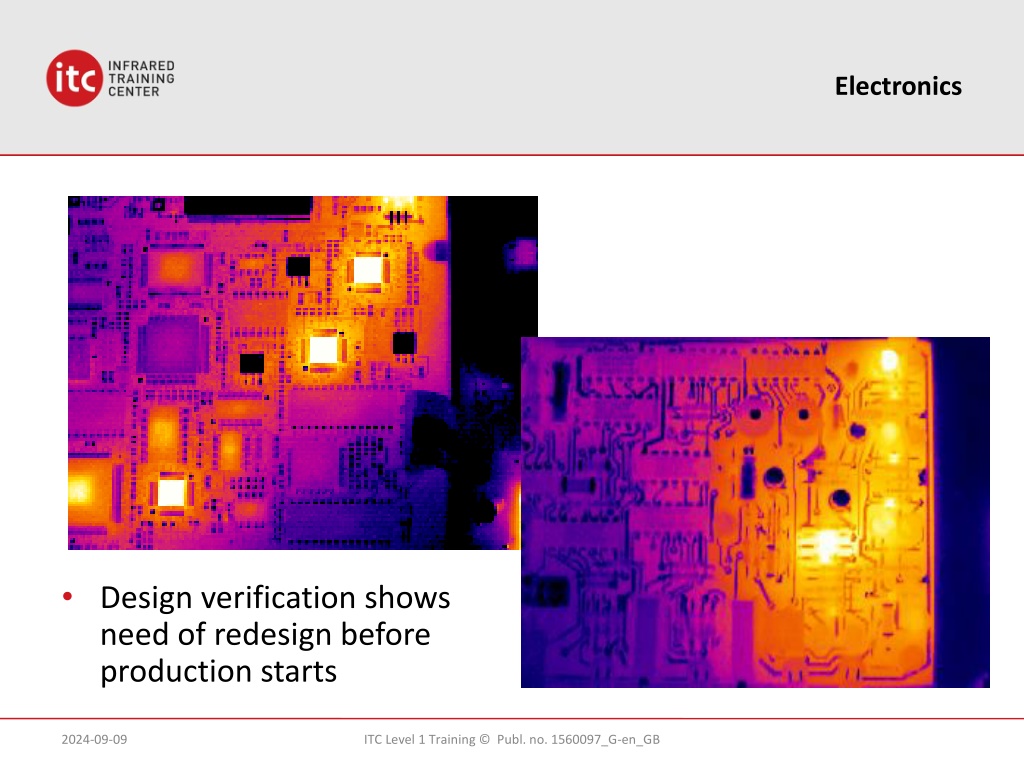

  41. Electronics Design verification shows need of redesign before production starts ITC Level 1 Training © Publ. no. 1560097_G-en_GB

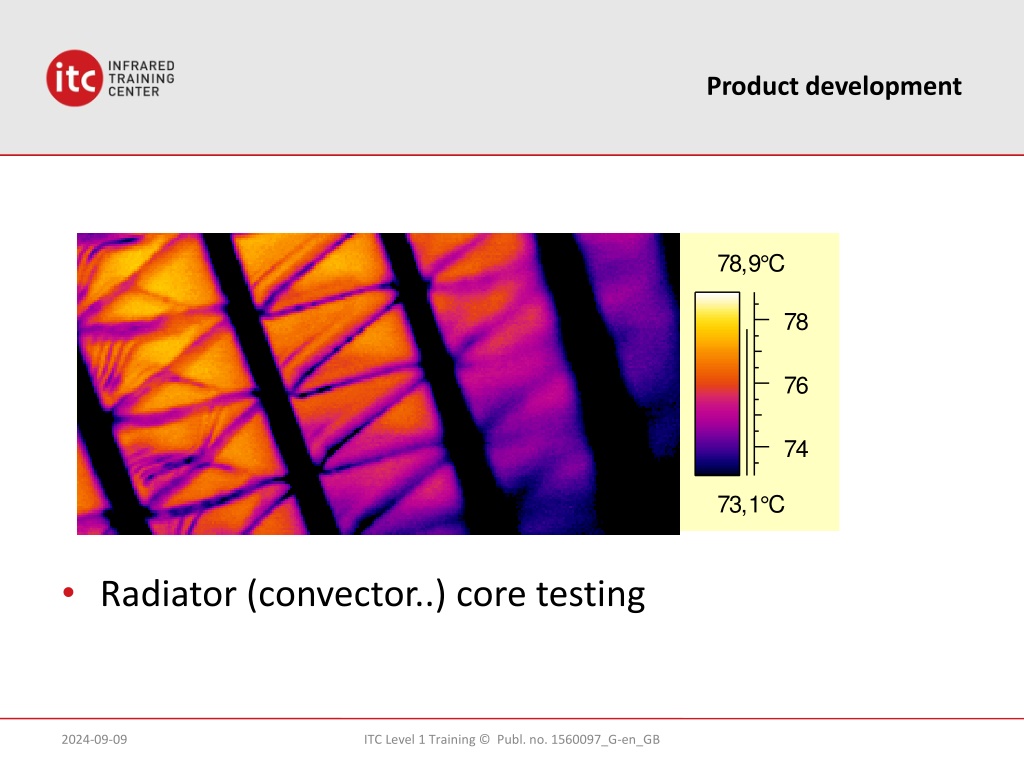

  42. Product development Radiator (convector..) core testing ITC Level 1 Training © Publ. no. 1560097_G-en_GB

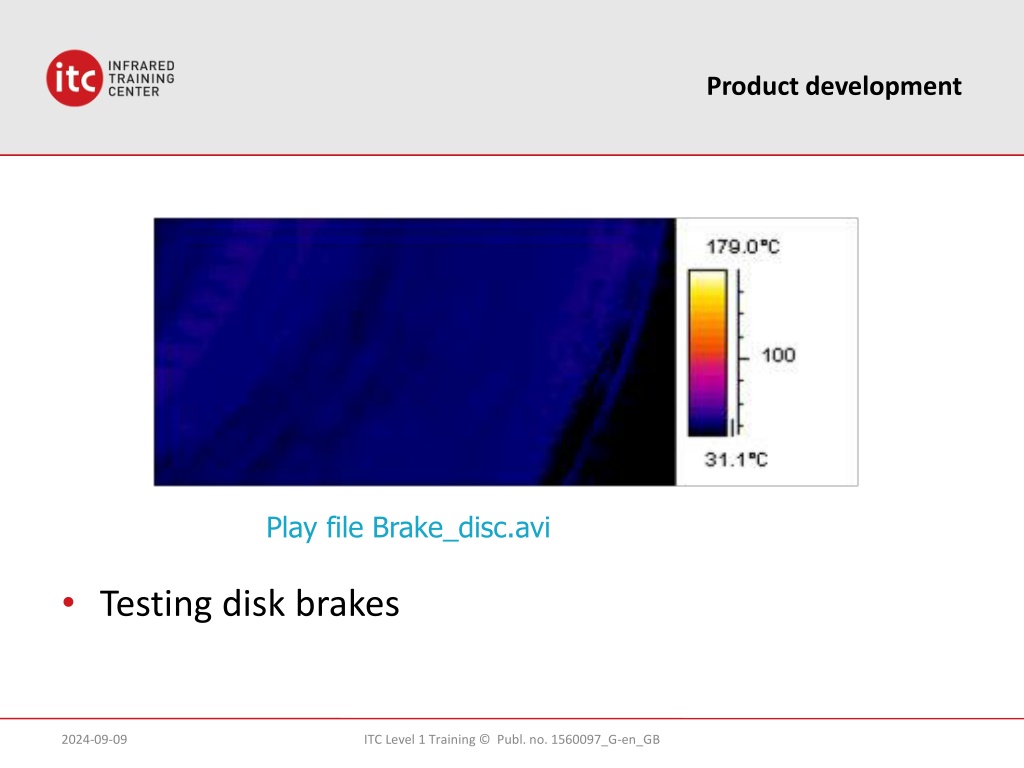

  43. Product development Play file Brake_disc.avi Testing disk brakes ITC Level 1 Training © Publ. no. 1560097_G-en_GB

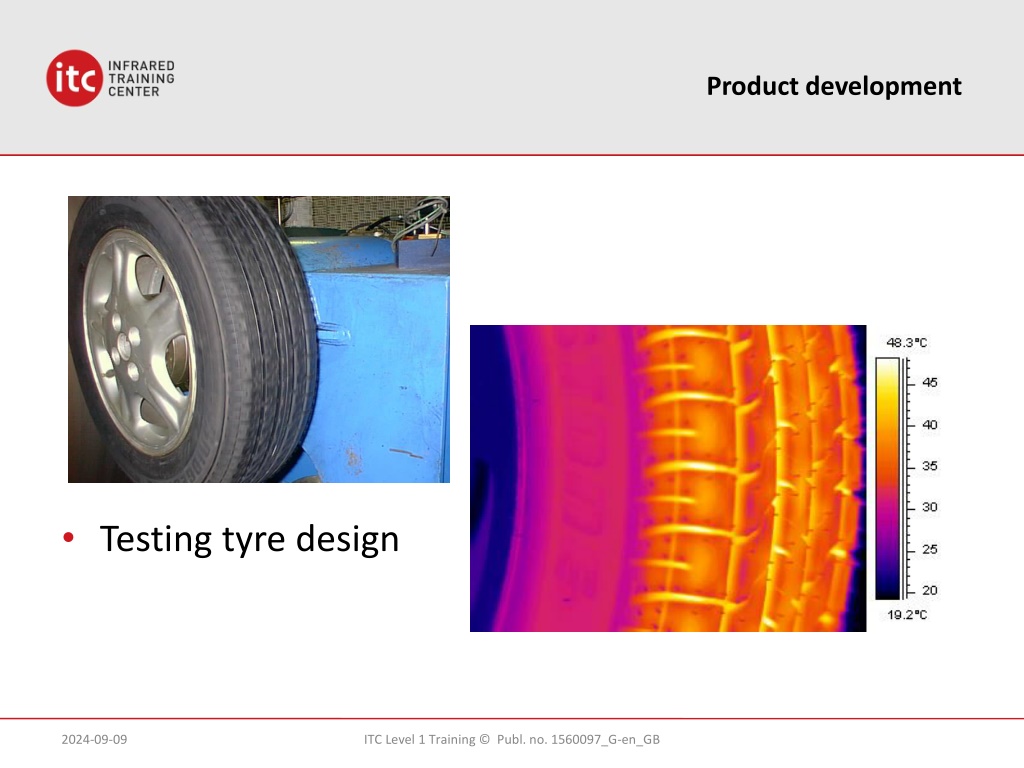

  44. Product development Testing tyre design ITC Level 1 Training © Publ. no. 1560097_G-en_GB

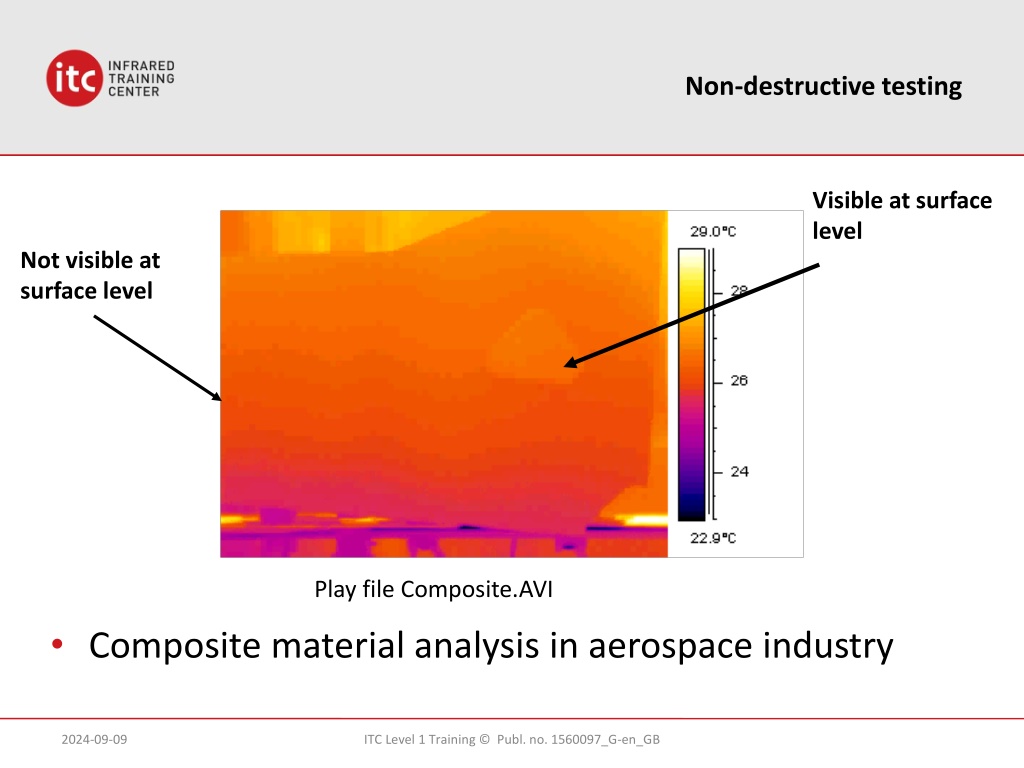

  45. Non-destructive testing Visible at surface level Not visible at surface level Play file Composite.AVI Composite material analysis in aerospace industry ITC Level 1 Training © Publ. no. 1560097_G-en_GB

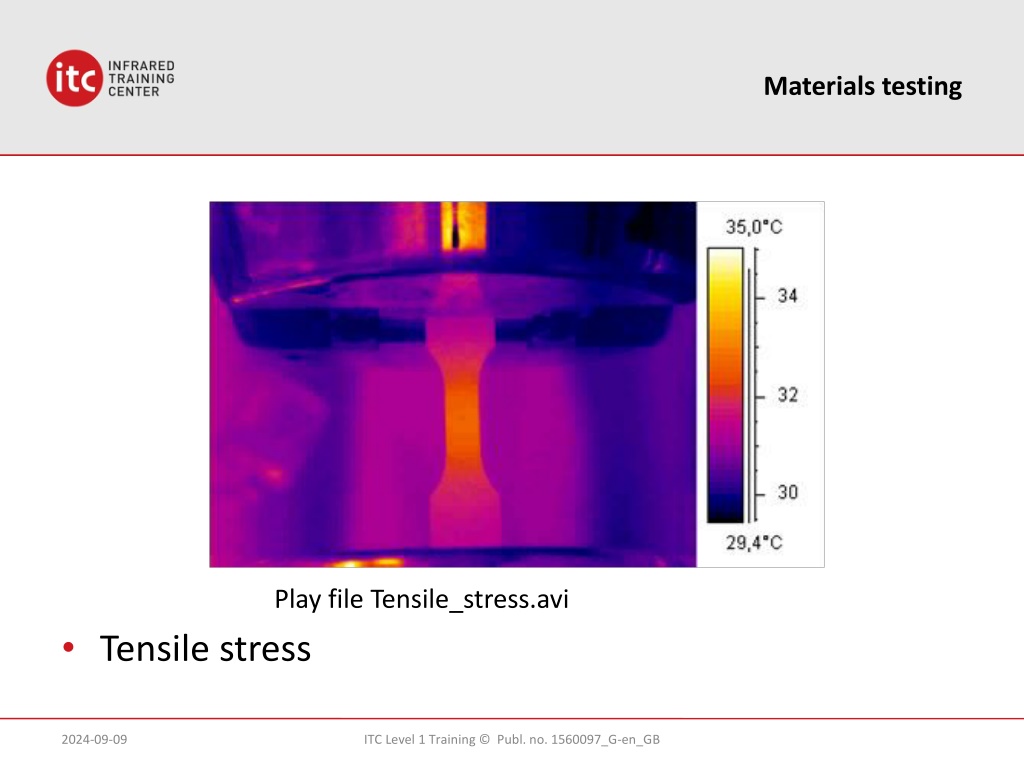

  46. Materials testing Play file Tensile_stress.avi Tensile stress ITC Level 1 Training © Publ. no. 1560097_G-en_GB

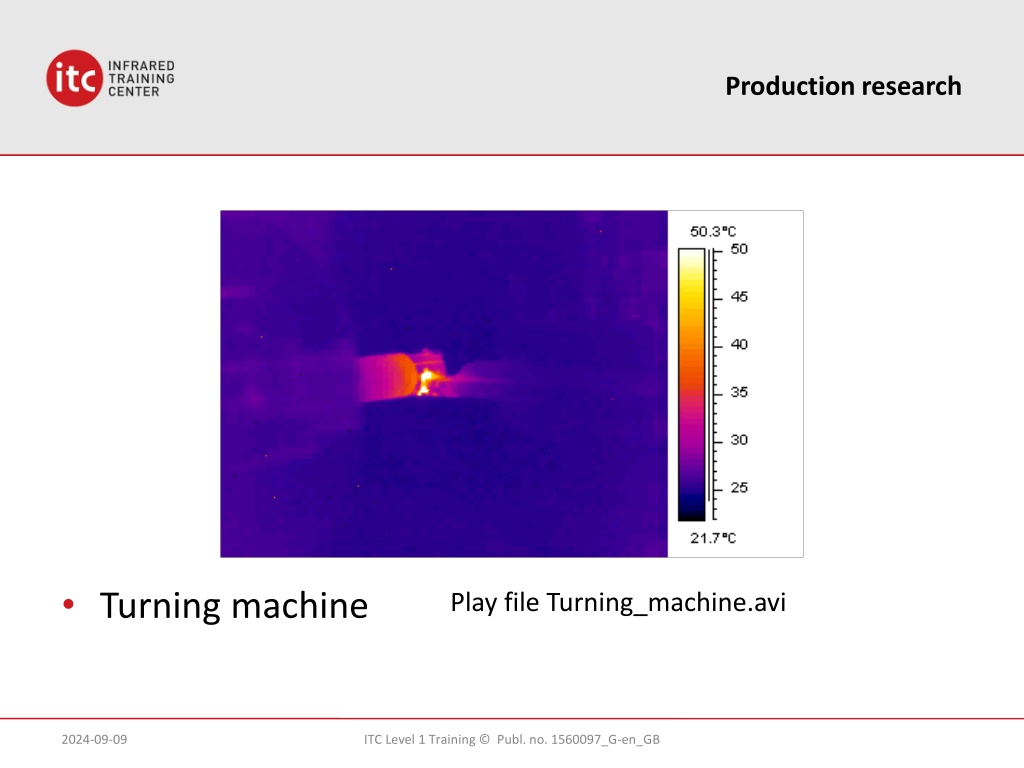

  47. Production research Play file Turning_machine.avi Turning machine ITC Level 1 Training © Publ. no. 1560097_G-en_GB

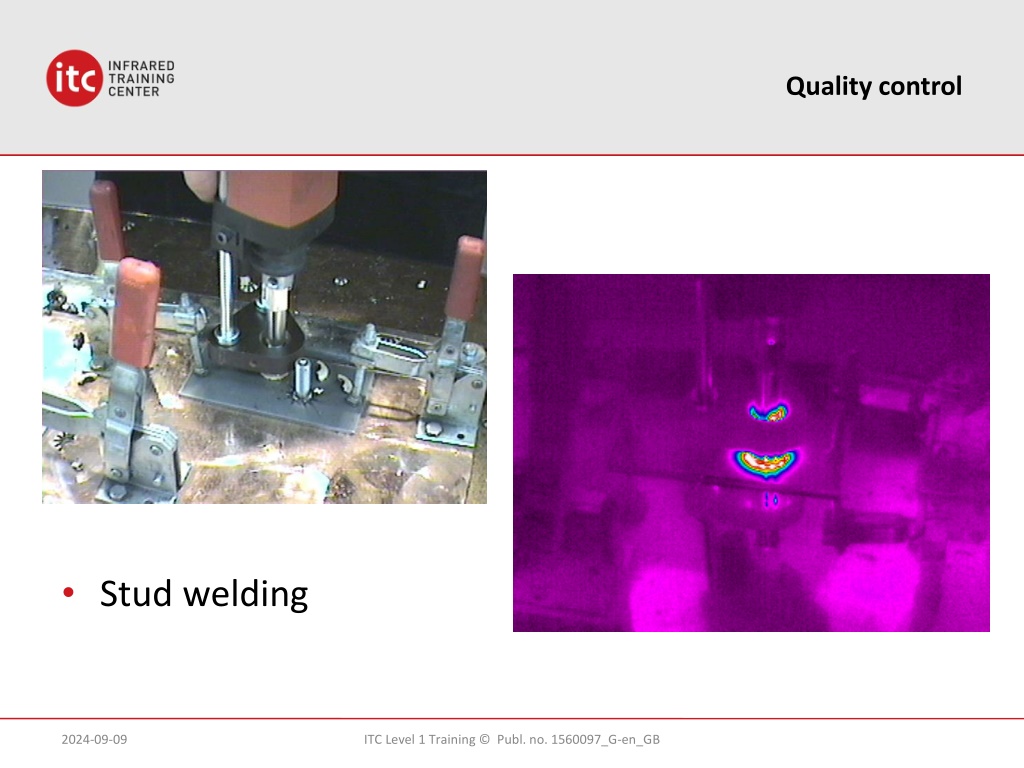

  48. Quality control Studwelding ITC Level 1 Training © Publ. no. 1560097_G-en_GB

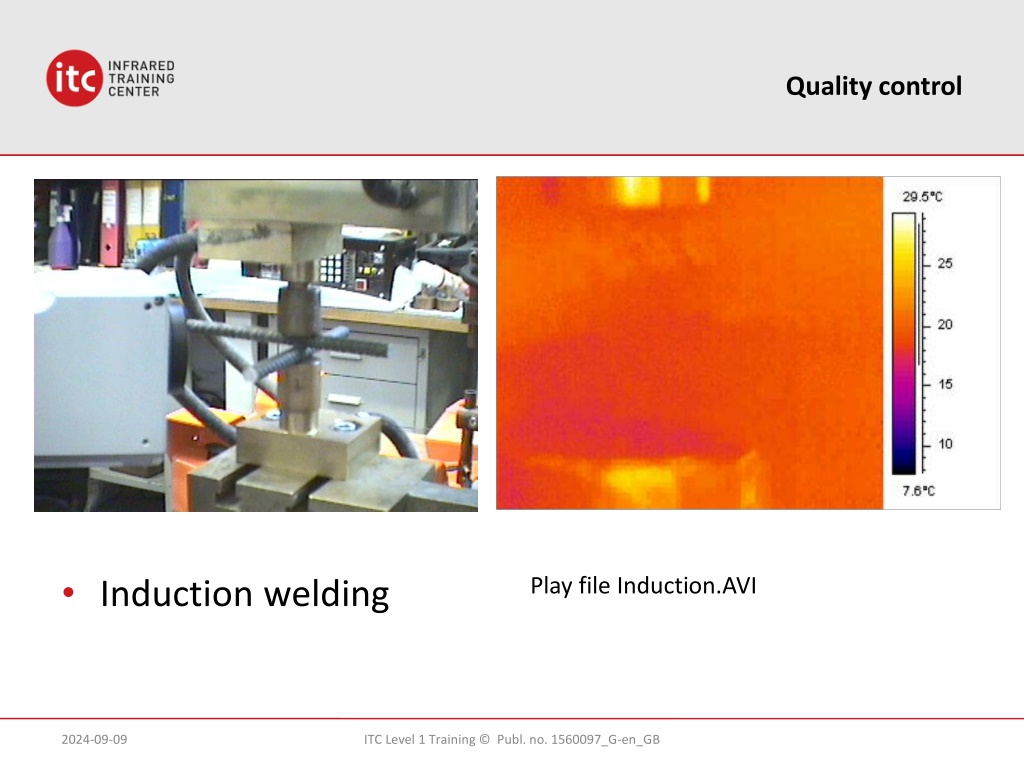

  49. Quality control Play file Induction.AVI Induction welding ITC Level 1 Training © Publ. no. 1560097_G-en_GB

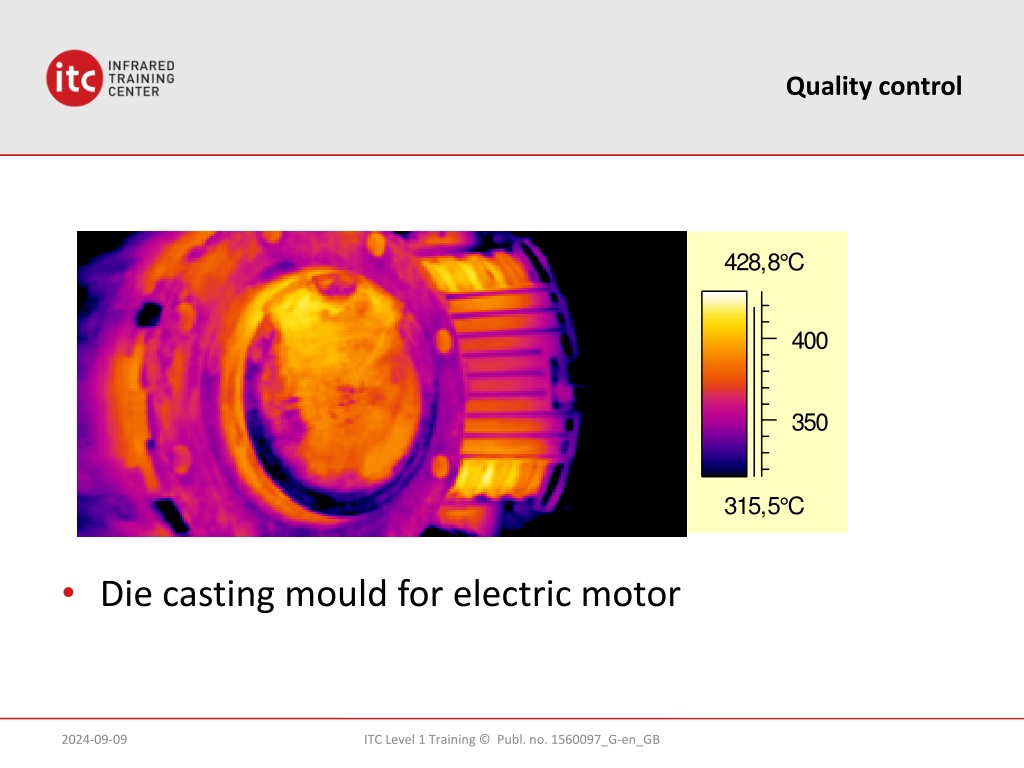

  50. Quality control Die casting mould for electric motor ITC Level 1 Training © Publ. no. 1560097_G-en_GB
