Get to KnowGet to Know About Fuel Meter About Fuel Metering Valve and Its Sensor

If you want the service mentioned above then visit Continental Controls Corporation site http://continentalcontrols.com/

Continental3
Download Presentation

Get to KnowGet to Know About Fuel Meter About Fuel Metering Valve and Its Sensor

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

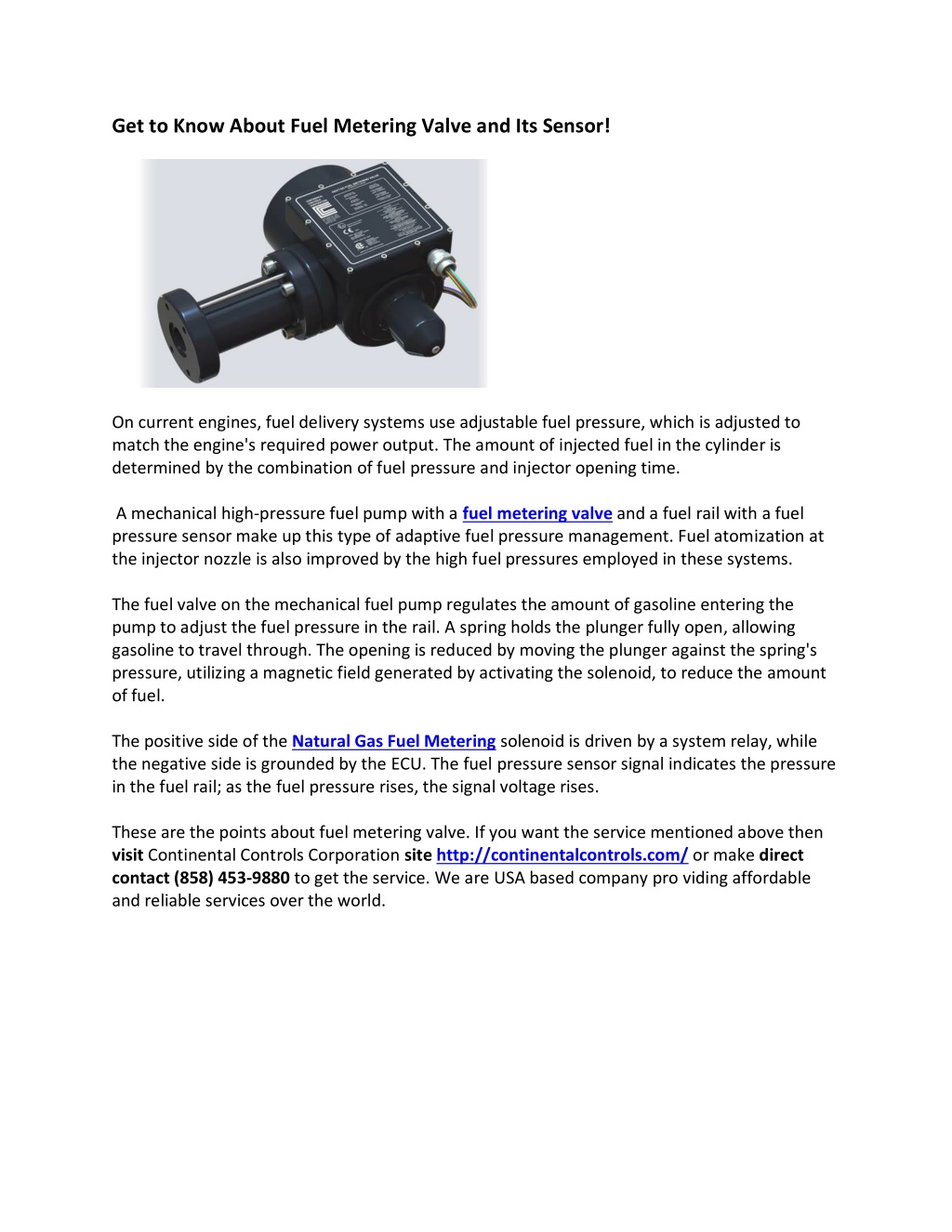

  1. Get to Know About Fuel Metering Valve and Its Sensor! On current engines, fuel delivery systems use adjustable fuel pressure, which is adjusted to match the engine's required power output. The amount of injected fuel in the cylinder is determined by the combination of fuel pressure and injector opening time. A mechanical high-pressure fuel pump with a fuel metering valve and a fuel rail with a fuel pressure sensor make up this type of adaptive fuel pressure management. Fuel atomization at the injector nozzle is also improved by the high fuel pressures employed in these systems. The fuel valve on the mechanical fuel pump regulates the amount of gasoline entering the pump to adjust the fuel pressure in the rail. A spring holds the plunger fully open, allowing gasoline to travel through. The opening is reduced by moving the plunger against the spring's pressure, utilizing a magnetic field generated by activating the solenoid, to reduce the amount of fuel. The positive side of the Natural Gas Fuel Metering solenoid is driven by a system relay, while the negative side is grounded by the ECU. The fuel pressure sensor signal indicates the pressure in the fuel rail; as the fuel pressure rises, the signal voltage rises. These are the points about fuel metering valve. If you want the service mentioned above then visit Continental Controls Corporation site http://continentalcontrols.com/ or make direct contact (858) 453-9880 to get the service. We are USA based company pro viding affordable and reliable services over the world.
