Otoscope

Abimed Otoscope is designed for examining the auditory canal, inner ear, and tympanic membrane. It features 3x magnification, fiber optic illumination, a wide viewing window, long-life bulb, manual on/off switch, ear insufflation socket, and customizable ear tips.

Clara36
Download Presentation

Otoscope

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

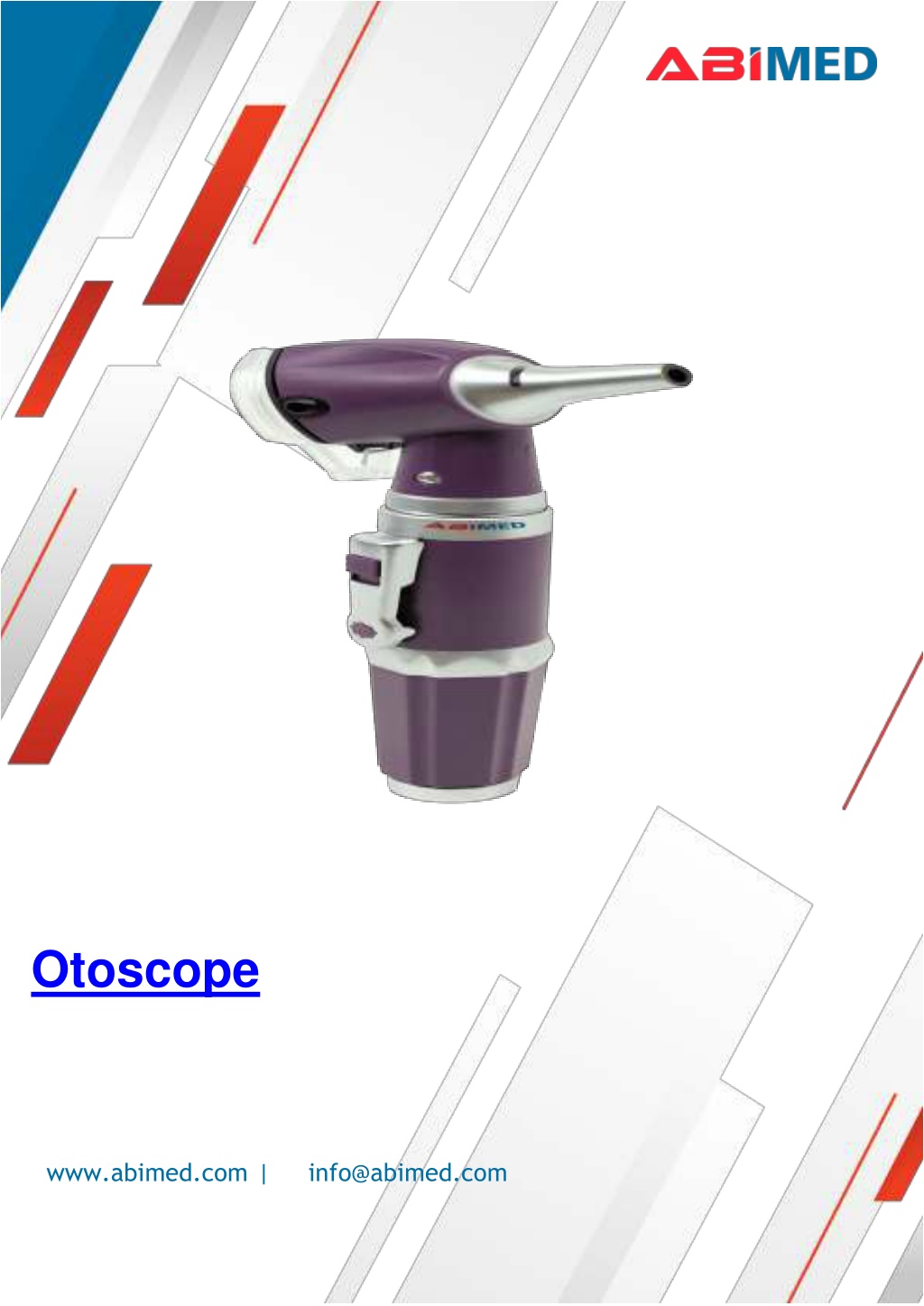

  1. Otoscope www.abimed.com | info@abimed.com

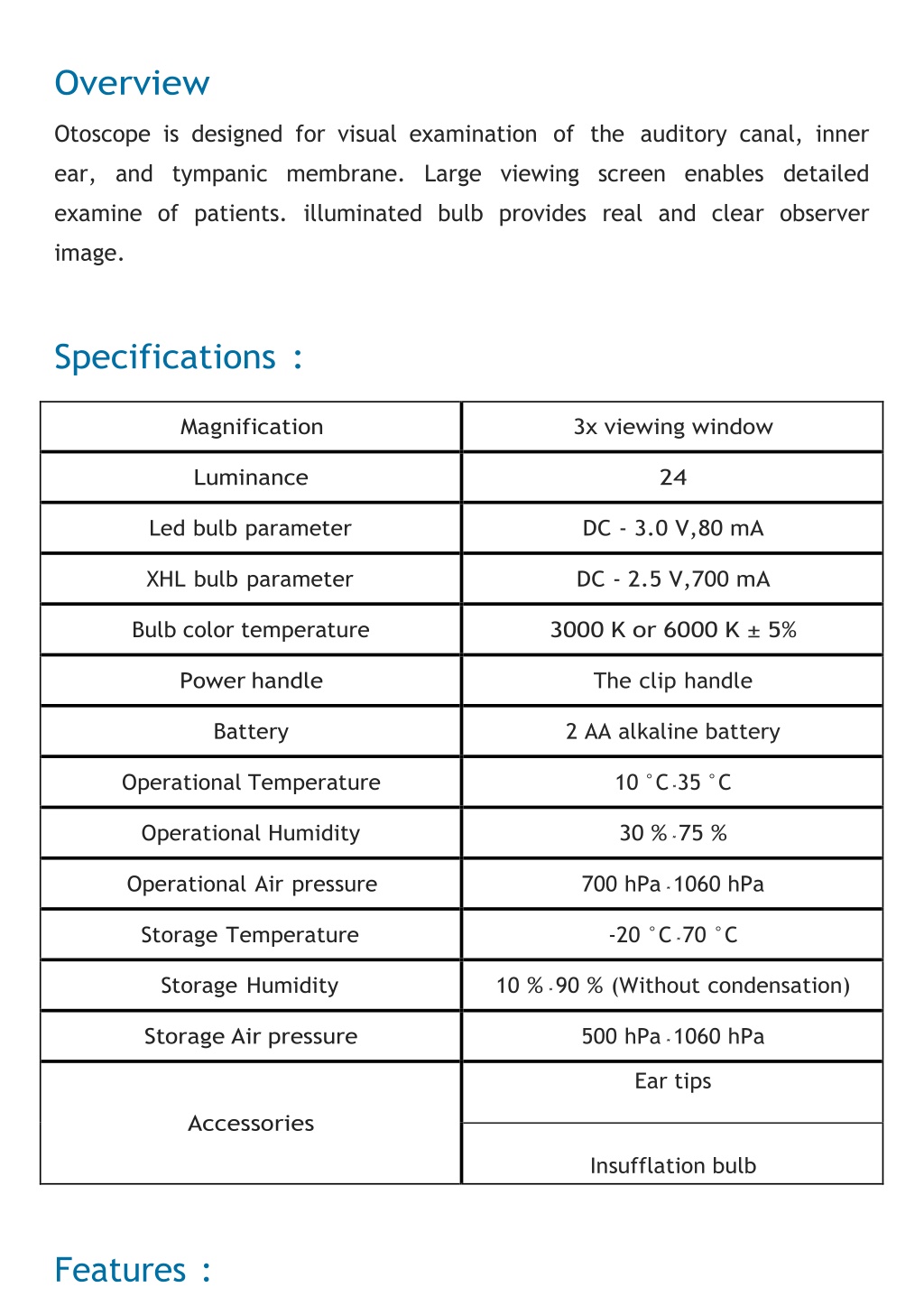

  2. Overview Otoscope is designed for visual examination of the auditory canal, inner ear, and tympanic membrane. Large viewing screen enables detailed examine of patients. illuminated bulb provides real and clear observer image. Specifications : Magnification 3x viewing window Luminance 24 Led bulb parameter DC - 3.0 V,80 mA XHL bulb parameter DC - 2.5 V,700 mA Bulb color temperature 3000 K or 6000 K ± 5% Power handle The clip handle Battery 2 AA alkaline battery Operational Temperature 10 °C̴35 °C Operational Humidity 30 %̴75 % Operational Air pressure 700 hPa̴1060 hPa Storage Temperature -20 °C̴70 °C Storage Humidity 10 %̴90 % (Without condensation) Storage Air pressure 500 hPa̴1060 hPa Ear tips Accessories Insufflation bulb Features :

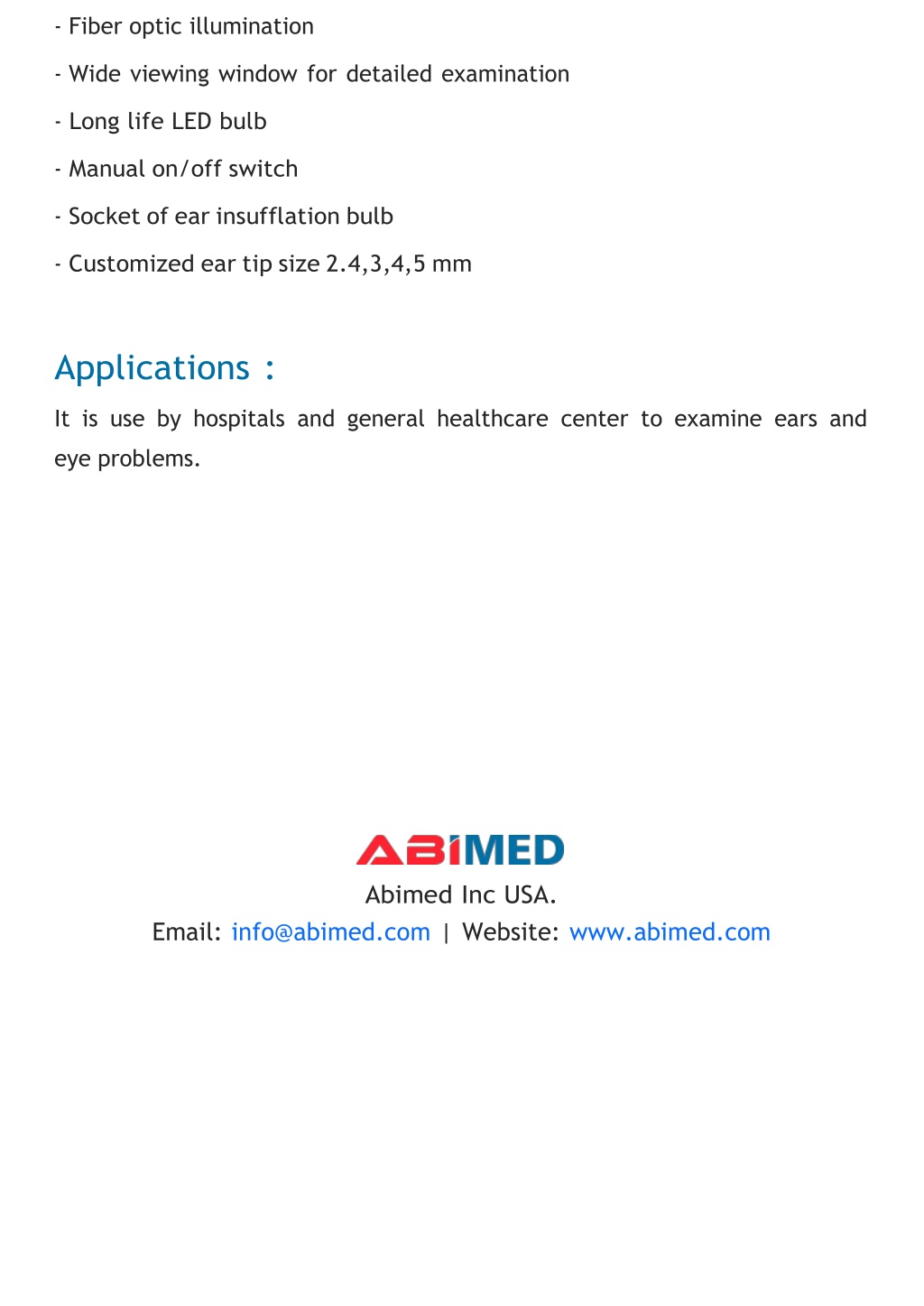

  3. -Fiber optic illumination -Wide viewing window for detailed examination -Long life LED bulb -Manual on/off switch -Socket of ear insufflation bulb -Customized ear tip size 2.4,3,4,5 mm Applications : It is use by hospitals and general healthcare center to examine ears and eye problems. Abimed Inc USA. Email: info@abimed.com | Website: www.abimed.com
