Mesh-Nebulizer-AM-MNA21

Abimed Mesh Nebulizer is compact with an 8ml capacity, delivering 3.7u03bcm particles at u22650.2ml/min. It features auto-cleaning, quiet operation, adjustable masks for all ages, and overheating protection.

Clara36
Download Presentation

Mesh-Nebulizer-AM-MNA21

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

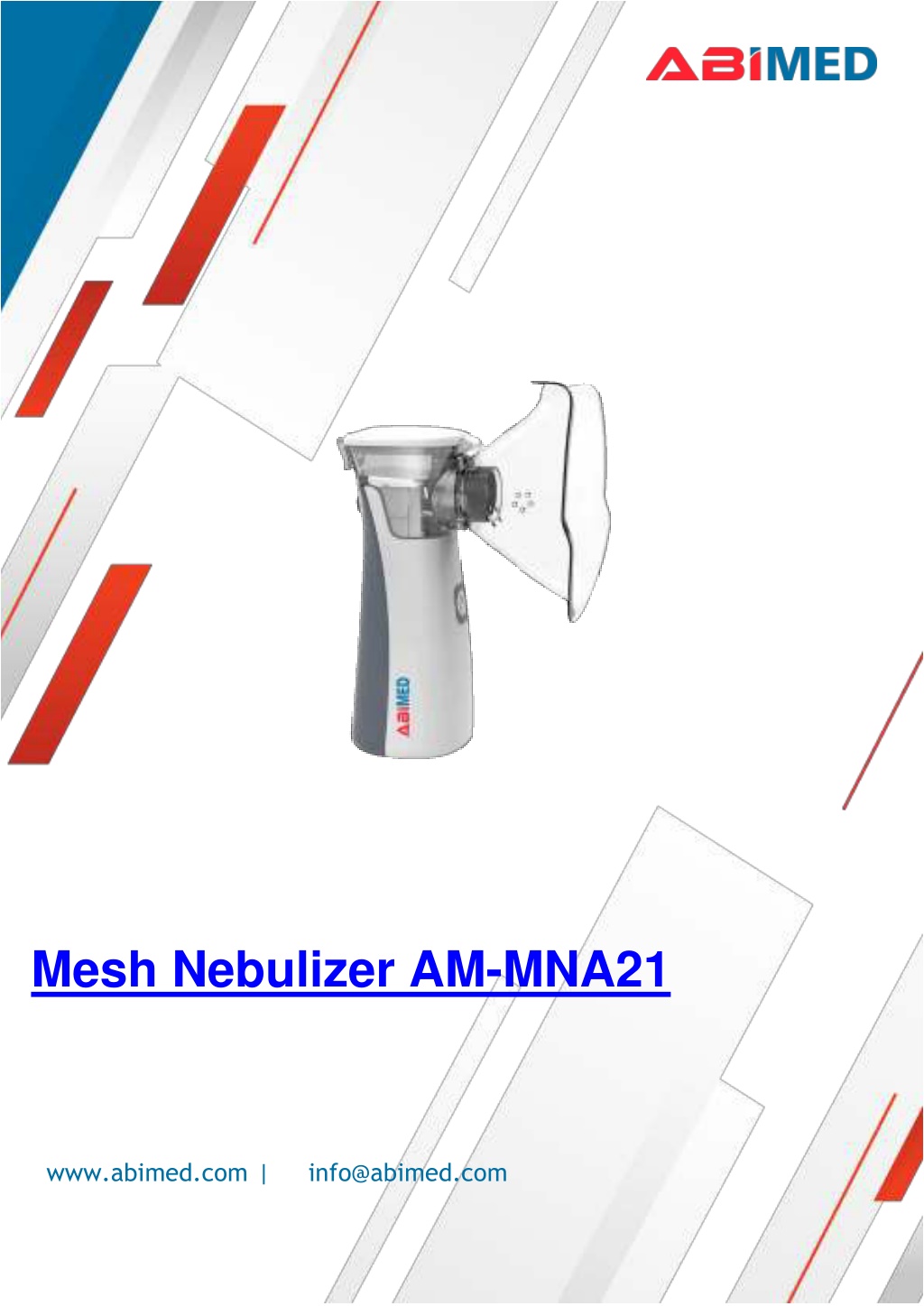

  1. Mesh Nebulizer AM-MNA21 www.abimed.com | info@abimed.com

  2. Overview Mesh Nebulizer is a space-saving unit that offers a cup capacity of 8 ml for ample medication storage. It generates fine particles with a size of 3.7 μm ± 25%, ensuring optimal delivery of medication to thelungs. Our nebulizer features a detachable medicine cup for easy cleaning and refilling. Constructed with polycarbonate and silicone material, providing durability & safety for users. Specifications : Cup Capacity 8 ml Atomized Particles 3.7 μm ± 25% Atomization Rate ≥ 0.2 MI/min Nominal Frequency 113 kHz Noise ≤ 50 Db (A) Residual Liquid Amount ≤ 0.5MI Operational Mode Continuous operation Power 3V DC ( 2 AA 1.5 V Alkaline batteries) Dimensions 50×48×130 mm Weight About 110 g ( without battery) Features : -Automatic cleaning after each use -Consistently gentle operation -Adjustable mask for all ages -Prevent overheating during operation

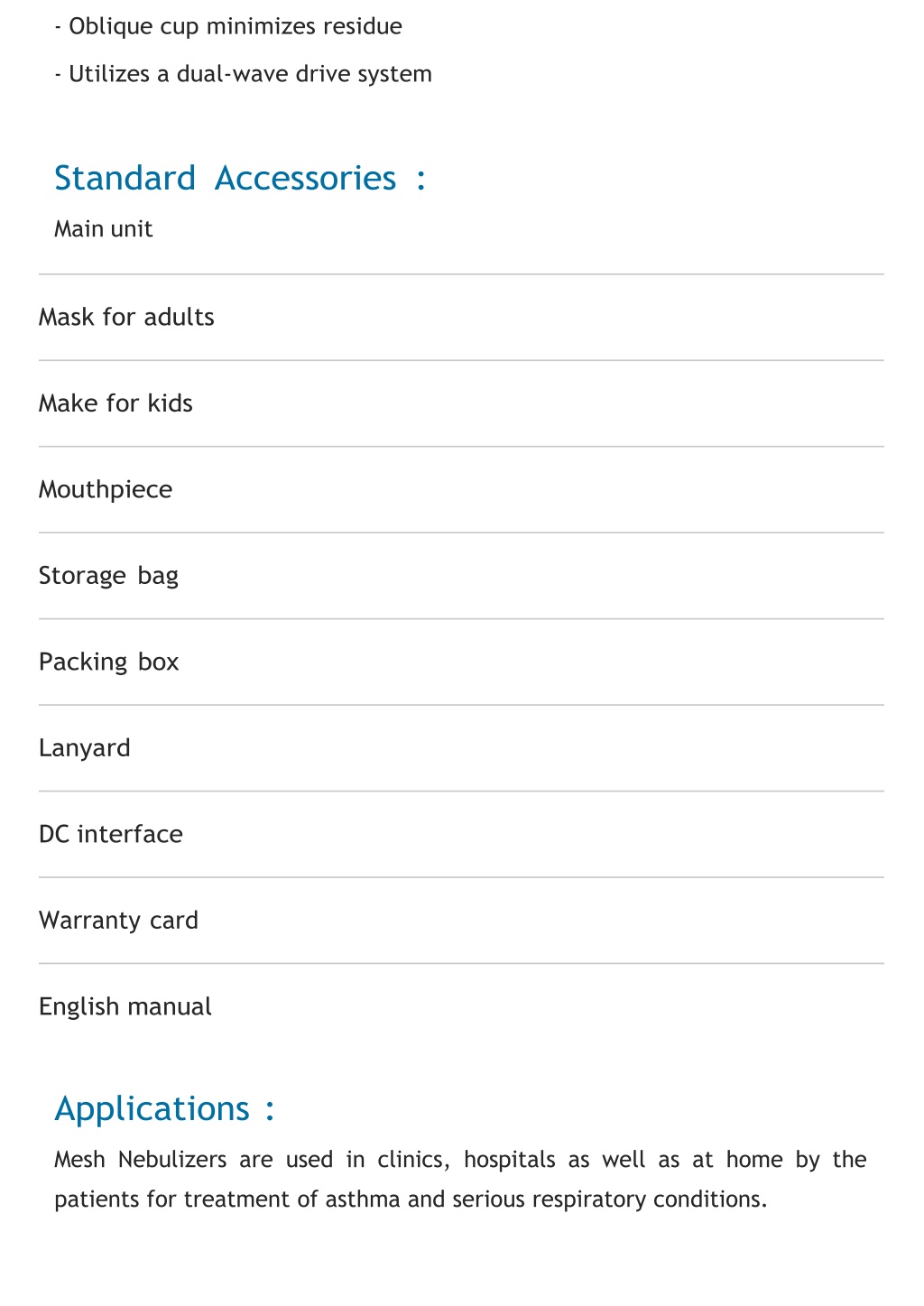

  3. -Oblique cup minimizes residue -Utilizes a dual-wave drive system Standard Accessories : Main unit Mask for adults Make for kids Mouthpiece Storage bag Packing box Lanyard DC interface Warranty card English manual Applications : Mesh Nebulizers are used in clinics, hospitals as well as at home by the patients for treatment of asthma and serious respiratory conditions.

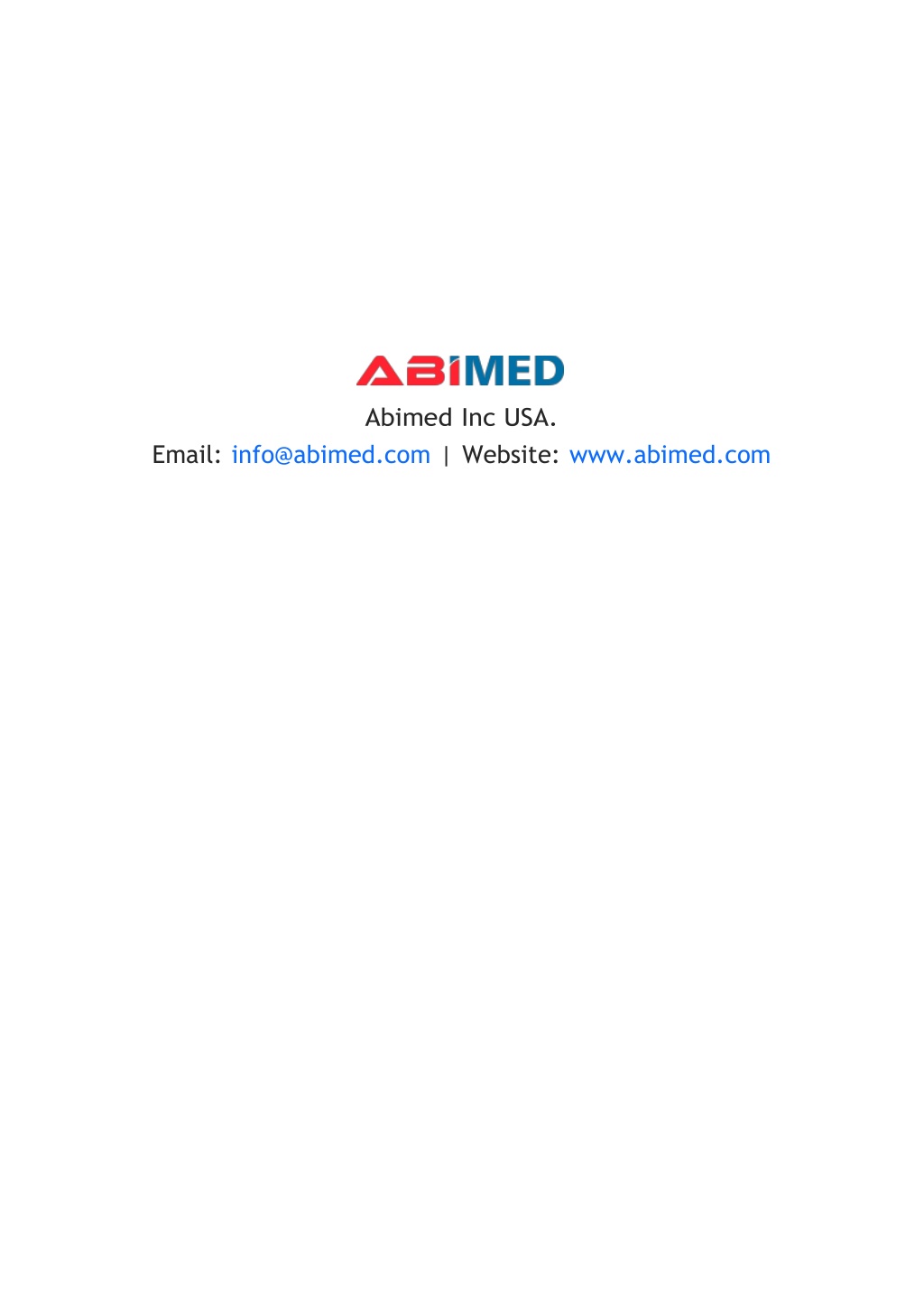

  4. Abimed Inc USA. Email: info@abimed.com | Website: www.abimed.com
