Audio Equipment Guide How To Use a Sound Board www.channelaudiogroup.com

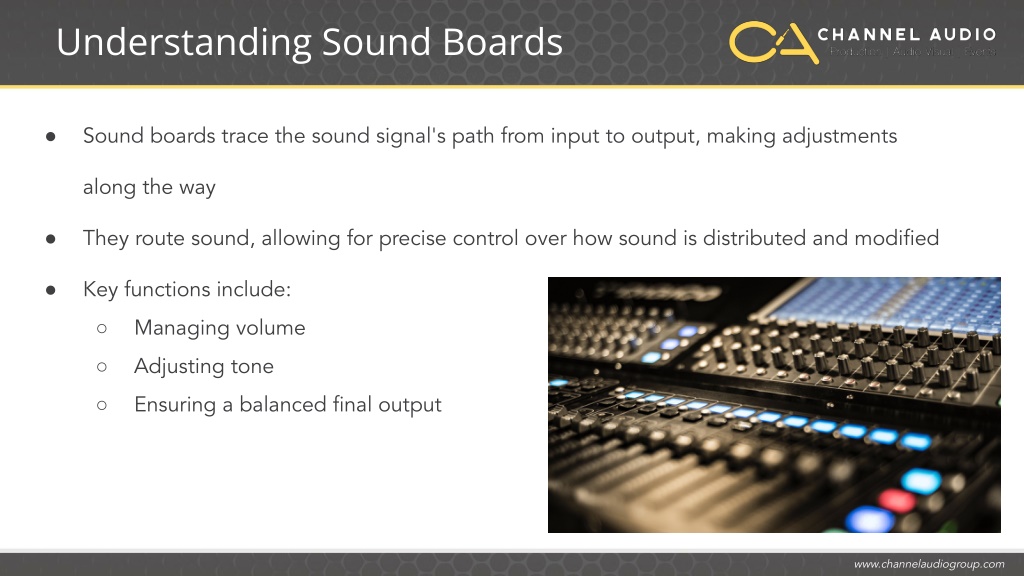

Understanding Sound Boards ● Sound boards trace the sound signal's path from input to output, making adjustments along the way ● They route sound, allowing for precise control over how sound is distributed and modified ● Key functions include: ○ Managing volume ○ Adjusting tone ○ Ensuring a balanced final output www.channelaudiogroup.com

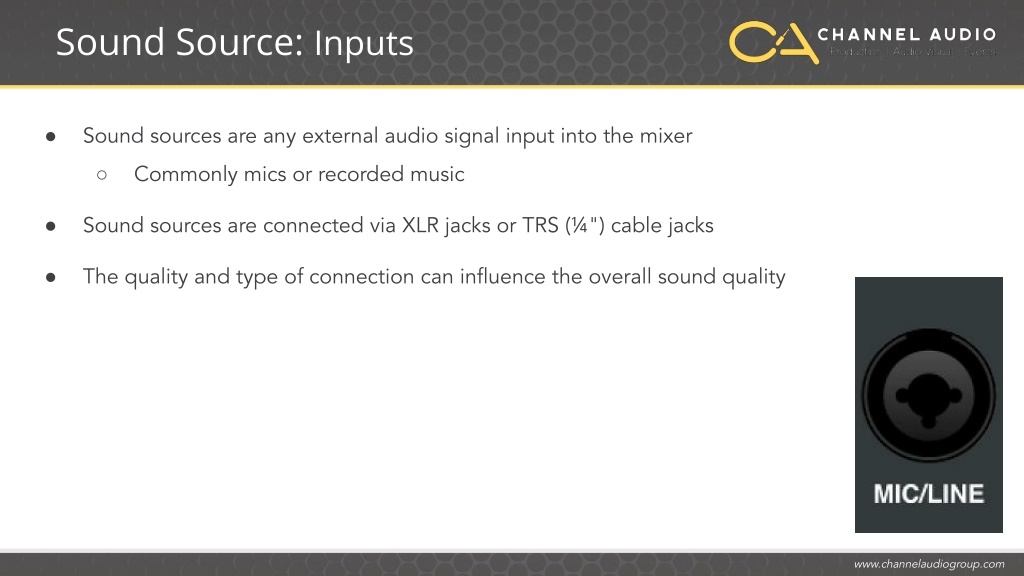

Sound Source: Inputs ● Sound sources are any external audio signal input into the mixer ○ Commonly mics or recorded music ● Sound sources are connected via XLR jacks or TRS (¼") cable jacks ● The quality and type of connection can influence the overall sound quality www.channelaudiogroup.com

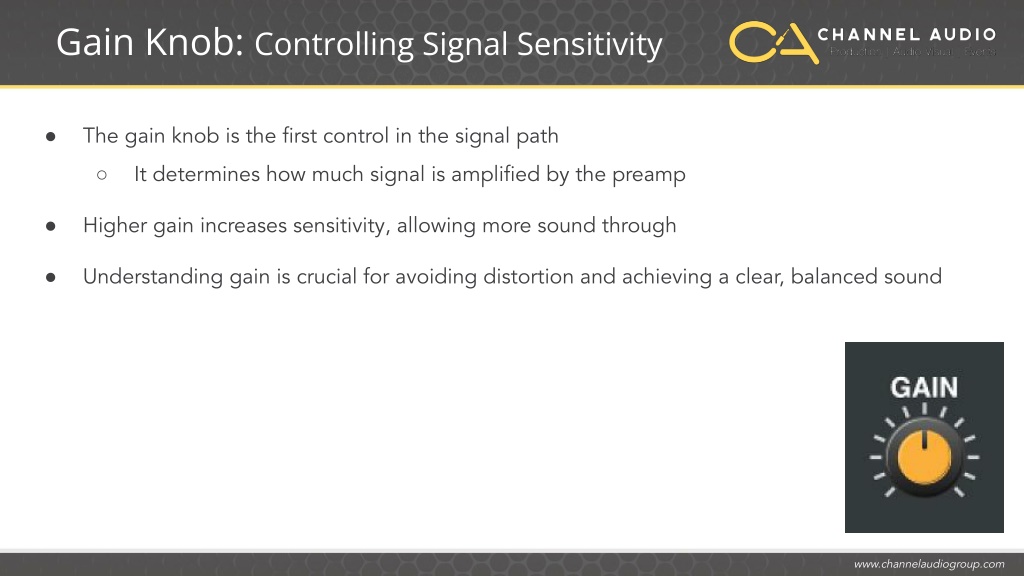

Gain Knob: Controlling Signal Sensitivity ● The gain knob is the first control in the signal path ○ It determines how much signal is amplified by the preamp ● Higher gain increases sensitivity, allowing more sound through ● Understanding gain is crucial for avoiding distortion and achieving a clear, balanced sound www.channelaudiogroup.com

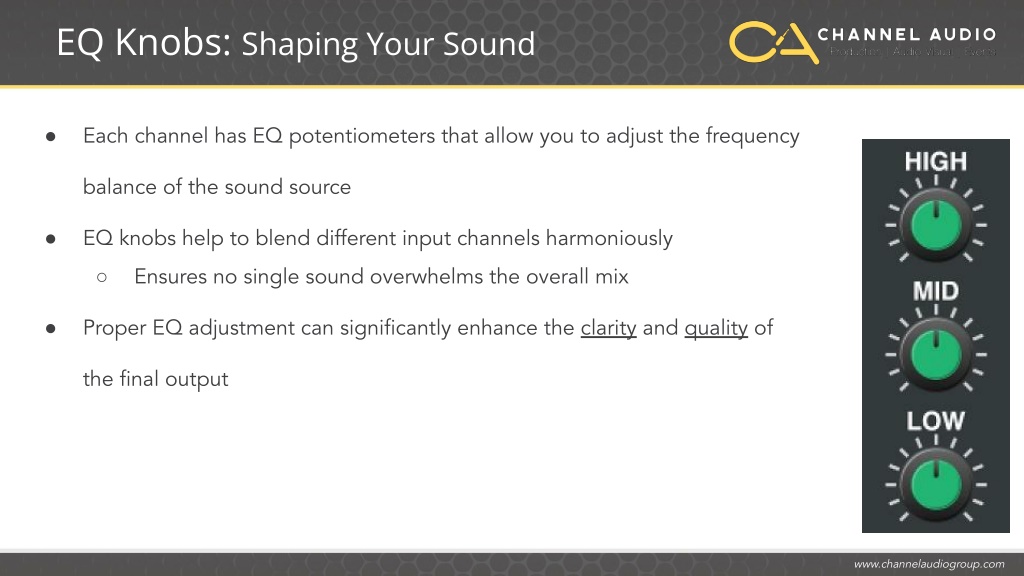

EQ Knobs: Shaping Your Sound ● Each channel has EQ potentiometers that allow you to adjust the frequency balance of the sound source ● EQ knobs help to blend different input channels harmoniously ○ Ensures no single sound overwhelms the overall mix ● Proper EQ adjustment can significantly enhance the clarity and quality of the final output www.channelaudiogroup.com

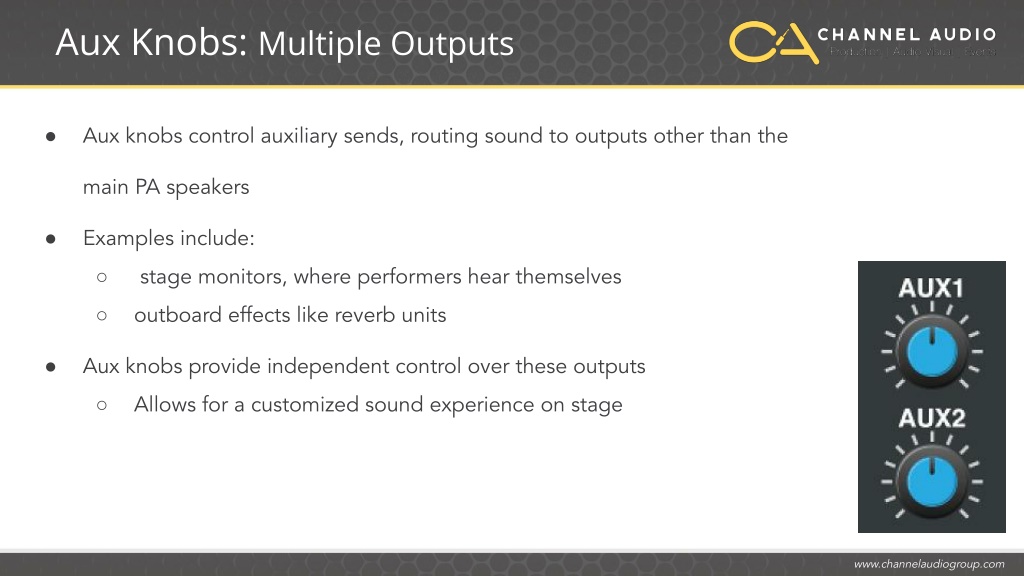

Aux Knobs: Multiple Outputs ● Aux knobs control auxiliary sends, routing sound to outputs other than the main PA speakers ● Examples include: ○ stage monitors, where performers hear themselves ○ outboard effects like reverb units ● Aux knobs provide independent control over these outputs ○ Allows for a customized sound experience on stage www.channelaudiogroup.com

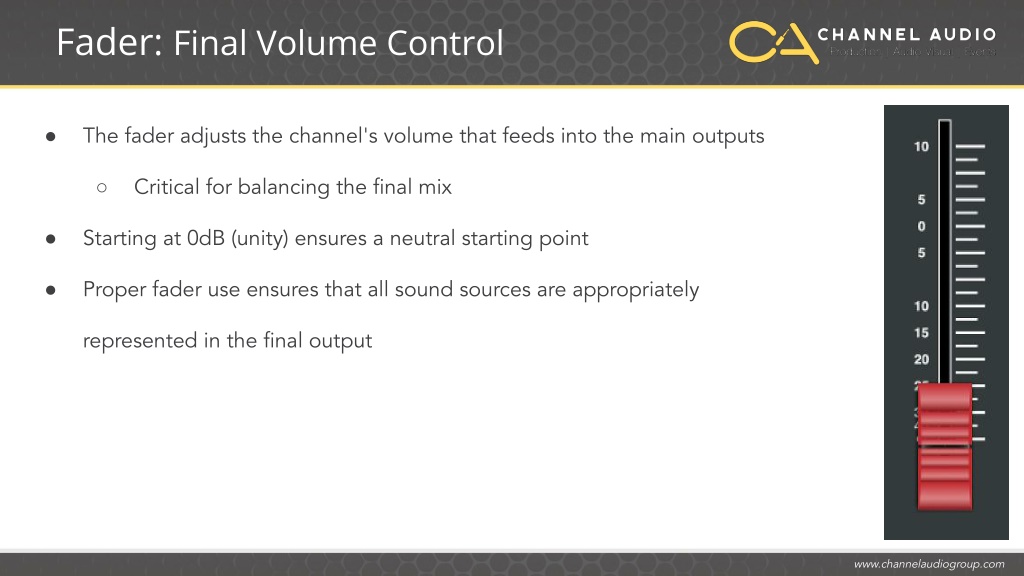

Fader: Final Volume Control ● The fader adjusts the channel's volume that feeds into the main outputs ○ Critical for balancing the final mix ● Starting at 0dB (unity) ensures a neutral starting point ● Proper fader use ensures that all sound sources are appropriately represented in the final output www.channelaudiogroup.com

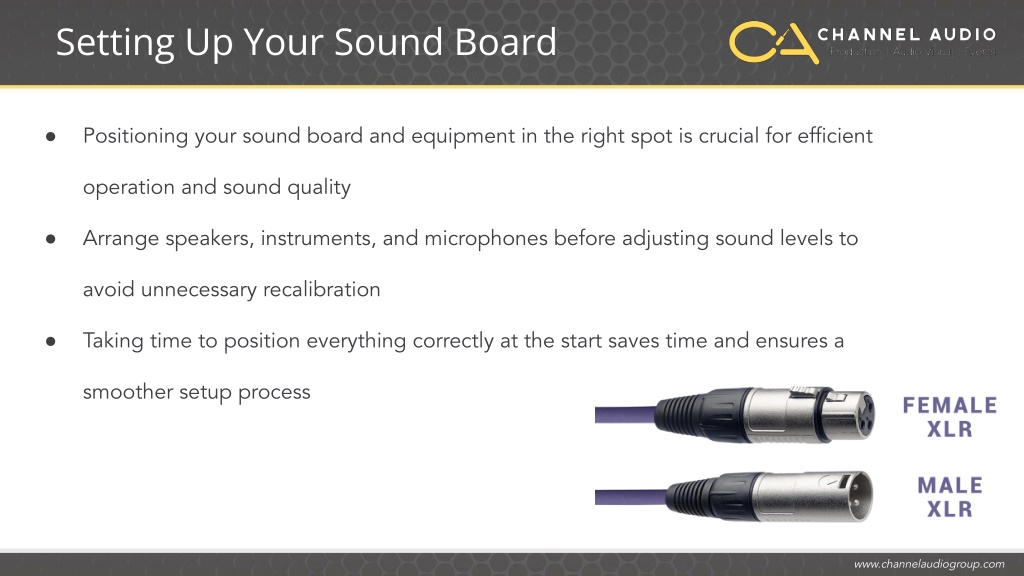

Setting Up Your Sound Board ● Positioning your sound board and equipment in the right spot is crucial for efficient operation and sound quality ● Arrange speakers, instruments, and microphones before adjusting sound levels to avoid unnecessary recalibration ● Taking time to position everything correctly at the start saves time and ensures a smoother setup process www.channelaudiogroup.com

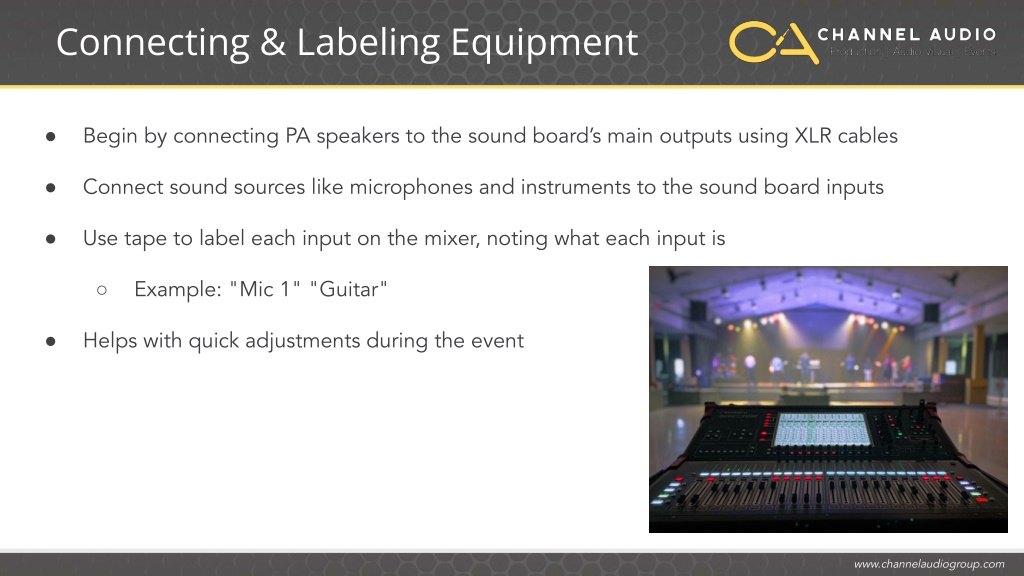

Connecting & Labeling Equipment ● Begin by connecting PA speakers to the sound board’s main outputs using XLR cables ● Connect sound sources like microphones and instruments to the sound board inputs ● Use tape to label each input on the mixer, noting what each input is ○ Example: "Mic 1" "Guitar" ● Helps with quick adjustments during the event www.channelaudiogroup.com

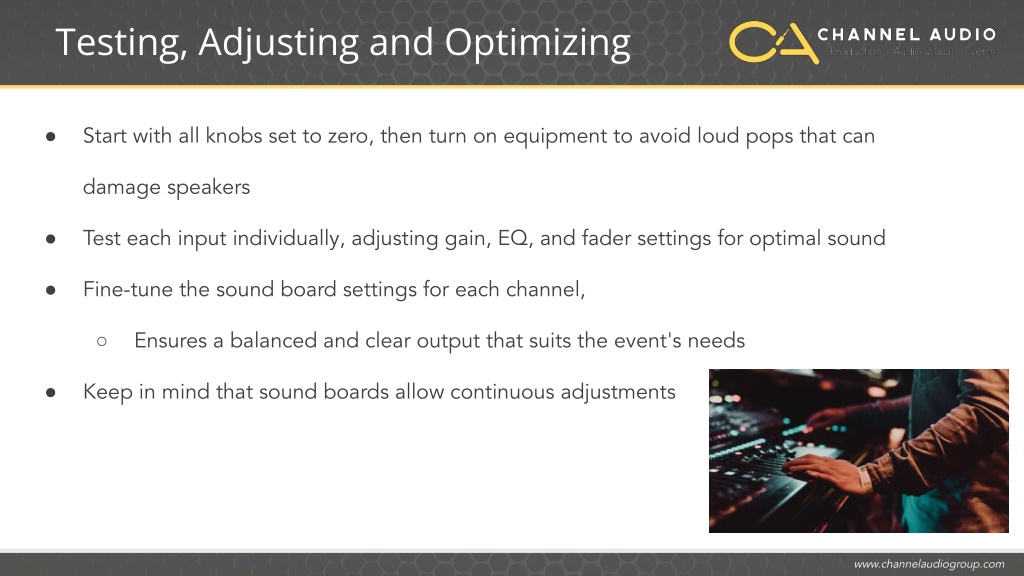

Testing, Adjusting and Optimizing ● Start with all knobs set to zero, then turn on equipment to avoid loud pops that can damage speakers ● Test each input individually, adjusting gain, EQ, and fader settings for optimal sound ● Fine-tune the sound board settings for each channel, ○ Ensures a balanced and clear output that suits the event's needs ● Keep in mind that sound boards allow continuous adjustments www.channelaudiogroup.com
