Auto-Chemistry-Analyzer-EZL-CA103

Ezilab Auto Chemistry Analyzer delivers 400 tests/hr with 60/90 sample positions and 45 reagent slots. It offers efficient operation, crash detection, a refrigerated tray enhanced by user-friendly software touch-screen controls, and cost-effective performance.

Caryn1
Download Presentation

Auto-Chemistry-Analyzer-EZL-CA103

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

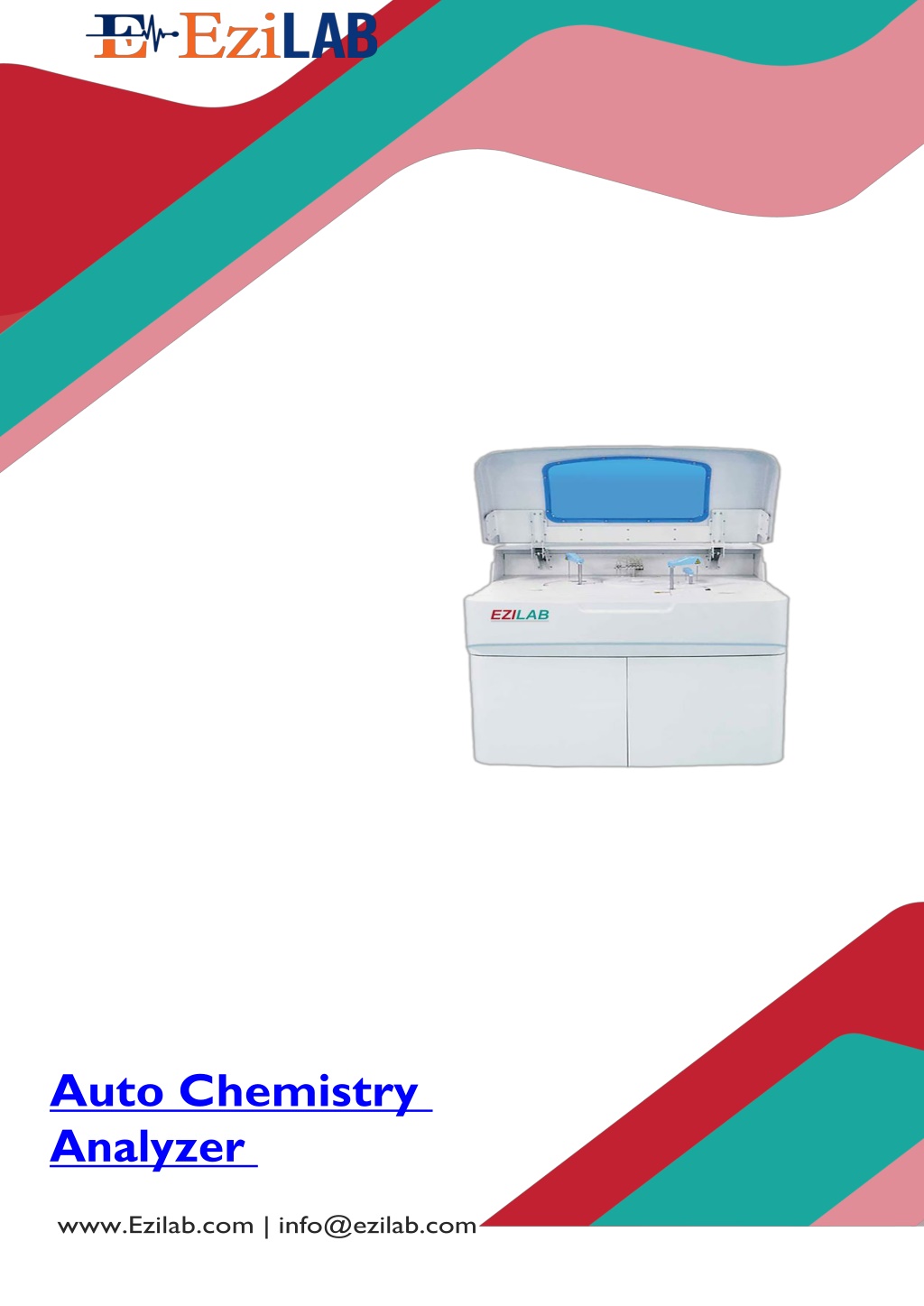

  1. Auto Chemistry Analyzer www.Ezilab.com | info@ezilab.com

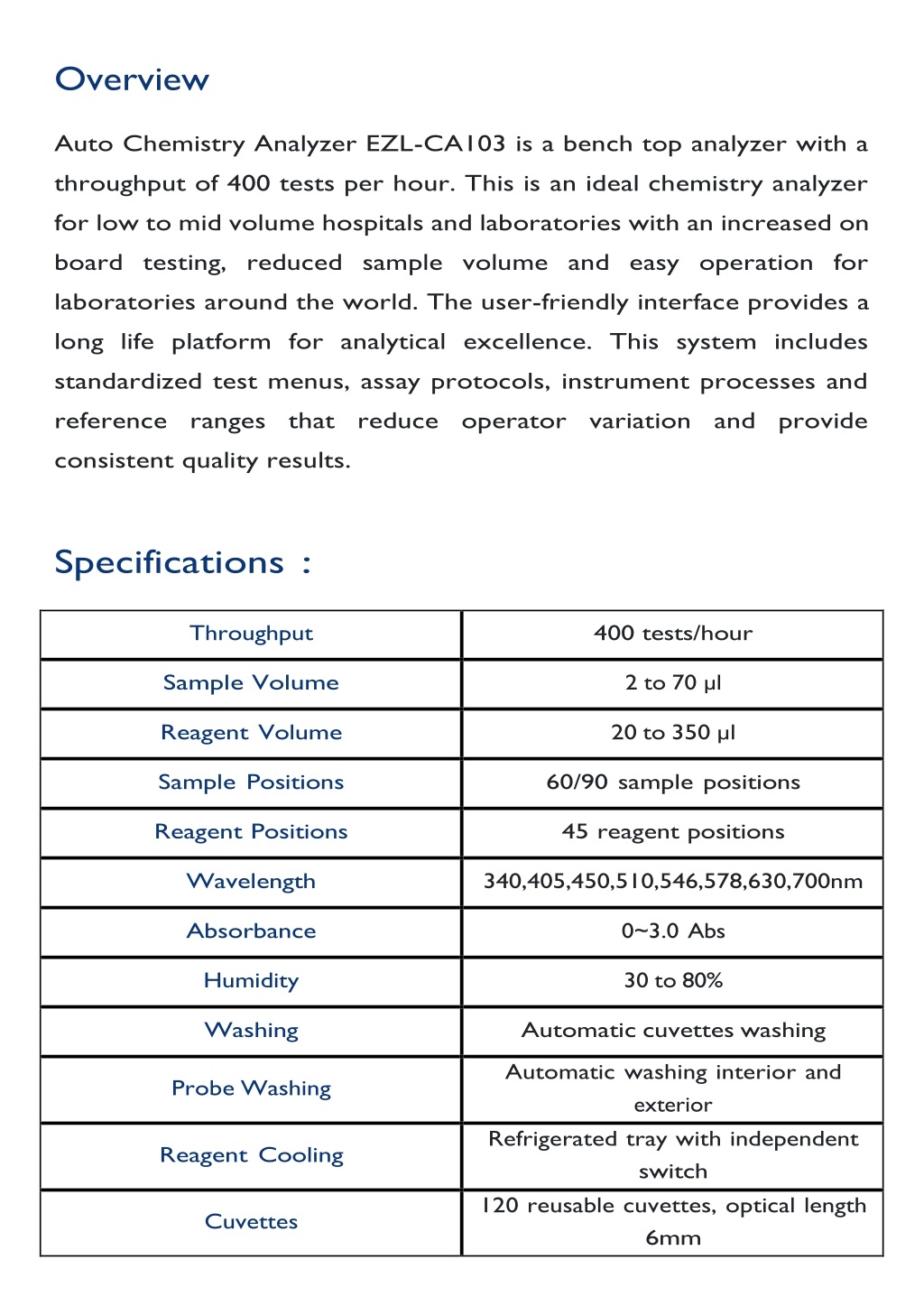

  2. Overview Auto Chemistry Analyzer EZL-CA103 is a bench top analyzer with a throughput of 400 tests per hour. This is an ideal chemistry analyzer for low to mid volume hospitals and laboratories with an increased on board testing, reduced sample volume and easy operation for laboratories around the world. The user-friendly interface provides a long life platform for analytical excellence. This system includes standardized test menus, assay protocols, instrument processes and reference ranges that reduce operator variation and provide consistent quality results. Specifications : Throughput 400 tests/hour Sample Volume 2 to 70 µl Reagent Volume 20 to 350 µl Sample Positions 60/90 sample positions Reagent Positions 45 reagent positions Wavelength 340,405,450,510,546,578,630,700nm Absorbance 0~3.0 Abs Humidity 30 to 80% Washing Automatic cuvettes washing Automatic washing interior and exterior Refrigerated tray with independent switch 120 reusable cuvettes, optical length 6mm Probe Washing Reagent Cooling Cuvettes

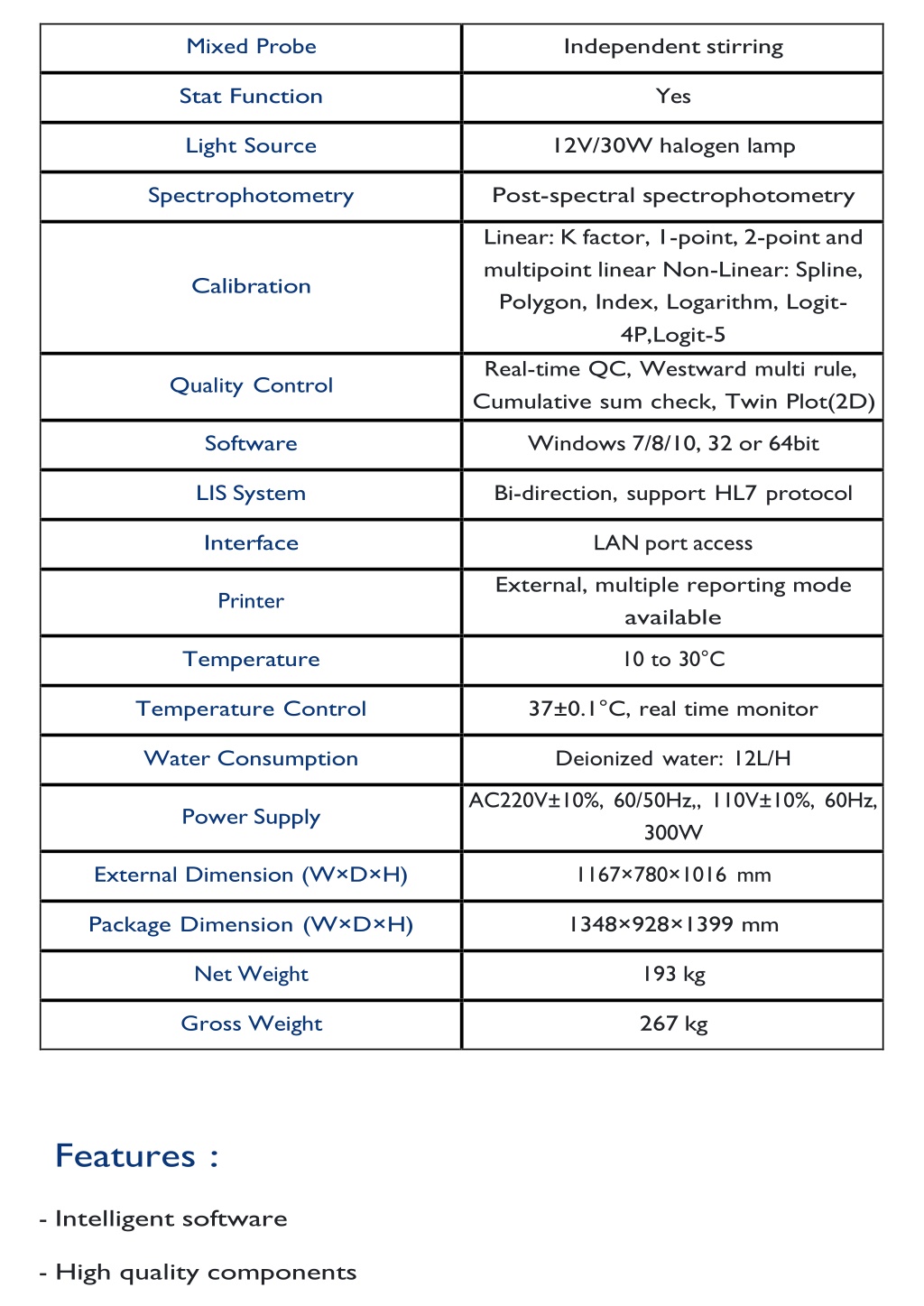

  3. Mixed Probe Independent stirring Stat Function Yes Light Source 12V/30W halogen lamp Spectrophotometry Post-spectral spectrophotometry Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit- 4P,Logit-5 Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D) Calibration Quality Control Software Windows 7/8/10, 32 or 64bit LIS System Bi-direction, support HL7 protocol Interface LAN port access External, multiple reporting mode available Printer Temperature 10 to 30°C Temperature Control 37±0.1°C, real time monitor Water Consumption Deionized water: 12L/H AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W Power Supply External Dimension (W×D×H) 1167×780×1016 mm Package Dimension (W×D×H) 1348×928×1399 mm Net Weight 193 kg Gross Weight 267 kg Features : -Intelligent software -High quality components

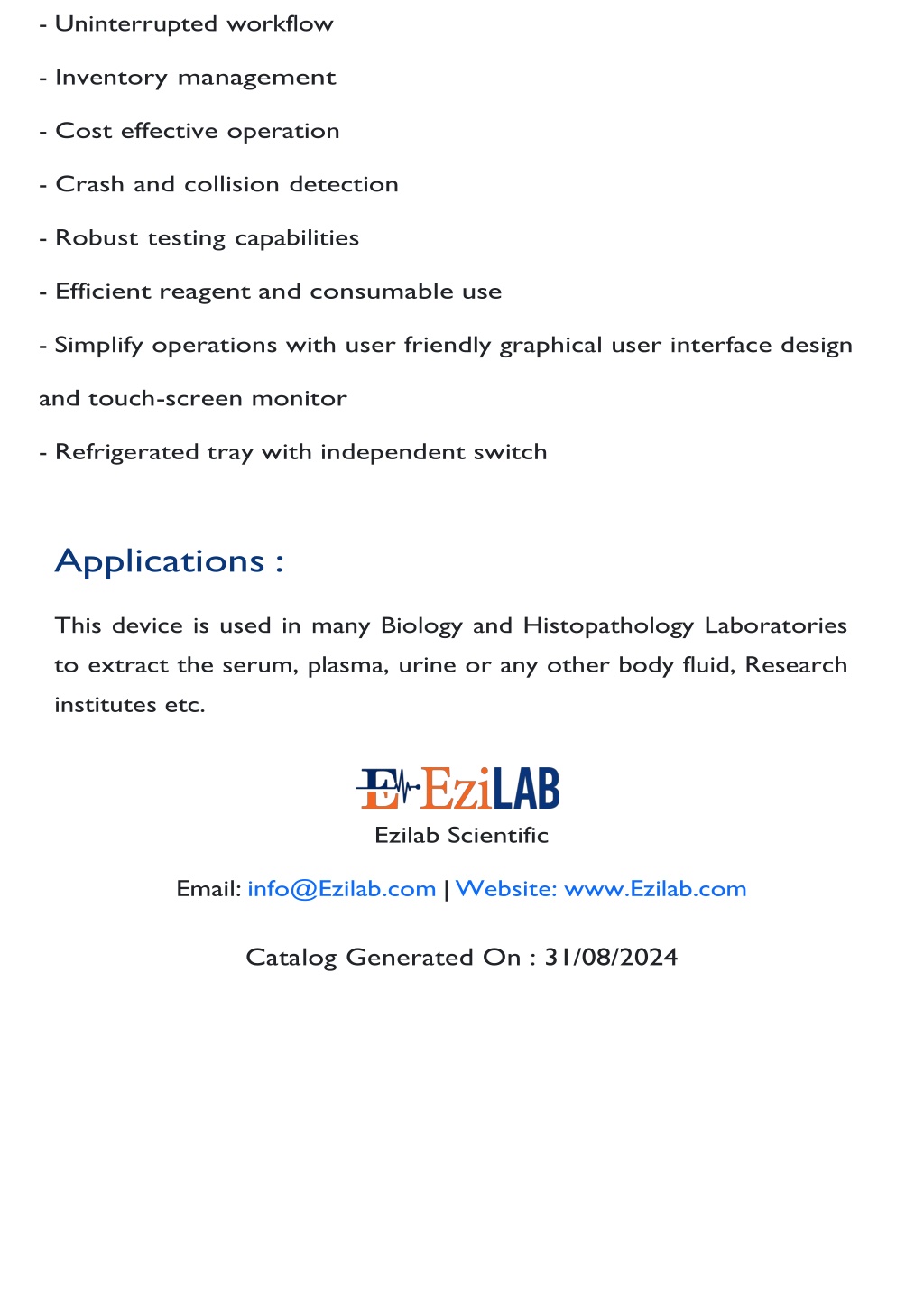

  4. -Uninterrupted workflow -Inventory management -Cost effective operation -Crash and collision detection -Robust testing capabilities -Efficient reagent and consumable use -Simplify operations with user friendly graphical user interface design and touch-screen monitor -Refrigerated tray with independent switch Applications : This device is used in many Biology and Histopathology Laboratories to extract the serum, plasma, urine or any other body fluid, Research institutes etc. Ezilab Scientific Email: info@Ezilab.com | Website: www.Ezilab.com Catalog Generated On : 31/08/2024
