  1. REGLASDE ALGEBRADE BLOQUES Ing Carlos R. Maguna UNSE

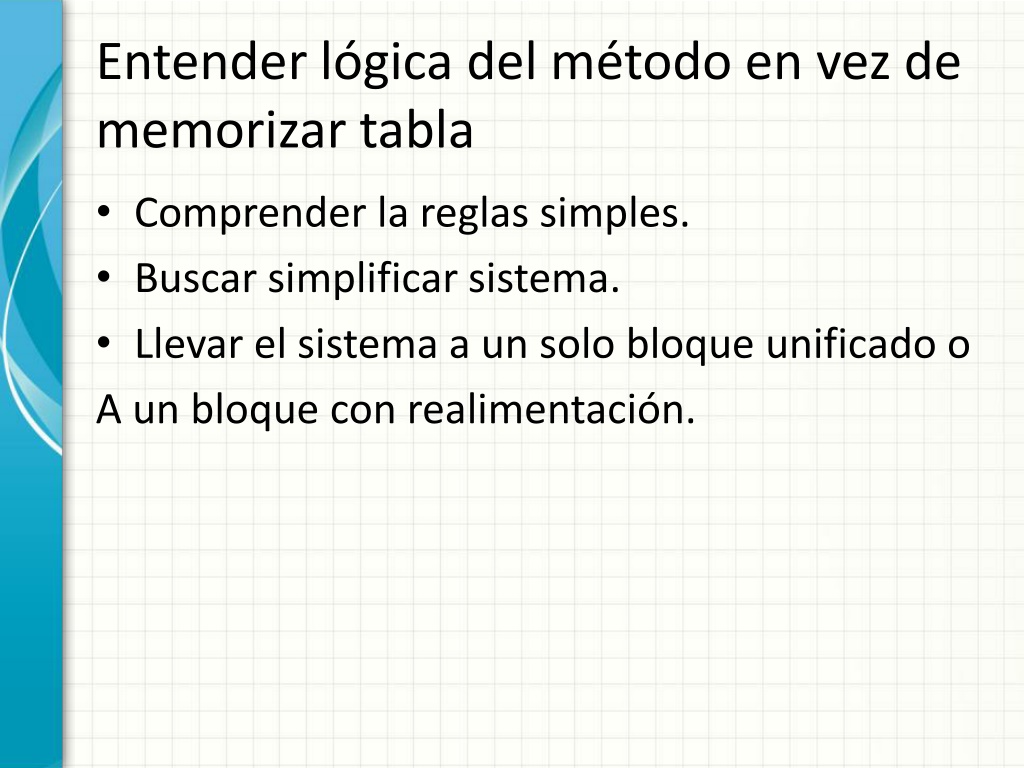

  2. Entender lógica del método en vez de memorizar tabla • Comprender la reglas simples. • Buscar simplificar sistema. • Llevar el sistema a un solo bloque unificado o A un bloque con realimentación.

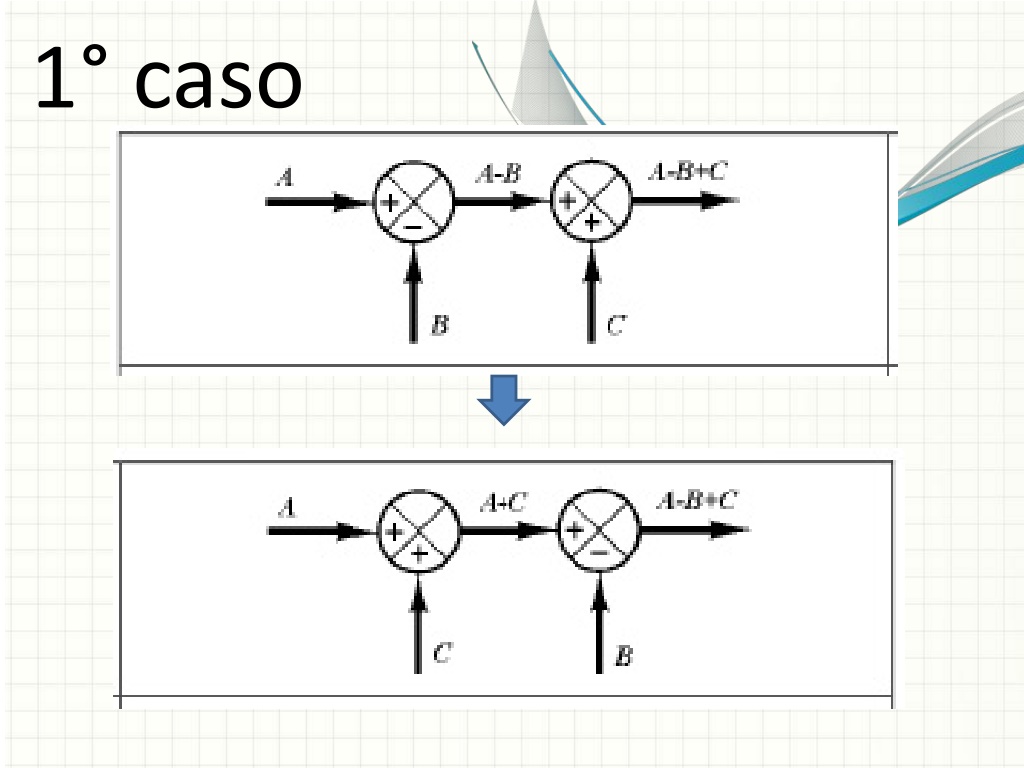

  3. 1° caso

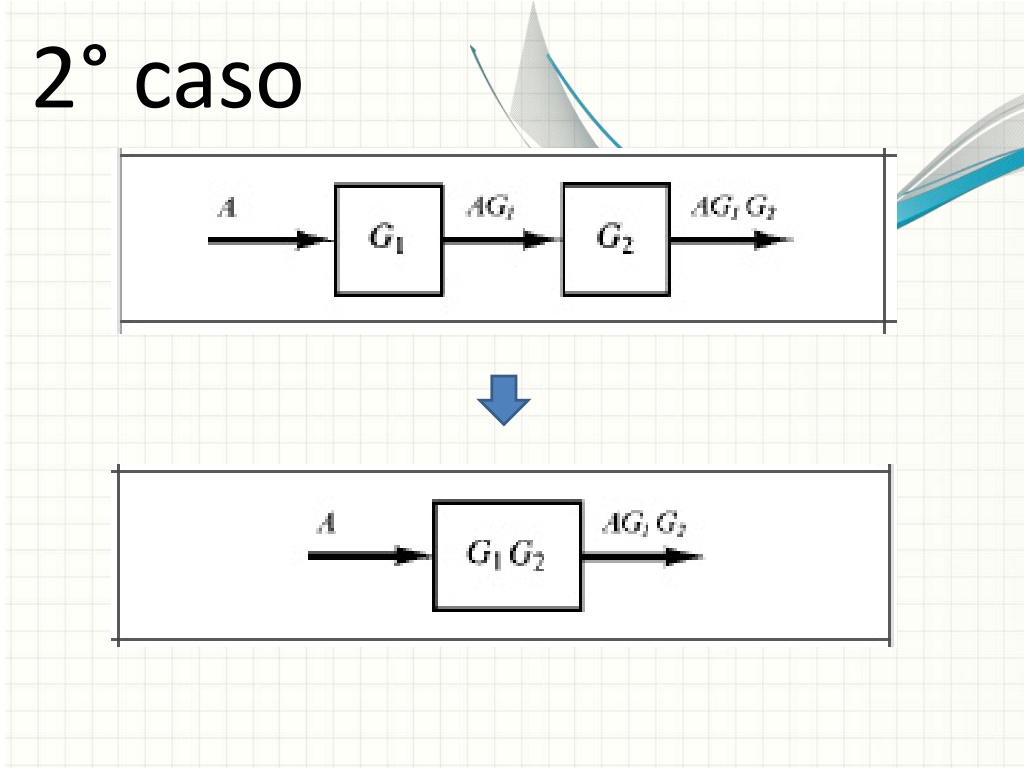

  4. 2° caso

  5. 3° caso

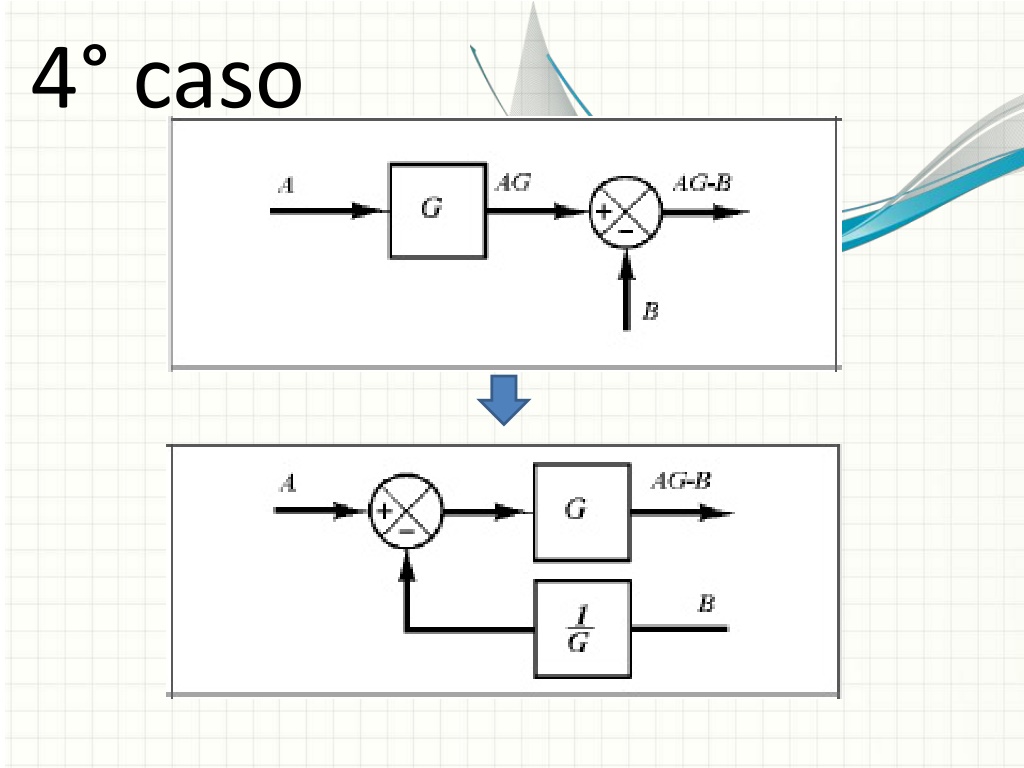

  6. 4° caso

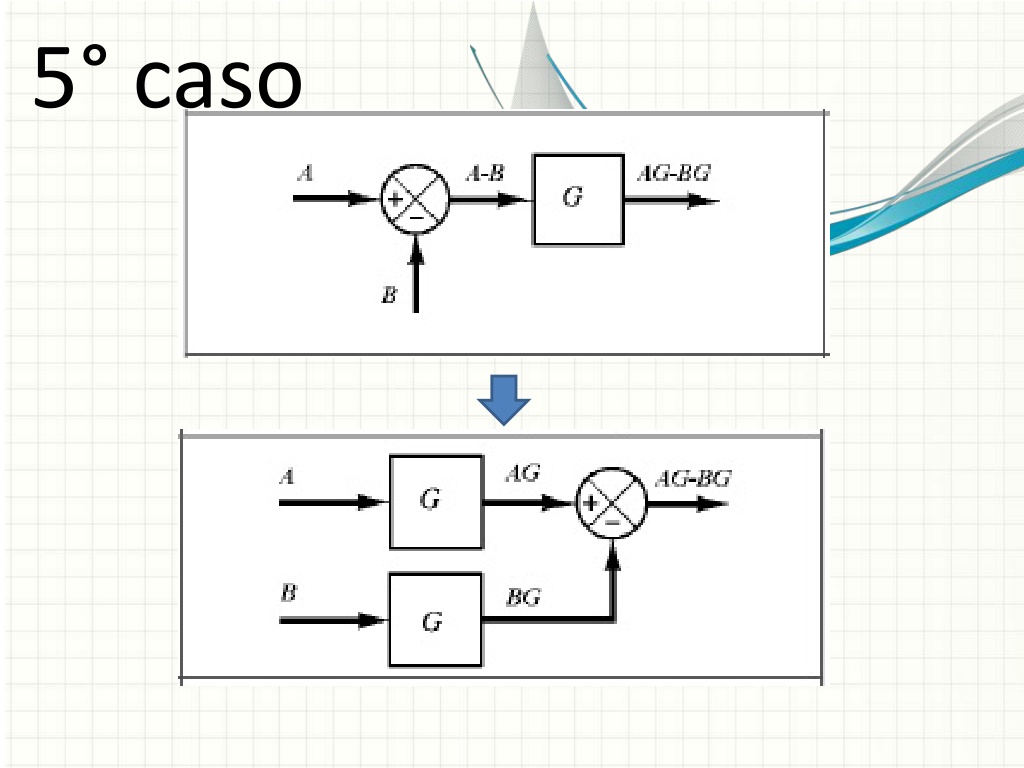

  7. 5° caso

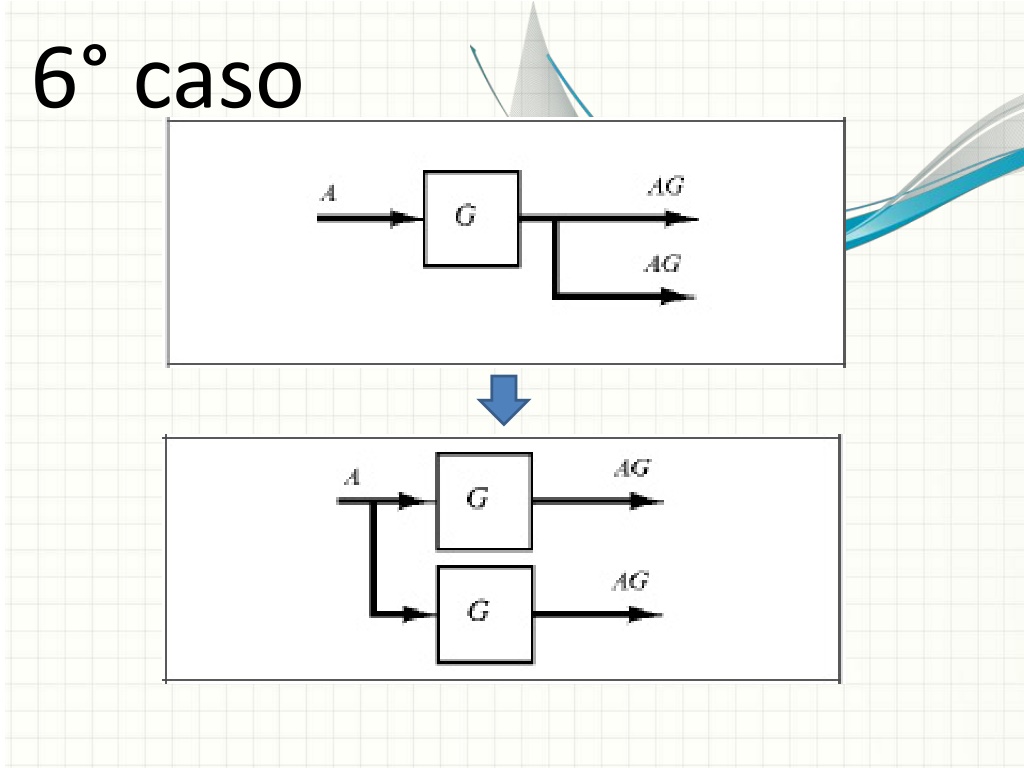

  8. 6° caso

  9. 7° caso

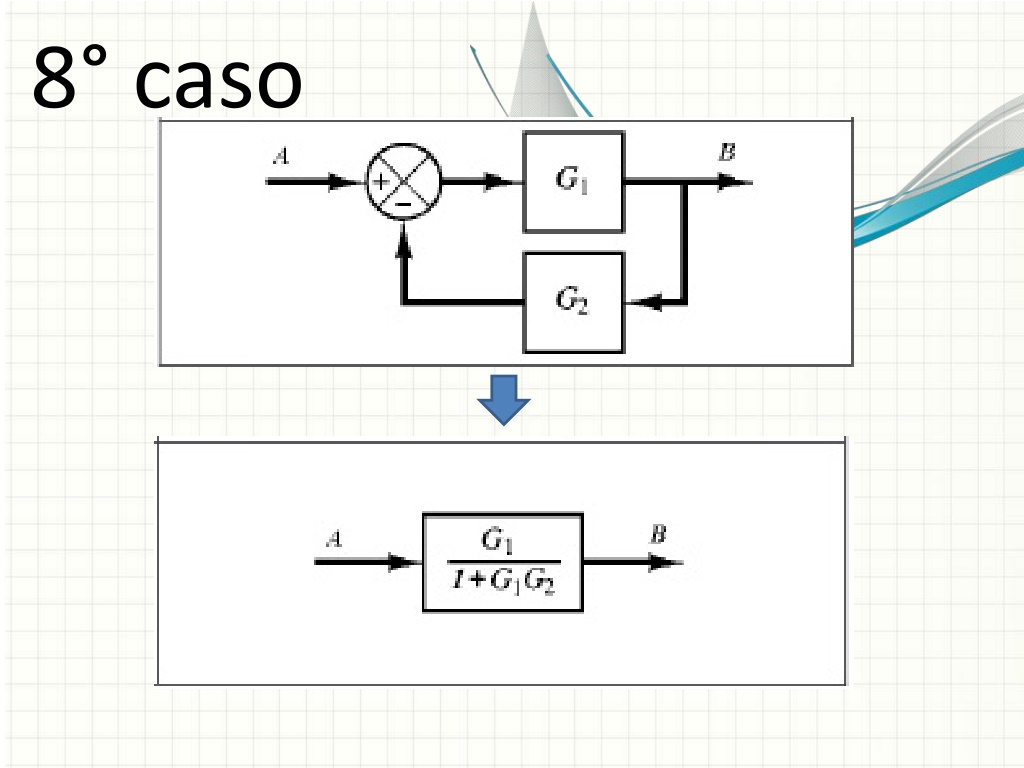

  10. 8° caso

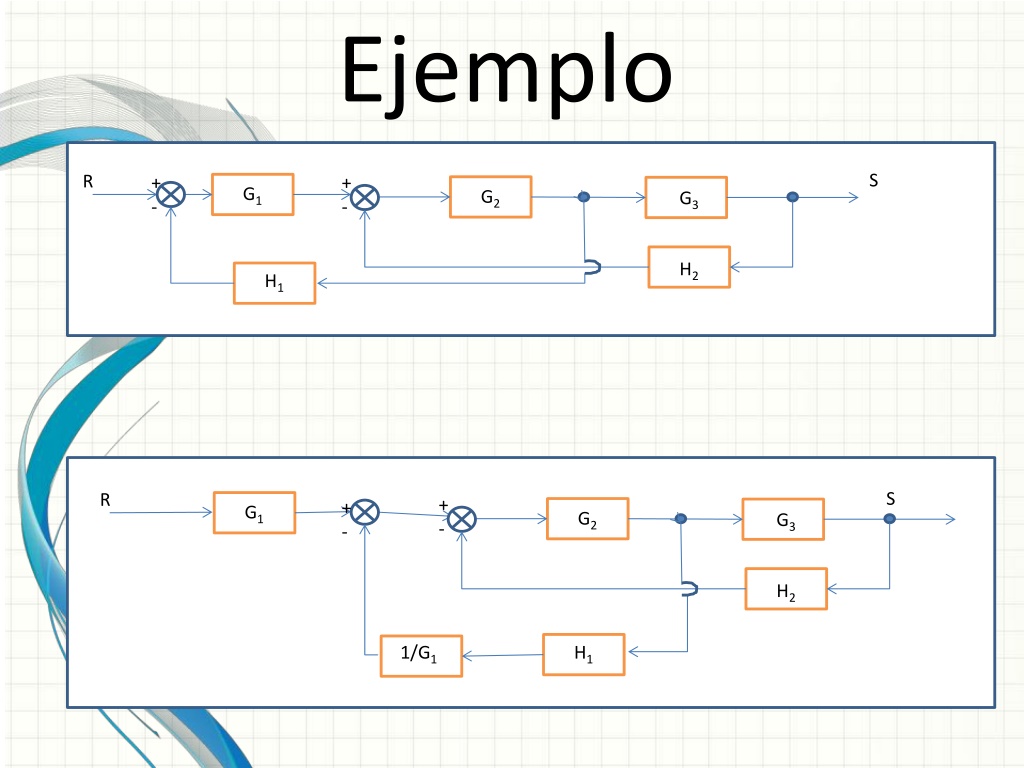

  11. Ejemplo S R + - + - G1 G2 G3 +++++ H2 H1 S R + - + - G1 G2 G3 +++++ H2 1/G1 H1

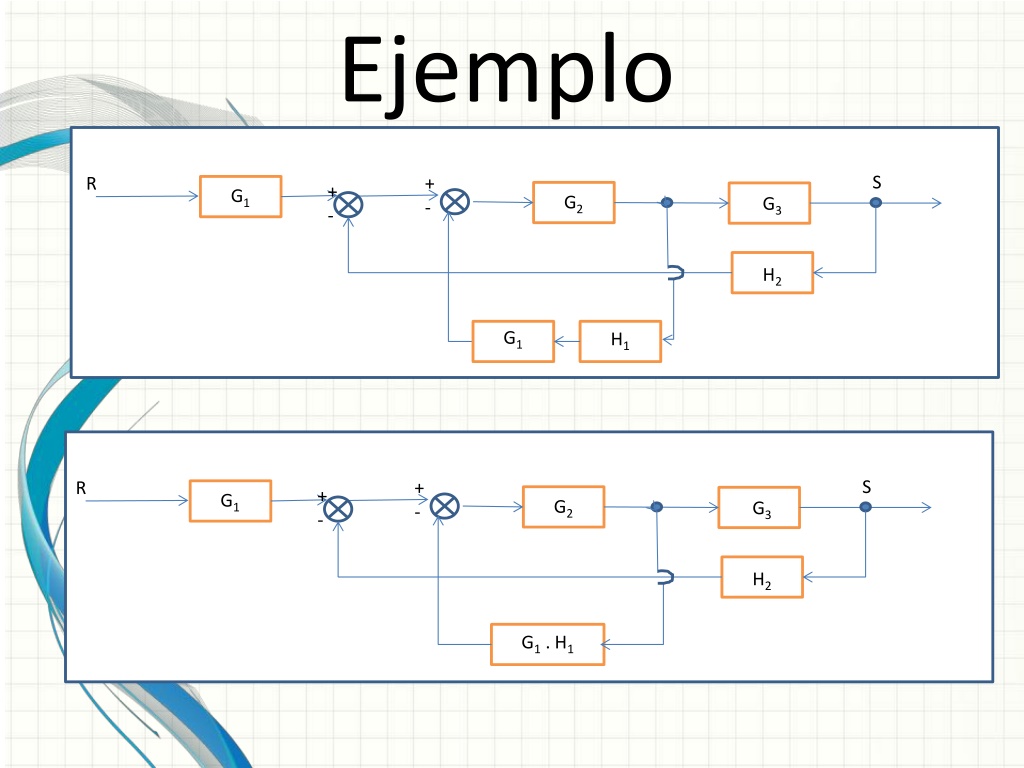

  12. Ejemplo S R + - + - G1 G2 G3 +++++ H2 G1 H1 S R + - + - G1 G2 G3 +++++ H2 G1 . H1

  13. Ejemplo S R + - G1 G3 G2 / (1 + G1 . G2 .H1 ) +++++ H2 S R + - G1 (G2 . G3)/ (1 + G1 . G2 .H1 ) +++++ H2

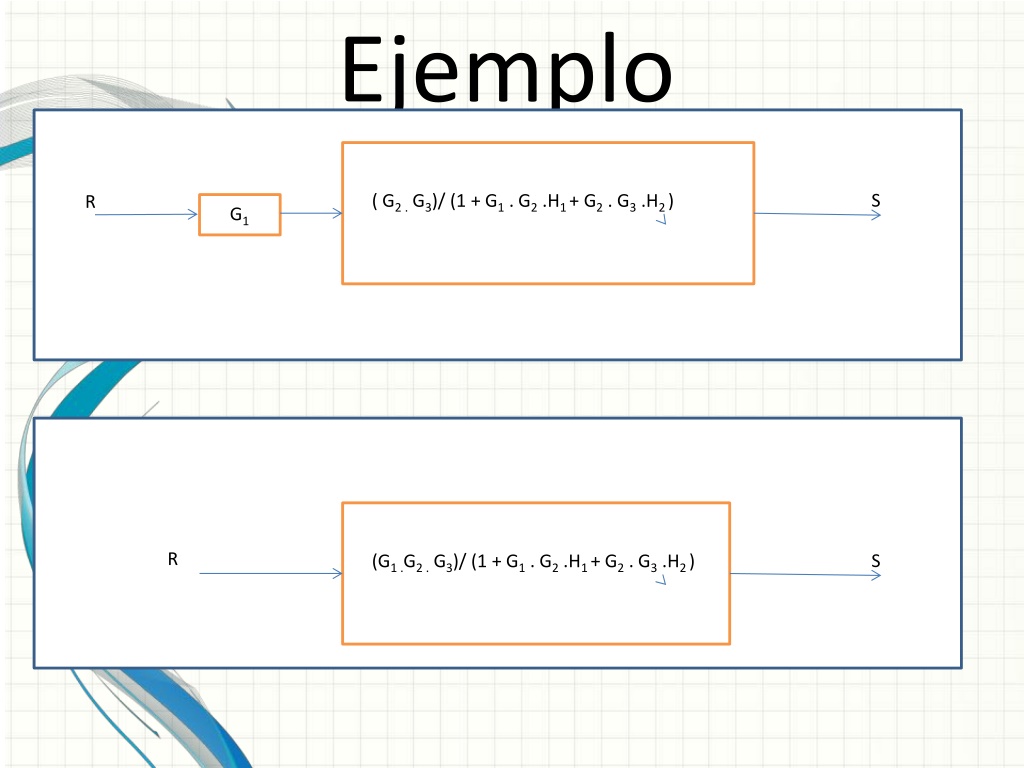

  14. Ejemplo S ( G2 . G3)/ (1 + G1 . G2 .H1 + G2 . G3 .H2 ) R G1 +++++ +++++ R S (G1 .G2 . G3)/ (1 + G1 . G2 .H1 + G2 . G3 .H2 )
