COMPACT PLANT RAPIDKING-60

CONCRETE CAPACITY<br>55 Mu00b3/H Ready Mix Concrete<br><br>MIXER<br>Type : Single Shaft<br>Input Volume : 1.500 Lt.<br>Fresh Concrete Capacity : 1 Mu00b3<br>Motor Power : 37 KW<br><br>AGGREGATE BUNKER<br>Total Volume : 60 Mu00b3<br>Each Bin Volume : 15 Mu00b3<br>Bin Quantity : 4 Units (2 Bins Are Possible According To The Request<br><br>WEIGHING CONVEYOR BELT<br>Dimensions : 800 * 8.000 Mm<br>Motor Power : 7.5 KW<br><br>CEMENT SILO (Optional)<br>Quantity : 1 Unit<br>Capacity : 75 Ton<br><br>CEMENT SCREW<br>Dimensions : u00d8219 * 8.000 Mm<br>Motor Power : 9.2 KW<br><br>COMPRESSOR<br>Capacity : 500 Lt/Min<br>Working Pressure : 4-6 Bar<br>Motor Power : 4 KW<br><br>WATER PUMP<br>Capacity : 40 Mu00b3/H<br>Motor Power

CONMACH
Download Presentation

COMPACT PLANT RAPIDKING-60

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

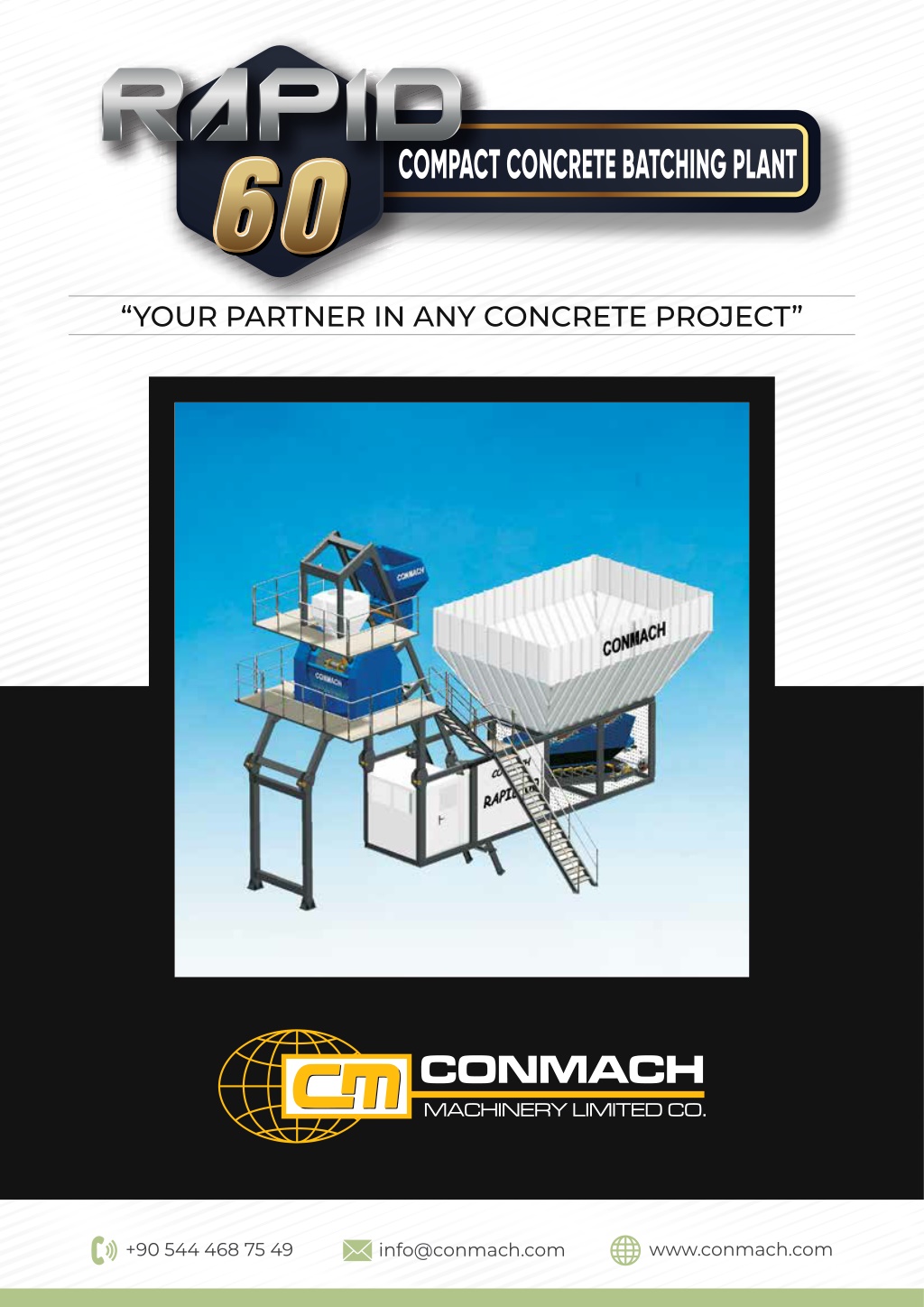

  1. COMPACT CONCRETE BATCHING PLANT “YOUR PARTNER IN ANY CONCRETE PROJECT” www.conmach.com +90 544 468 75 49 info@conmach.com

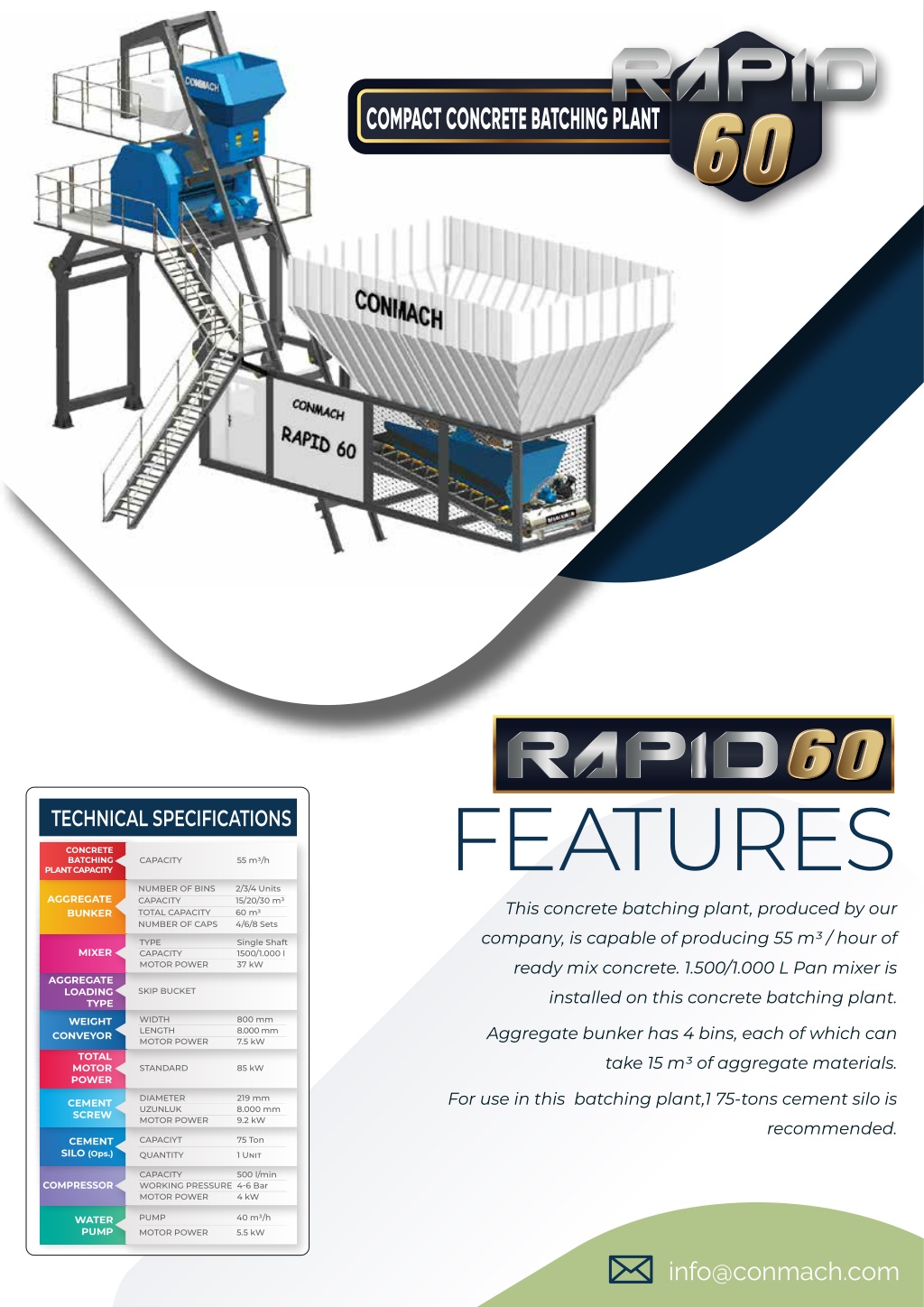

  2. COMPACT CONCRETE BATCHING PLANT FEATURES This concrete batching plant, produced by our company, is capable of producing 55 m3 / hour of ready mix concrete. 1.500/1.000 L Pan mixer is installed on this concrete batching plant. TECHNICAL SPECIFICATIONS CONCRETE BATCHING PLANT CAPACITY CAPACITY 55 m3/h NUMBER OF BINS CAPACITY TOTAL CAPACITY NUMBER OF CAPS 2/3/4 Units 15/20/30 m3 60 m3 4/6/8 Sets AGGREGATE BUNKER TYPE CAPACITY MOTOR POWER Single Shaft 1500/1.000 l 37 kW MIXER AGGREGATE LOADING SKIP BUCKET TYPE WIDTH LENGTH MOTOR POWER 800 mm 8.000 mm 7.5 kW WEIGHT CONVEYOR Aggregate bunker has 4 bins, each of which can take 15 m3 of aggregate materials. TOTAL MOTOR POWER STANDARD 85 kW For use in this batching plant,1 75-tons cement silo is DIAMETER UZUNLUK MOTOR POWER 219 mm 8.000 mm 9.2 kW CEMENT SCREW recommended. CAPACIYT 75 Ton 1 Unit CEMENT SILO (Ops.) QUANTITY CAPACITY WORKING PRESSURE 4-6 Bar MOTOR POWER 500 l/min COMPRESSOR 4 kW PUMP 40 m3/h 5.5 kW WATER PUMP MOTOR POWER info@conmach.com
