COMPACT PLANT RAPIDKING-100

PLANT CAPACITY:<br><br>CAPACITY 75 m3/hour<br><br>AGGREGATE BUNKER:<br>NUMBER OF CELLS 3/4 Unit<br>CAPACITY OF CELLS 20/25 m3<br>TOTAL CAPACITY 80 m3<br>NUMBER OF COVERS 6/8 Set<br><br>MIXER:<br>TYPE Single shaft<br>CAPACITY 2,250/1,500 l<br>MOTOR POWER 2x22 KW<br><br>WEIGHING CONVEYOR:<br>WIDTH 1,000 mm<br>LENGTH 9,500 mm<br>MOTOR POWER 11 kW<br><br>CEMENT SCREW:<br>DIAMETER 273 mm<br>LENGTH 8,000<br>MOTOR POWER 15 KW<br><br>CEMENT SILO<br>2 PCS 100 TONS

CONMACH
Download Presentation

COMPACT PLANT RAPIDKING-100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

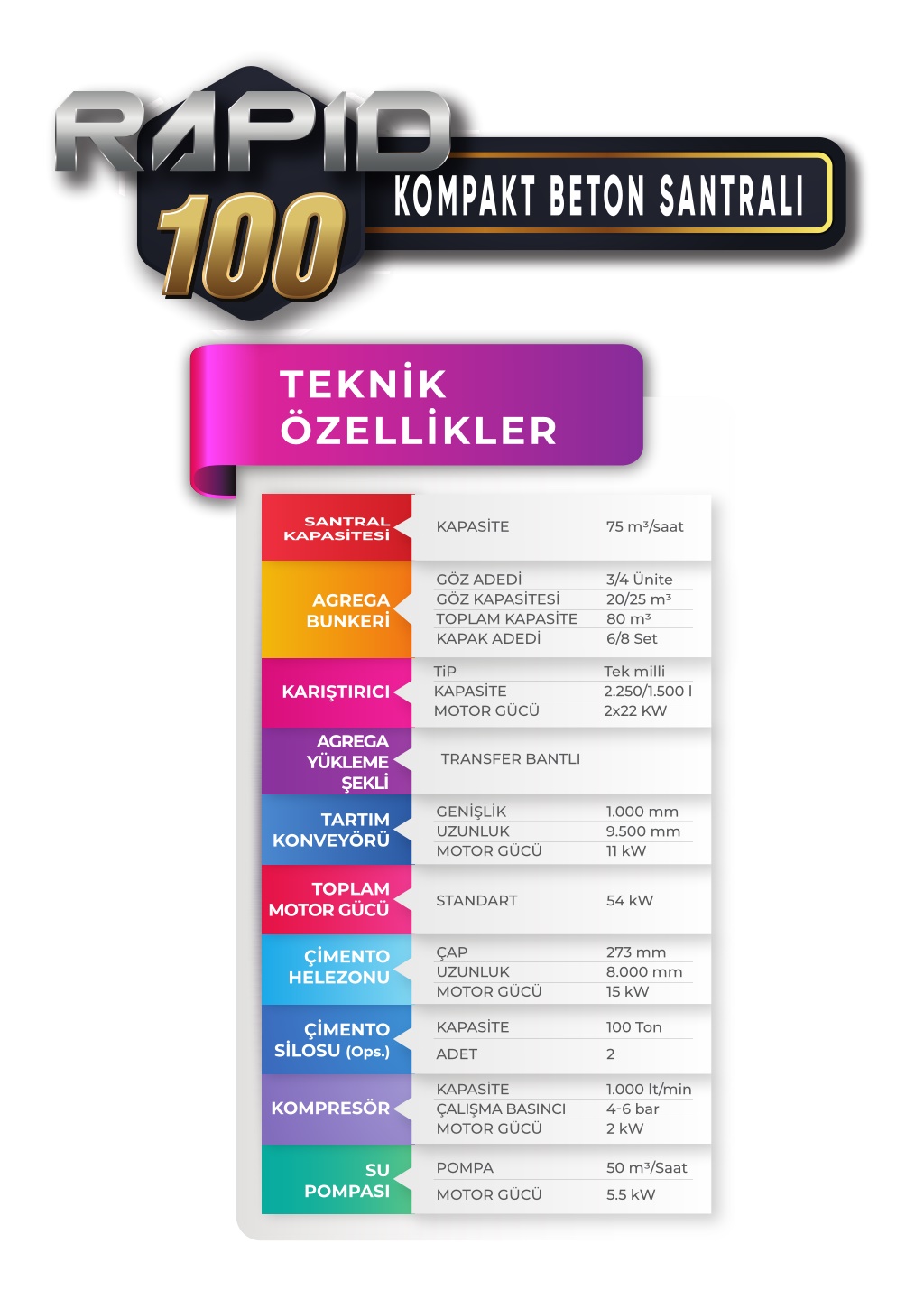

  1. KOMPAKT BETON SANTRALI TEKNİK ÖZELLİKLER SANTRAL KAPASİTESİ KAPASİTE 75 m3/saat GÖZ ADEDİ GÖZ KAPASİTESİ TOPLAM KAPASİTE KAPAK ADEDİ 3/4 Ünite 20/25 m3 80 m3 6/8 Set AGREGA BUNKERİ TiP KAPASİTE MOTOR GÜCÜ Tek milli 2.250/1.500 l 2x22 KW KARIŞTIRICI AGREGA YÜKLEME ŞEKLİ TRANSFER BANTLI GENİŞLİK UZUNLUK MOTOR GÜCÜ 1.000 mm 9.500 mm 11 kW TARTIM KONVEYÖRÜ TOPLAM 54 kW STANDART MOTOR GÜCÜ ÇAP UZUNLUK MOTOR GÜCÜ 273 mm 8.000 mm 15 kW ÇİMENTO HELEZONU KAPASİTE 100 Ton 2 ÇİMENTO SİLOSU (Ops.) ADET KAPASİTE ÇALIŞMA BASINCI MOTOR GÜCÜ 1.000 lt/min 4-6 bar 2 kW KOMPRESÖR POMPA 50 m3/Saat 5.5 kW SU POMPASI MOTOR GÜCÜ
