09MS-BLOCK

CONMACH Concrete block Making Machine Model:BlockKing-09MS <br>CAPACITY OF THE MACHINE<br>20 * 20 * 40 Cm Block ==> 3.000 Units/Shift<br>15 * 20 * 40 Cm Block ==> 4.000 Units/Shift<br>10 * 20 * 40 Cm Block ==> 6.000 Units/Shift<br>Paving Stone: 250 Mu00b2/Shift<br>Shift ==> 8 hours<br><br>FEATURES OF THE MACHINE<br>Operation Type : Semi-Automatic<br>Hydraulic Pump Flowrate: 32 Lt/Min<br>Hydraulic Motor Power: 7.5 KW<br>Number Of Hydraulic Movements: 5 Or 6 Movements (For MD)<br>Vibrator Quantity: 1 Unit<br>Vibrator Motor Power: 1 * 5.5 KW<br>Pallet Size: 57 * 80 * 3 Cm<br><br>MIXER FEATURES<br>Output Volume : 0.15 Mu00b3<br>Gearbox Motor : 7.5 KW<br>

CONMACH
Download Presentation

09MS-BLOCK

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

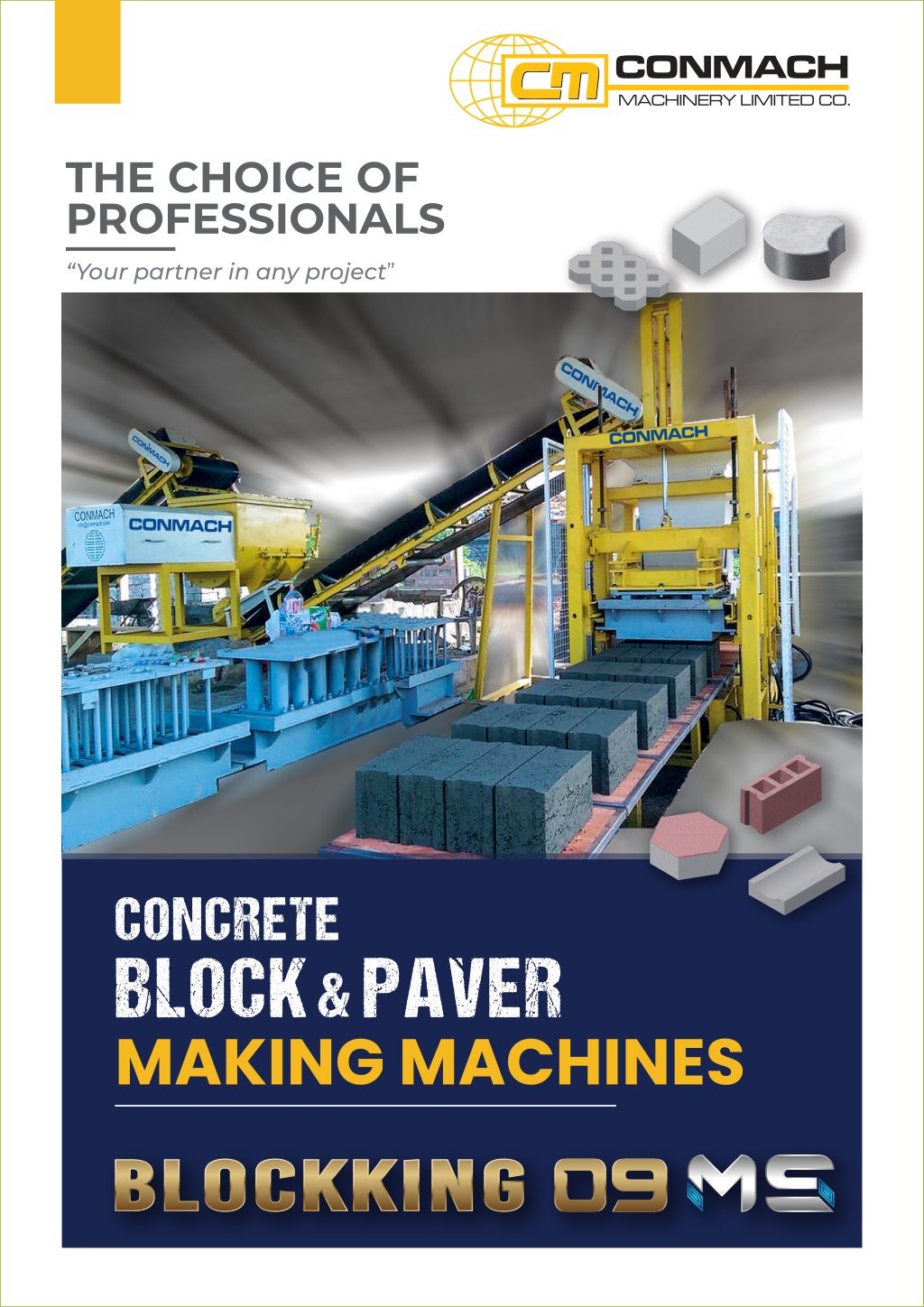

  1. THE CHOICE OF PROFESSIONALS “Your partner in any project” CONCRETE BLOCK & PAVER MAKING MACHINES

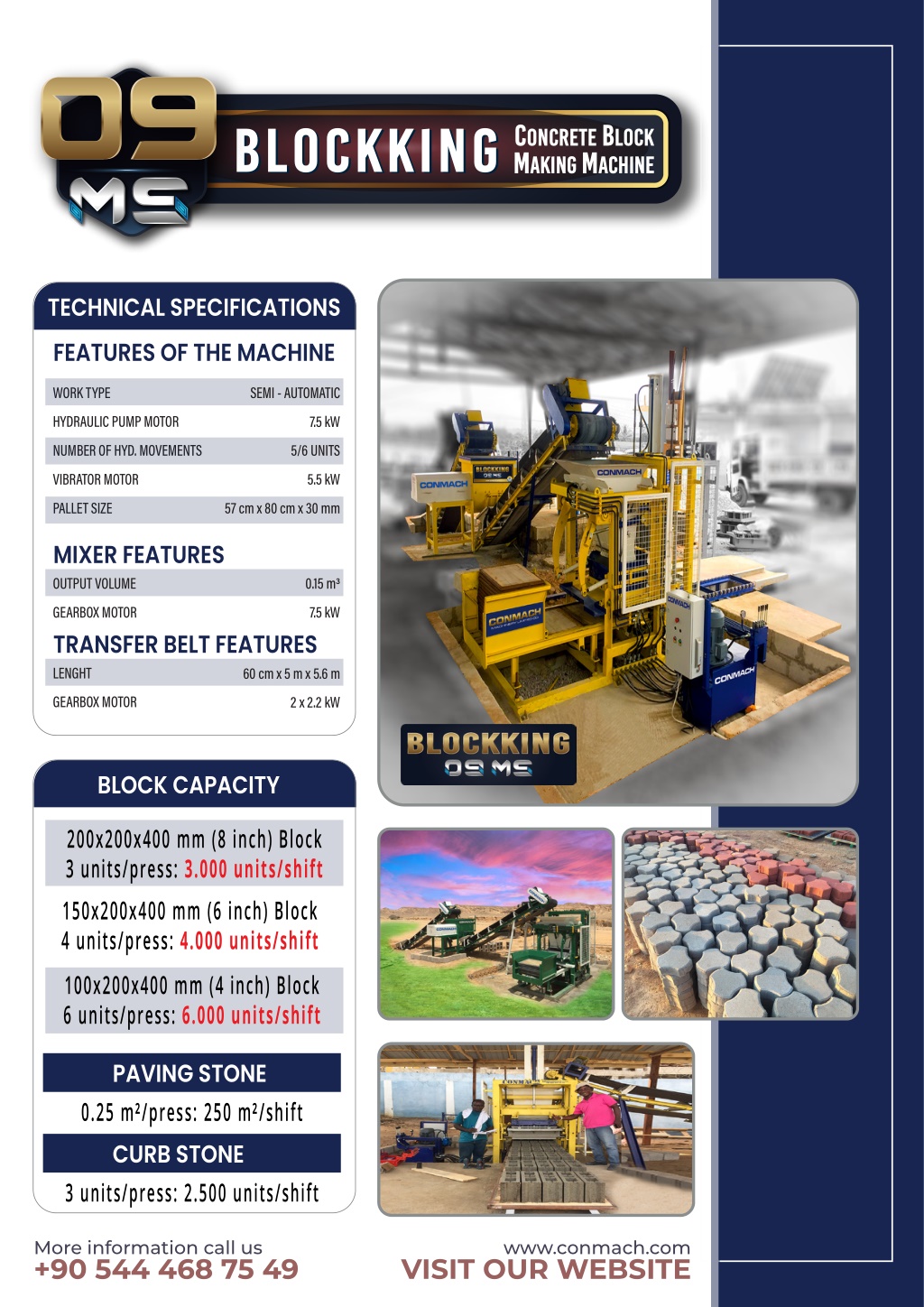

  2. BLOCKKING BLOCKKING ConCRETE BLOCK MAKING MACHINE TECHNICAL SPECIFICATIONS FEATURES OF THE MACHINE ?? ??????? ??????????? ????? ????????????????? ?? ? ?????? ???????? ????????? ??????? ????????? ??????? ???? ?? ? ?????? ??????????? ????????????????????? MIXER FEATURES ? ???????? ???? ??????? ?????? ???? ?? ? TRANSFER BELT FEATURES ?????? ?????? ??????????????????? ?????? ???? ?? ? ?????????? BLOCK CAPACITY 200x200x400 mm (8 inch) Block 3 units/press: 3.000 units/shift 150x200x400 mm (6 inch) Block 4 units/press: 4.000 units/shift 100x200x400 mm (4 inch) Block 6 units/press: 6.000 units/shift PAVING STONE 0.25 m²/press: 250 m²/shift CURB STONE 3 units/press: 2.500 units/shift More information call us +90 544 468 75 49 www.conmach.com VISIT OUR WEBSITE
