03-Rigid graphite felt board-ENGLISH

Wet-formed graphite felt is a graphite fiber reinforced material prepared by a wet process. It has the characteristics of high thermal conductivity, high temperature resistance, and corrosion resistance. It is mainly used in the following fields:<br><br>Main application areas:Insulation materials for single crystal silicon smelting furnaces<br>As a key material in the production of single crystal silicon, wet-formed graphite felt can effectively isolate high-temperature areas, reduce heat conduction, and improve process efficiency.<br>Insulation and heat insulation materials in various crystal growth

CFCCARBON
Download Presentation

03-Rigid graphite felt board-ENGLISH

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

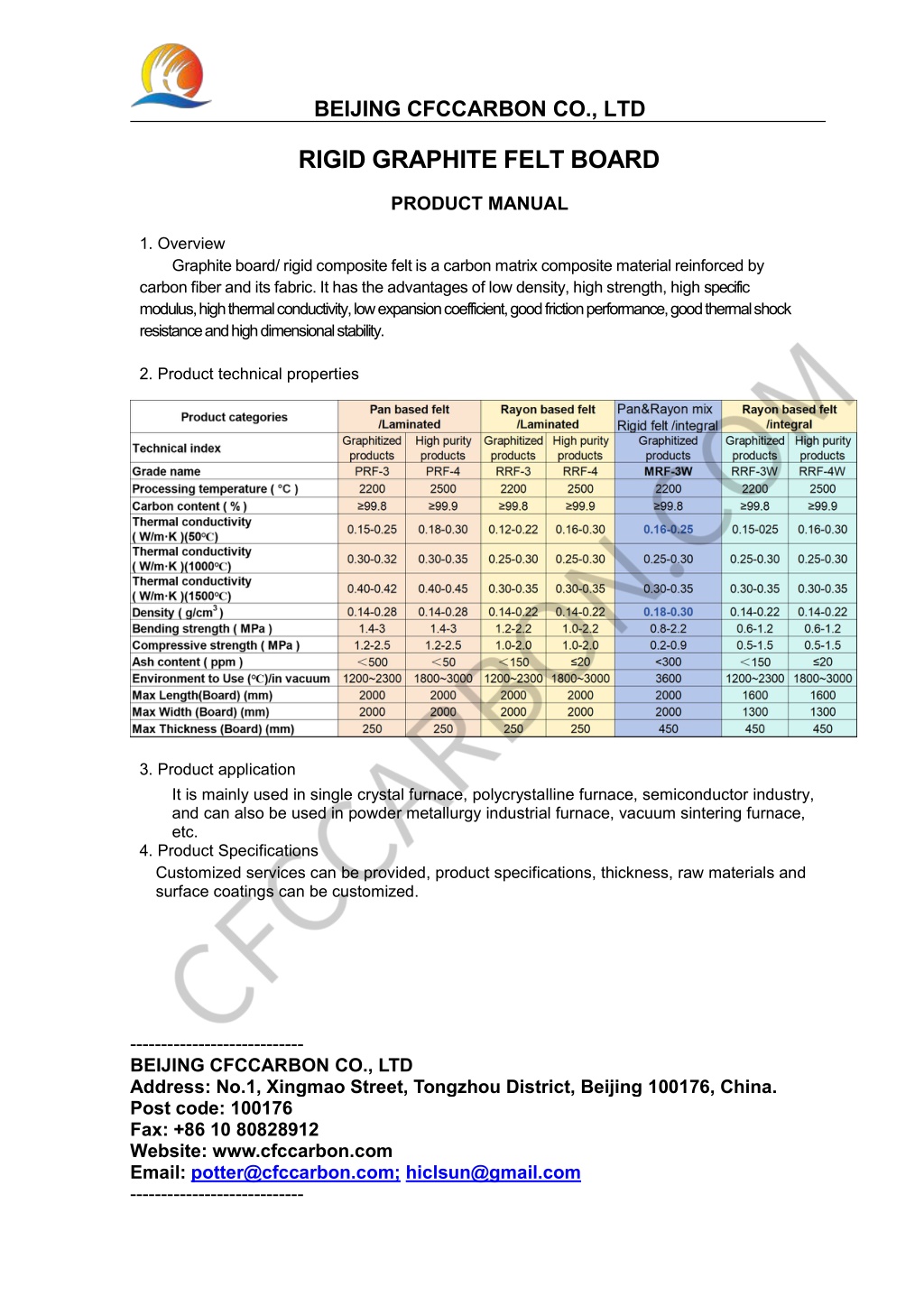

  1. BEIJING CFCCARBON CO., LTD RIGID GRAPHITE FELT BOARD PRODUCT MANUAL 1. Overview Graphite board/ rigid composite felt is a carbon matrix composite material reinforced by carbon fiber and its fabric. It has the advantages of low density, high strength, high specific modulus,highthermalconductivity,lowexpansioncoefficient,goodfrictionperformance,goodthermalshock resistanceandhighdimensionalstability. 2. Product technical properties 3. Product application It is mainly used in single crystal furnace, polycrystalline furnace, semiconductor industry, and can also be used in powder metallurgy industrial furnace, vacuum sintering furnace, etc. 4. Product Specifications Customized services can be provided, product specifications, thickness, raw materials and surface coatings can be customized. ---------------------------- BEIJING CFCCARBON CO., LTD Address: No.1, Xingmao Street, Tongzhou District, Beijing 100176, China. Post code: 100176 Fax: +86 10 80828912 Website: www.cfccarbon.com Email: potter@cfccarbon.com; hiclsun@gmail.com ----------------------------
