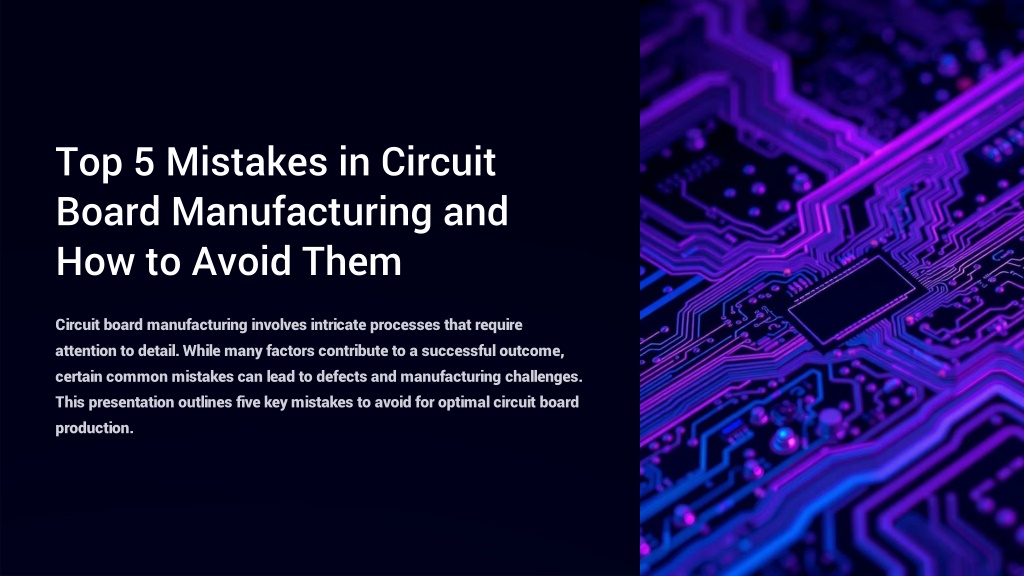

  1. Top 5 Mistakes in Circuit Board Manufacturing and How to Avoid Them Circuit board manufacturing involves intricate processes that require attention to detail. While many factors contribute to a successful outcome, certain common mistakes can lead to defects and manufacturing challenges. This presentation outlines five key mistakes to avoid for optimal circuit board production.

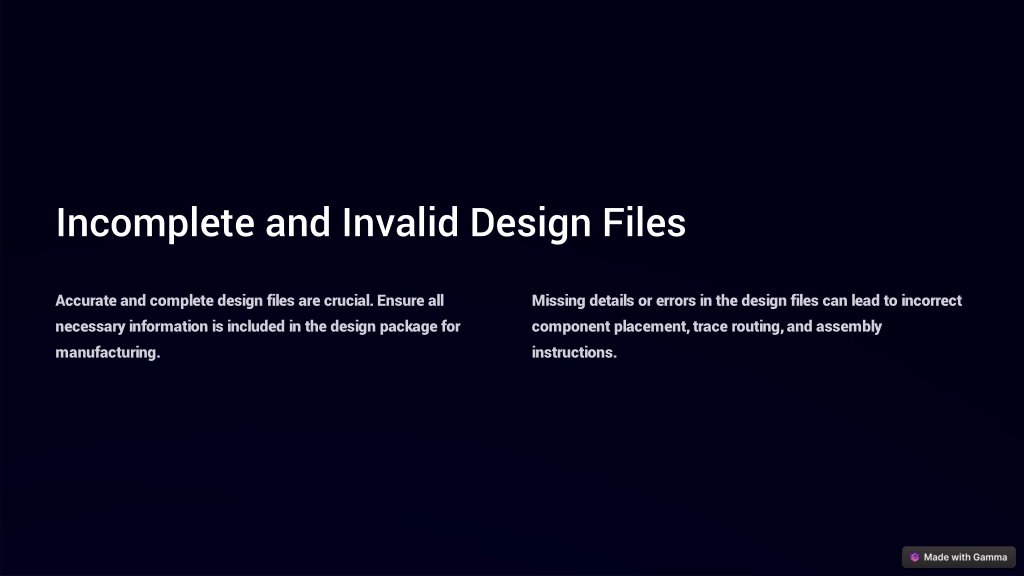

  2. Incomplete and Invalid Design Files Accurate and complete design files are crucial. Ensure all necessary information is included in the design package for manufacturing. Missing details or errors in the design files can lead to incorrect component placement, trace routing, and assembly instructions.

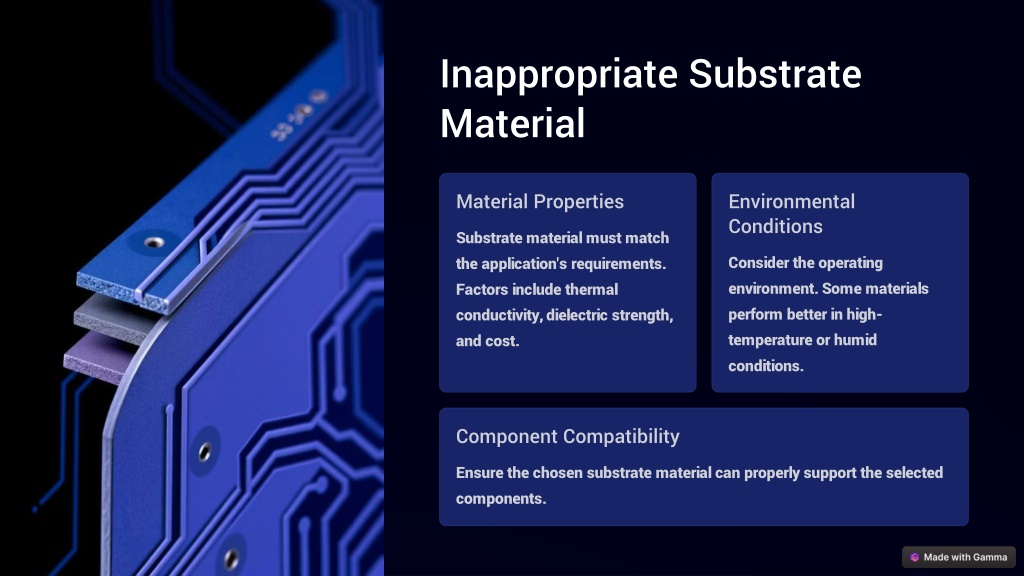

  3. Inappropriate Substrate Material Material Properties Environmental Conditions Substrate material must match the application's requirements. Factors include thermal conductivity, dielectric strength, and cost. Consider the operating environment. Some materials perform better in high-temperature or humid conditions. Component Compatibility Ensure the chosen substrate material can properly support the selected components.

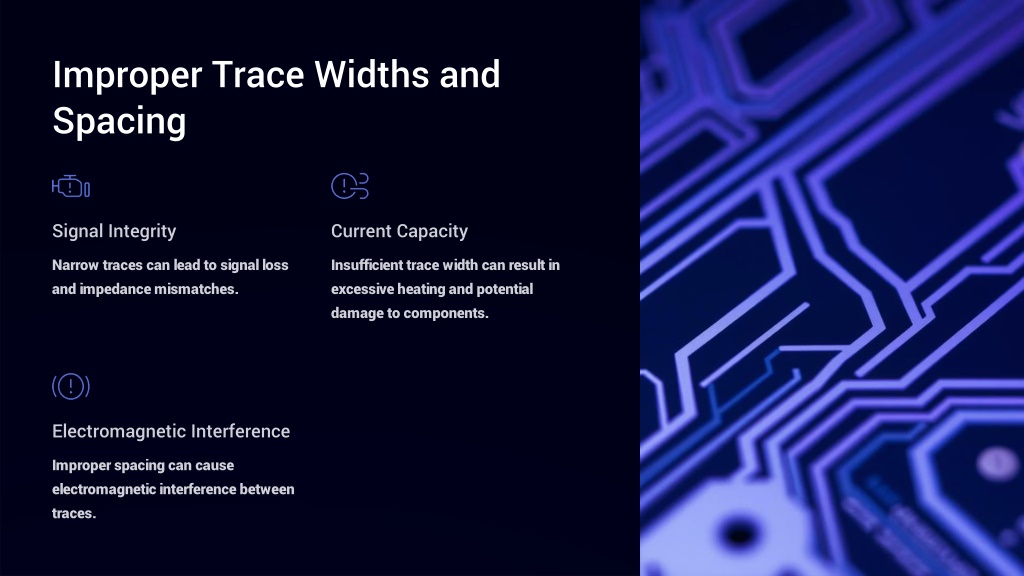

  4. Improper Trace Widths and Spacing Signal Integrity Current Capacity Narrow traces can lead to signal loss and impedance mismatches. Insufficient trace width can result in excessive heating and potential damage to components. Electromagnetic Interference Improper spacing can cause electromagnetic interference between traces.

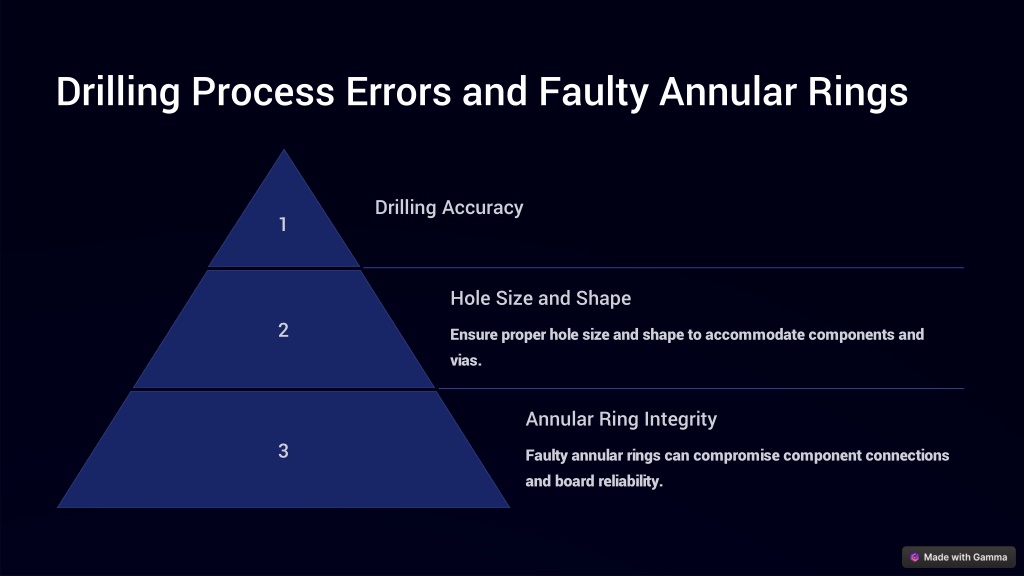

  5. Drilling Process Errors and Faulty Annular Rings Drilling Accuracy 1 Hole Size and Shape 2 Ensure proper hole size and shape to accommodate components and vias. Annular Ring Integrity 3 Faulty annular rings can compromise component connections and board reliability.

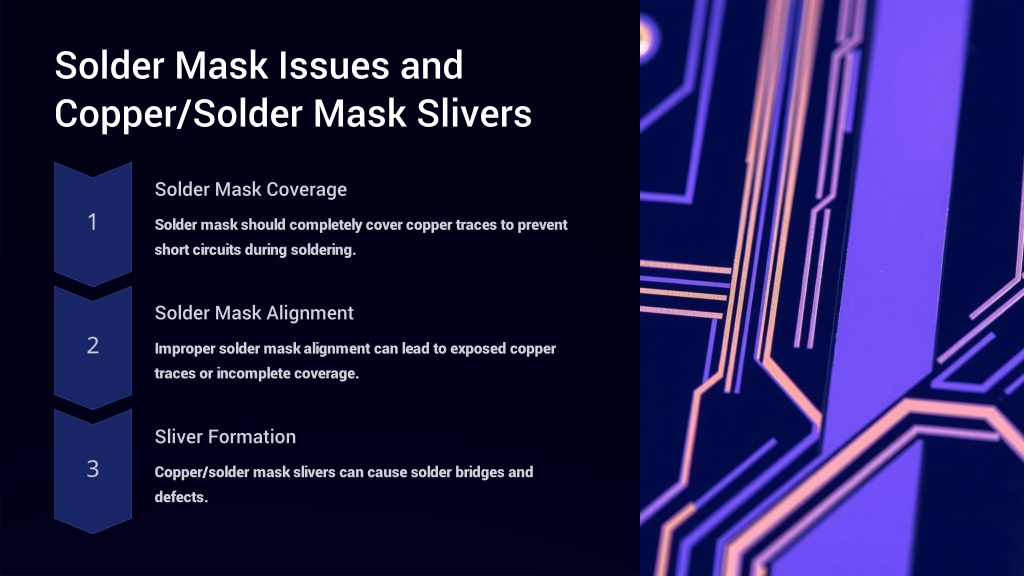

  6. Solder Mask Issues and Copper/Solder Mask Slivers Solder Mask Coverage Solder mask should completely cover copper traces to prevent short circuits during soldering. Solder Mask Alignment Improper solder mask alignment can lead to exposed copper traces or incomplete coverage. Sliver Formation Copper/solder mask slivers can cause solder bridges and defects.

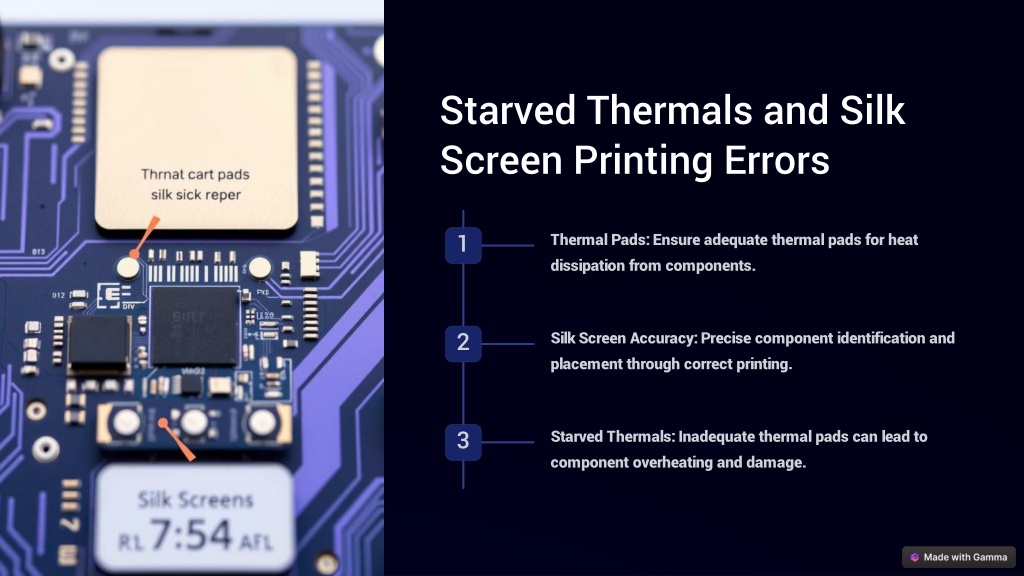

  7. Starved Thermals and Silk Screen Printing Errors Thermal Pads: Ensure adequate thermal pads for heat dissipation from components. 1 Silk Screen Accuracy: Precise component identification and placement through correct printing. 2 Starved Thermals: Inadequate thermal pads can lead to component overheating and damage. 3

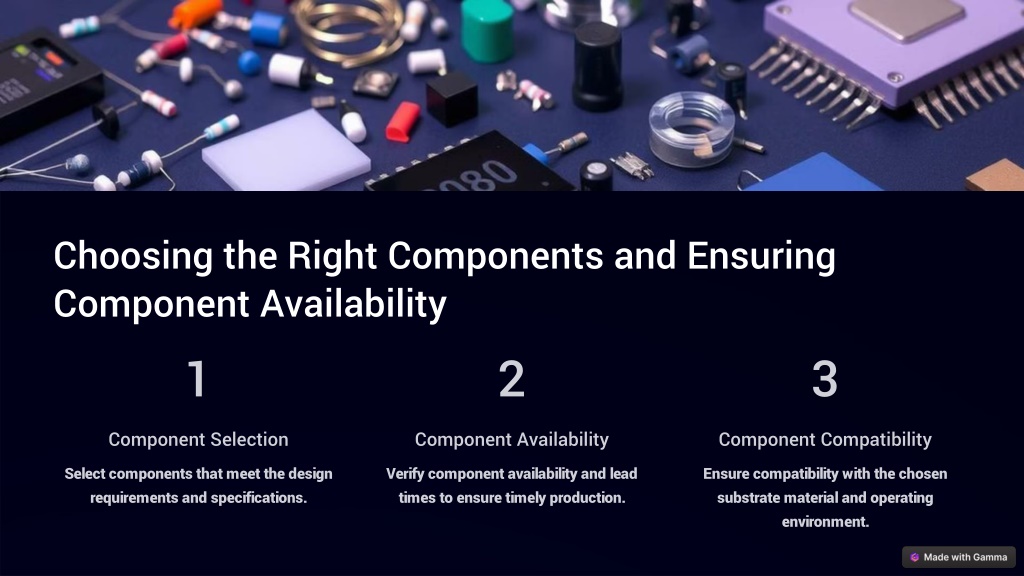

  8. Choosing the Right Components and Ensuring Component Availability 1 2 3 Component Selection Component Availability Component Compatibility Select components that meet the design requirements and specifications. Verify component availability and lead times to ensure timely production. Ensure compatibility with the chosen substrate material and operating environment.

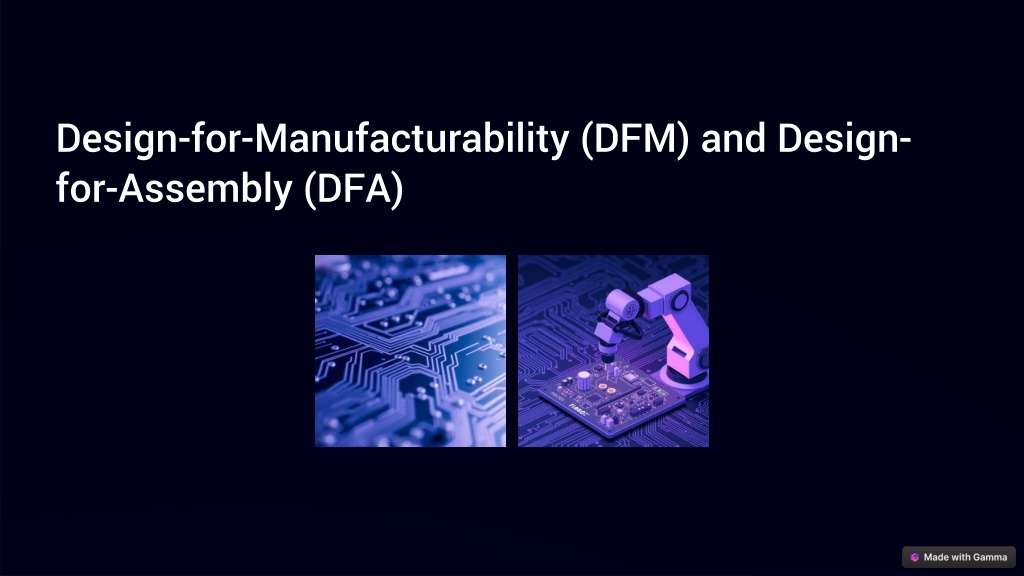

  9. Design-for-Manufacturability (DFM) and Design-for-Assembly (DFA)
