Horizontal-Autoclave-LBN-CH155

Horizontal Autoclave LBN-CH155 is a front-loading cylindrical autoclave with a 500-liter chamber capacity designed to meet large capacity sterilization needs. It is a programmable cylindrical vessel that enables automatic steam sterilization with precise cycles operating within a timer range of 0 - 60 minutes and a working temperature range of 134u00b0C. The chamber is made of stainless steel for increased durability and reliability, and it has an auto-protect function that shuts off the power if there is insufficient water supply while the process is running.

Brittany8
Download Presentation

Horizontal-Autoclave-LBN-CH155

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

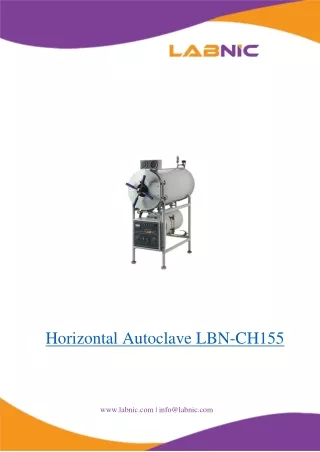

  1. Horizontal Autoclave LBN-CH155 www.labnic.com | info@labnic.com

  2. Overview Horizontal Autoclave LBN-CH155is a front-loading cylindrical autoclave with a 500-liter chamber capacity designed to meet large capacity sterilization needs. It is a programmable cylindrical vessel that enables automatic steam sterilization with precise cycles operating within a timer range of 0 - 60 minutes and a working temperature range of 134 C.The chamber is made of stainless steel for increased durability and reliability, and it has an auto-protect function that shuts off the power if there is insufficient water supply while the process is running. Specifications : Sterilizing Chamber Volume 500 L Working Temperature 134 C Adjustable Temperature Range 40 -134C Working Pressure 0.22MPa Sterilization Time 0 60 minutes Drying Time 0 60 minutes Heat Average d –2 C Power 18 KW Power Supply AC 380V, 50Hz Chamber Dimension (x D) 700 1300 mm Dimension (L W H) 1800 900 1820 mm Package Dimension (L W H) 1850 1050 2100 mm Net Weight 470 Kg Gross Weight 580 Kg

  3. Features : Stainless steel interior and exterior to increase durability and reliability Standard working temperature 134 C Front loading cylindrical autoclave design Automated drying function Automatic pressure control switch Automatically controlled sterilizing process, easy to operate Over temperature, over pressure and autoprotect functions Automatic water level cut-off Safety audible and visible alarms Digital temperature controller Silicon rubber door gasket Door cannot be opened until the pressure in the chamber is reduced to 0.027MPa Safe door lock system ensuring protection during sterilization Control system automatically adjusts steam inlet and outlet according to chamber temperature Applications : Cylindrical horizontal autoclave is an ideal equipment for clinics, scientific research institutes, medical laboratories and microbiological organizations to sterilize surgical instruments, glassed fabrics and culture media etc.

  4. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
