Pressure wave Switches | Pressure Wave Swtich system

The Pressure Wave Swtich system stands out thanks to its high level of response sensitivity, which enables it to protect people and vehicles from practically all directions.<br><br>Due to their robustness and durability, these switches are also really impressive when used as opening sensors for automatic gates and vehicle doors on buses and trains.<br>https://www.bircher.com/en/products/pressure-wave-switches

Bircher1
Download Presentation

Pressure wave Switches | Pressure Wave Swtich system

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Pressure Wave Switches Profiles and switches for automatic doors and gates Maintenance free, robust, tried-and-tested • Very fast closing • Pressure wave technology for a high standard of switching reliability • Straightforward and robust structure • Millions of units successfully in service bircher.com

  2. Pressure wave switches For automatic doors, gates and barriers Can be used wherever a reliable switching pulse is required The highly sensitive response of the pressure wave system means that it protects people and vehicles from almost all directions. The robustness and durability of the pressure wave switch make it an impressive opening sensor as well. Quick and reliable Even low pressure of 3 to 4 mbar is enough to guarantee the electric contact will switch. Pressure wave switch systems are well proven and maintenance free, as well as offering a particularly good cost-performance ratio. Types of the D1 and D3 series 1 2 3 4 5 6 7 8 1 3 4 5 6 7 8 2 A Technical data see back page, measurements in mm A 43.5 D1 series - DW40 Pressure wave switch with connection terminals and 6.3 mm plug tab with clip-on mounting bracket D3 series – wide range use Pressure wave switch with two-hole baseplate and adjustable set pressure B 31.8 48 48 B 2 16.5 1 3 4 5 6 7 8 2 © Dieses Dokument ist unser Eigentum und darf weder durch ein technisches Reproduktionsverfahren übernommen oder verwertet noch Drittpersonen zugänglich gemacht werden. © Dieses Dokument ist unser Eigentum und darf weder durch ein technisches Reproduktionsverfahren übernommen oder verwertet noch Drittpersonen zugänglich gemacht werden. 1 2 3 4 5 6 7 8 A M3 35 C 30 C A 30 This document is our property and may neither be taken over or used by a technical reproduction process nor being made accessible to third parties. 43.5 Änderungstabelle / Changetable: Einfügen/Versionstabelle/R:/SWX/Tabellen/Versionstabellen/changetable_bire This document is our property and may neither be taken over or used by a technical reproduction process nor being made accessible to third parties. Änderungstabelle / Changetable: Einfügen/Versionstabelle/R:/SWX/Tabellen/Versionstabellen/changetable_bire 48 48 D B Allgemeintoleranzen / General tolerances Gummiteile / Rubber parts: in Form gepresste Teile / Molded parts DIN ISO 3302-1 M3 F -> Formteil / Molded Part Extrusionsteile / Extrusion part DIN ISO 3302-1 E2 -> Querschnitt / cross section DIN ISO 3302-1 L2 -> Schnittlänge / cut length 35 33.4 B 31.8 D Allgemeintoleranzen / General tolerances Gummiteile / Rubber parts: in Form gepresste Teile / Molded parts DIN ISO 3302-1 M3 F -> Formteil / Molded Part Extrusionsteile / Extrusion part DIN ISO 3302-1 E2 -> Querschnitt / cross section DIN ISO 3302-1 L2 -> Schnittlänge / cut length 2 16.5 © Dieses Dokument ist unser Eigentum und darf weder durch ein technisches Reproduktionsverfahren übernommen oder verwertet noch Drittpersonen zugänglich gemacht werden. © Dieses Dokument ist unser Eigentum und darf weder durch ein technisches Reproduktionsverfahren übernommen oder verwertet noch Drittpersonen zugänglich gemacht werden. E 30 31.9 34 C 30 M3 35 C general tolerances: scale: material: surface: 49 41 2:1 M4 Schaltmatten / Switching mats DIN ISO 3302-1 M3 C E This document is our property and may neither be taken over or used by a technical reproduction process nor being made accessible to third parties. colour/colourcode: format weight [g]: after treatment: This document is our property and may neither be taken over or used by a technical reproduction process nor being made accessible to third parties. A3 Änderungstabelle / Changetable: Einfügen/Versionstabelle/R:/SWX/Tabellen/Versionstabellen/changetable_bire Schaltmatten / Switching mats DIN ISO 3302-1 M3 C description: date name: general tolerances: scale: material: surface: 2:1 D3 Änderungstabelle / Changetable: Einfügen/Versionstabelle/R:/SWX/Tabellen/Versionstabellen/changetable_bire reviewed Zerspannung / Shape cutting: DIN ISO 2768 -> Definition siehe Norm / Definition look at Norm created 08.12.11 15:32 pah Typ 210018 Typ 209853 D3-P colour/colourcode: weight [g]: after treatment: format D3-P F A3 released 33.4 C item number: revision: page: DW40FIX100 1 / 1 209853 description: D date name: Master replace: D Kunststoffteile / Plastic parts: DIN 16742-TGX -> Definition siehe Norm / Definition look at Norm Zerspannung / Shape cutting: DIN ISO 2768 -> Definition siehe Norm / Definition look at Norm created Allgemeintoleranzen / General tolerances Gummiteile / Rubber parts: in Form gepresste Teile / Molded parts DIN ISO 3302-1 M3 F -> Formteil / Molded Part Extrusionsteile / Extrusion part DIN ISO 3302-1 E2 -> Querschnitt / cross section DIN ISO 3302-1 L2 -> Schnittlänge / cut length 209854 D3-PB Pressure activates the binary switch, pressure equalisation valve is sealed (birotil) reviewed Allgemeintoleranzen / General tolerances Gummiteile / Rubber parts: in Form gepresste Teile / Molded parts DIN ISO 3302-1 M3 F -> Formteil / Molded Part Extrusionsteile / Extrusion part DIN ISO 3302-1 E2 -> Querschnitt / cross section DIN ISO 3302-1 L2 -> Schnittlänge / cut length 35 replace: Pressure activates the binary switch DW40 F released A item number: revision: page: 1 / 1 00009362 Kunststoffteile / Plastic parts: DIN 16742-TGX -> Definition siehe Norm / Definition look at Norm D1 Options DW40 210018 Pressure closes contact 31.9 34 DW40FIX100 210025 Pressure opens contact DW40FIX100DOE 49 41 E E general tolerances: scale: material: surface: general tolerances: scale: material: surface: 2:1 2:1 Schaltmatten / Switching mats DIN ISO 3302-1 M3 C Schaltmatten / Switching mats DIN ISO 3302-1 M3 C colour/colourcode: weight [g]: after treatment: format colour/colourcode: format weight [g]: after treatment: A3 A3 description: date name: description: date name: D3 Zerspannung / Shape cutting: DIN ISO 2768 -> Definition siehe Norm / Definition look at Norm Master Other options On request 210020 Pressure closes contact, sealed pressure equalisation valve DW40D created 08.12.11 15:32 pah Zerspannung / Shape cutting: DIN ISO 2768 -> Definition siehe Norm / Definition look at Norm created reviewed reviewed D3-P F released DW40 F released C item number: revision: page: 1 / 1 209853 A item number: revision: page: 1 / 1 00009362 replace: Kunststoffteile / Plastic parts: DIN 16742-TGX -> Definition siehe Norm / Definition look at Norm replace: Kunststoffteile / Plastic parts: DIN 16742-TGX -> Definition siehe Norm / Definition look at Norm 2 2 2 2 2 2 2 2 2 2 2 2 2

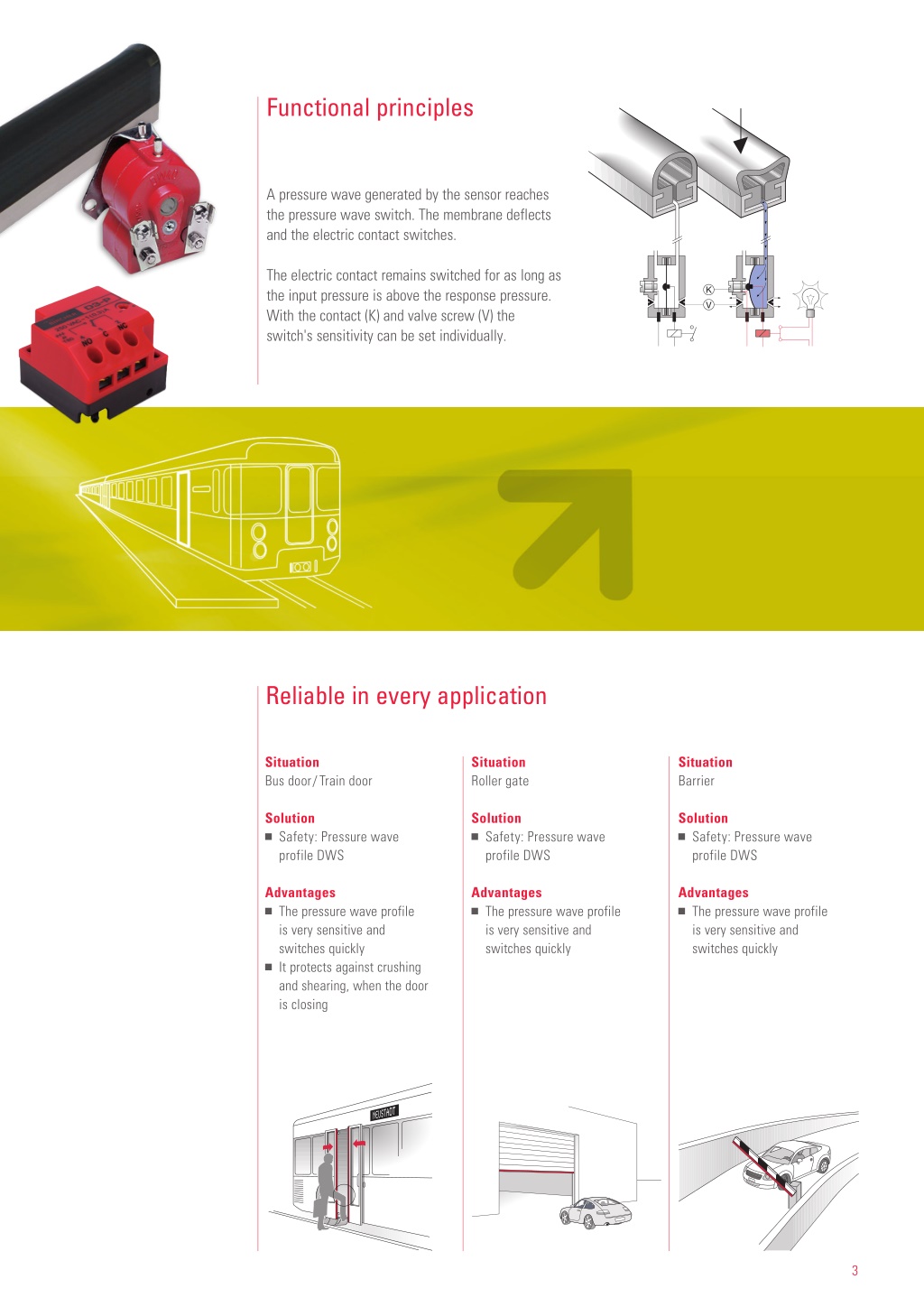

  3. Functional principles A pressure wave generated by the sensor reaches the pressure wave switch. The membrane deflects and the electric contact switches. The electric contact remains switched for as long as the input pressure is above the response pressure. With the contact (K) and valve screw (V) the switch's sensitivity can be set individually. Reliable in every application Situation Bus door/Train door Situation Roller gate Situation Barrier Solution Safety: Pressure wave profile DWS Solution Safety: Pressure wave profile DWS Solution Safety: Pressure wave profile DWS Advantages The pressure wave profile is very sensitive and switches quickly It protects against crushing and shearing, when the door is closing Advantages The pressure wave profile is very sensitive and switches quickly Advantages The pressure wave profile is very sensitive and switches quickly 3

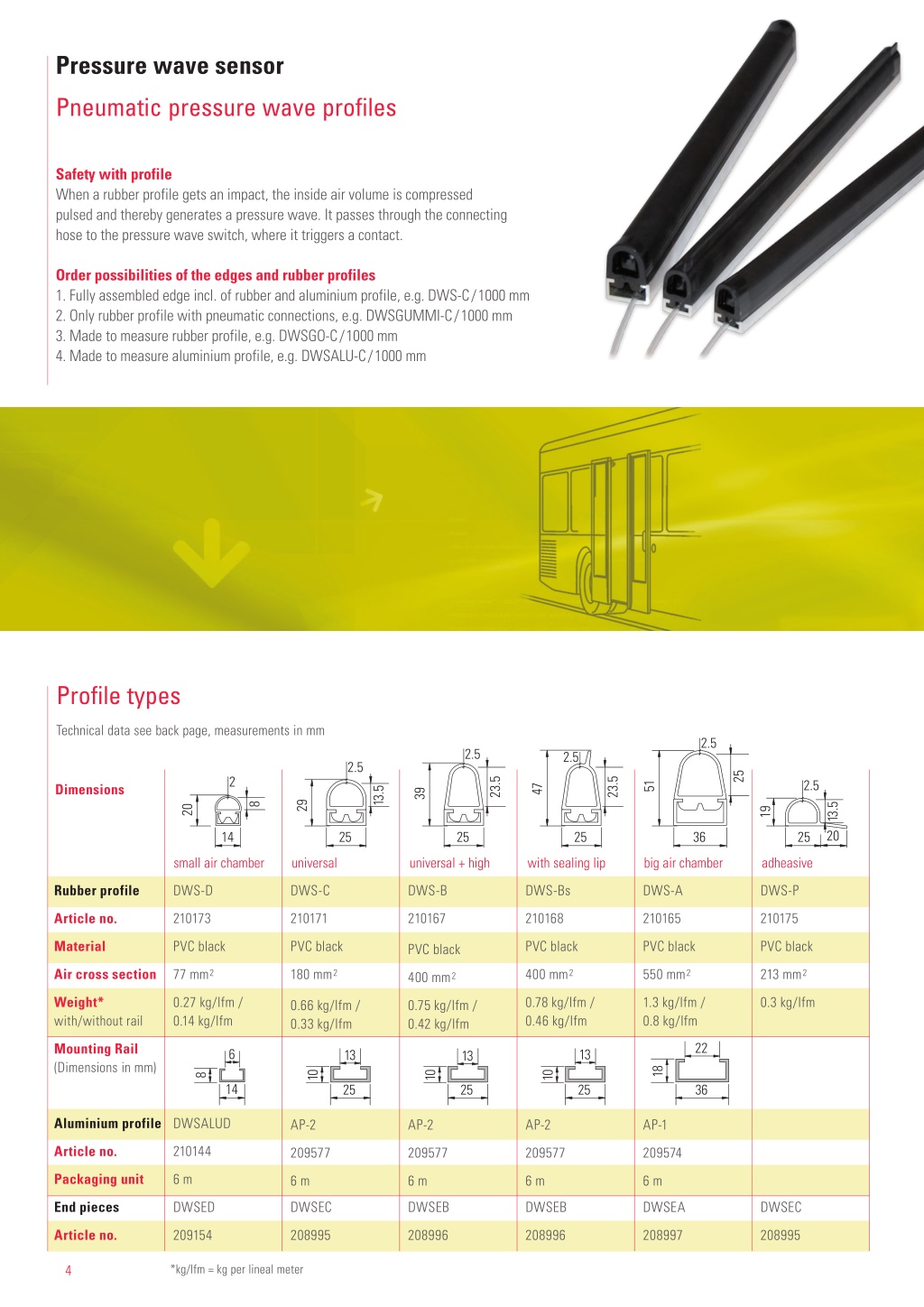

  4. Pressure wave sensor Pneumatic pressure wave profiles Safety with profile When a rubber profile gets an impact, the inside air volume is compressed pulsed and thereby generates a pressure wave. It passes through the connecting hose to the pressure wave switch, where it triggers a contact. Order possibilities of the edges and rubber profiles 1. Fully assembled edge incl. of rubber and aluminium profile, e.g. DWS-C / 1000 mm 2. Only rubber profile with pneumatic connections, e.g. DWSGUMMI-C / 1000 mm 3. Made to measure rubber profile, e.g. DWSGO-C / 1000 mm 4. Made to measure aluminium profile, e.g. DWSALU-C / 1000 mm Profile types Technical data see back page, measurements in mm 2.5 2.5 2.5 2.5 25 2 23.5 23.5 2.5 51 47 Dimensions 13.5 39 29 8 13.5 20 19 20 14 25 25 25 36 25 small air chamber universal universal + high with sealing lip big air chamber adheasive DWS-C DWS-A DWS-P DWS-D DWS-B DWS-Bs DWS-A DWS-P DWS-D DWS-C DWS-B DWS-Bs Rubber profile 210171 210165 210175 210173 210167 210168 Article no. PVC black PVC black PVC black PVC black PVC black PVC black Material 180 mm2 550 mm2 213 mm2 77 mm2 400 mm2 400 mm2 Air cross section 0.27 kg/lfm / 0.14 kg/lfm 0.78 kg/lfm / 0.46 kg/lfm 1.3 kg/lfm / 0.8 kg/lfm 0.3 kg/lfm 0.66 kg/lfm / 0.33 kg/lfm 0.75 kg/lfm / 0.42 kg/lfm Weight* with/without rail 22 Mounting Rail (Dimensions in mm) 6 13 13 13 18 10 10 10 8 14 25 25 25 36 DWSALUD AP-2 AP-2 AP-2 AP-1 Aluminium profile 210144 209577 209577 209577 209574 Article no. 6 m 6 m 6 m 6 m 6 m Packaging unit DWSED DWSEC DWSEB DWSEB DWSEA DWSEC End pieces 209154 208995 208996 208996 208997 208995 Article no. 4 *kg/lfm = kg per lineal meter

  5. Pressure wave switches and sensors Connection elements Simplicity of connection Pressure wave switches and sensors can be connected together easily and in a variety of ways. A wide range of connection pieces and hoses guarantees flexibility and reliable function appropriate to your application. Connection elements Measurements in mm PVC 2/4 PVC air hose with 2/4 mm diameter, colour transparent DWV Straight air hose connection piece A3M5 Connection piece with two 3 mm diameter connections, thread M5 19.5 30 ø 3 ø 2 ø 4 14 10 ø 3 ø 3 SW9 M5 DWL Air hose connection piece with L-shape 17 NEO 2/4 Neoprene air hose with 2/4 mm diameter, colour black, flame retardant 5 ø 3 12 ø 2 ø 4 DWT Air hose connection piece with T-shape 24 5 ø 3 12 5

  6. Pressure wave switches Accessories Maximum flexibility for installation Install your pressure wave switches efficiently and compactly with a plug-in base. The practical housing made from impact-resistant plastic ensures protection against environmental influences according to IP54 or IP65. Order possibilities 1. Separate housing, e.g. 212865 GEHDWGK1 2. Housing incl. of pressure wave switch, e.g. 210095 DWGK1 Further information on the housing variants can be found under Ordering information / Accessories on page 7. Plug-in base, cover hood and housing 7.5 Measurements in mm 60 GEHDWGK 1 Impact-resistant screw-on housing for pressure wave switch serie D1 Proctection class IP65 (EN 60529) GEHDWGK 11/GEHD3K1 Impact-resistant snap-in housing for pressure wave switch serie D1 and D3 Proctection class IP54 (EN 60529) 7.5 7.5 35 7.5 22 Air connection ø 3 26 Air connection ø 3 7.5 8 24 60 60 55 50 7.5 8 7.5 35 7.5 10 35 10 22 6

  7. Ordering information Connection elements Accessoires PVC air hose, transparent, 100 m Neoprene air hose, black, 10 m Neoprene air hose, black, 100 m Straight air hose connection piece GEHDWGK1Impact-resistant screw-on housing for pressure wave switch serie D1 Impact-resistant screw-on housing incl. DW40FIX100 GEHDWGK11Impact-resistant snap-in housing for pressure wave switch serie D1, grey housing bottom Impact-resistant snap-in housing incl. DW40FIX100 (Pressure closes contact) DWGK11DOE Impact-resistant snap-in housing incl. DW40FIX100DOE (Pressure opens contact) Impact-resistant snap-in housing for pressure wave switch serie D3, black housing bottom Impact-resistant snap-in housing incl. D3-P Mounting bracket for DW40 207495 PVC 2/4 212865 207499 NEO 2/4 210095 DWGK1 207502 NEO 2/4 208930 DWV 212866 Air hose connection piece with L-shape Air hose connection piece with T-shape Connection piece with two ø 3 mm connections, thread M5 208929 DWL 210096 DWGK11 208928 DWT 208968 A3M5 210097 The rubber profiles can be joined to the end pieces by using Tetrahydrofuran that can be bought at your local chemical store. 212864 GEHD3K1 209869 D3-PK1 209364 D1CLIP Connection box, surface mount, 52 x 50 x 40 mm, material ABS 213967 SPK-APD 7

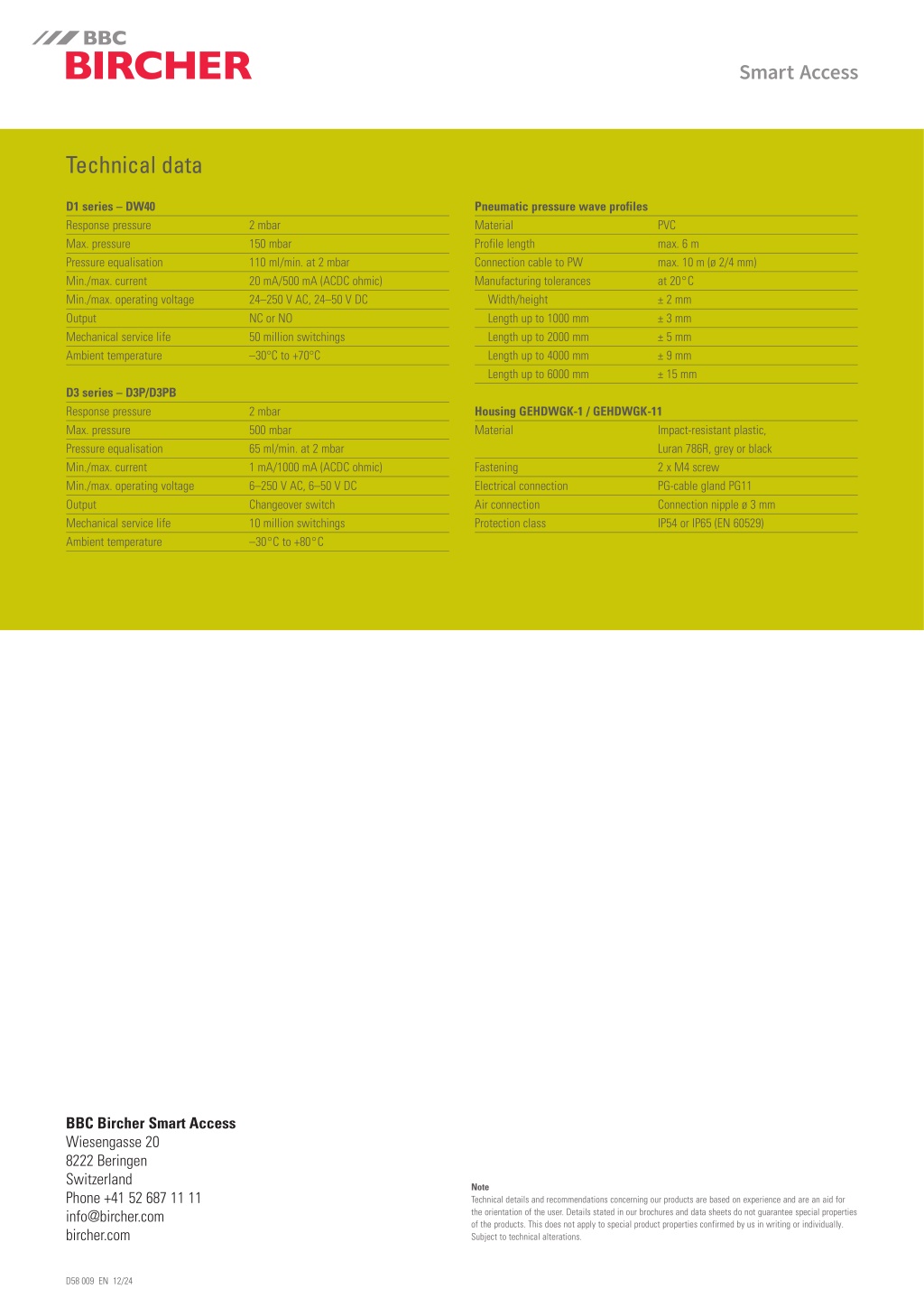

  8. Technical data D1 series – DW40 Response pressure Max. pressure Pressure equalisation Min./max. current Min./max. operating voltage Output Mechanical service life Ambient temperature Pneumatic pressure wave profiles Material Profile length Connection cable to PW Manufacturing tolerances Width/height Length up to 1000 mm Length up to 2000 mm Length up to 4000 mm Length up to 6000 mm 2 mbar 150 mbar 110 ml/min. at 2 mbar 20 mA/500 mA (ACDC ohmic) 24–250 V AC, 24–50 V DC NC or NO 50 million switchings –30°C to +70°C PVC max. 6 m max. 10 m (ø 2/4 mm) at 20°C ± 2 mm ± 3 mm ± 5 mm ± 9 mm ± 15 mm D3 series – D3P/D3PB Response pressure Max. pressure Pressure equalisation Min./max. current Min./max. operating voltage Output Mechanical service life Ambient temperature 2 mbar 500 mbar 65 ml/min. at 2 mbar 1 mA/1000 mA (ACDC ohmic) 6–250 V AC, 6–50 V DC Changeover switch 10 million switchings –30°C to +80°C Housing GEHDWGK-1 / GEHDWGK-11 Material Fastening Electrical connection Air connection Protection class Impact-resistant plastic, Luran 786R, grey or black 2 x M4 screw PG-cable gland PG11 Connection nipple ø 3 mm IP54 or IP65 (EN 60529) BBC Bircher Smart Access Wiesengasse 20 8222 Beringen Switzerland Phone +41 52 687 11 11 info@bircher.com bircher.com Note Technical details and recommendations concerning our products are based on experience and are an aid for the orientation of the user. Details stated in our brochures and data sheets do not guarantee special properties of the products. This does not apply to special product properties confirmed by us in writing or individually. Subject to technical alterations. D58 009 EN 12/24
