unicode support for mathematics

Unicode Support for Mathematics

Murray Sargent III

Microsoft

overview
Overview
  • Unicode math characters
  • Semantics of math characters
  • Unicode and markup
  • Multiple ways of encoding math characters
  • Not yet standardized math characters
  • Inputting math symbols
unicode math characters
Unicode Math Characters
  • 340 math chars exist in ASCII, U+2200 – U+22FF, arrows, combining marks of Unicode 3.0
  • 996 math alphanumeric characters are in Unicode 3.1’s Plane 1
  • 591 new math symbols and operators are in Unicode 3.2’s BMP
  • One math variant selector
  • One new combining character (reverse solidus).
basic set of alphanumeric characters
Basic Set of Alphanumeric Characters
  • Latin digits (0 - 9)
  • Upper- & lowercase Latin letters (a - z, A - Z)
  • Uppercase Greek letters Α - Ω plus the nabla ∇ and the variant of theta Θ given by U+03F4
  • Lowercase Greek letters α - ω plus the partial differential sign ∂ and glyph variants of ε, θ, κ, φ, ρ, and π
  • Only unaccented forms of letters are used
math alphanumeric characters
Math Alphanumeric Characters
  • Math needs various Latin and Greek alphabets like normal, bold, italic, script, Fraktur, and open-face
  • May appear to be font variations, but have distinct semantics
  • Without these distinctions, you get gibberish, violating Unicode rule: plain text must contain enough info to permit the text to be rendered legibly, and nothing more
  • Plain-text searches should distinguish between alphabets, e.g., search for script H shouldn’t match H, etc.
  • Reduces markup verbosity
legibility loss
Legibility Loss

Without math alphabets, the Hamiltonian formula

H =  dτ[εE2 + μH2]

 becomes an integral equation

H =  dτ[εE2 + μH2]

math alphanumeric chars cont
Math Alphanumeric Chars (cont)

Plain a-z, A-Z, 0-9, -, -Ω

Bold a-z, A-Z, 0-9, -, -Ω

Italic a-z, A-Z, -, -Ω

Bold italic a-z, A-Z, -, -Ω

Script a-z, A-Z

Bold script a-z, A-Z

Fraktur a-z, A-Z

Bold Fraktur a-z, A-Z

Double struck a-z, A-Z, 0-9

Sans-serif a-z, A-Z, 0-9

Sans-serif bold a-z, A-Z, 0-9, -, -Ω

Sans-serif italic a-z, A-Z

Sans-serif bold italic a-z, A-Z, -, -Ω

Monospace a-z, A-Z, 0-9

how display math alphabets
How Display Math Alphabets?
  • Can use Unicode surrogate pair mechanisms available on OS
  • Alternatively, bind to standard fonts and use corresponding BMP characters
  • Second approach probably faster and to display Unicode one needs font binding in any event. But most traditional fonts are not suited to math alphabetic characters
  • A single math font may look more consistent
math alphabetics via glyph variants

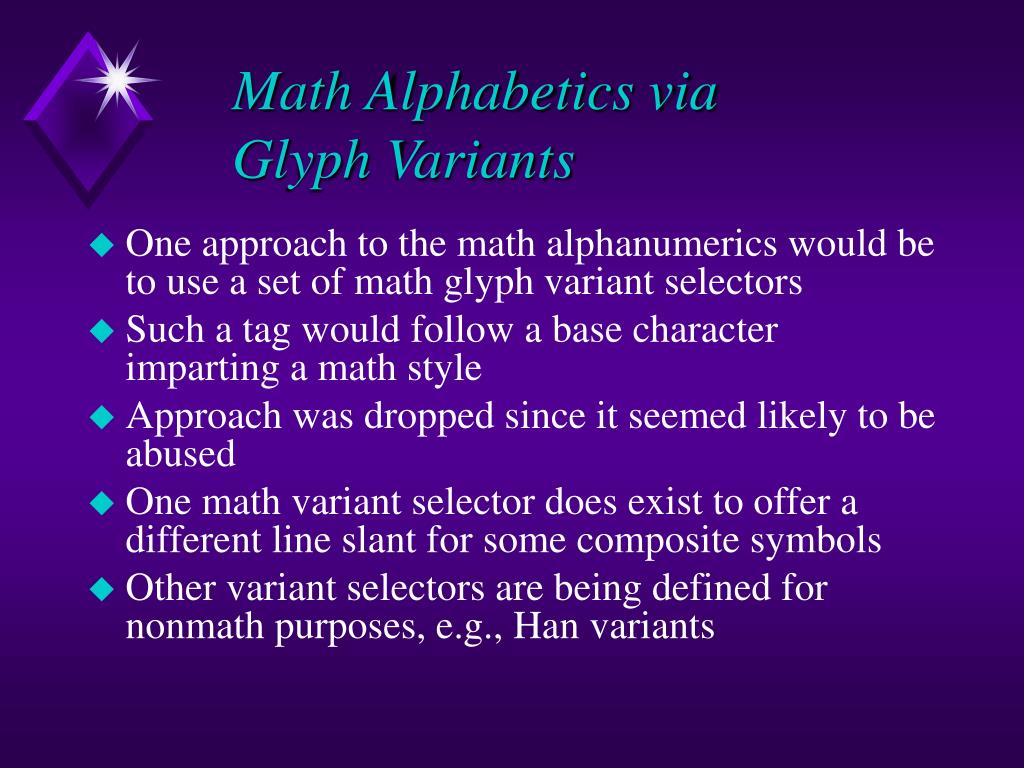

Math Alphabetics via Glyph Variants
  • One approach to the math alphanumerics would be to use a set of math glyph variant selectors
  • Such a tag would follow a base character imparting a math style
  • Approach was dropped since it seemed likely to be abused
  • One math variant selector does exist to offer a different line slant for some composite symbols
  • Other variant selectors are being defined for nonmath purposes, e.g., Han variants
multiple character encodings
Multiple Character Encodings
  • As with nonmath characters, math symbols can often be encoded in multiple ways, composed and decomposed
  • E.g., ≠ can be U+003D, U+0338 or U+2260
  • Recommendation: use the fully composed symbol, e.g., U+2260 for ≠
  • For alphabetic characters, use combining-mark sequences to get consistent typography
  • Some representations use markup for the alphabetic cases. This allows multicharacter combining marks.
compatibility holes
Compatibility Holes
  • Compatibility holes (reserved positions) exist in some Unicode sequences to avoid duplicate encodings (ugh!)
  • E.g., U+2071-U+2073 are holes for ¹²³, which are U+00B9, U+00B2, and U+00B3, respectively
  • Math alphanumerics have holes corresponding to Letterlike symbols.
  • Recommendation: you can use the hole codes internally, but must import and export the standard codes.
nonstandard characters
Nonstandard Characters
  • People will always invent new math characters that aren’t yet standardized.
  • Use private use area for these with a higher-level marking that these are for math.
  • This approach can lead to collisions in the math community (unless a standard is maintained)
  • Cut/copy in plain text can have collisions with other uses of the private use area
unicode and markup
Unicode and Markup
  • Unicode was never intended to represent all aspects of text
  • Language attribute: sort order, word breaks
  • Rich (fancy) text formatting: built-up fractions
  • Content tags: headings, abstract, author, figure
  • Glyph variants: Poetica font: 58 ampersands; Mantinia font: novel ligatures (TT, TE, etc.)
  • MathML adds XML tags for math constructs, but seems awfully wordy
unicode plain text
Unicode Plain Text
  • Can do a lot with plain text, e.g., BiDi
  • Grey zone: use of embedded codes
  • Unicode ascribes semantics to characters, e.g., paragraph mark, right-to-left mark
  • Lots of interesting punctuation characters in range U+2000 to U+204F
  • Extensive character semantics/properties tables, including mathematical, numerical
unicode character semantics

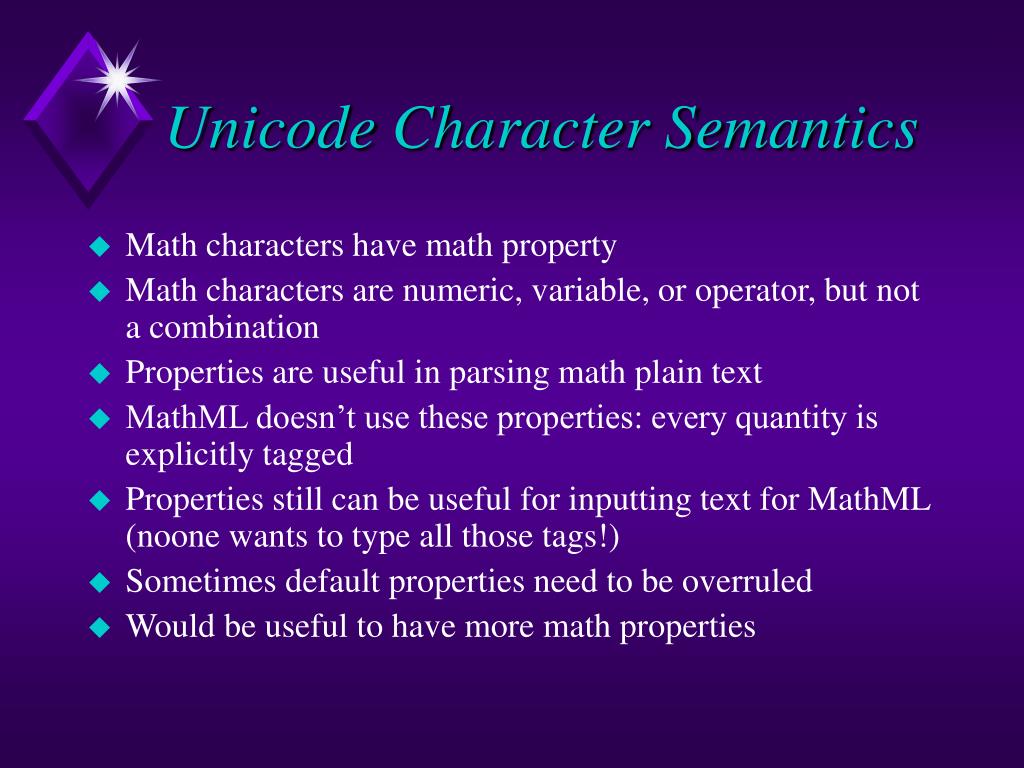

Unicode Character Semantics
  • Math characters have math property
  • Math characters are numeric, variable, or operator, but not a combination
  • Properties are useful in parsing math plain text
  • MathML doesn’t use these properties: every quantity is explicitly tagged
  • Properties still can be useful for inputting text for MathML (noone wants to type all those tags!)
  • Sometimes default properties need to be overruled
  • Would be useful to have more math properties
plain text encoding
Plain Text Encoding
  • TEX fraction numerator is what follows a { up to keyword \over
  • Denominator is what follows the \over up to the matching }
  • { } are not printed
  • Simple rules give unambiguous “plain text”, but results don’t look like math
  • How to make a plain text that looks like math?
simple plain text encoding
Simple plain text encoding
  • Simple operand is a span of alphanumeric characters
  • E.g., simple numerator or denominator is terminated by any operator
  • Operators include arithmetic operators, most whitespace characters, all U+22xx, an argument “break” operator (displayed as small raised dot), sub/superscript operators
  • Fraction operator is given by the Unicode fraction slash operator U+2044
fractions
Fractions
  • abc/d gives
  • More complicated operands use parentheses ( ), brackets [ ], or { }
  • Outermost parens aren’t displayed in built-up form
  • E.g., plain text (a + c)/d displays as
  • Easier to read than TEX’s, e.g., {a + c \over d}
  • MathML: <mfrac><mrow><mi>a</mi><mo>+</mo> <mi>c</mi></mrow><mrow><mi>d</mi> </mrow></mfrac>
  • Neat feature: plain text looks like math
subscripts and superscripts
Subscripts and Superscripts
  • Unicode has numeric subscripts and superscripts along with some operators (U+2070-U+208E)
  • Others need some kind of markup like <msup>…</msup>
  • With special subscript and superscript operators (not yet in Unicode), these scripts can be encoded nestibly
  • Use parentheses as for fractions to overrule built-in precedence order
presentation markup

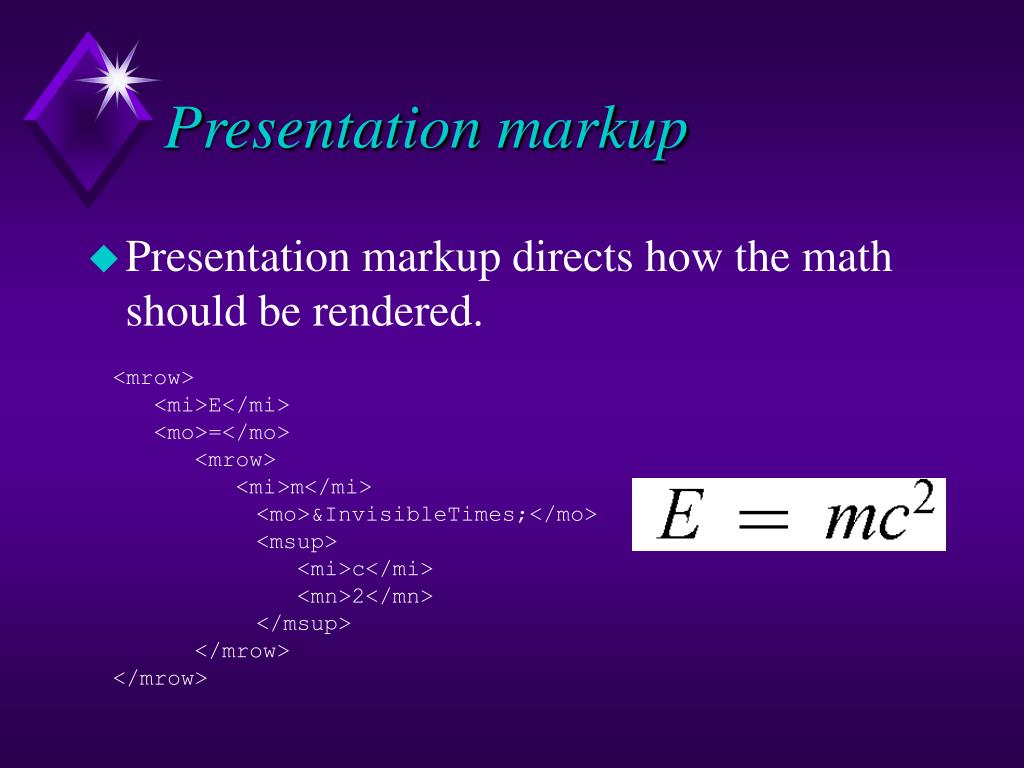

Presentation markup
  • Presentation markup directs how the math should be rendered.

<mrow> <mi>E</mi>

<mo>=</mo>

<mrow>

<mi>m</mi>

<mo>&InvisibleTimes;</mo>

<msup>

<mi>c</mi>

<mn>2</mn>

</msup>

</mrow>

</mrow>

content markup
Content markup
  • Content markup describes the meaning of the expression, not the format.

<rel>

<eq/>

<ci>E</ci>

<apply>

<times>

<ci>m</ci>

<apply>

<power/>

<ci>c</ci>

<cn>2</cn>

</apply>

</times>

</apply>

</rel>

symbol entry

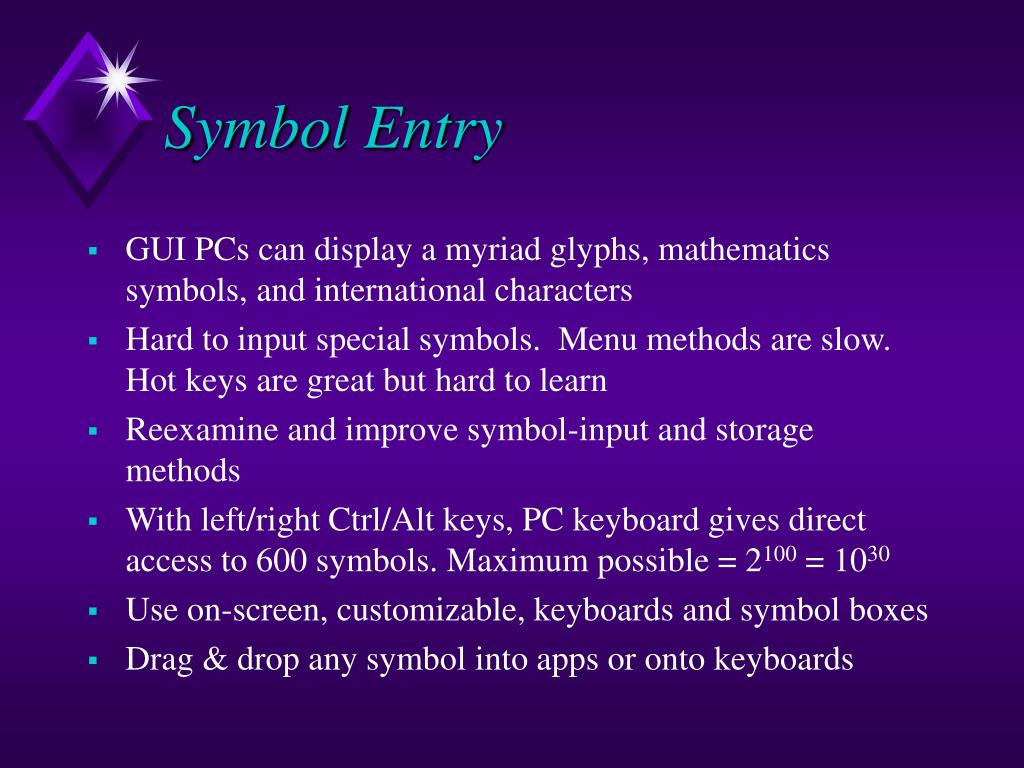

Symbol Entry
  • GUI PCs can display a myriad glyphs, mathematics symbols, and international characters
  • Hard to input special symbols. Menu methods are slow. Hot keys are great but hard to learn
  • Reexamine and improve symbol-input and storage methods
  • With left/right Ctrl/Alt keys, PC keyboard gives direct access to 600 symbols. Maximum possible = 2100 = 1030
  • Use on-screen, customizable, keyboards and symbol boxes
  • Drag & drop any symbol into apps or onto keyboards
hex to unicode input method
Hex to Unicode Input Method
  • Type Unicode character hexadecimal code
  • Make corrections as need be
  • Type Alt+x to convert to character
  • Type Alt+x to convert back to hex (useful especially for “missing glyph” character)
  • Resolve ambiguities by selection
  • Input higher-plane chars using 5 or 6-digit code
  • New MS Word standard
built up formula heuristics
Built-Up Formula Heuristics
  • Math characters identify themselves and neighbors as math
  • E.g., fraction (U2044), ASCII operators, U2200–U22FF, and U20D0–U20FF identify neighbors as mathematical
  • Math characters include various English and Greek alphabets
  • When heuristics fail, user can select math mode: WYSIWYG instead of visible math on/off codes
operator precedence
Operator Precedence
  • Everyone knows that multiply takes precedence over add, e.g., 3+5×3 = 18, not 24
  • C-language precedence is too intricate for most programmers to use extensively
  • TEX doesn’t use precedence; relies on { } to define operator scope
  • In general, ( ) can be used to clarify or overrule precedence
  • Precedence reduces clutter, so some precedence is desirable (else things look like LISP!)
  • But keep it simple enough to remember easily
layout operator precedence
Layout Operator Precedence

Subscript, superscript ¯ ­

Integral, sum ò S P

Functions Ö

Times, divide / * × · •

Other operators Space ". , = - + Tab

Right brackets )]}|

Left brackets ([{

End of paragraph FF EOP

mathematics as a programming language
Mathematics as a Programming Language
  • Fortran made great steps in getting computers to understand mathematics
  • Java and C# accept Unicode variable names
  • C++ has preprocessor and operator overloading, but needs extensions to be really powerful
  • Use Unicode characters including math alphanumerics
  • Use plain-text encoding of mathematical expressions
  • Can’t use all mathematical expressions as code, but can go much further than current languages go
  • When to to multiply? In abstract, multiplication is infinitely fast and precise, but not on a computer
slide30

void IHBMWM(void)

{

gammap = gamma*sqrt(1 + I2);

upsilon = cmplx(gamma+gamma1, Delta);

alphainc = alpha0*(1-(gamma*gamma*I2/gammap)/(gammap + upsilon));

if (!gamma1 && fabs(Delta*T1) < 0.01)

alphacoh = -half*alpha0*I2*pow(gamma/gammap, 3);

else

{

Gamma = 1/T1 + gamma1;

I2sF = (I2/T1)/cmplx(Gamma, Delta);

betap2 = upsilon*(upsilon + gamma*I2sF);

beta = sqrt(betap2);

alphacoh = 0.5*gamma*alpha0*(I2sF*(gamma + upsilon)

/(gammap*gammap - betap2))

*((1+gamma/beta)*(beta - upsilon)/(beta + upsilon)

- (1+gamma/gammap)*(gammap - upsilon)/

(gammap + upsilon));

}

alpha1 = alphainc + alphacoh;

}

conclusions
Conclusions
  • Unicode provides great support for math in both marked up and plain text
  • Unicode character properties facilitate plain-text encoding of mathematics but aren’t used in MathML
  • Heuristics allow plain text to be built up
  • Need two more Unicode assignments: subscript and superscript operators
  • On-screen keyboards and symbol boxes aid formula entry
  • Unicode math characters could be useful for programming languages
