simulating sports the inputs and the engines

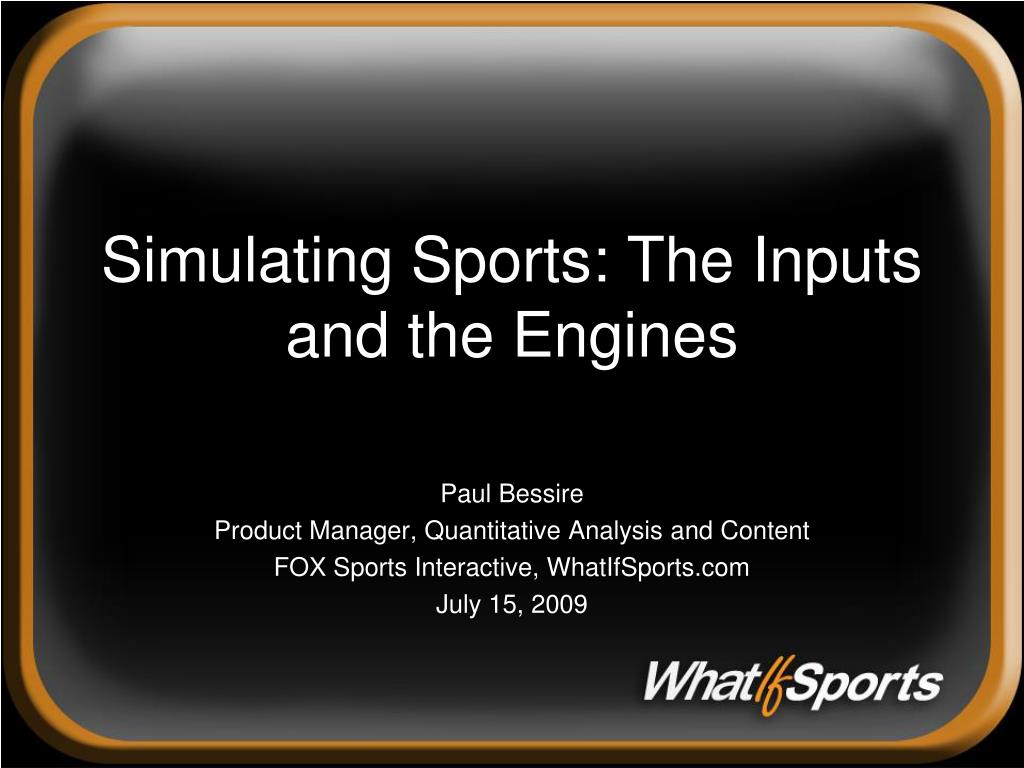

Simulating Sports: The Inputs and the Engines

Paul Bessire

Product Manager, Quantitative Analysis and Content

FOX Sports Interactive, WhatIfSports.com

July 15, 2009

table of contents
Table of Contents
  • WhatIfSports.com Overview
  • Challenges with Simulating Baseball
  • Plate Appearance Decision Tree

Or “Improving the log5 Normalization Model for Batter/Pitcher Matchups”

  • Pedro vs. Ruth (mostly second presentation)
about whatifsports com
About WhatIfSports.com
  • February 2000 - Launched in Cincinnati with SimMatchup
  • 2001 - SimLeague Baseball (like Strat-o-Matic) and Basketball; Paul Bessire runs free leagues
  • 2002 – SimLeague Football and Hockey; Paul wins own baseball league with “Streaking Ho-Hos”
  • 2004 – Hoops Dynasty and Gridiron Dynasty; Paul joins WIS part-time “between school”
  • 2005 – WhatIfSports.com acquired by FOX Interactive Media; Paul comes on full-time
  • 2006 – Hardball Dynasty and Clutch Racing Dynasty; All simulations rewritten with Paul’s help
  • 2008 – FC Dynasty
  • Present – 600,000+ registered users, part of FOX Sports TV group
sports simulation
Sports Simulation
  • Play-by-play
    • A “play” means something different for each sport
    • Probabilities for every individual outcome
    • Random number generation
    • Pitch-by-pitch (or basketball/hockey pass-by-pass) not needed
    • Account for every possible statistical interaction during a game
  • Can be recreated quickly
    • 200+ games/second
    • All data tracked
    • Every outcome is different
    • Boxscore (link)
    • Many relevant applications (second presentation)
baseball challenges

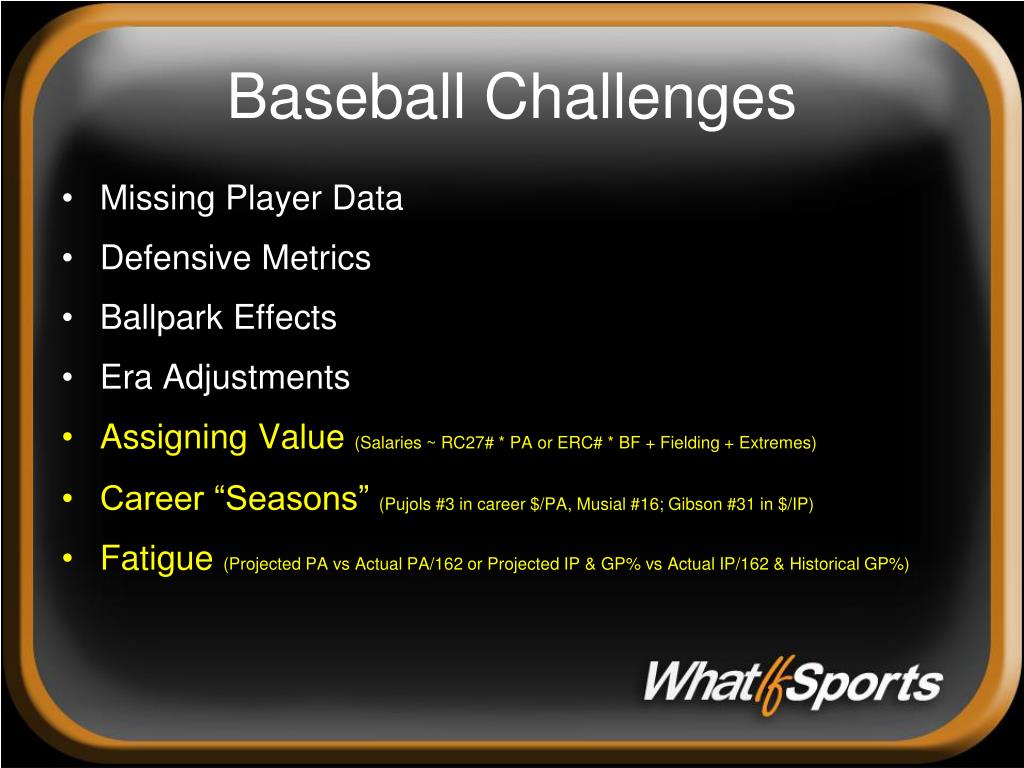

Baseball Challenges
  • Missing Player Data
  • Defensive Metrics
  • Ballpark Effects
  • Era Adjustments
  • Assigning Value (Salaries ~ RC27# * PA or ERC# * BF + Fielding + Extremes)
  • Career “Seasons” (Pujols #3 in career $/PA, Musial #16; Gibson #31 in $/IP)
  • Fatigue (Projected PA vs Actual PA/162 or Projected IP & GP% vs Actual IP/162 & Historical GP%)
missing player data
Missing Player Data
  • Typically solved with Regression
    • Linear: Pitchers’ 2B or 3B per hit allowed or Pitches Thrown per BF
    • Multivariate: Ballpark Effects
    • May be Era and/or Ballpark Adjusted
  • Discriminate Analysis/Cluster Analysis
    • Catcher’s Arm Ratings
    • Basketball Positional Effectiveness
  • Fitting to a curve/distribution
    • Player Generation and Development
    • Assigning Ratings or Grades

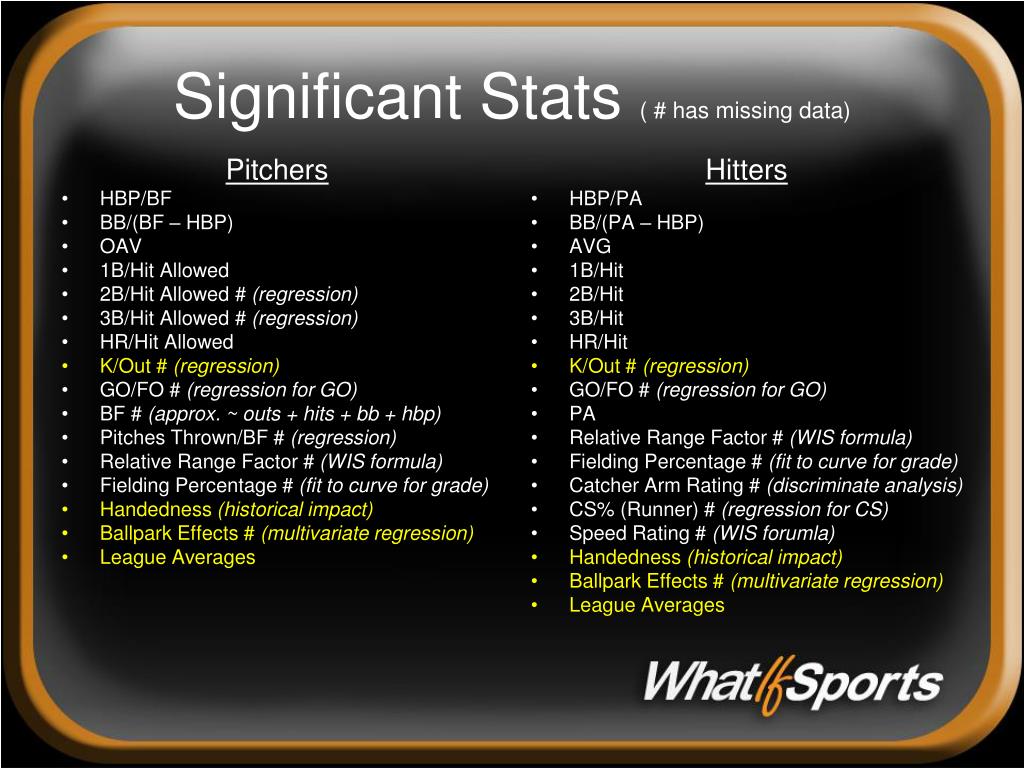

significant stats has missing data
Pitchers

HBP/BF

BB/(BF – HBP)

OAV

1B/Hit Allowed

2B/Hit Allowed # (regression)

3B/Hit Allowed # (regression)

HR/Hit Allowed

K/Out # (regression)

GO/FO # (regression for GO)

BF # (approx. ~ outs + hits + bb + hbp)

Pitches Thrown/BF # (regression)

Relative Range Factor # (WIS formula)

Fielding Percentage # (fit to curve for grade)

Handedness (historical impact)

Ballpark Effects # (multivariate regression)

League Averages

Hitters

HBP/PA

BB/(PA – HBP)

AVG

1B/Hit

2B/Hit

3B/Hit

HR/Hit

K/Out # (regression)

GO/FO # (regression for GO)

PA

Relative Range Factor # (WIS formula)

Fielding Percentage # (fit to curve for grade)

Catcher Arm Rating # (discriminate analysis)

CS% (Runner) # (regression for CS)

Speed Rating # (WIS forumla)

Handedness (historical impact)

Ballpark Effects # (multivariate regression)

League Averages

Significant Stats ( # has missing data)
insignificant stats
Pitchers

Wins

Losses

Saves

Holds

Complete Games

Shutouts

ERA (kind of – 2B and 3B approx)

Unearned Runs

Games Started

Pitch Types

Performance in Counts

Other Situational Stats

Hitters

RBI

IBB

Runs (kind of – in Speed Formula)

GIDP (kind of – in Speed Formula)

SF (kind of – in PA, but also situational)

SH (kind of – in PA, in but also situational)

SBA (kind of – attempts, but also setting)

Performance in Counts

Other Situational Stats

Insignificant Stats
wis relative range factor

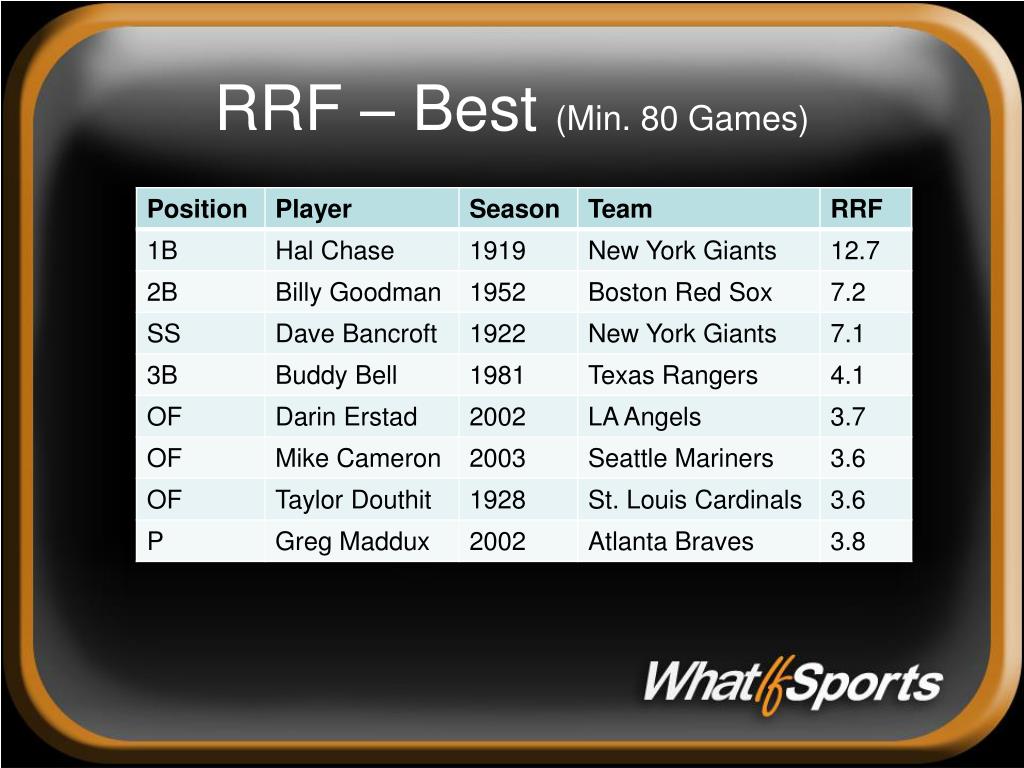

WIS Relative Range Factor
  • Range Factor
    • Important because range can turn hits into outs and outs into hits
    • Generally defined as (Putouts + Assists)/(Innings/9)
    • Reliant on many factors
    • Wildly inconsistent across eras
    • Does not include errors
    • Need another metric…
  • WIS Relative Range Factor
    • Similar to Bill James RRF, but not as robust (data limitations)
    • Approximates plays made/possible plays made
    • Used to approximate + and – plays
    • Includes errors
    • Era-adjusted
pa decision tree normalization
PA Decision Tree - Normalization

Every step in PA uses modified* log5 normalization (Bill James AVG example):

H/AB = ((AVG * OAV) / LgAVG) /

((AVG * OAV) / LgAVG + (1- AVG )*(1- OAV)/(1-LgAvg))

Where, LgAVG = (PLgAVG + BLgAVG)/2

2000 Pedro vs. 1923 Ruth Example:

H/AB = ((.393 * .167) / .2791) /

((.393 * .167) / .2791+ (1- .393)*(1- .167)/(1-.2791))

Where, LgAVG = (.283 + .276)/2 or .2791

Result = .2504

* Modified due to a flaw in the assumption above that the batter and pitcher carry equal (50/50) weights on each possible outcome of the PA event. Also accounts for handedness and ballpark.

pa decision tree steps 1

Plate Appearance

Unusual Event

(IBB, WP, PB, SB, CS, SH,

Hit and Run, Pickoff, Balk)

Normal PA

HBP

(per PA or BFP)

Not HBP

BB

(per PA or BFP – HBP)

At Bat…

PA Decision Tree – Steps 1*

* No ballpark or handedness adjustments made yet.

pa decision tree steps 2
PA Decision Tree – Steps 2

* Historical handedness adjustment and ballpark hits multiplier used.

pa decision tree steps 3

Hit*

Normal – In Play

HR*

(HR/Hit)

Out

(Plus Play)

Normal Hit

3B*

(3B/Hit * multiplier

for lost HR)

2B*

(2B/Hit * multiplier

for lost HR)

1B

PA Decision Tree – Steps 3

* Ballpark multipliers used.

pa decision tree matchup weights
PA Decision Tree – Matchup Weights

Addresses previous 50/50 assumption using League-Adjusted Variance to form batter and pitcher weights for each step:

matchup weights what does this mean

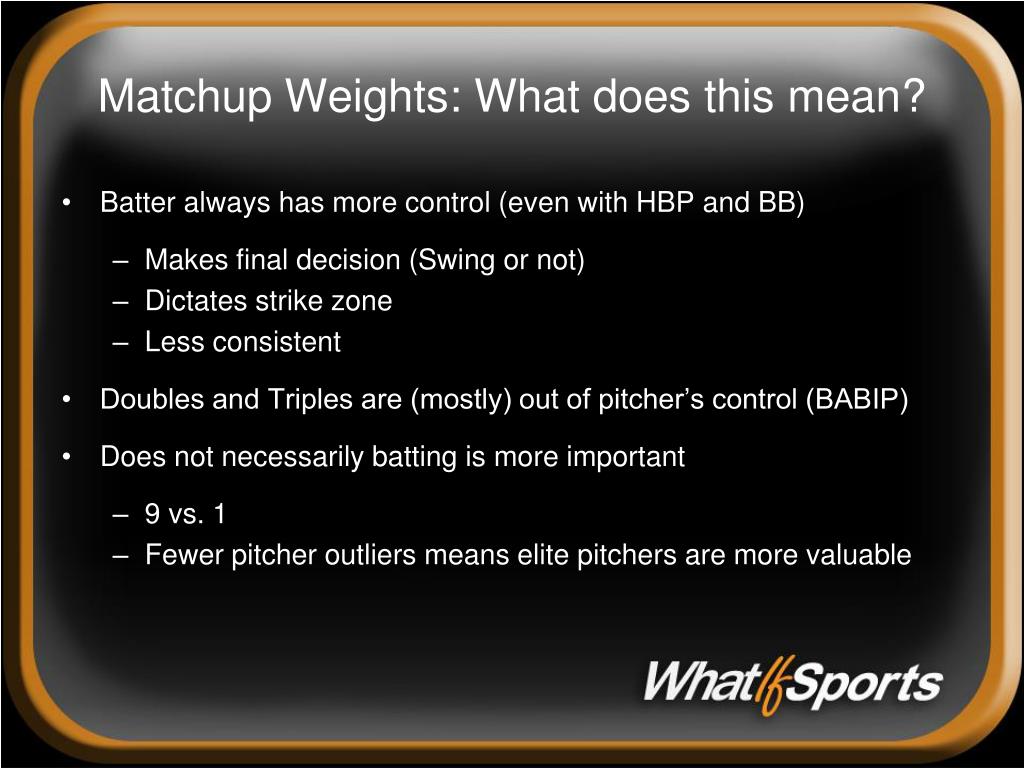

Matchup Weights: What does this mean?
  • Batter always has more control (even with HBP and BB)
    • Makes final decision (Swing or not)
    • Dictates strike zone
    • Less consistent
  • Doubles and Triples are (mostly) out of pitcher’s control (BABIP)
  • Does not necessarily batting is more important
    • 9 vs. 1
    • Fewer pitcher outliers means elite pitchers are more valuable
pa decision tree normalization19

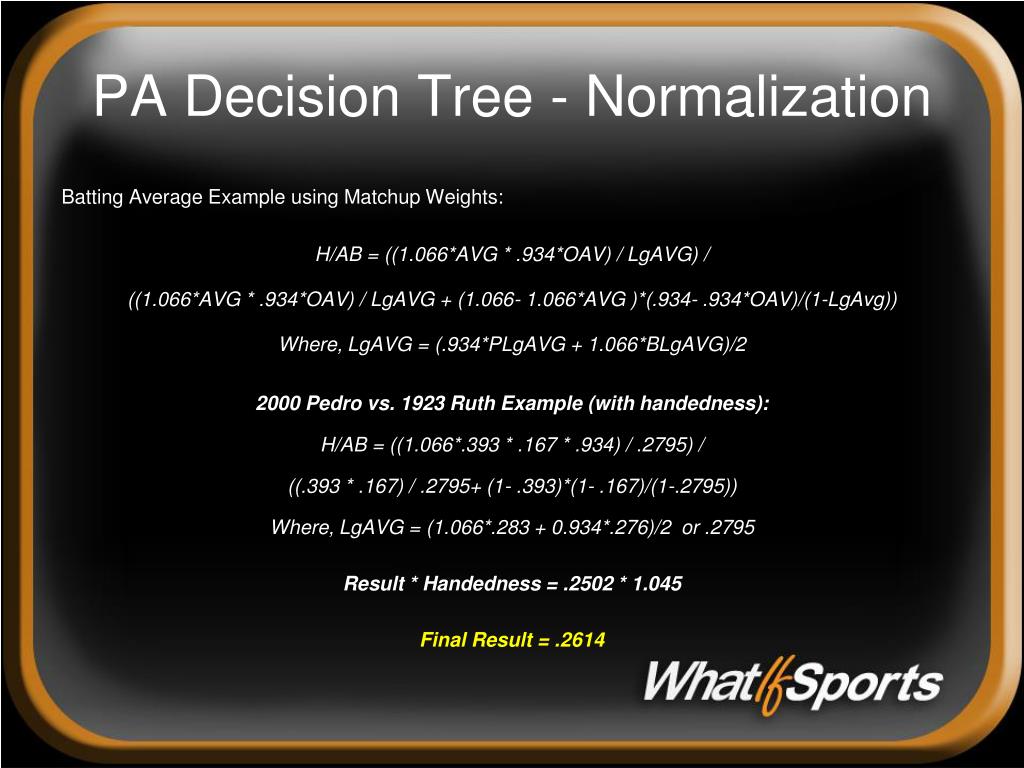

PA Decision Tree - Normalization

Batting Average Example using Matchup Weights:

H/AB = ((1.066*AVG * .934*OAV) / LgAVG) /

((1.066*AVG * .934*OAV) / LgAVG + (1.066- 1.066*AVG )*(.934- .934*OAV)/(1-LgAvg))

Where, LgAVG = (.934*PLgAVG + 1.066*BLgAVG)/2

2000 Pedro vs. 1923 Ruth Example (with handedness):

H/AB = ((1.066*.393 * .167 * .934) / .2795) /

((.393 * .167) / .2795+ (1- .393)*(1- .167)/(1-.2795))

Where, LgAVG = (1.066*.283 + 0.934*.276)/2 or .2795

Result * Handedness = .2502 * 1.045

Final Result = .2614

thanks

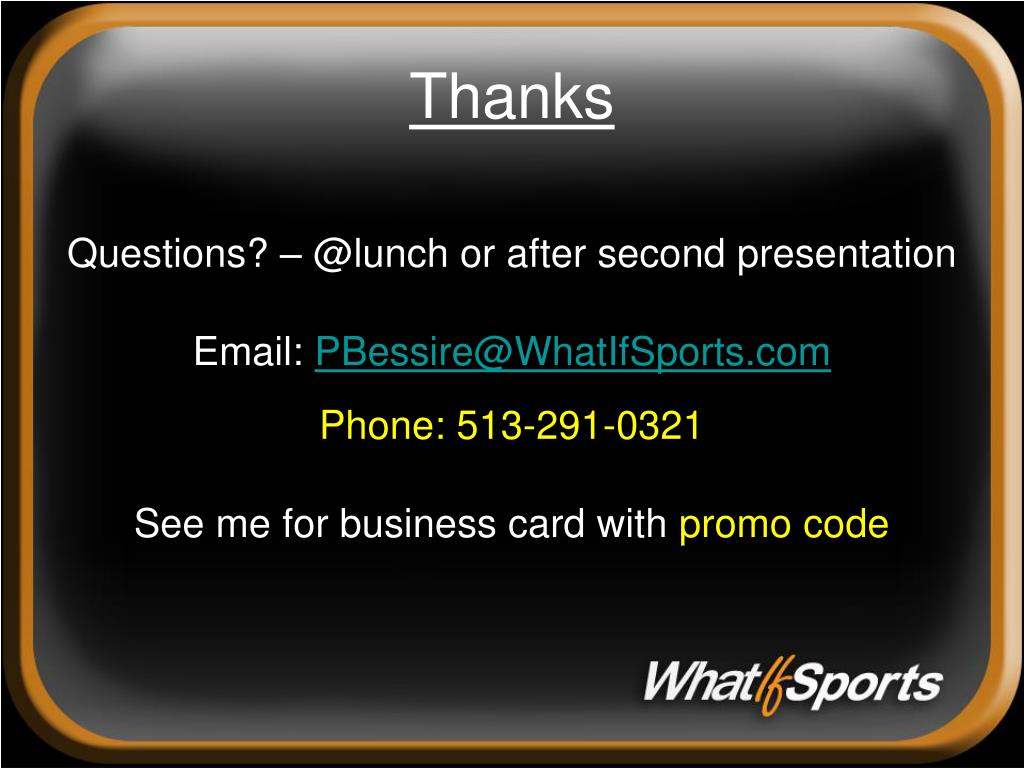

Thanks

Questions? – @lunch or after second presentation

Email: PBessire@WhatIfSports.com

Phone: 513-291-0321

See me for business card with promo code
