future vision of mobile communication networks

OFDMA

Dr. Zion Hadad

CEO, Runcom Technologies, Ltd

Telecom 2004

9 November 2004

Future Vision of Mobile Communication Networks

slide2

4G Requirements

  • IEEE 802.16e OFDMA for B3G
  • OFDMA Roadmap
  • Market Projections
  • Standardization
  • Players within IEEE 802.16e
  • Interoperability
  • OFDMA Concept
  • Runcom`s OFDMA Implementation
slide3

OFDMA

Orthogonal Frequency Division Multiple Access

A flexible Cellular technology for the Next Generation

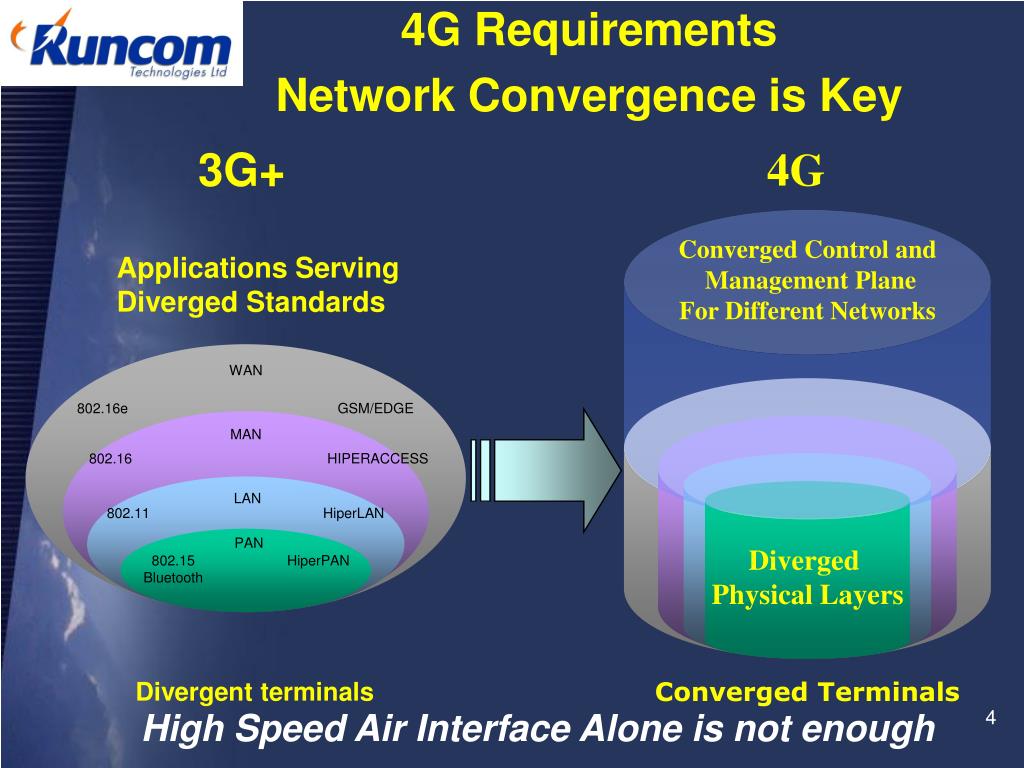

4g requirements network convergence is key

3G+

4G

Applications Serving

Diverged Standards

Converged Control and

Management Plane

For Different Networks

WAN

802.16e

GSM/EDGE

MAN

802.16

HIPERACCESS

LAN

802.11

HiperLAN

PAN

Diverged

Physical Layers

802.15 Bluetooth

HiperPAN

Divergent terminals

Converged Terminals

4G RequirementsNetwork Convergence is Key

High Speed Air Interface Alone is not enough

slide6

OFDMA - Coverage and Network

  • Authentication server
  • Security
  • Network management

PSTN

Internet

IP Network

(Mobile)

Router

CPE Site

Base Station Site

ofdma for b3g requirements
OFDMA for B3G Requirements
  • User friendly: Reliable, Easy to operate, Small size and light, Long Battery life, Triple play, Security and Always connected
  • Throughput: 4bps/Hz, Real BB ( 20 -100 Mbps)
  • Capacity: ~200 times AMPS
  • Cost: Potentially as low as 802.11b
  • Coverage: 99%: Urban, Sub- Urban, Rural, in-door and out-door to in-door At low cost prices
  • Mobility: all kind from fixed to vehicular speed250Km/hr with fast smooth Hand off
  • Operation – Easy to Maintain, Scalable, AAA, QoS
802 16e ofdma for b3g 4g

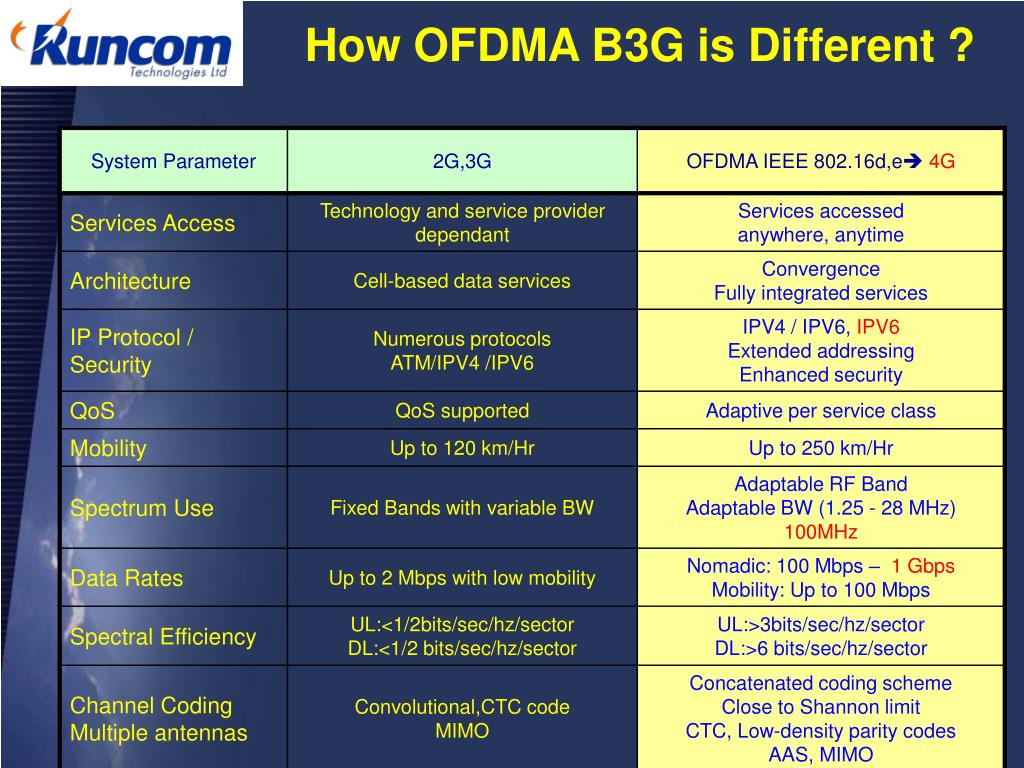

802.16e OFDMA for B3G/4G

Convergence of Broadband: Cellular, W-LAN and Broadcasting on one Air Interface

OFDMA

802.16e

Next Generation

Video/Audio

Broadcasting

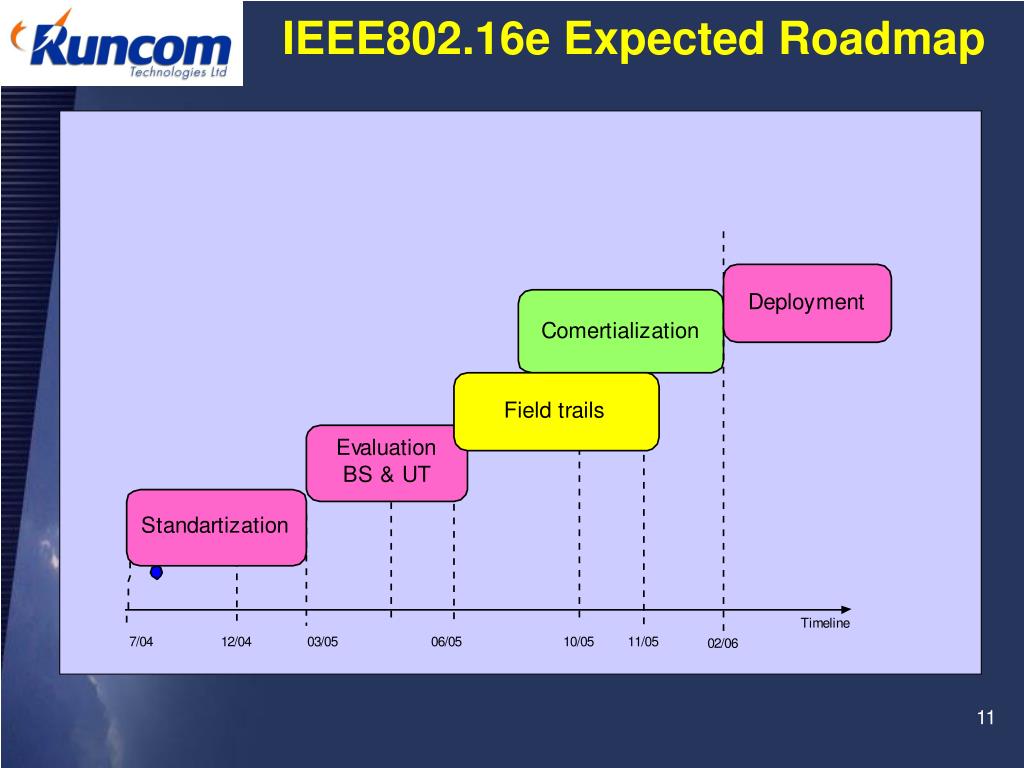

slide13

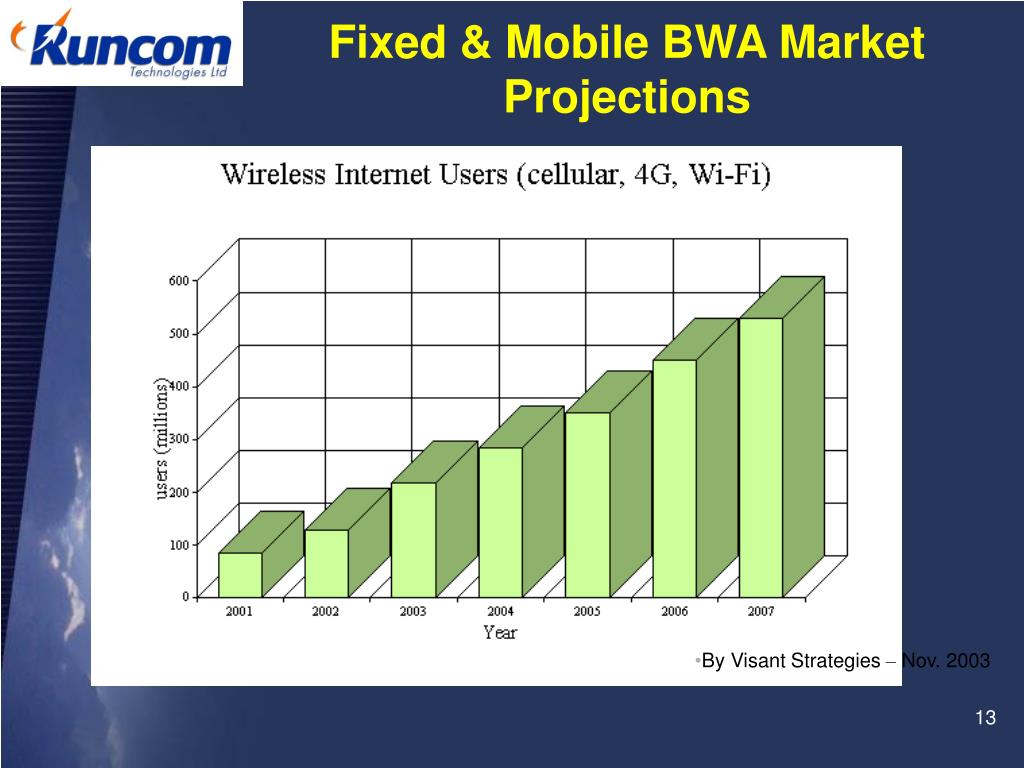

Fixed & Mobile BWA Market Projections

  • By Visant Strategies – Nov. 2003
slide14

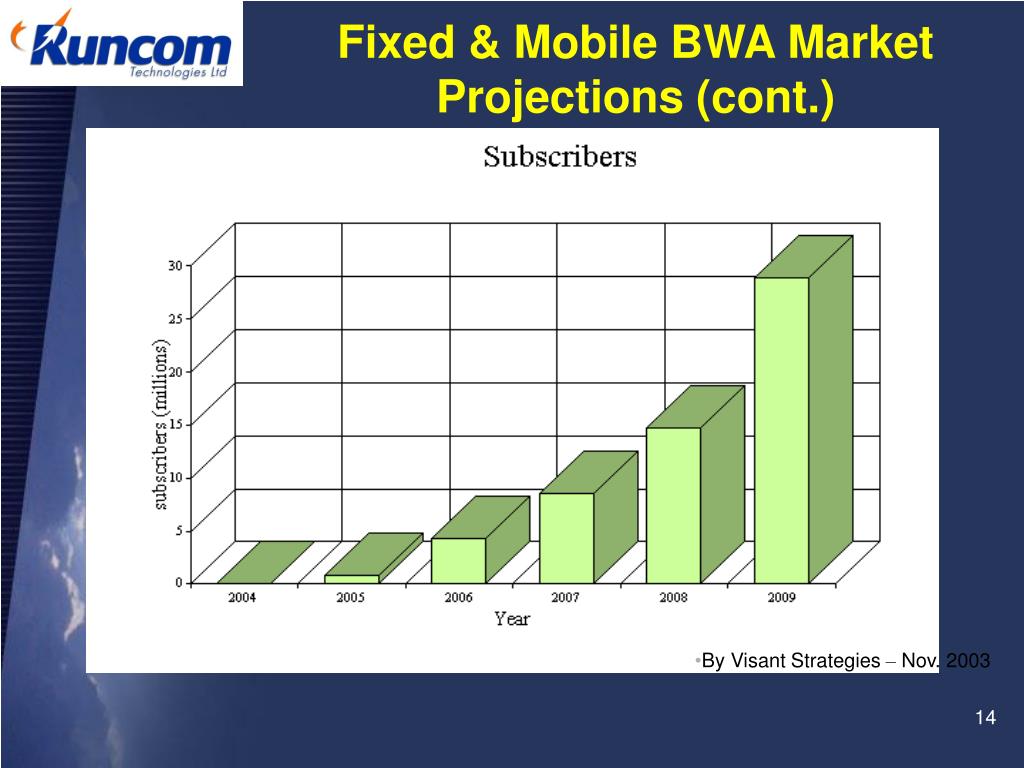

Fixed & Mobile BWA Market Projections (cont.)

  • By Visant Strategies – Nov. 2003
slide16

802.16.a/e/d

802.20 ???

OFDMA Standardization

Runcom’s OFDMA® Generic Technology Road map to 4G

Digital Interactive TV

Broadband Mobile Cellular

Broadband Wireless Access

Cellular

DVB-T/RCT

Fixed/Mobile

4G

ETSIApproved

April 2001

16a Finalized

Early 2003

Extended to mobile

early 2004

WWRF, WSI, mITF

EN301958

OFDMA adopted by Wimax and TTA (Korea) as the mobile B3G of choice from 802.16.e

ieee 802 16 technology

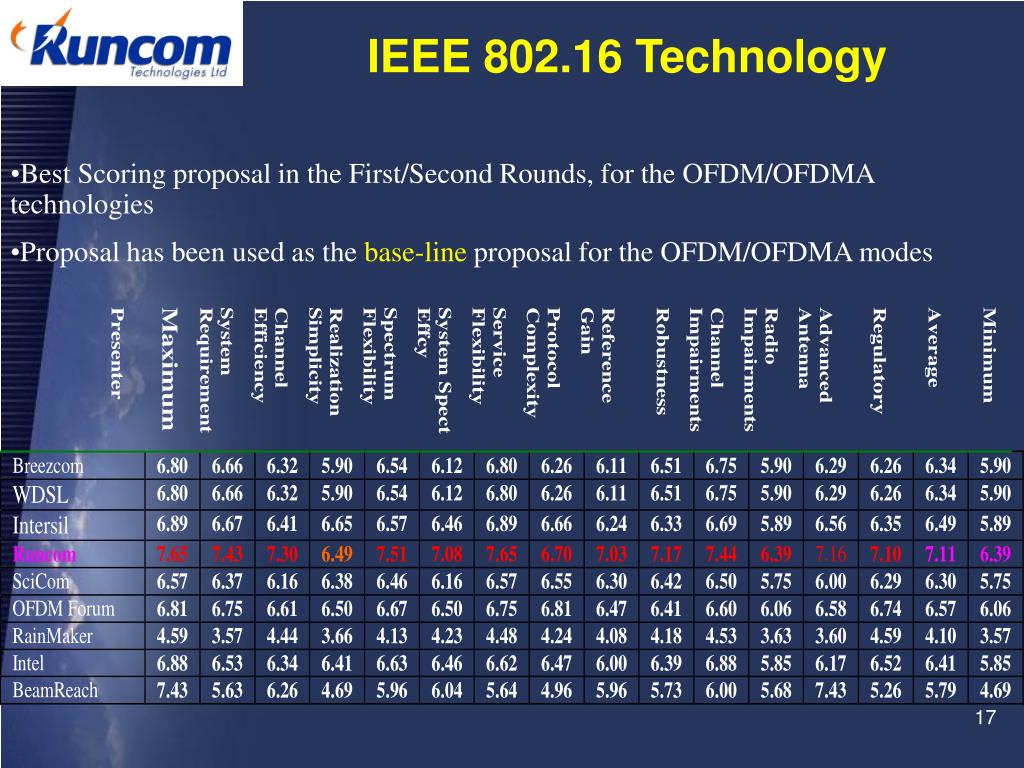

IEEE 802.16 Technology
  • Best Scoring proposal in the First/Second Rounds, for the OFDM/OFDMA technologies
  • Proposal has been used as the base-line proposal for the OFDM/OFDMA modes
players within ofdma 16e
Players

Within OFDMA 16e

slide19

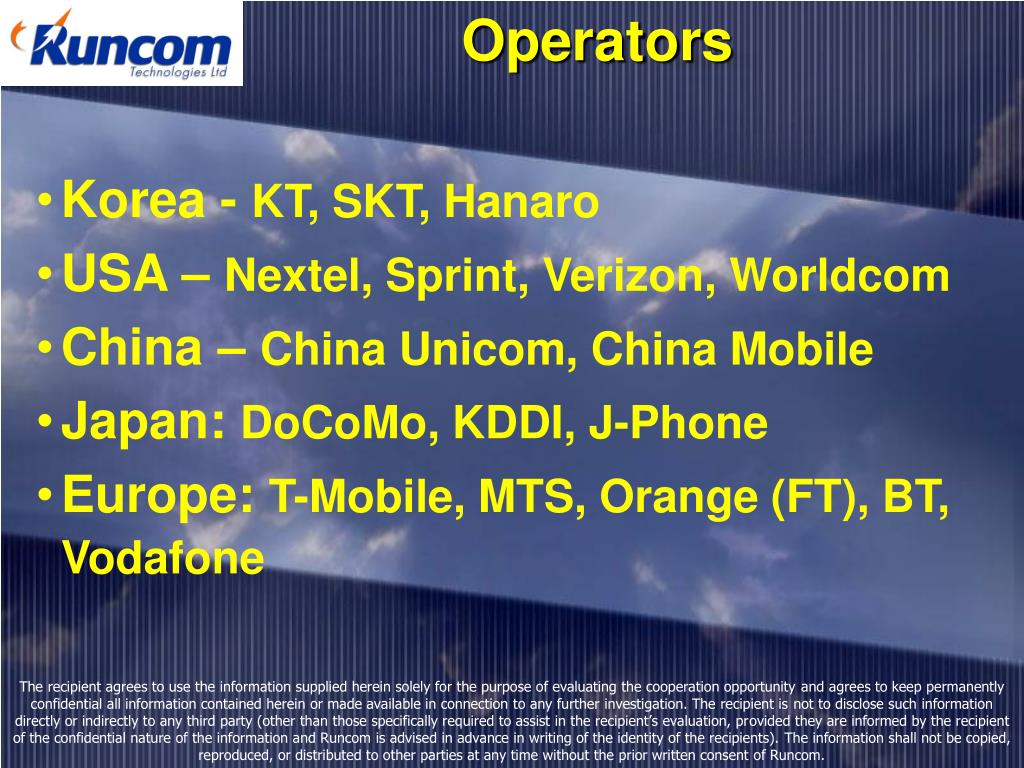

Operators

Korea - KT, SKT, Hanaro

USA – Nextel, Sprint, Verizon, Worldcom

China – China Unicom, China Mobile

Japan: DoCoMo, KDDI, J-Phone

Europe: T-Mobile, MTS, Orange (FT), BT, Vodafone

The recipient agrees to use the information supplied herein solely for the purpose of evaluating the cooperation opportunity and agrees to keep permanently confidential all information contained herein or made available in connection to any further investigation. The recipient is not to disclose such information directly or indirectly to any third party (other than those specifically required to assist in the recipient’s evaluation, provided they are informed by the recipient of the confidential nature of the information and Runcom is advised in advance in writing of the identity of the recipients). The information shall not be copied, reproduced, or distributed to other parties at any time without the prior written consent of Runcom.

slide20

Networking & Base Station Players

Samsung, LG, Motorola, Nortel, Huawei, ZTE, Panasonic, NEC, Siemens, Alcatel, Nortel, Nokia Fujitsu, ADC, Cisco, … Lucent others

The recipient agrees to use the information supplied herein solely for the purpose of evaluating the cooperation opportunity and agrees to keep permanently confidential all information contained herein or made available in connection to any further investigation. The recipient is not to disclose such information directly or indirectly to any third party (other than those specifically required to assist in the recipient’s evaluation, provided they are informed by the recipient of the confidential nature of the information and Runcom is advised in advance in writing of the identity of the recipients). The information shall not be copied, reproduced, or distributed to other parties at any time without the prior written consent of Runcom.

runcom intel phillips stmicroelectronics agere freescale fujitsu

ASIC

Runcom, Intel, Phillips, STMicroelectronics, Agere, Freescale, Fujitsu

The recipient agrees to use the information supplied herein solely for the purpose of evaluating the cooperation opportunity and agrees to keep permanently confidential all information contained herein or made available in connection to any further investigation. The recipient is not to disclose such information directly or indirectly to any third party (other than those specifically required to assist in the recipient’s evaluation, provided they are informed by the recipient of the confidential nature of the information and Runcom is advised in advance in writing of the identity of the recipients). The information shall not be copied, reproduced, or distributed to other parties at any time without the prior written consent of Runcom.

slide22

WIMAX & 802.16 PLAYERS

ASIC

Equipment Providers

SystemIntegrators

Operators

currently profiles developed by tta korea ieee for early entries wimax started the process
Currently profiles developed by

TTA (KOREA) / IEEE for early entries

WIMAX started the process

The recipient agrees to use the information supplied herein solely for the purpose of evaluating the cooperation opportunity and agrees to keep permanently confidential all information contained herein or made available in connection to any further investigation. The recipient is not to disclose such information directly or indirectly to any third party (other than those specifically required to assist in the recipient’s evaluation, provided they are informed by the recipient of the confidential nature of the information and Runcom is advised in advance in writing of the identity of the recipients). The information shall not be copied, reproduced, or distributed to other parties at any time without the prior written consent of Runcom.

slide26

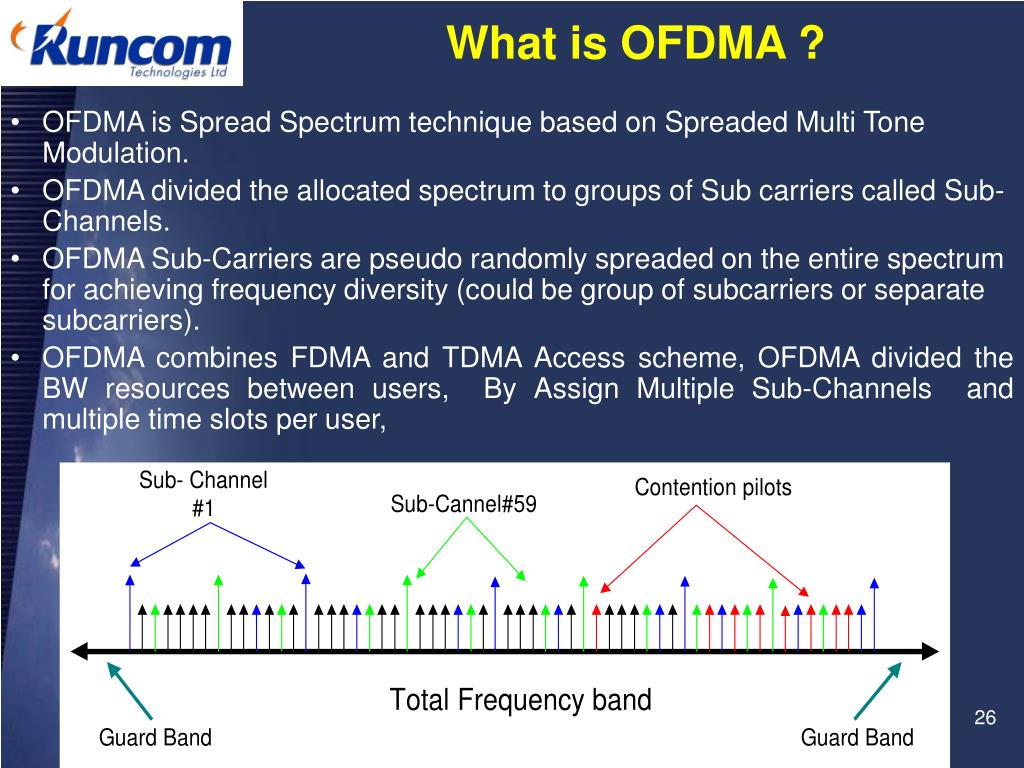

What is OFDMA ?

  • OFDMA is Spread Spectrum technique based on Spreaded Multi Tone Modulation.
  • OFDMA divided the allocated spectrum to groups of Sub carriers called Sub-Channels.
  • OFDMA Sub-Carriers are pseudo randomly spreaded on the entire spectrum for achieving frequency diversity (could be group of subcarriers or separate subcarriers).
  • OFDMA combines FDMA and TDMA Access scheme, OFDMA divided the BW resources between users, By Assign Multiple Sub-Channels and multiple time slots per user,
slide27

OFDMA-TDMA Principles

Using OFDMA/TDMA, Sub Channels are allocated in the Frequency Domain, and OFDM Symbols allocated in the Time Domain.

slide28

Using Special Permutations for Sub carrier or clusters allocation

  • Carriers/Clusters are allocated by a basic series and it’s cyclic permutations for example:
  • Basic Series:

0,5,2,10,4,20,8,17,16,11,9,22,18,21,13,19,3,15,6,7,12,14,1

  • After two cyclic permutations we get:

2,10,4,20,8,17,16,11,9,22,18,21,13,19,3,15,6,7,12,14,1,0,5

slide29

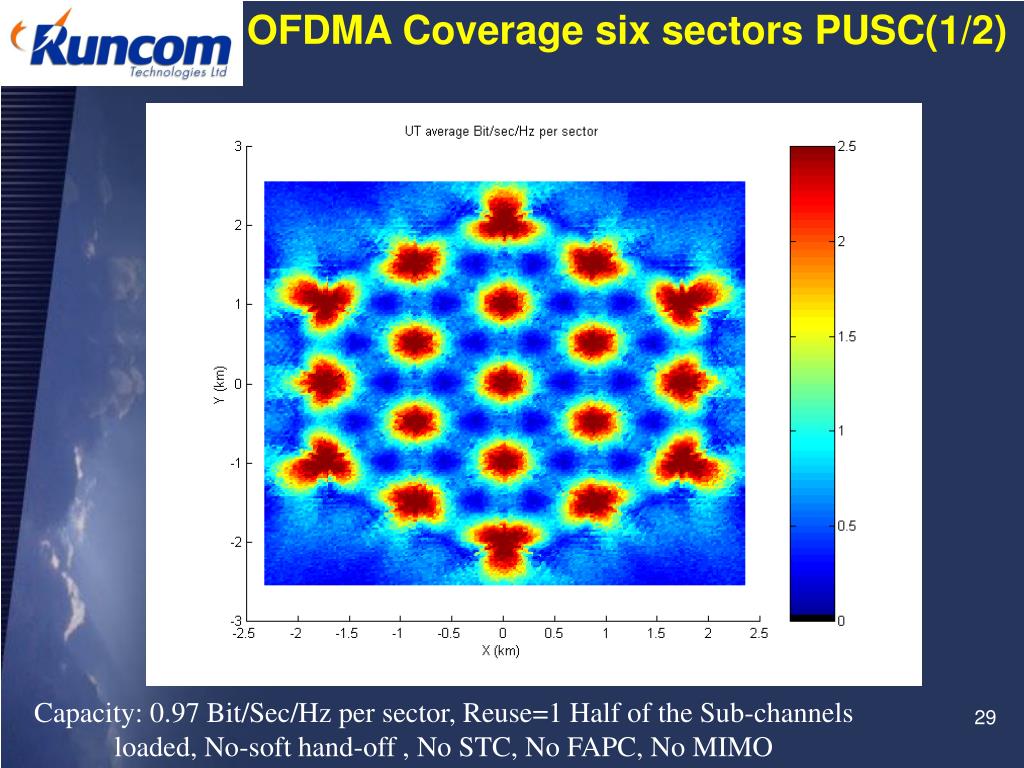

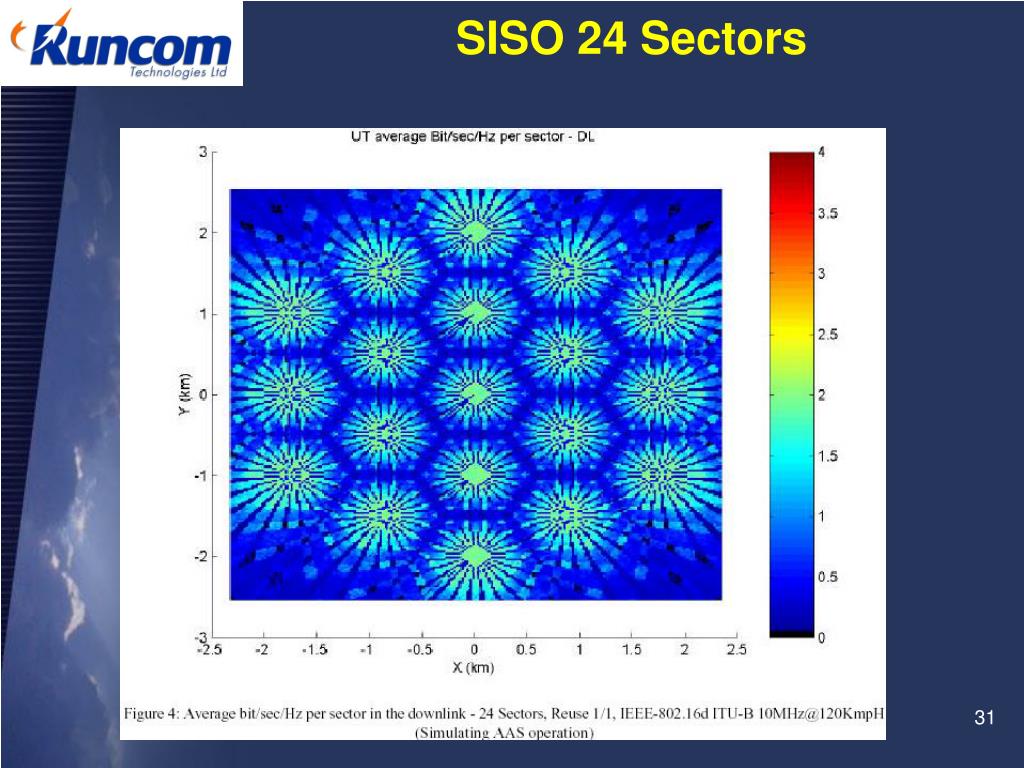

OFDMA Coverage six sectors PUSC(1/2)

Capacity: 0.97 Bit/Sec/Hz per sector, Reuse=1 Half of the Sub-channels loaded, No-soft hand-off , No STC, No FAPC, No MIMO

thank you runcom s team
Thank you

Runcom’s Team
