Presentation Transcript
Gregor johann mendel l.jpg

1822- 1884

Austrian monk

Experimented with pea plants

He thought that ‘heritable factors’ (genes) retained their individuality generation after generation

Gregor Johann Mendel


Time line l.jpg

1831 Charles Darwin joins crew of Beagle

1847Semmelweiss proposes that infection is spread by contaminated hands of physicians.

1856 Mendel begins hybridization studies with garden peas

1857 Louis Pasteur (France) introduces the Germ Theory of Disease.

1859 Darwin publishes Origin of Species

1865 Mendel presents presents his results in transmission of phenotypic traits between the generations to the Brünn Society of Natural Sciences.

1900 Hugo de Vries in Holland, William Bateson in Great Britain, Franz Correns in Germany, and Erich Tschermak in Austria acknowledged Mendel's legacy, and hailed him as the true father of classical genetics.

Time Line


Slide4 l.jpg

Terms to Know and Use

  • Gene - a heritable feature: i.e. flower color coded for on a chromosome

  • Trait - variant for a gene: i.e. a purple flower, determined by alleles

  • Dominant trait - expressed over recessive trait when both are present

  • Recessive trait - not expressed when the dominant trait is present


Slide5 l.jpg

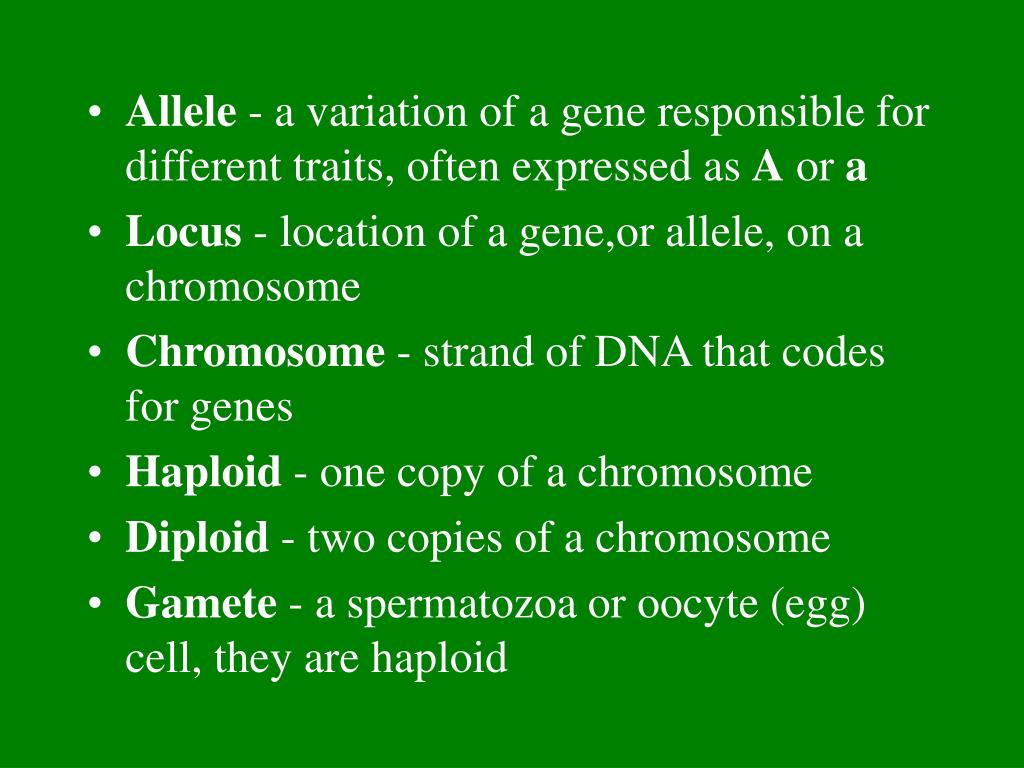

  • Allele - a variation of a gene responsible for different traits, often expressed as A or a

  • Locus - location of a gene,or allele, on a chromosome

  • Chromosome - strand of DNA that codes for genes

  • Haploid - one copy of a chromosome

  • Diploid - two copies of a chromosome

  • Gamete - a spermatozoa or oocyte (egg) cell, they are haploid


Slide6 l.jpg

  • Zygote - cell resulting from the fusion of two gametes, they are diploid

  • Genotype - the type of alleles on a chromosome: genetic makeup

  • Phenotype - The way a genotype is expressed: i.e. the color of a flower

  • True breeding line - organisms that always pass the same genotype to their offspring

  • Hybrid - offspring resulting from crossbreeding two true breeding lines: F1


Garden pea experiments 1856 64 l.jpg
Garden Pea Experiments 1856-64

  • Mendel disagreed with the “Blending Theory” of inheritance.

  • Started with34 kinds peas Pisium sativum

  • After 2 years he had 22 purebreds

    http://www.dnaftb.org/dnaftb/1/concept/index.html


Pea characteristics l.jpg
Pea Characteristics

Trait on the left is dominant. Trait on the right is recessive.



Mendel s hypotheses l.jpg
Mendel’s Hypotheses

  • There are alternate forms of ‘genes’=alleles

  • For each trait, organisms have 2 genes, one from mom & one from dad

  • Sperm and egg each carry 1 allele/trait because alleles segregate

  • When only one allele is expressed & other has no noticeable effect, it is dominant

  • http://www.sumanasinc.com/webcontent/anisamples/nonmajorsbiology/independentassortment.html


Mendel s experiments l.jpg
Mendel’s Experiments

  • Plants must possess constant differentiating characteristics.

  • The hybrids of such plants must, during the flowering period, be protected from the influence of all foreign pollen, or be easily capable of such protection.

  • The hybrids and their offspring should suffer no marked disturbance in their fertility in the successive generations.


Slide12 l.jpg

Mendel's Laws of Inheritance

  • Law of Segregationduring gamete formation allele pairs separate or segregate, into different gametes(Demonstrated with a “test cross”).

  • Law of Independent Assortment suggested that each allele pair segregates independently of other gene pairs during gamete formation (Demonstrated with a dihybrid cross).

  • http://www.sumanasinc.com/webcontent/anisamples/majorsbiology/independentassortment.html


Slide13 l.jpg

Mother contributes:

True Breeding

A

A

or

A

AA

AA

or

Father contributes:

AA

AA

A


Slide14 l.jpg

Mother contributes:

Cross Breeding

a

a

or

A

Aa

Aa

or

Father contributes:

Aa

Aa

A




Slide18 l.jpg

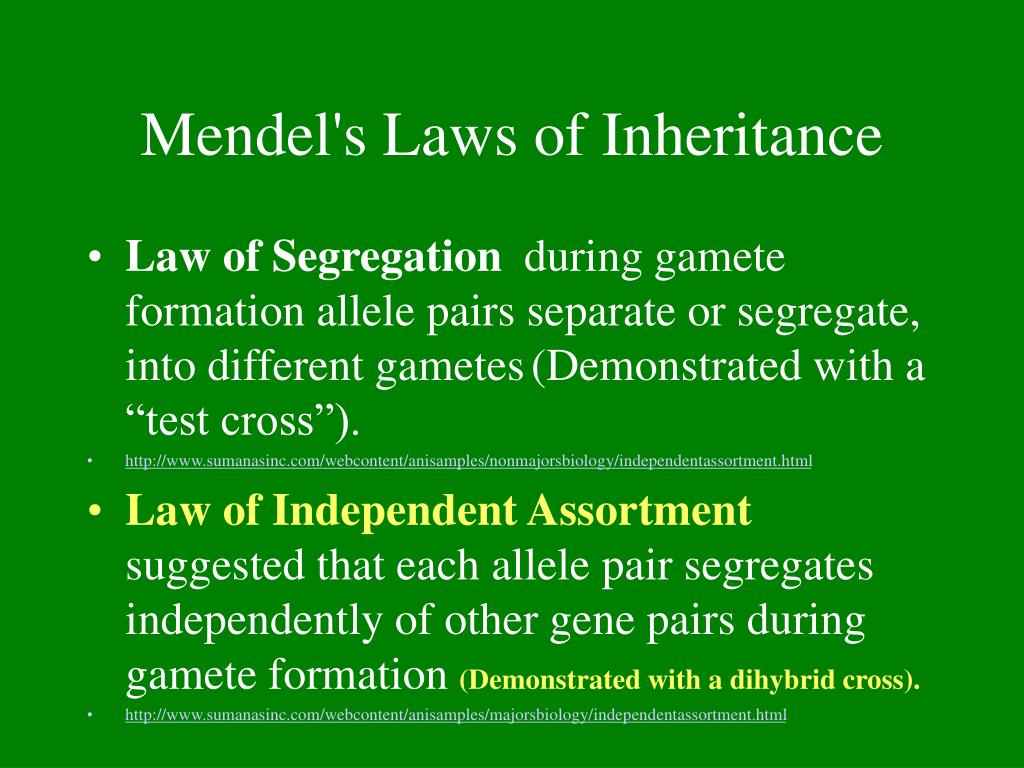

Mendel's Laws of Inheritance

  • Law of Segregation during gamete formation allele pairs separate or segregate, into different gametes(Demonstrated with a “test cross”).

  • http://www.sumanasinc.com/webcontent/anisamples/nonmajorsbiology/independentassortment.html

  • Law of Independent Assortmentsuggested that each allele pair segregates independently of other gene pairs during gamete formation (Demonstrated with a dihybrid cross).

  • http://www.sumanasinc.com/webcontent/anisamples/majorsbiology/independentassortment.html



Slide20 l.jpg

wrinkled

wrinkled

Smooth

Smooth

Smooth

Tall

Tall

short

Tall

short

Two chromosomes of one parent are represented on the left.

Possible alleles passed on to the offspring are on the right.

(Consider smooth or wrinkled peas AND tall or short plants)


Slide21 l.jpg

Mother contributes:

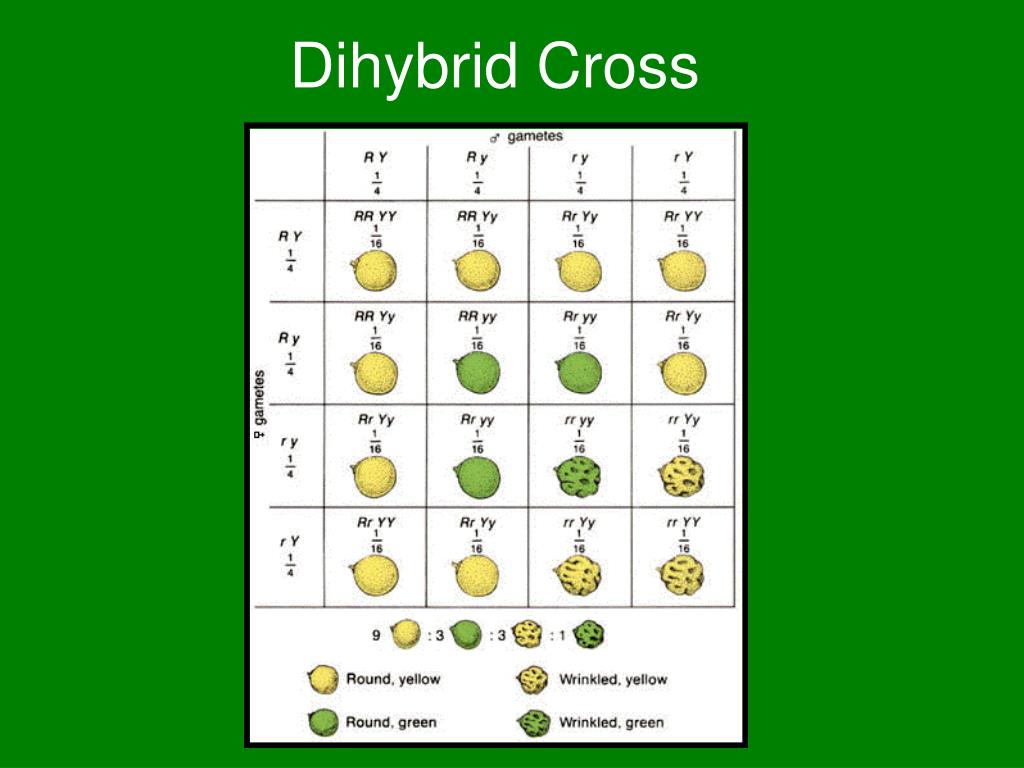

Dihybrid Cross

SB

Sb

sB

sb

SB

SsBb

SSBB

SSBb

SsBB

Sb

SSbB

SsbB

Ssbb

SSbb

Father contributes:

sB

sSBB

sSBb

ssBB

ssBb

sb

sSbB

sSbb

ssbB

ssbb



Meiosis i l.jpg
Meiosis I

One diploid sex cell divides……


Meiosis ii l.jpg
Meiosis II

Result: One diploid cell = four haploid cells



Do all genes assort independently l.jpg
DO ALL GENES ASSORT INDEPENDENTLY?

  • Genes on the same chromosome tend to be inherited together = linked

  • Sex-linked genes: color blindness, MD, hemophilia. X Y

  • X

    X


Credits l.jpg
Credits

  • Mendel Image: pw1.netcom.com/~aguldo/ agga/bt/txt/bt1899.htm

  • Pea trellis: http://www.floridata.com/ref/p/images/pisu_sa1.jpg

  • Experiments in Plant Hybridization (1865)by Gregor Mendel Read at the meetings of February 8th, and March 8th, 1865 to the the Natural History Society of Brünn(paper can be read at: http://www.mendelweb.org/home.html

  • MendelWeb, edited by Roger B. Blumberg. (http://www.netspace.org/MendelWeb/, Edition 97.1 1997)

  • The Biology Project: http://www.biology.arizona.edu/default.html

  • Meiosis Images: www.micro.utexas.edu/.../bio304/ genetics/meiosis.4.gif

  • Crossing Over image: http://medlib.med.utah.edu/block2/biochem/Formosa/Figures/Lecture5/5-15%20Meiosis.JPG

  • Monohybrid, dihybrid, test cross & pea flower: ntri.tamuk.edu/homepage-ntri/lectures/ biology/test-cross.gi



Goldsmith seeds new introductions 2002 2003 l.jpg

GOLDSMITHSEEDSNew Introductions 2002-2003


Origami aquilegia l.jpg

Minimal vernalization time of 14 – 21 days

Vernalize at temperatures as high as 45° – 50° F (8° – 10° C)

Sow October-November for April-May bloom

Entire series is uniform for height and flowering

Garden height: 14 – 16” height (35 – 40 cm.)

Container size: jumbos to 6” (15 cm.)

new

series

Origami aquilegia

blue & white

rose & white

yellow

red & white

pink & white

white


Origami aquilegia31 l.jpg

new

series

Origami aquilegia

rose & white

blue & white

yellow

red & white

white

pink & white


Bliss campanula l.jpg

Early to flower

Blooms the first season … does not require a “cooling” treatment

Attractive open, bell-shaped flowers

Bright green foliage with wavy, toothed edges

Compact plant habit

Garden height: 6 – 8” (15 – 20 cm.)

Container size: jumbos to 6” (15 cm.)

new

series

Bliss campanula

blue

white


Stella campanula l.jpg

Blue is improved for darker foliage

White is improved for a crisper, cleaner white

Faster to Crop … 1 week earlier

Tighter, mounded habit

Uniform between colors

Garden height: 6 – 8” (15 – 20 cm.)

Container size: jumbos to 6” (15 cm.)

improved

colors

Stella campanula

blue

white


Jester cineraria l.jpg

Bright pink with white center

Compact, rounded habit

Matches series perfectly

Garden height: 8 – 10” (20 – 25 cm.)

Container size: 4 – 6” (10 – 15 cm.)

new

color

Jester cineraria

pink bi-color


Midori cyclamen l.jpg

Most versatile mini-sized cyclamen on the market

Small, refined foliage easily sizes up in small and medium-sized pots

Uniform habit with well-proportioned flowers

Crop time: 25 – 27 weeks

Garden height: 6 – 8” (15 – 20 cm.)

Container size: 2½ - 4” (8 – 10 cm.)

new

series

Midori cyclamen

deep rose

scarlet

white


Silverado cyclamen l.jpg

Slightly more vigorous than ‘Miracle’ miniature cyclamen

Distinctive silver foliage

Uniform habit with well-proportioned flowers

Crop time: 24 – 26 weeks

Garden height: 6 – 8” (15 – 20 cm.)

Container size: 2½ - 4” (8 – 10 cm.)

Silverado cyclamen

new

series

scarlet

white


Laser cyclamen l.jpg

Deep purple color

Uniform to flower, matches series

Well-proportioned foliage and attractively marbled

Crop time: 26 –28 weeks

Garden height: 8 – 10” (20 – 26 cm.)

Container size: 4 – 5” (10 – 13 cm.)

new

color

Laser cyclamen

purple flame


Sierra cyclamen l.jpg

Wine flame formerly known as Deep Red Flame

Both improved for more compact, refined habit

Finer leaf size

Better matches series

Crop time: 28 – 32 weeks

Garden height: 12 – 14” (30 – 35 cm.)

Container size: 4 – 6” (10 – 15 cm.)

improved

colors

Sierra cyclamen

wine flame

purple flame


Hello dahlia l.jpg

Consistently double flowers

80+ percent transplantable seedlings

Entire series is uniform for habit and flowering time

Garden height: 7 – 9” (17 – 23 cm.)

Container size: 4” (10 cm.) and larger

new

series

Hello dahlia

bronze shades

pink shades

rose shades

scarlet shades

white

yellow shades


Kiss gazania l.jpg

Bold, new color … a delicious shade of rich red-brown

Matches series for habit and flowering

Mounded, controlled habit

Garden height: 8 – 10” (20 – 25 cm.)

Container size: 4 – 6” (10 – 15 cm.)

new

color

Kiss gazania

mahogany


Karma pansy l.jpg

Exhibits early flowering under fall and early spring conditions

Perfect for all seasons

Compact, bushy habit easily fills pots and beds

Free flowering on short flower stems

Garden height: 6 – 8” (15 – 20 cm.)

Container size: packs and larger

new

series

Karma pansy

blue blotch

red blotch

rose blotch

rose

white

white blotch

yellow

yellow blotch


Primetime petunia l.jpg

Stable star pattern conditions

Vibrant eye-catching blooms

Uniform flowering and habit

Garden height: 10 –12” (25 – 30 cm.)

Container size: packs to 6” (15 cm.)

PrimeTime petunia

new

color

violet star


Goldsmith celebrating 40 years of colorful creations http www goldsmithseeds com index jsp l.jpg
: GOLDSMITH : Celebrating conditions40 Years of Colorful Creationshttp://www.goldsmithseeds.com/index.jsp
