impact of light winds on aermod a case study

Impact of Light Winds on AERMODA Case Study

Joe Sims

AL Department of Environmental Management

Region 4 Modelers WorkshopMarch 18, 2009

the issue
The Issue
  • Introduction of 1-minute averaged ASOS winds will generally result in lighter wind speeds than currently available.
  • Recent (since mid-90s) archived met data at NCDC comes from METAR observations.
  • Observed winds less than 3 knots reported as calm in the METAR code.
  • Winds 2-6 knots with variable direction reported as variable (and ignored by AERMOD).
  • Even though AERMOD can process winds as low as 0.28m/s, it ignores calms.

How will use of light winds impact

AERMOD predicted concentrations?

the study
The Study
  • Find a met data set with known higher incidence of light winds
  • For the same location, obtain a standard ASOS data set.
  • Obtain/create a source set with a wide variety of stack heights, buoyancy characteristics, emission types, etc.
  • Run AERMOD and compare results.
met data
Met Data
  • Met Data (Test) (“Hybrid”)
    • Birmingham Airport (BHM) 1-minute ASOS data used to create hourly average winds for 2002.
    • This data set created by OAQPS for use in the Birmingham Annual PM2.5 SIP.
    • Met data treated in AERMET as On-site data and augmented as necessary by regular ASOS reports from BHM.
    • Upper air data from the Shelby County Airport (EET) used.
    • Surface characteristics developed from AERSURFACE.
  • Met Data (Control) (“Std ASOS”)
    • Standard BHM ASOS data.
receptor grid etc
Receptor Grid, Etc.
  • Receptors
    • Polar grid, centered at BHM.
    • 36 radials.
    • Rings 25m apart out 200m, 50m apart from 200m to 1000m and 100m apart from 1000m to 5000m.
  • RURAL/URBAN – Ran both conditions.
  • Terrain - Flat.
sources
Sources
  • Set of hypothetical sources used by the AIWG Surface Characteristic Subgroup.
  • 12 non-buoyant point sources
  • 10 buoyant point sources
  • 5 volume sources
  • 4 area sources
comments
Comments
  • 25% of the winds were in the 0-3kt category, which were not available for use in the “Std ASOS” AERMOD runs. In other words, this experiment gives a reasonable test of AERMOD performance using light winds.
  • Significant differences in the results between rural and urban. This is seen especially for taller stacks, where concentrations are generally greater than 4 times higher (and as much as 13 times) for the hybrid wind set. The opposite is seen with the lowest release height area sources.
  • Point source B2-35 was not included in the charts for the short term averages because it was an outlier. B2-35 is a 35m tall stack with some buoyancy (293K). Other stacks near the same height with more buoyancy behaved better. Apparently B2-35 did not have enough buoyancy to penetrate the inversion.
comments cont d

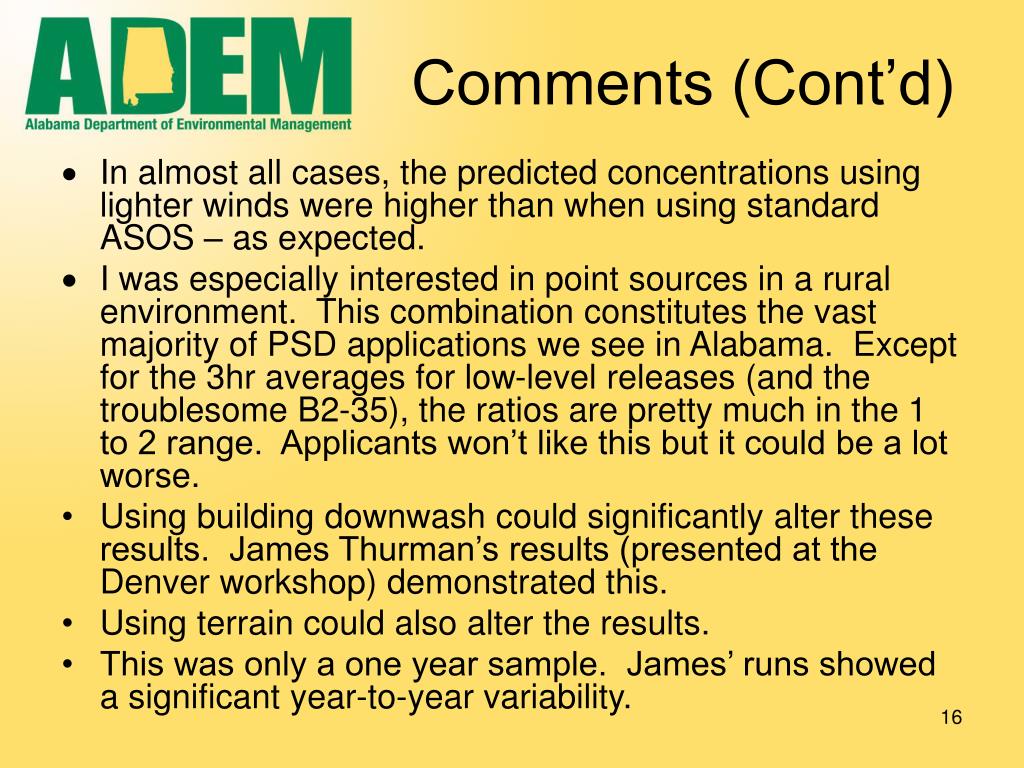

Comments (Cont’d)
  • In almost all cases, the predicted concentrations using lighter winds were higher than when using standard ASOS – as expected.
  • I was especially interested in point sources in a rural environment. This combination constitutes the vast majority of PSD applications we see in Alabama. Except for the 3hr averages for low-level releases (and the troublesome B2-35), the ratios are pretty much in the 1 to 2 range. Applicants won’t like this but it could be a lot worse.
  • Using building downwash could significantly alter these results. James Thurman’s results (presented at the Denver workshop) demonstrated this.
  • Using terrain could also alter the results.
  • This was only a one year sample. James’ runs showed a significant year-to-year variability.
conclusions
Conclusions
  • Using the hourly averaged 1-minute ASOS data to better represent dispersion potential from a source makes a lot of sense.
  • It generally seems to give more conservative results than standard ASOS, therefore is more protective of human health.
  • We as regulators must be prepared for challenges (and complaints) from the regulated community.
