Presentation Transcript
slide1

Ana-Lab Corp.

P.O. Box 9000

2600 Dudley Road

Kilgore, TX 75663

Employee Training

chlorine residual

Chlorine Residual

By

Roy White

chlorine residual3
Chlorine Residual
  • Read and follow SOP & reference materials
  • Follow safety plan
  • Collect representative aliquot
  • Protect integrity of sample
  • Record results and conditions
  • Complete Chain of Custody
each participant shall be able to
Each Participant shall be able to:
  • Turn photometer on
  • Zero instrument
  • Prepare sample
  • Read chlorine concentration
  • Make Manganese correction
  • Calculate corrected chlorine concentration
thermo orion photometer6
Thermo Orion Photometer

1. Switch unit on using “power” switch

thermo orion photometer7
Thermo Orion Photometer

2. Fill a 10 ml cell to the 10 ml line with sample

Meniscus

10 ml

Bottom of curved meniscus should be on the 10 ml line at eye level.

thermo orion photometer8
Thermo Orion Photometer
  • Add contents of one DPD Total Chlorine Powder Pillow to the sample cell. Cap and gently shake for 20 seconds.
  • Wait 3 minutes. During this time period, proceed with steps 5 – 9.
thermo orion photometer9
Thermo Orion Photometer
  • Fill a 10 ml sample cell to the 10 ml line with sample (blank).
  • Place the cap on the sample blank.
thermo orion photometer10
Thermo Orion Photometer

7. Place the blank in the cell holder, being sure to align the marks.

Align

thermo orion photometer11
Thermo Orion Photometer

8. Press “zero/test”; The display will be “0.0.0”

0.0.0

thermo orion photometer12
Thermo Orion Photometer
  • 9. Remove the cell from the cell holder

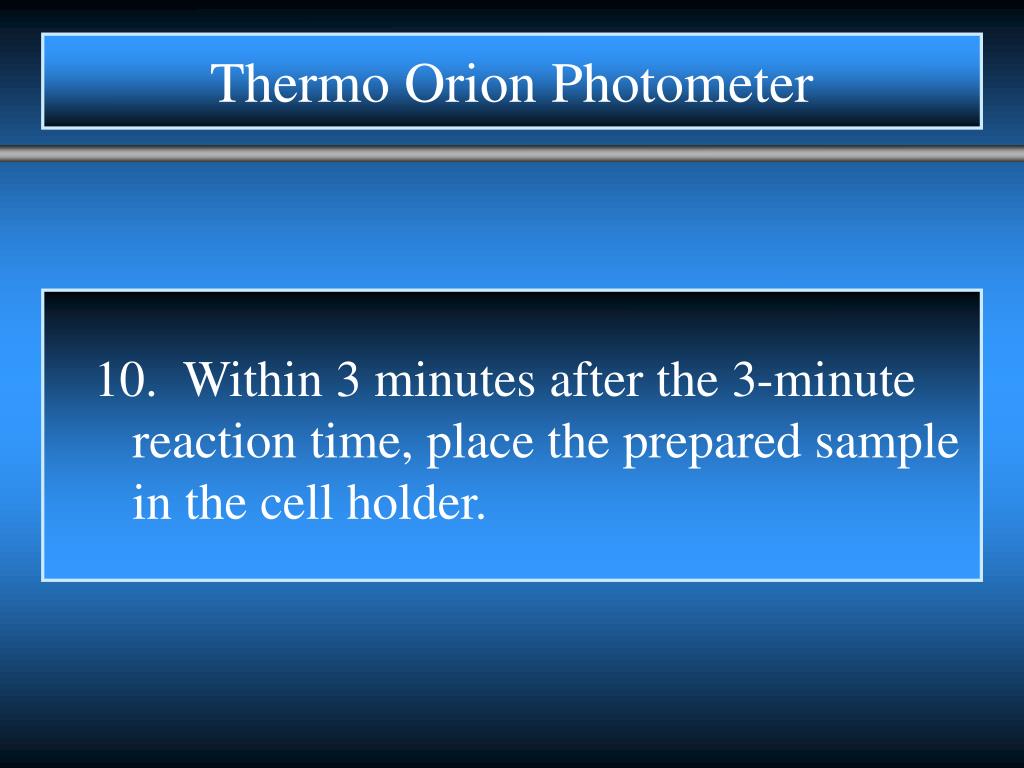

thermo orion photometer13
Thermo Orion Photometer
  • 10. Within 3 minutes after the 3-minute reaction time, place the prepared sample in the cell holder.
thermo orion photometer14
Thermo Orion Photometer
  • Press “zero/test”
  • The meter will show the results in mg/L total chlorine
record results
Record Results
  • Record as R1 on QC Line
  • Cl2 R1
thermo orion photometer16
Thermo Orion Photometer
  • Manganese Correction
manganese correction
Manganese Correction
  • Fill a sample cell to the 10 ml line with sample.
  • Add 10 drops of Phosphate Buffer
  • Mix and wait one minute.
manganese correction18
Manganese Correction
  • Add one drop of Sodium Arsenite and mix
  • Read the Manganese effect as in steps 3 – 11
  • Subtract the results of this test from the original to obtain the corrected chlorine concentration
record results19
Record Results
  • Record Manganese Correction as R2 on the QC line
  • Cl2 R1 – R2
record results20
Record Results
  • Calculate Chlorine Residual by:
  • Cl2 R1 – R2 = Chlorine Residual mg/L
thermo orion photometer21
Thermo Orion Photometer
