Presentation Transcript
slide1

Authentication Methods and Security in Videoconferencing SystemsTERENA AA-Workshop Malaga, November 2003

Dimitris Daskopoulos

GRNET

contents
Contents
  • Videoconferencing practices
  • Problematic points
  • Security standards
  • Current techniques in H.323
  • Future developments in H.323
video conferencing worlds

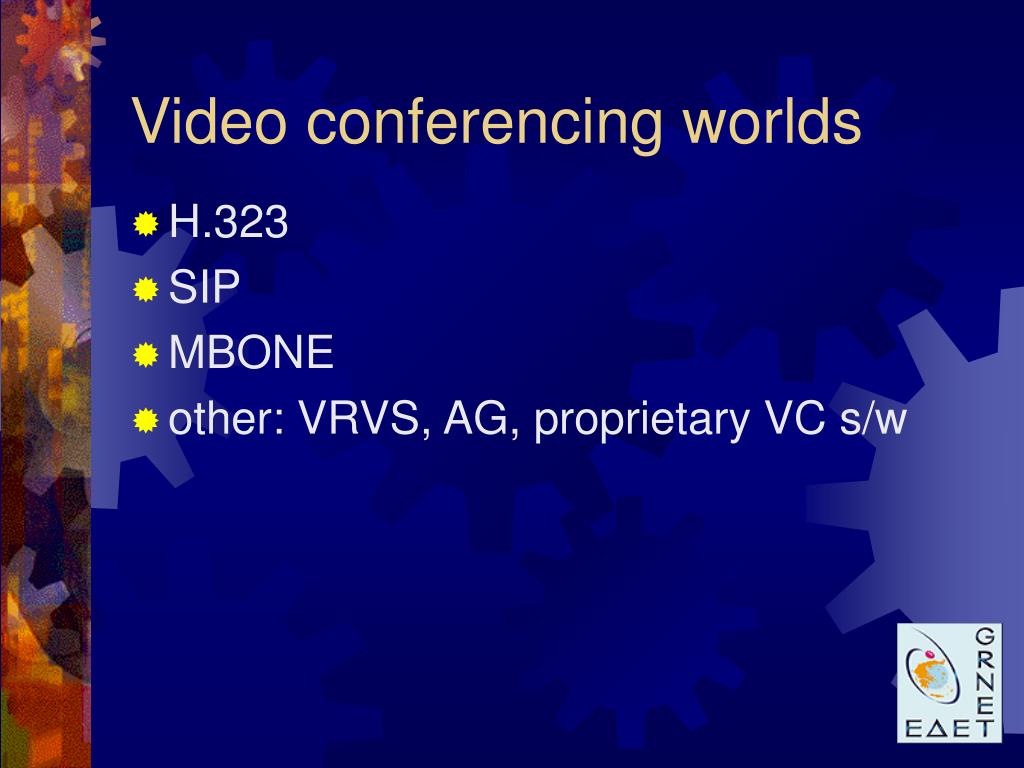

Video conferencing worlds
  • H.323
  • SIP
  • MBONE
  • other: VRVS, AG, proprietary VC s/w
the importance of videoconference security

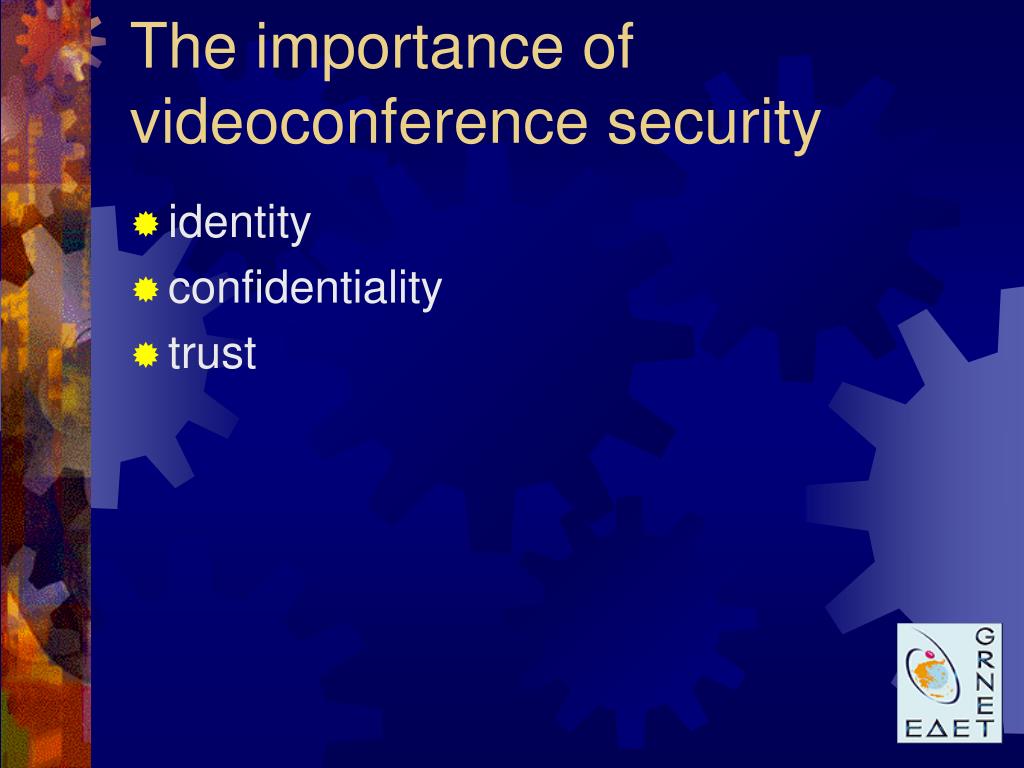

The importance of videoconference security
  • identity
  • confidentiality
  • trust

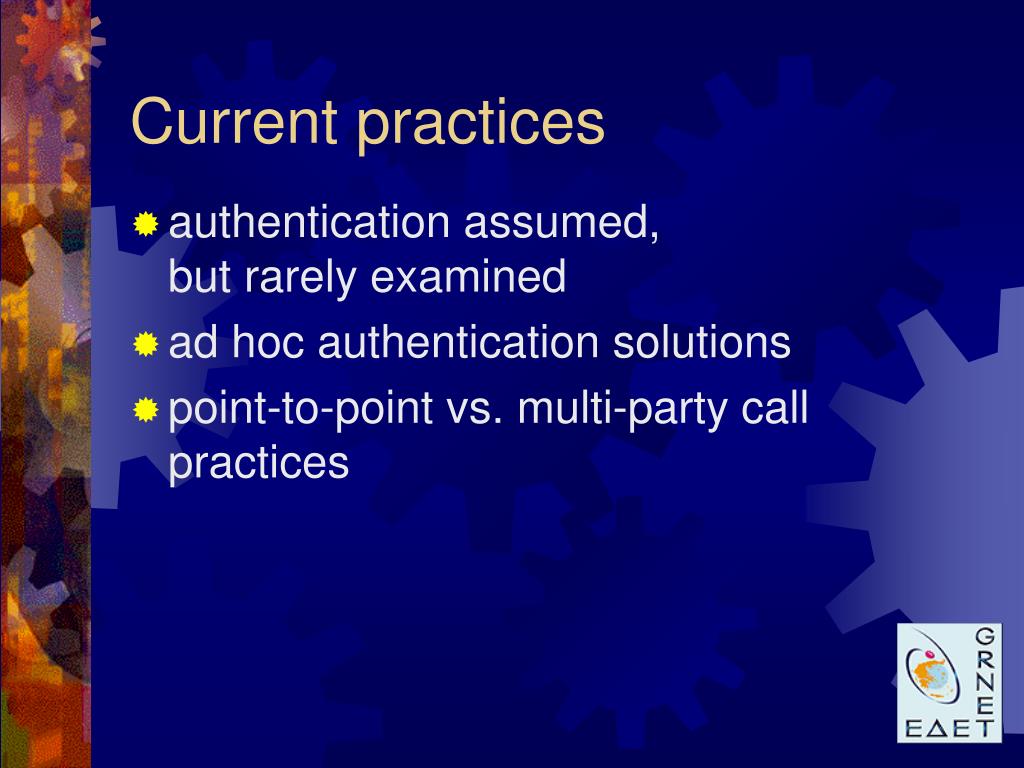

current practices
Current practices
  • authentication assumed, but rarely examined
  • ad hoc authentication solutions
  • point-to-point vs. multi-party call practices
requirements for videoconferencing security
Requirements for videoconferencing security
  • endpoint authentication
  • call signaling security
  • media encryption
problematic points

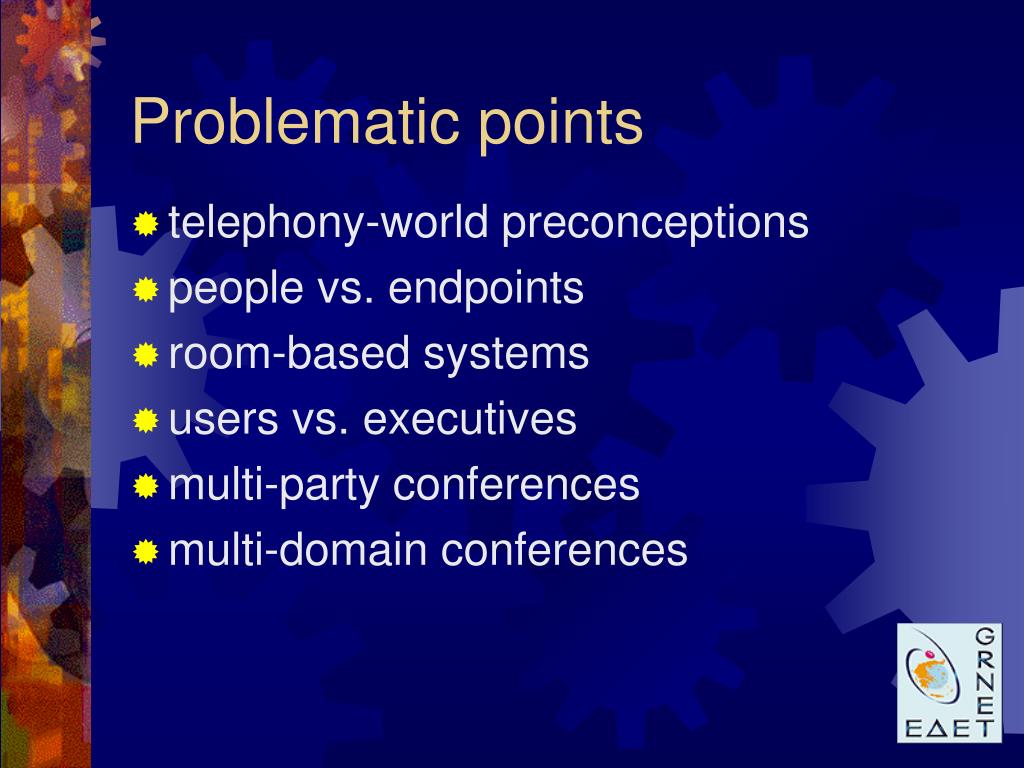

Problematic points
  • telephony-world preconceptions
  • people vs. endpoints
  • room-based systems
  • users vs. executives
  • multi-party conferences
  • multi-domain conferences
conferencing a three step process

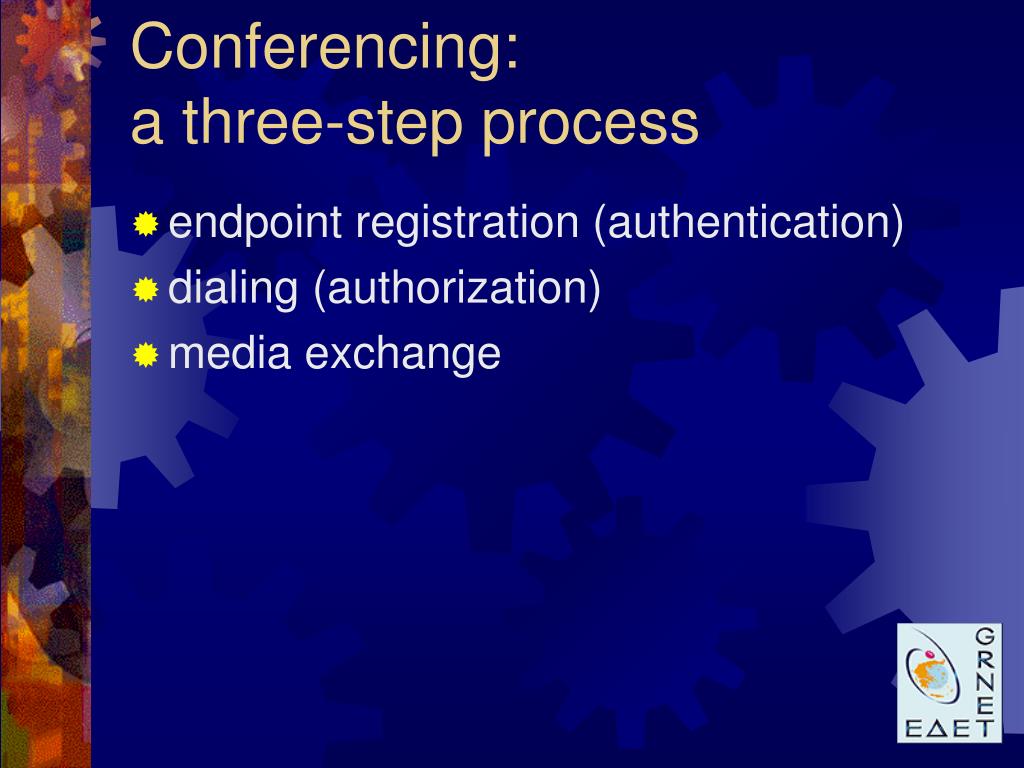

Conferencing: a three-step process
  • endpoint registration (authentication)
  • dialing (authorization)
  • media exchange
protocols involved in h 323 conferencing

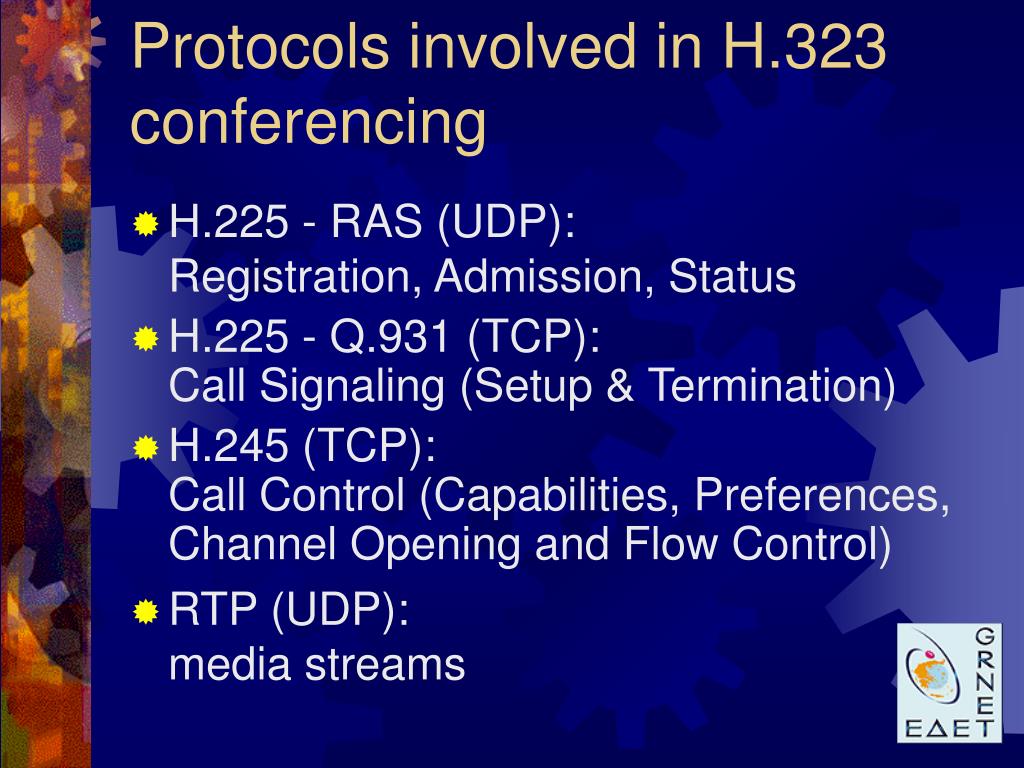

Protocols involved in H.323 conferencing
  • H.225 - RAS (UDP): Registration, Admission, Status
  • H.225 - Q.931 (TCP):Call Signaling (Setup & Termination)
  • H.245 (TCP):Call Control (Capabilities, Preferences, Channel Opening and Flow Control)
  • RTP (UDP):media streams
security standards for videoconferencing

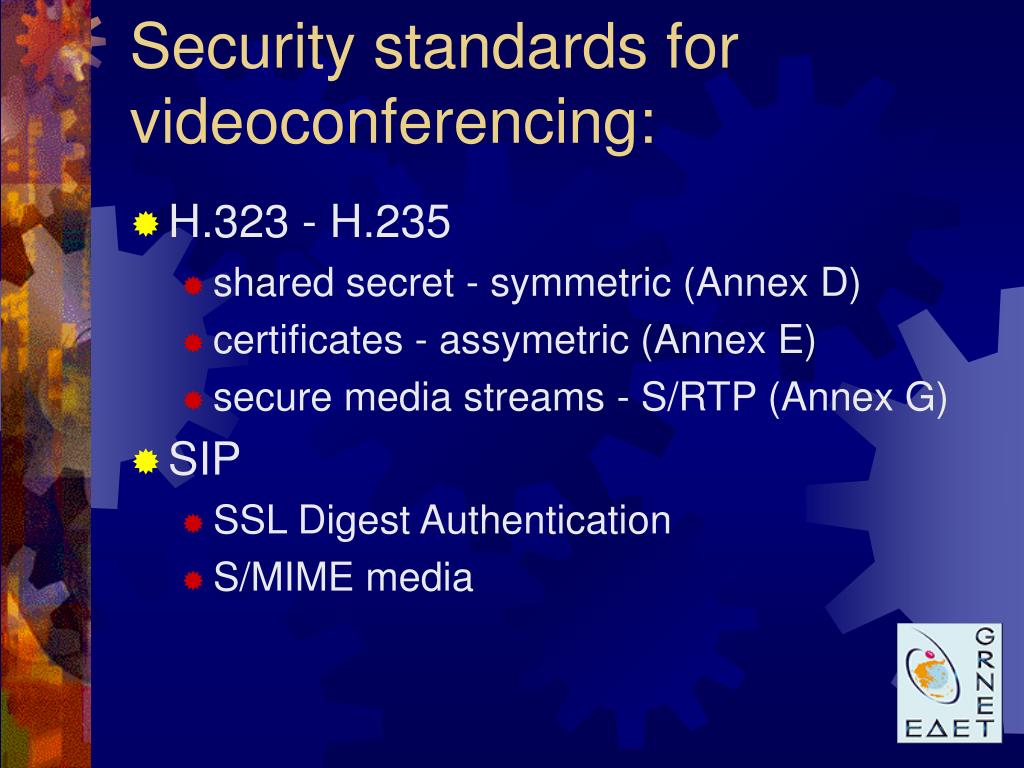

Security standards for videoconferencing:
  • H.323 - H.235
    • shared secret - symmetric (Annex D)
    • certificates - assymetric (Annex E)
    • secure media streams - S/RTP (Annex G)
  • SIP
    • SSL Digest Authentication
    • S/MIME media
current security options in h 323

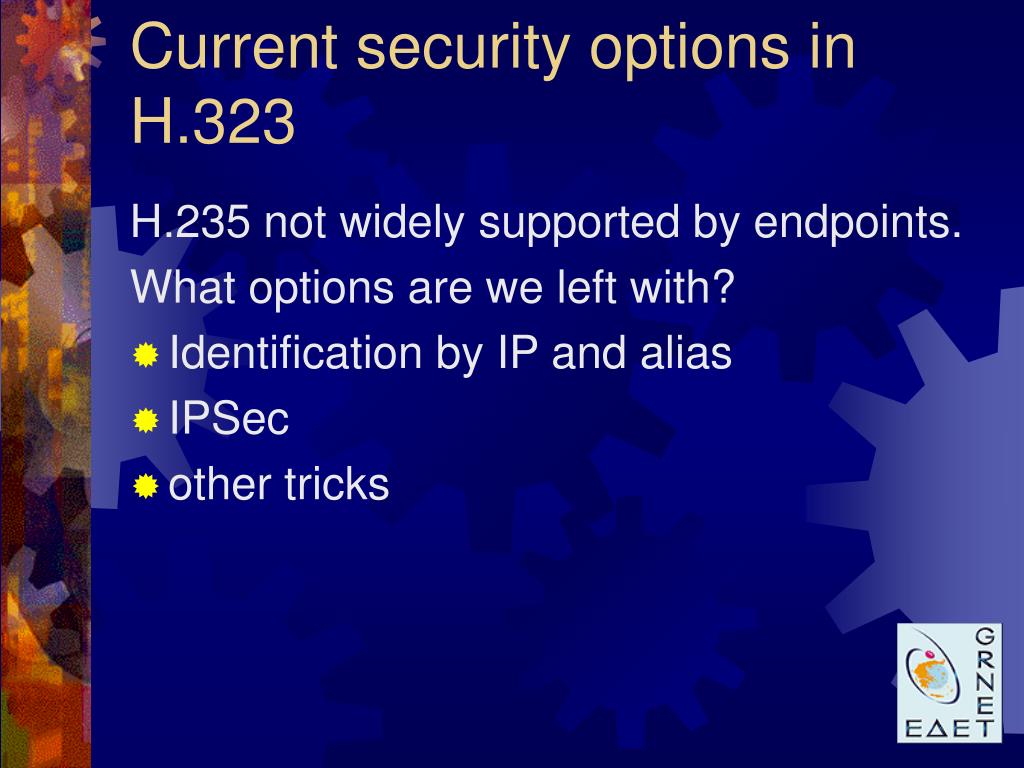

Current security options in H.323

H.235 not widely supported by endpoints.

What options are we left with?

  • Identification by IP and alias
  • IPSec
  • other tricks
current authentication techniques in h 323

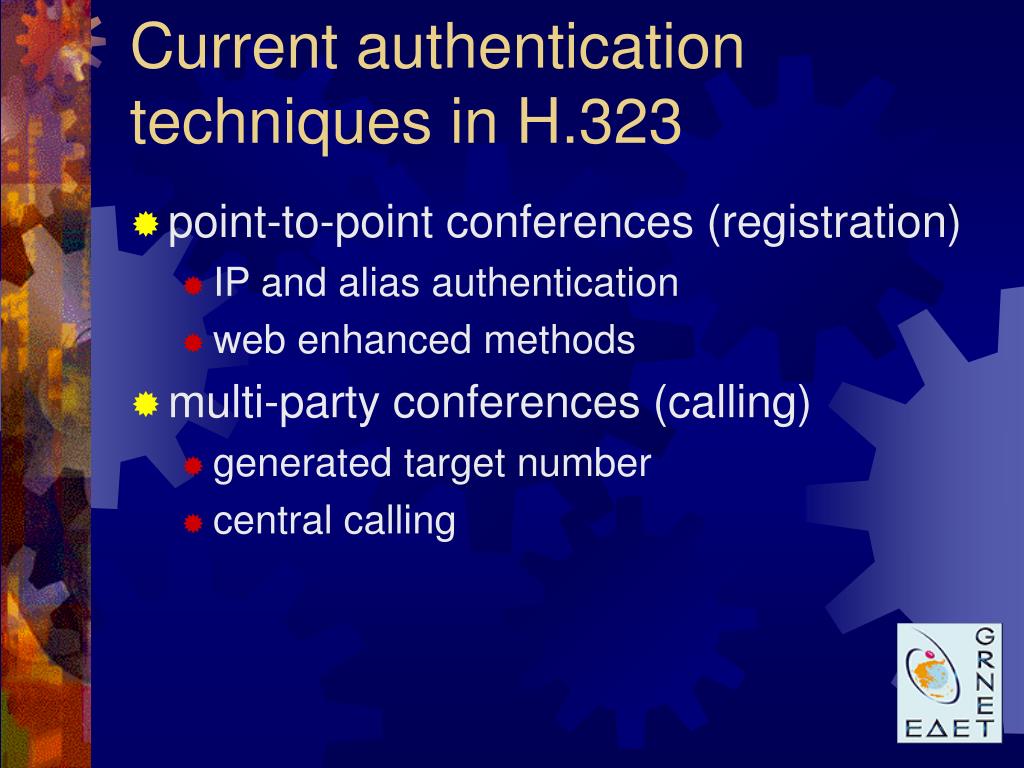

Current authentication techniques in H.323
  • point-to-point conferences (registration)
    • IP and alias authentication
    • web enhanced methods
  • multi-party conferences (calling)
    • generated target number
    • central calling
security in h 323 the gatekeeper

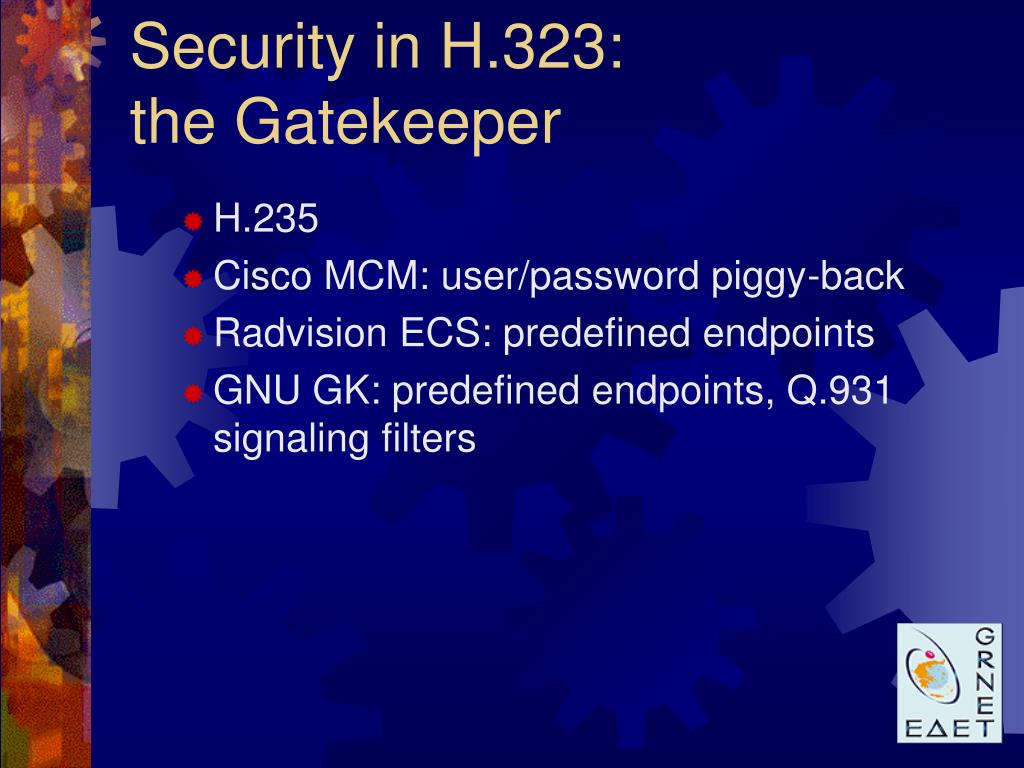

Security in H.323: the Gatekeeper
  • H.235
  • Cisco MCM: user/password piggy-back
  • Radvision ECS: predefined endpoints
  • GNU GK: predefined endpoints, Q.931 signaling filters
security in h 323 gatekeeper backends

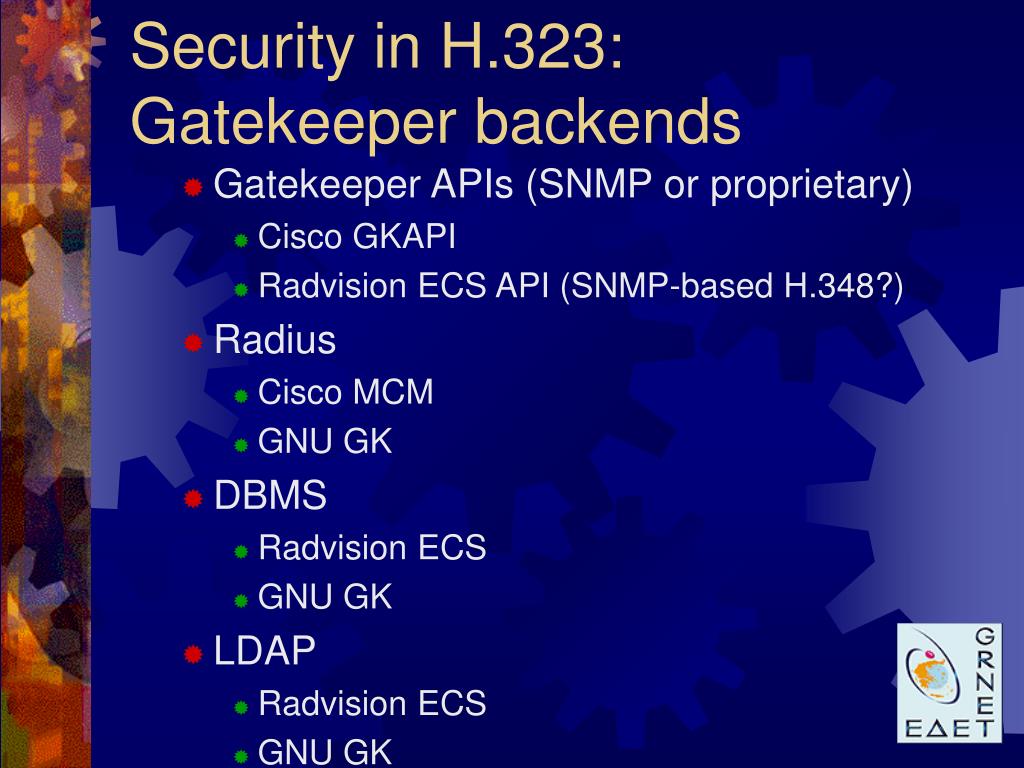

Security in H.323:Gatekeeper backends
  • Gatekeeper APIs (SNMP or proprietary)
    • Cisco GKAPI
    • Radvision ECS API (SNMP-based H.348?)
  • Radius
    • Cisco MCM
    • GNU GK
  • DBMS
    • Radvision ECS
    • GNU GK
  • LDAP
    • Radvision ECS
    • GNU GK
security in h 323 web integration of backends

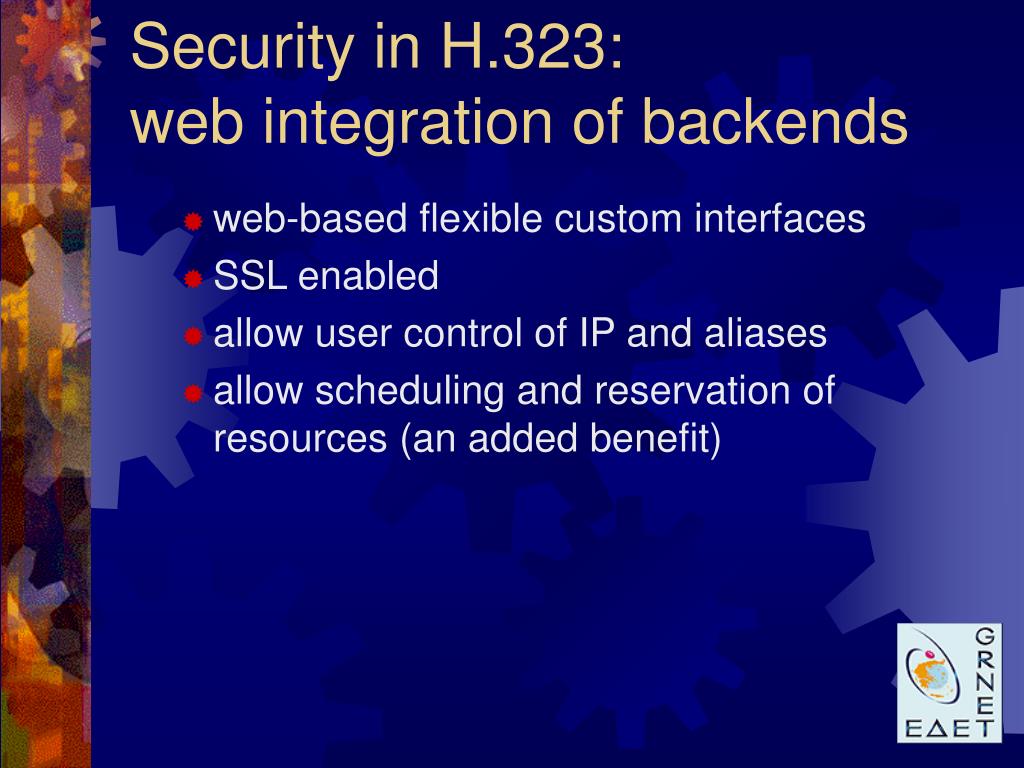

Security in H.323:web integration of backends
  • web-based flexible custom interfaces
  • SSL enabled
  • allow user control of IP and aliases
  • allow scheduling and reservation of resources (an added benefit)
current problems in h 323

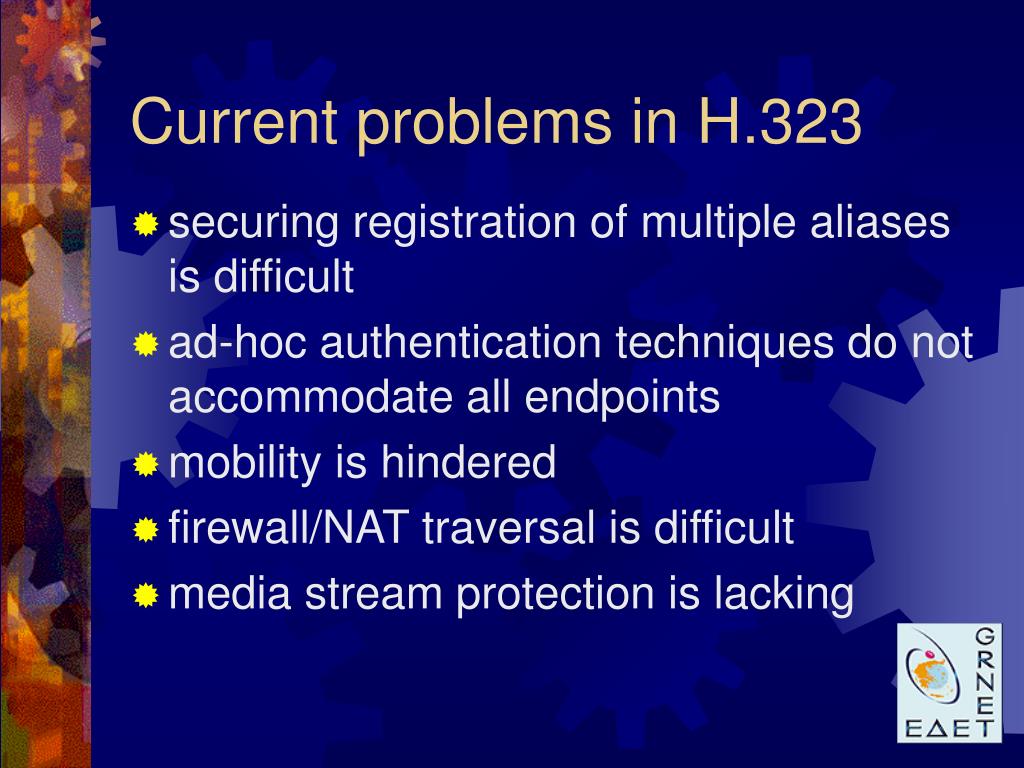

Current problems in H.323
  • securing registration of multiple aliases is difficult
  • ad-hoc authentication techniques do not accommodate all endpoints
  • mobility is hindered
  • firewall/NAT traversal is difficult
  • media stream protection is lacking
future developments in h 323 security

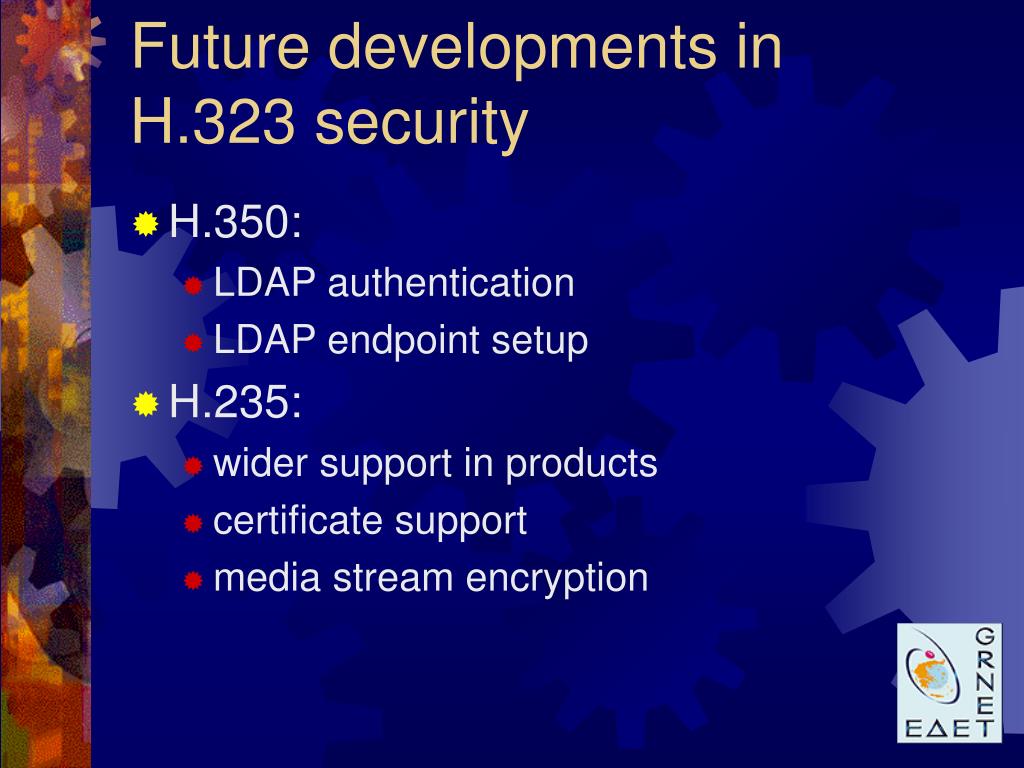

Future developments in H.323 security
  • H.350:
    • LDAP authentication
    • LDAP endpoint setup
  • H.235:
    • wider support in products
    • certificate support
    • media stream encryption
links and references

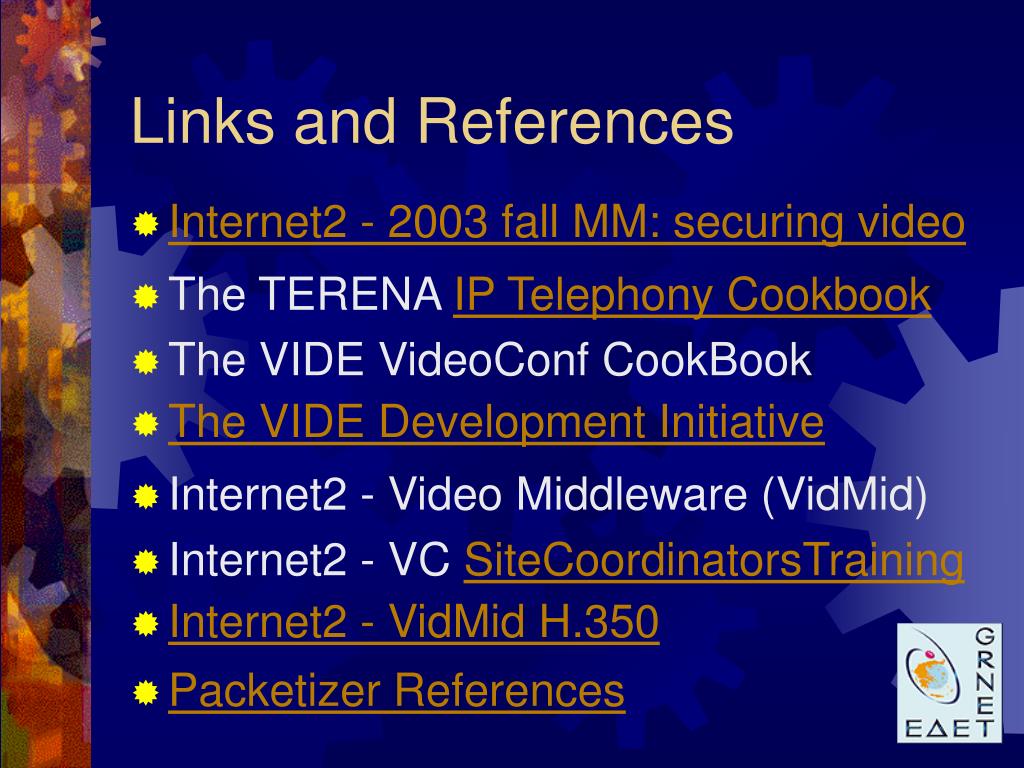

Links and References
  • Internet2 - 2003 fall MM: securing video
  • The TERENA IP Telephony Cookbook
  • The VIDE VideoConf CookBook
  • The VIDE Development Initiative
  • Internet2 - Video Middleware (VidMid)
  • Internet2 - VC SiteCoordinatorsTraining
  • Internet2 - VidMid H.350
  • Packetizer References
