Automotive AC Service

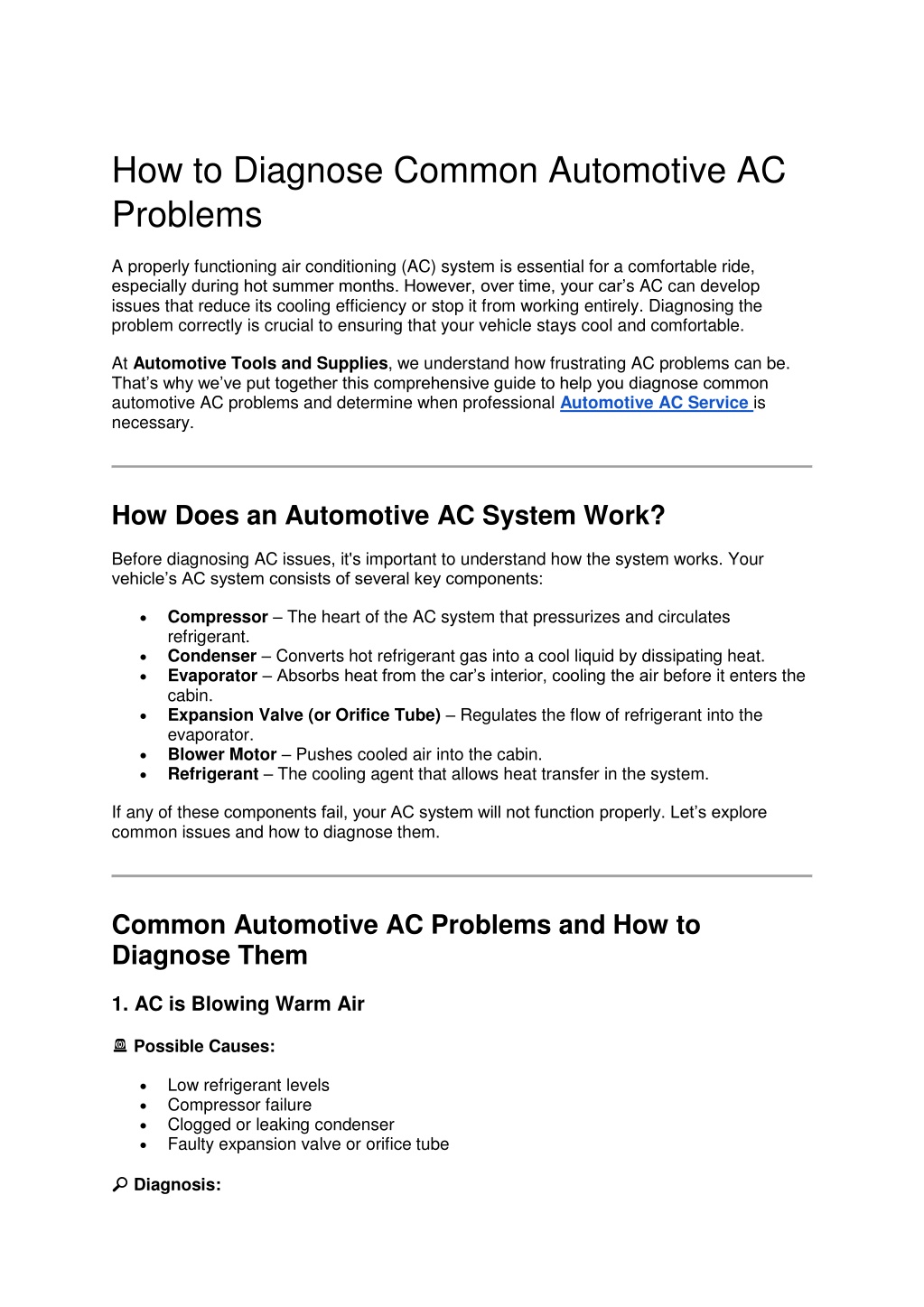

1. How to Diagnose Common Automotive AC Problems A properly functioning air conditioning (AC) system is essential for a comfortable ride, especially during hot summer months. However, over time, your car’s AC can develop issues that reduce its cooling efficiency or stop it from working entirely. Diagnosing the problem correctly is crucial to ensuring that your vehicle stays cool and comfortable. At Automotive Tools and Supplies, we understand how frustrating AC problems can be. That’s why we’ve put together this comprehensive guide to help you diagnose common automotive AC problems and determine when professional Automotive AC Service is necessary. How Does an Automotive AC System Work? Before diagnosing AC issues, it's important to understand how the system works. Your vehicle’s AC system consists of several key components: Compressor– The heart of the AC system that pressurizes and circulates refrigerant. Condenser– Converts hot refrigerant gas into a cool liquid by dissipating heat. Evaporator–Absorbs heat from the car’s interior, cooling the air before it enters the cabin. Expansion Valve (or Orifice Tube)– Regulates the flow of refrigerant into the evaporator. Blower Motor– Pushes cooled air into the cabin. Refrigerant– The cooling agent that allows heat transfer in the system.       If any of these components fail, your AC system will not function properly. Let’s explore common issues and how to diagnose them. Common Automotive AC Problems and How to Diagnose Them 1. AC is Blowing Warm Air ?Possible Causes: Low refrigerant levels Compressor failure Clogged or leaking condenser Faulty expansion valve or orifice tube     ?Diagnosis:

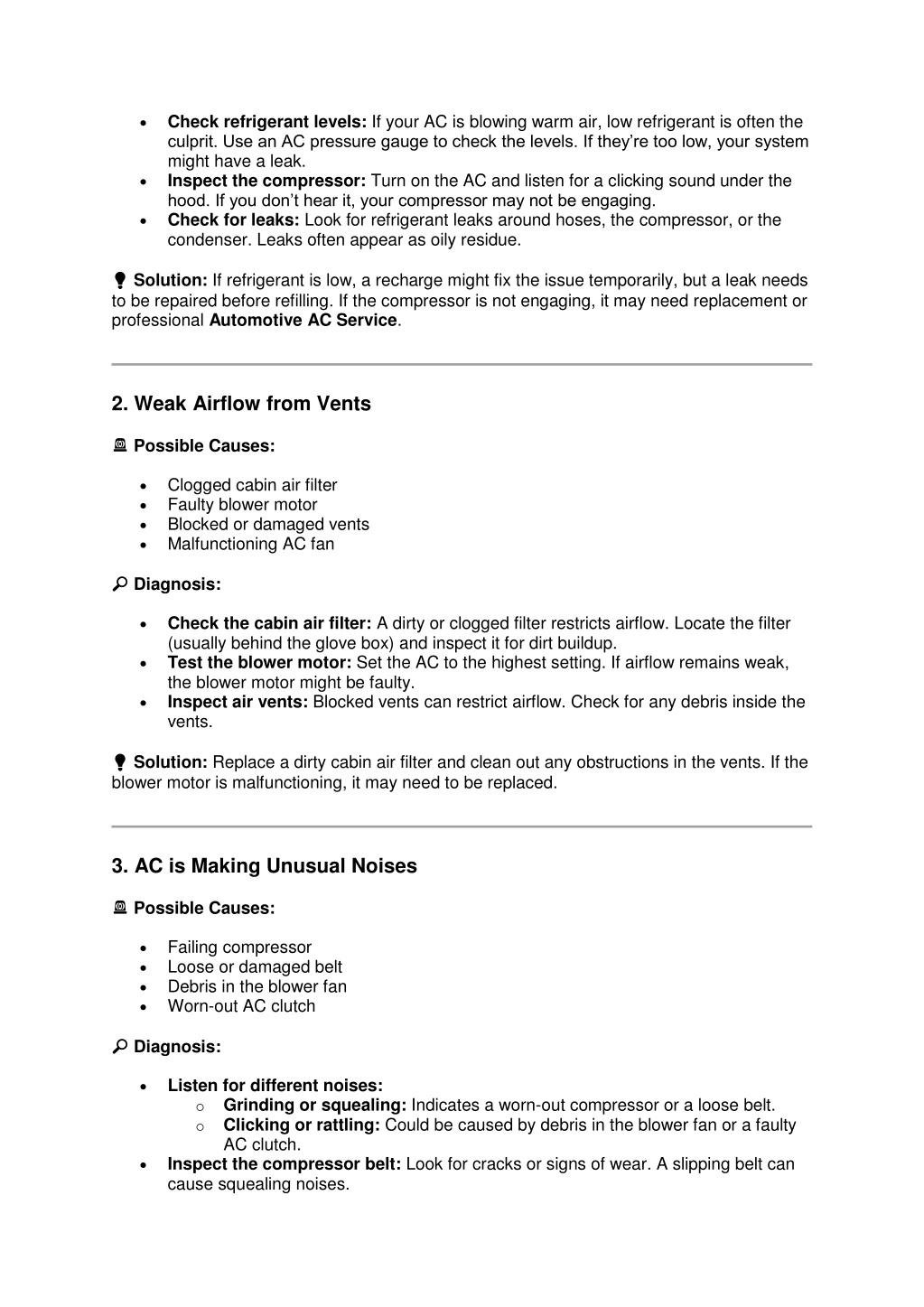

2. Check refrigerant levels: If your AC is blowing warm air, low refrigerant is often the culprit. Use an AC pressure gauge to check the levels. If they’re too low, your system might have a leak. Inspect the compressor: Turn on the AC and listen for a clicking sound under the hood. If you don’t hear it, your compressor may not be engaging. Check for leaks: Look for refrigerant leaks around hoses, the compressor, or the condenser. Leaks often appear as oily residue.    ?Solution: If refrigerant is low, a recharge might fix the issue temporarily, but a leak needs to be repaired before refilling. If the compressor is not engaging, it may need replacement or professional Automotive AC Service. 2. Weak Airflow from Vents ?Possible Causes: Clogged cabin air filter Faulty blower motor Blocked or damaged vents Malfunctioning AC fan     ?Diagnosis: Check the cabin air filter: A dirty or clogged filter restricts airflow. Locate the filter (usually behind the glove box) and inspect it for dirt buildup. Test the blower motor: Set the AC to the highest setting. If airflow remains weak, the blower motor might be faulty. Inspect air vents: Blocked vents can restrict airflow. Check for any debris inside the vents.    ?Solution: Replace a dirty cabin air filter and clean out any obstructions in the vents. If the blower motor is malfunctioning, it may need to be replaced. 3. AC is Making Unusual Noises ?Possible Causes: Failing compressor Loose or damaged belt Debris in the blower fan Worn-out AC clutch     ?Diagnosis: Listen for different noises: oGrinding or squealing: Indicates a worn-out compressor or a loose belt. oClicking or rattling: Could be caused by debris in the blower fan or a faulty AC clutch. Inspect the compressor belt: Look for cracks or signs of wear. A slipping belt can cause squealing noises.  

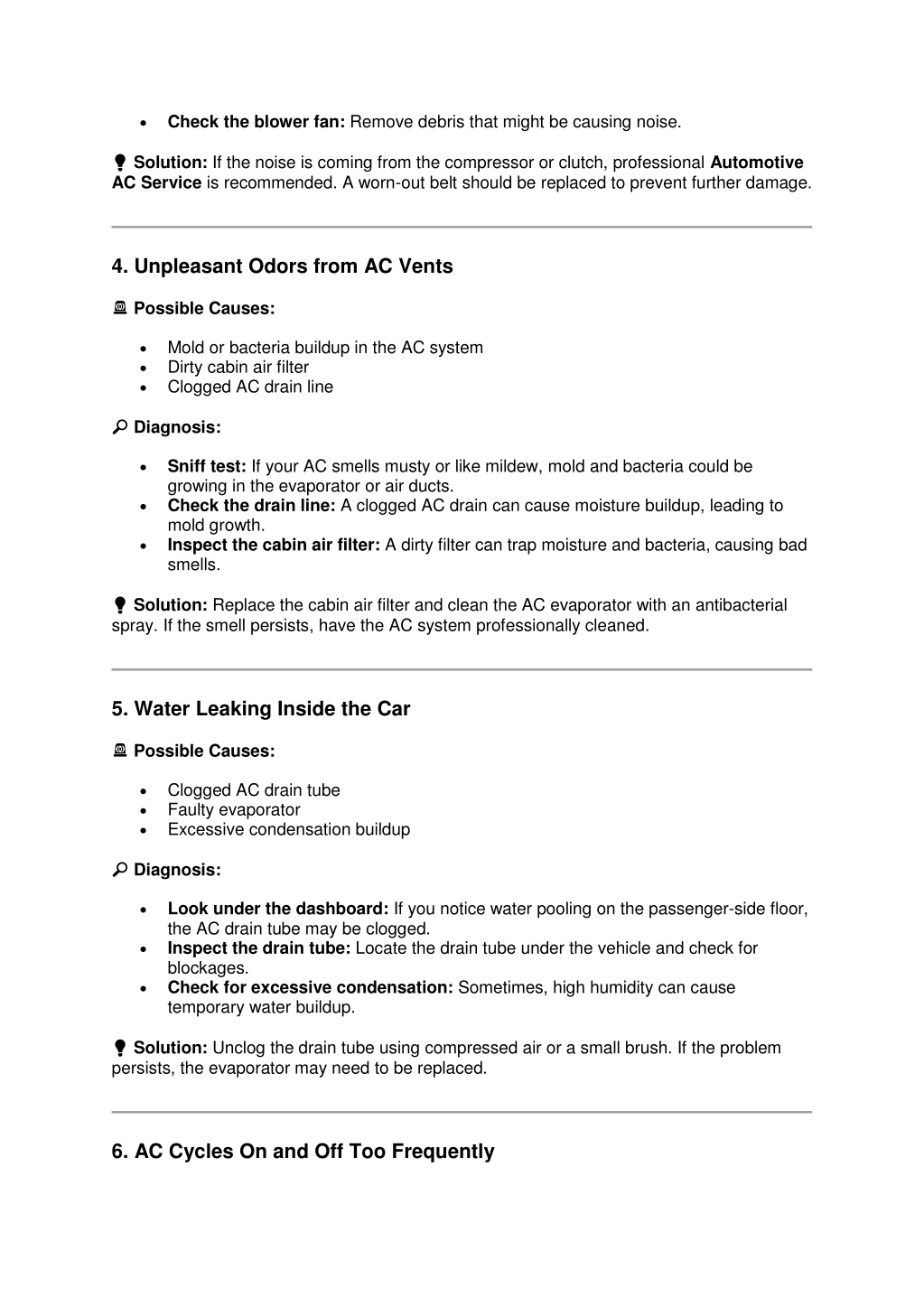

3. Check the blower fan: Remove debris that might be causing noise.  ?Solution: If the noise is coming from the compressor or clutch, professional Automotive AC Service is recommended. A worn-out belt should be replaced to prevent further damage. 4. Unpleasant Odors from AC Vents ?Possible Causes: Mold or bacteria buildup in the AC system Dirty cabin air filter Clogged AC drain line    ?Diagnosis: Sniff test: If your AC smells musty or like mildew, mold and bacteria could be growing in the evaporator or air ducts. Check the drain line: A clogged AC drain can cause moisture buildup, leading to mold growth. Inspect the cabin air filter: A dirty filter can trap moisture and bacteria, causing bad smells.    ?Solution: Replace the cabin air filter and clean the AC evaporator with an antibacterial spray. If the smell persists, have the AC system professionally cleaned. 5. Water Leaking Inside the Car ?Possible Causes: Clogged AC drain tube Faulty evaporator Excessive condensation buildup    ?Diagnosis: Look under the dashboard: If you notice water pooling on the passenger-side floor, the AC drain tube may be clogged. Inspect the drain tube: Locate the drain tube under the vehicle and check for blockages. Check for excessive condensation: Sometimes, high humidity can cause temporary water buildup.    ?Solution: Unclog the drain tube using compressed air or a small brush. If the problem persists, the evaporator may need to be replaced. 6. AC Cycles On and Off Too Frequently

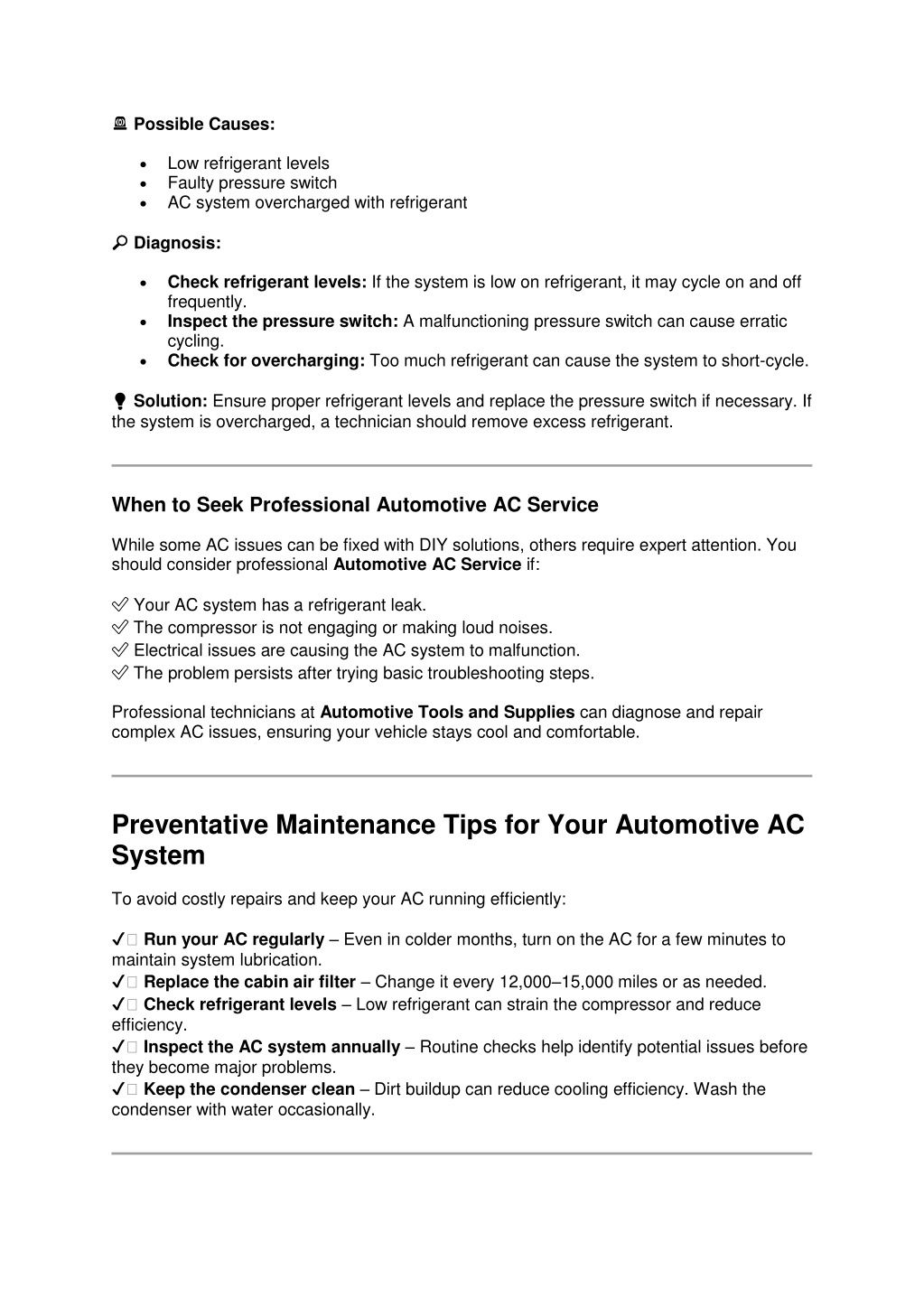

4. ?Possible Causes: Low refrigerant levels Faulty pressure switch AC system overcharged with refrigerant    ?Diagnosis: Check refrigerant levels: If the system is low on refrigerant, it may cycle on and off frequently. Inspect the pressure switch: A malfunctioning pressure switch can cause erratic cycling. Check for overcharging: Too much refrigerant can cause the system to short-cycle.    ?Solution: Ensure proper refrigerant levels and replace the pressure switch if necessary. If the system is overcharged, a technician should remove excess refrigerant. When to Seek Professional Automotive AC Service While some AC issues can be fixed with DIY solutions, others require expert attention. You should consider professional Automotive AC Service if: ✅ Your AC system has a refrigerant leak. ✅ The compressor is not engaging or making loud noises. ✅ Electrical issues are causing the AC system to malfunction. ✅ The problem persists after trying basic troubleshooting steps. Professional technicians at Automotive Tools and Supplies can diagnose and repair complex AC issues, ensuring your vehicle stays cool and comfortable. Preventative Maintenance Tips for Your Automotive AC System To avoid costly repairs and keep your AC running efficiently: ✔️Run your AC regularly– Even in colder months, turn on the AC for a few minutes to maintain system lubrication. ✔️Replace the cabin air filter– Change it every 12,000–15,000 miles or as needed. ✔️Check refrigerant levels– Low refrigerant can strain the compressor and reduce efficiency. ✔️Inspect the AC system annually– Routine checks help identify potential issues before they become major problems. ✔️Keep the condenser clean– Dirt buildup can reduce cooling efficiency. Wash the condenser with water occasionally.

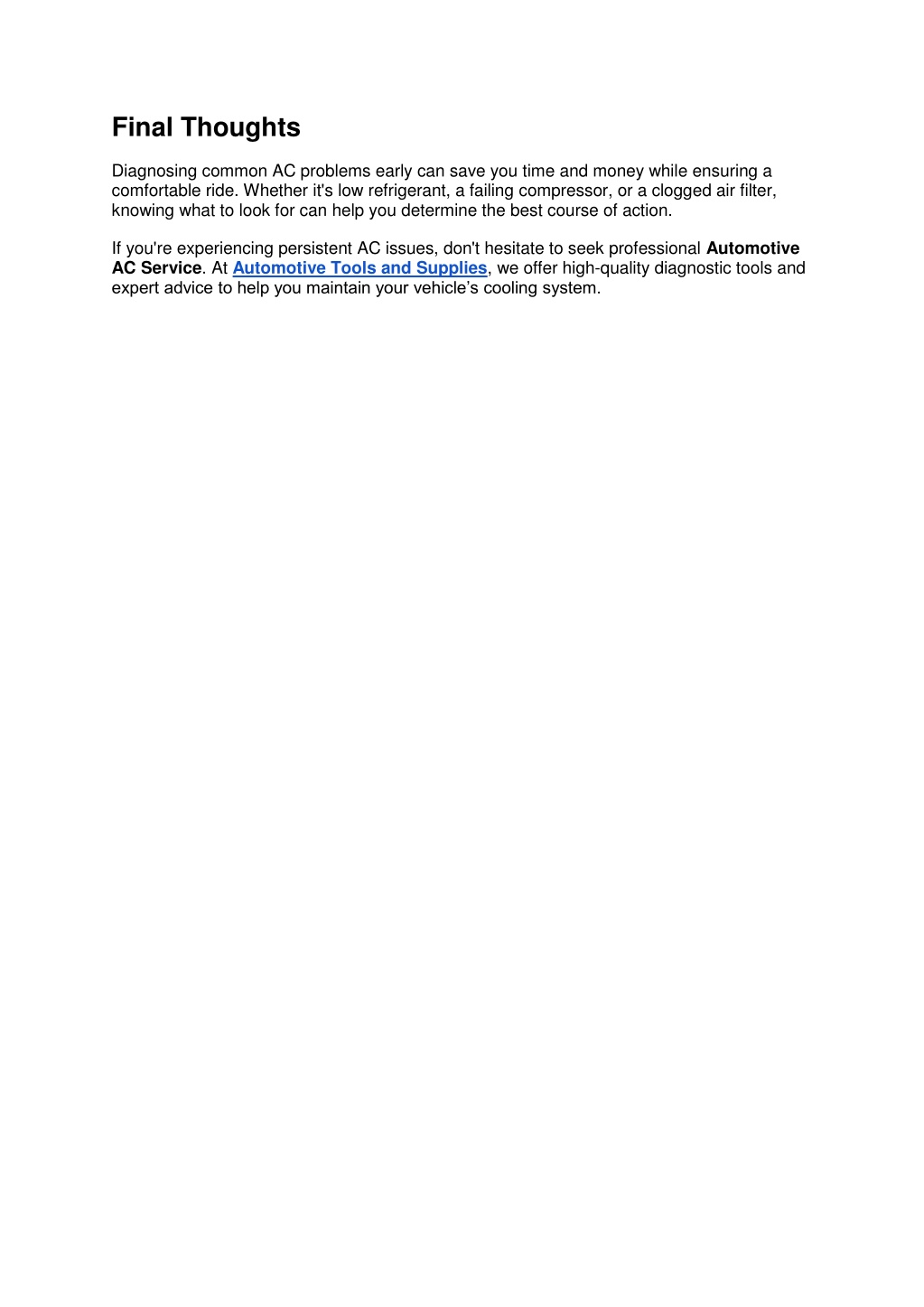

5. Final Thoughts Diagnosing common AC problems early can save you time and money while ensuring a comfortable ride. Whether it's low refrigerant, a failing compressor, or a clogged air filter, knowing what to look for can help you determine the best course of action. If you're experiencing persistent AC issues, don't hesitate to seek professional Automotive AC Service. At Automotive Tools and Supplies, we offer high-quality diagnostic tools and expert advice to help you maintain your vehicle’s cooling system.
