slide1

Preparing Your Network for Microsoft Windows XP Professional Roll OutDavid Williams DixonSupport ProfessionalProfessional Platform SupportMicrosoft Corporation

comparison windows 2000 professional
Comparison – Windows 2000 Professional
  • Microsoft® Windows® 2000 Professional vs. Windows XP Professional
  • Windows 2000 Pro minimum requirements are similar to Windows 98
comparison windows xp professional 2

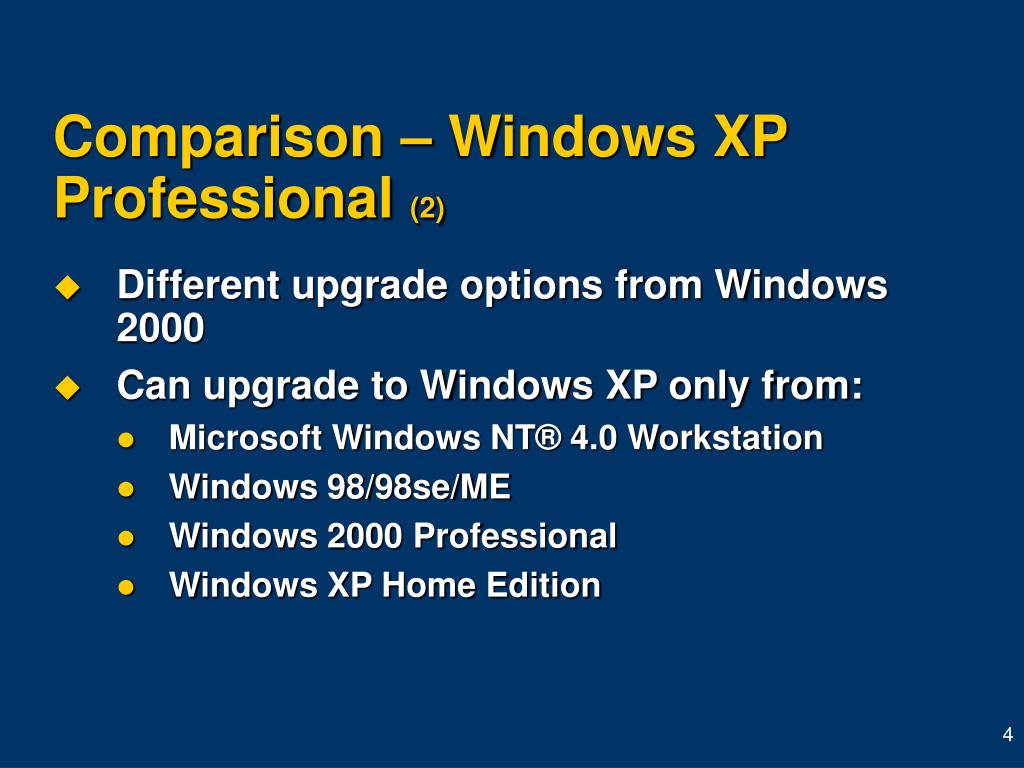

Comparison – Windows XP Professional (2)
  • Different upgrade options from Windows 2000
  • Can upgrade to Windows XP only from:
    • Microsoft Windows NT® 4.0 Workstation
    • Windows 98/98se/ME
    • Windows 2000 Professional
    • Windows XP Home Edition
upgrading recommended steps

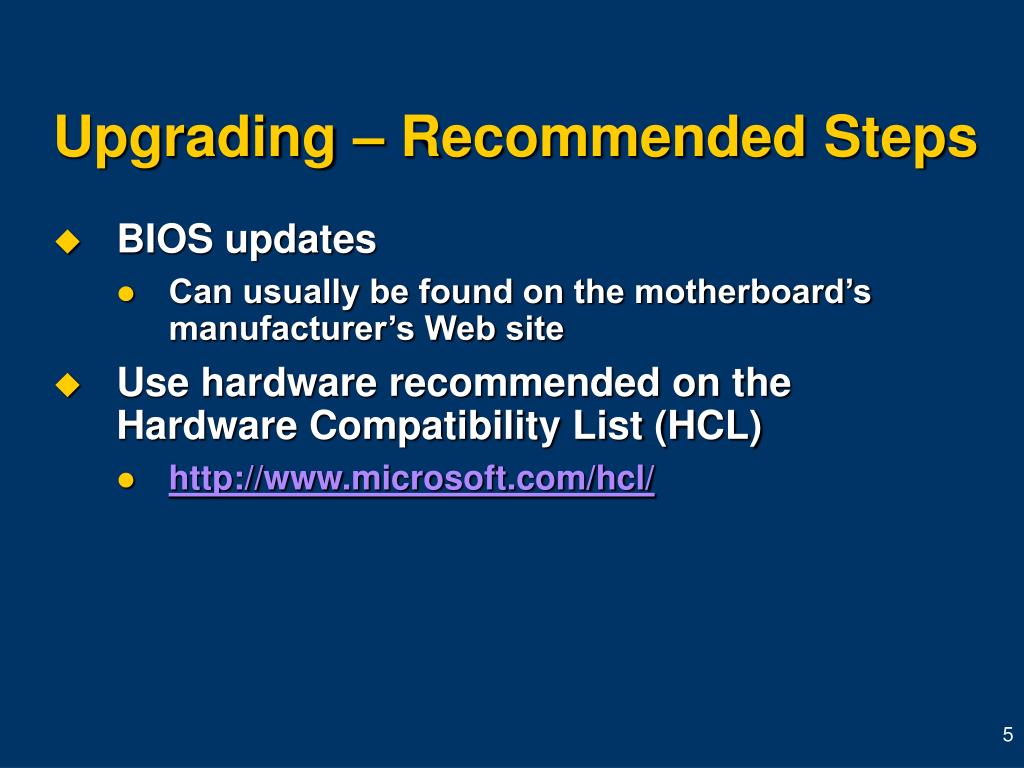

Upgrading – Recommended Steps
  • BIOS updates
    • Can usually be found on the motherboard’s manufacturer’s Web site
  • Use hardware recommended on the Hardware Compatibility List (HCL)
    • http://www.microsoft.com/hcl/
application compatibility

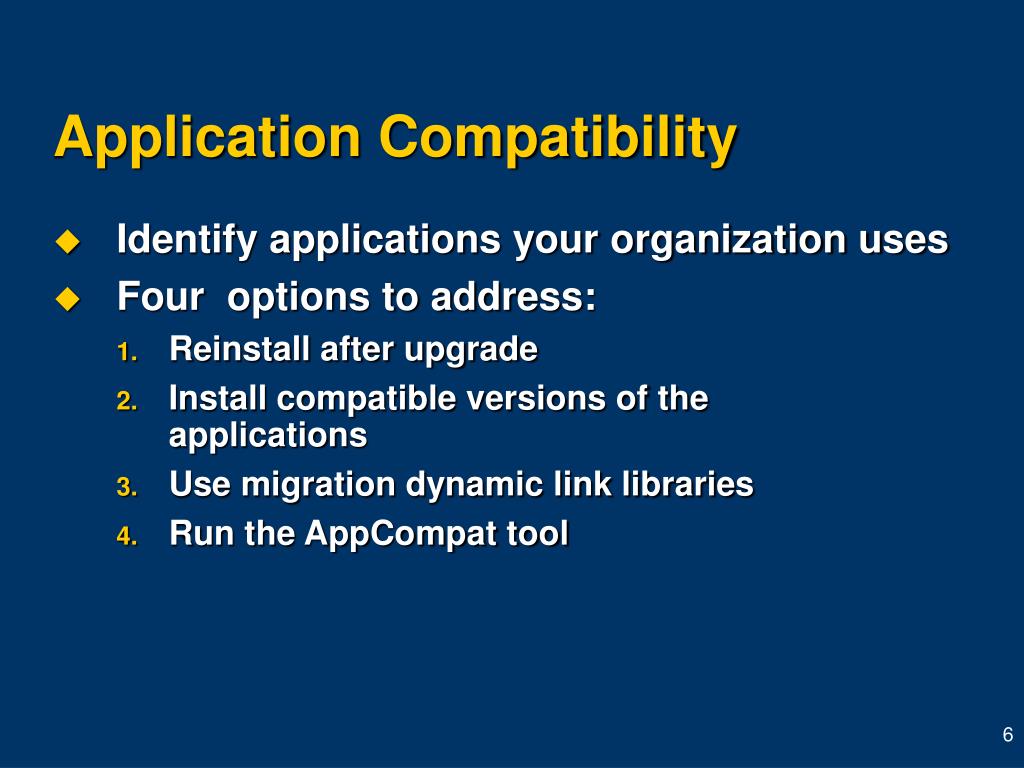

Application Compatibility
  • Identify applications your organization uses
  • Four options to address:
    • Reinstall after upgrade
    • Install compatible versions of the applications
    • Use migration dynamic link libraries
    • Run the AppCompat tool
application compatibility 2

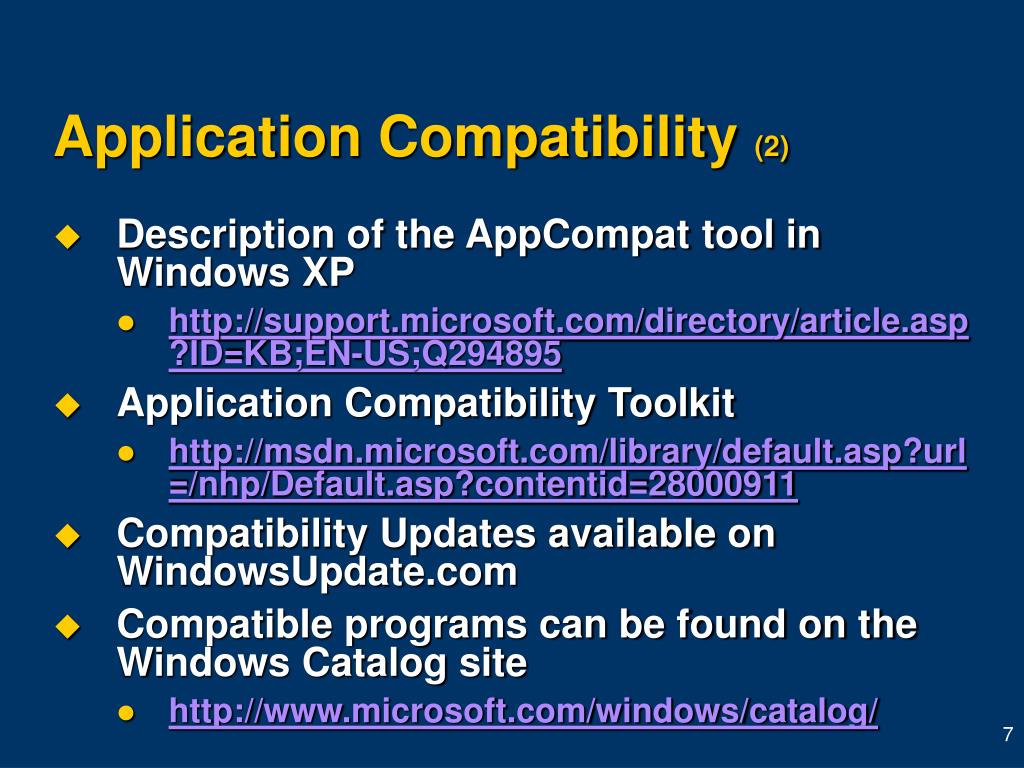

Application Compatibility (2)
  • Description of the AppCompat tool in Windows XP
    • http://support.microsoft.com/directory/article.asp?ID=KB;EN-US;Q294895
  • Application Compatibility Toolkit
    • http://msdn.microsoft.com/library/default.asp?url=/nhp/Default.asp?contentid=28000911
  • Compatibility Updates available on WindowsUpdate.com
  • Compatible programs can be found on the Windows Catalog site
    • http://www.microsoft.com/windows/catalog/
deployment options

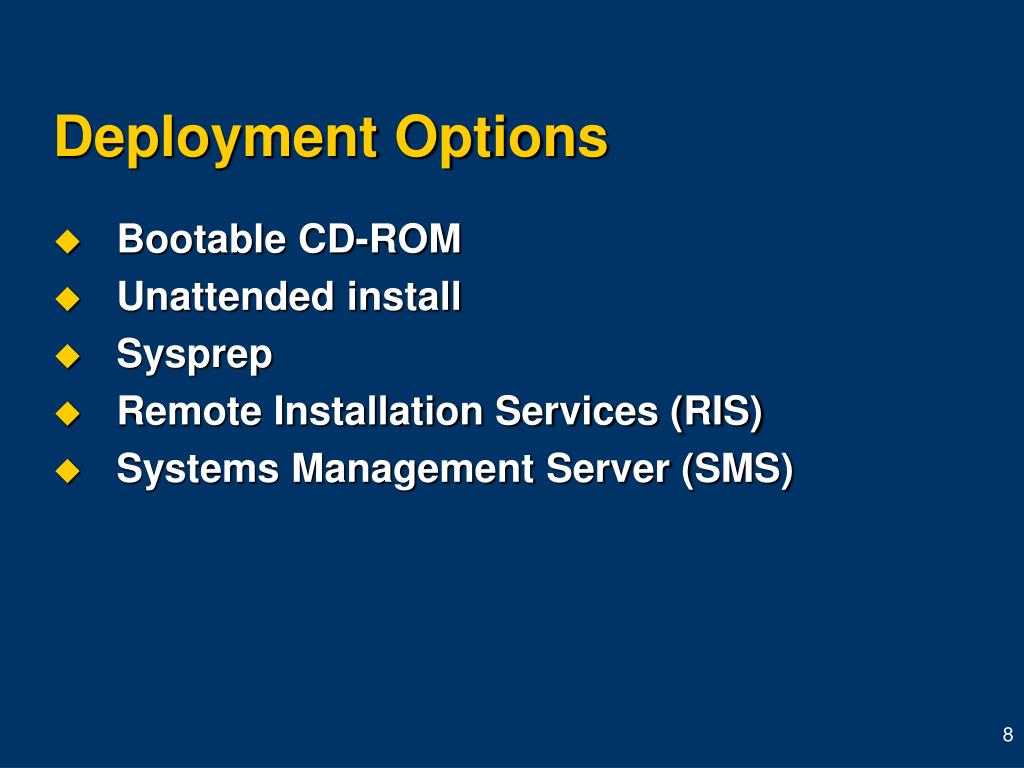

Deployment Options
  • Bootable CD-ROM
  • Unattended install
  • Sysprep
  • Remote Installation Services (RIS)
  • Systems Management Server (SMS)
deployment options bootable cd
Deployment Options – Bootable CD
  • Advantages of a bootable CD
    • Client doesn’t require network connectivity
    • Definitely faster than installing over a network
  • Disadvantages of a bootable CD
    • Custom images may not fit on CD
    • Requires a manual installation at each computer
deployment options unattended
Deployment Options – Unattended
  • Advantages of unattended
    • Scripts can save time and money by eliminating the need for administrators to interact with each computer during installation
    • Automates deployment on numerous machines at once
  • Disadvantages of unattended
    • Client computer must be configured with El-Torito No Emulation CD-ROM
    • Requires creation of a boot floppy to connect to network
    • Winnt.sif must be available on the floppy disk
deployment options sysprep
Deployment Options – Sysprep
  • Create an image of Windows XP Professional for deployment
  • Reference and destination computers must:
    • Have compatible HALS
    • Have identical ACPI support
    • Have drivers available for Plug and Play devices
  • Deploying MS Windows 2000 Professional and MS Office 2000 Using Sysprep
    • http://www.microsoft.com/technet/treeview/default.asp?url=/TechNet/prodtechnol/windows2000pro/deploy/depopt/sysprep.asp
deployment options sysprep 2

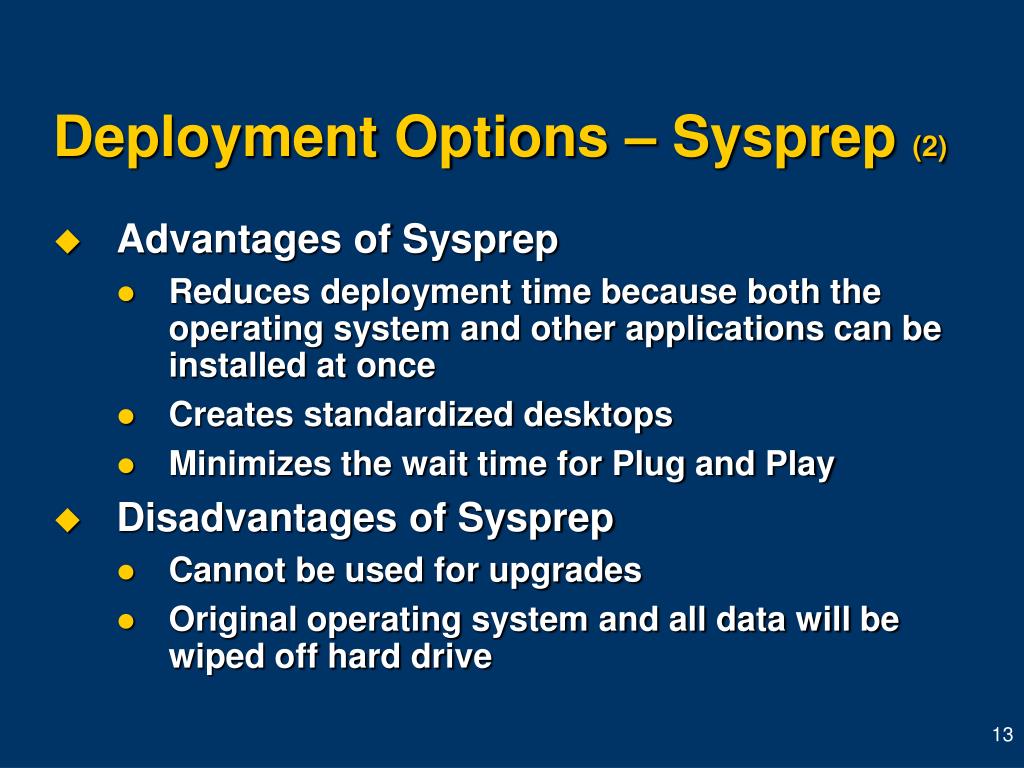

Deployment Options – Sysprep (2)
  • Advantages of Sysprep
    • Reduces deployment time because both the operating system and other applications can be installed at once
    • Creates standardized desktops
    • Minimizes the wait time for Plug and Play
  • Disadvantages of Sysprep
    • Cannot be used for upgrades
    • Original operating system and all data will be wiped off hard drive
deployment options ris

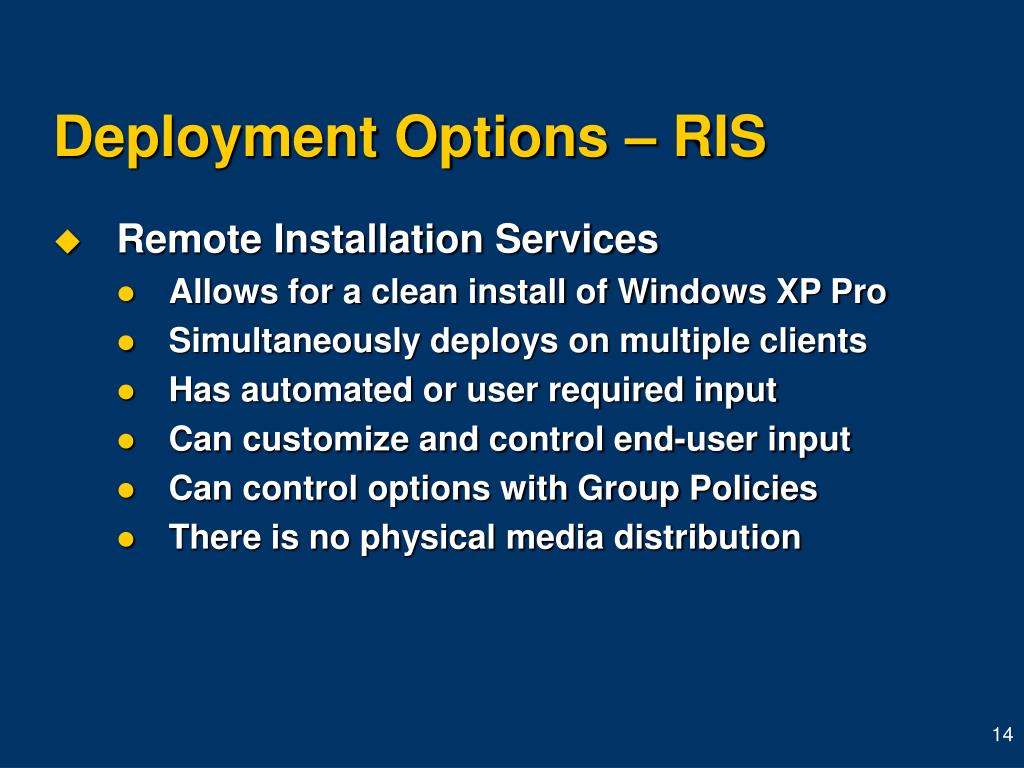

Deployment Options – RIS
  • Remote Installation Services
    • Allows for a clean install of Windows XP Pro
    • Simultaneously deploys on multiple clients
    • Has automated or user required input
    • Can customize and control end-user input
    • Can control options with Group Policies
    • There is no physical media distribution
deployment options ris 2

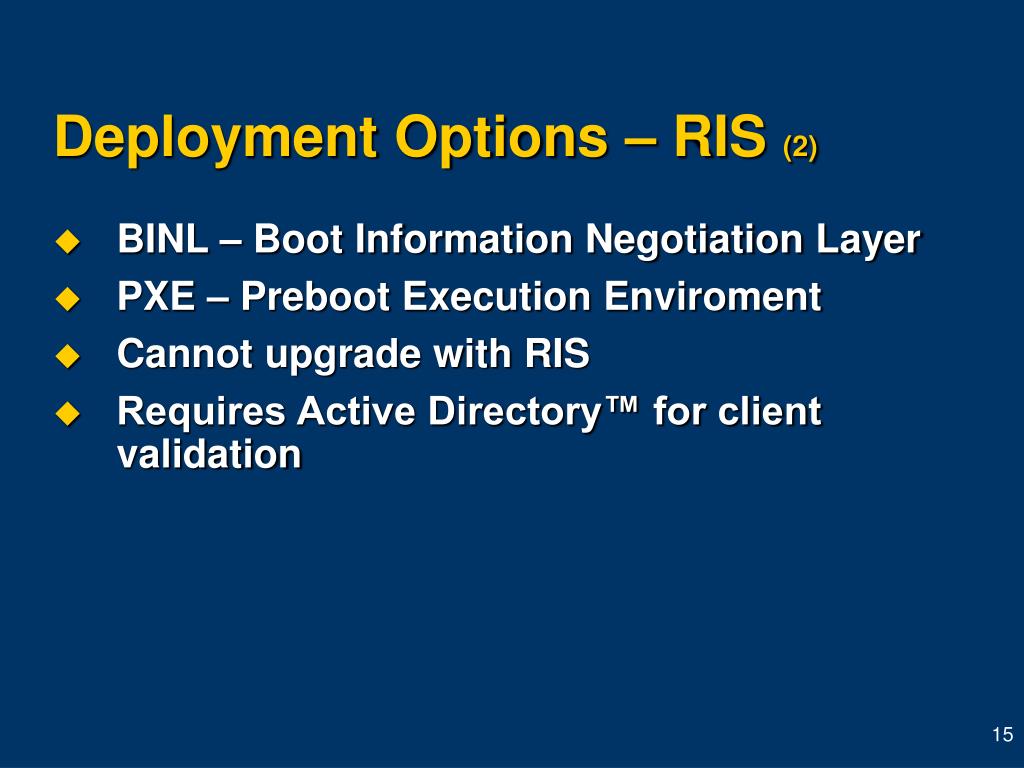

Deployment Options – RIS (2)
  • BINL – Boot Information Negotiation Layer
  • PXE – Preboot Execution Enviroment
  • Cannot upgrade with RIS
  • Requires Active Directory™ for client validation
deployment options sms

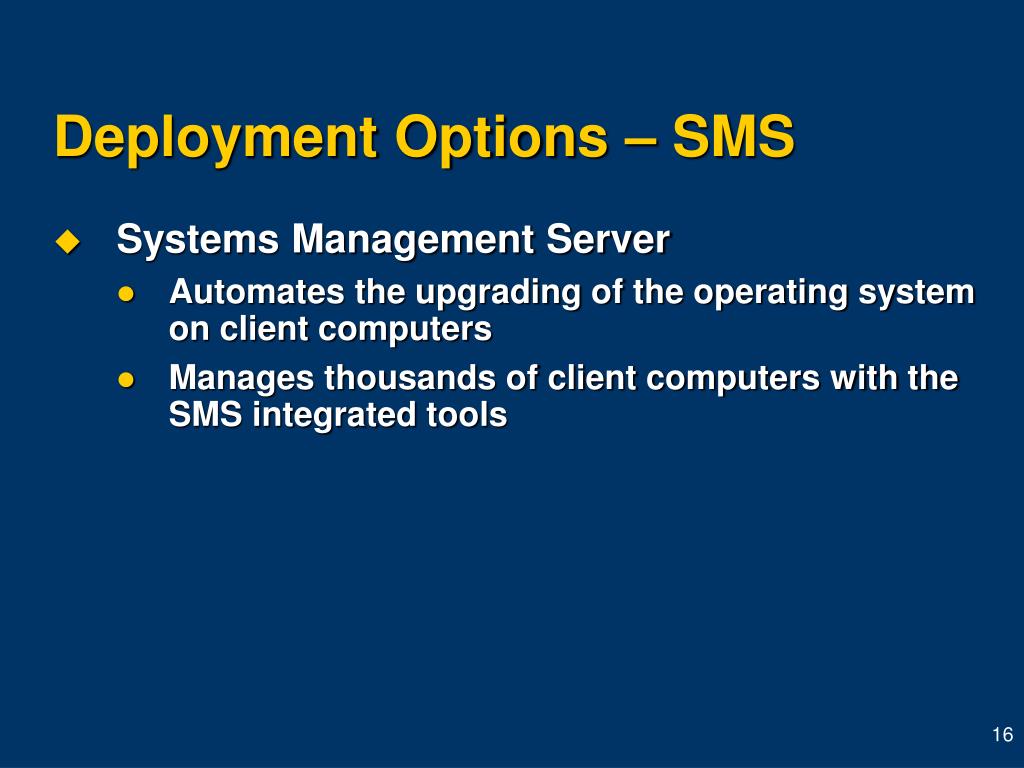

Deployment Options – SMS
  • Systems Management Server
    • Automates the upgrading of the operating system on client computers
    • Manages thousands of client computers with the SMS integrated tools
deployment options sms 2

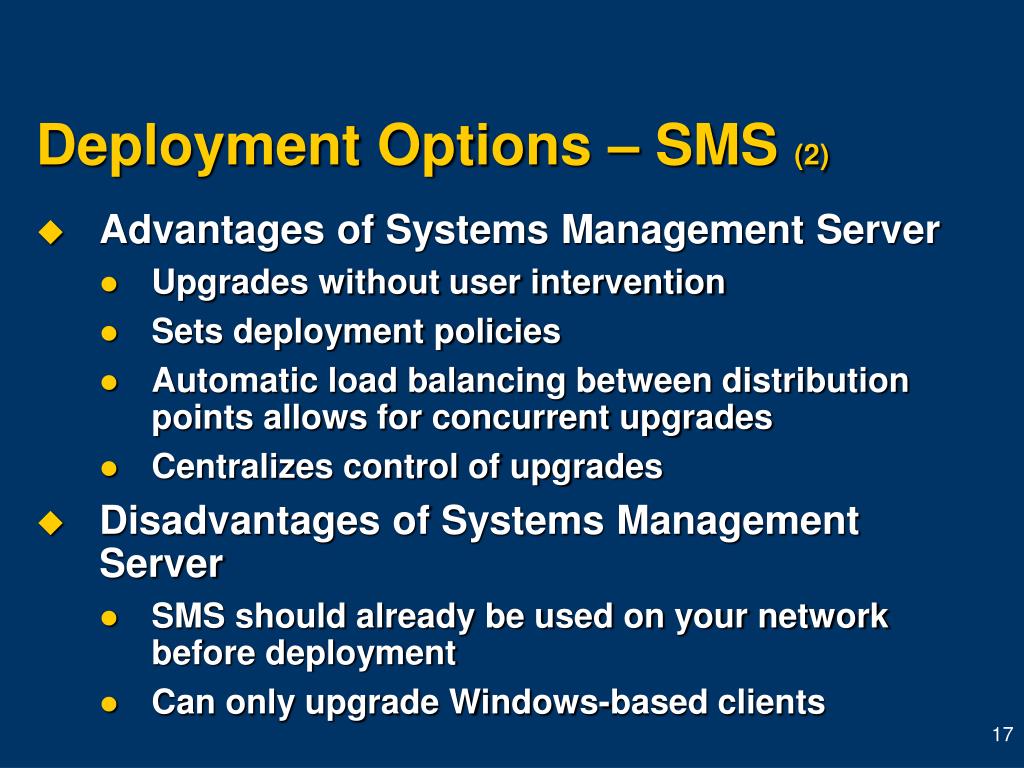

Deployment Options – SMS (2)
  • Advantages of Systems Management Server
    • Upgrades without user intervention
    • Sets deployment policies
    • Automatic load balancing between distribution points allows for concurrent upgrades
    • Centralizes control of upgrades
  • Disadvantages of Systems Management Server
    • SMS should already be used on your network before deployment
    • Can only upgrade Windows-based clients
name resolution

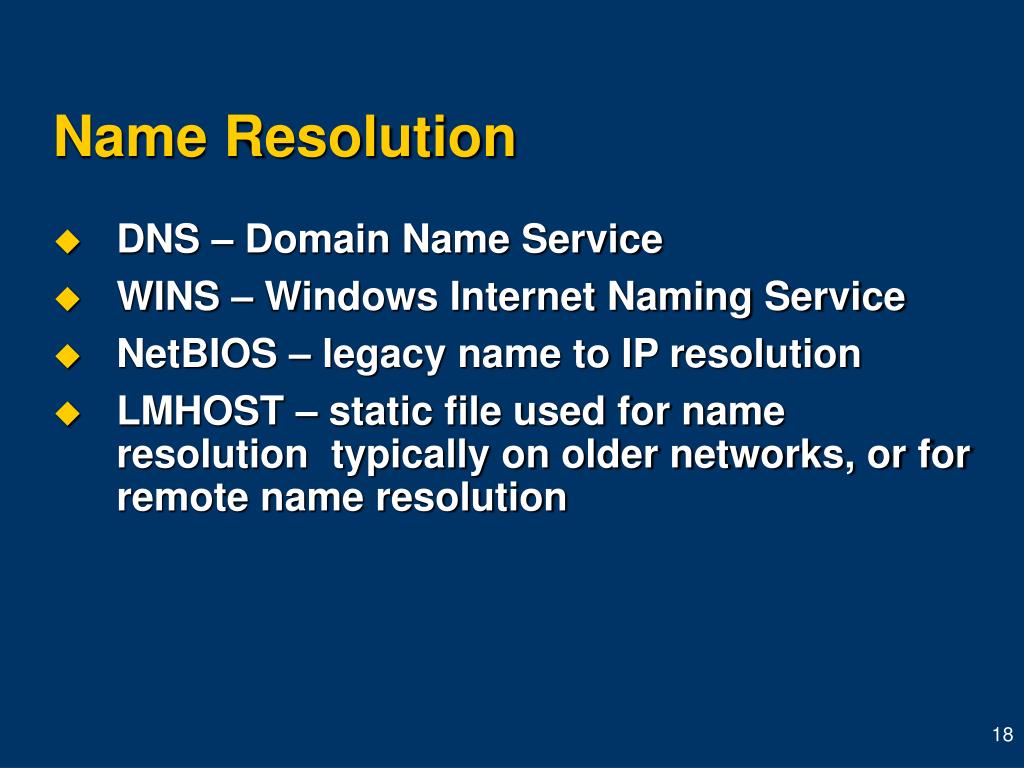

Name Resolution
  • DNS – Domain Name Service
  • WINS – Windows Internet Naming Service
  • NetBIOS – legacy name to IP resolution
  • LMHOST – static file used for name resolution typically on older networks, or for remote name resolution
slide19

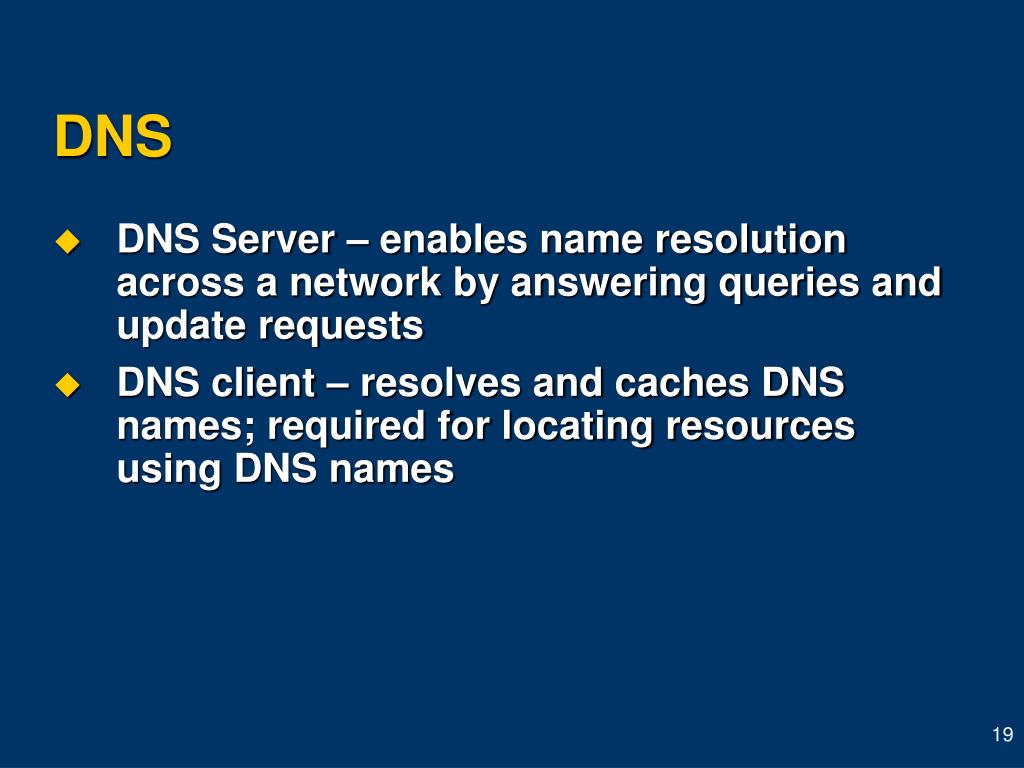

DNS
  • DNS Server – enables name resolution across a network by answering queries and update requests
  • DNS client – resolves and caches DNS names; required for locating resources using DNS names
dns 2

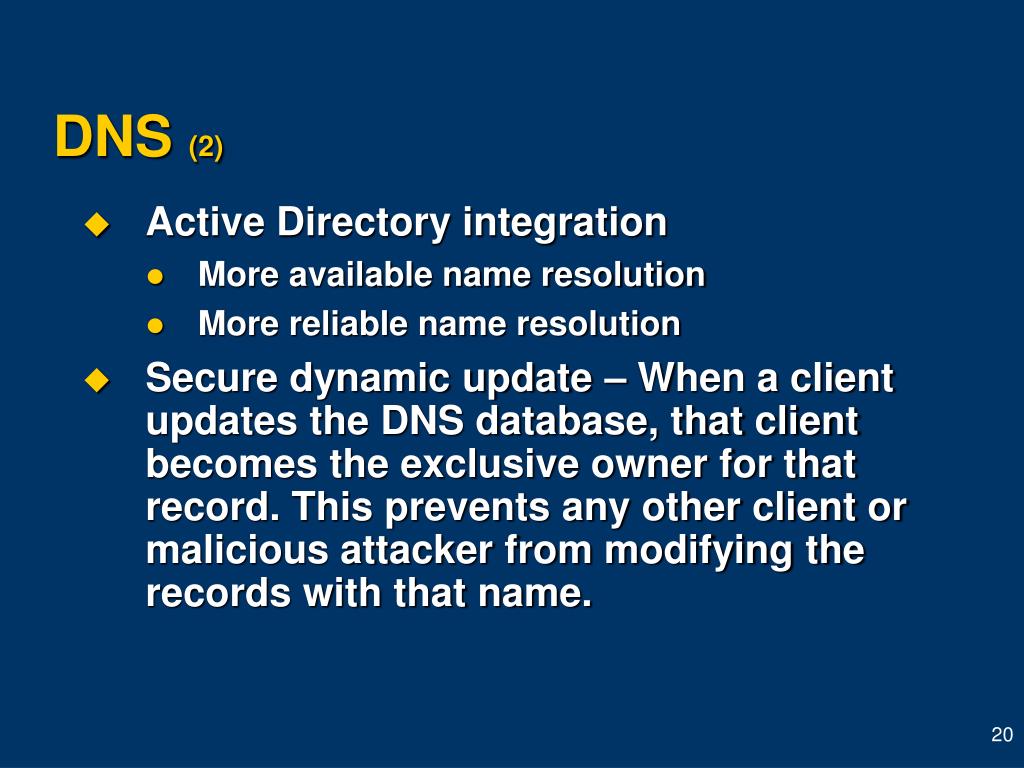

DNS (2)
  • Active Directory integration
    • More available name resolution
    • More reliable name resolution
  • Secure dynamic update – When a client updates the DNS database, that client becomes the exclusive owner for that record. This prevents any other client or malicious attacker from modifying the records with that name.
dns 3

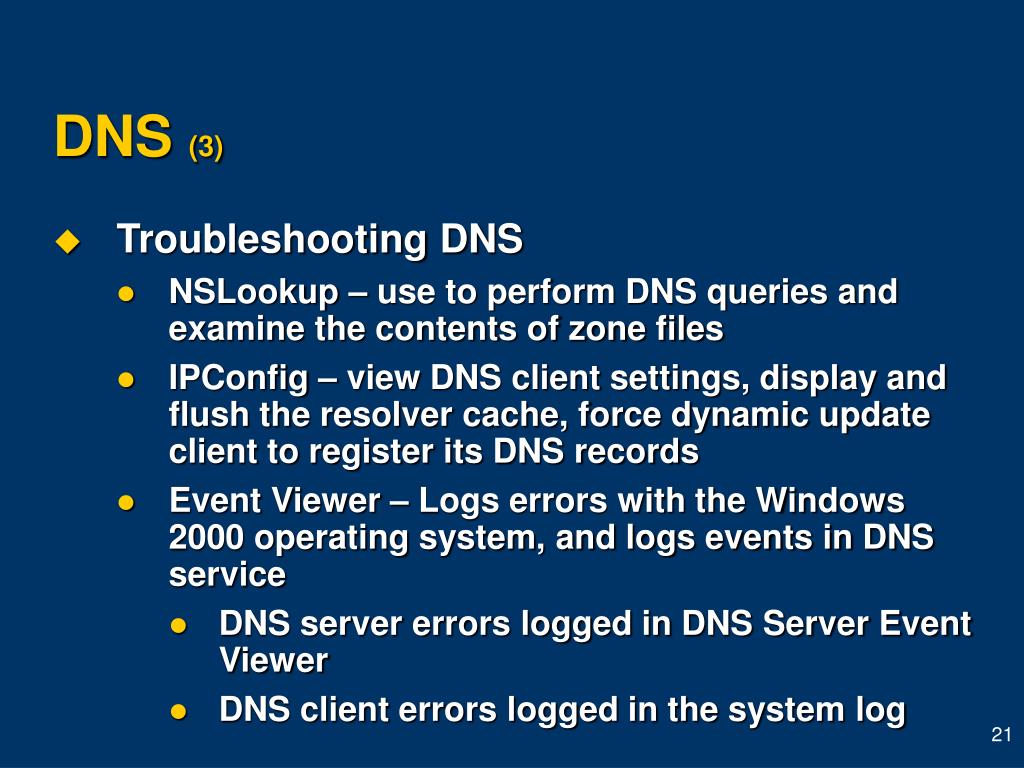

DNS (3)
  • Troubleshooting DNS
    • NSLookup – use to perform DNS queries and examine the contents of zone files
    • IPConfig – view DNS client settings, display and flush the resolver cache, force dynamic update client to register its DNS records
    • Event Viewer – Logs errors with the Windows 2000 operating system, and logs events in DNS service
      • DNS server errors logged in DNS Server Event Viewer
      • DNS client errors logged in the system log
dns 4

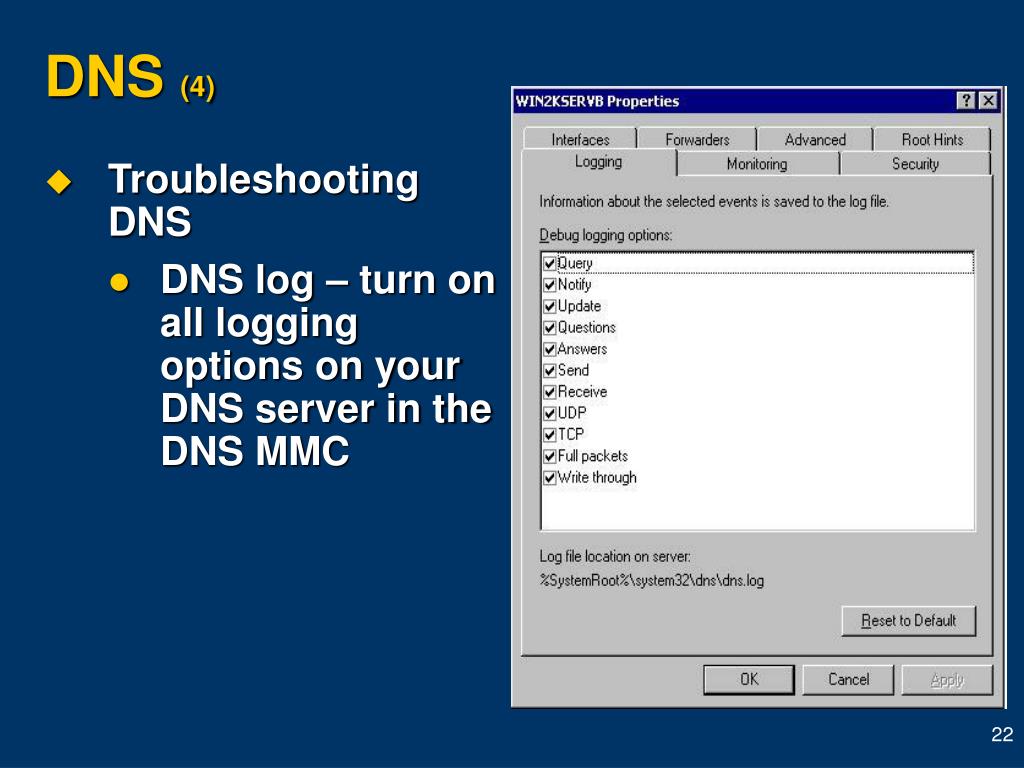

DNS (4)
  • Troubleshooting DNS
    • DNS log – turn on all logging options on your DNS server in the DNS MMC
dns 5
DNS (5)
  • Q291382 – “Frequently Asked Questions About Windows 2000 DNS”
  • Q298448 – “Windows 2000 DNS and Active Directory Information and Technical Resources”
  • Q200525 – “Using NSlookup.exe”
slide24

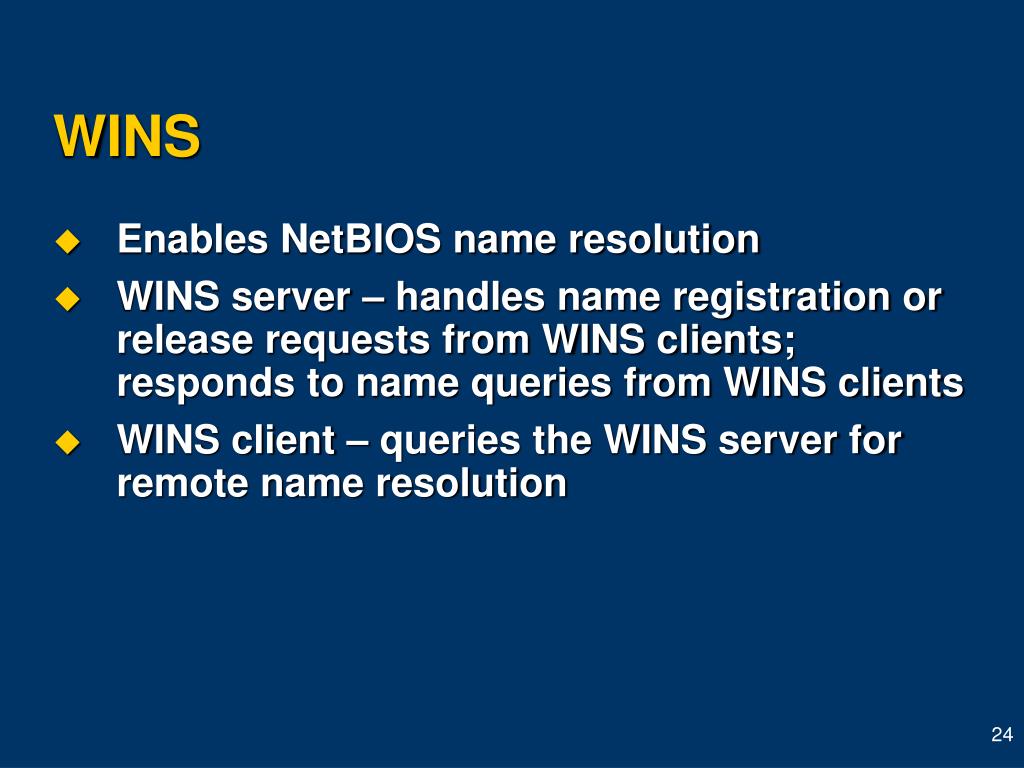

WINS
  • Enables NetBIOS name resolution
  • WINS server – handles name registration or release requests from WINS clients; responds to name queries from WINS clients
  • WINS client – queries the WINS server for remote name resolution
troubleshooting wins
Troubleshooting WINS
  • Check for appropriate records
    • 1Ch – represents a group entry that contains a list of domain controllers
    • 1B – contains the address of the primary domain controller or PDC emulator
  • Use Nbtstat – RR to force release and renew of all NetBIOS services associated with the WINS client
netbios

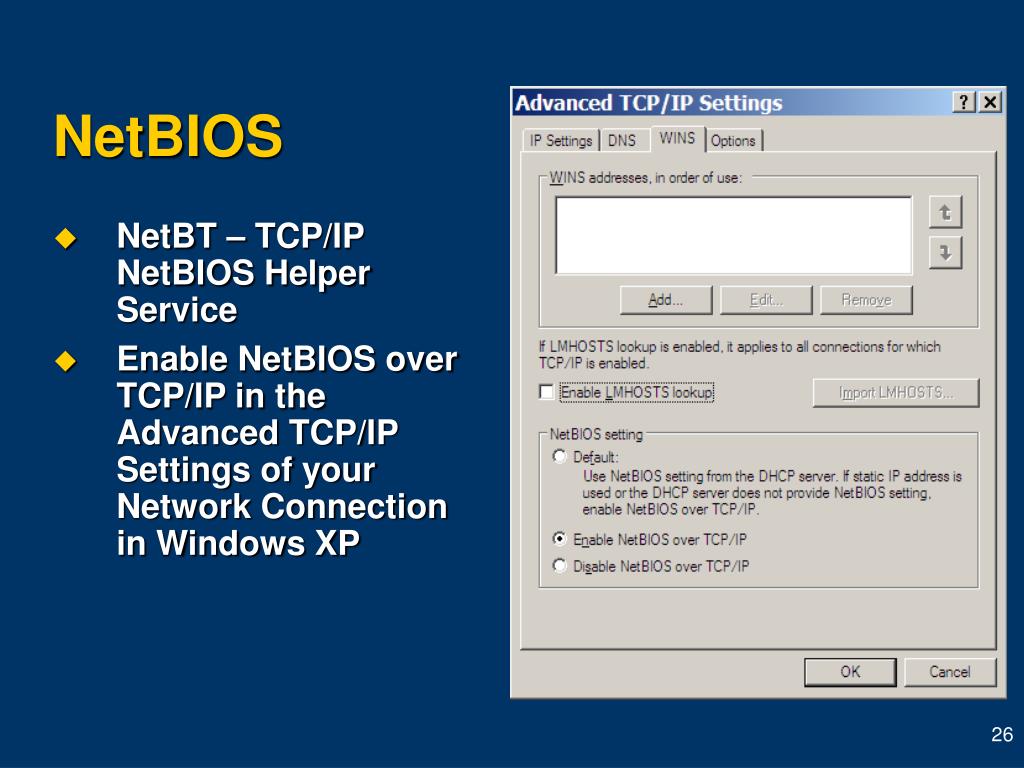

NetBIOS
  • NetBT – TCP/IP NetBIOS Helper Service
  • Enable NetBIOS over TCP/IP in the Advanced TCP/IP Settings of your Network Connection in Windows XP
browsing
Browsing
  • Computer browser – maintains a list of computers on your network
  • Domain master browser – by default, the primary domain controller for a domain is the domain master browser
    • Collects and maintains the master browse list of available servers for its domain
    • Distributes and synchronizes the master browse list for master browsers on other subnets that belong to its domain
browsing 2

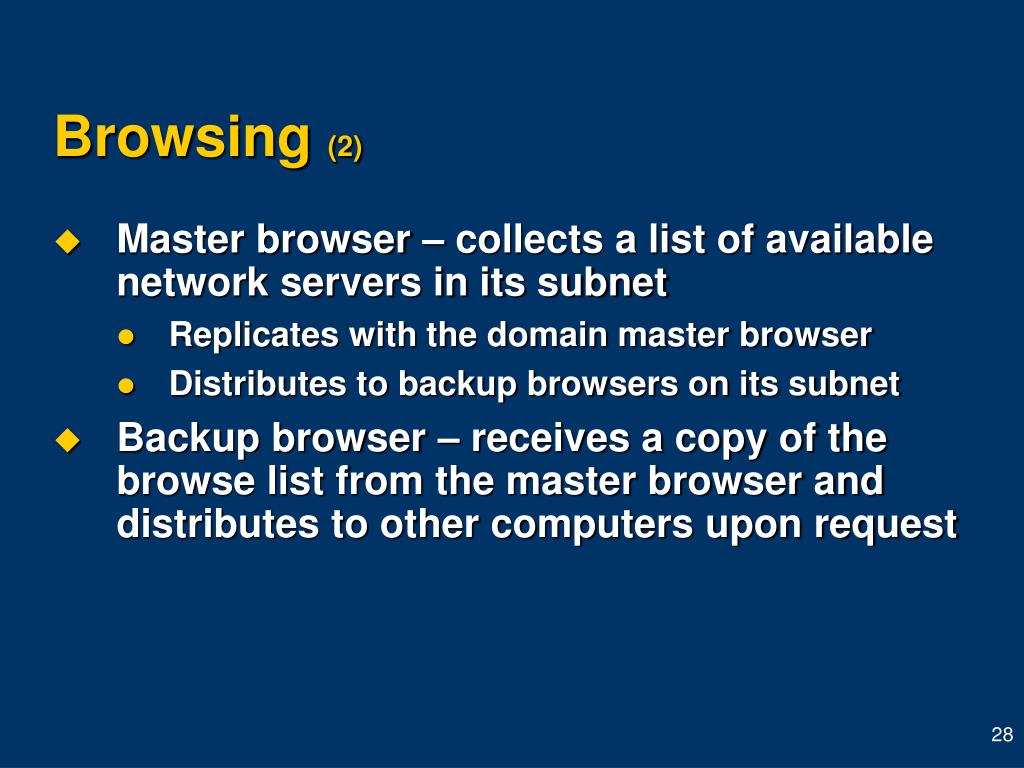

Browsing (2)
  • Master browser – collects a list of available network servers in its subnet
    • Replicates with the domain master browser
    • Distributes to backup browsers on its subnet
  • Backup browser – receives a copy of the browse list from the master browser and distributes to other computers upon request
browsing troubleshooting

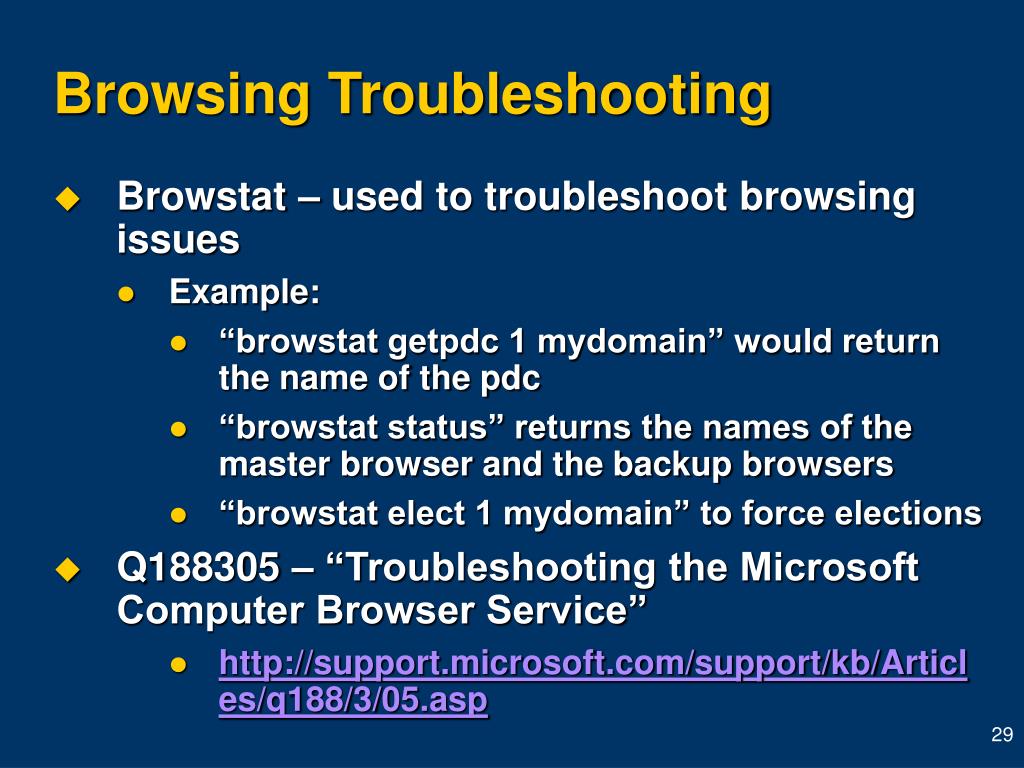

Browsing Troubleshooting
  • Browstat – used to troubleshoot browsing issues
    • Example:
      • “browstat getpdc 1 mydomain” would return the name of the pdc
      • “browstat status” returns the names of the master browser and the backup browsers
      • “browstat elect 1 mydomain” to force elections
  • Q188305 – “Troubleshooting the Microsoft Computer Browser Service”
      • http://support.microsoft.com/support/kb/Articles/q188/3/05.asp
lmhost

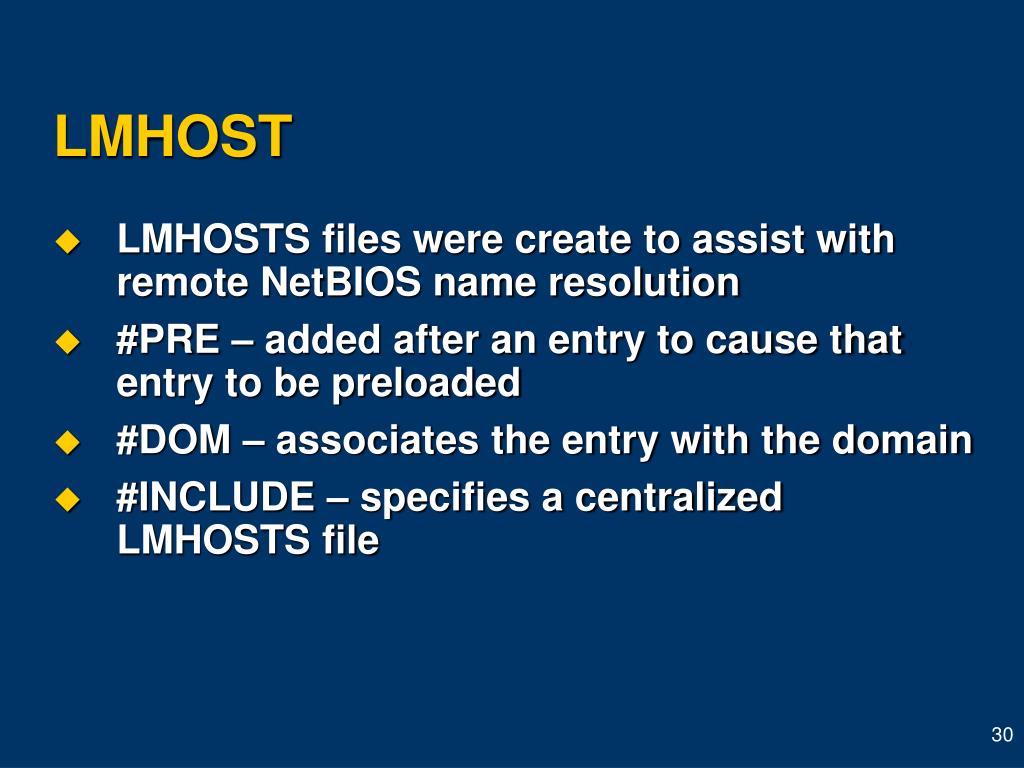

LMHOST
  • LMHOSTS files were create to assist with remote NetBIOS name resolution
  • #PRE – added after an entry to cause that entry to be preloaded
  • #DOM – associates the entry with the domain
  • #INCLUDE – specifies a centralized LMHOSTS file
lmhost 2

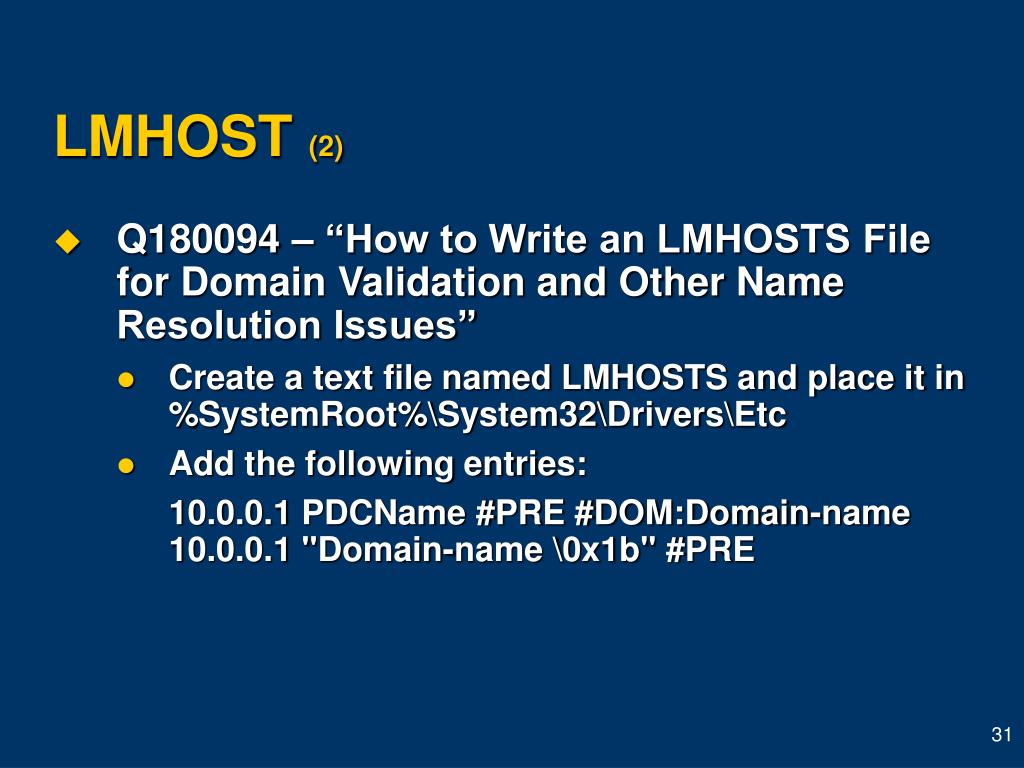

LMHOST (2)
  • Q180094 – “How to Write an LMHOSTS File for Domain Validation and Other Name Resolution Issues”
    • Create a text file named LMHOSTS and place it in %SystemRoot%\System32\Drivers\Etc
    • Add the following entries:

10.0.0.1 PDCName #PRE #DOM:Domain-name 10.0.0.1 "Domain-name \0x1b" #PRE

slide32

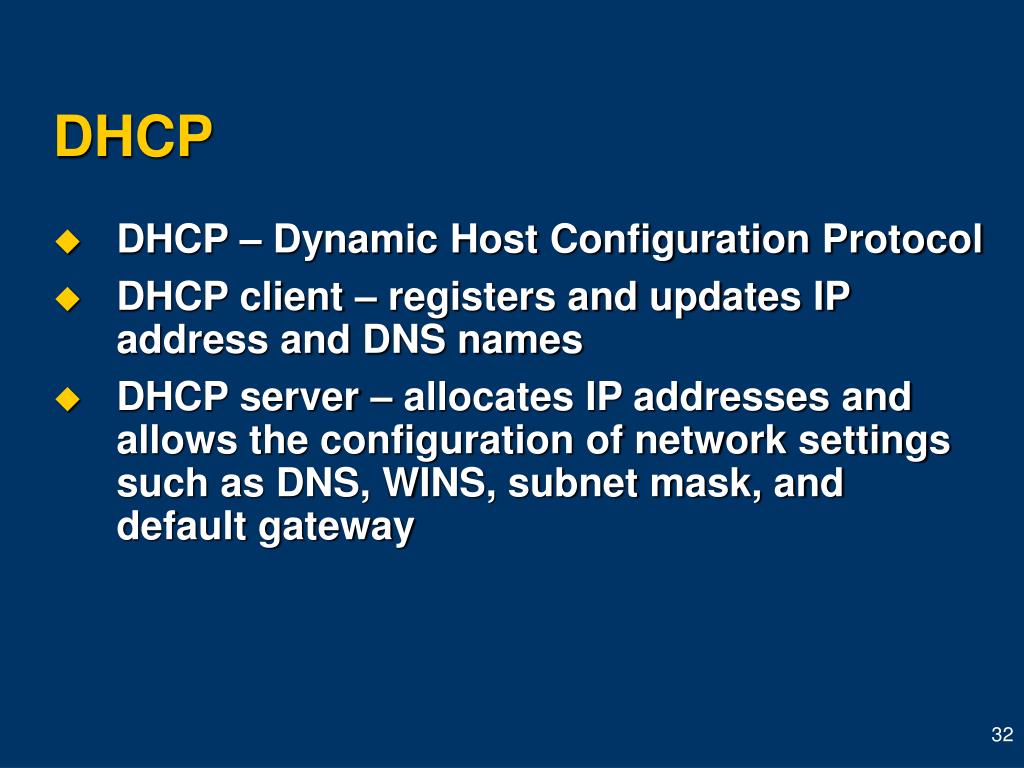

DHCP
  • DHCP – Dynamic Host Configuration Protocol
  • DHCP client – registers and updates IP address and DNS names
  • DHCP server – allocates IP addresses and allows the configuration of network settings such as DNS, WINS, subnet mask, and default gateway
dhcp 2
DHCP (2)
  • Scope setup – ensure that the scope matches the number of hosts
  • Scope options – used when specific options apply to only one scope
  • Server options – used when specific options apply to all scopes
dhcp 3

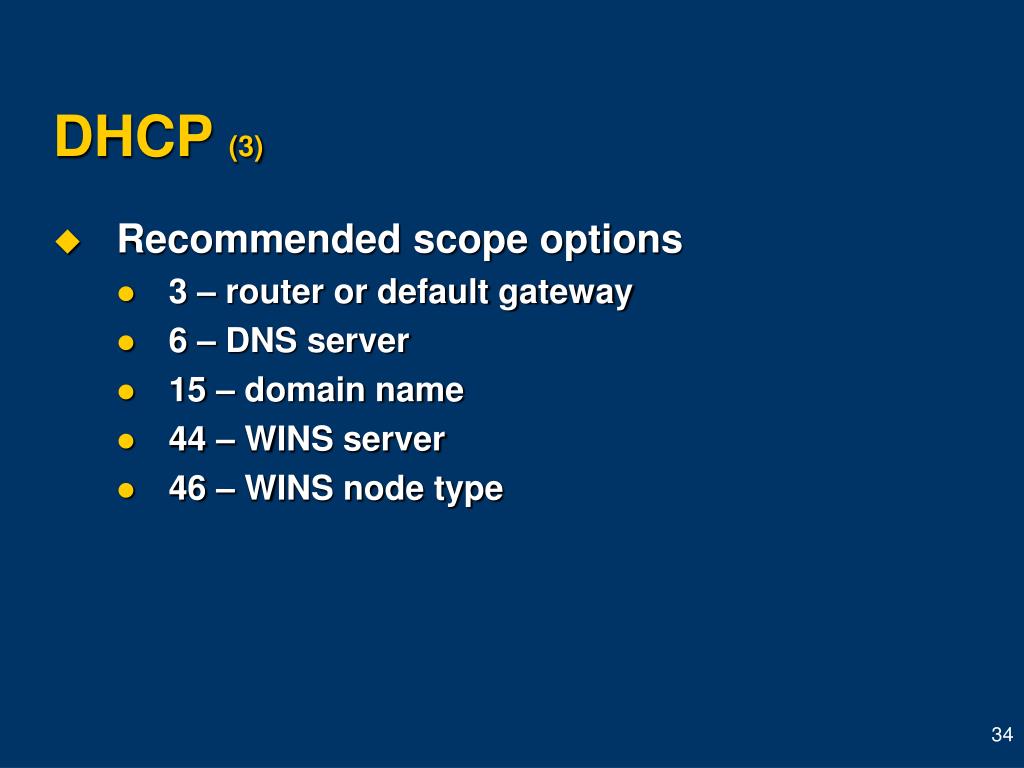

DHCP (3)
  • Recommended scope options
    • 3 – router or default gateway
    • 6 – DNS server
    • 15 – domain name
    • 44 – WINS server
    • 46 – WINS node type
dhcp 4

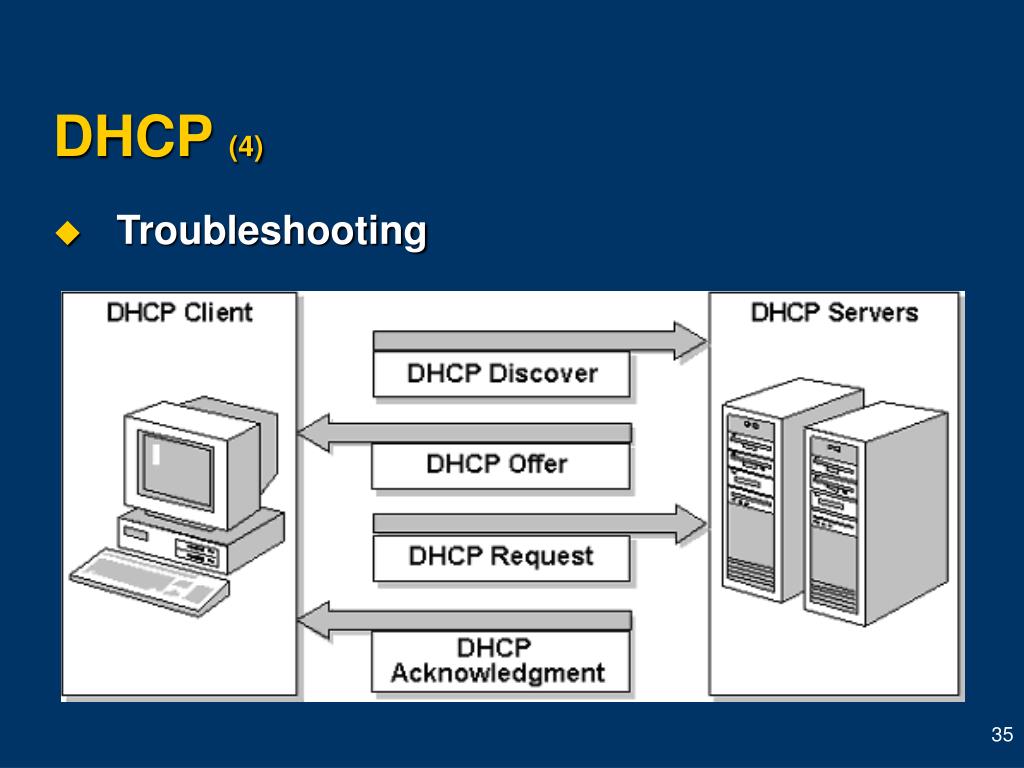

DHCP (4)
  • Troubleshooting
joining the domain

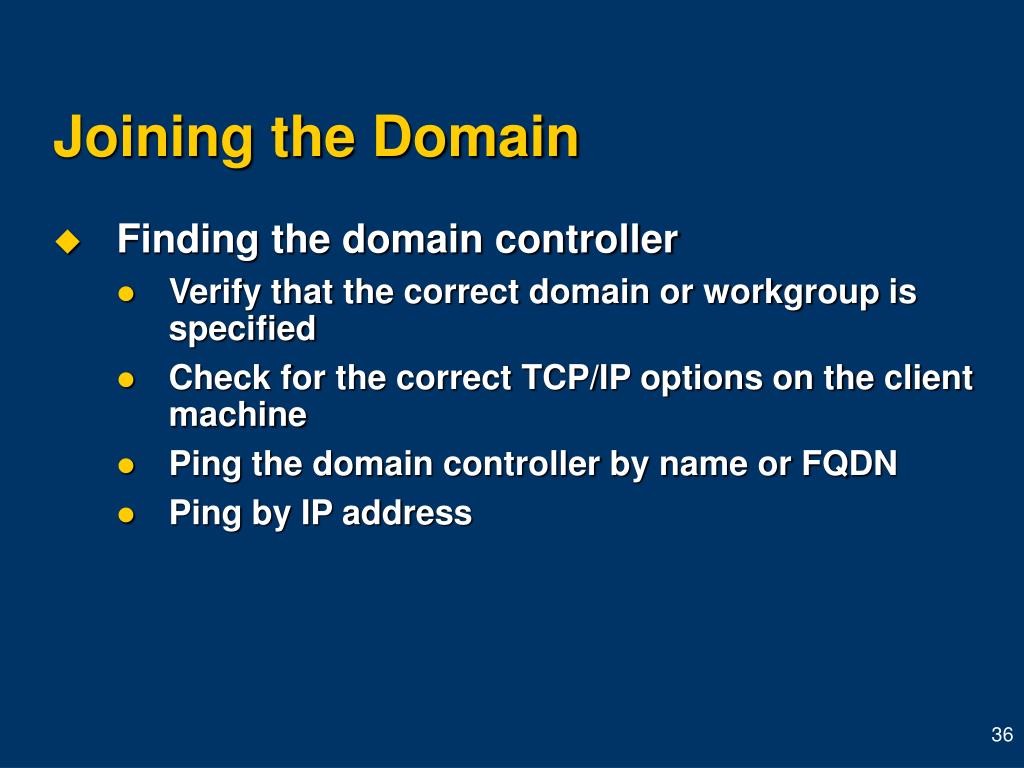

Joining the Domain
  • Finding the domain controller
    • Verify that the correct domain or workgroup is specified
    • Check for the correct TCP/IP options on the client machine
    • Ping the domain controller by name or FQDN
    • Ping by IP address
joining the domain 2
Joining the Domain (2)
  • Firewalls must allow specific port traffic across WAN links for joining domain and domain trusts
    • RPC TCP/135

LDAP TCP/UDP 389

LDAP SSL TCP 636

LDAP GC 3268

LDAP GC SSL 3269

DNS TCP/UDP 53

Kerberos TCP/UDP 88

SMB TCP 445

  • Firewalls must allow traffic for domains, and trusts across WAN links
product activation

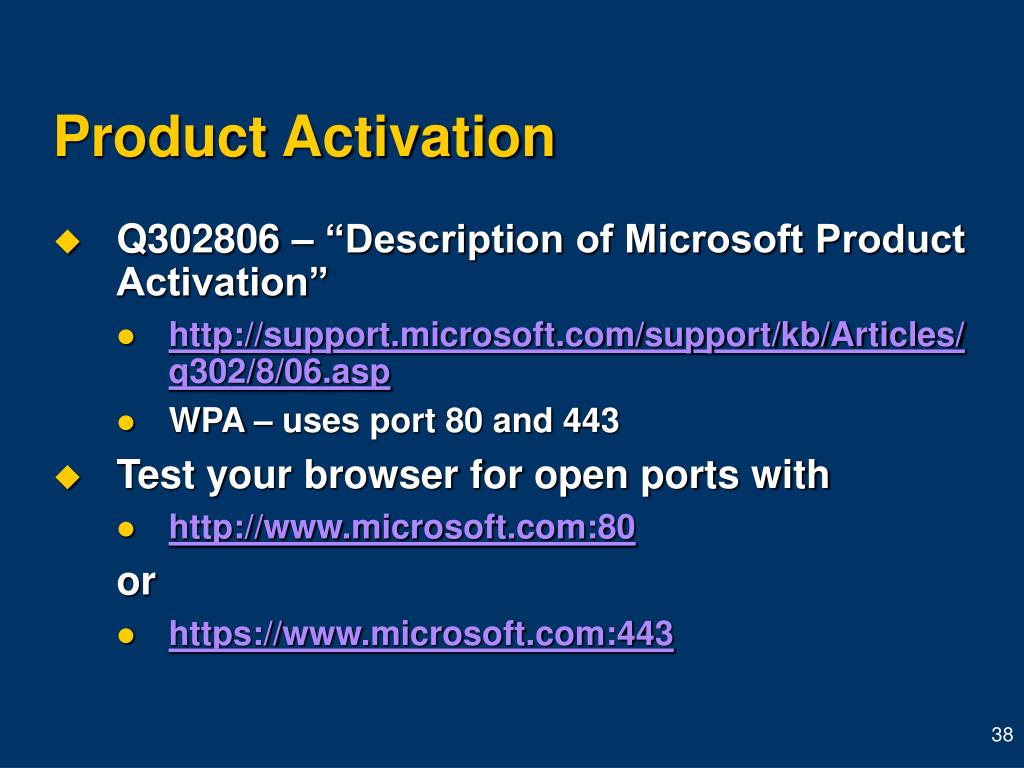

Product Activation
  • Q302806 – “Description of Microsoft Product Activation”
    • http://support.microsoft.com/support/kb/Articles/q302/8/06.asp
    • WPA – uses port 80 and 443
  • Test your browser for open ports with
    • http://www.microsoft.com:80

or

    • https://www.microsoft.com:443
more information
More Information
  • Get training on Windows XP Professional deployment
    • http://www.microsoft.com/traincert/offers/2520.asp
  • White Papers
    • Deploying Windows XP Part I: Planning
      • http://www.microsoft.com/windowsxp/pro/techinfo/deployment/planning/default.asp
    • Deploying Windows XP Part II: Implementing
      • http://www.microsoft.com/windowsxp/pro/techinfo/deployment/implementing/default.asp
more information 2

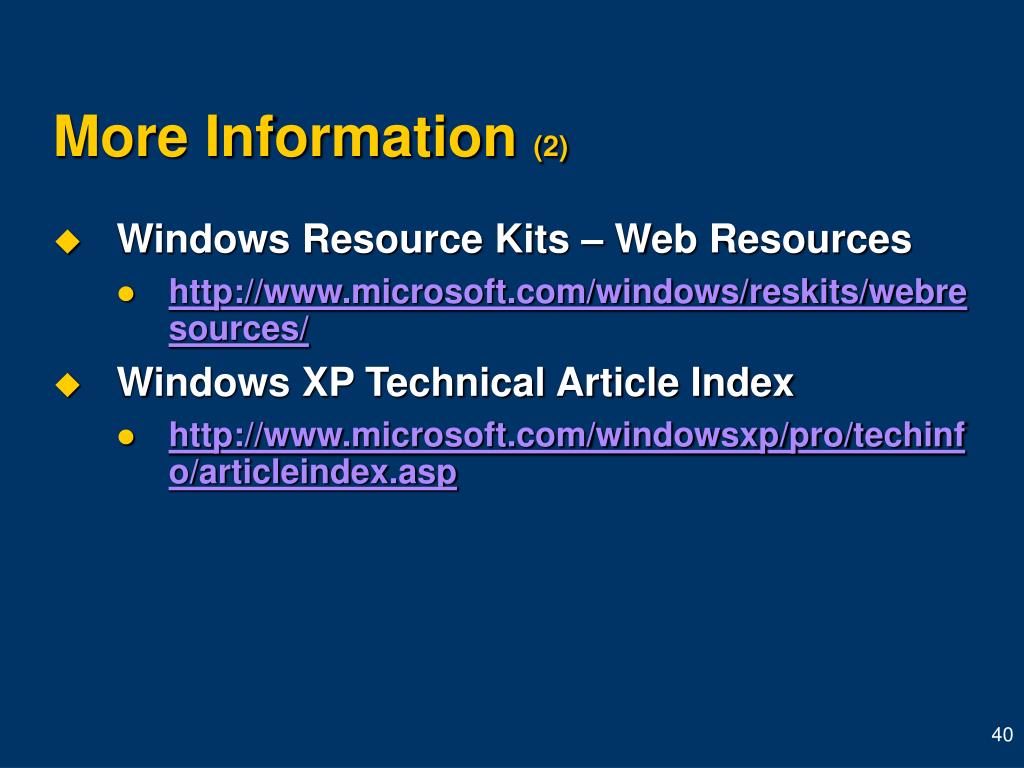

More Information (2)
  • Windows Resource Kits – Web Resources
    • http://www.microsoft.com/windows/reskits/webresources/
  • Windows XP Technical Article Index
    • http://www.microsoft.com/windowsxp/pro/techinfo/articleindex.asp
more information for service providers
More Information for Service Providers
  • Windows XP White Papers
    • http://www.microsoft.com/serviceproviders/whitepapers/winxp.asp
  • Windows XP Deployment Guides
    • http://www.microsoft.com/serviceproviders/deployment/winxp.asp
  • Windows 2000 Deployment Guides
    • http://www.microsoft.com/serviceproviders/deployment/win2k.asp
slide42

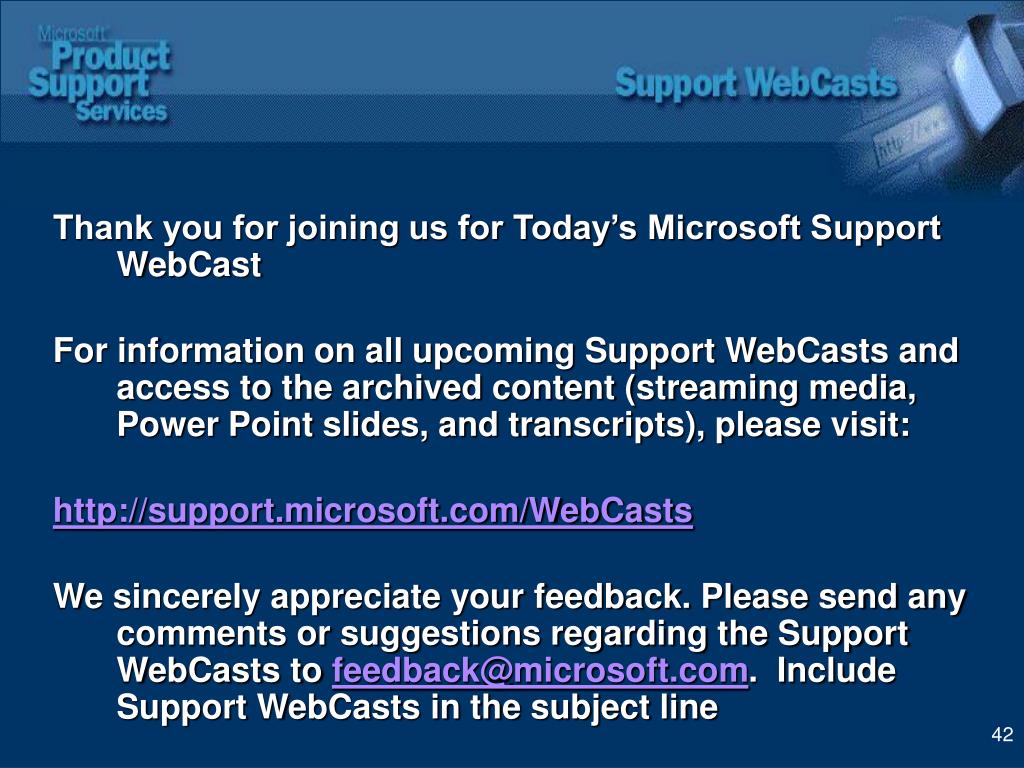

Thank you for joining us for Today’s Microsoft Support WebCast

For information on all upcoming Support WebCasts and access to the archived content (streaming media, Power Point slides, and transcripts), please visit:

http://support.microsoft.com/WebCasts

We sincerely appreciate your feedback. Please send any comments or suggestions regarding the Support WebCasts to feedback@microsoft.com. Include Support WebCasts in the subject line
