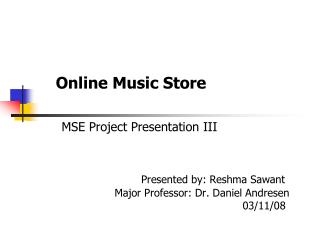

Online Music StoreMSE Project Presentation IIIPresented by: Reshma Sawant Major Professor: Dr. Daniel Andresen 03/11/08


Phase iii presentation outline l.jpg

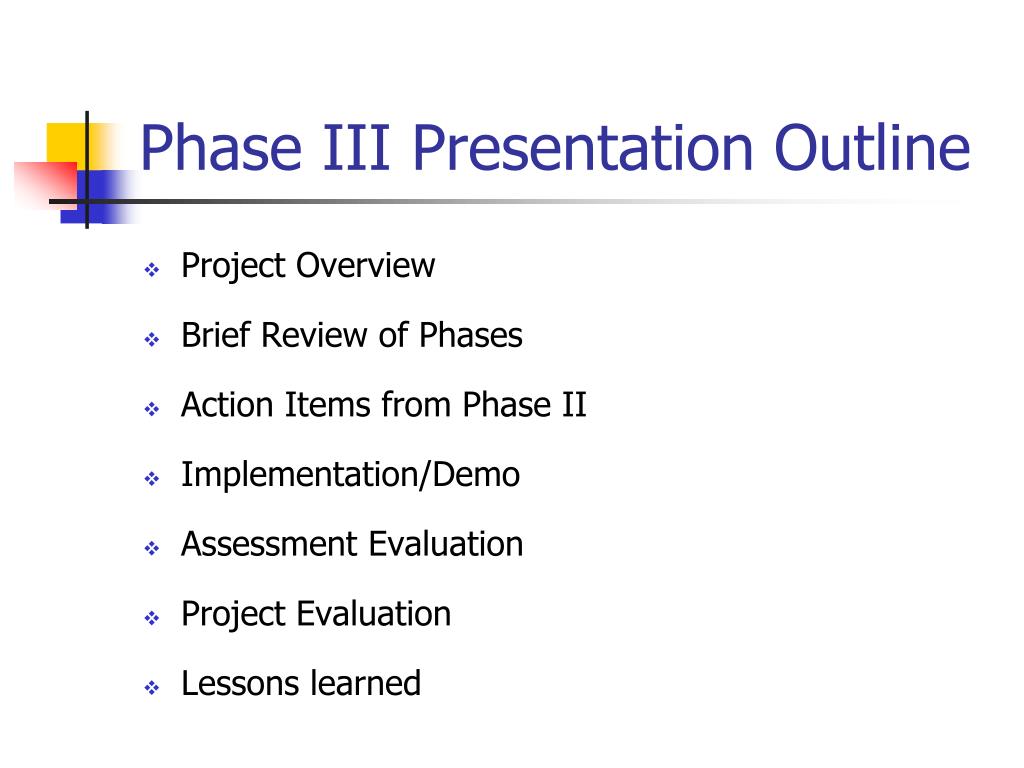

Phase III Presentation Outline

  • Project Overview

  • Brief Review of Phases

  • Action Items from Phase II

  • Implementation/Demo

  • Assessment Evaluation

  • Project Evaluation

  • Lessons learned


Project overview l.jpg
Project Overview

The objective of this project is to design and develop an Online Music Store.

  • Target: Public Users

  • Product: Media for Music

  • User Types: User, Administrator

  • Functionalities for Users: Browsing, searching, buying products, getting song recommendations, managing personal account

  • Functionalities for Administrator: Manage Catalog Details, Manage Orders, Manage Shopping Cart


Review of phases l.jpg
Review of Phases

  • Phase I:

    • Requirement Specifications

  • Phase II:

    • Designed Web Pages

    • Created Test Plan

  • Phase III (Current):

    • Coding

    • Testing and Analysis


Action items from phase ii l.jpg

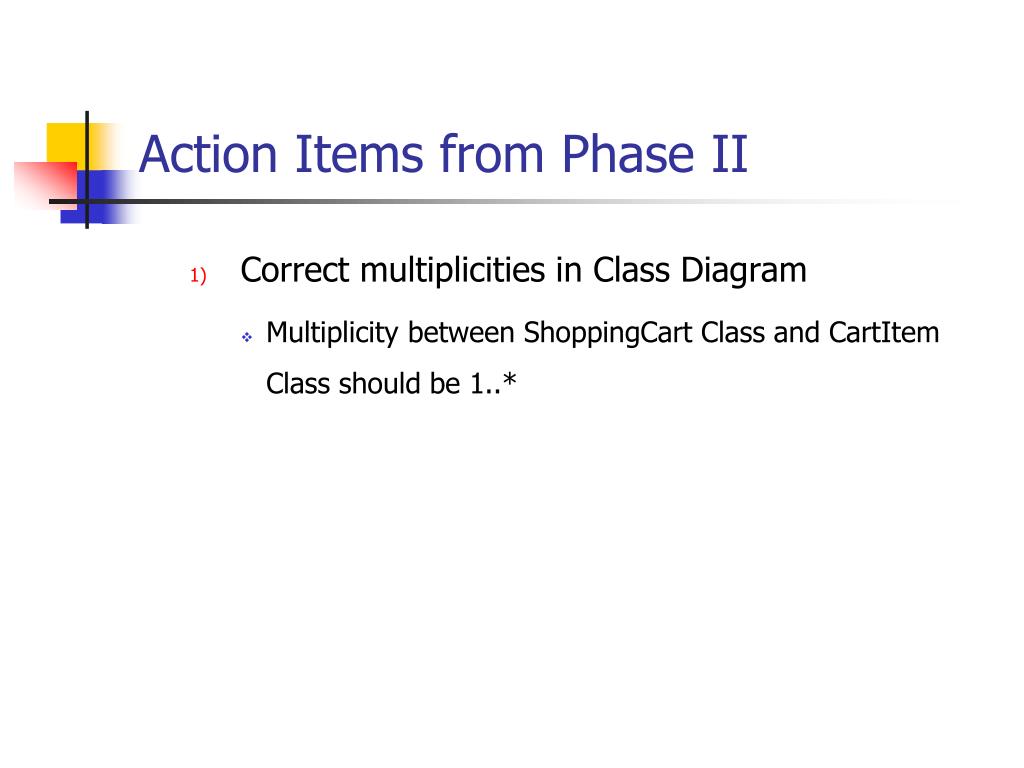

Action Items from Phase II

  • Correct multiplicities in Class Diagram

    • Multiplicity between ShoppingCart Class and CartItem Class should be 1..*


Class diagram l.jpg
ClassDiagram


Action items from phase ii7 l.jpg
Action Items from Phase II

2) Revise SLOC count and Project Duration

  • Included in Project Evaluation


Implementation demo l.jpg

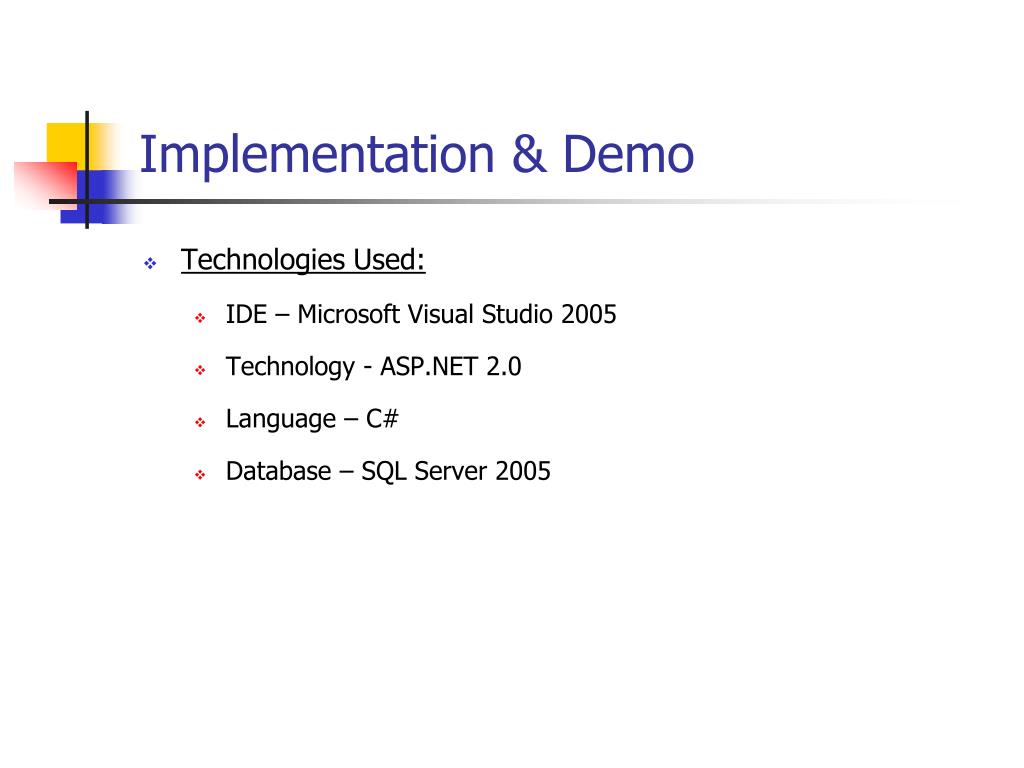

Implementation & Demo

  • Technologies Used:

    • IDE – Microsoft Visual Studio 2005

    • Technology - ASP.NET 2.0

    • Language – C#

    • Database – SQL Server 2005


Assessment evaluation l.jpg
Assessment Evaluation

  • Manual Testing - To ensure the correctness of various parts of code


Assessment evaluation10 l.jpg
Assessment Evaluation

  • E.g. Register Web Page for User

  • E.g. Edit Shopping Cart


Assessment evaluation11 l.jpg
Assessment Evaluation

  • Performance Testing

  • Goal:

    • Determine load in terms of concurrent users and requests

    • Determine Response Time – time between the request being initiated for a Web Page to time taken for it to be completely displayed on a user’s browser

    • Tool Used – JMeter(http://jakarta.apache.org)

    • Inputs to JMeter:

      • Number of Users

      • Ramp-up period – time (sec) to load the full number of users chosen

      • Loop Count - how many times to repeat the test

        • E.g. Users = 10, Loop-Count = 20, Ramp-up period = 5 sec

          => 10 Users will be loaded in 5 sec with total requests = 200 (10*20)


Assessment evaluation performance testing factors l.jpg
Assessment EvaluationPerformance Testing Factors

  • Load Type

    • Peak Load – maximum number of users and requests loaded in short duration (e.g. 5 sec).

    • Sustained Load – maximum users and requests loaded for longer period (e.g. 5 mins).

  • Connection

    • Wireless Connection at 54.0 Mbps

    • LANConnection at 100.0 Mbps

  • Web pages Tested

    • HTML Page (Login Web Page)

    • Database Intensive Page (Home Page)

    • Business Logic Page (Shopping Cart Page)


  • Assessment evaluation performance testing environmental set up l.jpg
    Assessment EvaluationPerformance Testing Environmental Set-up

    • Machine Configuration

    • Operating System – Windows XP Professional

    • Memory – 1GB RAM

    • 100GB HardDisk

    • Intel Pentium M Processor 1.7 GHz


    Slide14 l.jpg

    Assessment Evaluation

    Home Page [http://localhost:2416/CDShop/Default.aspx]

    • Peak Load at Wireless (54 Mbps) vs. LANConnection (100 Mbps)

    • Note

      • Loop-Count constant at 20,000

      • Ramp-up period of 5 sec

      • Users – 200, 600, 800, 1000

      • Observations

      • Response Time increases linearly with number of users for both Wireless and LAN

      • Max no.of users handled by the system before it becomes saturated = 1000

      • Response Time is less for LAN due to better bandwidth.


    Slide15 l.jpg

    Assessment Evaluation

    Home Page [http://localhost:2416/CDShop/Default.aspx]

    • Constant Users vs. Constant Loop-Count for Wireless Connection

      Users Constant at 200 Loop-Count Constant at 20,000

      Loop-Count increased up to 20000 Users – 200, 600, 800, 1000


    Slide16 l.jpg

    Assessment Evaluation

    Home Page [http://localhost:2416/CDShop/Default.aspx]

    • Observations

      • Response Time increases rapidly with number of users but not very much when the users are kept constant and only loop-count is increased.

      • Reason:

        • If the number of users is kept constant and only the loop-count is increased, the number of requests/sec handled by the server remains constant for every increase in the loop count.

        • If the users are increased and loop count is kept constant, the requests/sec handled by the server increases with increasing users, but the number of executions remain constant and hence the longer response time.


    Assessment evaluation17 l.jpg
    Assessment Evaluation

    • Note

      • Loop-Count constant at 20,000

      • Ramp-up period of 5 sec

      • Users – 200, 600, 800, 1000

      • Observations

      • Response Time increases more for Home Page as compared to Login and Shopping Cart Page

      • Lowest Response Time for Login Page as no database requests are submitted by the user

      • Moderate Response Time for Shopping Cart page because there are more computations

      • Response Time for Shopping Cart Page is approx. 28% more on an average than for Login Page

      • Response Time for Home Page is approx. 246% more on an average than for Login Page

    • Comparison of Response Times of all 3 WebPages at Wireless Connection of 54.0Mbps


    Slide18 l.jpg

    Assessment Evaluation

    Home Page [http://localhost:2416/CDShop/Default.aspx]

    • External Factors affecting Response Time

      • Varying Network Bandwidth

      • Limited System Hardware Resources (CPU, RAM, Disks) and Configuration

      • JMeter Tests and Server running on the same machine


    Slide19 l.jpg

    Assessment Evaluation

    Summary

    • For Peak Load

      • Users – 200, 600, 800, 1000

      • Loop-Count constant at 20,000

      • Ramp-up period = 5 sec

      • Response Time increases rapidly with number of users but not very much when the users are kept constant and only loop-count is increased.

      • Response Time is highest for Home page, Intermediate for Shopping Cart Page and Lowest for Login Page


    Slide20 l.jpg

    Assessment Evaluation

    Login Page [http://localhost:2416/CDShop/Login.aspx]

    • For Sustained Load at Wireless Connection


    Project evaluation l.jpg
    Project Evaluation

    • Project Duration (actual)

      • Phase I = 86 hours

      • Phase II = 140.5 hours

      • Phase III = 304.5 hours

    • Total = 531 hours

    • Project Duration (in Months)

    • Estimated at the end of Phase II = 6.5 Months

    • Actual = 7.5 Months


    Project evaluation22 l.jpg
    Project Evaluation

    • Category BreakDown

      • Research = 38.5 hours

      • Design = 37 hours

      • Coding = 305.5 hours

      • Testing = 32 hours

      • Documentation = 118 hours

    • Total = 531 hours


    Project evaluation23 l.jpg
    Project Evaluation

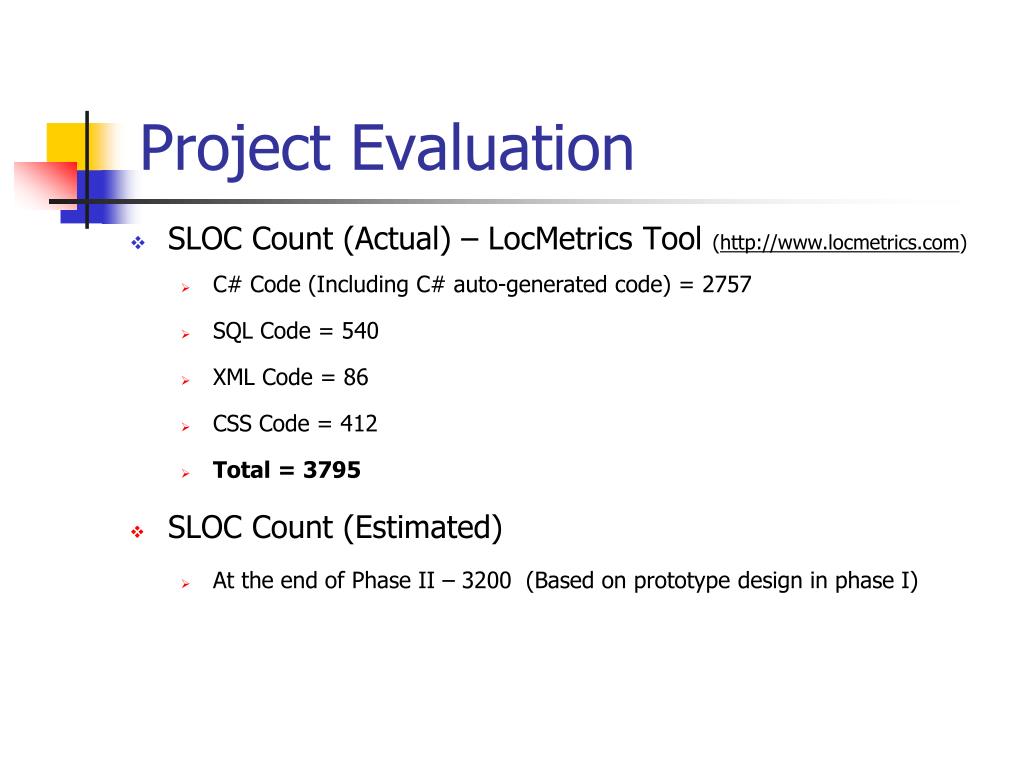

    • SLOC Count (Actual) – LocMetrics Tool (http://www.locmetrics.com)

      • C# Code (Including C# auto-generated code) = 2757

      • SQL Code = 540

      • XML Code = 86

      • CSS Code = 412

      • Total = 3795

      • SLOC Count (Estimated)

      • At the end of Phase II – 3200 (Based on prototype design in phase I)


    Slide24 l.jpg

    Project Experience

    • Lessons Learned:

      • New technology

      • Use of various tools for designing and testing – Visual Studio 2005, JMeter, LocMetrics

      • Working with UML and Class Diagrams

      • Entire life cycle of the project– requirement gathering, Design, Coding, Testing and Documentation

      • Testing applications at different levels
