Presentation Transcript
overview
Overview
  • Pipeline overview
  • VP/FP overview
  • Vertex Programs – Me
  • Fragment Programs – Aaron
  • Discussion
modern graphics hardware

Primitive construction

Tessellation

Transform to homogeneous eye space, light, texgen, deform…

Transform & Lighting

Triangle setup

View volume clip, view surface coordinates

Generate fragments, interpolate color & texcoords

Rasterization

Fragment processing

Access textures, & compute final color

Stencil, alpha, scissor, depth ….

Tests

Add, mult, interpolate, max…

Blending

Anti-Aliasing

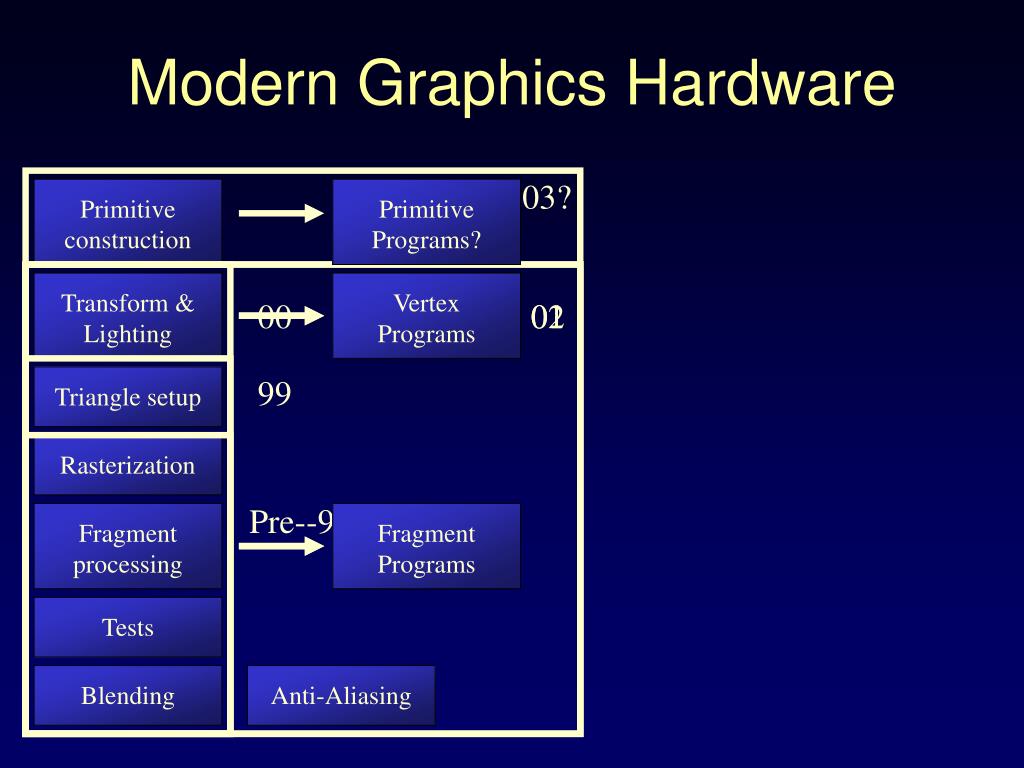

Modern Graphics Hardware
modern graphics hardware4

03?

Primitive construction

Primitive Programs?

Fragment Programs

Transform & Lighting

Vertex Programs

00

02

01

99

Triangle setup

Rasterization

Pre--98

Vertex Programs

Fragment Programs

Vertex Programs 2.0

Fragment processing

Tests

Combiners

Blending

Anti-Aliasing

Modern Graphics Hardware
higher order surfaces

Higher order surface

Transform & Lighting

Vertex Programs

Fragment Programs

Triangle setup

Rasterization

Fragment processing

Tests

Blending

Anti-Aliasing

Higher order surfaces
  • PN Triangles (ATI)
  • Bezier patches (NVIDIA)

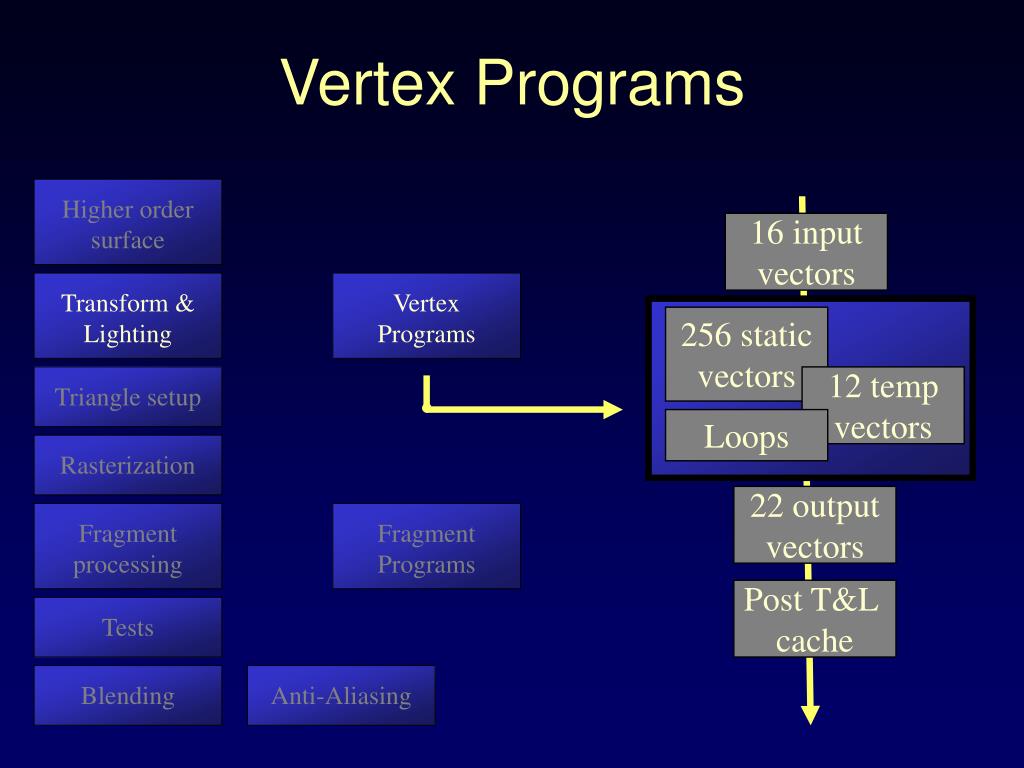

vertex programs

Higher order surface

Transform & Lighting

Fragment Programs

Vertex Programs

Triangle setup

Rasterization

Fragment processing

Tests

Blending

Anti-Aliasing

Vertex Programs

16 input

vectors

256 static

vectors

12 temp

vectors

Loops

22 output

vectors

Post T&L

cache

vertex programs7
Vertex Programs
  • 3-5 flavors
    • nv vertex programs 1.0 & 2.0
    • ati vertex program (EXT)
    • ARB vertex program 1.0 ( & 2.0 ???)
  • nv 1.0 + ati ext  ARB 1.0
  • Next gen == ARB 2.0 ????
  • Closely matches Direct3D
vertex programs8

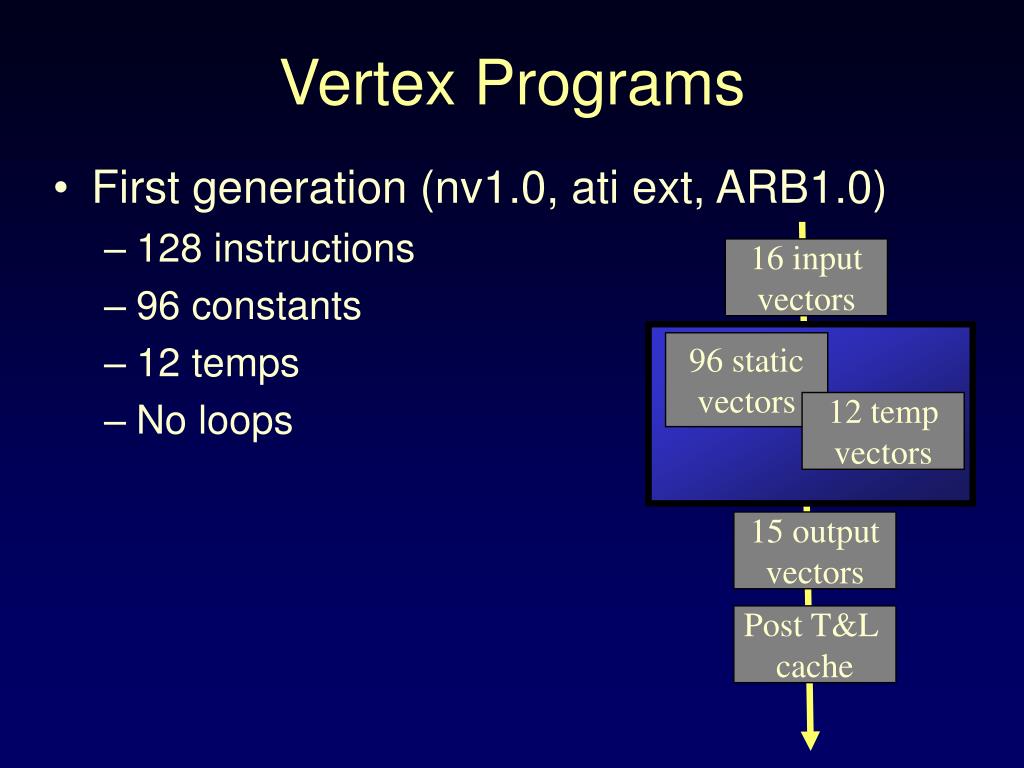

Vertex Programs
  • First generation (nv1.0, ati ext, ARB1.0)
    • 128 instructions
    • 96 constants
    • 12 temps
    • No loops

16 input

vectors

96 static

vectors

12 temp

vectors

15 output

vectors

Post T&L

cache

vertex programs9

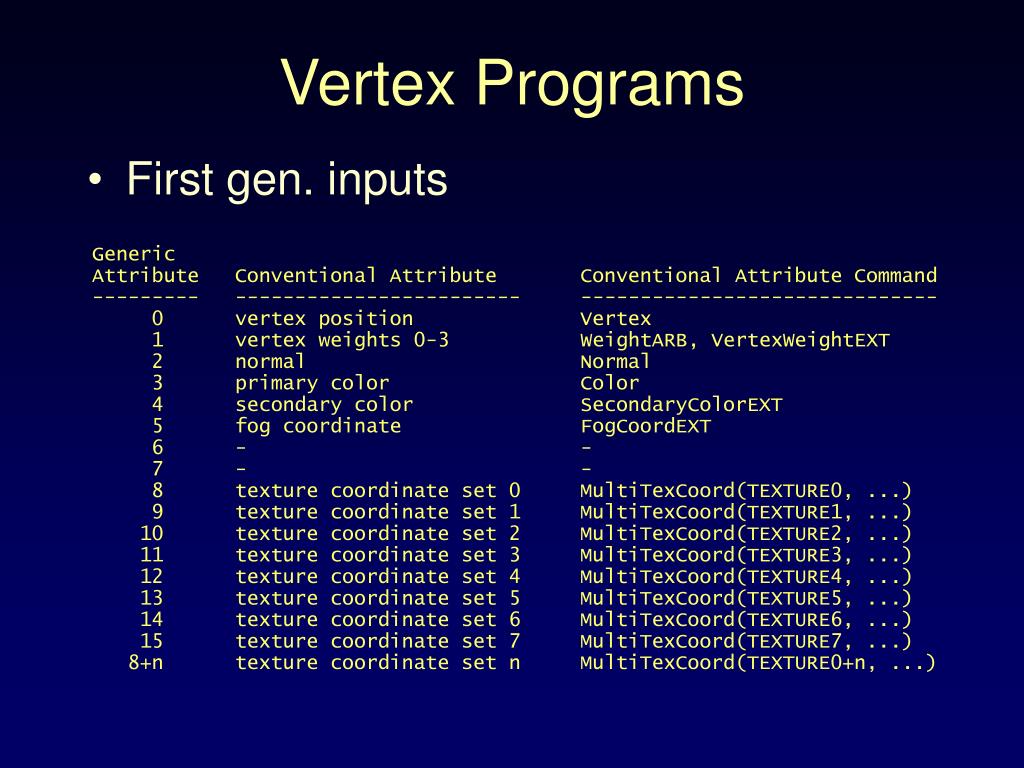

Vertex Programs
  • First gen. inputs

Generic

Attribute Conventional Attribute Conventional Attribute Command

--------- ------------------------ ------------------------------

0 vertex position Vertex

1 vertex weights 0-3 WeightARB, VertexWeightEXT

2 normal Normal

3 primary color Color

4 secondary color SecondaryColorEXT

5 fog coordinate FogCoordEXT

6 - -

7 - -

8 texture coordinate set 0 MultiTexCoord(TEXTURE0, ...)

9 texture coordinate set 1 MultiTexCoord(TEXTURE1, ...)

10 texture coordinate set 2 MultiTexCoord(TEXTURE2, ...)

11 texture coordinate set 3 MultiTexCoord(TEXTURE3, ...)

12 texture coordinate set 4 MultiTexCoord(TEXTURE4, ...)

13 texture coordinate set 5 MultiTexCoord(TEXTURE5, ...)

14 texture coordinate set 6 MultiTexCoord(TEXTURE6, ...)

15 texture coordinate set 7 MultiTexCoord(TEXTURE7, ...)

8+n texture coordinate set n MultiTexCoord(TEXTURE0+n, ...)

vertex programs10
Vertex Programs
  • First gen. inputs

Conventional Attribute Binding Generic Attribute Binding

------------------------------ -------------------------

vertex.position vertex.attrib[0]

vertex.weight vertex.attrib[1]

vertex.weight[0] vertex.attrib[1]

vertex.normal vertex.attrib[2]

vertex.color vertex.attrib[3]

vertex.color.primary vertex.attrib[3]

vertex.color.secondary vertex.attrib[4]

vertex.fogcoord vertex.attrib[5]

vertex.texcoord vertex.attrib[8]

vertex.texcoord[0] vertex.attrib[8]

vertex.texcoord[1] vertex.attrib[9]

vertex.texcoord[2] vertex.attrib[10]

vertex.texcoord[3] vertex.attrib[11]

vertex.texcoord[4] vertex.attrib[12]

vertex.texcoord[5] vertex.attrib[13]

vertex.texcoord[6] vertex.attrib[14]

vertex.texcoord[7] vertex.attrib[15]

vertex.texcoord[n] vertex.attrib[8+n]

ARB 1.0 notation (inputs == Read only)

vertex programs11

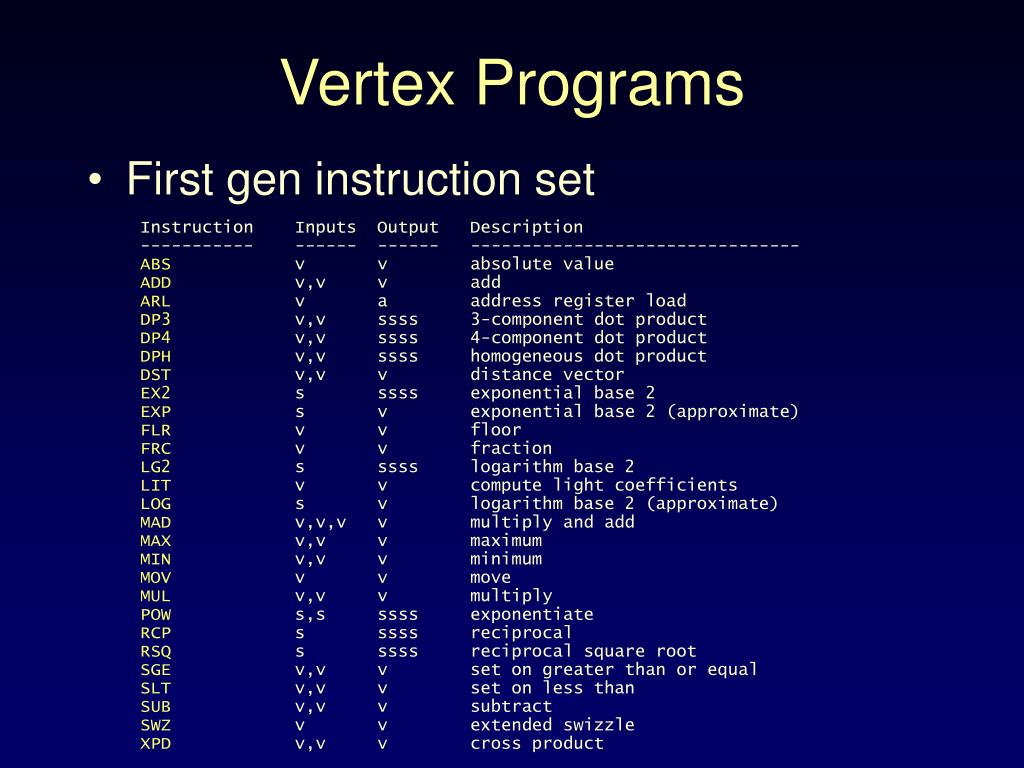

Vertex Programs

Instruction Inputs Output Description

----------- ------ ------ --------------------------------

ABS v v absolute value

ADD v,v v add

ARL v a address register load

DP3 v,v ssss 3-component dot product

DP4 v,v ssss 4-component dot product

DPH v,v ssss homogeneous dot product

DST v,v v distance vector

EX2 s ssss exponential base 2

EXP s v exponential base 2 (approximate)

FLR v v floor

FRC v v fraction

LG2 s ssss logarithm base 2

LIT v v compute light coefficients

LOG s v logarithm base 2 (approximate)

MAD v,v,v v multiply and add

MAX v,v v maximum

MIN v,v v minimum

MOV v v move

MUL v,v v multiply

POW s,s ssss exponentiate

RCP s ssss reciprocal

RSQ s ssss reciprocal square root

SGE v,v v set on greater than or equal

SLT v,v v set on less than

SUB v,v v subtract

SWZ v v extended swizzle

XPD v,v v cross product

  • First gen instruction set
vertex programs12
Vertex Programs
  • First gen instruction set
    • Wow! That’s a lot of instructions
    • Why: SIMD processor
    • Single clock execution
    • Taken from ARB spec, not all instructions available on all platforms
vertex programs13
Vertex Programs
  • First gen. outputs

Binding Components Description

----------------------------- ---------- ----------------------------

result.position (x,y,z,w) position in clip coordinates

result.color (r,g,b,a) front-facing primary color

result.color.primary (r,g,b,a) front-facing primary color

result.color.secondary (r,g,b,a) front-facing secondary color

result.color.front (r,g,b,a) front-facing primary color

result.color.front.primary (r,g,b,a) front-facing primary color

result.color.front.secondary (r,g,b,a) front-facing secondary color

result.color.back (r,g,b,a) back-facing primary color

result.color.back.primary (r,g,b,a) back-facing primary color

result.color.back.secondary (r,g,b,a) back-facing secondary color

result.fogcoord (f,*,*,*) fog coordinate

result.pointsize (s,*,*,*) point size

result.texcoord (s,t,r,q) texture coordinate, unit 0

result.texcoord[n] (s,t,r,q) texture coordinate, unit n

ARB 1.0 notation (outputs == Write only??)

vertex programs14

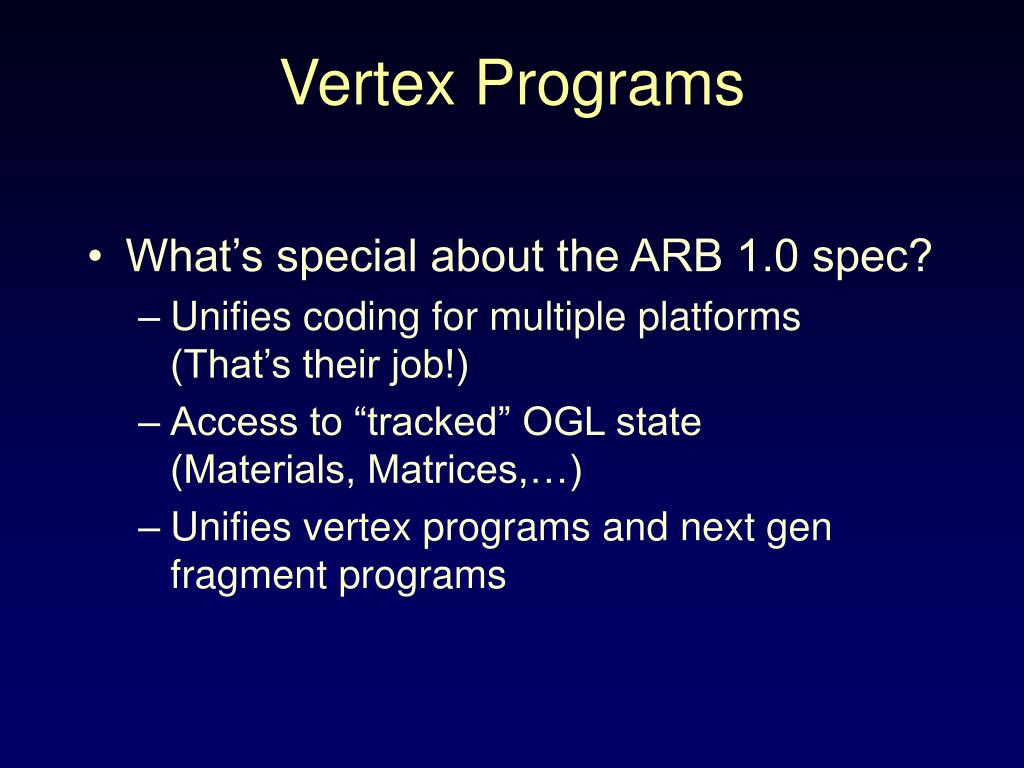

Vertex Programs
  • What’s special about the ARB 1.0 spec?
    • Unifies coding for multiple platforms (That’s their job!)
    • Access to “tracked” OGL state (Materials, Matrices,…)
    • Unifies vertex programs and next gen fragment programs
vertex programs15
Vertex Programs
  • ARB 1.0 continued
    • Position invariant vertex programs
      • Use the fixed function pipe to transform vertices
      • You still do the lighting
      • Same transformation even if vertex program enabled
      • Option set in VP text file
      • KEY for multi-pass algorithms!!!
vertex programs16
Vertex Programs
  • ARB 1.0 continued…
    • Vender specific “enhancements”
    • Access special functionality of chip
    • Use “OPTION BLAH” at top of program text
vertex programs17
Vertex Programs
  • Other ARB 1.0 features
    • Constant scoping, env, state, local
      • Determines life time & update behavior
    • Temporary aliasing (tmp1 = tmp2)
    • Automatic constant management, let driver deal with constant numbering!
vertex programs18
Vertex Programs
  • ARB 1.0 example

!!ARBvp1.0

# comment here ;)

ATTRIB pos = vertex.position; #alias long names

ATTRIB norm = vertex.normal;

PARAM mv[4] = { state.matrix.modelview }; #alias

PARAM mvit[4] = { state.matrix.modelview.invtrans };

TEMP tnorm; # temp for the transformed normal

DP4 result.position.x mv[0] pos; # vertex to clip space

DP4 result.position.y mv[1] pos;

DP4 result.position.z mv[2] pos;

DP4 result.position.w mv[3] pos;

DP3 tnorm.x mvit[0] norm; # tranform the normal

DP3 tnorm.y mvit[1] norm; # for lighting (later)

DP3 tnorm.z mvit[2] norm;

vertex programs19
Vertex Programs
  • Same example in Cg:

struct appin : application2vertex

{

float4 pos : POSITION;

float4 Norm : NORMAL;

};

struct vertout : vertex2fragment

{

float4 HPos : POSITION;

float4 PCol : COLOR0;

};

vertout main(appin IN)

{

vertout out;

out.Hpos = mul(glstate.matrix.mvp, IN.pos);

// note cast to float3 for the normal!!!!

float3 tnorm = mul(glstate.matrix.invtrans.modelview[0],(float3)IN.norm);

return out;

}

vertex programs20
Vertex Programs
  • Next generation (nv2.0, ati ?, ARB2.0?)
    • 256 instructions
    • 256 constants
    • 12 temps ?
    • Loops
    • Subroutines
    • Conditional branching
    • 4 address registers
    • 6 clips & 8 textures

16 input

vectors

256 static

vectors

12 temp

vectors

Loops

22 output

vectors

Post T&L

cache

vertex programs21

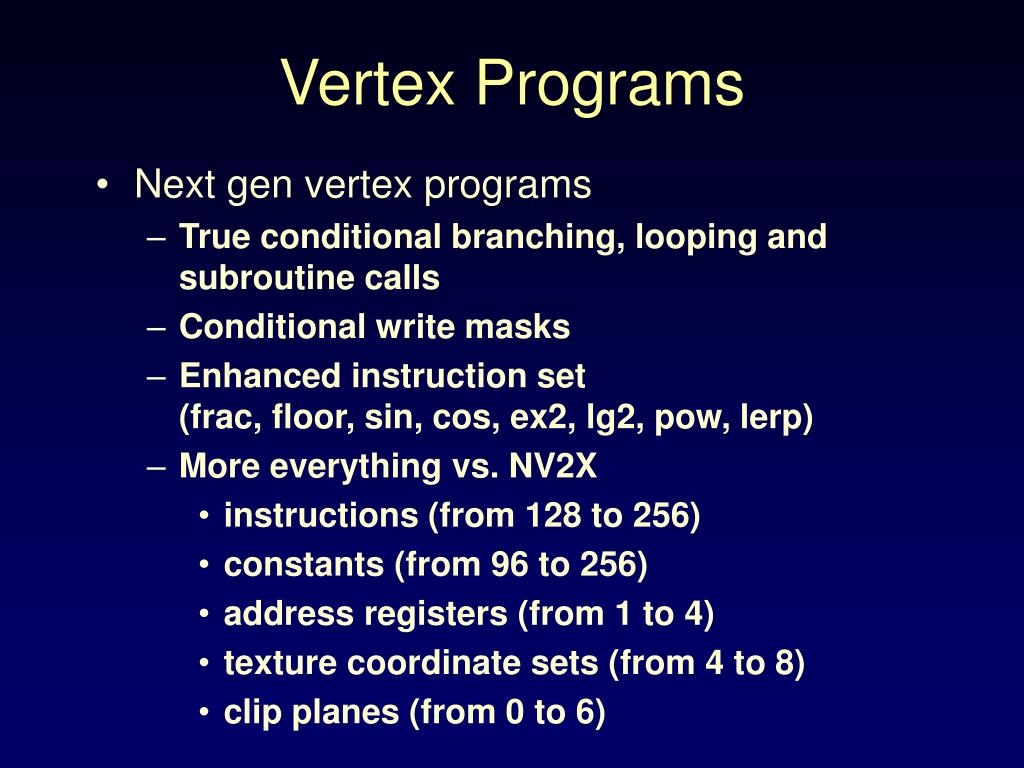

Vertex Programs
  • Next gen vertex programs
    • True conditional branching, looping and subroutine calls
    • Conditional write masks
    • Enhanced instruction set (frac, floor, sin, cos, ex2, lg2, pow, lerp)
    • More everything vs. NV2X
      • instructions (from 128 to 256)
      • constants (from 96 to 256)
      • address registers (from 1 to 4)
      • texture coordinate sets (from 4 to 8)
      • clip planes (from 0 to 6)
vertex programs22
Vertex Programs
  • ARB vp2.0 not ratified yet
    • Have to use vendor specifics till then
    • Who knows when???
    • Still follows Direct3D, no problem??
    • Need uniformity for programmers sake
questions
Questions?

… now on to Fragment Programs
