ece 242 spring 2003 data structures in java

ECE 242 Spring 2003Data Structures in Java

http://rio.ecs.umass.edu/ece242

Queue

Prof. Lixin Gao

Data Structures in Java, Prof. Gao

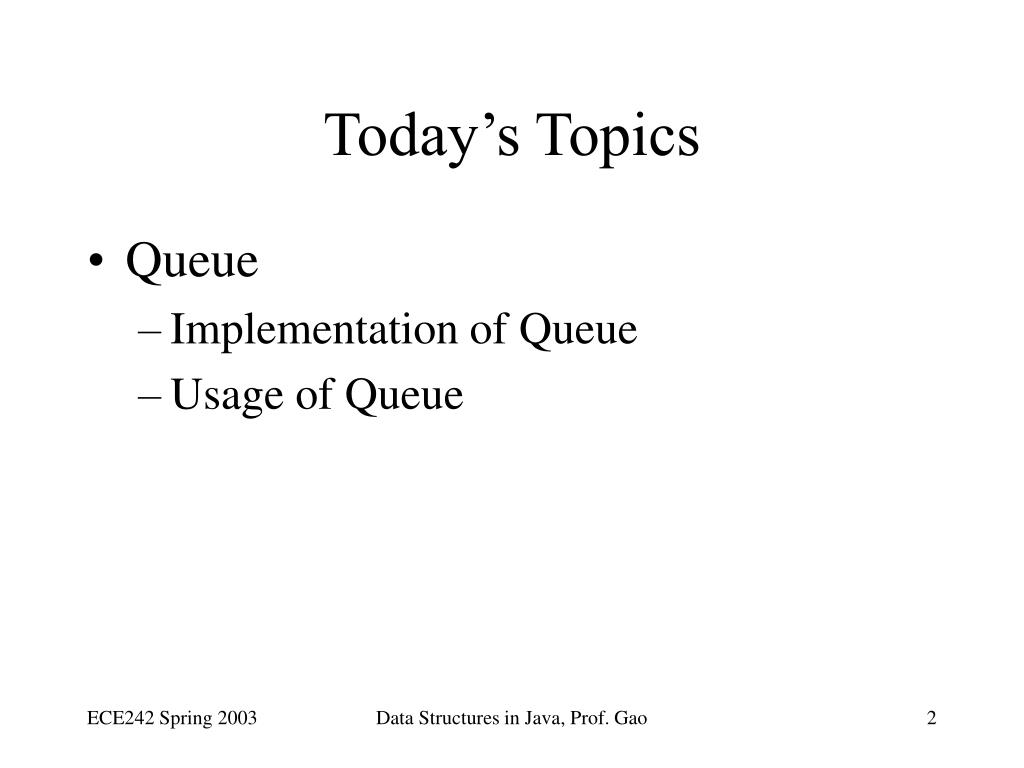

today s topics
Today’s Topics
  • Queue
    • Implementation of Queue
    • Usage of Queue

Data Structures in Java, Prof. Gao

queue

D

C

B

A

Queue
  • Queue: First In First Out (FIFO)
  • Toll Station
    • Car comes, pays, leaves
  • Check-out in Big Y market
    • Customer comes, checks out and leaves
  • More examples: Printer, Office Hours, …

Output

Input

Data Structures in Java, Prof. Gao

more examples of queue
More Examples of Queue
  • In our daily life
    • Airport Security Check
    • Cinema Ticket Office
    • Bank, ATM
    • Anything else ?

Data Structures in Java, Prof. Gao

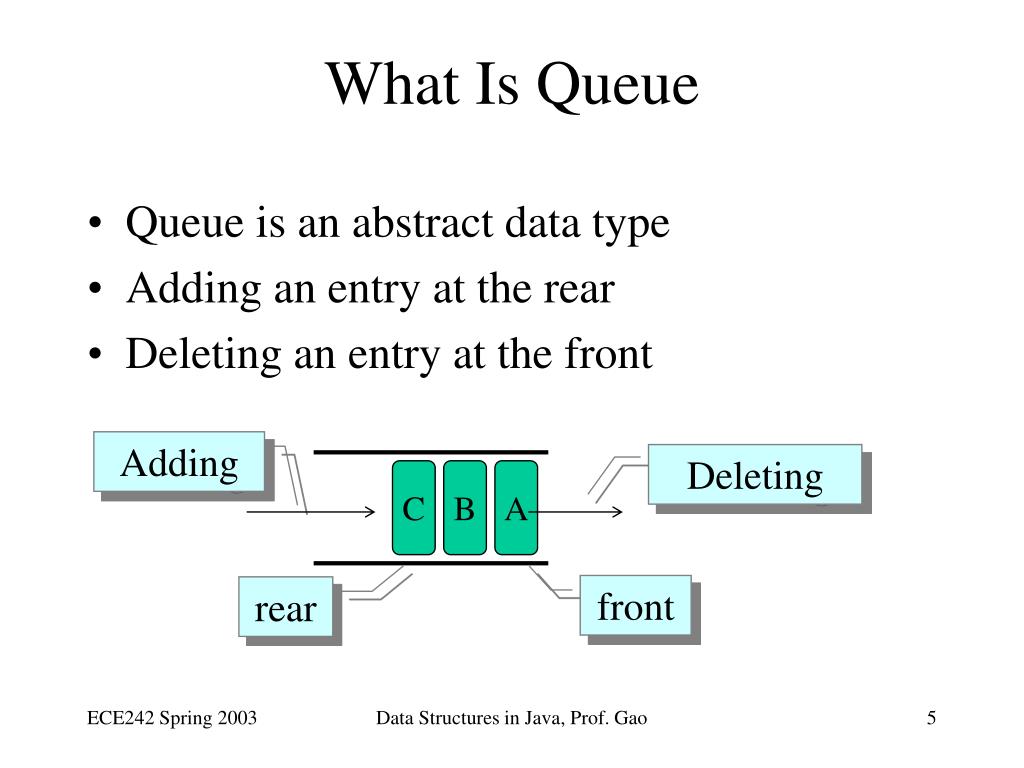

what is queue
What Is Queue
  • Queue is an abstract data type
  • Adding an entry at the rear
  • Deleting an entry at the front

Adding

Deleting

C

B

A

front

rear

Data Structures in Java, Prof. Gao

abstract data types
Abstract Data Types
  • Queue
    • Operating on both ends
    • Operations: EnQueue(in), DeQueue(out)

enqueue

dequeue

C

B

A

front

rear

Data Structures in Java, Prof. Gao

queue1
Queue

Queue is FIFO ( First-In First-Out)

A queue is open at two ends. You can only add entry (enqueue) at the rear , and delete entry (dequeue) at the front.

Note that you cannot add/extract entry in the middle of the queue.

Data Structures in Java, Prof. Gao

applications of queue
Applications of Queue
  • Printing Job Management
  • Packet Forwarding in Routers
  • Message queue in Windows
  • I/O buffer

Data Structures in Java, Prof. Gao

printing job management
Printing Job Management
  • Many users send their printing jobs to ECS public printer
  • Printer will put them into a queue according to the arrival time and print the jobs one by one
  • These printing documents are A.doc, B.doc, C.doc and D.doc

Data Structures in Java, Prof. Gao

printing queue
Printing Queue
  • A.doc B.doc C.doc arrive to printer.

Now printing A.doc

C

B

A

C

B

A.doc is finished. Now printing B.doc

D.doc comes

D

C

B

Now still printing B.doc

D

C

B.doc is finished. Now printing C.doc

D

C.doc is finished. Now printing D.doc

Data Structures in Java, Prof. Gao

first in first out fifo
First-in First-out (FIFO)

A, B, C come in

The first one enqueued is the first one dequeued. (FIFO)

C

B

A

C

When we enqueue entries in the queue and then dequeue them one by one, we will get the items in the same order.

B

A

A, B, C come out

C

B

A

Data Structures in Java, Prof. Gao

question

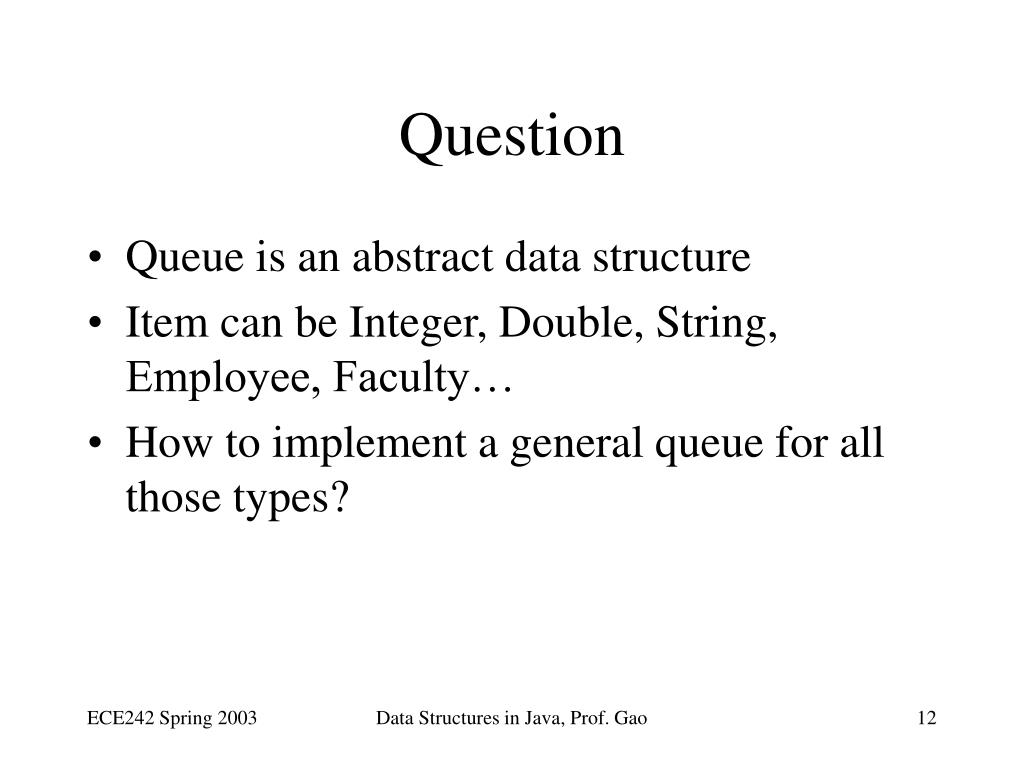

Question
  • Queue is an abstract data structure
  • Item can be Integer, Double, String, Employee, Faculty…
  • How to implement a general queue for all those types?

Data Structures in Java, Prof. Gao

abstract data type

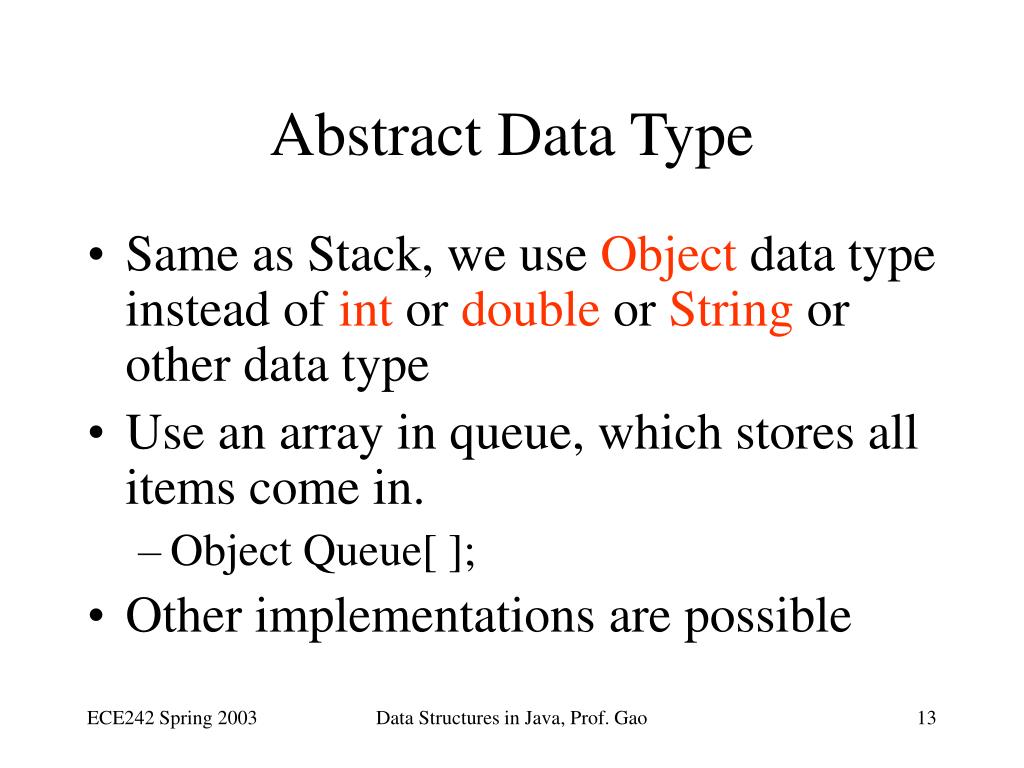

Abstract Data Type
  • Same as Stack, we use Object data type instead of int or double or String or other data type
  • Use an array in queue, which stores all items come in.
    • Object Queue[ ];
  • Other implementations are possible

Data Structures in Java, Prof. Gao

array implementation of queue

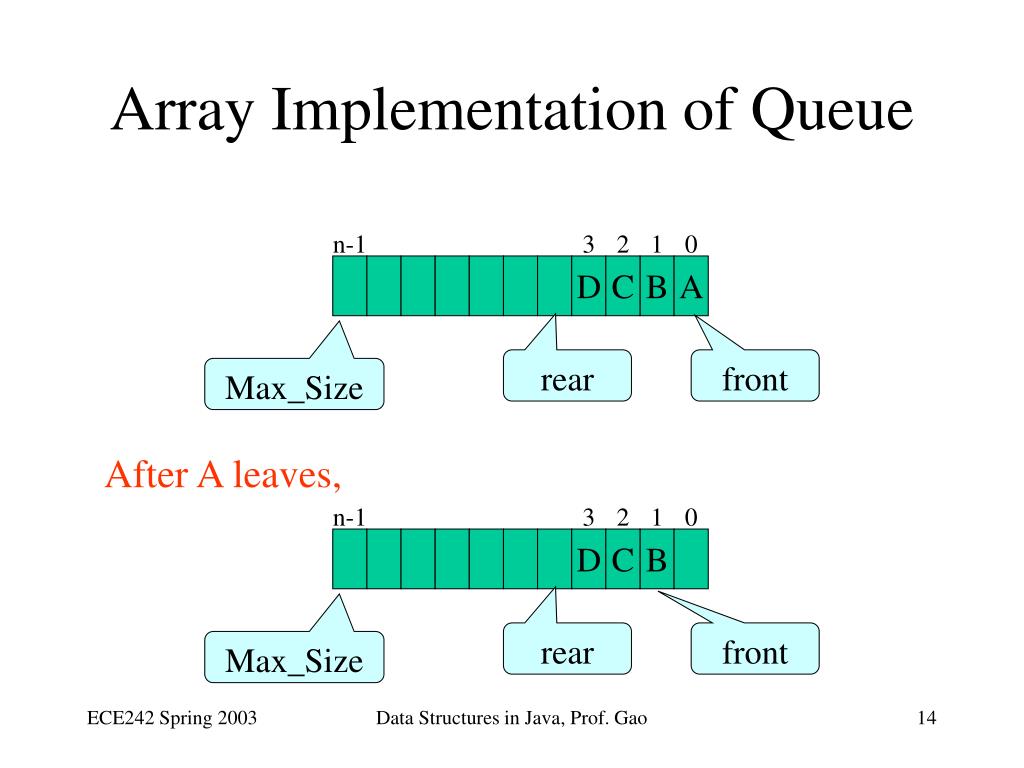

Array Implementation of Queue

n-1

3

2

1

0

D

C

B

A

rear

front

Max_Size

After A leaves,

n-1

3

2

1

0

D

C

B

rear

front

Max_Size

Data Structures in Java, Prof. Gao

operations
Operations
  • enqueue
    • add a new item at the rear
  • dequeue
    • remove a item from the front
  • isEmpty
    • check whether the queue is empty or not
  • isFull
    • check whether the queue is full or not
  • size
    • return the number of items in the queue
  • peek
    • return the front item

Data Structures in Java, Prof. Gao

problem
Problem
  • An array has limited size, once rear is at the end of this array, and there is new item coming in, what can we do?

n-1

3

2

1

0

Y

X

front

rear

Data Structures in Java, Prof. Gao

two solutions
Two Solutions
  • Shifting all items to front in the array when dequeue operation. ( Too Costly… )
  • Wrapped around array ---- Circular Array

A leaves

n-1

3

2

1

0

n-1

3

2

1

0

C

B

A

C

B

rear=3

front=0

rear=2

front=0

Data Structures in Java, Prof. Gao

circular array

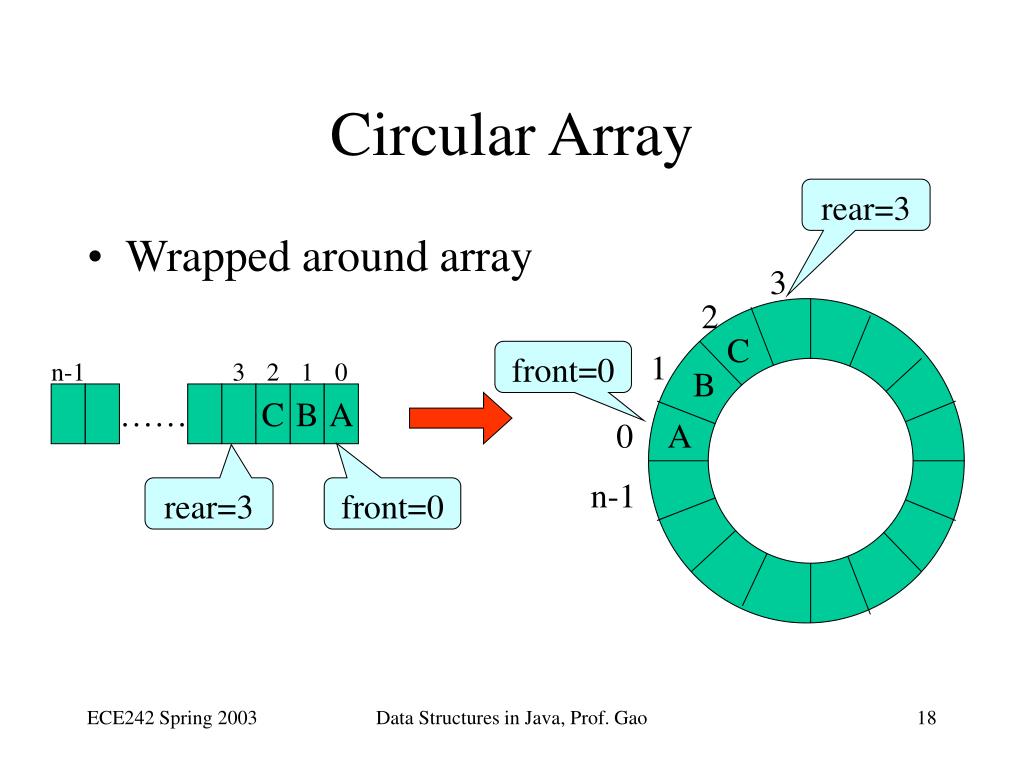

Circular Array

rear=3

  • Wrapped around array

3

2

C

front=0

1

n-1

3

2

1

0

B

C

B

A

0

A

n-1

rear=3

front=0

Data Structures in Java, Prof. Gao

enqueue dequeue in circular array

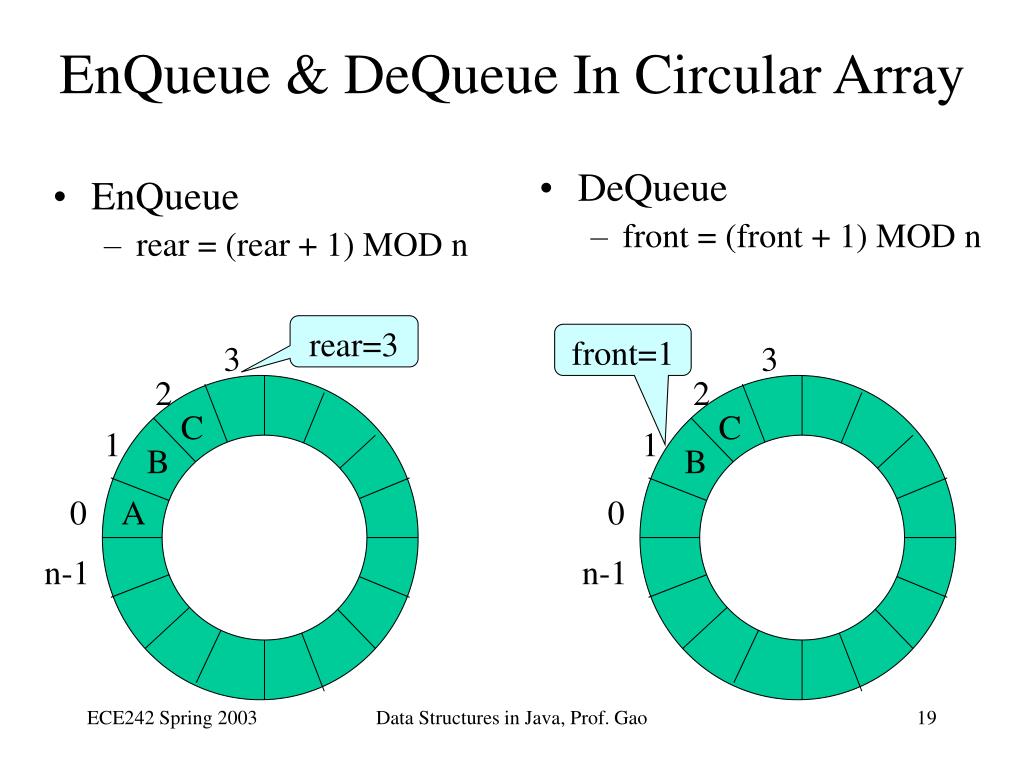

EnQueue & DeQueue In Circular Array
  • DeQueue
    • front = (front + 1) MOD n
  • EnQueue
    • rear = (rear + 1) MOD n

rear=3

front=1

3

3

2

2

C

C

1

1

B

B

0

A

0

n-1

n-1

Data Structures in Java, Prof. Gao

empty full in circular array

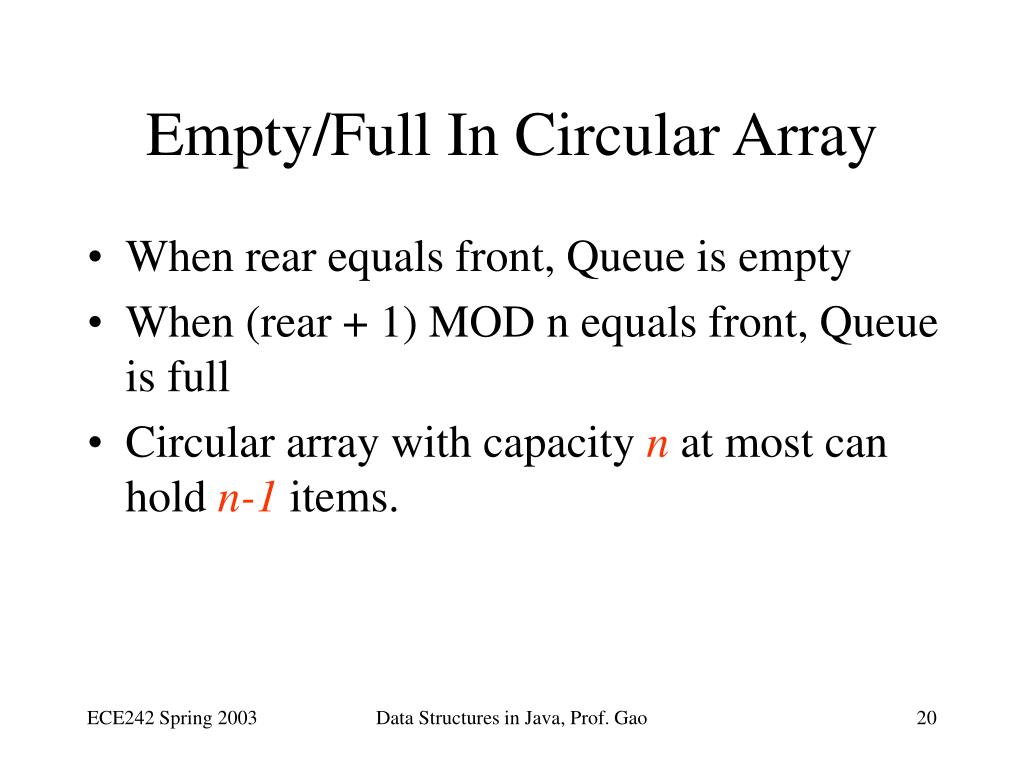

Empty/Full In Circular Array
  • When rear equals front, Queue is empty
  • When (rear + 1) MOD n equals front, Queue is full
  • Circular array with capacity n at most can hold n-1 items.

Data Structures in Java, Prof. Gao

implementation for queue
Implementation for Queue

public class ArrayQueuePT {

private final static int DEFAULT_CAPACITY = 100;

// suppose the default capacity for this queue is 100.

private Object queue[ ];

// The array that holds the items

private int rear, front;

// Index of rear, front item in the queue;

}

Data Structures in Java, Prof. Gao

arrayqueuept constructor
ArrayQueuePT Constructor

// Creates a queue with the default capacity

public ArrayQueuePT () {

this(DEFAULT_CAPACITY);

}

// Creates a queue with a user-specified capacity

public ArrayQueuePT (int capacity) {

if (capacity < 2)

throw new IllegalArgumentException ("Capacity must be > 1");

queue = new Object[capacity];

rear = front = 0;

}

Data Structures in Java, Prof. Gao

arrayqueuept size
ArrayQueuePT --- Size()
  • How many items currently in the queue?

public int size() {

if( rear >= front )

return rear – front;

else

return queue.length + rear – front;

}

Data Structures in Java, Prof. Gao

arrayqueuept isempty isfull
ArrayQueuePT --- isEmpty/isFull

// check whether the queue is empty

public boolean isEmpty() {

return rear == front;

}

// check whether the queue is full

public boolean isFull() {

return size() == queue.length-1;

}

Data Structures in Java, Prof. Gao

arrayqueuept enqueue
ArrayQueuePT --- enqueue()

public void enqueue(Object item) {

if (item == null)

throw new IllegalArgumentException ("Item is null");

if (isFull())

throw new IllegalStateException (“Queue is full");

queue[rear] = item;

rear = (rear + 1)%queue.length;

}

Data Structures in Java, Prof. Gao

arrayqueuept dequeue
ArrayQueuePT --- dequeue()

public Object pop( ) {

if (isEmpty())

throw new IllegalStateException (“Queue is empty");

Object frontItem = queue[front];

queue[front] = null;

front = (front + 1)%queue.length;

return frontItem;

}

Data Structures in Java, Prof. Gao

arrayqueuept peek method
ArrayQueuePT peek() Method

public Object peek() {

if (isEmpty())

throw new IllegalStateException (“Queue is empty");

return queue[front];

}

Data Structures in Java, Prof. Gao

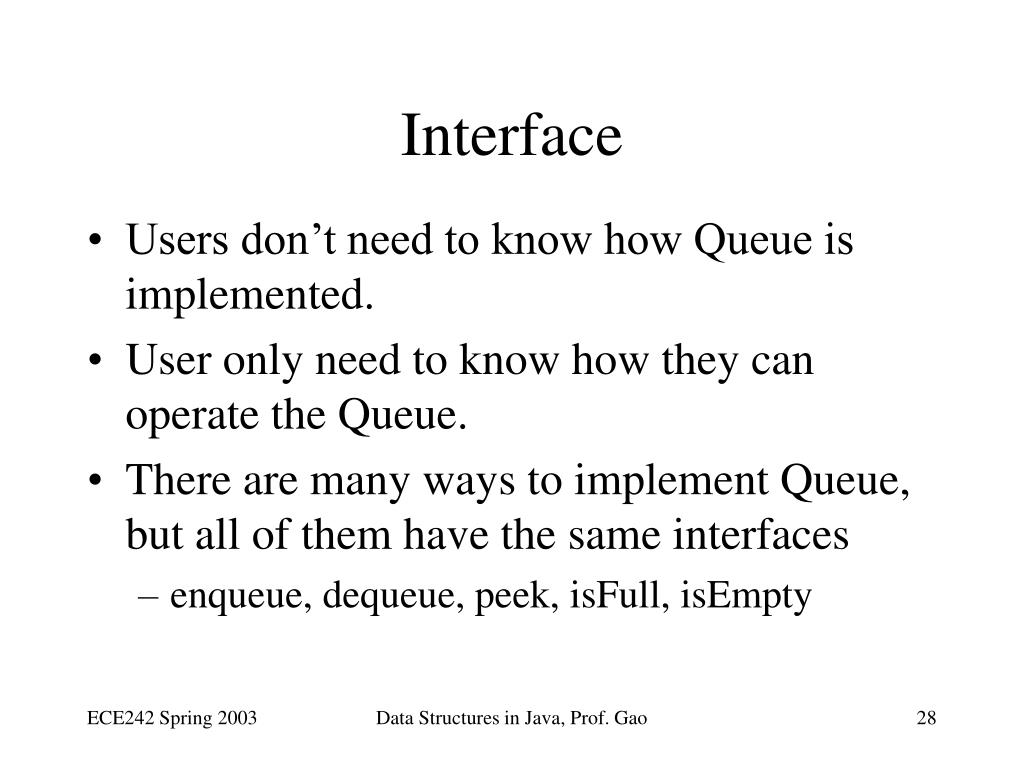

interface
Interface
  • Users don’t need to know how Queue is implemented.
  • User only need to know how they can operate the Queue.
  • There are many ways to implement Queue, but all of them have the same interfaces
    • enqueue, dequeue, peek, isFull, isEmpty

Data Structures in Java, Prof. Gao

interface and implementation class
Interface and Implementation Class
  • Interface contains a skeleton for public operations
    • No real code for each method
    • Like function prototype
  • A class implements interface
    • Implements every method
  • Statement:

public class myclass implements interface {

… …

}

Data Structures in Java, Prof. Gao

interface for queue

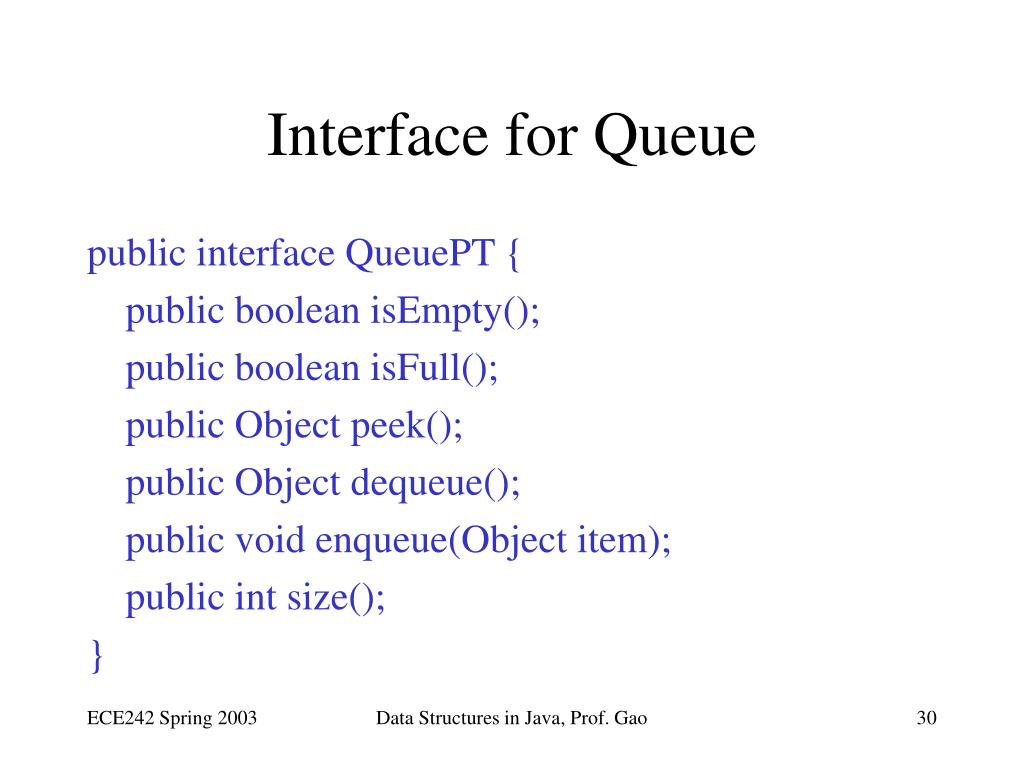

Interface for Queue

public interface QueuePT {

public boolean isEmpty();

public boolean isFull();

public Object peek();

public Object dequeue();

public void enqueue(Object item);

public int size();

}

Data Structures in Java, Prof. Gao

implementation of arrayqueuept class
Implementation of ArrayQueuePT Class
  • Example: QueuePT.java, ArrayQueuePT.java

public class ArrayQueuePT implements QueuePT {

private final static int DEFAULT_CAPACITY = 100;

private Object queue[];// The array holds the queue

private int rear, front;

// Index of rear, front items in queue

Data Structures in Java, Prof. Gao

create an object of arrayqueuept
Create an object of ArrayQueuePT

// create a queue with default capacity

QueuePT myqueue = new ArrayQueuePT();

// create a queue with 1024 elements

QueuePT registry = new ArrayQueuePT(1024);

Data Structures in Java, Prof. Gao

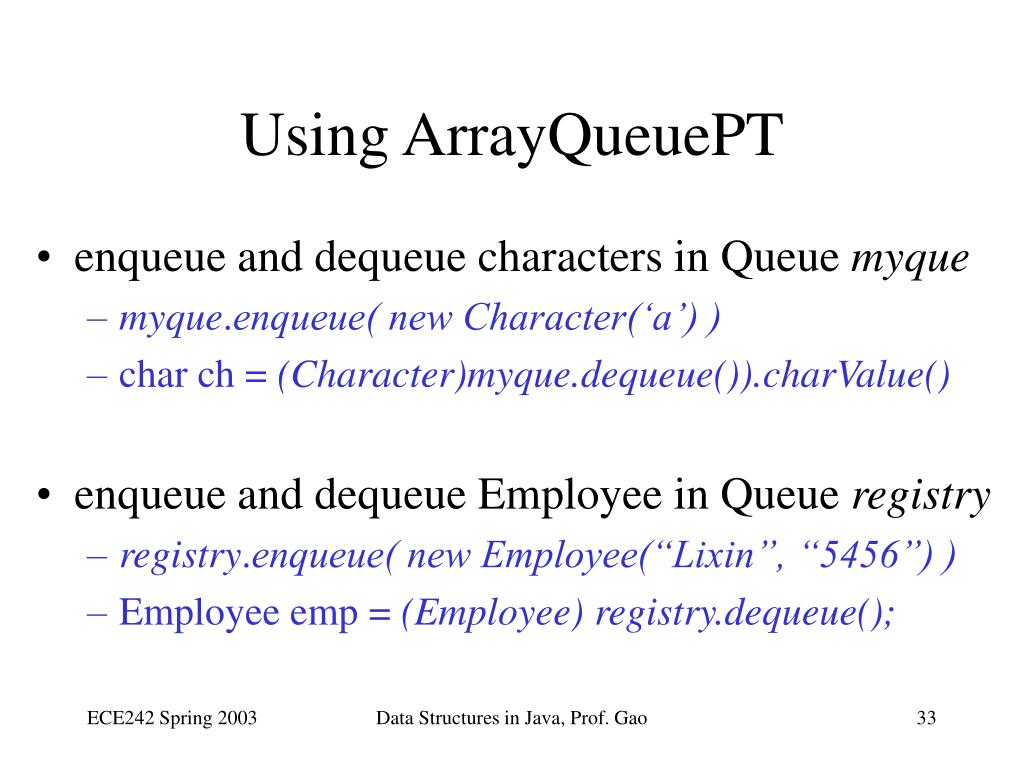

using arrayqueuept
Using ArrayQueuePT
  • enqueue and dequeue characters in Queue myque
    • myque.enqueue( new Character(‘a’) )
    • char ch = (Character)myque.dequeue()).charValue()
  • enqueue and dequeue Employee in Queue registry
    • registry.enqueue( new Employee(“Lixin”, “5456”) )
    • Employee emp = (Employee) registry.dequeue();

Data Structures in Java, Prof. Gao

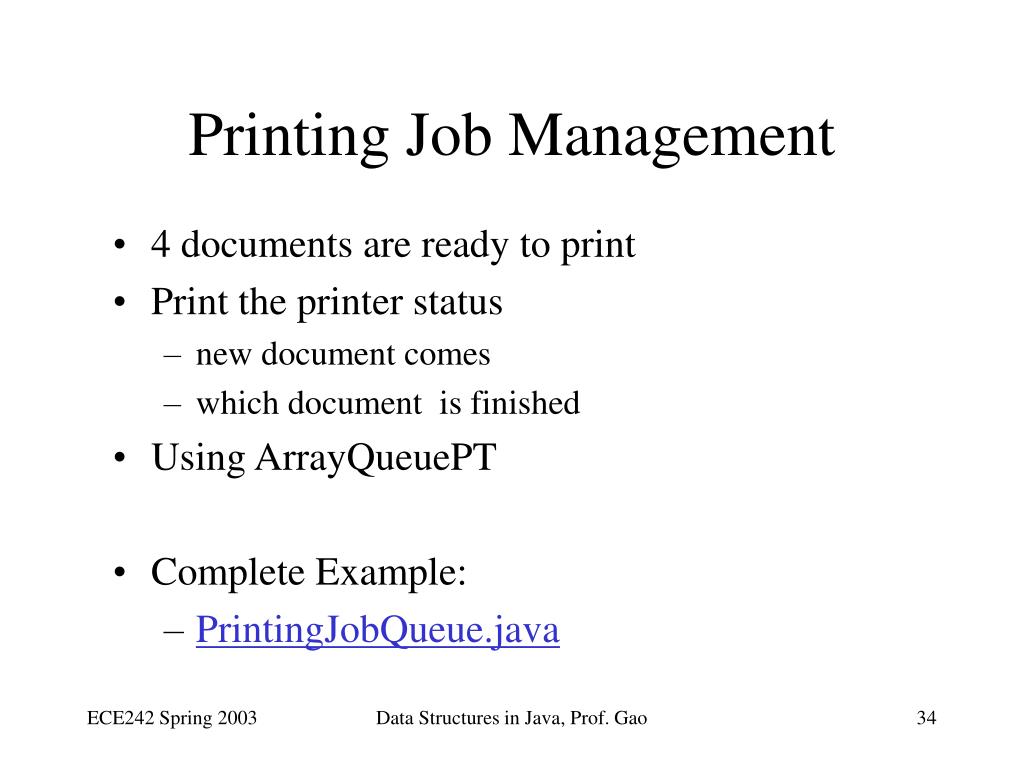

printing job management1
Printing Job Management
  • 4 documents are ready to print
  • Print the printer status
    • new document comes
    • which document is finished
  • Using ArrayQueuePT
  • Complete Example:
    • PrintingJobQueue.java

Data Structures in Java, Prof. Gao

new printing jobs come
New Printing Jobs come

public void printstatus() {

QueuePT que = new ArrayQueuePT( ); //Create a newqueue

System.out.println("Printing job: Null "); //print the printer status

// new printing jobs come, a.doc, b.doc, c.doc, d.doc

System.out.println("New printing job: a.doc");

que.enqueue( "a.doc" );

System.out.println("New printing job: b.doc");

que.enqueue( "b.doc" );

System.out.println("New printing job: c.doc");

que.enqueue( "c.doc" );

System.out.println("New printing job: d.doc");

que.enqueue( "d.doc" );

Data Structures in Java, Prof. Gao

finishing printing jobs
Finishing Printing Jobs

// print the printer status

System.out.println("\nPrinting job: there are "

+ que.size() + " jobs in the queue");

System.out.println(" " + que.dequeue() + " is Finished");

System.out.println(" " + que.dequeue() + " is Finished");

System.out.println(" " + que.dequeue() + " is Finished");

System.out.println(" " + que.dequeue() + " is Finished");

}

Data Structures in Java, Prof. Gao

customer service in fleet bank
Customer Service In Fleet Bank
  • Suppose there is only one customer service available in Fleet Bank in Saturday morning
  • In every 3 minutes, a new customer arrives at the end of waiting line
  • Each customer will need 5 minutes for the service
  • Print out the information after the first 30 minutes
    • The time of arriving and leaving for each customers
    • How many customers are in the line?
    • Who is the current serving customer?

Data Structures in Java, Prof. Gao

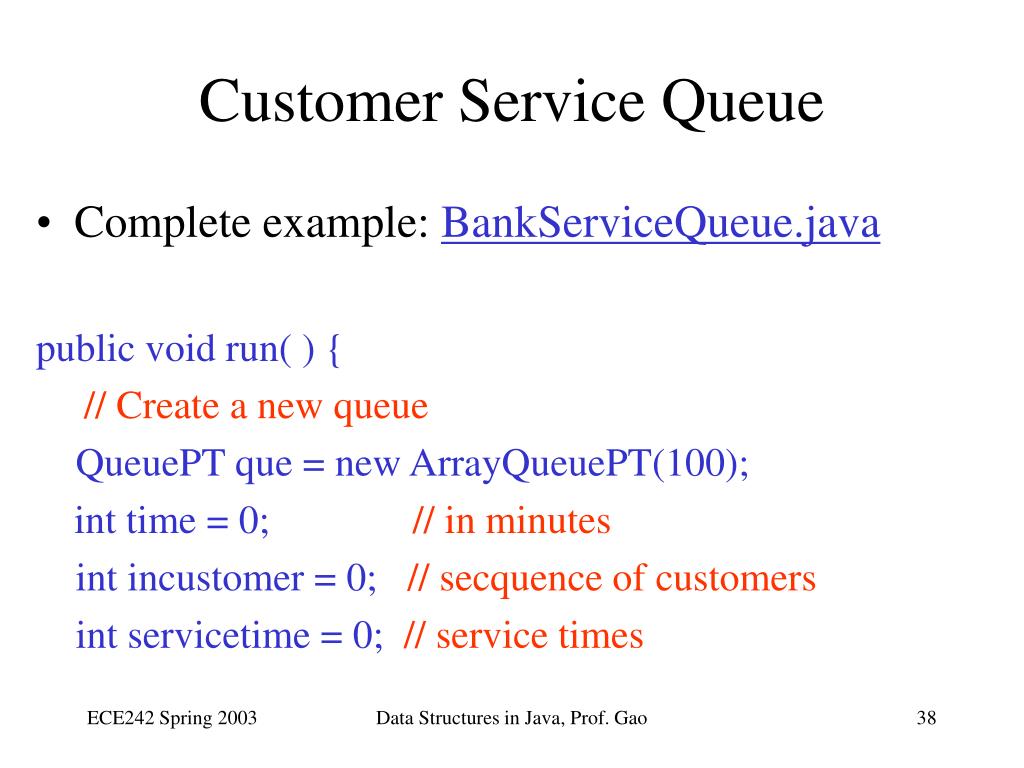

customer service queue
Customer Service Queue
  • Complete example: BankServiceQueue.java

public void run( ) {

// Create a new queue

QueuePT que = new ArrayQueuePT(100);

int time = 0;// in minutes

int incustomer = 0;// secquence of customers

int servicetime = 0;// service times

Data Structures in Java, Prof. Gao

customer in service
Customer In Service

// what's going on in 30 minutes

while ( time <= 30 ) {

// if queue is not empty, one customer service is working

if( que.size()!=0 ) {

servicetime = servicetime + 1;

// customer leaves when finishing the service, the service time is 5 minutes

if( servicetime == 5 ) {

String name = (String)que.dequeue();

System.out.println("<< " + name + " leaves at time = " + time);

// start to service time for next customer

servicetime = 0;

}

}

Data Structures in Java, Prof. Gao

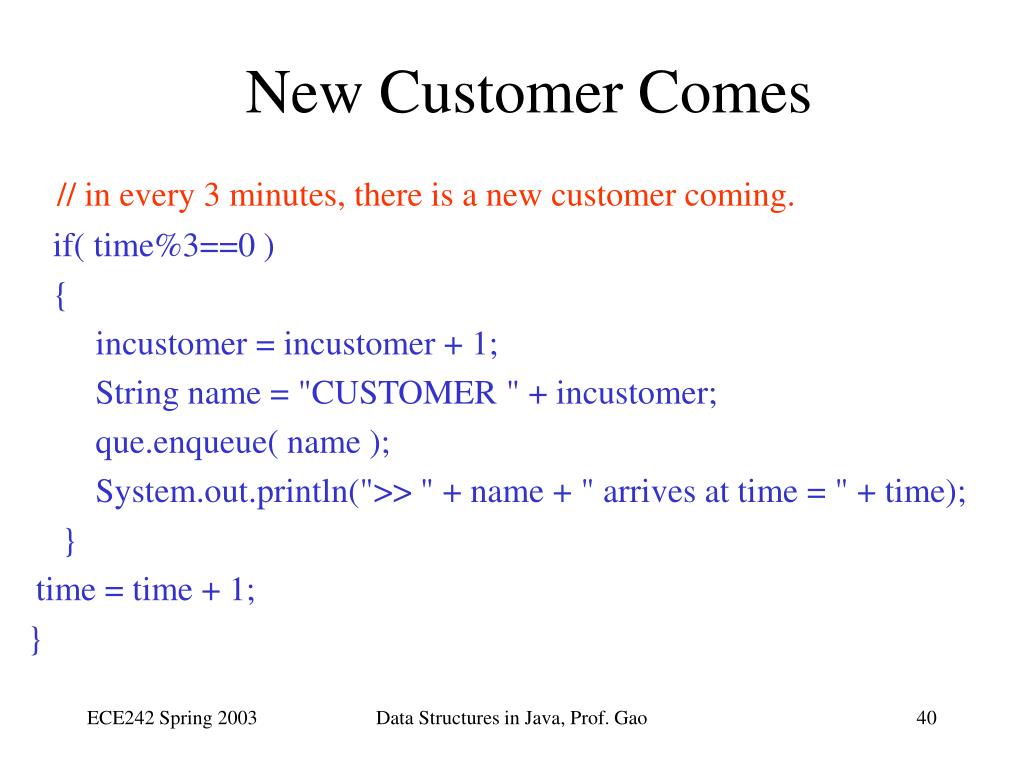

new customer comes
New Customer Comes

// in every 3 minutes, there is a new customer coming.

if( time%3==0 )

{

incustomer = incustomer + 1;

String name = "CUSTOMER " + incustomer;

que.enqueue( name );

System.out.println(">> " + name + " arrives at time = " + time);

}

time = time + 1;

}

Data Structures in Java, Prof. Gao

print status after 30 minutes
Print Status After 30 Minutes

// print the status after 30 minutes

System.out.println("\n==========================" );

if( que.size()!=0 )

{

System.out.println("There are " + que.size() + " customers in the line" );

System.out.println("The current serving customer is " + que.peek() );

}

else

{

System.out.println("There are no customers in the line" );

}

}

Data Structures in Java, Prof. Gao

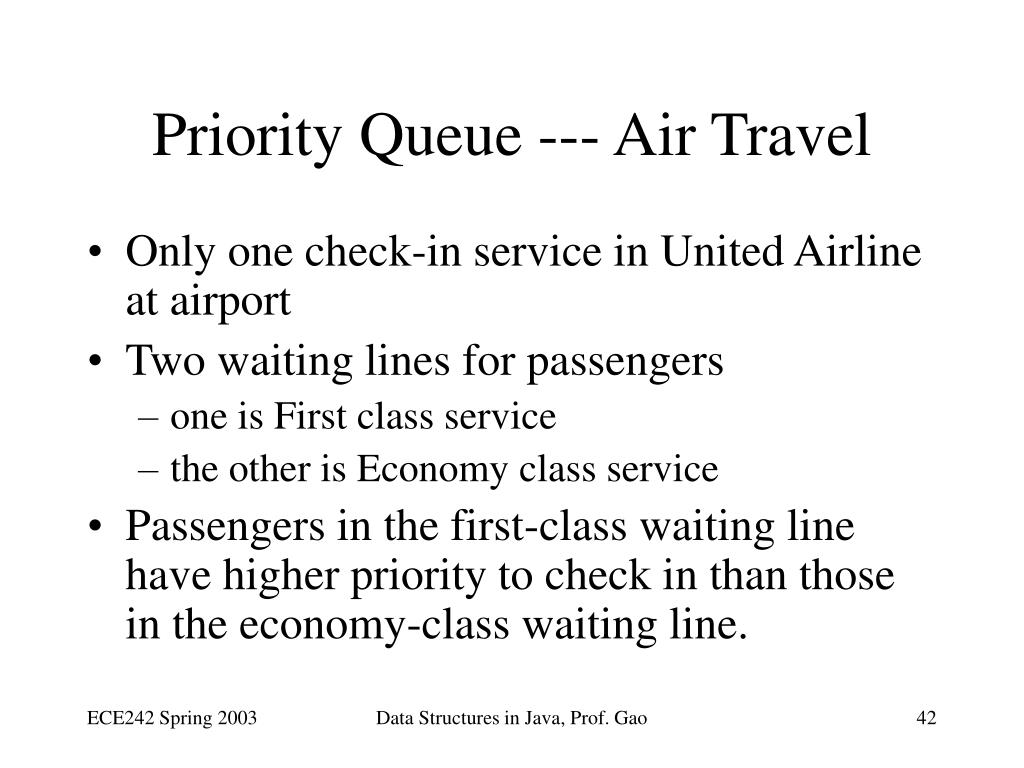

priority queue air travel
Priority Queue --- Air Travel
  • Only one check-in service in United Airline at airport
  • Two waiting lines for passengers
    • one is First class service
    • the other is Economy class service
  • Passengers in the first-class waiting line have higher priority to check in than those in the economy-class waiting line.

Data Structures in Java, Prof. Gao

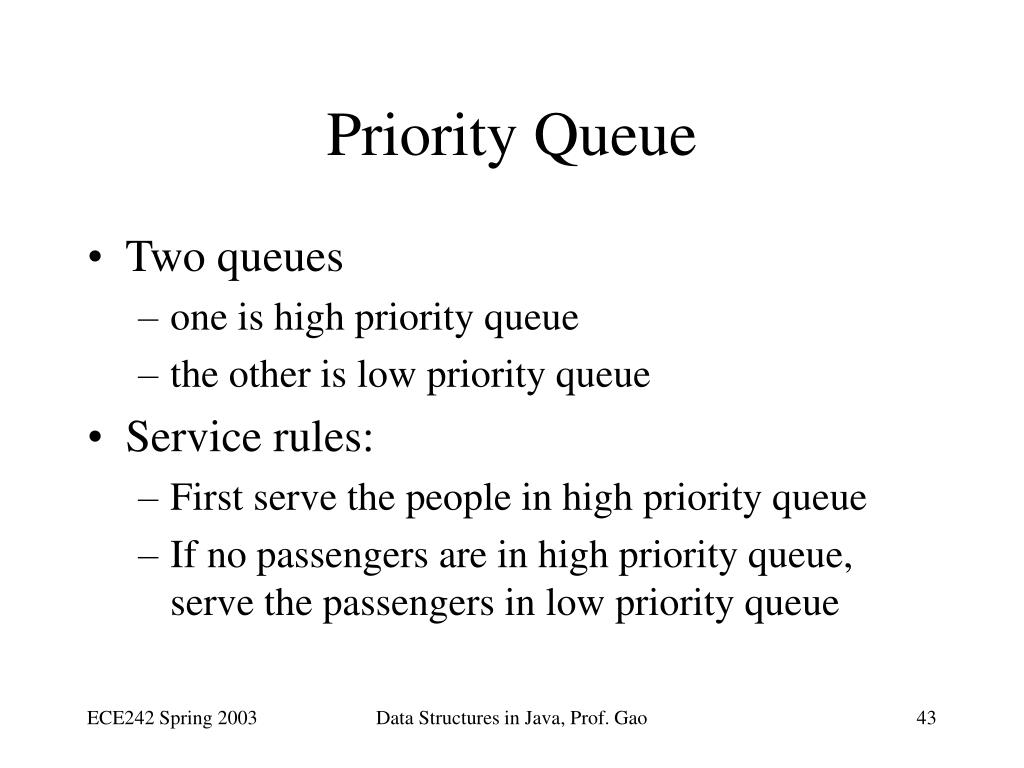

priority queue
Priority Queue
  • Two queues
    • one is high priority queue
    • the other is low priority queue
  • Service rules:
    • First serve the people in high priority queue
    • If no passengers are in high priority queue, serve the passengers in low priority queue

Data Structures in Java, Prof. Gao

two queues
Two Queues
  • High Priority Queue, will come in hpQue
  • Low Priority Queue, will come in lpQue

High Priority Queue

Check In

Customers coming in

H

D

C

G

F

E

B

A

Low Priority Queue

Data Structures in Java, Prof. Gao

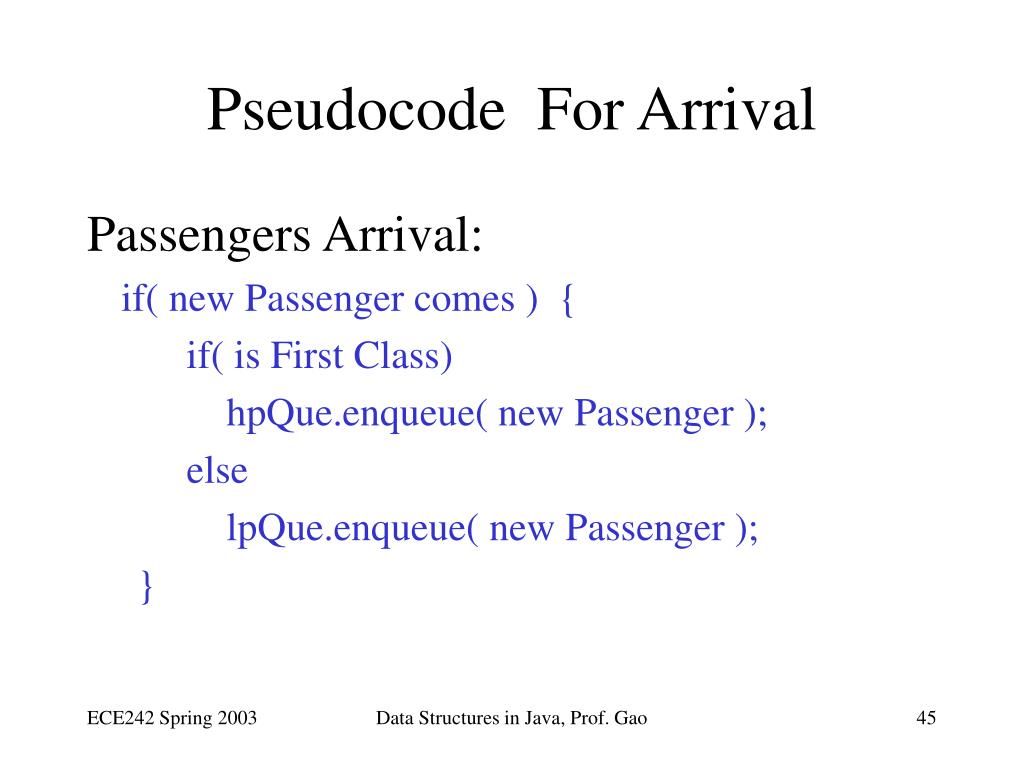

pseudocode for arrival
Pseudocode For Arrival

Passengers Arrival:

if( new Passenger comes ) {

if( is First Class)

hpQue.enqueue( new Passenger );

else

lpQue.enqueue( new Passenger );

}

Data Structures in Java, Prof. Gao

pseudocode for service
Pseudocode For Service

Check-In Service:

if( hpQue is not empty ) {

serve the passenger from high priority queue,

hpQue.dequeue();

}

else {

serve the passenger from low priority queue,

lpQue.dequeue();

}

Data Structures in Java, Prof. Gao
