control of early cracking of concrete bridge decks compaction and durability of concrete

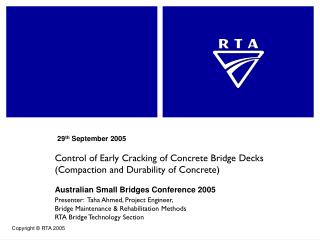

29th September 2005

Control of Early Cracking of Concrete Bridge Decks (Compaction and Durability of Concrete)

Presenter: Taha Ahmed, Project Engineer,

Bridge Maintenance & Rehabilitation Methods

RTA Bridge Technology Section

Australian Small Bridges Conference 2005

control of early cracking of concrete bridge decks a case study
Control of Early Cracking of Concrete Bridge Decks - A Case Study

Contents

  • Background
  • Concrete cracking – causes and consequences
  • Early cracking – mitigation strategies
  • Case study – Four Mile Creek Bridge
    • Description of the bridge
    • Construction practices adopted
    • Instrumentation and data logging
    • Data analysis and deck inspections
    • Conclusions
control of early cracking of concrete bridge decks a case study3
Control of Early Cracking of Concrete Bridge Decks - A Case Study

Background

Bridge Over Plain Creek, 22 km NE Dubbo, Golden HWY

control of early cracking of concrete bridge decks a case study4
Control of Early Cracking of Concrete Bridge Decks - A Case Study

Background

Macksville Bridge Over Nambucca River 52.49 km N Kempsey

control of early cracking of concrete bridge decks a case study5
Control of Early Cracking of Concrete Bridge Decks - A Case Study

Background

  • Cracks diminish durability & structural integrity
  • Cracking commences within first few days
  • Visible cracks in concrete decks within first year
  • Early cracking is the single most prevalent problem
  • Many RTA controlled bridges suffer deck cracking
  • 100,000 bridges suffer early deck cracking in USA
  • RTA requires deck waterproofing & surfacing
control of early cracking of concrete bridge decks a case study6
Control of Early Cracking of Concrete Bridge Decks - A Case Study

Concrete Cracking

  • Main causes of cracking
    • Physical changes (temperature and moisture)
    • Structural loadings
    • Chemical reactions
  • Main components of early cracking :
    • Plastic settlement
    • Plastic shrinkage
    • Thermal shrinkage
control of early cracking of concrete bridge decks a case study7
Control of Early Cracking of Concrete Bridge Decks - A Case Study

Early Cracking – Mitigation Strategies

  • Concrete mix design (mix engineer)
    • W/c and cement content/type
    • Aggregate type and size
    • Supplementary cementitious materials
  • Structural design (design engineer)
    • End restraint and support stiffness
    • Deck reinforcement and thickness
    • Bridge articulation
  • Construction practices (contractor/ project manager)
    • Compaction/ finishing/curing
    • Control of rates of heating/cooling & evaporation
control of early cracking of concrete bridge decks a case study8
Control of Early Cracking of Concrete Bridge Decks - A Case Study

Description of the 4 Mile Creek Bridge

control of early cracking of concrete bridge decks a case study9
Control of Early Cracking of Concrete Bridge Decks - A Case Study

Construction Practices - 4Mile Creek Bridge

  • Control concrete placement and compaction
  •  Prior placement and curing of shear keys
  • Attention to construction joints
  • Use of vibrating screed
  • Continuous steel bull floating before broom finish
  • Protection of fresh concrete from evaporation
  • Wet-cure deck by soaker hoses over hessian
  • Apply thermal insulation
    • 60 mm Glasswool Anticon roofing blanket (foil side upward)
    • Two 0.3 mm black polyethylene sheets
control of early cracking of concrete bridge decks a case study10
Control of Early Cracking of Concrete Bridge Decks - A Case Study

Construction Practices - 4Mile Creek Bridge

  • Four Mile Creek Bridge
control of early cracking of concrete bridge decks a case study11
Control of Early Cracking of Concrete Bridge Decks - A Case Study

Instrumentation - 4Mile Creek Bridge

  • Thermocouples
    • 22 k-type wire thermocouples (+/- 1C)
    • 6 locations, top & bottom reo
    • Two locations with temperature profile
  • Strain gauges
    • 12 Vishay EGP-120 wire resistance (+/-10ms)
    • 6 locations, top & bottom reo
  • Dataloggers
    • 2 Series 3 DataTakers
  • Instrumentation box
control of early cracking of concrete bridge decks a case study12
Control of Early Cracking of Concrete Bridge Decks - A Case Study

Instrumentation - 4Mile Creek Bridge

control of early cracking of concrete bridge decks a case study14
Control of Early Cracking of Concrete Bridge Decks - A Case Study

Data Analysis - 4Mile Creek Bridge

  • Temperature monitoring
    • Placement temp. was 11C ( 20/5.5C max/min)
    • RH 77%, no wind speed recorded (calm)
    • Following two days temps were 20/4.5 C &17/8C
    • Average temp over 7 days was 17/6.5C.
    • Max rise in deck temp 11C at 12 hrs
    • Max temp difference in deck 4C at 12 hrs
    • Deck temp almost uniform, 19C at 7 days
    • Max gradient in planks 14C at 12hrs, 6C at 48hrs almost zero at 7 days
slide19

Data Analysis - 4Mile Creek Bridge

  • Strain monitoring
    • Strains recorded at top and bottom reo only
    • Strains were negative, i.e. shrinkage
    • Strains peaked to 150 ms at 24 hrs
    • Successive peaks at noon gradually decreasing
    • Max strain of 80 ms at 7days
    • Strain gradient, top and bottom, 30 ms at 48hrs
    • Strain gradient insignificant at 7 days
slide24

Data Analysis - 4Mile Creek Bridge

  • Crack monitoring
    • No visible cracks at 7 days
    • No visible cracks at “28” days
    • Link slab cracks of 0.12 mm at 4 months
    • <0.025 cracks in deck outside link slabs
control of early cracking of concrete bridge decks a case study29
Control of Early Cracking of Concrete Bridge Decks - A Case Study

Crack monitoring – 4 Months

Crazing in Span 1 < 0.025 mm

Longitudinal crack 0.05 – 0.075 mm in Span1-Span2 Infill

Longitudinal Crack 0.025 mm in Span1

control of early cracking of concrete bridge decks a case study30
Control of Early Cracking of Concrete Bridge Decks - A Case Study

Crack monitoring – 4 Months

Longitudinal Crack 0.05 – 0.075 mm in Span2-Span3 Infill

Longitudinal Crack <0.025 mm in Span 2

Longitudinal Crack 0.1 – 0.12 mm in Span2 –Span 3 Infill

control of early cracking of concrete bridge decks a case study31
Control of Early Cracking of Concrete Bridge Decks - A Case Study

Conclusions

  • Bridge Technology’s construction practices adopted have alleviated early deck cracking.
  • Further refinement of construction practices is required especially the way link slabs are constructed.
  • Further refinement of bridge design is required
