Planystech offers inspection assistance for immersed structures, including piers, bridges, water control structures, water tank interiors, waterfront structures, and sub-aqueous pipelines. Weu2019re the leading underwater bridge inspection companies service to find out the circumstances can be quite short on structures, posing extraordinary challenges to inspectors who must assess scour, temporal conditions, or construction. Planystech services include dam safety inspection and condition and structure inspection. website:https://www.planystech.com/cases/pier-inspection/

Asmshake
Download Presentation

Planystech

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

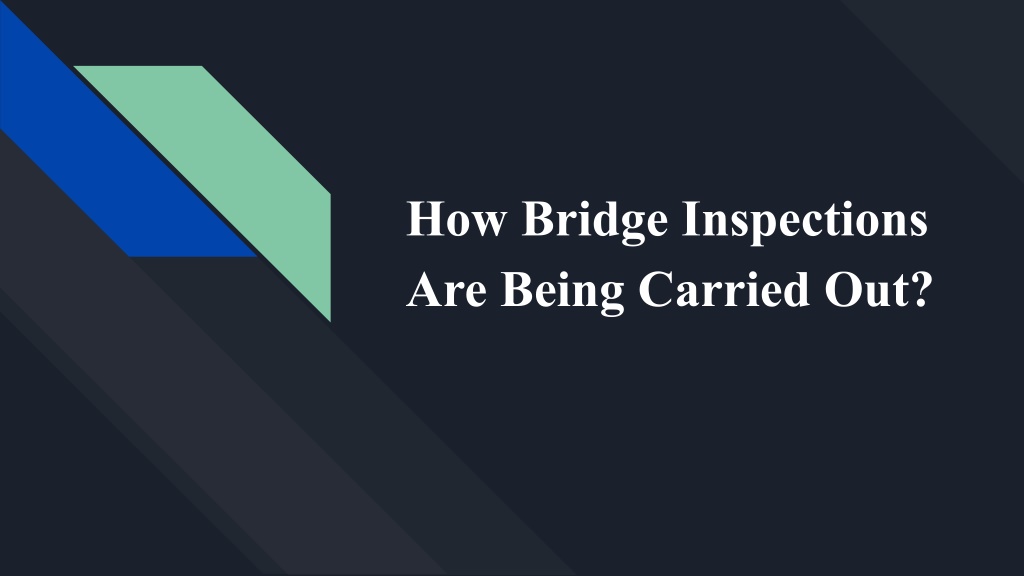

  1. How Bridge Inspections Are Being Carried Out?

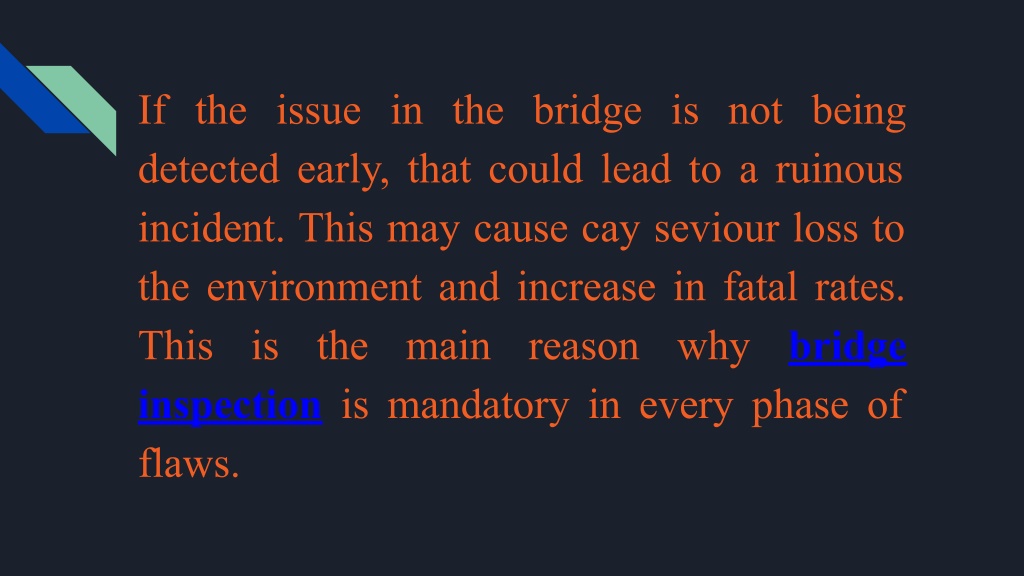

  2. If the issue in the bridge is not being detected early, that could lead to a ruinous incident. This may cause cay seviour loss to the environment and increase in fatal rates. This is the main reason why bridge inspection is mandatory in every phase of flaws.

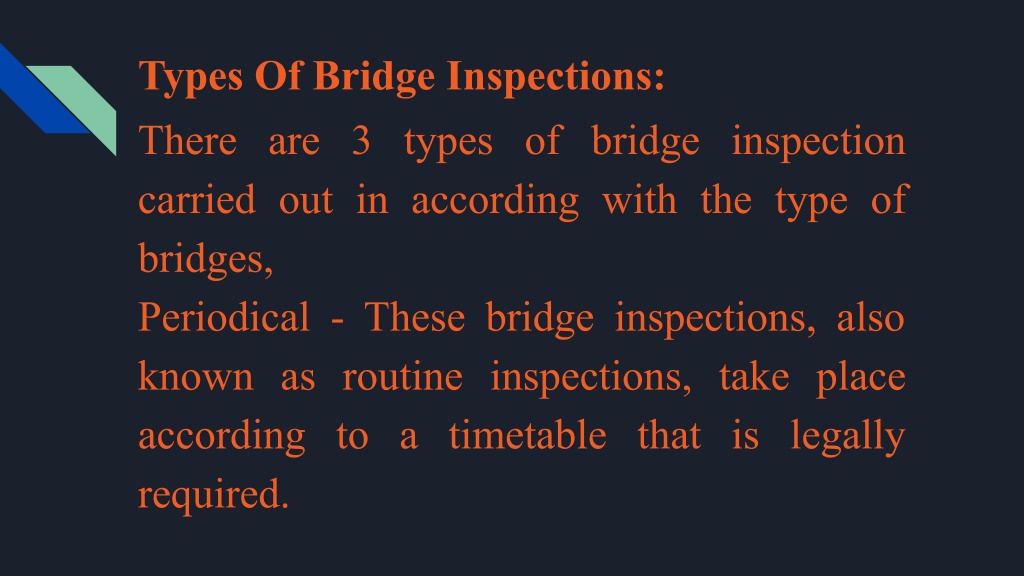

  3. Types Of Bridge Inspections: There are 3 types of bridge inspection carried out in according with the type of bridges, Periodical - These bridge inspections, also known as routine inspections, take place according to a timetable that is legally required.

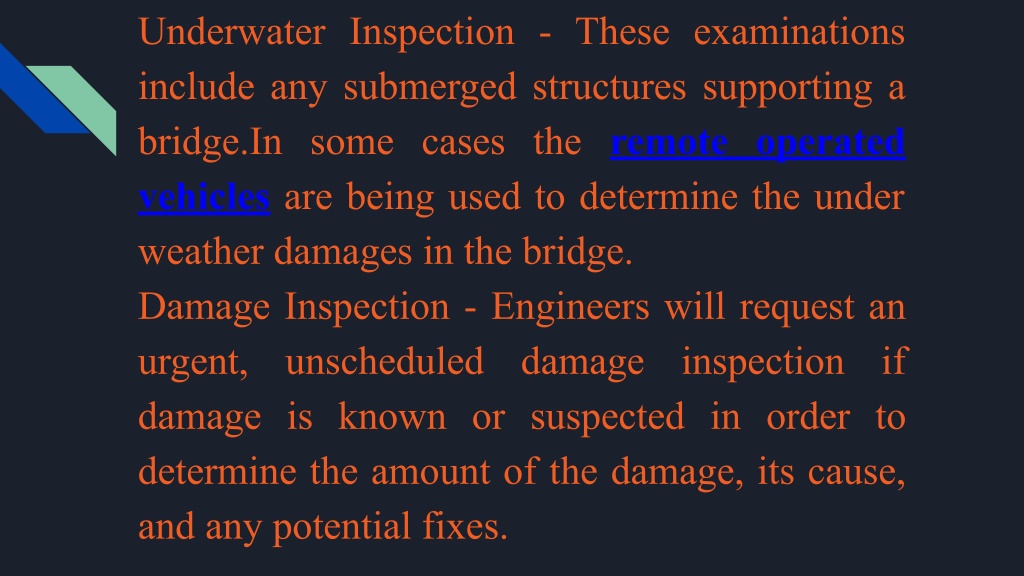

  4. Underwater Inspection - These examinations include any submerged structures supporting a bridge.In some cases the remote operated vehicles are being used to determine the under weather damages in the bridge. Damage Inspection - Engineers will request an urgent, unscheduled damage inspection if damage is known or suspected in order to determine the amount of the damage, its cause, and any potential fixes.

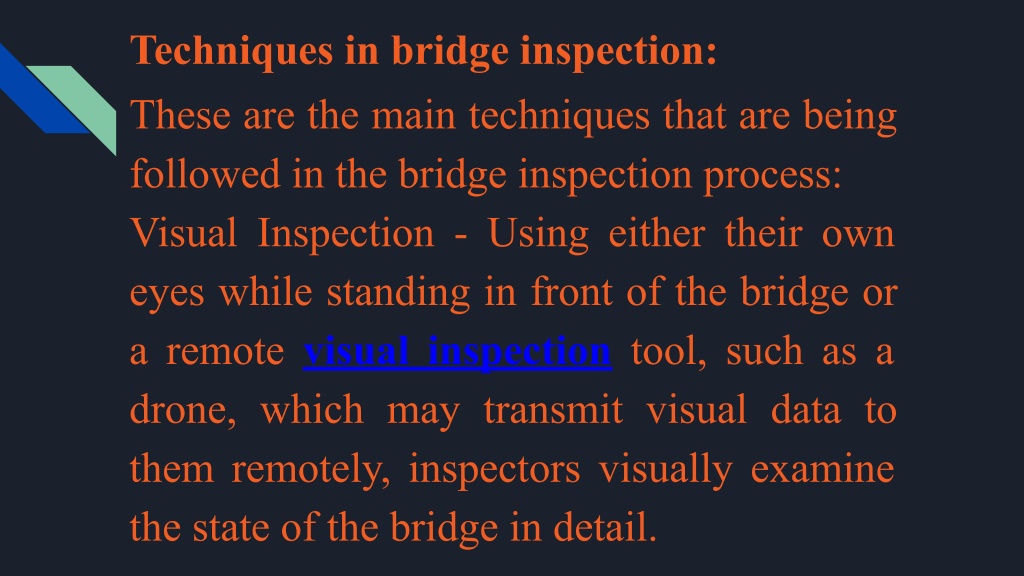

  5. Techniques in bridge inspection: These are the main techniques that are being followed in the bridge inspection process: Visual Inspection - Using either their own eyes while standing in front of the bridge or a remote visual inspection tool, such as a drone, which may transmit visual data to them remotely, inspectors visually examine the state of the bridge in detail.

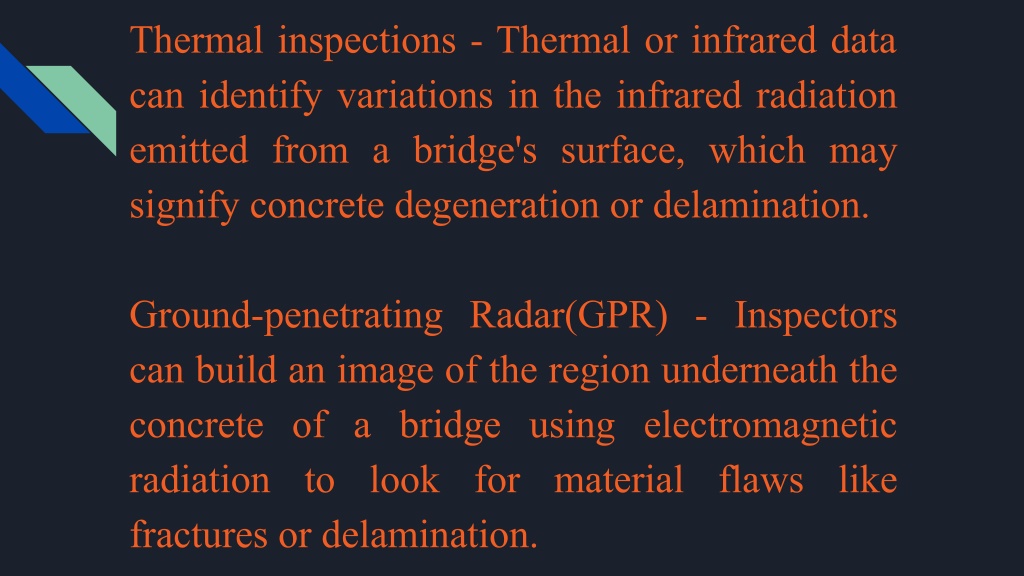

  6. Thermal inspections - Thermal or infrared data can identify variations in the infrared radiation emitted from a bridge's surface, which may signify concrete degeneration or delamination. Ground-penetrating Radar(GPR) - Inspectors can build an image of the region underneath the concrete of a bridge using electromagnetic radiation to look for material flaws like fractures or delamination.

  7. Thank you
