27 What is set screw

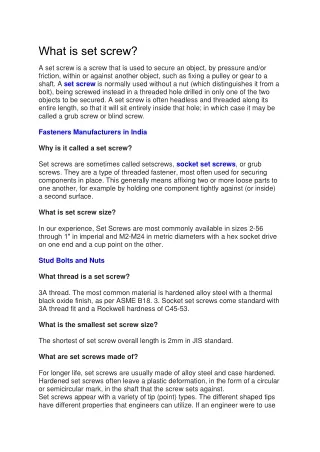

1. What is set screw? A set screw is a screw that is used to secure an object, by pressure and/or friction, within or against another object, such as fixing a pulley or gear to a shaft. A set screw is normally used without a nut (which distinguishes it from a bolt), being screwed instead in a threaded hole drilled in only one of the two objects to be secured. A set screw is often headless and threaded along its entire length, so that it will sit entirely inside that hole; in which case it may be called a grub screw or blind screw. Fasteners Manufacturers in India Why is it called a set screw? Set screws are sometimes called setscrews, socket set screws, or grub screws. They are a type of threaded fastener, most often used for securing components in place. This generally means affixing two or more loose parts to one another, for example by holding one component tightly against (or inside) a second surface. What is set screw size? In our experience, Set Screws are most commonly available in sizes 2-56 through 1″ in imperial and M2-M24 in metric diameters with a hex socket drive on one end and a cup point on the other. Stud Bolts and Nuts What thread is a set screw? 3A thread. The most common material is hardened alloy steel with a thermal black oxide finish, as per ASME B18. 3. Socket set screws come standard with 3A thread fit and a Rockwell hardness of C45-53. What is the smallest set screw size? The shortest of set screw overall length is 2mm in JIS standard. What are set screws made of? For longer life, set screws are usually made of alloy steel and case hardened. Hardened set screws often leave a plastic deformation, in the form of a circular or semicircular mark, in the shaft that the screw sets against. Set screws appear with a variety of tip (point) types. The different shaped tips have different properties that engineers can utilize. If an engineer were to use

2. a detent to ensure proper nesting of the screw, they might choose to use a cone point type of screw. One might often need to use a flat point when the screw must press perfectly flat against a surface. The most common type is the cup point. This type works well because the surface is rounded so that a small surface area is in contact, but it does not have extremely high stress at one point like that of a cone point. Durability studies show that the cup point offers superior resistance to wear while maintaining a strong grip. Knurled cup points offer the added advantage of a locking action (similar to that of a serrated lock washer) that prevents the screws from working loose in high-vibration applications. Common points include the following: Flat point Domed point Cone point Cup point Extended point (pilot point, dog point) Knurled cup point
