Ants Prosys High Performance Muffle Furnace

Advanced 1600u00b0C capacity with dual-body MoSi2 heating system designed for demanding materials research and thermal processing applications.

Antslab
Download Presentation

Ants Prosys High Performance Muffle Furnace

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Ants Prosys High Performance Muffle Furnace Advanced 1600°C capacity with dual-body MoSi2 heating system designed for demanding materials research and thermal processing applications. www.antslab.in

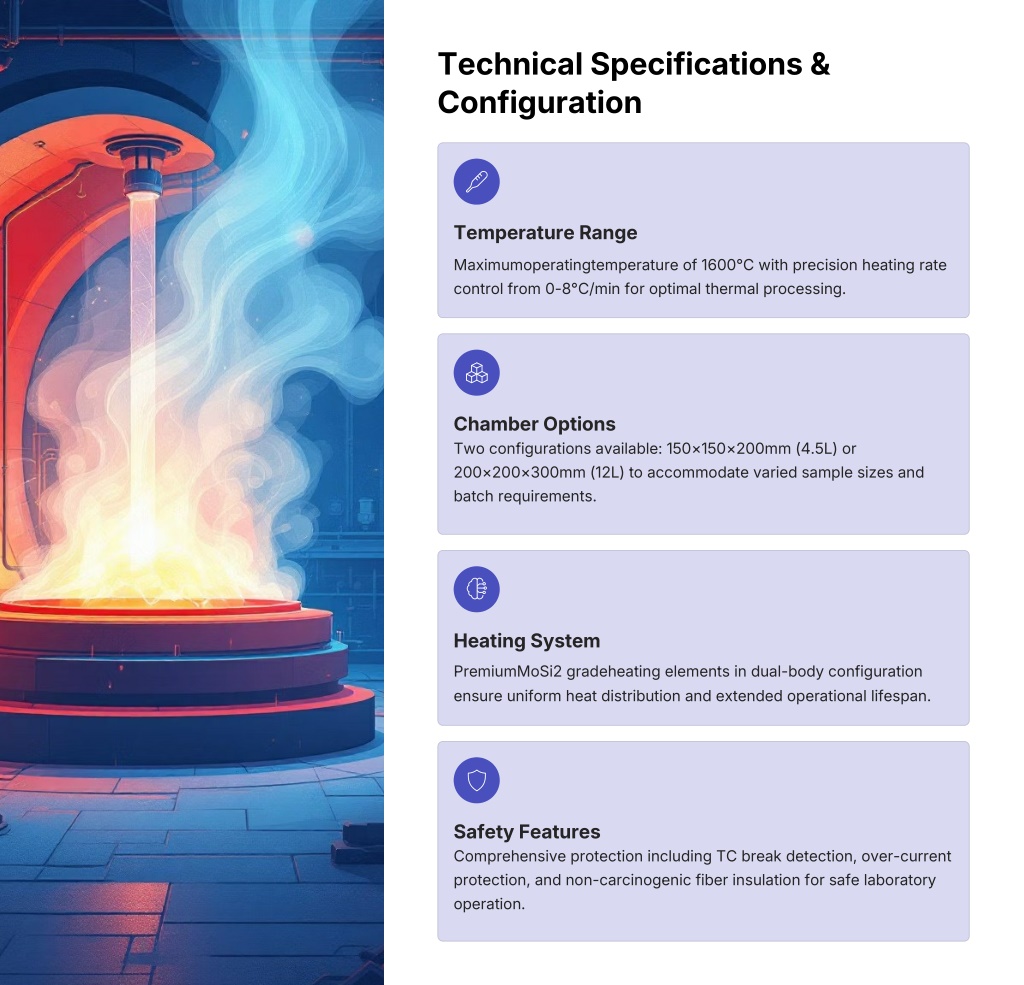

  2. Technical Specifications & Configuration Temperature Range Maximumoperatingtemperature of 1600°C with precision heating rate control from 0-8°C/min for optimal thermal processing. Chamber Options Two configurations available: 150×150×200mm (4.5L) or 200×200×300mm (12L) to accommodate varied sample sizes and batch requirements. Heating System PremiumMoSi2 gradeheating elements in dual-body configuration ensure uniform heat distribution and extended operational lifespan. Safety Features Comprehensive protection including TC break detection, over-current protection, and non-carcinogenic fiber insulation for safe laboratory operation.

  3. Product Details & Ordering Information Manufacturer Details Brand: antsProsys OEM: Ants Innovations Pvt Ltd Origin: Made in India Warranty: 1 year comprehensive coverage Build Quality Robustmildsteelconstruction with durable powder coating finish Compact footprint: 540W × 785H × 610D mm Non-carcinogenic fiberinsulation for thermal efficiency Delivery Timeline Advanced Control Standardlead timeof6-8weeks from order confirmation to ensure quality manufacturing and thorough testing protocols. PIDcontroller with30-segment programming capability Customizable ramping, cooling, and dwelling profiles Precise temperature management for complex thermal cycles Contact our technical team for custom configurations, installation support, and application- specific recommendations.
