spoken dialogue systems

Spoken Dialogue Systems

Bob Carpenter and Jennifer Chu-Carroll

June 20, 1999

tutorial overview data flow
Tutorial Overview: Data Flow

Part I

Part II

Semantic

Interpretation

Signal

Processing

Speech

Recognition

Discourse

Interpretation

Dialogue

Management

Speech

Synthesis

Response

Generation

speech and audio processing
Speech and Audio Processing
  • Signal processing:
    • Convert the audio wave into a sequence of feature vectors
  • Speech recognition:
    • Decode the sequence of feature vectors into a sequence of words
  • Semantic interpretation:
    • Determine the meaning of the recognized words
  • Speech synthesis:
    • Generate synthetic speech from a marked-up word string
tutorial overview outline
Part I

Signal processing

Speech recognition

acoustic modeling

language modeling

decoding

Semantic interpretation

Speech synthesis

Part II

Discourse and dialogue

Discourse interpretation

Dialogue management

Response generation

Dialogue evaluation

Data collection

Tutorial Overview: Outline
acoustic waves
Acoustic Waves
  • Human speech generates a wave
    • like a loudspeaker moving
  • A wave for the words “speech lab” looks like:

s p ee ch l a b

“l” to “a”

transition:

Graphs from Simon Arnfield’s web tutorial on speech, Sheffield:

http://lethe.leeds.ac.uk/research/cogn/speech/tutorial/

acoustic sampling
Acoustic Sampling
  • 10 ms frame (ms = millisecond = 1/1000 second)
  • ~25 ms window around frame to smooth signal processing

25 ms

. . .

10ms

Result:

Acoustic Feature Vectors

a1 a2 a3

spectral analysis
Spectral Analysis
  • Frequency gives pitch; amplitude gives volume
    • sampling at ~8 kHz phone, ~16 kHz mic (kHz=1000 cycles/sec)
  • Fourier transform of wave yields a spectrogram
    • darkness indicates energy at each frequency
    • hundreds to thousands of frequency samples

s p ee ch l a b

amplitude

frequency

acoustic features mel scale filterbank
Acoustic Features: Mel Scale Filterbank
  • Derive Mel Scale Filterbank coefficients
  • Mel scale:
    • models non-linearity of human audio perception
    • mel(f) = 2595 log10(1 + f / 700)
    • roughly linear to 1000Hz and then logarithmic
  • Filterbank
    • collapses large number of FFT parameters by filtering with ~20 triangular filters spaced on mel scale

...

frequency

m1 m2m3 m4 m5 m6

coefficients

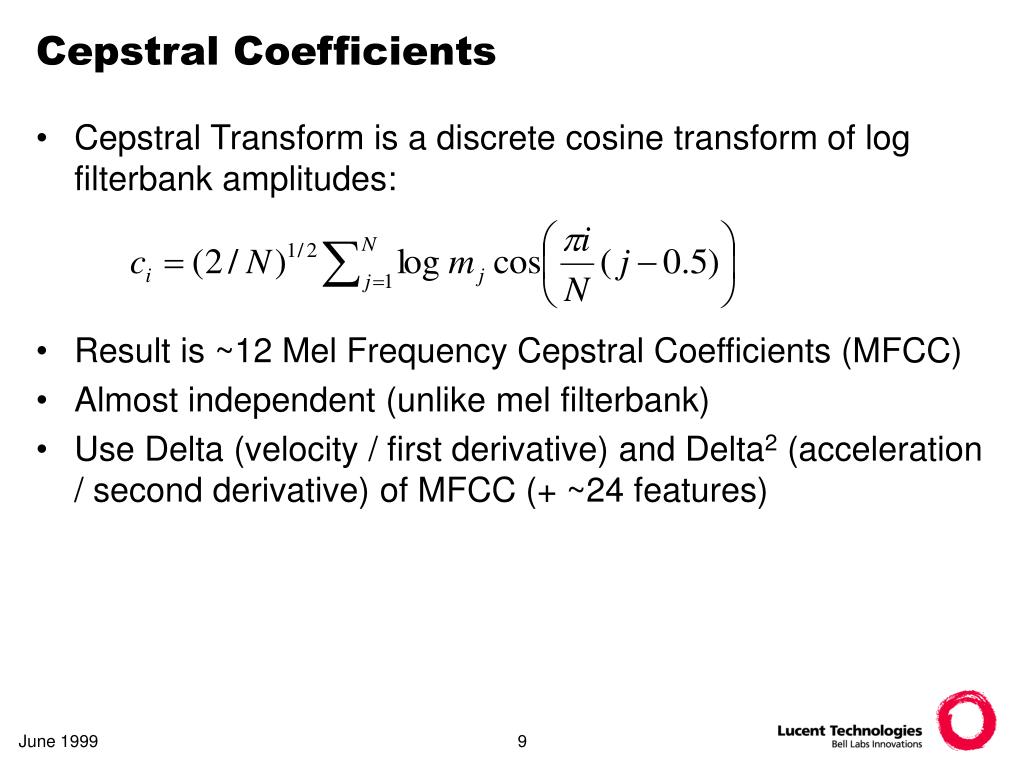

cepstral coefficients
Cepstral Coefficients
  • Cepstral Transform is a discrete cosine transform of log filterbank amplitudes:
  • Result is ~12 Mel Frequency Cepstral Coefficients (MFCC)
  • Almost independent (unlike mel filterbank)
  • Use Delta (velocity / first derivative) and Delta2 (acceleration / second derivative) of MFCC (+ ~24 features)
additional signal processing
Additional Signal Processing
  • Pre-emphasis prior to Fourier transform to boost high level energy
  • Liftering to re-scale cepstral coefficients
  • Channel Adaptation to deal with line and microphone characteristics (example: cepstral mean normalization)
  • Echo Cancellation to remove background noise (including speech generated from the synthesizer)
  • Adding a Total (log) Energy feature (+/- normalization)
  • End-pointing to detect signal start and stop
tutorial overview outline11
Part I

Signal processing

Speech recognition

acoustic modeling

language modeling

decoding

Semantic interpretation

Speech synthesis

Part II

Discourse and dialogue

Discourse interpretation

Dialogue management

Response generation

Dialogue evaluation

Data collection

Tutorial Overview: Outline
properties of recognizers
Properties of Recognizers
  • Speaker Independent vs. Speaker Dependent
  • Large Vocabulary (2K-200K words) vs. Limited Vocabulary (2-200)
  • Continuous vs. Discrete
  • Speech Recognition vs. Speech Verification
  • Real Time vs. multiples of real time
  • Spontaneous Speech vs. Read Speech
  • Noisy Environment vs. Quiet Environment
  • High Resolution Microphone vs. Telephone vs. Cellphone
  • Adapt to speaker vs. non-adaptive
  • Low vs. High Latency
  • With online incremental results vs. final results

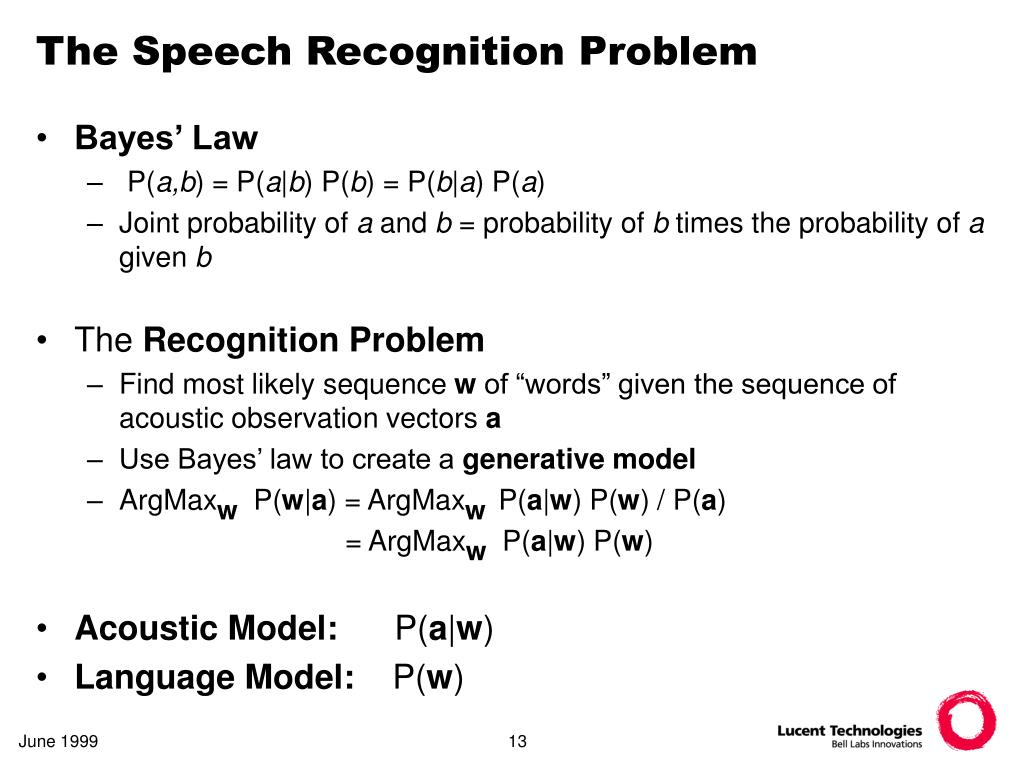

the speech recognition problem
The Speech Recognition Problem
  • Bayes’ Law
    • P(a,b) = P(a|b) P(b) = P(b|a) P(a)
    • Joint probability of a and b = probability of b times the probability of a given b
  • The Recognition Problem
    • Find most likely sequence w of “words” given the sequence of acoustic observation vectors a
    • Use Bayes’ law to create a generative model
    • ArgMaxwP(w|a) = ArgMaxw P(a|w) P(w) / P(a)

= ArgMaxw P(a|w) P(w)

  • Acoustic Model: P(a|w)
  • Language Model: P(w)
tutorial overview outline14
Part I

Signal processing

Speech recognition

acoustic modeling

language modeling

decoding

Semantic interpretation

Speech synthesis

Part II

Discourse and dialogue

Discourse interpretation

Dialogue management

Response generation

Dialogue evaluation

Data collection

Tutorial Overview: Outline
hidden markov models hmms
Hidden Markov Models (HMMs)
  • HMMs provide generative acoustic models P(a|w)
  • probabilistic, non-deterministic finite-state automaton
    • state n generates feature vectors with density Pn
    • transitions from state j to n are probabilistic Pj,n

P1,1

P2,2

P3,3

P1(.)

P2(.)

P3(.)

P1,2

P2,3

P3,4

hmms single gaussian distribution

P1,1

P2,2

P3,3

P1,2

P2,3

P3,4

P1(.)

P2(.)

P3(.)

HMMs: Single Gaussian Distribution
  • Outgoing likelihoods:
  • Feature vector agenerated by normal density (Gaussian) with meanh and covariance matrix S
hmms gaussian mixtures
HMMs: Gaussian Mixtures
  • To account for variable pronunciations
  • Each state generates acoustic vectors according to a linear combination of m Gaussian models, weighted by lm:

Three-component

mixture model in

two dimensions

acoustic modeling with hmms

P1,1

P2,2

P3,3

P1,2

P2,3

P3,4

P1(.)

P2(.)

P3(.)

Acoustic Modeling with HMMs
  • Train HMMs to represent subword units
  • Units typically segmental; may vary in granularity
    • phonological (~40 for English)
    • phonetic (~60 for English)
    • context-dependent triphones (~14,000 for English): models temporal and spectral transitions between phones
    • silence and noise are usually additional symbols
  • Standard architecture is three successive states per phone:

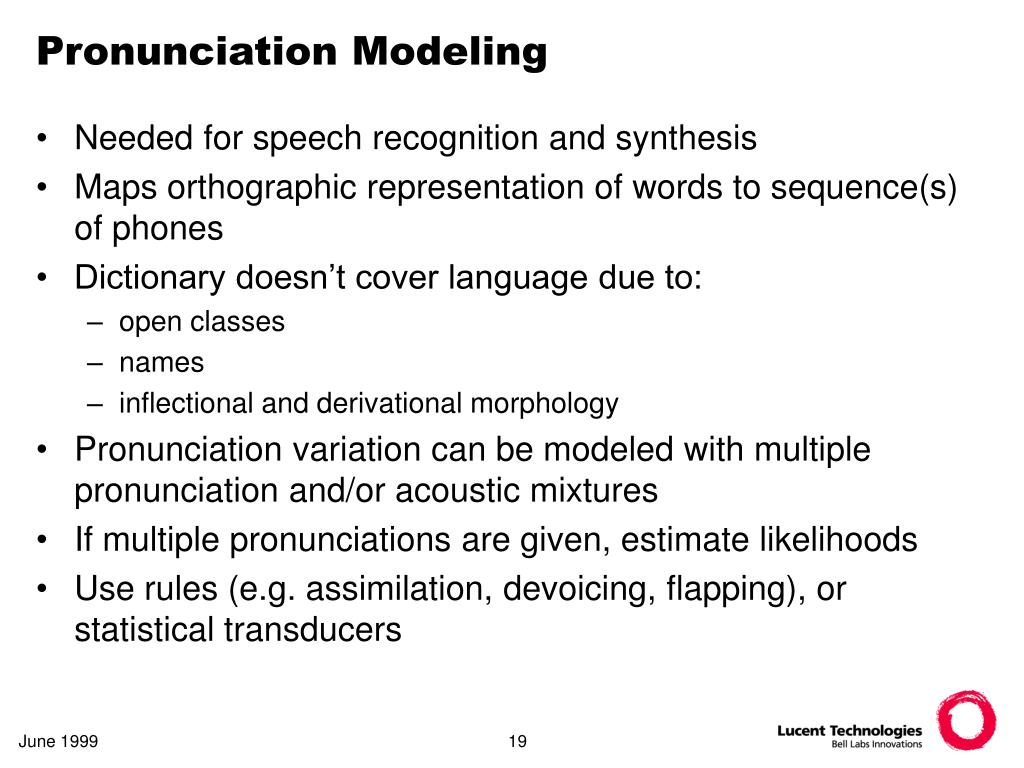

pronunciation modeling
Pronunciation Modeling
  • Needed for speech recognition and synthesis
  • Maps orthographic representation of words to sequence(s) of phones
  • Dictionary doesn’t cover language due to:
    • open classes
    • names
    • inflectional and derivational morphology
  • Pronunciation variation can be modeled with multiple pronunciation and/or acoustic mixtures
  • If multiple pronunciations are given, estimate likelihoods
  • Use rules (e.g. assimilation, devoicing, flapping), or statistical transducers
lexical hmms

P1,1

P1,1

P1,1

P2,2

P2,2

P2,2

P3,3

P3,3

P3,3

P1,2

P1,2

P1,2

P2,3

P2,3

P2,3

P3,4

P3,4

P3,4

P1(.)

P1(.)

P1(.)

P2(.)

P2(.)

P2(.)

P3(.)

P3(.)

P3(.)

Lexical HMMs
  • Create compound HMM for each lexical entry by concatenating the phones making up the pronunciation
    • example of HMM for ‘lab’ (following ‘speech’ for crossword triphone)
  • Multiple pronunciations can be weighted by likelihood into compound HMM for a word
  • (Tri)phone models are independent parts of word models

triphone: ch-l+a l-a+b a-b+#

phone: l a b

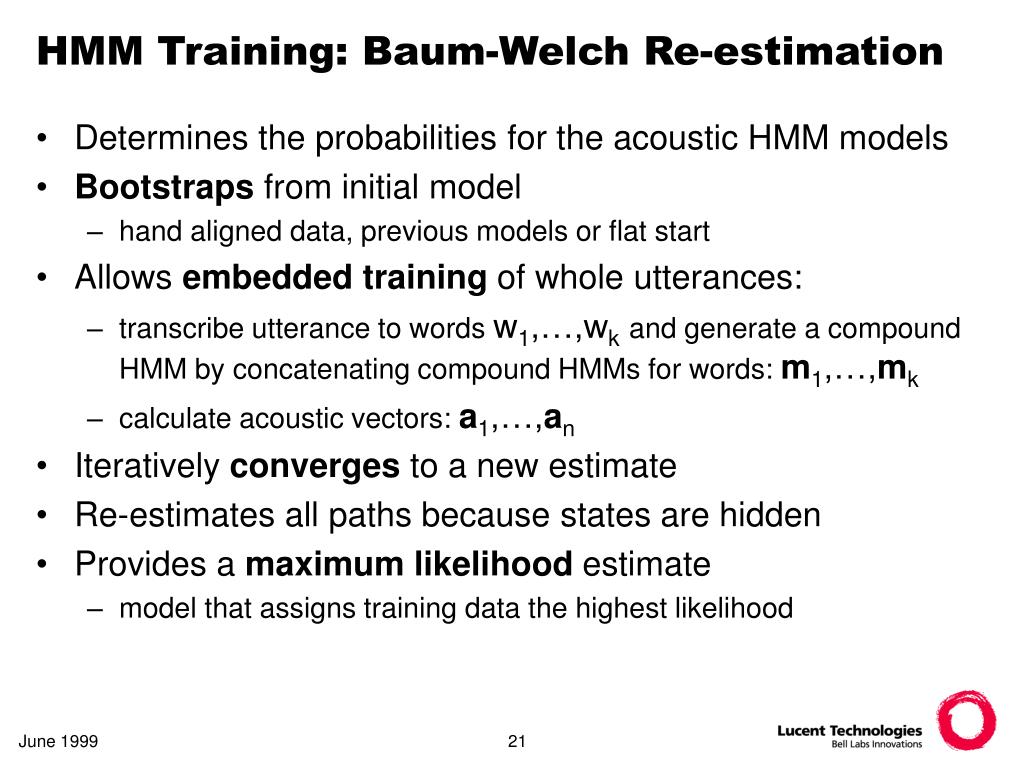

hmm training baum welch re estimation
HMM Training: Baum-Welch Re-estimation
  • Determines the probabilities for the acoustic HMM models
  • Bootstraps from initial model
    • hand aligned data, previous models or flat start
  • Allows embedded training of whole utterances:
    • transcribe utterance to words w1,…,wkand generate a compound HMM by concatenating compound HMMs for words: m1,…,mk
    • calculate acoustic vectors: a1,…,an
  • Iteratively converges to a new estimate
  • Re-estimates all paths because states are hidden
  • Provides a maximum likelihood estimate
    • model that assigns training data the highest likelihood

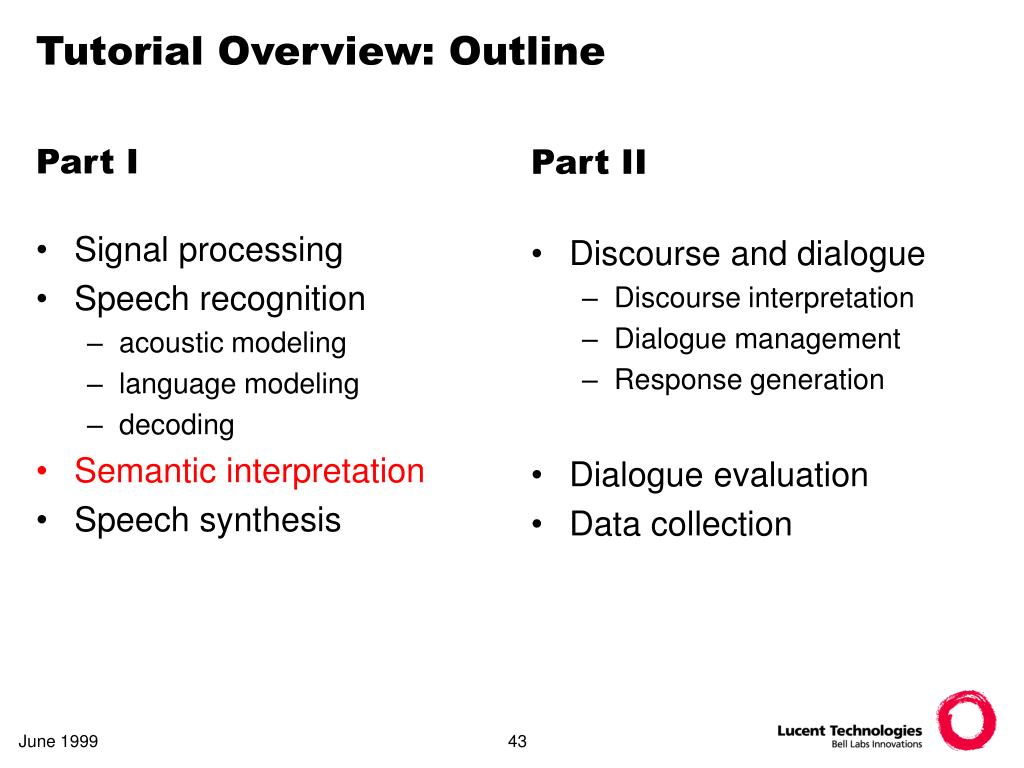

tutorial overview outline22
Part I

Signal processing

Speech recognition

acoustic modeling

language modeling

decoding

Semantic interpretation

Speech synthesis

Part II

Discourse and dialogue

Discourse interpretation

Dialogue management

Response generation

Dialogue evaluation

Data collection

Tutorial Overview: Outline
probabilistic language modeling history
Probabilistic Language Modeling: History
  • Assigns probability P(w) to word sequence w =w1 ,w2,…,wk
  • Bayes’ Law provides a history-based model:

P(w1 ,w2,…,wk)

= P(w1) P(w2|w1) P(w3|w1,w2) … P(wk|w1,…,wk-1)

  • Cluster histories to reduce number of parameters

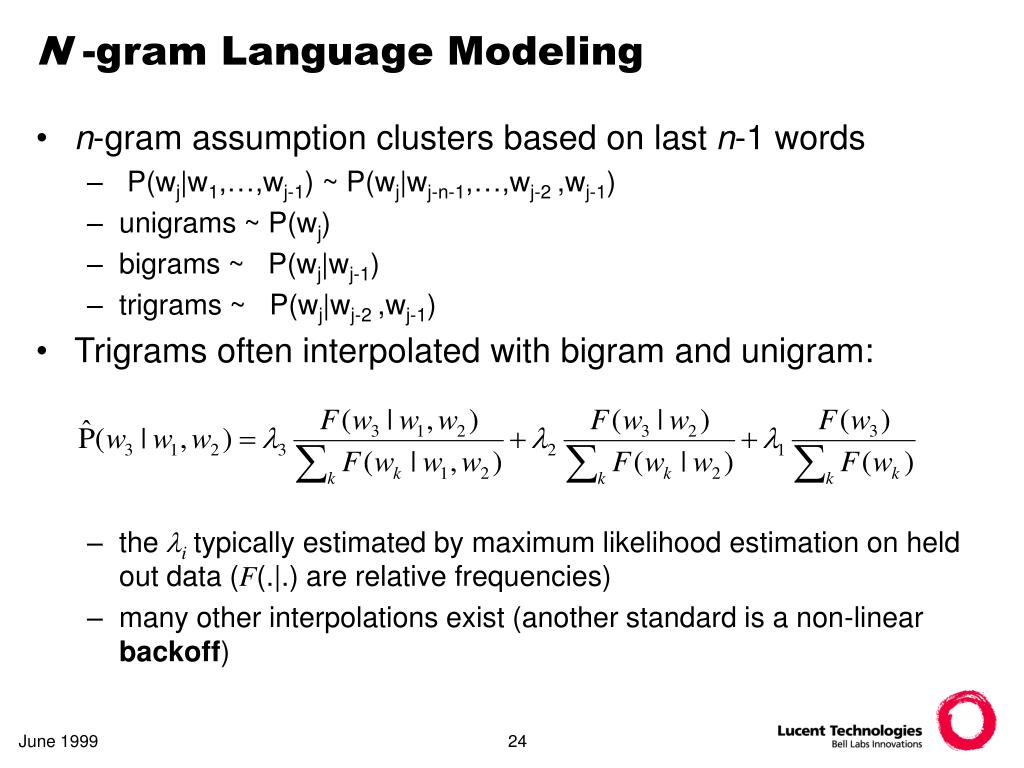

n gram language modeling
N -gram Language Modeling
  • n-gram assumption clusters based on last n-1 words
    • P(wj|w1,…,wj-1) ~ P(wj|wj-n-1,…,wj-2 ,wj-1)
    • unigrams ~ P(wj)
    • bigrams ~ P(wj|wj-1)
    • trigrams ~ P(wj|wj-2 ,wj-1)
  • Trigrams often interpolated with bigram and unigram:
    • the litypically estimated by maximum likelihood estimation on held out data (F(.|.) are relative frequencies)
    • many other interpolations exist (another standard is a non-linear backoff)
extended probabilistic language modeling
Extended Probabilistic Language Modeling
  • Histories can include some indication of semantic topic
    • latent-semantic indexing (vector-based information retrieval model)
    • topic-spotting and blending of topic-specific models
    • dialogue-state specific language models
  • Language models can adapt over time
    • recent history updates model through re-estimation or blending
    • often done by boosting estimates for seen words (triggers)
    • new words and/or pronunciations can be added
  • Can estimate category tags (syntactic and/or semantic)
    • Joint word/category model: P(word1:tag1,…,wordk:tagk)
    • example: P(word:tag|History) ~ P(word|tag) P(tag|History)

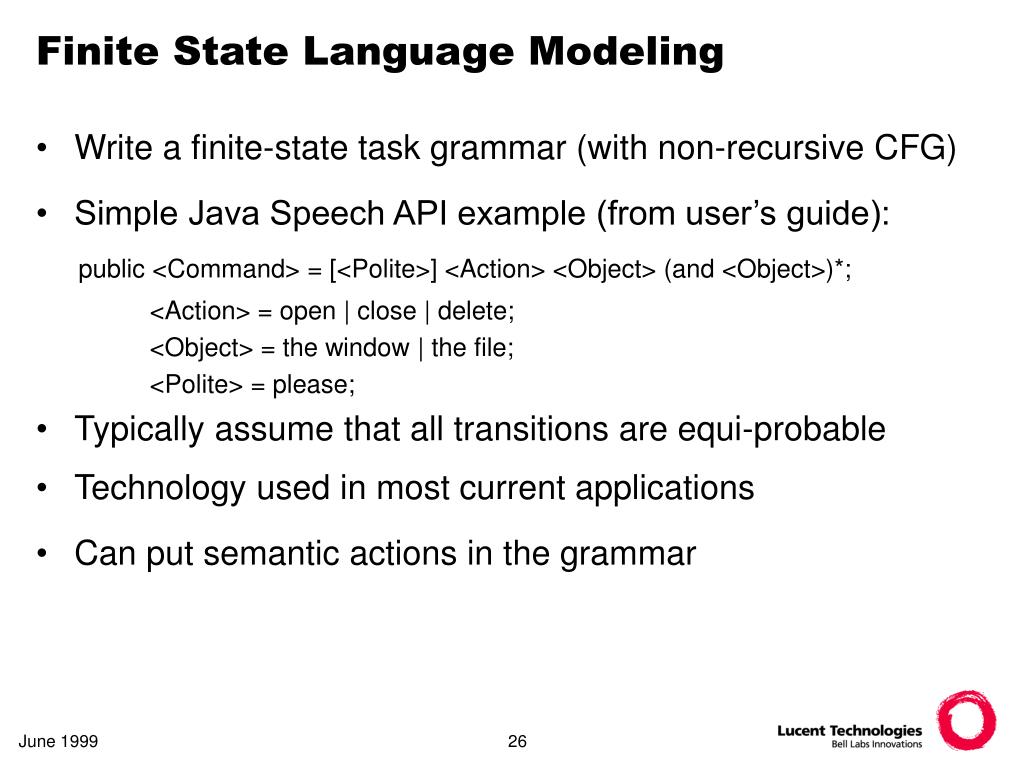

finite state language modeling
Finite State Language Modeling
  • Write a finite-state task grammar (with non-recursive CFG)
  • Simple Java Speech API example (from user’s guide):

public <Command> = [<Polite>] <Action> <Object> (and <Object>)*;

<Action> = open | close | delete;

<Object> = the window | the file;

<Polite> = please;

  • Typically assume that all transitions are equi-probable
  • Technology used in most current applications
  • Can put semantic actions in the grammar

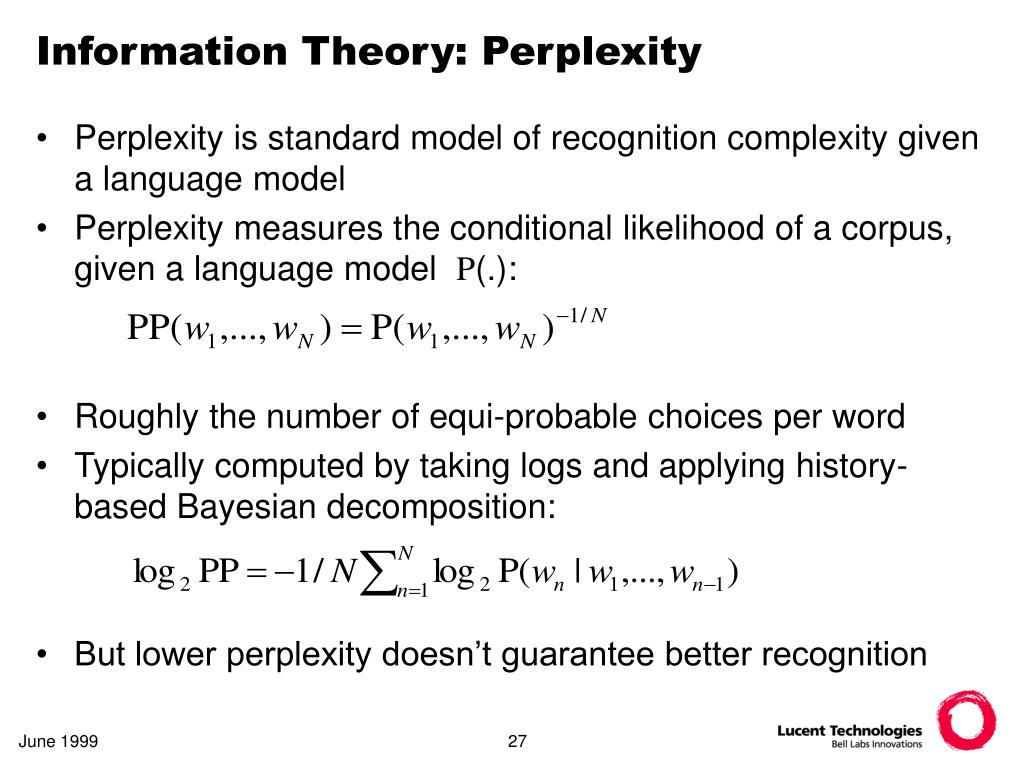

information theory perplexity
Information Theory: Perplexity
  • Perplexity is standard model of recognition complexity given a language model
  • Perplexity measures the conditional likelihood of a corpus, given a language model P(.):
  • Roughly the number of equi-probable choices per word
  • Typically computed by taking logs and applying history-based Bayesian decomposition:
  • But lower perplexity doesn’t guarantee better recognition
zipf s law
Zipf’s Law
  • Lexical frequency is inversely proportional to rank
    • Frequency(n) = Frequency of n-th most frequent word
    • Zipf’s Law: Frequency(Rank) = Frequency(1)/Rank
    • Thus: log Frequency(Rank)  - log Rank

From G.R. Turner’s web site on Zipf’s law:

http://www.btinternet.com/~g.r.turner/ZipfDoc.htm

vocabulary acquisition
Vocabulary Acquisition
  • IBM personal E-mail corpus of PDB (by R.L. Mercer)
  • static coverage is given by most frequent n words
  • dynamic coverage is most recent n words
language hmms
Language HMMs
  • Can take HMMs for each word and combine into a single HMM for the whole language (allows cross-word models)
  • Result is usually too large to expand statically in memory
  • A two word example is given by:

P(word1|word1)

word1

P(word1)

P(word2|word1)

P(word1|word2)

word2

P(word2)

P(word2|word2)

tutorial overview outline31
Part I

Signal processing

Speech recognition

acoustic modeling

language modeling

decoding

Semantic interpretation

Speech synthesis

Part II

Discourse and dialogue

Discourse interpretation

Dialogue management

Response generation

Dialogue evaluation

Data collection

Tutorial Overview: Outline
hmm decoding

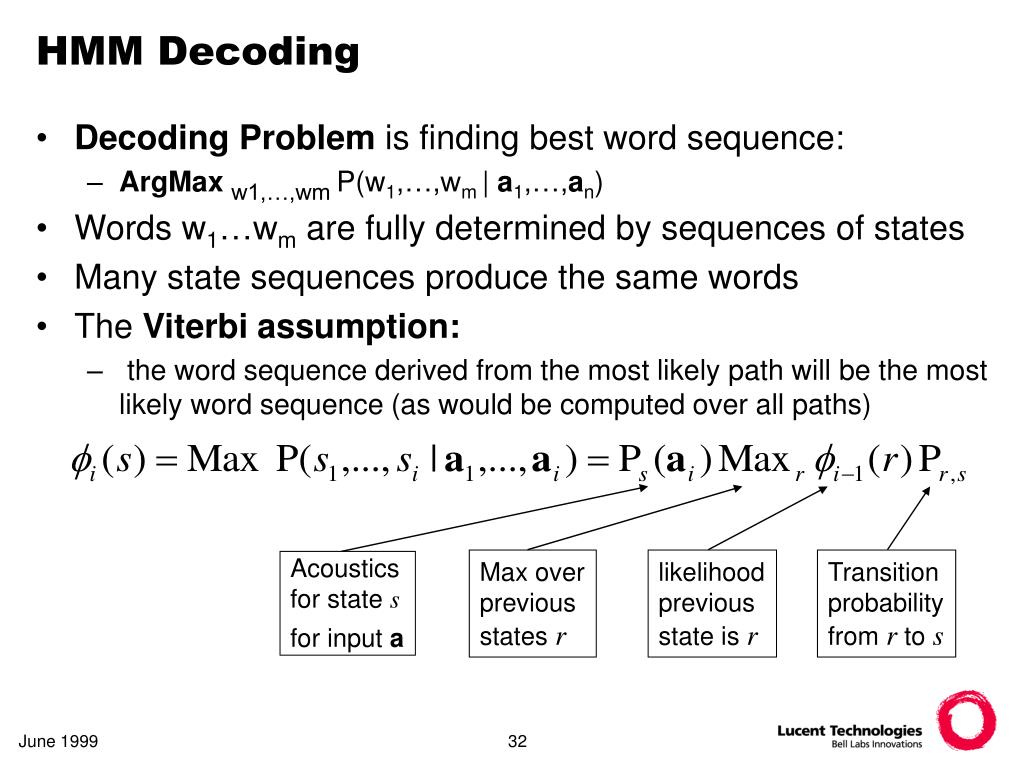

HMM Decoding
  • Decoding Problem is finding best word sequence:
    • ArgMaxw1,…,wmP(w1,…,wm | a1,…,an)
  • Words w1…wm are fully determined by sequences of states
  • Many state sequences produce the same words
  • The Viterbi assumption:
    • the word sequence derived from the most likely path will be the most likely word sequence (as would be computed over all paths)

Max over

previous

states r

likelihood

previous

state is r

Transition

probability

from r to s

Acoustics

for state s

for input a

visualizing viterbi decoding the trellis
Visualizing Viterbi Decoding: The Trellis

input

ai-1

ai

ai+1

P1,1

P1,1

s1

s1

s1

fi(s1)

fi+1(s1)

fi-1(s1)

P2,1

P1,2

...

s2

s2

...

s2

Pk,1

fi(s2)

fi+1(s2)

fi-1(s2)

P1,k

best

path

...

...

...

sk

sk

sk

fi(sk)

fi+1(sk)

fi-1(sk)

time

ti-1

ti

ti+1

viterbi search dynamic programming token passing

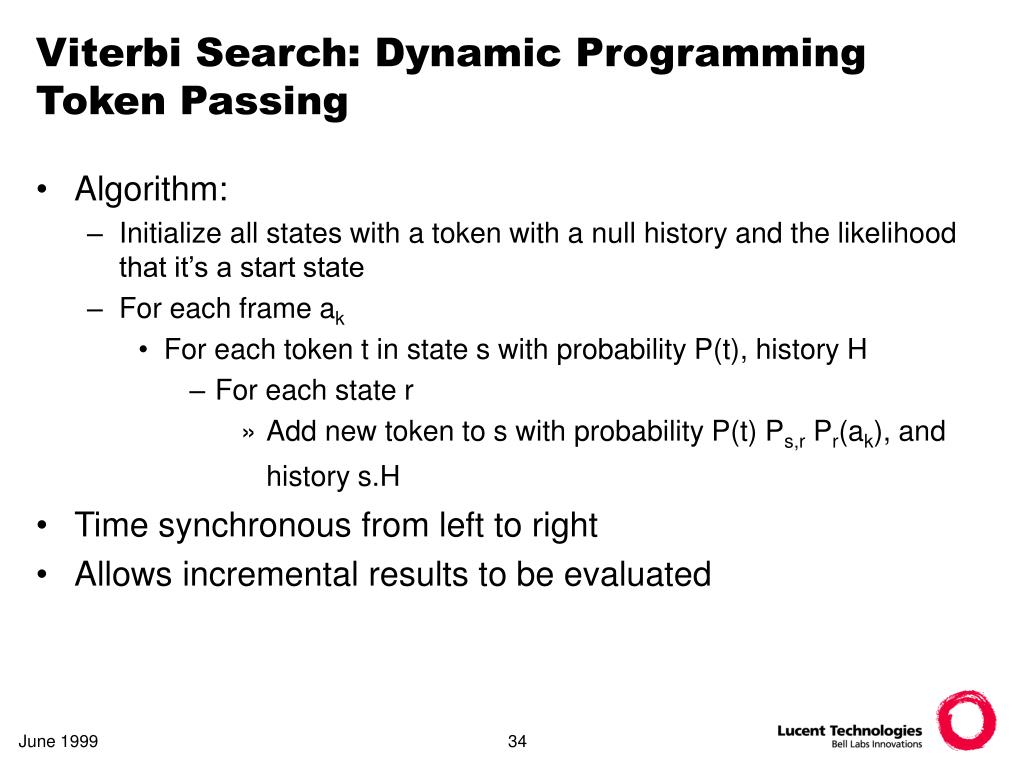

Viterbi Search: Dynamic Programming Token Passing
  • Algorithm:
    • Initialize all states with a token with a null history and the likelihood that it’s a start state
    • For each frame ak
      • For each token t in state s with probability P(t), history H
        • For each state r
          • Add new token to s with probability P(t) Ps,r Pr(ak), and history s.H
  • Time synchronous from left to right
  • Allows incremental results to be evaluated
pruning the search space
Pruning the Search Space
  • Entire search space for Viterbi search is much too large
  • Solution is to prune tokens for paths whose score is too low
  • Typical method is to use:
    • histogram: only keep at most n total hypotheses
    • beam: only keep hypotheses whose score is a fraction of best score
  • Need to balance small n and tight beam to limit search and minimal search error (good hypotheses falling off beam)
  • HMM densities are usually scaled differently than the discrete likelihoods from the language model
    • typical solution: boost language model’s dynamic range, using P(w)n P(a|w), usually withwith n ~ 15
  • Often include penalty for each word to favor hypotheses with fewer words
n best hypotheses and word graphs

Austin

today

flights

from

Boston

for

pay

Boston

lights

to

for

N-best Hypotheses and Word Graphs
  • Keep multiple tokens and return n-best paths/scores:
    • p1 flights from Boston today
    • p2 flights from Austin today
    • p3 flights for Boston to pay
    • p4 lights for Boston to pay
  • Can produce a packed word graph (a.k.a. lattice)
    • likelihoods of paths in lattice should equal likelihood for n-best
search based decoding
Search-based Decoding
  • A* search:
    • Compute all initial hypotheses and place in priority queue
    • For best hypothesis in queue
      • extend by one observation, compute next state score(s) and place into the queue
  • Scoring now compares derivations of different lengths
    • would like to, but can’t compute cost to complete until all data is seen
    • instead, estimate with simple normalization for length
    • usually prune with beam and/or histogram constraints
  • Easy to include unbounded amounts of history because no collapsing of histories as in dynamic programming n-gram
  • Also known as stack decoder (priority queue is “stack”)
multiple pass decoding
Multiple Pass Decoding
  • Perform multiple passes, applying successively more fine-grained language models
  • Can much more easily go beyond finite state or n-gram
  • Can use for Viterbi or stack decoding
  • Can use word graph as an efficient interface
  • Can compute likelihood to complete hypotheses after each pass and use in next round to tighten beam search
  • First pass can even be a free phone decoder without a word-based language model
measuring recognition accuracy
Measuring Recognition Accuracy
  • Word Error Rate =
  • Example scoring:
    • actual utterance: four six seven nine three three seven
    • recognizer: four oh six seven five three seven

insert subst delete

    • WER: (1 + 1 + 1)/7 = 43%
  • Would like to study concept accuracy
    • typically count only errors on content words [application dependent]
    • ignore case marking (singular, plural, etc.)
  • For word/concept spotting applications:
    • recall: percentage of target words (concept) found
    • precision: percentage of hypothesized words (concepts) in target
empirical recognition accuracies

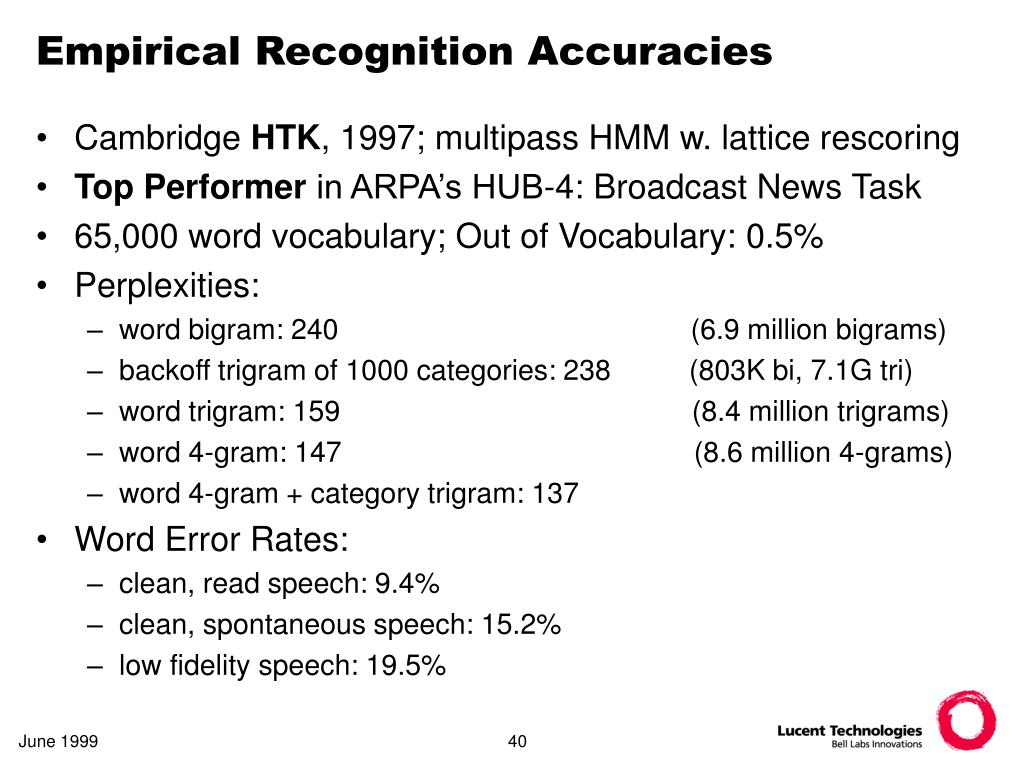

Empirical Recognition Accuracies
  • Cambridge HTK, 1997; multipass HMM w. lattice rescoring
  • Top Performer in ARPA’s HUB-4: Broadcast News Task
  • 65,000 word vocabulary; Out of Vocabulary: 0.5%
  • Perplexities:
    • word bigram: 240 (6.9 million bigrams)
    • backoff trigram of 1000 categories: 238 (803K bi, 7.1G tri)
    • word trigram: 159 (8.4 million trigrams)
    • word 4-gram: 147 (8.6 million 4-grams)
    • word 4-gram + category trigram: 137
  • Word Error Rates:
    • clean, read speech: 9.4%
    • clean, spontaneous speech: 15.2%
    • low fidelity speech: 19.5%
empirical recognition accuracies cont d

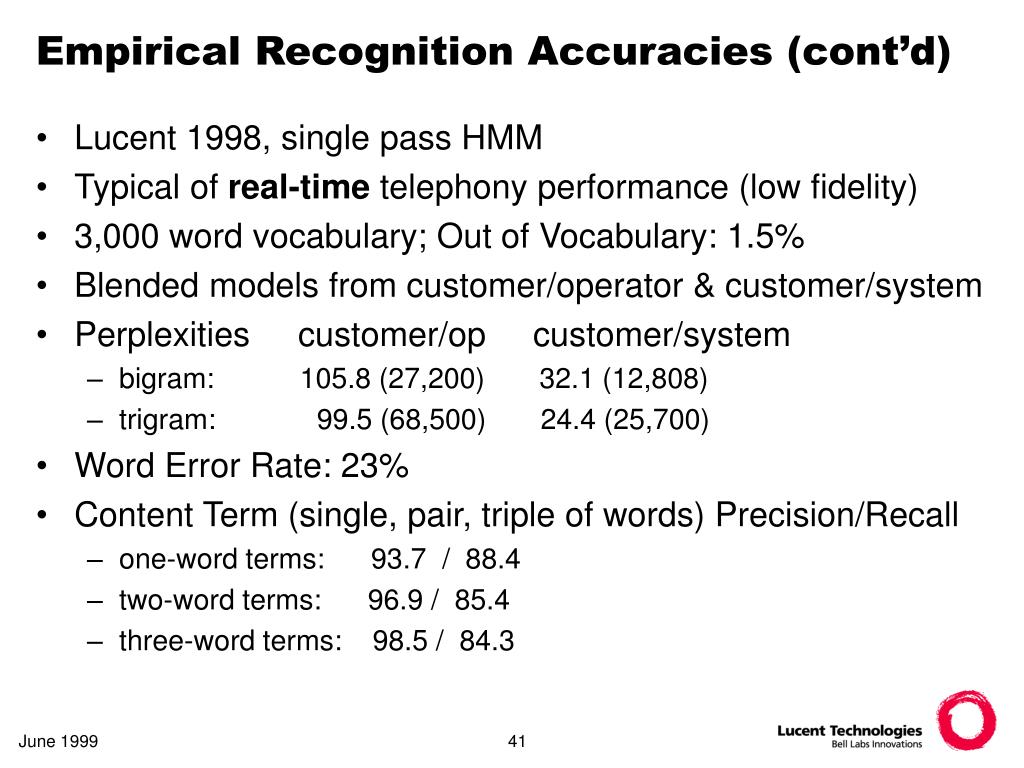

Empirical Recognition Accuracies (cont’d)
  • Lucent 1998, single pass HMM
  • Typical of real-time telephony performance (low fidelity)
  • 3,000 word vocabulary; Out of Vocabulary: 1.5%
  • Blended models from customer/operator & customer/system
  • Perplexities customer/op customer/system
    • bigram: 105.8 (27,200) 32.1 (12,808)
    • trigram: 99.5 (68,500) 24.4 (25,700)
  • Word Error Rate: 23%
  • Content Term (single, pair, triple of words) Precision/Recall
    • one-word terms: 93.7 / 88.4
    • two-word terms: 96.9 / 85.4
    • three-word terms: 98.5 / 84.3
confidence scoring and rejection
Confidence Scoring and Rejection
  • Alternative to standard acoustic density scoring
    • compute HMM acoustic score for word(s) in usual way
    • baseline score for an anti-model
    • compute hypothesis ratio (Word Score / Baseline Score)
    • test hypothesis ratio vs. threshold
  • Can be applied to:
    • free word spotting (given pronunciations)
    • (word-by-word) acoustic confidence scoring for later processing
    • verbal information verification
      • existing info: name, address, social security number
      • password
tutorial overview outline43
Part I

Signal processing

Speech recognition

acoustic modeling

language modeling

decoding

Semantic interpretation

Speech synthesis

Part II

Discourse and dialogue

Discourse interpretation

Dialogue management

Response generation

Dialogue evaluation

Data collection

Tutorial Overview: Outline
semantic interpretation word strings

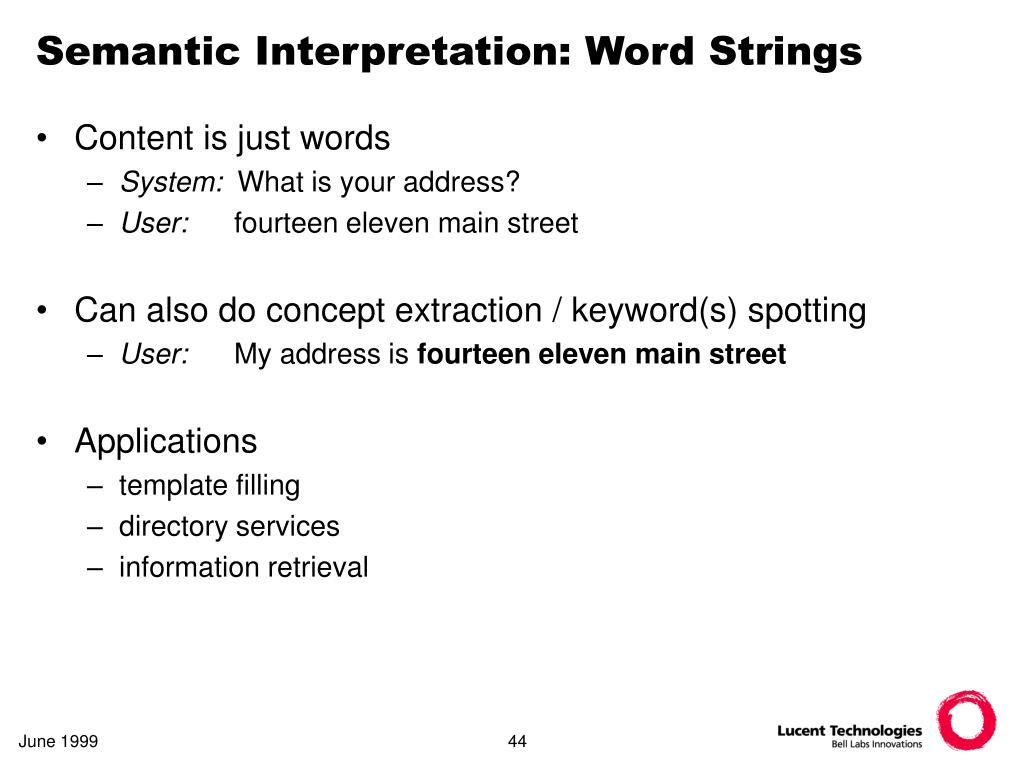

Semantic Interpretation: Word Strings
  • Content is just words
    • System: What is your address?
    • User: fourteen eleven main street
  • Can also do concept extraction / keyword(s) spotting
    • User: My address is fourteen eleven main street
  • Applications
    • template filling
    • directory services
    • information retrieval
semantic interpretation pattern based

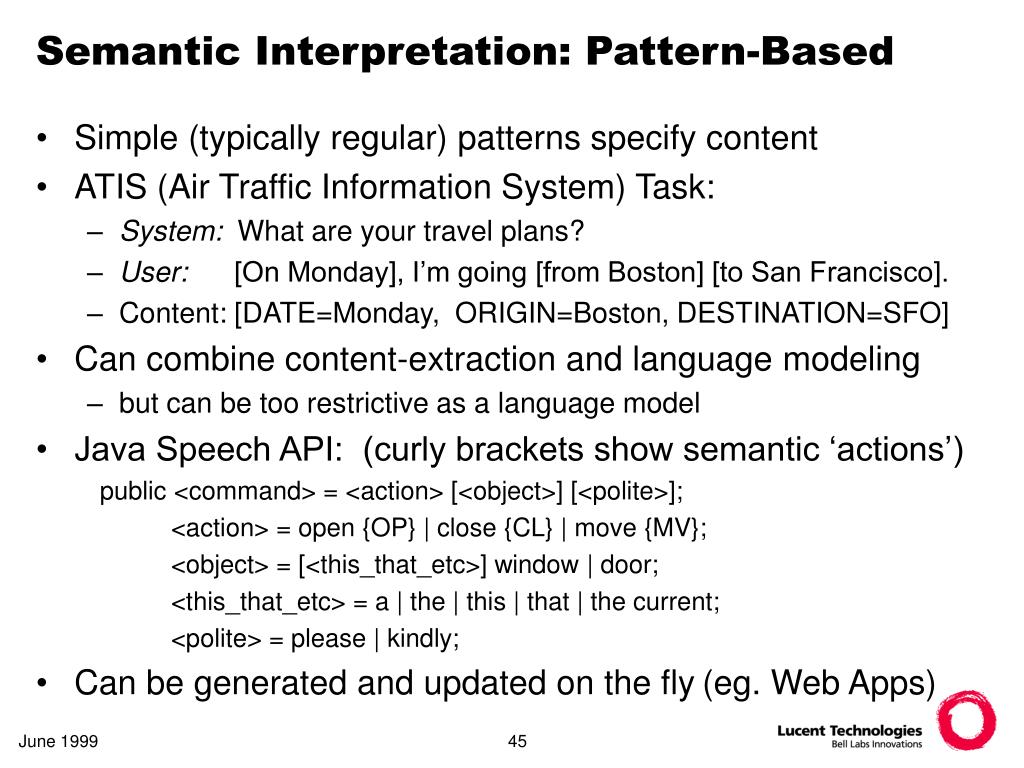

Semantic Interpretation: Pattern-Based
  • Simple (typically regular) patterns specify content
  • ATIS (Air Traffic Information System) Task:
    • System: What are your travel plans?
    • User: [On Monday], I’m going [from Boston] [to San Francisco].
    • Content: [DATE=Monday, ORIGIN=Boston, DESTINATION=SFO]
  • Can combine content-extraction and language modeling
    • but can be too restrictive as a language model
  • Java Speech API: (curly brackets show semantic ‘actions’)

public <command> = <action> [<object>] [<polite>];

<action> = open {OP} | close {CL} | move {MV};

<object> = [<this_that_etc>] window | door;

<this_that_etc> = a | the | this | that | the current;

<polite> = please | kindly;

  • Can be generated and updated on the fly(eg. Web Apps)
semantic interpretation parsing
Semantic Interpretation: Parsing
  • In general case, have to uncover who did what to whom:
    • System: What would you like me to do next?
    • User: Put the block in the box on Platform 1. [ambiguous]
    • System: How can I help you?
    • User: Where is A Bug’s Life playing in Summit?
  • Requires some kind of parsing to produce relations:
    • Who did what to whom: ?(where(present(in(Summit,play(BugsLife)))))
    • This kind of representation often used for machine translation
  • Often transferred to flatter frame-based representation:
    • Utterance type: where-question
    • Movie: A Bug’s Life
    • Town: Summit
robustness and partiality
Robustness and Partiality
  • Controlled Speech
    • limited task vocabulary; limited task grammar
  • Spontaneous Speech
    • Can have high out-of-vocabulary (OOV) rate
    • Includes restarts, word fragments, omissions, phrase fragments, disagreements, and other disfluencies
    • Contains much grammatical variation
    • Causes high word error-rate in recognizer
  • Parsing is often partial, allowing:
    • omission
    • parsing fragments
tutorial overview outline48
Part I

Signal processing

Speech recognition

acoustic modeling

language modeling

decoding

Semantic interpretation

Speech synthesis

Part II

Discourse and dialogue

Discourse interpretation

Dialogue management

Response generation

Dialogue evaluation

Data collection

Tutorial Overview: Outline
recorded prompts

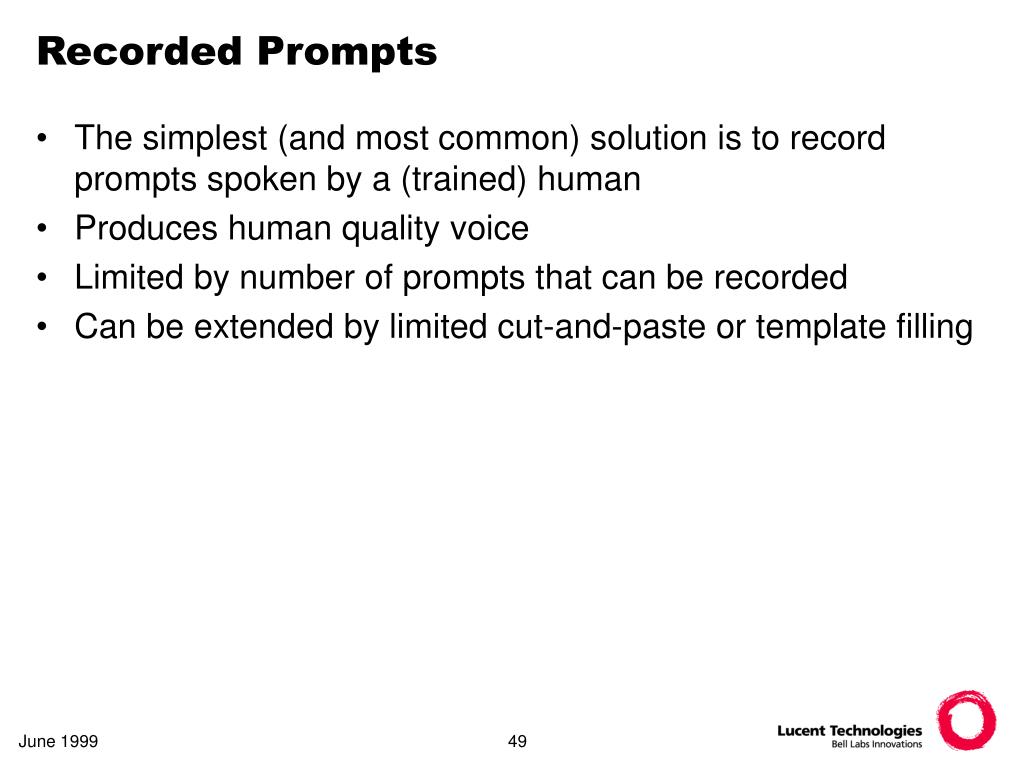

Recorded Prompts
  • The simplest (and most common) solution is to record prompts spoken by a (trained) human
  • Produces human quality voice
  • Limited by number of prompts that can be recorded
  • Can be extended by limited cut-and-paste or template filling
speech synthesis
Speech Synthesis
  • Rule-based Synthesis
    • Uses linguistic rules (+/- training) to generate features
    • Example: DECTalk
  • Concatenative Synthesis
    • Record basic inventory of sounds
    • Retrieve appropriate sequence of units at run time
    • Concatenate and adjust durations and pitch
    • Waveform synthesis
diphone and polyphone synthesis
Diphone and Polyphone Synthesis
  • Phone sequences capture co-articulation
  • Cut speech in positions that minimize context contamination
  • Need single phones, diphones and sometimes triphones
  • Reduce number collected by
    • phonotactic constraints
    • collapsing in cases of no co-articulation
  • Data Collection Methods
    • Collect data from a single (professional) speaker
    • Select text with maximal coverage (typically with greedy algorithm), or
    • Record minimal pairs in desired contexts (real words or nonsense)
duration modeling
Duration Modeling

Must generate segments with the appropriate duration

  • Segmental Identity
    • /ai/ in like twice as long as /I/ in lick
  • Surrounding Segments
    • vowels longer following voiced fricatives than voiceless stops
  • Syllable Stress
    • onsets and nuclei of stressed syllables longer than in unstressed
  • Word “importance”
    • word accent with major pitch movement lengthens
  • Location of Syllable in Word
    • word ending longer than word starting longer than word internal
  • Location of the Syllable in the Phrase
    • phrase final syllables longer than same syllable in other positions
intonation tone sequence models
Intonation: Tone Sequence Models
  • Functional Information can be encoded via tones:
    • given/new information (information status)
    • contrastive stress
    • phrasal boundaries (clause structure)
    • dialogue act (statement/question/command)
  • Tone Sequence Models
    • F0 contours generated from phonologically distinctive tones/pitch accents which are locally independent
    • generate a sequence of tonal targets and fit with signal processing
intonation for function
Intonation for Function
  • ToBI (Tone and Break Index) System, is one example:
    • Pitch Accent * (H*, L*, H*+L, H+L*, L*+H, L+H*)
    • Phrase Accent - (H-, L-)
    • Boundary Tone % (H%, L%)
    • Intonational Phrase

<Pitch Accent>+ <Phrase Accent> <Boundary Tone>

statement

vs. question

example:

source: Multilingual Text-to-Speech Synthesis, R. Sproat, ed., Kluwer, 1998

text markup for synthesis
Text Markup for Synthesis
  • Bell Labs TTS Markup
    • r(0.9) L*+H(0.8) Humpty L*+H(0.8) Dumpty r(0.85) L*(0.5) sat on a H*(1.2) wall.
    • Tones: Tone(Prominence)
    • Speaking Rate: r(Rate) and pauses
    • Top Line (highest pitch); Reference Line (reference pitch); Base Line (lowest pitch)
  • SABLE is an emerging standard extending SGML http://www.cstr.ed.ac.uk/projects/sable.html
    • marks: emphasis(#), break(#), pitch(base/mid/range,#), rate(#), volume(#), semanticMode(date/time/email/URL/...), speaker(age,sex)
    • Implemented in Festival Synthesizer (free for research, etc.):

http://www.cstr.ed.ac.uk/projects/festival.html

intonation in bell labs tts
Intonation in Bell Labs TTS
  • Generate a sequence of F0 targets for synthesis
  • Example:
    • We were away a year ago.
    • phones: w E w R & w A & y E r & g O
    • Default Declarative intonation: (H%) H* L- L% [question: L* H- H%]

source: Multilingual Text-to-Speech Synthesis, R. Sproat, ed., Kluwer, 1998

signal processing for speech synthesis
Signal Processing for Speech Synthesis
  • Diphones recorded in one context must be generated in other contexts
  • Features are extracted from recorded units
  • Signal processing manipulates features to smooth boundaries where units are concatenated
  • Signal processing modifies signal via ‘interpolation’
    • intonation
    • duration
the source filter model of synthesis
The Source-Filter Model of Synthesis
  • Model of features to be extracted and fitted
  • Excitation or Voicing Source(s) to model sound source
    • standard wave of glottal pulses for voiced sounds
    • randomly varying noise for unvoiced sounds
    • modification of airflow due to lips, etc.
    • high frequency (F0 rate), quasi-periodic, choppy
    • modeled with vector of glottal waveform patterns in voiced regions
  • Acoustic Filter(s)
    • shapes the frequency character of vocal tract and radiation character at the lips
    • relatively slow (samples around 5ms suffice) and stationary
    • modeled with LPC (linear predictive coding)
barge in
Barge-in
  • Technique to allow speaker to interrupt the system’s speech
  • Combined processing of input signal and output signal
  • Signal detector runs looking for speech start and endpoints
    • tests a generic speech model against noise model
    • typically cancels echoes created by outgoing speech
  • If speech is detected:
    • Any synthesized or recorded speech is cancelled
    • Recognition begins and continues until end point is detected
speech application programming interfaces
Speech Application Programming Interfaces
  • Abstract from recognition/synthesis engines
  • Recognizer and synthesizer loading
  • Acoustic and grammar model loading (dynamic updates)
  • Recognition
    • online
    • n-best or lattice
  • Synthesis
    • markup
    • barge in
  • Acoustic control
    • telephony interface
    • microphone/speaker interface
speech api examples
Speech API Examples
  • SAPI: Microsoft Speech API (rec&synth)
    • communicates through COM objects
    • instances: most systems implement all or some of this (Dragon, IBM, Lucent, L&H, etc.)
  • JSAPI: Java Speech API (rec & synth)
    • communicates through Java events (like GUI)
    • concurrency through threads
    • instances: IBM ViaVoice (rec), L&H (synth)
  • (J)HAPI: (Java) HTK API (recognition)
    • communicates through C or Java port of C interface
    • eg: Entropics Cambridge Research Lab’s HMM Tool Kit (HTK)
  • Galaxy (rec & synth)
    • communicates through a production system scripting language
    • MIT System, ported by MITRE for DARPA Communicator
tutorial overview outline62
Part I

Signal processing

Speech recognition

acoustic modeling

language modeling

decoding

Semantic interpretation

Speech synthesis

Part II

Discourse and dialogue

Discourse interpretation

Dialogue management

Response generation

Dialogue evaluation

Data collection

Tutorial Overview: Outline
discourse dialogue processing
Discourse & Dialogue Processing
  • Discourse interpretation:
    • Understand what the user really intends by interpreting utterances in context
  • Dialogue management:
    • Determine system goals in response to user utterances based on user intention
  • Response generation:
    • Generate natural language utterances to achieve the selected goals
discourse interpretation
Discourse Interpretation
  • Goal: understand what the user really intends
  • Example: Can you move it?
    • What does “it” refer to?
    • Is the utterance intended as a simple yes-no query or a request to perform an action?
  • Issues addressed:
    • Reference resolution
    • Intention recognition
  • Interpret user utterances in context
reference resolution
Reference Resolution
  • Knowledge sources:
    • Domain knowledge
    • Discourse knowledge
    • World knowledge

U: Where is A Bug’s Life playing in Summit?

S: A Bug’s Life is playing at the Summit theater.

U: When is it playing there?

S: It’s playing at 2pm, 5pm, and 8pm.

U: I’d like 1 adult and 2 children for the first show.

How much would that cost?

reference resolution in theory
Reference Resolution: In Theory
  • Focus stacks:
    • Maintain recent objects in stack
    • Select objects that satisfy semantic/pragmatic constraints starting from top of stack
    • May take into account discourse structure
  • Centering:
    • Backward-looking center (Cb): object connecting the current sentence with the previous sentence
    • Forward-looking centers (Cf): potential Cb of the next sentence
    • Rule-based filtering & ranking of objects for pronoun resolution
reference resolution in practice
Reference Resolution: In Practice
  • Non-existent: does not allow the use of anaphoric references
  • Allows only simple references:
    • utilizes the focus stack reference resolution mechanism
    • does not take into account discourse structure information
  • Example:

U: Where is A Bug’s Life playing in

Summit?

Summit

A Bug’s Life

slide68

S: A Bug’s Life is playing at the

Summit theater.

Summit

theater

A Bug’s Life

intention recognition
Intention Recognition

B: I have to wash my hair.

slide71
B’s utterance should be interpreted as an acceptance of A’s proposal.

A: Would you like to go to the hairdresser?

slide72
B’s utterance should be interpreted as an answer to A’s question.

A: What’s that smell around here?

slide73
B’s utterance should be interpreted as a rejection of A’s proposal.

A: Would you be interested in going out to dinner

tonight?

intention recognition cont d
Intention Recognition (Cont’d)
  • Goal: to recognize the intent of each user utterance as one (or more) of a set of dialogue acts based on context
  • Sample dialogue actions:
    • Switchboard DAMSL
      • Conventional-closing
      • Statement-(non-)opinion
      • Agree/Accept
      • Acknowledgment
      • Yes-No-Question/Yes-Answer
      • Non-verbal
      • Abandoned
  • On-going standardization efforts (Discourse Resource Initiative)
  • Verbmobil
    • Greet/Thank/Bye
    • Suggest
    • Accept/Reject
    • Confirm
    • Clarify-Query/Answer
    • Give-Reason
    • Deliberate
intention recognition in theory
Intention Recognition: In Theory
  • Knowledge sources:
    • Overall dialogue goals
    • Orthographic features, e.g.:
      • punctuation
      • cue words/phrases: “but”, “furthermore”, “so”
      • transcribed words: “would you please”, “I want to”
    • Dialogue history, i.e., previous dialogue act types
    • Dialogue structure, e.g.:
      • subdialogue boundaries
      • dialogue topic changes
    • Prosodic features of utterance: duration, pause, F0, speaking rate
intention recognition in theory cont d
Intention Recognition: In Theory (Cont’d)
  • Finite-state dialogue grammar:
    • e.g.
  • Plan-based discourse understanding:
    • Recipes: templates for performing actions
    • Inference rules: to construct plausible plans
  • Empirical methods:
    • Probabilistic dialogue act classifiers: HMMs
    • Rule-based dialogue act recognition: CART, Transformation-based learning

S / Greet

U / Question

S / Answer

U / Bye

U / Question

intention recognition in practice
Intention Recognition: In Practice
  • Makes assumptions about (high-level) task-specific intentions: e.g.,
    • Call routing: giving destination information
    • ATIS: requesting flight information
    • Movie information system: movie showtime or theater playlist information
  • Does not allow user-initiated complex dialogue acts, e.g. confirmation, clarification, or indirect responses

S1: What’s your account number?

U1: Is that the number on my ATM card?

S2: Would you like to transfer $1,500 from savings to checking?

U2: If I have enough in savings.

intention recognition in practice cont d
Intention Recognition: In Practice (Cont’d)
  • User utterances can play one of two roles:
    • Identify one of a set of possible task intentions
    • Provide necessary information for performing a task
  • Based on either keywords in an utterance or its syntactic/semantic representation
  • Maps keywords or representations to intentions using:
    • Template matching
    • Probabilistic model
    • Vector-based similarity measures
intention recognition example
Intention Recognition: Example
  • Using keyword extraction and vector-based similarity measures:
    • Intention: Ask-Reference: _time
    • Movie: A Bug’s Life
    • Theater: the Summit quadplex

U: What time is A Bug’s Life playing at the Summit

theater?

tutorial overview outline80
Part I

Signal processing

Speech recognition

acoustic modeling

language modeling

decoding

Semantic interpretation

Speech synthesis

Part II

Discourse and dialogue

Discourse interpretation

Dialogue management

Response generation

Dialogue evaluation

Data collection

Tutorial Overview: Outline
dialogue management motivating examples
Dialogue Management: Motivating Examples
  • Dialogue 1:

S: Would you like movie showtime or theater playlist

information?

U: Movie showtime.

S: What movie do you want showtime information about?

U: Saving Private Ryan.

S: At what theater do you want to see Saving Private

Ryan?

U: Paramount theater.

S: Saving Private Ryan is not playing at the Paramount

theater.

dm motivating examples cont d
DM: Motivating Examples (Cont’d)
  • Dialogue 2:

S: How may I help you?

U: When is Saving Private Ryan playing?

S: For what theater?

U: The Paramount theater.

S: Saving Private Ryan is not playing at the

Paramount theater, but it’s playing at the Madison

theater at 3:00, 5:30, 8:00, and 10:30.

dm motivating examples cont d83
DM: Motivating Examples (Cont’d)
  • Dialogue 3:

S: How may I help you?

U: When is Saving Private Ryan playing?

S: For what theater?

U: The Paramount theater.

S: Saving Private Ryan is playing at the Fairmont

theater at 6:00 and 8:30.

U: I wanted to know about the Paramount theater, not

the Fairmont theater.

S: Saving Private Ryan is not playing at the

Paramount theater, but it’s playing at the Madison

theater at 3:00, 5:30, 8:00, and 10:30.

comparison of sample dialogues
Dialogue 1:

System-initiative

Implicit confirmation

Merely informs user of failed query

Mechanical

Least efficient

Dialogue 2:

Mixed-initiative

No confirmation

Suggests alternative when query fails

More natural

Most efficient

Comparison of Sample Dialogues
  • Dialogue 3:
    • Mixed-initiative
    • No confirmation
    • Suggests alternative when query fails
    • More natural
    • Moderately efficient
dialogue management
Dialogue Management
  • Goal: determine what to accomplish in response to user utterances, e.g.:
    • Answer user question
    • Solicit further information
    • Confirm/Clarify user utterance
    • Notify invalid query
    • Notify invalid query and suggest alternative
  • Interface between user/language processing components and system knowledge base
dialogue management cont d
Dialogue Management (Cont’d)
  • Main design issues:
    • Functionality: how much should the system do?
    • Process: how should the system do them?
  • Affected by:
    • Task complexity: how hard the task is
    • Dialogue complexity: what dialogue phenomena are allowed
  • Affects:
    • robustness
    • naturalness
    • perceived intelligence
task complexity
Task Complexity
  • Application dependent
  • Examples:

Weather

Information

ATIS

Call

Routing

Automatic

Banking

Travel

Planning

University

Course

Advisement

Simple

Complex

  • Directly affects:
    • Types and quantity of system knowledge
    • Complexity of system’s reasoning abilities
dialogue complexity
Dialogue Complexity
  • Determines what can be talked about:
    • The task only
    • Subdialogues: e.g., clarification, confirmation
    • The dialogue itself: meta-dialogues
      • Could you hold on for a minute?
      • What was that click? Did you hear it?
  • Determines who can talk about them:
    • System only
    • User only
    • Both participants
dialogue management functionality
Dialogue Management: Functionality
  • Determines the set of possible goals that the system may select at each turn
  • At the task level, dictated by task complexity
  • At the dialogue level, determined by system designer in terms of dialogue complexity:
    • Are subdialogues allowed?
    • Are meta-dialogues allowed?
    • Only by the system, by the user, or by both agents?
dm functionality in theory
DM Functionality: In Theory
  • Task complexity: moderate to complex
    • Travel planning
    • University course advisement
  • Dialogue complexity:
    • System/user-initiated complex subdialogues
      • Embedded negotiation subdialogues
      • Expressions of doubt
    • Meta-dialogues
    • Multiple dialogue threads
dm functionality in practice
DM Functionality: In Practice
  • Task complexity: simple to moderate
    • Call routing
    • Weather information query
    • Train schedule inquiry
  • Dialogue complexity:
    • About task only
    • Limited system-initiated subdialogues
dialogue management process
Dialogue Management: Process
  • Determines how the system will go about selecting among the possible goals
  • At the dialogue level, determined by system designer in terms of initiative strategies:
    • System-initiative: system always has control, user only responds to system questions
    • User-initiative: user always has control, system passively answers user questions
    • Mixed-initiative: control switches between system and user using fixed rules
    • Variable-initiative: control switches between system and user dynamically based on participant roles, dialogue history, etc.
dm process in theory
DM Process: In Theory
  • Initiative strategies:
    • Mixed-initiative
    • Variable-initiative
  • Mechanisms for modeling initiative:
    • Planning and reasoning
    • Theorem proving
    • Belief modeling
  • Knowledge sources for modeling initiative:
    • System beliefs, user beliefs, and mutual beliefs
    • System domain knowledge
    • Dialogue history
    • User preferences
dm process in practice
DM Process: In Practice
  • Initiative strategies:
    • User-initiative
    • System-initiative
    • Mixed-initiative
    • Variable-initiative
  • Mechanisms for modeling initiative:
    • System and mixed-initiative: finite-state machines
    • Variable-initiative: evidential model for computing initiative
      • Knowledge sources:
        • Dialogue history: e.g. user fails to make progress in task
        • Participant roles: advisor/advisee vs. collaborators
        • Features of current utterance: e.g.: ambiguous utterance, underspecified utterance
dialogue management summary
Dialogue Management: Summary
  • In theory:
    • Focuses on developing algorithms for addressing difficult dialogue phenomena in complex tasks
  • In practice:
    • Focuses on developing robust, real-time dialogue strategies for handling common dialogue phenomena in simpler tasks
dialogue management example
Dialogue Management: Example
  • System for providing movie showtime and theater playlist information
  • Functionality:
    • Task: provide simple movie information
    • Dialogue: allow system-initiated subdialogues
  • Process:
    • Variable-initiative
dialogue management example cont d
Dialogue Management Example (Cont’d)

<U has task & dialogue initiative>

U: When is Antz playing at the Fairmont theater?

<S has dialogue initiative (low score for theater)>

<goal: confirm Paramount theater>

S: Did you say the Paramount theater?

U: No, the Fairmont theater.

<S has no initiative>

<goal: answer user question>

S: Antz is playing at the Fairmont theater at 7pm.

U: When is it playing at the Summit theater?

<S has task & dialogue initiative>

<goal: notify failure & suggest alternative>

S: Antz is not playing at the Summit theater, but it’s

playing at the AMC theater in Summit at 8pm.

tutorial overview outline98
Part I

Signal processing

Speech recognition

acoustic modeling

language modeling

decoding

Semantic interpretation

Speech synthesis

Part II

Discourse and dialogue

Discourse interpretation

Dialogue management

Response generation

Dialogue evaluation

Data collection

Tutorial Overview: Outline
response generation
Response Generation

U: Is Saving Private Ryan playing at the Chatham

cinema?

slide101
S provides full response (which provides grounding information)

S: No, Saving Private Ryan is not playing at the Chatham

cinema.

slide102
S provides full response and supporting evidence

S: No, Saving Private Ryan is not playing at the Chatham

cinema; the theater’s under renovation.

response generation cont d
Response Generation (Cont’d)
  • Goal: generate natural language utterances to achieve goal(s) selected by the dialogue manager
  • Issues:
    • Content selection: determining what to say
    • Surface realization: determining how to say it
  • Generation gap: discrepancy between the actual output of the content selection process and the expected input of the surface realization process
content selection
Content Selection
  • Goal: determine the propositional content of utterances to achieve goal(s)
  • Examples:
    • Antz is not playing at the Maplewood theater; [Nucleus]
    • Would you like the suite? [Nucleus]
    • Can you get the groceries from the car? [Nucleus]
slide105
the theater’s under renovation. (evidence) [Satellite]
  • It’s the same price as the regular room. (motivation) [Satellite]
  • The key is on the dryer. (enablement) [Satellite]
content selection in theory
Content Selection: In Theory
  • Knowledge sources:
    • Domain knowledge base
    • User beliefs
    • User model: user characteristics, preferences, etc.
    • Dialogue history
  • Content selection mechanisms:
    • Schemas: patterns of predicates
    • Rule-based generation
    • Plan-based generation:
      • Recipes: templates for performing actions
      • Planner: to construct plans for given goal
    • Case-based reasoning
content selection in practice
Content Selection: In Practice
  • Knowledge sources:
    • Domain knowledge base
    • Dialogue history
  • Pre-determined content selection strategies:
    • Nucleus only, no satellite information
    • Nucleus + fixed satellite
surface realization
Surface Realization
  • Goal: determine how the selected content will be conveyed by natural language utterances
  • Examples:
    • Antz is showing (shown) at the Maplewood theater.
    • The Maplewood theater is showing Antz.
    • It is at the Maplewood theater that Antz is shown.
    • Antz, that’s what’s being shown at the Maplewood theater.
  • Issues:
    • Clausal structure construction
    • Lexical selection
surface realization in theory
Surface Realization: In Theory
  • Typical surface generator requires as input:
    • Semantic representation to be realized
    • Clausal structure for generated utterance
  • Surface realization component utilizes a grammar to generate utterance that conveys the given semantic representation
surface realization in practice
Surface Realization: In Practice
  • Canned utterances:
    • Pre-determined utterances for goals; e.g.:
      • Greetings: Hello, this is the ABC bank’s operator.
      • Repeat: Could you please repeat your request?
    • Facilitates pre-recorded prompts for speech output
  • Template-based generation:
    • Templates for goals; e.g.:
      • Notification: Your call is being transferred to X.
      • Inform: A,B,C,D, and E are playing at the F theater.
      • Clarify: Did you say X or Y?
    • Needs cut-and-paste of pre-recorded segments or full TTS system
tutorial overview outline111
Part I

Signal processing

Speech recognition

acoustic modeling

language modeling

decoding

Semantic interpretation

Speech synthesis

Part II

Discourse and dialogue

Discourse interpretation

Dialogue management

Response generation

Dialogue evaluation

Data collection

Tutorial Overview: Outline
dialogue evaluation
Dialogue Evaluation
  • Goal: determine how “well” a dialogue system performs
  • Main difficulties:
    • No strict right or wrong answers
    • Difficult to determine what features make a dialogue system better than another
    • Difficult to select metrics that contribute to the overall “goodness” of the system
    • Difficult to determine how the metrics compensate for one another
    • Expensive to collect new data for evaluating incremental improvement of systems
dialogue evaluation cont d
System-initiative, explicit confirmation

better task success rate

lower WER

longer dialogues

fewer recovery subdialogues

less natural

Mixed-initiative, no confirmation

lower task success rate

higher WER

shorter dialogues

more recovery subdialogues

more natural

Dialogue Evaluation (Cont’d)
dialogue evaluation paradigms
Dialogue Evaluation Paradigms
  • Evaluating the end result only:
    • Reference answers
  • Evaluating both the end result and the process toward it:
    • Evaluation metrics
    • Performance functions
evaluation paradigms reference answers
Evaluation Paradigms: Reference Answers
  • Evaluates the task success rate only
  • Suitable for query-answering systems for which a correct answer can be defined for each query
  • For each query:
    • Obtain answer from dialogue system
    • Compare with reference answer
    • Score system performance
  • Advantage: simple
  • Disadvantage: ignores many other important factors that contribute to quality of dialogue systems
evaluation paradigms evaluation metrics
Evaluation Paradigms: Evaluation Metrics
  • Different metrics for evaluating different components of a dialogue system:
    • Speech recognizer: word error rate / word accuracy
    • Understanding component: attribute value matrix
    • Dialogue manager:
      • appropriateness of system responses
      • error recovery abilities
    • Overall system:
      • task success
      • average number of turns
      • elapsed time
      • turn correction ratio
paradigms evaluation metrics cont d
Paradigms: Evaluation Metrics (Cont’d)
  • Advantage:
    • Takes into account the process toward completing the task
  • Limitations:
    • Difficult to determine how different metrics compensate for one another
    • Metrics may not be independent of one another
    • Does not generalize across domains and tasks
paradigms performance functions
Paradigms: Performance Functions
  • PARADISE [Walker et al.]: derives performance functions using both task-based and dialogue-based metrics
  • User satisfaction:
    • Maximize task success
    • Minimize costs:
      • Efficiency measures: e.g., number of utterances, elapsed time
      • Qualitative measures: e.g., repair ratio, inappropriate utt. ratio
  • Performance function derivation:
    • Obtain user satisfaction ratings (questionnaire)
    • Obtain values for various metrics (automatic or manual)
    • Apply multiple linear regression to derive a function relating user satisfaction and various cost factors, e.g.,
paradigms performance functions cont d
Paradigms: Performance Functions (Cont’d)
  • Advantages:
    • Allows for comparison of dialogue systems performing different tasks
    • Specifies relative contributions of cost factors to overall performance
    • Can be used to make predictions about future versions of the dialogue system
  • Disadvantages:
    • Data collection cost for deriving performance function is high
    • Cost for deriving performance function for multiple systems to draw general conclusions is high
tutorial overview outline120
Part I

Signal processing

Speech recognition

acoustic modeling

language modeling

decoding

Semantic interpretation

Speech synthesis

Part II

Discourse and dialogue

Discourse interpretation

Dialogue management

Response generation

Dialogue evaluation

Data collection

Tutorial Overview: Outline
data collection wizard of oz paradigm
Data Collection: Wizard of Oz Paradigm
  • Setup for initial data collection:
    • User communicates with “system” through telephone (speech) or keyboard (text)
    • “System” is actually a human, typically given instructions on how to behave like a system
    • Users are typically given tasks to perform in the target domain
    • Subjects are the users and the “system” can be played by one person
    • Dialogues between “system” and user are recorded and transcribed
  • Setup for intermediate system evaluation:
    • Use actual running system, with wizard supervision
    • Wizard can override undesirable system behavior, e.g., correct ASR errors
data collection wizard of oz cont d
Data Collection: Wizard of Oz (Cont’d)
  • Features of collected data:
    • Typically much less complex than actual human-human dialogues performing the same tasks
    • Captures how humans behave when they talk to computers
    • Captures variations among different subjects in both language and approach when performing the same tasks
  • Use of collected data:
    • Particularly useful for designing the interpretation component of the dialogue system
    • Useful for training purposes for ASR systems
    • May also be helpful for designing the dialogue management and response generation components
summary

Speech

Synthesis

Response

Generation

Summary

Semantic

Interpretation

Signal

Processing

Speech

Recognition

Discourse

Interpretation

Dialogue

Management

publicly available telephone demos
Publicly Available Telephone Demos
  • Nuance http://www.nuance.com/demo/index.html
    • Banking: 1-650-847-7438
    • Travel Planning: 1-650-847-7427
    • Stock Quotes: 1-650-847-7423
  • SpeechWorks http://www.speechworks.com/demos/demos.htm
    • Banking: 1-888-729-3366
    • Stock Trading: 1-800-786-2571
  • MIT Spoken Language Systems Laboratory http://www.sls.lcs.mit.edu/sls/whatwedo/applications.html
    • Travel Plans (Pegasus): 1-877-648-8255
    • Weather (Jupiter): 1-888-573-8255
  • IBM http://www.software.ibm.com/speech/overview/business/demo.html
    • Mutual Funds, Name Dialing: 1-877-VIA-VOICE
