slide1

Greenstar Nomad

Silver Edition

two-way portable telephone and Web access - anywhere in the world

completely solar-powered, portable, rugged

• specially-configured

laptop computer

• satellite telephone and

Internet connection

• completely solar power supply

• data acceleration provides

up to 28.8K speeds

Connect from remote locations not covered by cellular networks

Full email, Web access, file transfer support

Worldwide ISP (Internet Service Provider), fully secure

fast digital sign-on; online in 2-3 seconds

mini digital stereo recording system

hi-res miniaturized digital camera

ruggedized waterproof carrying case

slide2

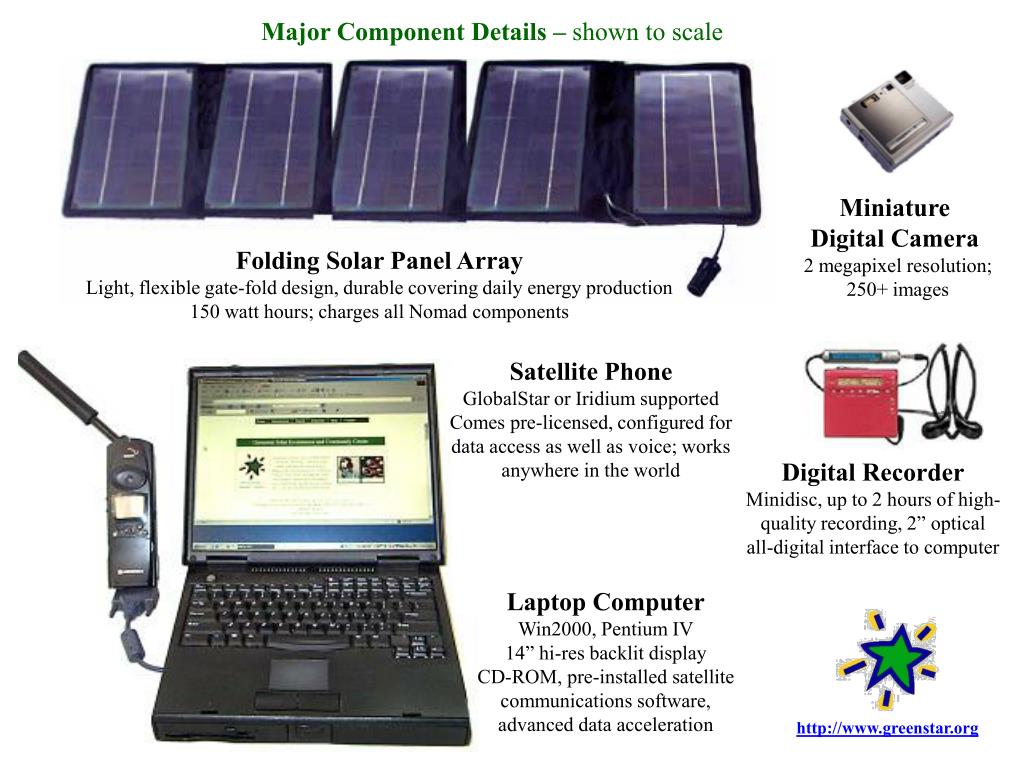

Major Component Details – shown to scale

Miniature

Digital Camera

2 megapixel resolution;

250+ images

Folding Solar Panel Array

Light, flexible gate-fold design, durable covering daily energy production

150 watt hours; charges all Nomad components

Satellite Phone

GlobalStar or Iridium supported

Comes pre-licensed, configured for data access as well as voice; works anywhere in the world

Digital Recorder

Minidisc, up to 2 hours of high-quality recording, 2” optical

all-digital interface to computer

Laptop Computer

Win2000, Pentium IV

14” hi-res backlit display

CD-ROM, pre-installed satellite communications software,

advanced data acceleration

http://www.greenstar.org

slide3

Accessories – to same scale as previous page

WorldSpace Satellite Radio

and Directed Data Receiver

Provides valuable local radio programming

through built-in satellite receiver in many regions

of the world, in English and local languages,

for low monthly charge

See http://www.worldspace.com

for more info

Compact Battery-Powered

Color Printer and Optical Scanner

Wireless infrared interface

slide4

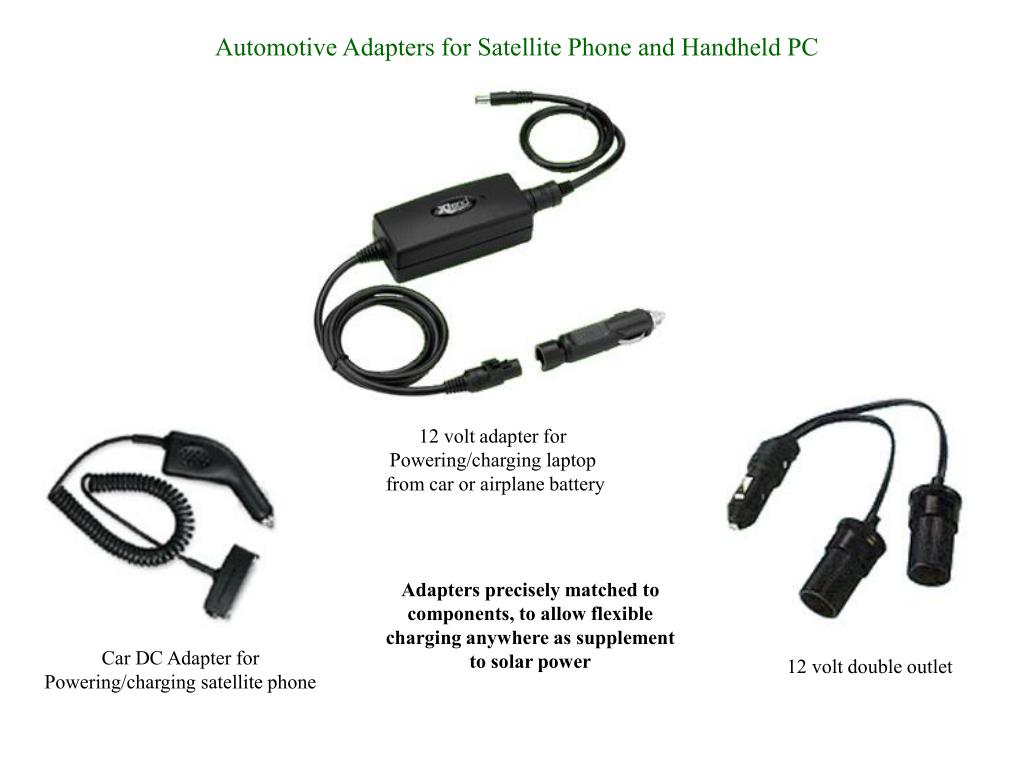

Automotive Adapters for Satellite Phone and Handheld PC

12 volt adapter for

Powering/charging laptop

from car or airplane battery

Adapters precisely matched to

components, to allow flexible

charging anywhere as supplement

to solar power

Car DC Adapter for

Powering/charging satellite phone

12 volt double outlet

slide5

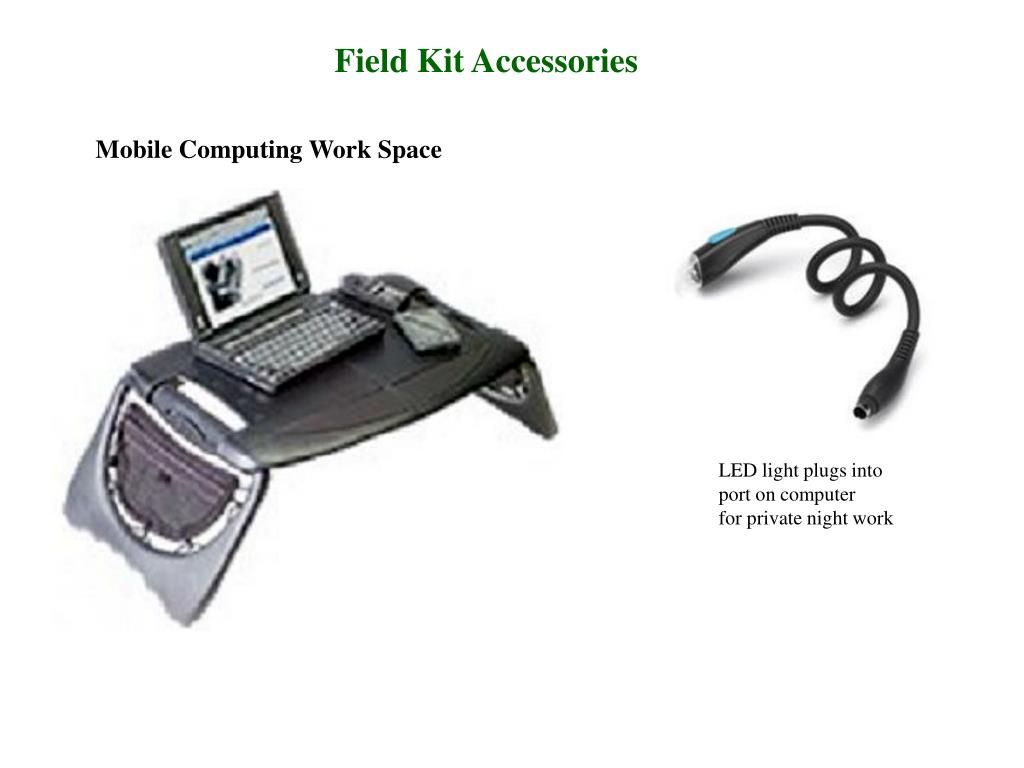

Field Kit Accessories

Mobile Computing Work Space

LED light plugs into

port on computer

for private night work

slide6

Watertight Carrying Cases

shockproof, ruggedized, light, padded

slide7

Optional Field Accessories

Greenstar Nomad

Silver Edition

slide8

Battery Pack

Multipower Source

Charges from solar array

can provide backup power

for the built-in batteries

in computer, satphone,

printer, etc; can independently

power these and other devices as needed

See next screen for examples

Solar Spark Lighter

Reaches 1000 F – will ignite paper or

other combustible materials

slide9

Battery

Applications

Powering and/or charging the laptop computer

Bright fluorescent light; cooling fan

Eight-step power for all consumer electronics, cameras, televisions

from 1.5 to 12 V

slide10

Field Kit Accessories

Wind-up Radio and Extension Light

Shortwave

antenna

Powerful AM-FM and global shortwave radio

5 minutes of crank action = 30 minutes of operation

Attached shortwave antenna enhances reception

Retractable lamp provides light

slide11

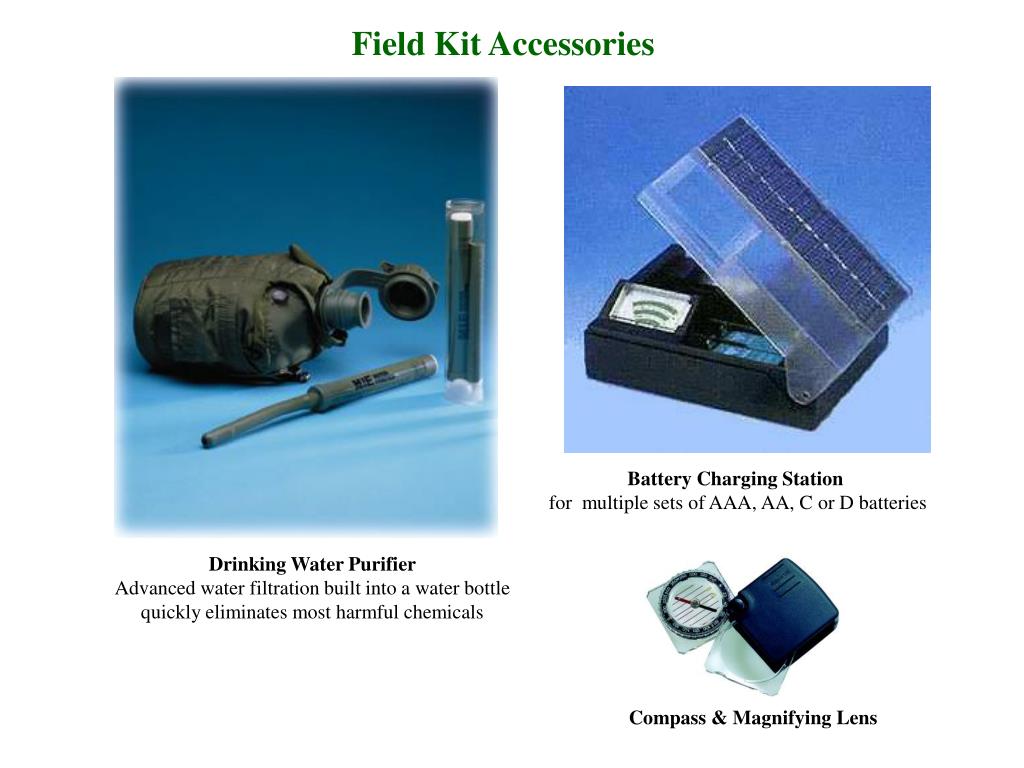

Field Kit Accessories

Battery Charging Station

for multiple sets of AAA, AA, C or D batteries

Drinking Water Purifier

Advanced water filtration built into a water bottle

quickly eliminates most harmful chemicals

Compass & Magnifying Lens

slide12

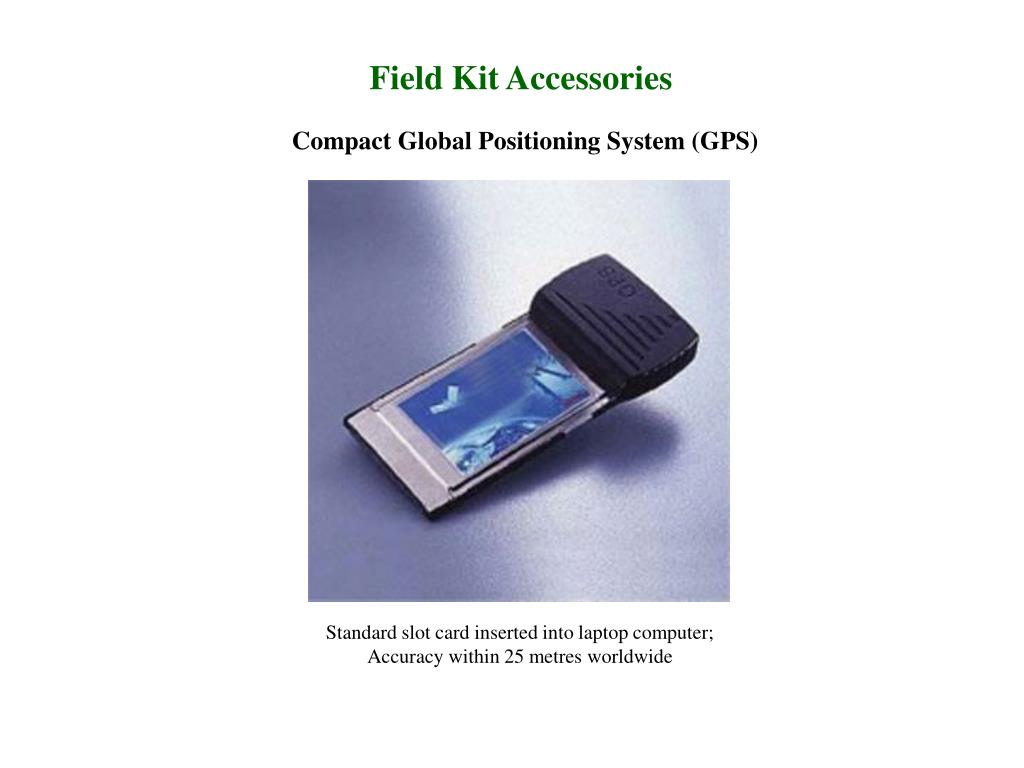

Field Kit Accessories

Compact Global Positioning System (GPS)

Standard slot card inserted into laptop computer;

Accuracy within 25 metres worldwide

slide13

Greenstar Development Library

30 CD Set

Hundreds of thousands of pages of practical information, manuals,

surveys and facts on health, economic development, agriculture, energy,

environment, compiled by leading government, academic and private

institutions worldwide; all searchable

Nomad is designed and supported by Greenstar, with extensivc experience

in solar and wireless applications in the challenging environments in the developing world

See http://www.greenstar.org/introduction.htm
