Presentation Transcript

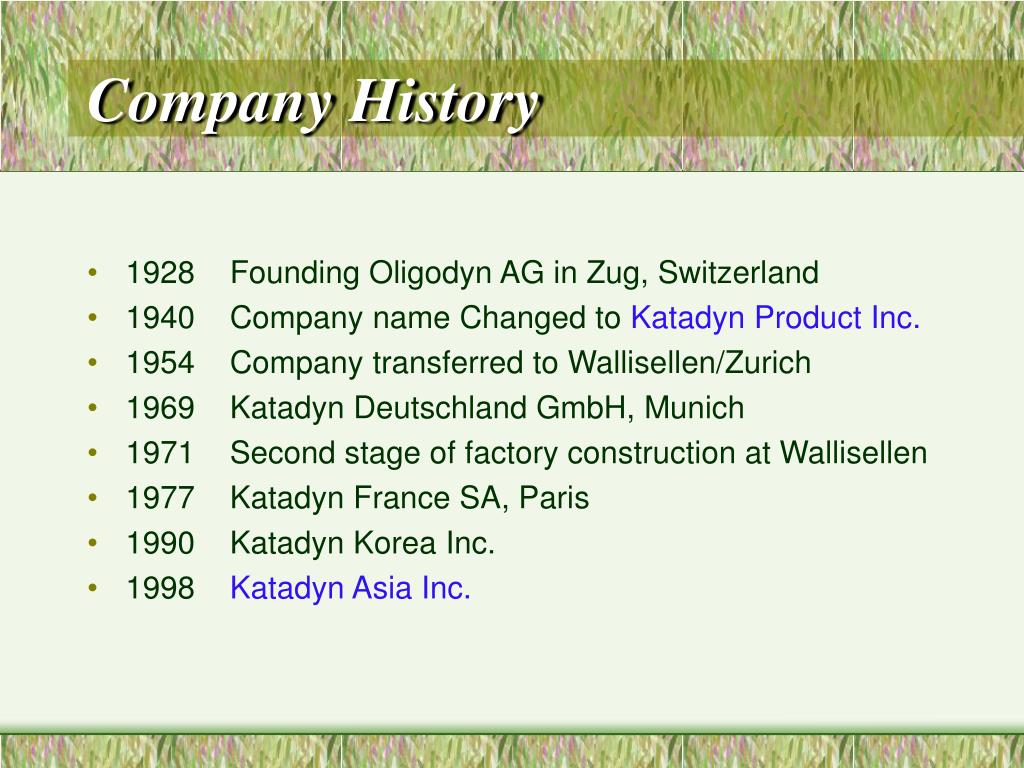

company history
Company History
  • 1928 Founding Oligodyn AG in Zug, Switzerland
  • 1940 Company name Changed to Katadyn Product Inc.
  • 1954 Company transferred to Wallisellen/Zurich
  • 1969 Katadyn Deutschland GmbH, Munich
  • 1971 Second stage of factory construction at Wallisellen
  • 1977 Katadyn France SA, Paris
  • 1990 Katadyn Korea Inc.
  • 1998 Katadyn Asia Inc.
activities of katadyn asia inc
Activities of Katadyn Asia Inc.
  • Exclusive distributor of all the Katadyn Products in Asia
  • Worldwide exclusive distributor & co-developer of Katadyn CFS House Filter System
    • Design and manufacture plastic housing and fittings
    • Assemble and distribute Katadyn CFS House Filter System to world market
    • Supply all the CFS parts and replacements
    • Develop new design and functions of CFS products
katadyn products
Katadyn Products
  • Katadyn CFS House Filter System
  • Industrial Water Technology
    • MF (Multiple Elements Filter System)
    • UV (Ultraviolet Radiation System)
    • EK (Electro-Katadyn System)
  • Outdoor Water Technology
    • Mini Ceramic Filter & Pocket Filter
    • Combi Filter
    • Micropur

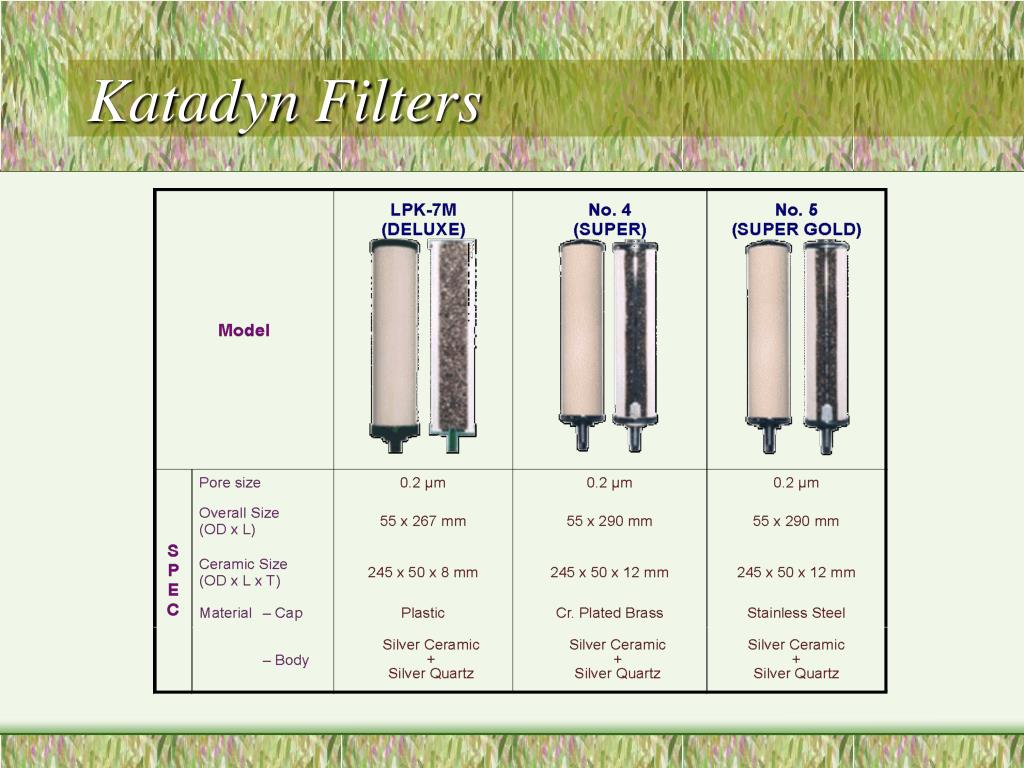

katadyn ceramic silver filter
Katadyn Ceramic Silver Filter

<1> Ceramic tube with extremely fine pores 0.0002mm retains suspended matter and bacteria contained in raw water on the outside of the ceramic wall

<2> Finely distributed Katadyn silver, incorporated in the ceramic material

- hinders bacteria from growing through the pores of

the ceramic tube

- disinfects the ceramic body continuously

<3> Filling of Katadyn silver quartz

- prevents penetration and growth of bacteria from the

outlet side

features of katadyn filter
Features of Katadyn Filter
  • Uniform heterocapillary pore size 0.2µm through the ceramic surface
  • Katadyn Silver disinfect bacteria and restrain them from growing inside the filter
  • Filtrate all of bacteria completely(100%) but keep minerals in the water as it is
  • Long life time - clearable just by brush
  • Simple and low-cost in maintenance
  • Proved its quality by various authoritative organizations for its70 year history
katadyn cfs house filter products
There must not be heavy metals and germs in all drinking beverage and the the water for washing vegetables.

Ceramic, which is heterocapillary structure, and Katadyn ceramic filter remove germs, heavy metals and impurities but keep mineral which is beneficial to our health.

Katadyn CFS House Filter Products

Remove Heavy Metals and Germs but keep mineral as it is

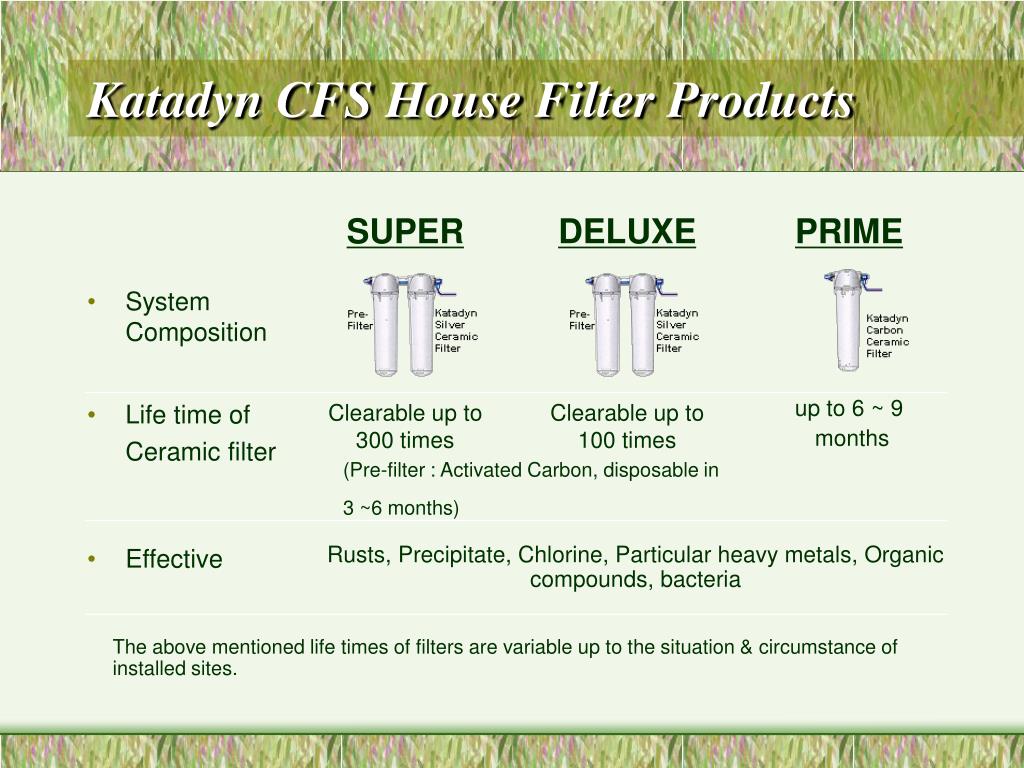

katadyn cfs house filter products8
System Composition

Life time of Ceramic filter

Katadyn CFS House Filter Products

SUPER

Clearable up to 300 times

DELUXE

Clearable up to 100 times

PRIME

up to 6 ~ 9

months

(Pre-filter : Activated Carbon, disposable in 3 ~6 months)

  • Effective

Rusts, Precipitate, Chlorine, Particular heavy metals, Organic compounds, bacteria

The above mentioned life times of filters are variable up to the situation & circumstance of installed sites.

technical data
Filtration :

Effective :

Output :

Recommended

water pressure :

Water Temp. :

Feature :

Katadyn Silver Ceramic & Activated Carbon

Harmful Bacteria such as cholera, coliform, salmonella,

shigella, pseudomonas, amoebas,

cysts such as cryptosporidium, giardia

Chlorine

Lead and other heavy metals

Chemicals such as herbicides

Taste and odor

0.8 gallons/min, 3 liter/min at 3 bar/ 45 psi

1 bar/ 15 psi ~ 6 bar / 88 psi

1~ 50°C / 34 ~122°F

no pumping, easily installed, efficient even in turbid water,

unique home water filter with 0.2 Micron ceramic filter. All

fittings included.

Technical Data
installation
Under-Sink type

Counter-Top Type

Installation

The Katadyn CFS System can be installed wherever perfect, healthy drinking water is required and there is already a cold water supply. It can be installed without any specialist skills. All the necessary parts, including precise installation instructions are supplied as a complete kit.

letters certificates
Letters & Certificates
  • SQS-certificate ISO 9001
  • Harvard University
  • University of Michigan
  • Yale University
  • U.S. Army
  • U.S. EPA
  • Institute Pasteur
  • WHO (World Health Organization)
prominent users industrial products
Prominent Users(Industrial Products)
  • Coca-cola
  • Pepsi-cola
  • Swiss Red Cross
  • The Waterworks Bureau of Swiss
how to contact katadyn asia inc
How to contact Katadyn Asia Inc.
  • Homepage : http://www.katadyn.co.kr
  • E-mail : webmaster@katadyn.co.kr
  • Telephone : 82-2-582-4505
  • Fax : 82-2-585-7567 / 525-5985
  • Address

E-Re Bldg.(Katadyn Bldg.)

1666-9, Seocho-Dong, Seocho-Ku,

Seoul 137-070, Korea
