Diagnosis and Medical Management of Post-Polio Syndrome. Dr Michael Watt Consultant Neurologist RVH, Belfast. How easy it is to Forget. What is PPS? Have I got it or have I got something else? What can I do about it?. History of PPS. First case described in 1875 (Raymond, 1875)

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
Download Presentation

Diagnosis and Medical Management of Post-Polio Syndrome

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
diagnosis and medical management of post polio syndrome

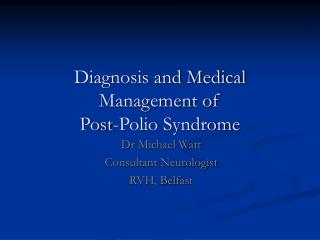

Diagnosis and Medical Management of Post-Polio Syndrome

Dr Michael Watt

Consultant Neurologist

RVH, Belfast


What is PPS?

Have I got it or have I got something else?

What can I do about it?

history of pps
History of PPS

First case described in 1875 (Raymond, 1875)

Zilkha (1962) described 11 cases occurring 17-43 years post acute illness.

Halstead (1985) – “post polio syndrome”, (PPS), then, re-defined it in 1991.

Dalakas (1995) defined post polio muscular atrophy (PPMA)

Berg(1996) “Post Polio Muscular dysfunction” (PPMD)

Howard (1988,2003)) Post-polio functional deterioration (PPFD)

halstead s 1985 definition
Halstead’s 1985 Definition
  • Confirmed history of polio
  • Partial or fairly complete neurological and functional recovery after the acute episode.
  • Period of at least 15 years with neurological and functional stability
  • Two or more of the following health problems occurring after the stable period:
    • Extensive fatigue
    • Muscle and or joint pain
    • New weakness in muscles previously affected or unaffected
    • New muscle atrophy
    • Functional loss
    • Cold intolerance
  • No other medical explanation found
epidemiology of pps
Epidemiology of PPS

The frequency of PPS ranges between 15%-80%, depending which population are studied, and which criteria are applied.

In European populations a prevalence of between 46% (Holland) and 60% (Edinburgh, Norway, Denmark) is seen in the literature.





One nerve/motor muscle unit


multiple motor units /nerve



  • Remaining healthy motor neurons can no longer maintain new sprouts
  • Decompensation / chronic denervation and reinervation process.
  • Denervation exceeds reinervation
theories contd
Motor neuronal loss due to reactivation of a persistent latent virus.

Infection of the polio survivor’s motor neuron by a different enterovirus

Loss of strength associated with aging, in already weakened muscles

Theories (contd.)
what causes pps
What Causes PPS?
  • Accelerated natural ageing
  • Falling nerve to muscle motor unit ratio
  • Inflammation and active immune response
  • Co-morbidity:
    • Orthopaedic problems
    • Radiculopathy and entrapment neuropathy
    • Respiratory failure
    • General medical problems
  • PPS is more likely with
    • increasing age;
    • the more severe the initial weakness was
    • The more time that elapses after the attack of polio
non paralytic polio and pps
Non-paralytic polio and PPS?

For non-paralytic polio it is impossible to exclude a scaled down version of the same processes.

Such a diagnosis however is presumptive and cannot be categorically confirmed.

When we have further knowledge about the specificity and sensitivity of EMG, muscle biopsy and immunological tests it should be possible to give more definite diagnoses

main clinical features of pps
Fatigue (Commonest)


Muscle pain

Gait disturbance

Respiratory problems

Swallowing problems

Cold intolerance

Sleep apnoea

Main Clinical Features of PPS
  • Prominent in the early hours of the afternoon
  • Decreases with rest
  • Pathogenesis:Chronic pain / Muscle pain
  • Sleep disorders/ respiratory dysfunction
  • Difficulty in remembering/ concentrating
  • Decreased muscular endurance / Increased muscular fatigability
  • “Polio wall”
  • Generalized or muscular
  • Disuse
  • Overuse
  • Inappropriate use
  • Chronic weakness
  • Weight gain
  • Joint problems
muscle pain
Muscle Pain
  • Extremely prevalent in PPS
  • Deep aching pain
  • Myofascial pain syndrome / Fibromyalgia
  • Small number of patients have muscle tenderness on palpation
swallowing problems
Swallowing Problems
  • Can occur in bulbar and non bulbar polio
  • Subclinical asymmetrical weakness in the pharyngeal constrictor muscles : almost always present in PPMA (Post polio muscular atrophy)
  • Not all are symptomatic
cold intolerance
Cold Intolerance

Autonomic nervous system dysfunction?

May relate to sympathetic intermediolateral column damage during acute poliomyelitis

Peripheral component may include muscular atrophy leading to reduced heat production

sleep apnoea
Sleep Apnoea
  • Combination of the following:
  • Central: residual dysfunction of surviving bulbar reticular neurons
  • Obstructive: pharyngeal weakness and increased musculoskeletal deformities from scoliosis or emphysema
  • PPMA, diminished muscle strength of respiratory,intercostal & abdominal muscle groups
risk factors for sleep apnoea
Risk Factors for Sleep Apnoea

Age of onset (More severe disease in adolescents and adults)

Severity of original paralysis

Managed with BiPAP

is it pps
Is it PPS?

Other neuromuscular diseases

Nerve entrapment

is it pps1
Is it PPS?

Spinal cord and nerve root problems


is it pps other things to think of
Is it PPS? – Other things to think of

Other rheumatological disorders: rheumatoid arthritis, lupus, Sjorgren’s syndrome or just osteoarthritis

Endocrine disorders: hypothyroidism, adrenal failure, rarely pituitary failure

Orthopaedic problems: shoulder rotator cuff tears and impingement syndrome, spondylosis, bursitis, metatarsalgia.

Breathing disorders: restrictive problems with scoliosis, obstructive sleep apnoea

General medical problems: heart failure, diabetes

how is it investigated
How is it Investigated?

MRI scans

Blood tests

EMG and nerve conduction studies


Overnight oximetry

Sleep studies

Pulmonary function tests

what can be done about pps
What can be done about PPS?

Firstly, drugs don’t work, at least not the one’s we have at the moment.

Modafanil and pyridostigmine, steroids and ivIg are all proven not to have any benefit.

what can be done for pps treat co morbidities
What can be Done for PPS?Treat Co-Morbidities
  • If you rely on your shoulders,
    • protect them and seek early advice for shoulder symptoms. e.g.. “Save Our Shoulders”
    • Insist on proper evaluation of the shoulder e.g. USS or MRI
    • Ensure the surgeon has experience of PPS.
  • Treat general medical and endocrine problems.
  • Treat carpal tunnel syndrome
  • Look at posture to prevent progressive deformities e.g.. Profiling bed, trunk support when sitting.
  • Make every effort to treat and avoid rising BMI: diet, Orlistat, Sibutramine.
treat co morbidities
Treat Co-morbidities

Get orthoses to off load and support joints that are failing

Use lightweight modern materials for orthoses e.g. carbon fibre, titanium

treat co morbidities1
Treat Co-Morbidities

Use strategies to avoid over stressing systems that are already challenged e.g. powered wheel chair, PAPAW.

treat co morbidities2
Treat Co-Morbidities

Night time hypoventilation can be easily treated with NIPPV

active management of pps
Active Management of PPS
  • Start an exercise program:
    • Aerobic, i.e.. Within the limits of the muscles’ glucose and oxygen supplies. In practice this means 2-3 minutes exercise, 1-3 minutes rest.
    • Within your limit (Avoid “boom and bust”). Do not exercise until it hurts the muscles. If your muscles ache and are stiff the next day you over did it.
    • Use pacing and graded exercise goals: small increments in your limit are achievable e.g.. 5-10% every 1-2 weeks.
exercise for pps
Exercise for PPS

Where possible try and use water based activities: you are 30% lighter in the water and will off load joints that might be struggling with gravity based exercises.

Be consistent.

Exercise reverses DECONDITIONING

active management of pps1
Active Management of PPS

Get good pain control: non-steroidal anti-inflammatory drugs, medium grade opiates e.g.. codeine, but use non-pharmacological means e.g.. Counter stimulation TENS, rubifacients

Keep warm, where possible, spend time in a warm climate (Nordby 2007)

Keep respiratory difficulties under review and take advice about the need for night time ventilation support, stop smoking, and ask for advice about respiratory muscle training

active management of pps2
Active Management of PPS

Make environmental adaptations and use assistive technology: e.g.. Door entry systems, remote switches, environmental control systems, level access bathroom facilities

Join a group or start one.


People with PPS get more out of their muscles and joints than would have been expected.

They seem to remain independent in the long term to a degree that is contrary to expectations.

The symptoms are manageable and with proper measures quality of life can remain good.
