Presentation Transcript
Slide1 l.jpg

Pablo Garcia

Sandia JSF PM

Sandia National Laboratories (SNL)

Albuquerque, NM 87185

Phone: (505)844-5799 Fax: (505)844-3321

Email: pgarcia@sandia.gov

Web Site: reliability.sandia.gov

Sandia is a multiprogram laboratory operated by Sandia Corporation, a Lockheed Martin Company,for the United States Department of Energy under contract DE-AC04-94AL85000.


Slide2 l.jpg

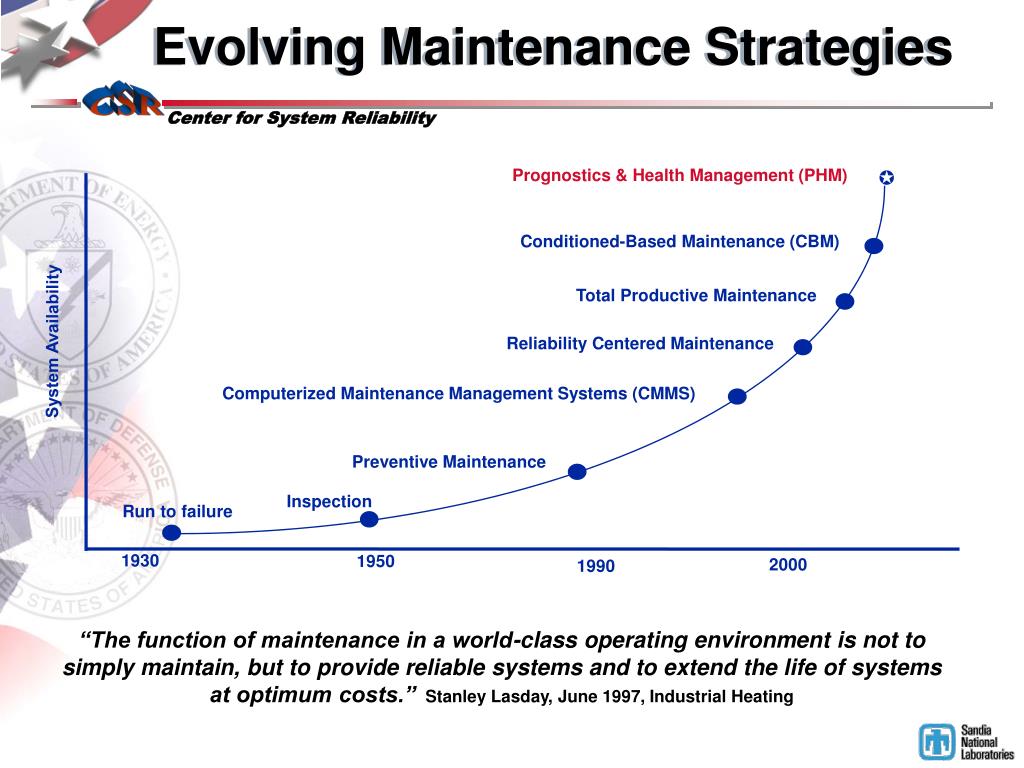

Prognostics & Health Management (PHM)

Conditioned-Based Maintenance (CBM)

Total Productive Maintenance

System Availability

Reliability Centered Maintenance

Computerized Maintenance Management Systems (CMMS)

Preventive Maintenance

Inspection

Run to failure

1930

1950

2000

1990

Evolving Maintenance Strategies

“The function of maintenance in a world-class operating environment is not to simply maintain, but to provide reliable systems and to extend the life of systems at optimum costs.” Stanley Lasday, June 1997, Industrial Heating


Slide3 l.jpg

Why PHM?

The High Cost of Maintenance

  • Estimated that U.S. industry needlessly squanders in excess of $200 billion each year on inadequate or unnecessary maintenance procedures.

  • One major company has stated that maintenance was its “single largest controllable cost opportunity representing $100-300 million per year corporate wide.”

  • DoD spends in excess of $85B/yr on maintenance & support activities

  • Universally, Industry & government have indicated need for better, more robust “predictive maintenance” capabilities.


Slide4 l.jpg

System Health Condition

Functioning

Degrading

Failing

Time

Associated Cost with Time of Replacement

$$$

Prescriptive replacement of functioning “good” item

$$$$$$$

Lose of life and/or system

due to catastrophic failure

$ Optimum

Replace item with maximum usage before failure

Prognostics & Health Management

Definition: The capability to estimate the likelihood of a system failure over some future time interval so that appropriate actions can be taken. A Prognostics & Health Management (PHM) system consists of:

  • Raw Data

    • Sensor data

    • Historical maintenance/failure data

  • Diagnostics

    • Data fusion

    • Data interpretation

  • Prognostics

    • Predictions

    • System “health”

  • Health Management

    • What should be done

    • When should it be done


Slide5 l.jpg

PHM Systems

  • PROBLEM: Prognostics and Health Management (PHM) systems must be highly customized to the specific equipment being monitored.

  • OUR GOAL is to develop a robust, general prognostics capability that can be applied to many situations.

  • OUR APPROACH is to develop a toolkit of reusable software objects and components and an architecture for their use.


Slide6 l.jpg

Categorization of Failure Modes

Possible Failure Modes of System

  • Some – Can predict well with sensors (~10%-20%)

  • Some – Candidates for sensors, but technology not ready

  • Some – May or may not be candidates for sensors, but have good time-to-failure data

  • Some – Not candidates for sensors and have poor life data

  • Some – Random


Slide7 l.jpg

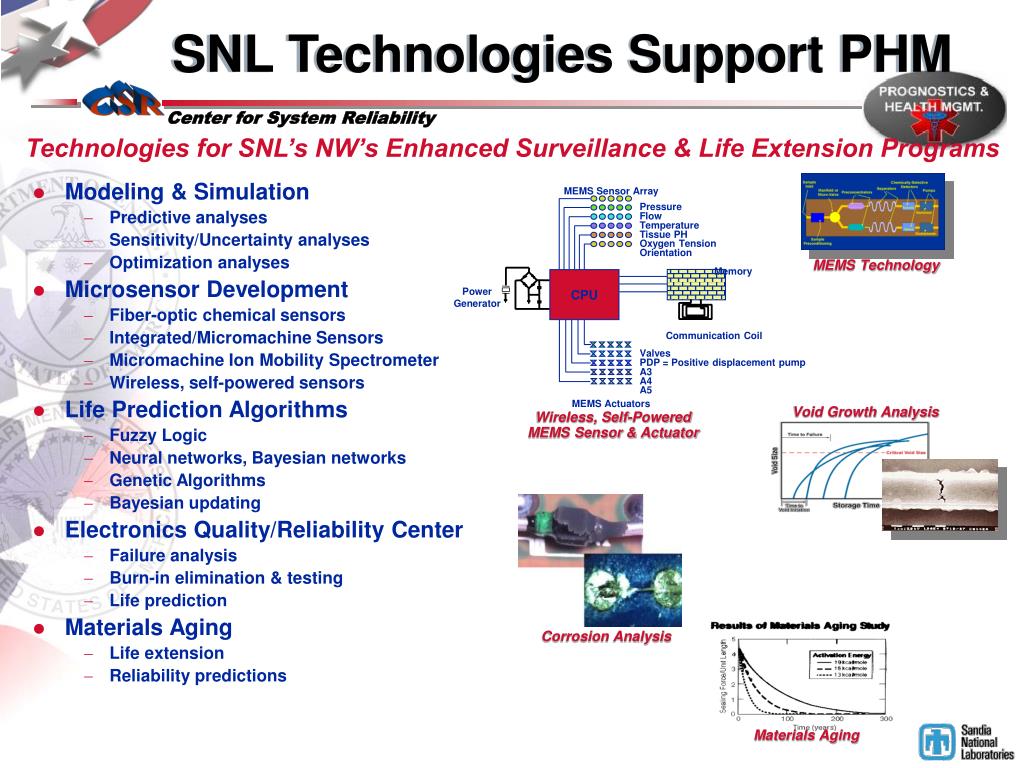

MEMS Sensor Array

Pressure

Flow

Temperature

Tissue PH

Oxygen Tension

Orientation

MEMS Technology

Memory

CPU

Power

Generator

Communication Coil

Valves

PDP = Positive displacement pump

A3

A4

A5

MEMS Actuators

Wireless, Self-Powered MEMS Sensor & Actuator

Void Growth Analysis

Corrosion Analysis

Materials Aging

SNL Technologies Support PHM

Technologies for SNL’s NW’s Enhanced Surveillance & Life Extension Programs

  • Modeling & Simulation

    • Predictive analyses

    • Sensitivity/Uncertainty analyses

    • Optimization analyses

  • Microsensor Development

    • Fiber-optic chemical sensors

    • Integrated/Micromachine Sensors

    • Micromachine Ion Mobility Spectrometer

    • Wireless, self-powered sensors

  • Life Prediction Algorithms

    • Fuzzy Logic

    • Neural networks, Bayesian networks

    • Genetic Algorithms

    • Bayesian updating

  • Electronics Quality/Reliability Center

    • Failure analysis

    • Burn-in elimination & testing

    • Life prediction

  • Materials Aging

    • Life extension

    • Reliability predictions


Slide8 l.jpg

Power Plant PHM

Manufacturing Facility PHM

Machine Tool PHM

F-16 ADG PHM

AH-64 PHM

Automotive PHM

ABL PHM

SNL PHM Activities/Programs

  • Nuclear Power Plant “Smart” Equipment

    • DOE Nuclear Energy Research Initiative (NERI)

    • Introduce PHM to selected power plant equipment

  • Manufacturing Facility PHM

    • DOE funded program

    • Implement PHM in manufacturing facility

  • Machine Tool PHM

    • DOE funded program

    • Implement PHM on SNL machine tools

  • F-16 Accessory Drive Gearbox (ADG)

    • Joint Shared Vision program with LM Aero

    • Extend replacement intervals

  • AH-64 Apache Attack Helicopter

    • Program with Apache PO

    • Utilize data from Flight Data Recorders

  • Automotive Industry On-Board Diagnostics for Emissions

    • Robust algorithm development for emissions control

    • Pattern recognition and decision algorithms

  • Airborne Laser PHM


Slide9 l.jpg

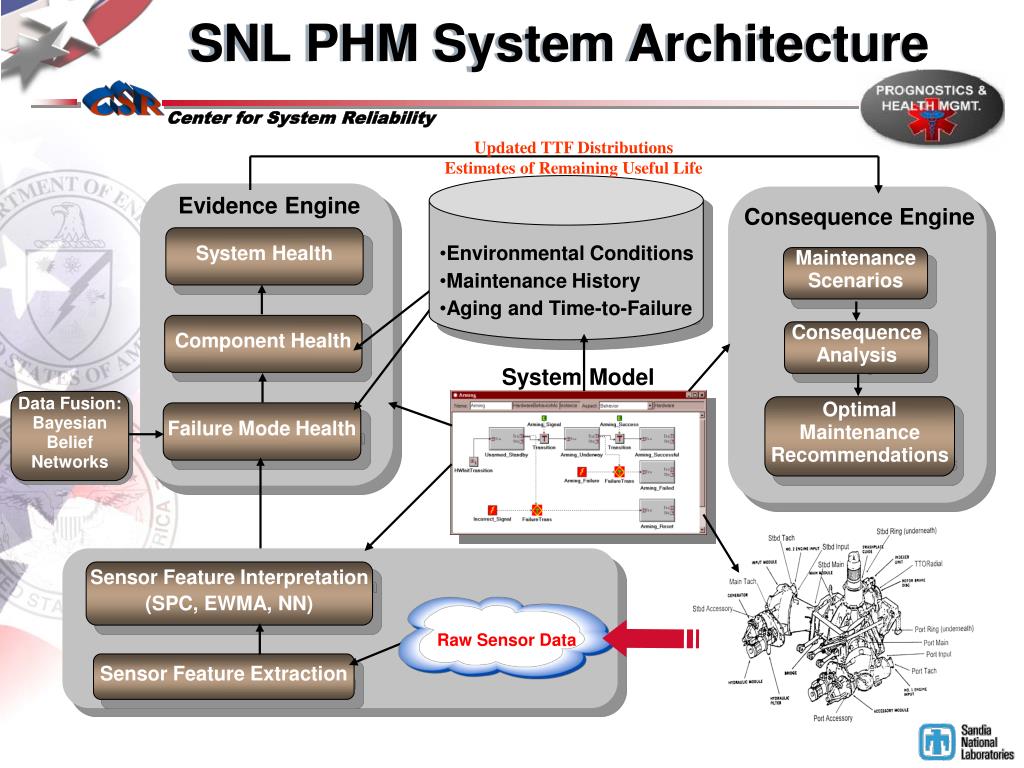

Evidence Engine

Consequence Engine

System Health

Maintenance

Scenarios

Component Health

Consequence

Analysis

Raw Sensor Data

Optimal

Maintenance

Recommendations

Failure Mode Health

Sensor Feature Interpretation

(SPC, EWMA, NN)

Sensor Feature Extraction

SNL PHM System Architecture

Updated TTF Distributions

Estimates of Remaining Useful Life

  • Environmental Conditions

  • Maintenance History

  • Aging and Time-to-Failure

System Model

Data Fusion:

Bayesian

Belief

Networks


Slide10 l.jpg

x

predicted service life

Consequence Engine Concept

PREDICTED SERVICE LIFE

What did they do ? (predicted loads)

and

How long did they do it ? (exposure)

predicted

loads

predicted

loads

Loads under normal operating conditions

Flight loads

predicted

loads

predicted

loads

profileB

profile C

profile A

profile D

predicted

exposure

predicted

exposure

predicted

exposure

predicted

exposure

x’

normal service life

Service Life (in hours)

Confidential and Proprietary


Slide11 l.jpg

AlliedSignal

Flexible Manufacturing System (FMS)

PHM

Clients

Real Time Sensor Data

Data Server

Machine Repair Data

  • Monitoring multiple machines at facility

  • Data Server filters & stores real-time sensor data

  • Interfaces with CMMS

  • CMMS stores all historical maintenance data

  • Networked for remote access

CMMS

Factory Floor PHM


Slide12 l.jpg

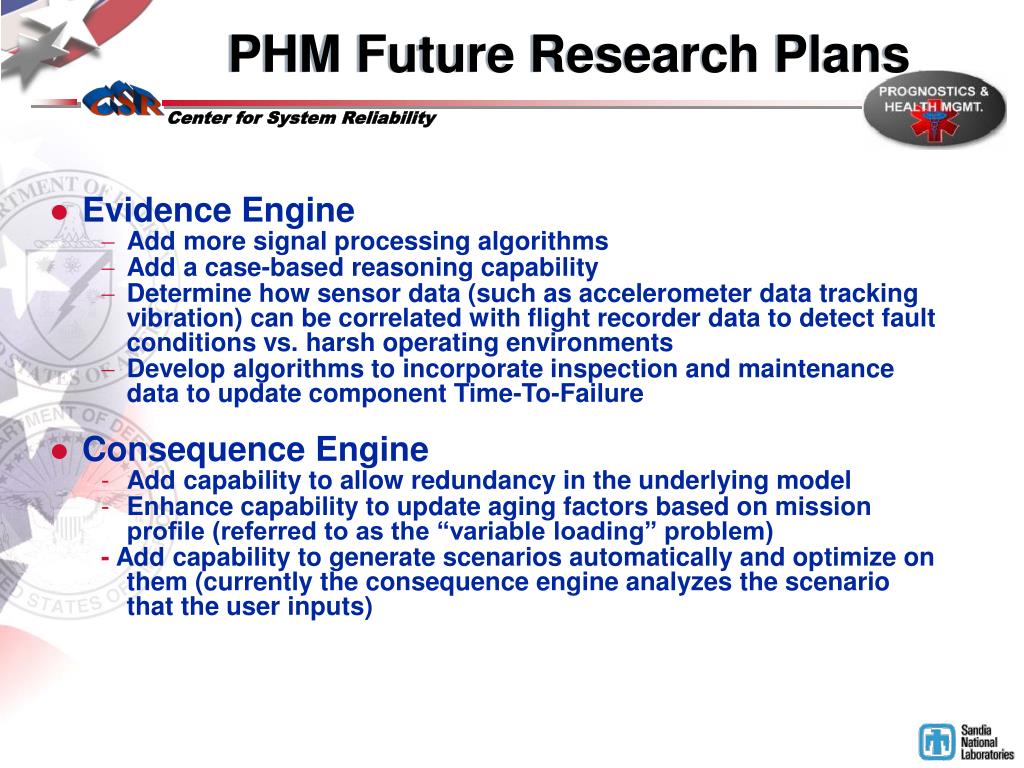

PHM Future Research Plans

  • Evidence Engine

    • Add more signal processing algorithms

    • Add a case-based reasoning capability

    • Determine how sensor data (such as accelerometer data tracking vibration) can be correlated with flight recorder data to detect fault conditions vs. harsh operating environments

    • Develop algorithms to incorporate inspection and maintenance data to update component Time-To-Failure

  • Consequence Engine

    • Add capability to allow redundancy in the underlying model

    • Enhance capability to update aging factors based on mission profile (referred to as the “variable loading” problem)

    • - Add capability to generate scenarios automatically and optimize on them (currently the consequence engine analyzes the scenario that the user inputs)


Slide13 l.jpg

PHM Future Research Plans

A Systems Driven, Physics-Based Approach for PHM of Electronic Systems – Proposed Research

Problem:

  • Electronic failures appear random & unpredictable

  • Predicting such failures requires an understanding of underlying failure processes that does not exist

  • Research into failure processes is usually reactive, and proactive research into failure processes often not focused

    Solution:

  • Utilize SNL’s strengths in materials aging modeling to gain an understanding of process behind “random” failures

  • Use a systems approach (a la system reliability optimization) to direct model development towards the most promising areas

  • Obtain physics-based underpinning on which a PHM capability for electronic systems can be built



Slide15 l.jpg

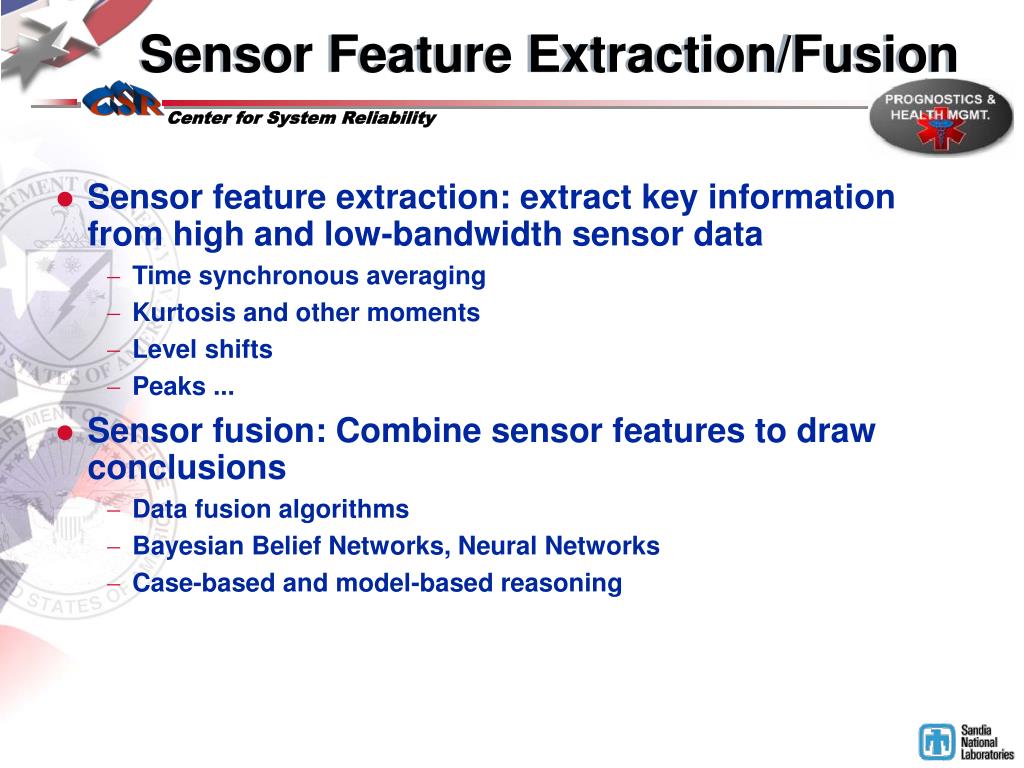

Sensor Feature Extraction/Fusion

  • Sensor feature extraction: extract key information from high and low-bandwidth sensor data

    • Time synchronous averaging

    • Kurtosis and other moments

    • Level shifts

    • Peaks ...

  • Sensor fusion: Combine sensor features to draw conclusions

    • Data fusion algorithms

    • Bayesian Belief Networks, Neural Networks

    • Case-based and model-based reasoning


Slide16 l.jpg

Evidence Engine

  • Integrates information from a variety of sources in order to take into account all the evidence that impacts a prognosis for system health:

    • Maintenance history

    • Time to Failure distributions

    • Aging data and algorithms

    • Environmental conditions.

  • Uses a Bayesian Belief Network (BBN) for information fusion

  • Additional prognostic algorithms are used to detect trends, abstract and identify sensor features, estimate remaining useful life, etc.


Slide17 l.jpg

Consequence Engine

  • Purpose: Most prognostic systems focus solely on predicting remaining life. The Consequence Engine takes the predictions and simulates how various maintenance actions affect system level decisions in terms of cost, availability, mission effectiveness, etc.

  • Consequence Engine includes the following:

    • Database of scheduled activities

    • Discrete-event simulation capability

      • simulate failures, maintenance actions, downtime, etc.

      • calculate system performance measures such as Mean Time Between Failures (MTBF) and Mean Time To Repair (MTTR), Time to Failure (TTF), etc.

    • Capability to allow for different operational states (e.g., partially mission capable vs. up or down).


Slide18 l.jpg

Virtual System

System Model

Simulated Failure and Repair Events

Simulated Sensor Data

Virtual System

Simulated Mission Profile

Performance Metrics:

Mission Completion Prob.

Maintenance Cost

Downtime

Availability

Parts Requirements

Scenario Generation

Planned Use Schedule

Virtual System Simulator

A software tool that simulates the behavior of a system including failures, maintenance, and sensor signals

  • Motivation

  • Real system experiences failures and repairs too infrequently to support PHM

  • Require capability for high-speed, realistic, reliability simulation of system to be monitored

    • - Support PHM design & testing

    • - Provide platform for realistic demos

    • - Analyze consequences of maintenance decisions


Slide19 l.jpg

f(t)

Updated

TTF Distribution

Original

TTF Distribution

Current Time

2000

Time to Failure (hours)

PHM Goal: Update TTF Distribution

Note: The updated TTF Distribution may be based on a more severe mission profile, sensor indications, inspection results, etc. or a combination of these.
