Vertical-Autoclave 50L

Fison Vertical Autoclave has a 50 L capacity, operating at 134u00b0C and 0.22 MPa. It comes with an LCD, touch keypad, and safety lock, as well as a PT/TT testing connector and bacteria filter. Constructed from stainless steel, it provides automatic protection and clean, dry sterilization with four program options.<br>

Anthony128
Download Presentation

Vertical-Autoclave 50L

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

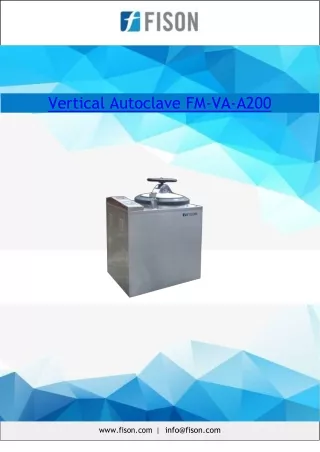

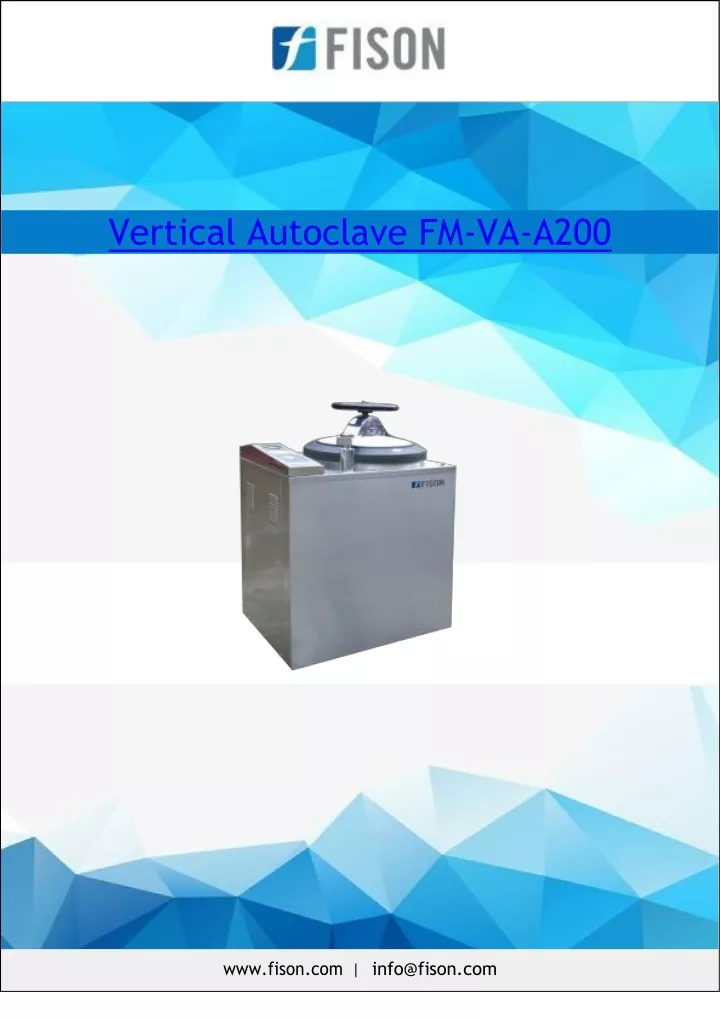

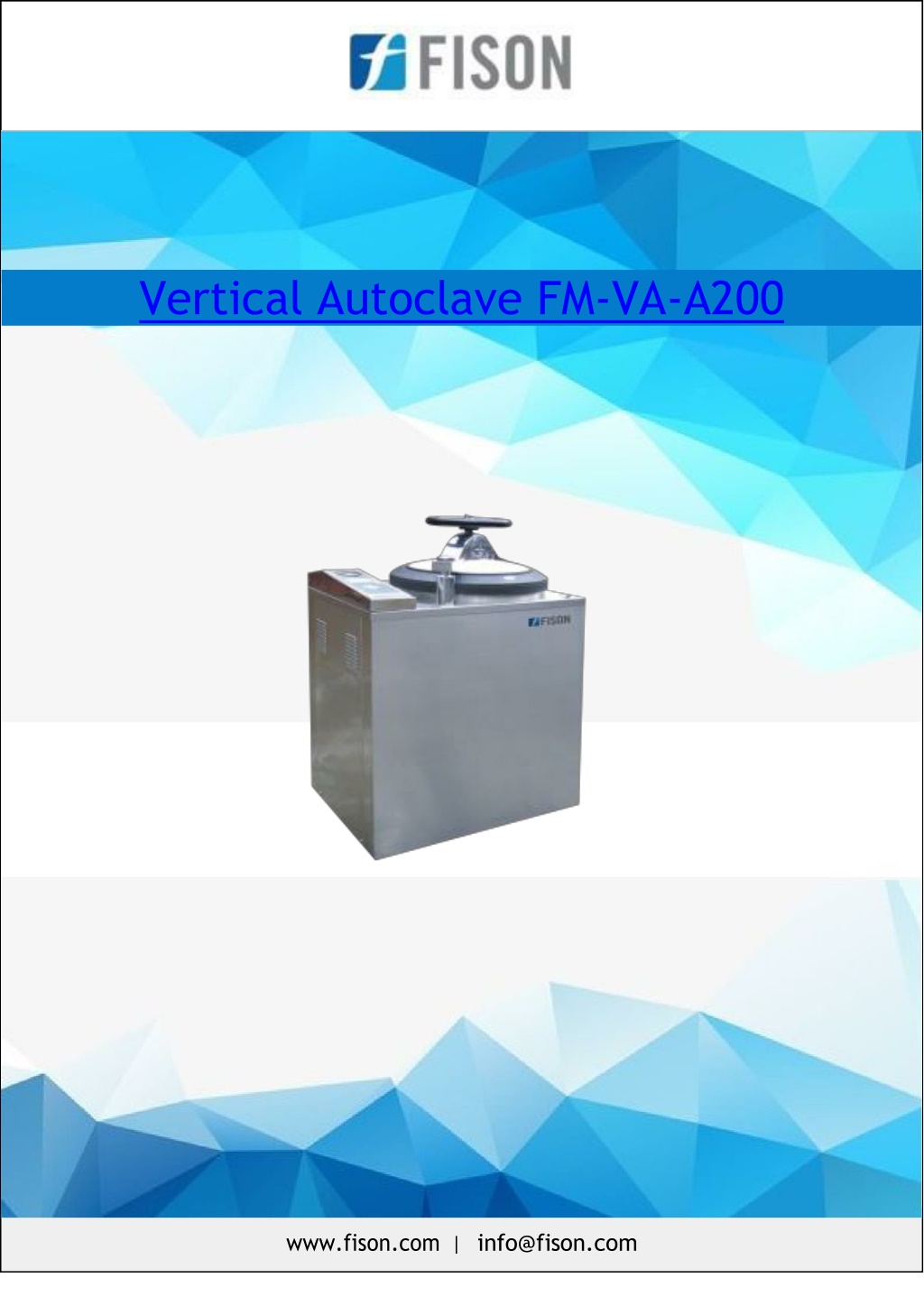

  1. Vertical Autoclave FM-VA-A200 www.fison.com | info@fison.com

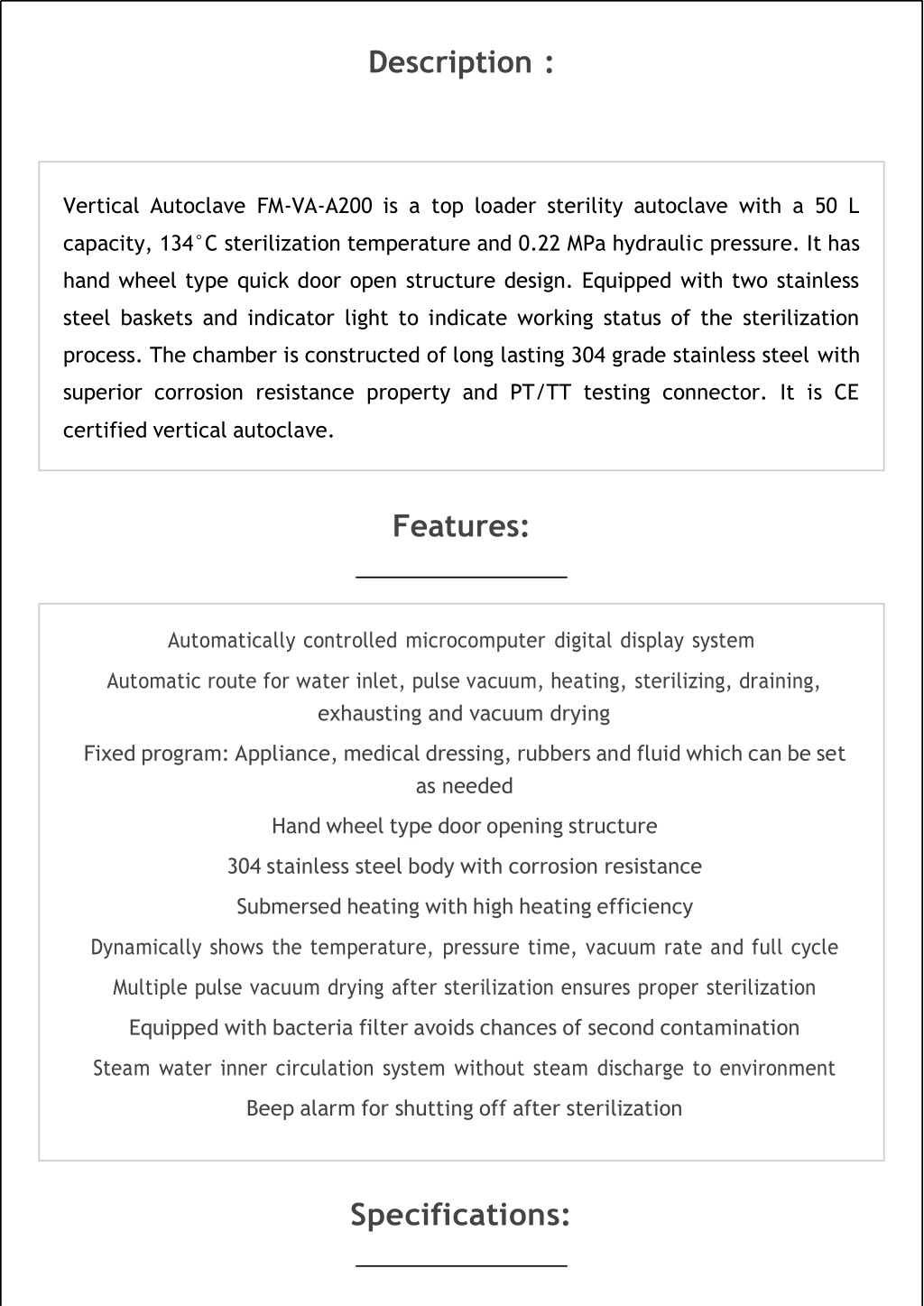

  2. Description : Vertical Autoclave FM-VA-A200 is a top loader sterility autoclave with a 50 L capacity, 134°C sterilization temperature and 0.22 MPa hydraulic pressure. It has hand wheel type quick door open structure design. Equipped with two stainless steel baskets and indicator light to indicate working status of the sterilization process. The chamber is constructed of long lasting 304 grade stainless steel with superior corrosion resistance property and PT/TT testing connector. It is CE certified vertical autoclave. Features: Automatically controlled microcomputer digital display system Automatic route for water inlet, pulse vacuum, heating, sterilizing, draining, exhausting and vacuum drying Fixed program: Appliance, medical dressing, rubbers and fluid which can be set as needed Hand wheel type door opening structure 304 stainless steel body with corrosion resistance Submersed heating with high heating efficiency Dynamically shows the temperature, pressure time, vacuum rate and full cycle Multiple pulse vacuum drying after sterilization ensures proper sterilization Equipped with bacteria filter avoids chances of second contamination Steam water inner circulation system without steam discharge to environment Beep alarm for shutting off after sterilization Specifications:

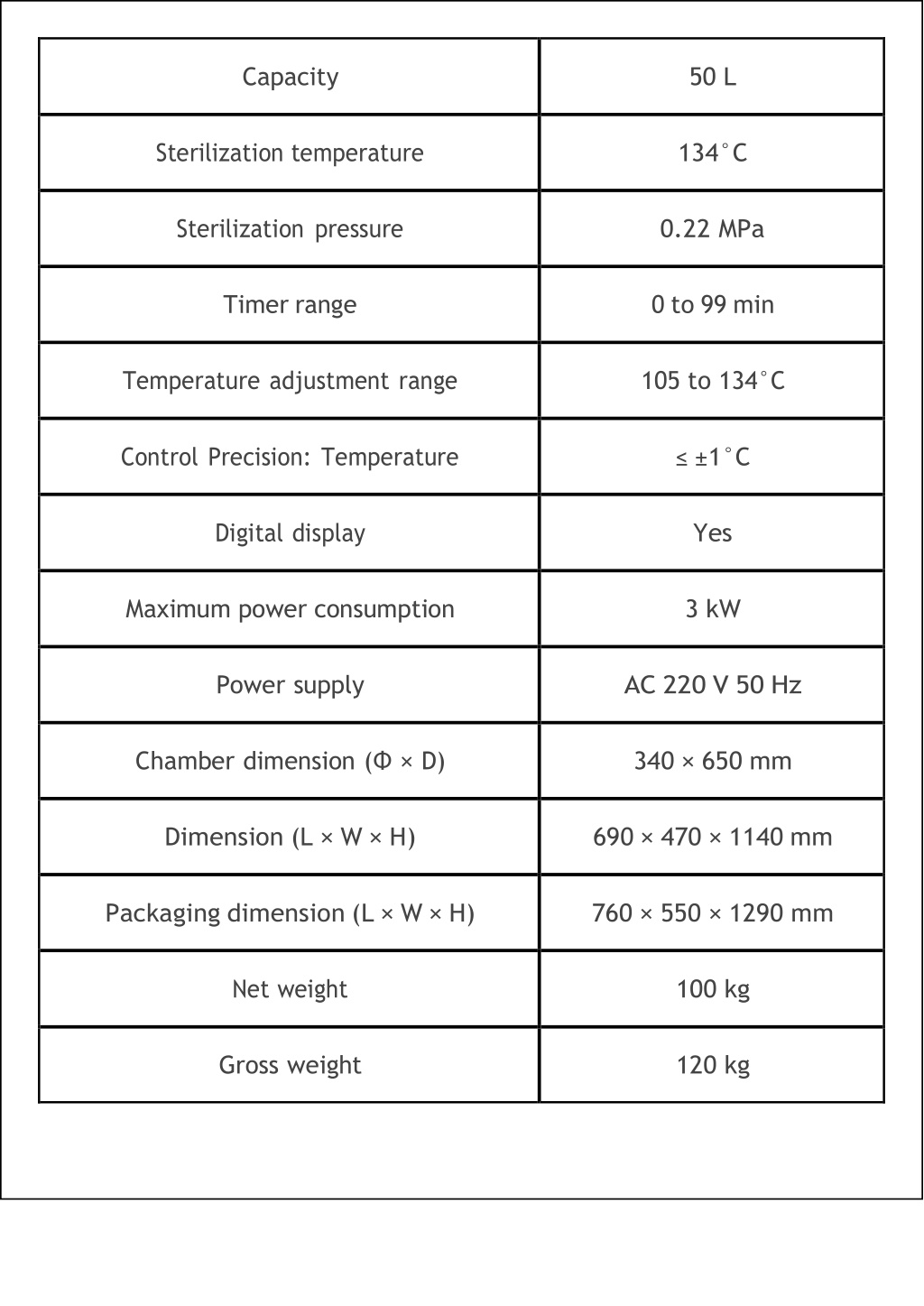

  3. Capacity 50 L Sterilization temperature 134°C Sterilization pressure 0.22 MPa Timer range 0 to 99 min Temperature adjustment range 105 to 134°C Control Precision: Temperature ≤ ±1°C Digital display Yes Maximum power consumption 3 kW Power supply AC 220 V 50 Hz Chamber dimension (Φ × D) 340 × 650 mm Dimension (L × W × H) 690 × 470 × 1140 mm Packaging dimension (L × W × H) 760 × 550 × 1290 mm Net weight 100 kg Gross weight 120 kg

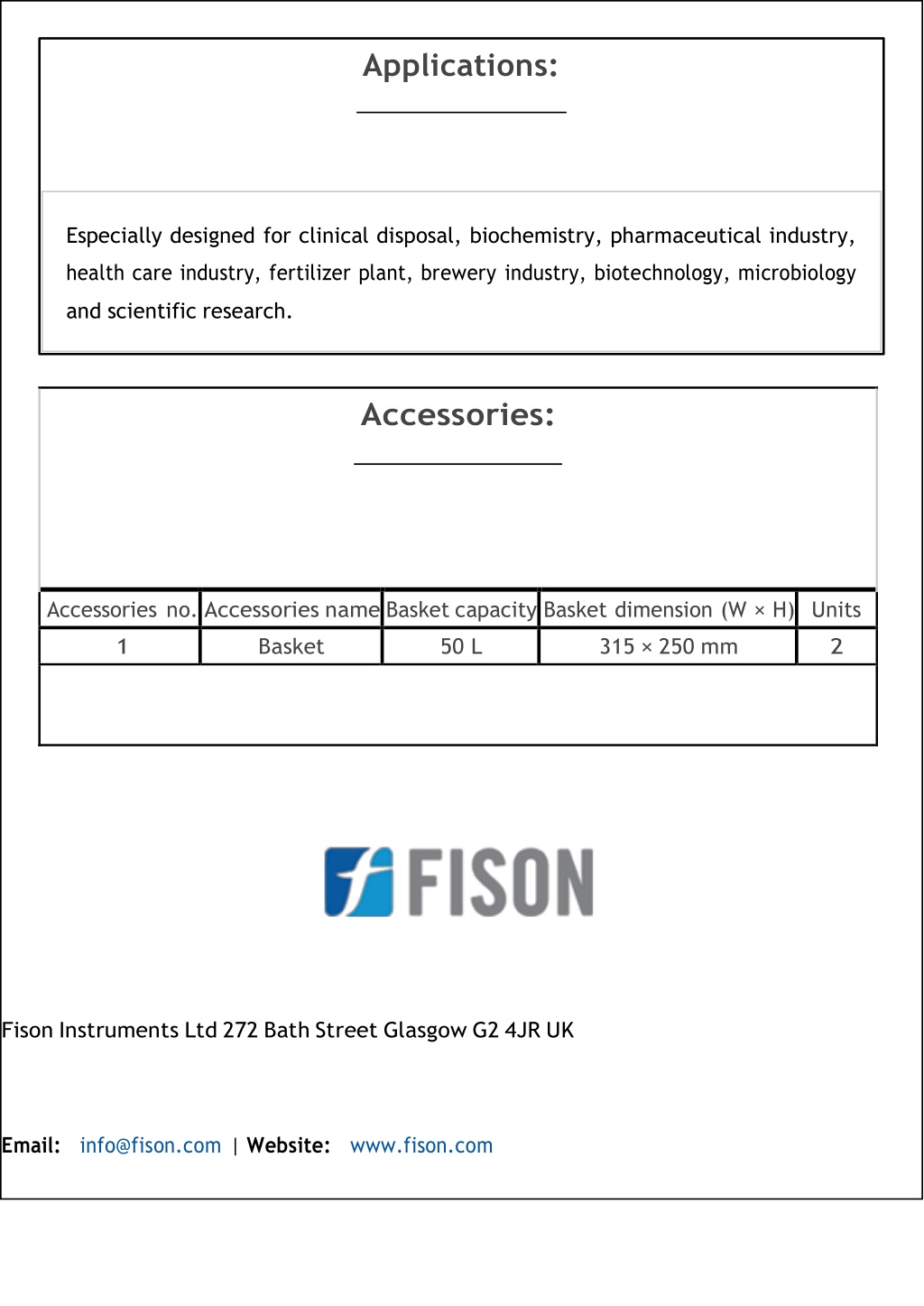

  4. Applications: Especially designed for clinical disposal, biochemistry, pharmaceutical industry, health care industry, fertilizer plant, brewery industry, biotechnology, microbiology and scientific research. Accessories: Accessories no. Accessories name Basket capacity Basket dimension (W × H) Units 1 Basket 50 L 315 × 250 mm 2 Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email:info@fison.com | Website:www.fison.com
