Vertical-Autoclave 35 L

Fison Vertical Autoclave is a 35L top-loading sterilizer with adjustable temperatures from 105u2013134u00b0C and a working pressure of 0.22 MPa. It features four caster wheels for easy mobility and operates via electric heating or direct heating with immersed copper tube elements.

Anthony128
Download Presentation

Vertical-Autoclave 35 L

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

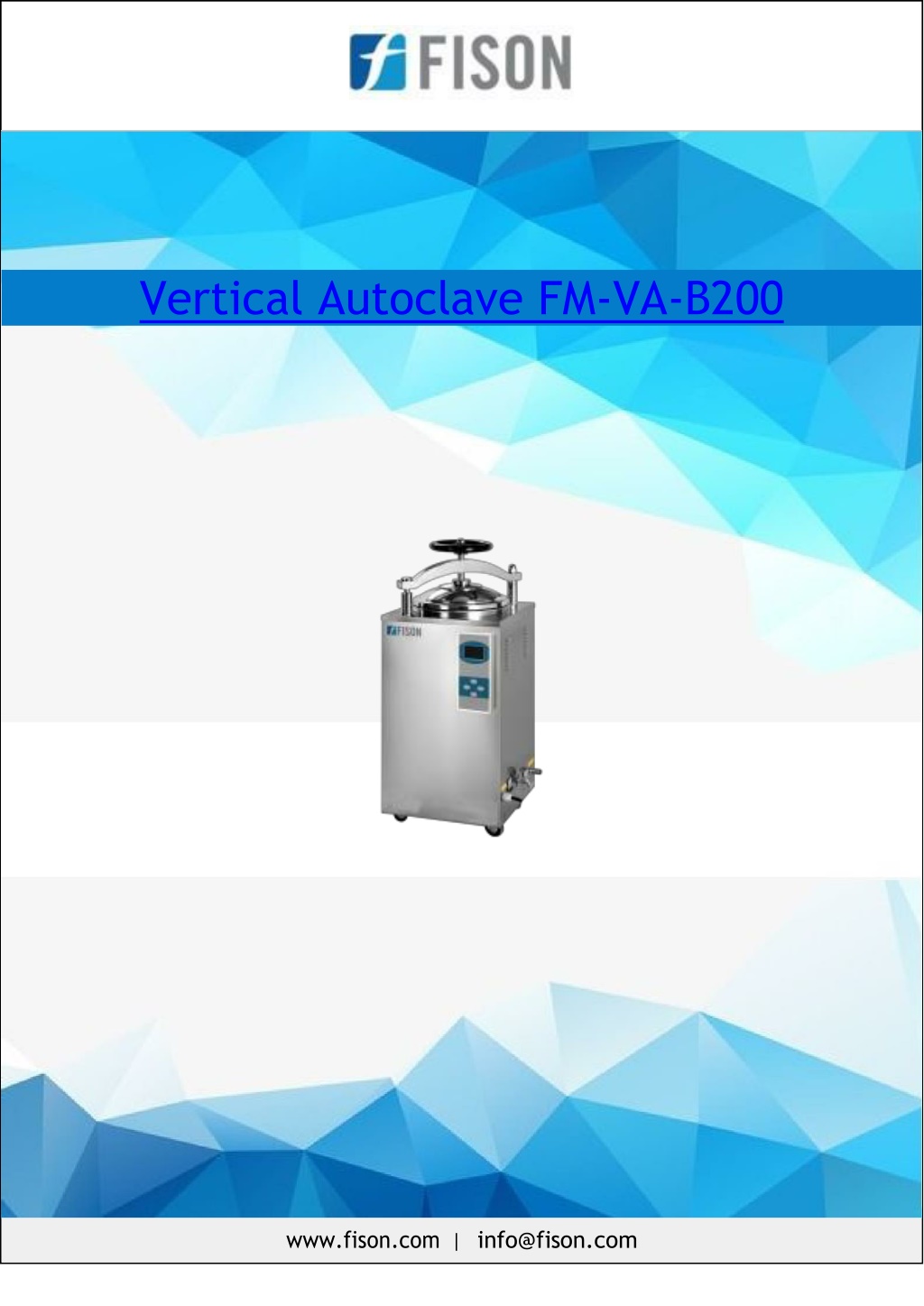

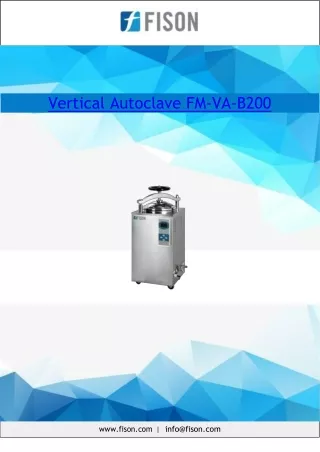

  1. Vertical Autoclave FM-VA-B200 www.fison.com | info@fison.com

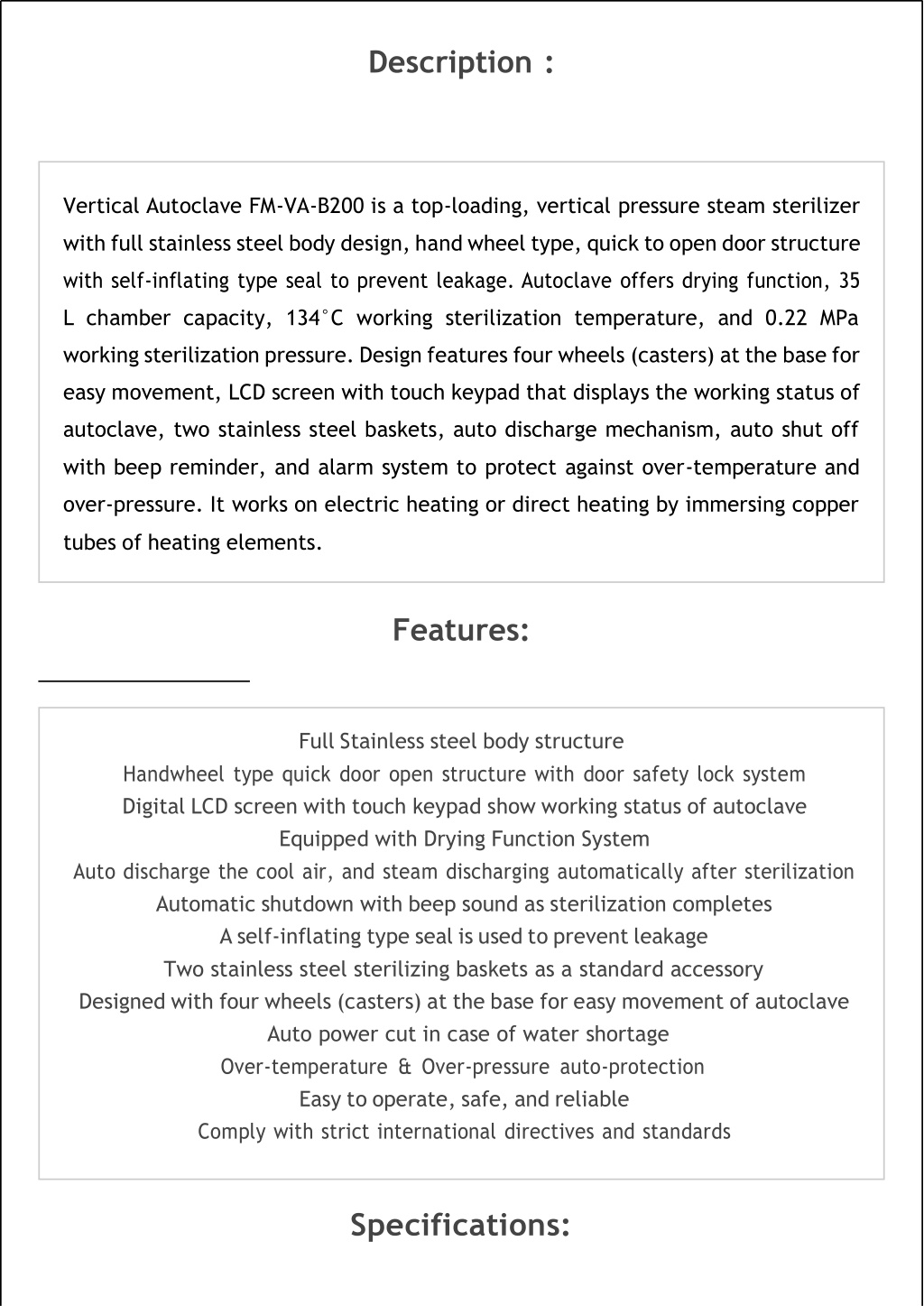

  2. Description : Vertical Autoclave FM-VA-B200 is a top-loading, vertical pressure steam sterilizer with full stainless steel body design, hand wheel type, quick to open door structure with self-inflating type seal to prevent leakage. Autoclave offers drying function, 35 L chamber capacity, 134°C working sterilization temperature, and 0.22 MPa working sterilization pressure. Design features four wheels (casters) at the base for easy movement, LCD screen with touch keypad that displays the working status of autoclave, two stainless steel baskets, auto discharge mechanism, auto shut off with beep reminder, and alarm system to protect against over-temperature and over-pressure. It works on electric heating or direct heating by immersing copper tubes of heating elements. Features: Full Stainless steel body structure Handwheel type quick door open structure with door safety lock system Digital LCD screen with touch keypad show working status of autoclave Equipped with Drying Function System Auto discharge the cool air, and steam discharging automatically after sterilization Automatic shutdown with beep sound as sterilization completes A self-inflating type seal is used to prevent leakage Two stainless steel sterilizing baskets as a standard accessory Designed with four wheels (casters) at the base for easy movement of autoclave Auto power cut in case of water shortage Over-temperature & Over-pressure auto-protection Easy to operate, safe, and reliable Comply with strict international directives and standards Specifications:

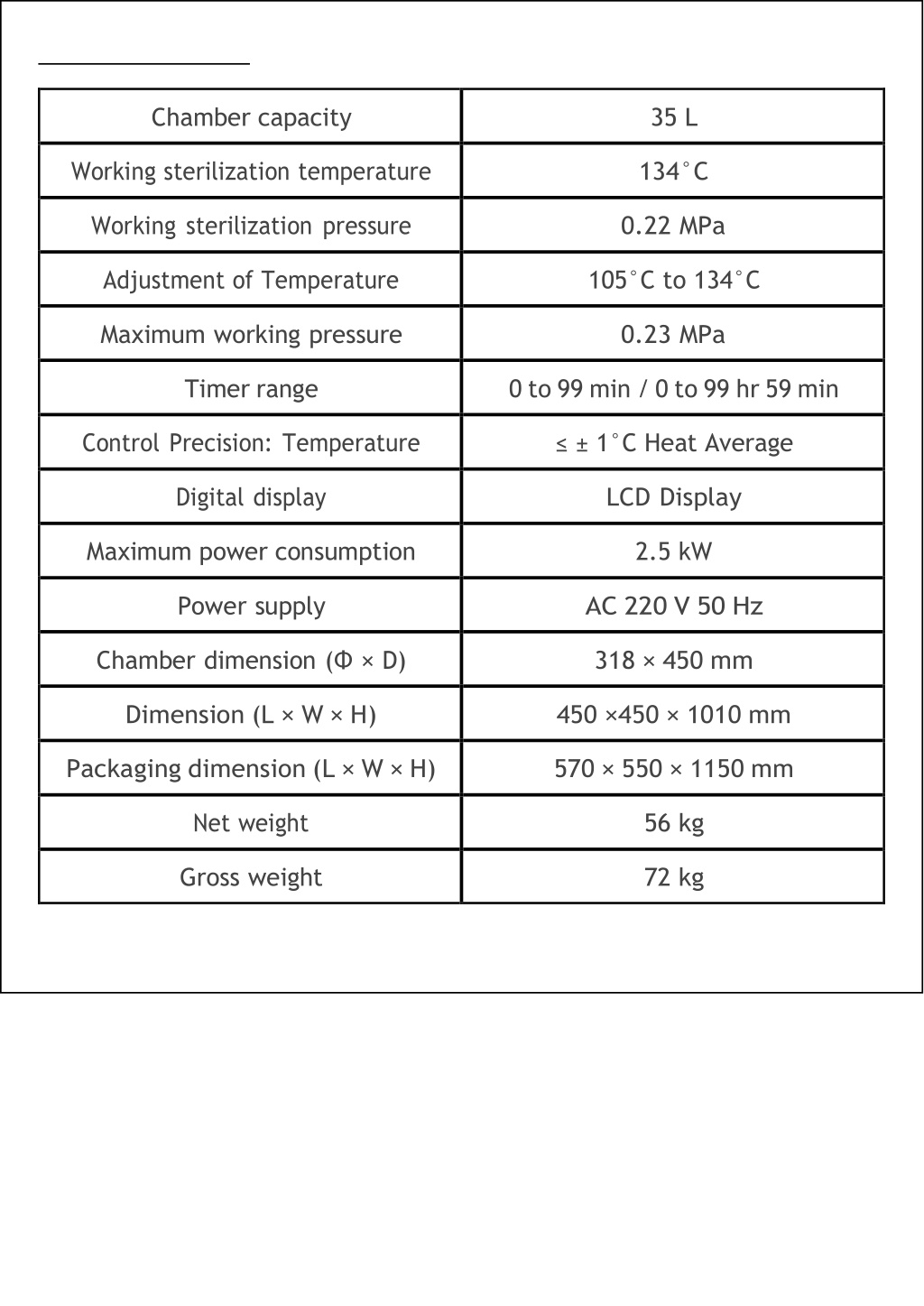

  3. Chamber capacity 35 L Working sterilization temperature 134°C Working sterilization pressure 0.22 MPa Adjustment of Temperature 105°C to 134°C Maximum working pressure 0.23 MPa Timer range 0 to 99 min / 0 to 99 hr 59 min Control Precision: Temperature ≤ ± 1°C Heat Average Digital display LCD Display Maximum power consumption 2.5 kW Power supply AC 220 V 50 Hz Chamber dimension (Φ × D) 318 × 450 mm Dimension (L × W × H) 450 ×450 × 1010 mm Packaging dimension (L × W × H) 570 × 550 × 1150 mm Net weight 56 kg Gross weight 72 kg

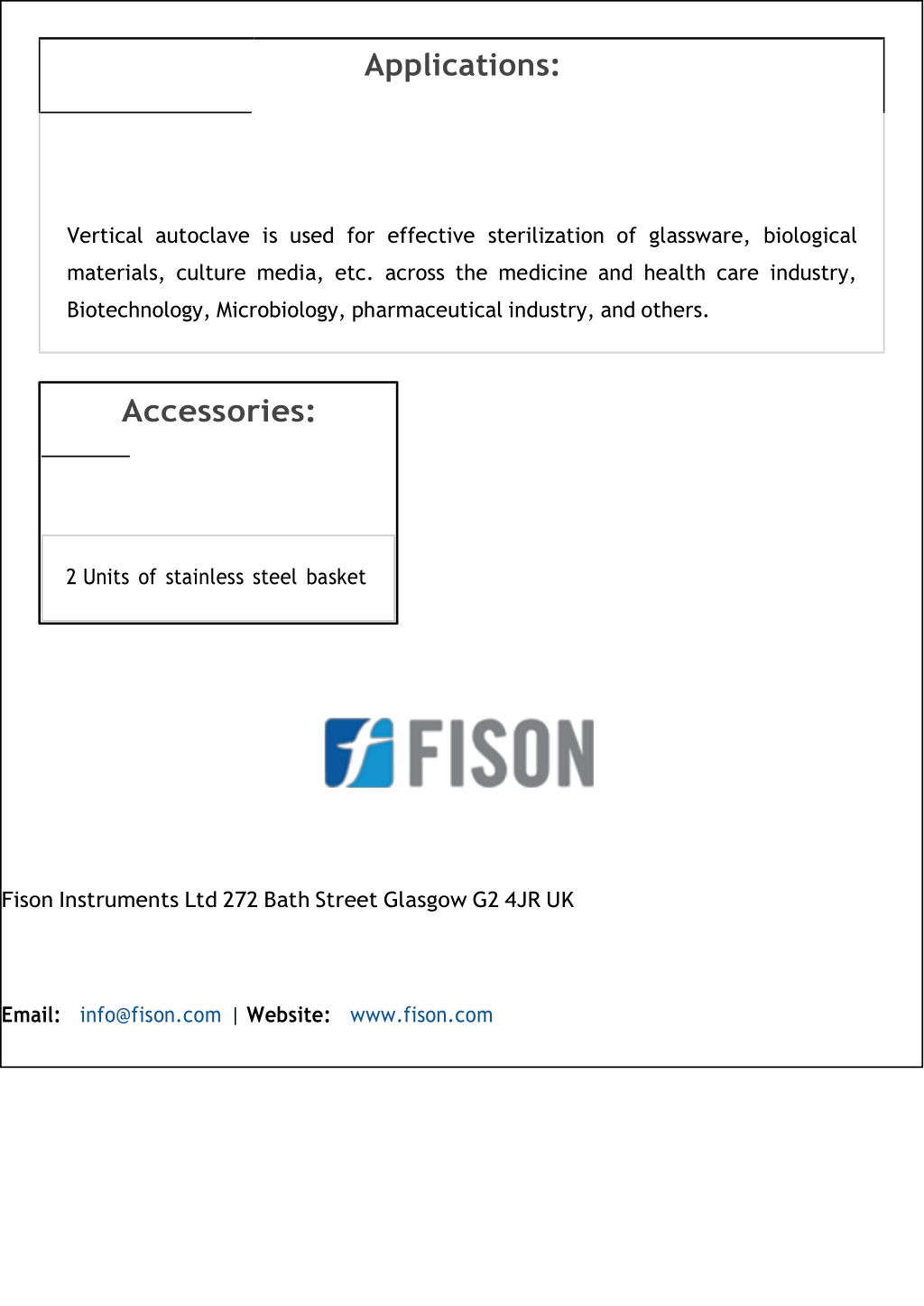

  4. Applications: Vertical autoclave is used for effective sterilization of glassware, biological materials, culture media, etc. across the medicine and health care industry, Biotechnology, Microbiology, pharmaceutical industry, and others. Accessories: 2 Units of stainless steel basket Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email:info@fison.com | Website:www.fison.com
