Class II Biosafety Cabinet 420 Kg

Fison Class II Biosafety Cabinet is a type A2 that recirculates 70% ULPA-filtered air and exhausts 30% for user and product protection. It operates with negative air pressure and HEPA-filtered laminar airflow. Equipped with a 40 W UV lamp for sterilization and remote control.

Anthony128
Download Presentation

Class II Biosafety Cabinet 420 Kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Class II Biosafety Cabinet FM-BSC- A203

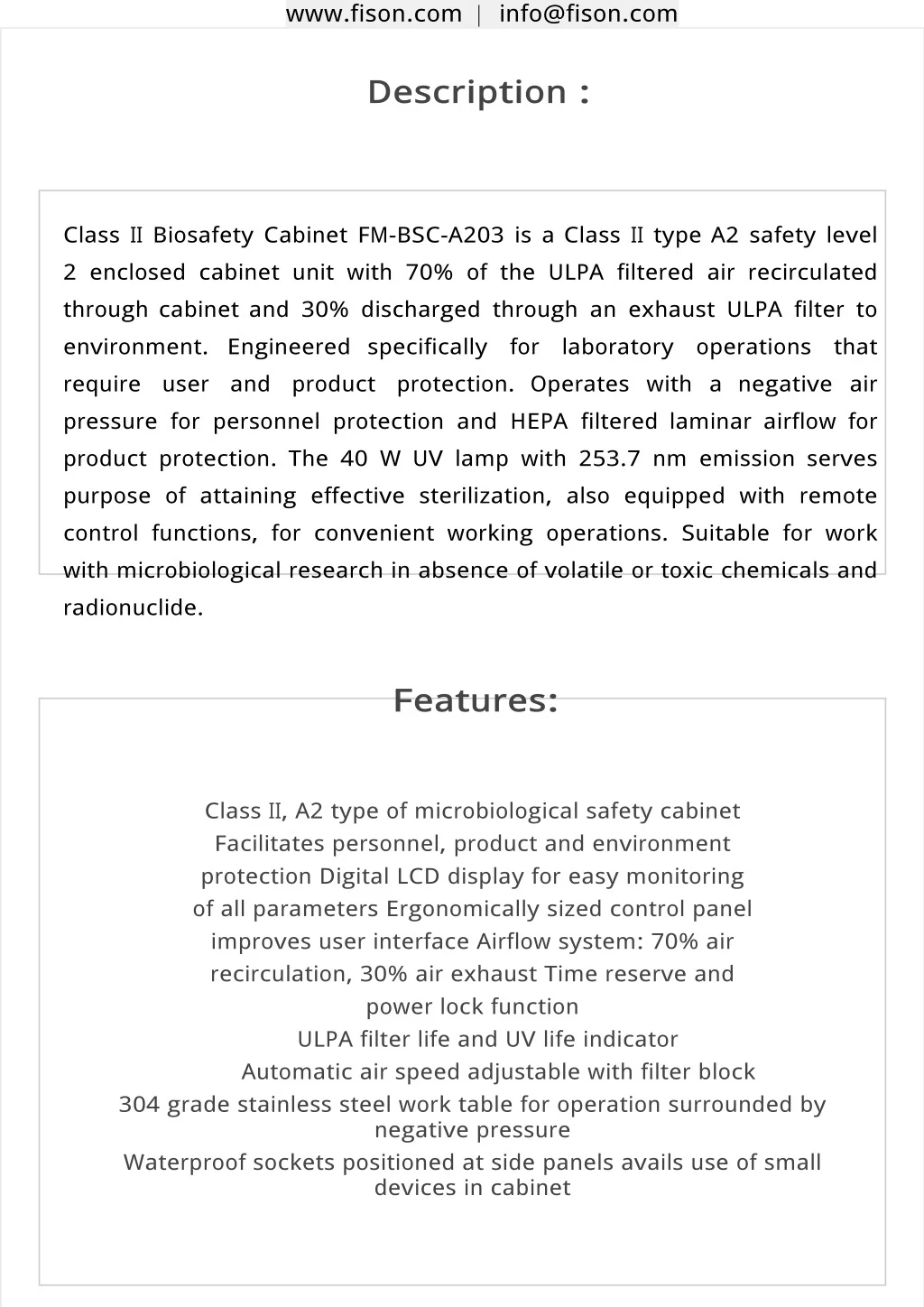

  2. www.fison.com | info@fison.com Description : Class II Biosafety Cabinet FM-BSC-A203 is a Class II type A2 safety level 2 enclosed cabinet unit with 70% of the ULPA filtered air recirculated through cabinet and 30% discharged through an exhaust ULPA filter to environment. Engineered specifically for laboratory operations that require user and product protection. Operates with a negative air pressure for personnel protection and HEPA filtered laminar airflow for product protection. The 40 W UV lamp with 253.7 nm emission serves purpose of attaining effective sterilization, also equipped with remote control functions, for convenient working operations. Suitable for work with microbiological research in absence of volatile or toxic chemicals and radionuclide. Features: Class II, A2 type of microbiological safety cabinet Facilitates personnel, product and environment protection Digital LCD display for easy monitoring of all parameters Ergonomically sized control panel improves user interface Airflow system: 70% air recirculation, 30% air exhaust Time reserve and power lock function ULPA filter life and UV life indicator Automatic air speed adjustable with filter block 304 grade stainless steel work table for operation surrounded by negative pressure Waterproof sockets positioned at side panels avails use of small devices in cabinet

  3. Reserved access for water and gas tap at cabinet side panel Emission of 253.7 nm from UV lamp for high efficient decontamination Motored front window for convenient, one hand operation Two-layer laminated toughened glass front window > 5mm, anti UV layer Remote controlled operation realized at 6 m distance from cabinet, protecting feature to user in course of emergency Foot switch to adjust the height of the front window Audio and visual alarm (filter replacement, window over height, abnormal air flow velocity) S pecifications: Class type ULPA Filter 2 filters Filter: II, A2 Type Filter Type Filter Quantity Filter efficiency Inflow velocity Down velocity UV lamp ULPA ULPA efficiency at 99.9995% 0.12 µm 0.53 ± 0.025 m/s 0.33 ± 0.025 m/s 40 × 1 253.7 nm 16 × 2 ≥ 1000 Lux 1500 W flow W UV Lamp emission Illuminating lamp Illumination LED W Power consumption

  4. Noise level ≤ dB 500 × 2 60 Waterproof socket Front window W Two-layer laminated toughened glass, 5 mm Work height Tested Opening surface 750 mm Safety height ≤ 200 mm Max window Internal (W× D× H) External (W× D× H) opening of front 400 mm dimension 1800× 600× 660 mm 1950× 800× 2170 mm LCD display dimension Display Exhaust filter and down flow filter pressure, filter and UV lamp working time, inflow and down flow velocity, filter life, humidity and temperature, system working time Microprocessor Display status parameter Control system Airflow system 70% air recirculation, 30% air exhaust Filter replacement, front window at unsafe height, abnormal air flow velocity Visual alarm and audio Water and gas tap Caster Reserved at side cabinet panel Foootmaster caster ISO 5 Class 100 Clean Level Chamber table) Material (work 304 steel stainless

  5. Cold-rolled steel with anti- bacteria powder coating Chamber (body) Material 222 V± 10%, 50/60 Hz, 100 V± 10%, 60 Hz Power supply Packaging dimension with base stand (W× D× H) 2090× 1050× 1860 mm 420 kg Gross weight Applications: The Class II type A2 Biosafety Cabinet helps in protecting the user, the environment, and the experimental material in use. It is the most widely used type of cabinet in biomedical and microbiological laboratories. Accessories: Accessories no Accessories 1. 2. 3. 4. 5. 6. 7. name LED lamp 2 pcs UV lamp Base stand Remote control Foot switch Drain valve 2 Waterproof sockets

  6. Accessories Optional: Accessories No. Name 1 Gas Tap Water Tap 2 Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email: info@fison.com |W ebsite: www.fison.com
