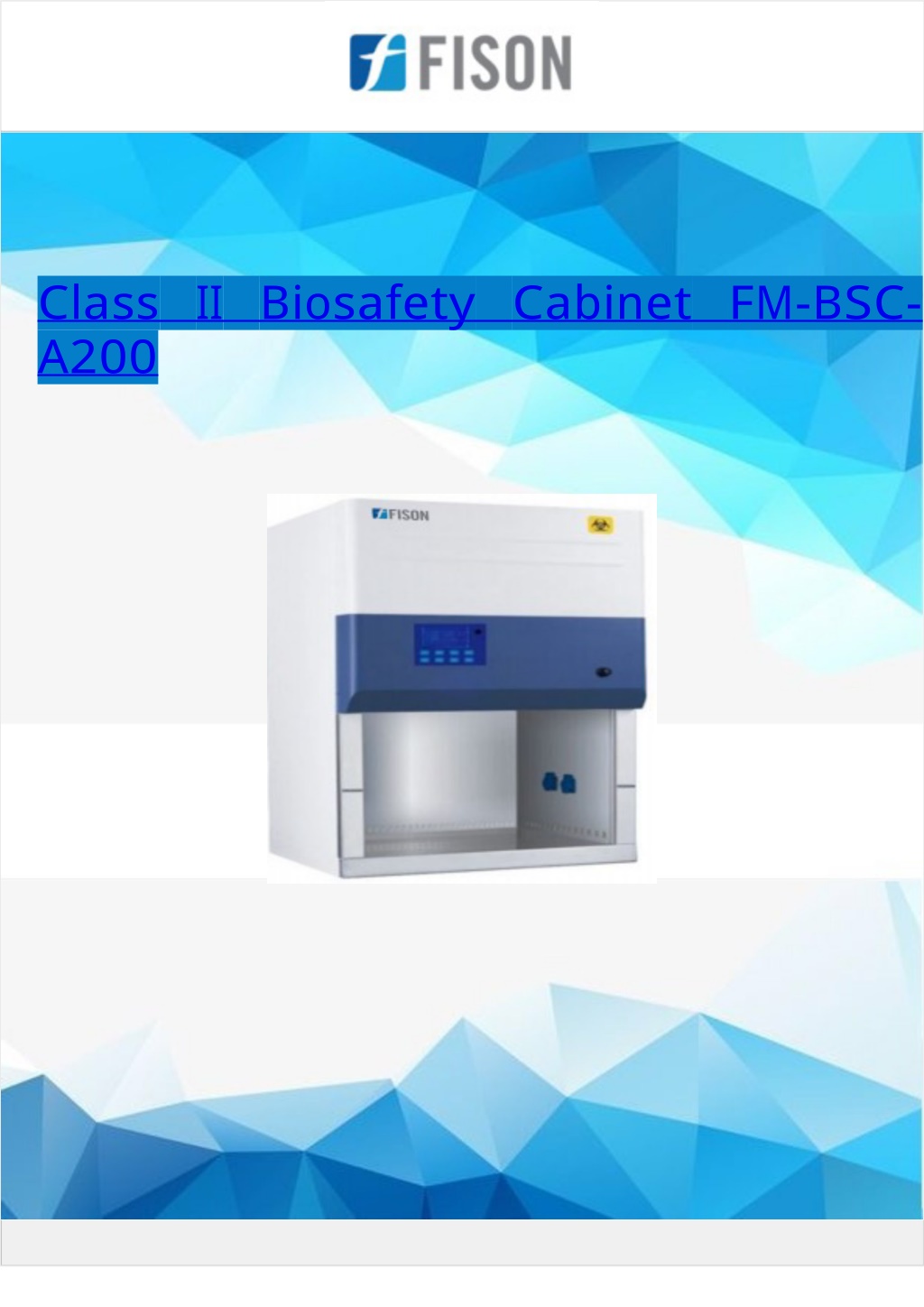

  1. Class II Biosafety Cabinet FM-BSC- A200

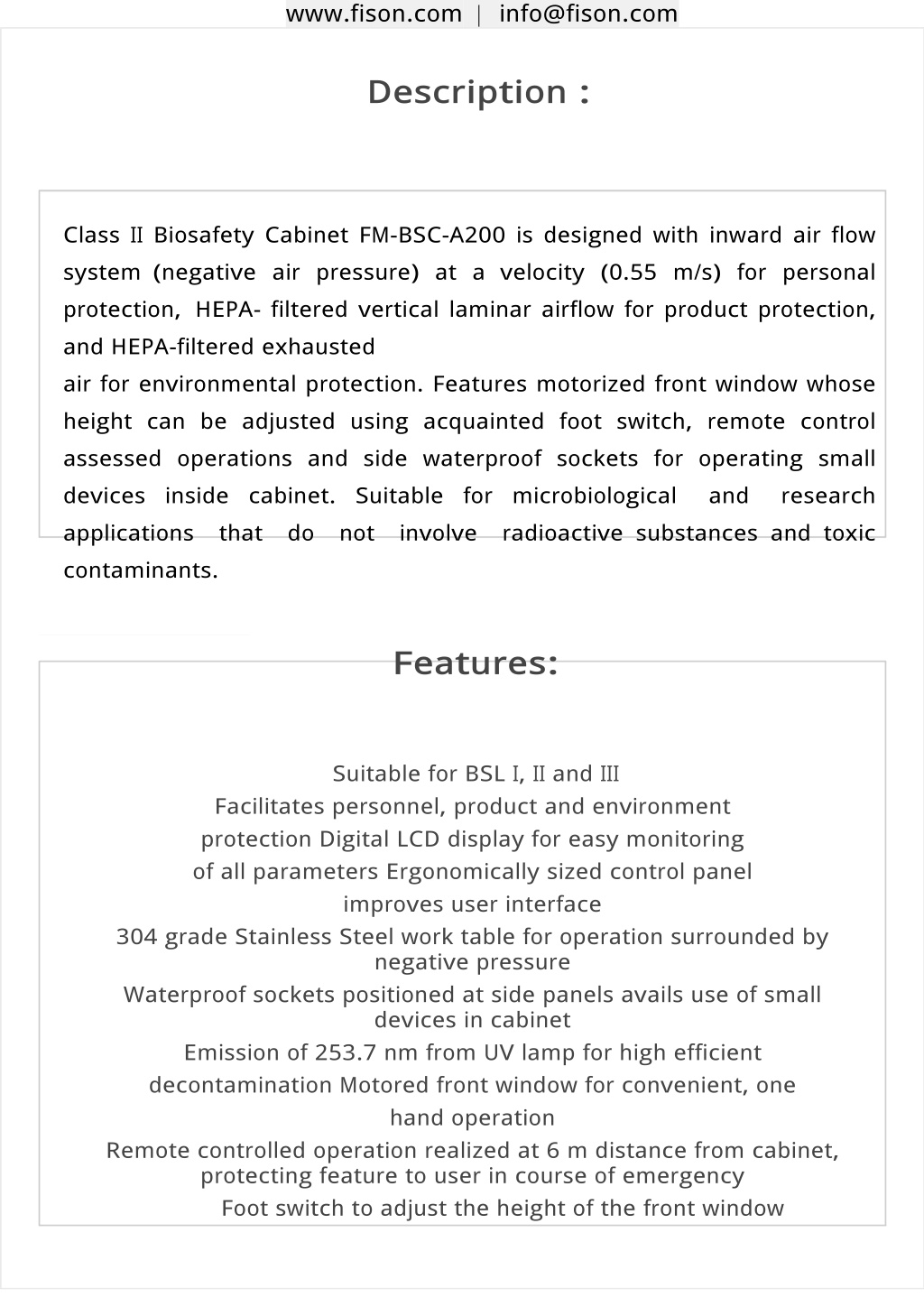

  2. www.fison.com | info@fison.com Description : Class II Biosafety Cabinet FM-BSC-A200 is designed with inward air flow system (negative air pressure) at a velocity (0.55 m/s) for personal protection, HEPA- filtered vertical laminar airflow for product protection, and HEPA-filtered exhausted air for environmental protection. Features motorized front window whose height can be adjusted using acquainted foot switch, remote control assessed operations and side waterproof sockets for operating small devices inside cabinet. Suitable for microbiological and research applications that do not involve radioactive substances and toxic contaminants. Features: Suitable for BSL I, II and III Facilitates personnel, product and environment protection Digital LCD display for easy monitoring of all parameters Ergonomically sized control panel improves user interface 304 grade Stainless Steel work table for operation surrounded by negative pressure Waterproof sockets positioned at side panels avails use of small devices in cabinet Emission of 253.7 nm from UV lamp for high efficient decontamination Motored front window for convenient, one hand operation Remote controlled operation realized at 6 m distance from cabinet, protecting feature to user in course of emergency Foot switch to adjust the height of the front window

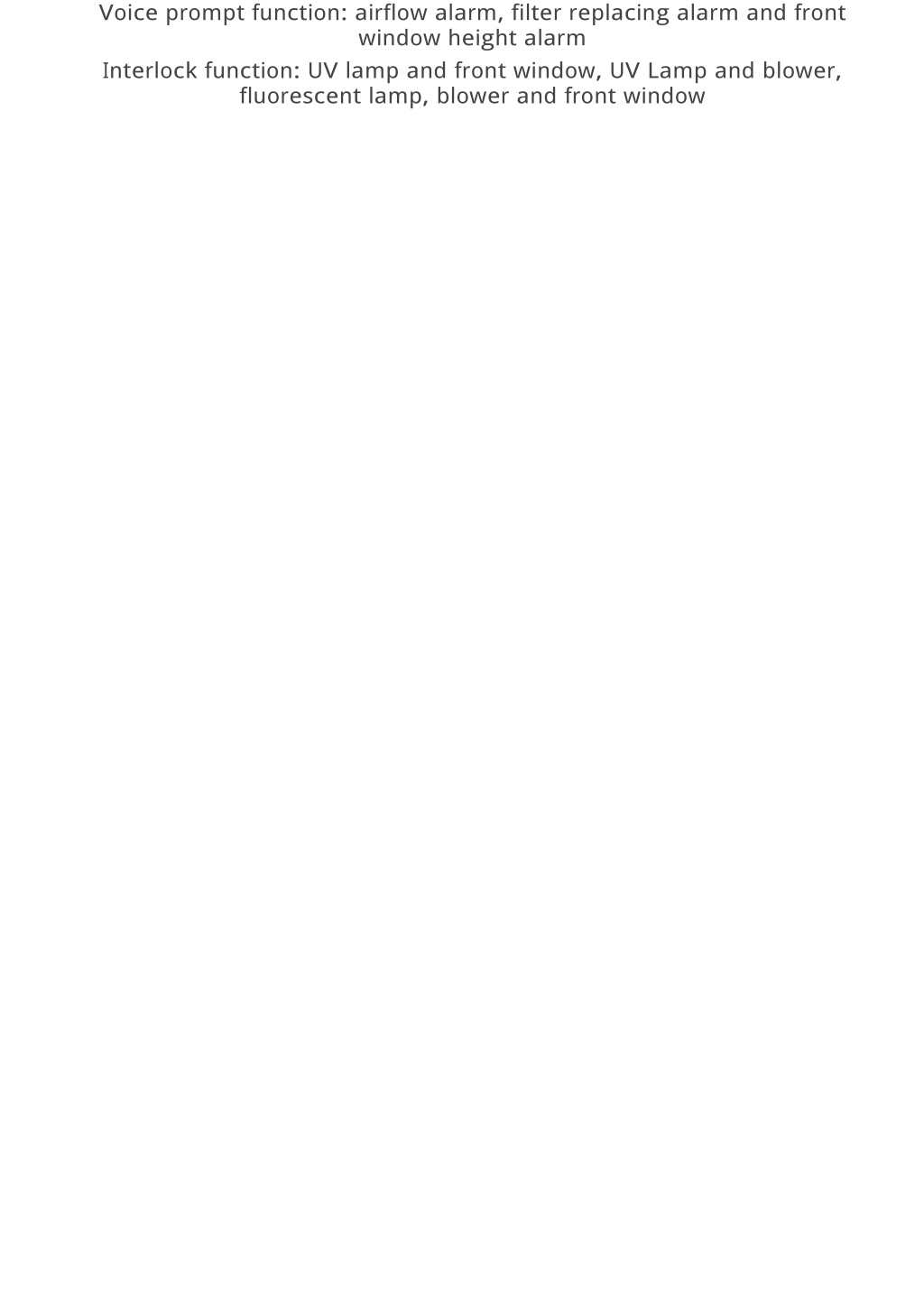

  3. Voice prompt function: airflow alarm, filter replacing alarm and front window height alarm Interlock function: UV lamp and front window, UV Lamp and blower, fluorescent lamp, blower and front window

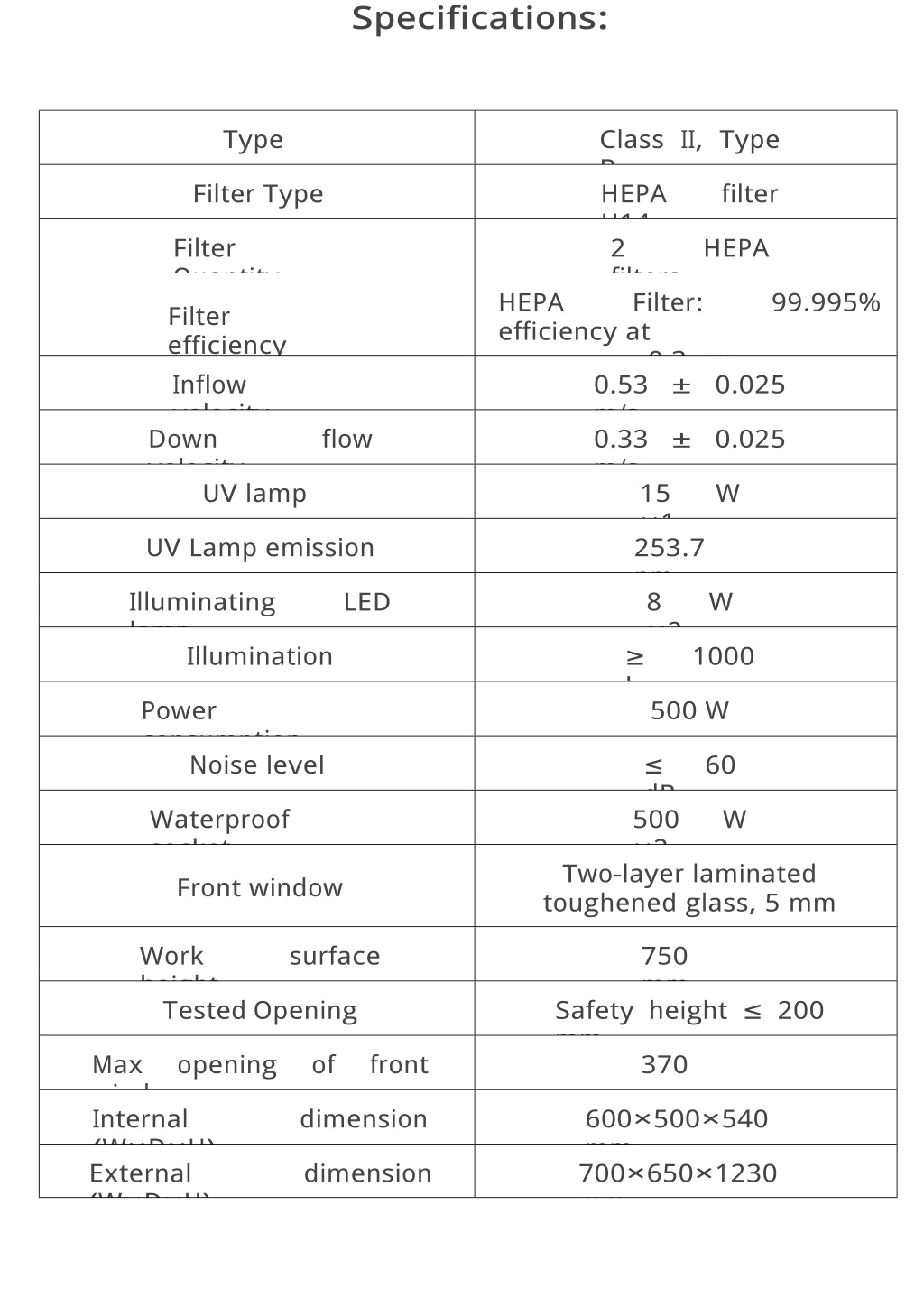

  4. S pecifications: Class II, Type B HEPA H14 2 filters Filter: Type Filter Type filter Filter Quantity Filter efficiency Inflow velocity Down velocity UV lamp HEPA HEPA efficiency at 99.995% 0.3 µm 0.53 ± 0.025 m/s 0.33 ± 0.025 m/s 15 × 1 253.7 nm 8 × 2 ≥ 1000 Lux 500 W flow W UV Lamp emission Illuminating lamp Illumination LED W Power consumption Noise level ≤ dB 500 × 2 60 Waterproof socket Front window W Two-layer laminated toughened glass, 5 mm Work height Tested Opening surface 750 mm Safety height ≤ 200 mm 370 mm 600× 500× 540 mm 700× 650× 1230 mm Max window Internal (W× D× H) External (W× D× H) opening of front dimension dimension

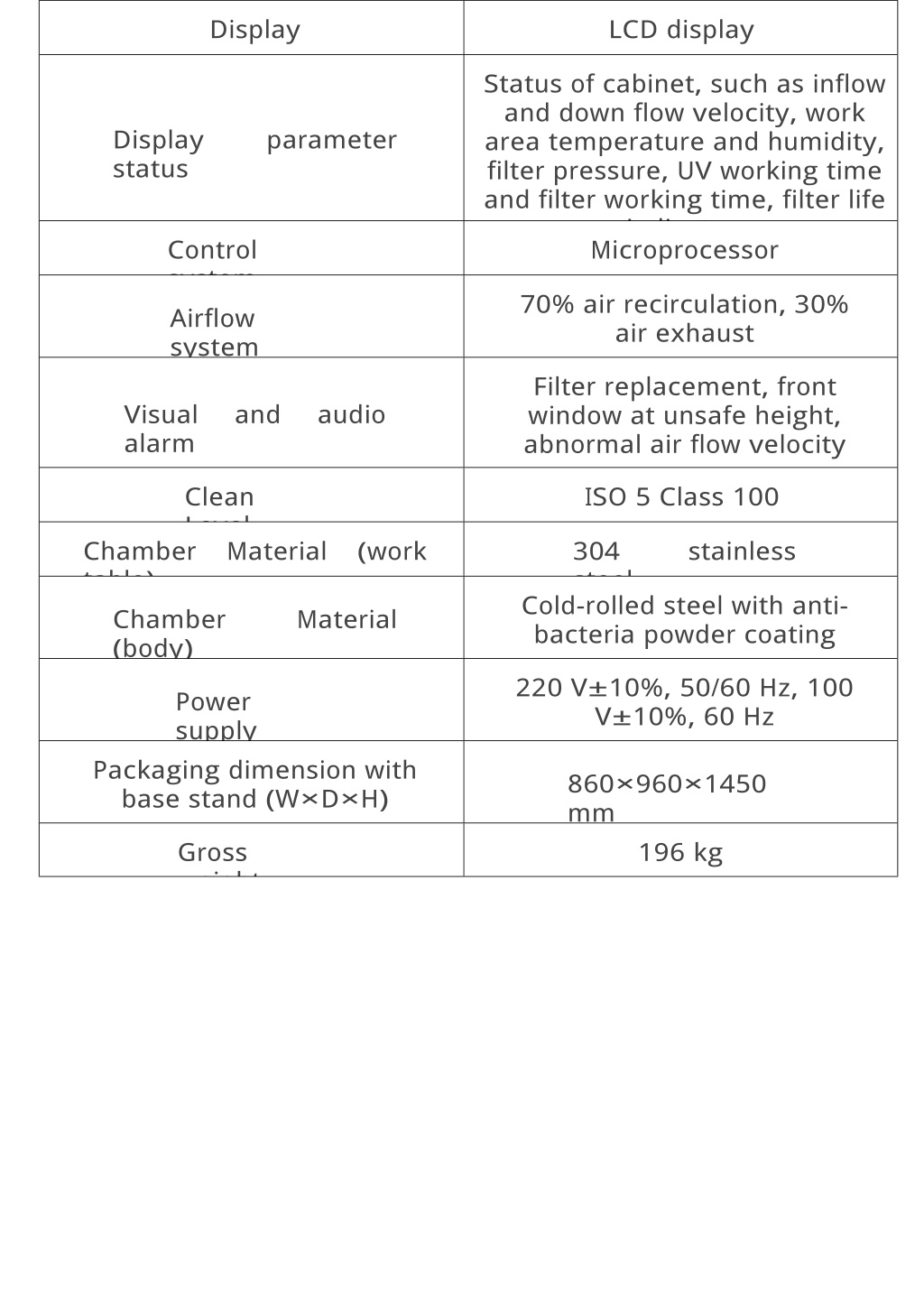

  5. Display LCD display Status of cabinet, such as inflow and down flow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator. Microprocessor Display status parameter Control system Airflow system 70% air recirculation, 30% air exhaust Filter replacement, front window at unsafe height, abnormal air flow velocity Visual alarm and audio Clean Level ISO 5 Class 100 Chamber table) Chamber (body) Material (work 304 steel stainless Cold-rolled steel with anti- bacteria powder coating Material 220 V± 10%, 50/60 Hz, 100 V± 10%, 60 Hz Power supply Packaging dimension with base stand (W× D× H) 860× 960× 1450 mm 196 kg Gross weight

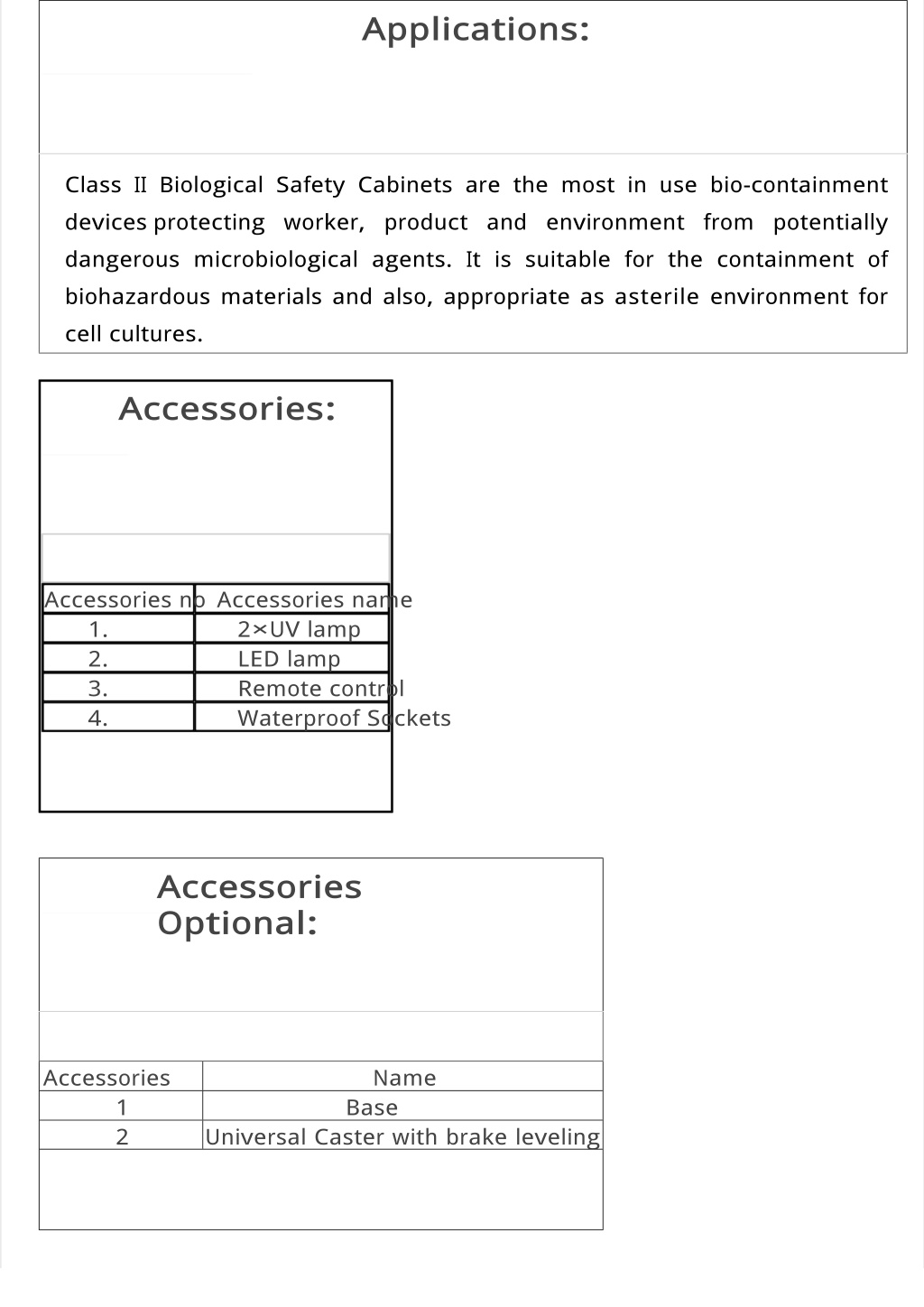

  6. Applications: Class II Biological Safety Cabinets are the most in use bio-containment devices protecting worker, product and environment from potentially dangerous microbiological agents. It is suitable for the containment of biohazardous materials and also, appropriate as asterile environment for cell cultures. Accessories: Accessories no Accessories name 1. 2. 3. 4. 2× UV lamp LED lamp Remote control Waterproof Sockets Accessories Optional: Accessories No. Name Base Stand 1 2 Universal Caster with brake leveling feet

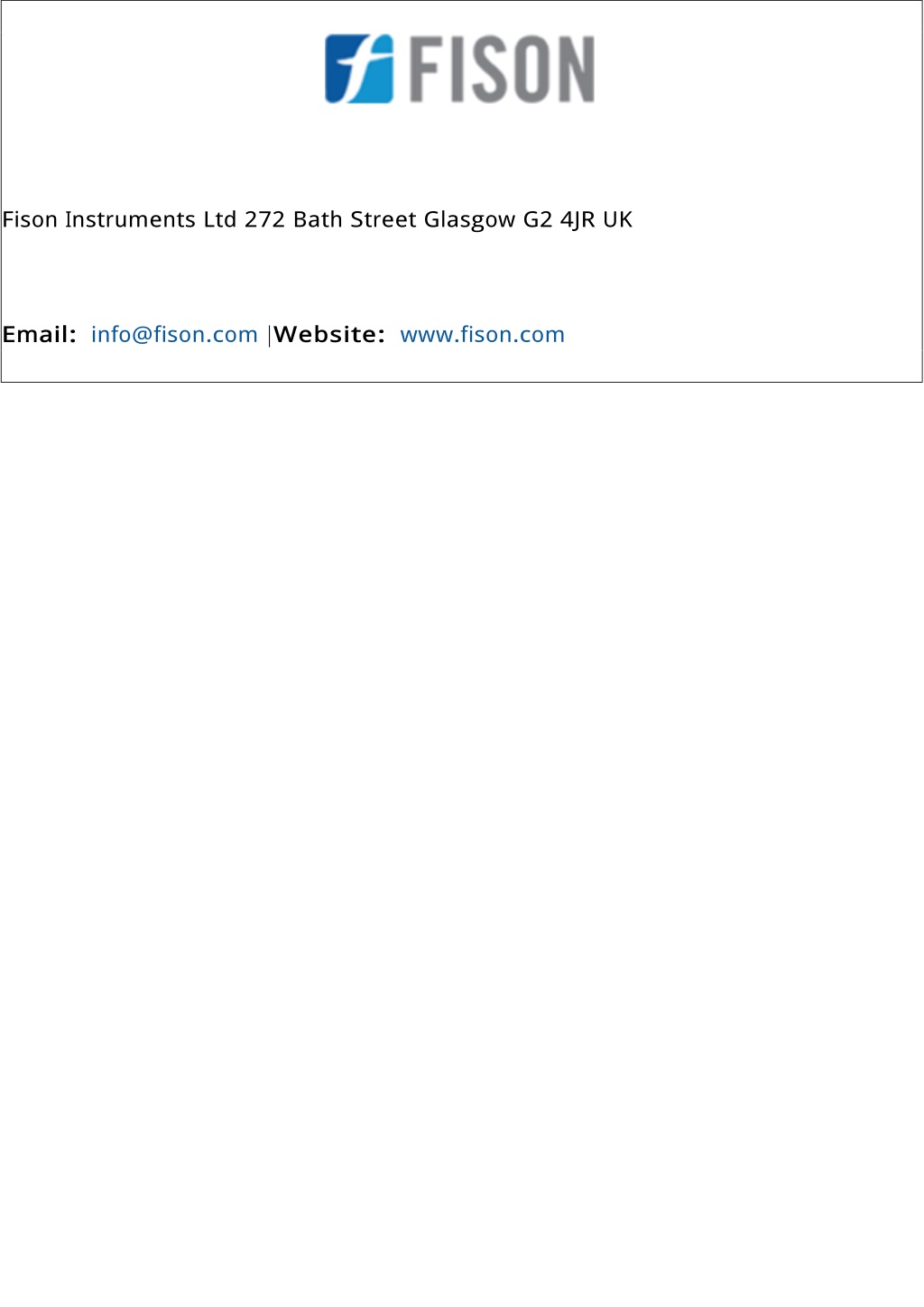

  7. Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email: info@fison.com |W ebsite: www.fison.com
