Class I Biosafety Cabinet

Fison Class I Biosafety Cabinet is designed for handling low- to moderate-risk agents at Biosafety Levels 1, 2, and 3. It features a 99.999% efficient HEPA filter at 0.3 u03bcm, a 4W LED lamp, and an airflow velocity of over 0.3 m/s with negative pressure, ensuring personnel protection

Anthony128
Download Presentation

Class I Biosafety Cabinet

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

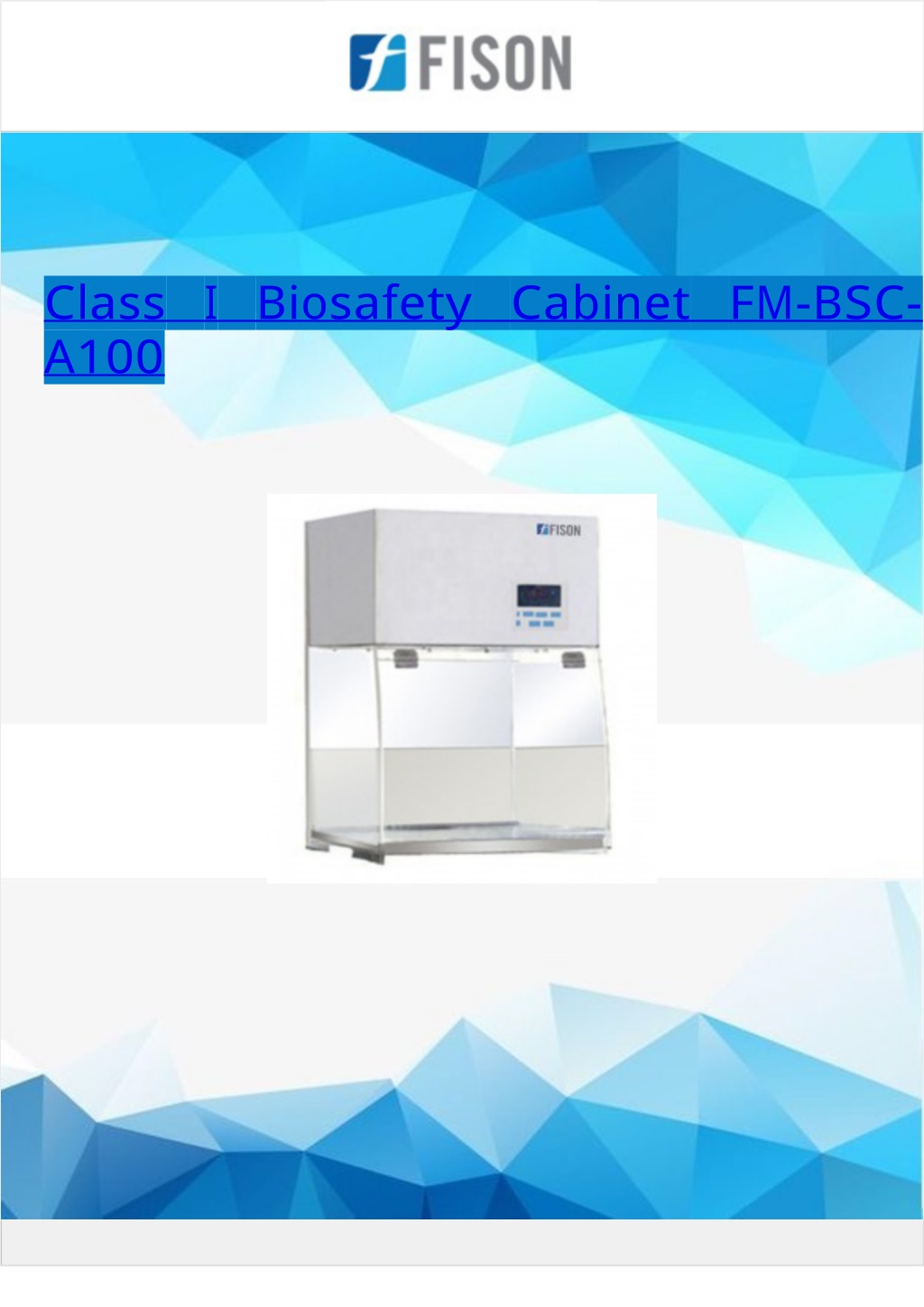

  1. Class I Biosafety Cabinet FM-BSC- A100

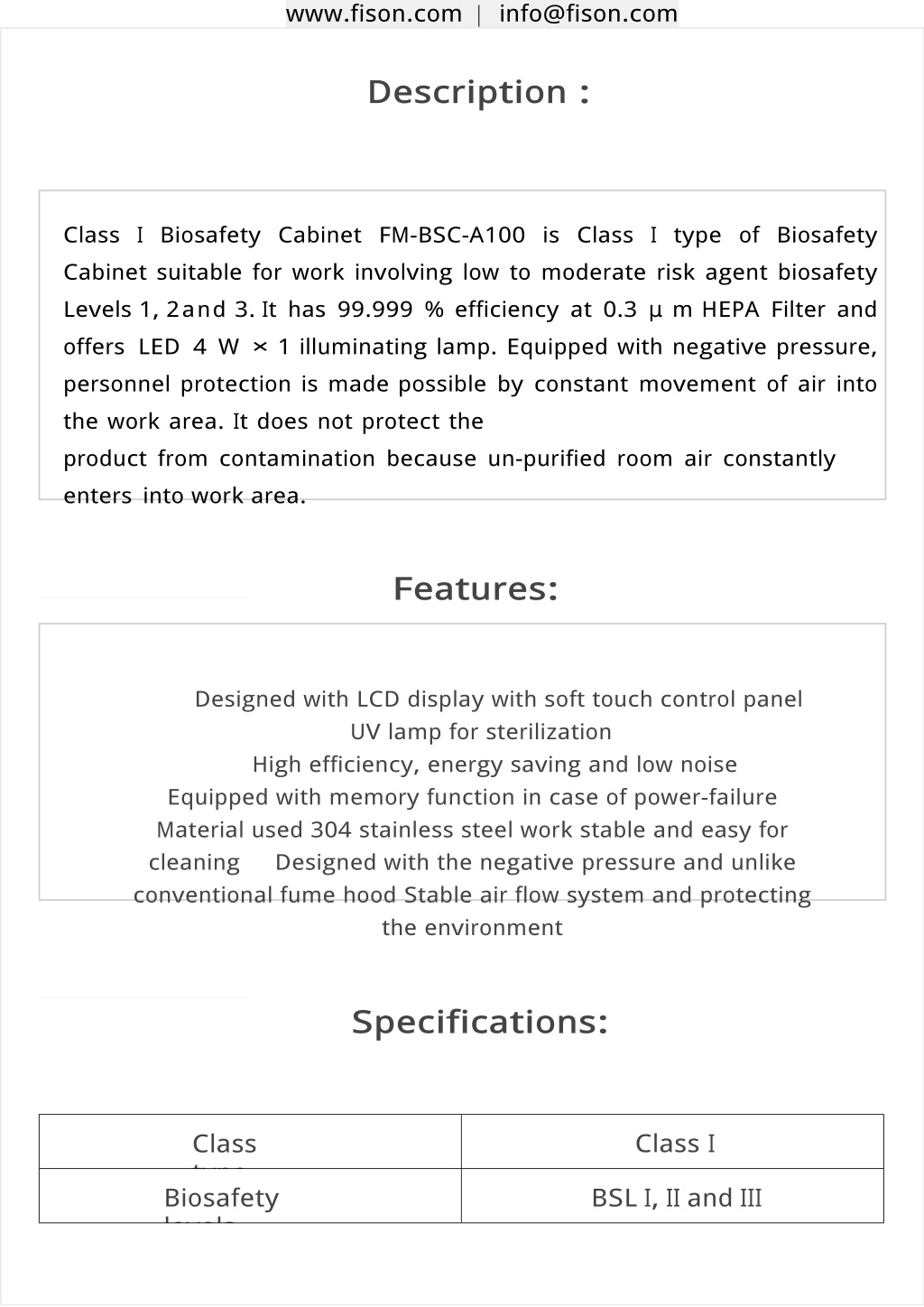

  2. www.fison.com | info@fison.com Description : Class I Biosafety Cabinet FM-BSC-A100 is Class I type of Biosafety Cabinet suitable for work involving low to moderate risk agent biosafety Levels 1, 2and 3. It has 99.999 % efficiency at 0.3 μ m HEPA Filter and offers LED 4 W × 1 illuminating lamp. Equipped with negative pressure, personnel protection is made possible by constant movement of air into the work area. It does not protect the product from contamination because un-purified room air constantly enters into work area. Features: Designed with LCD display with soft touch control panel UV lamp for sterilization High efficiency, energy saving and low noise Equipped with memory function in case of power-failure Material used 304 stainless steel work stable and easy for cleaning Designed with the negative pressure and unlike conventional fume hood Stable air flow system and protecting the environment S pecifications: Class I Class type Biosafety levels BSL I, II and III

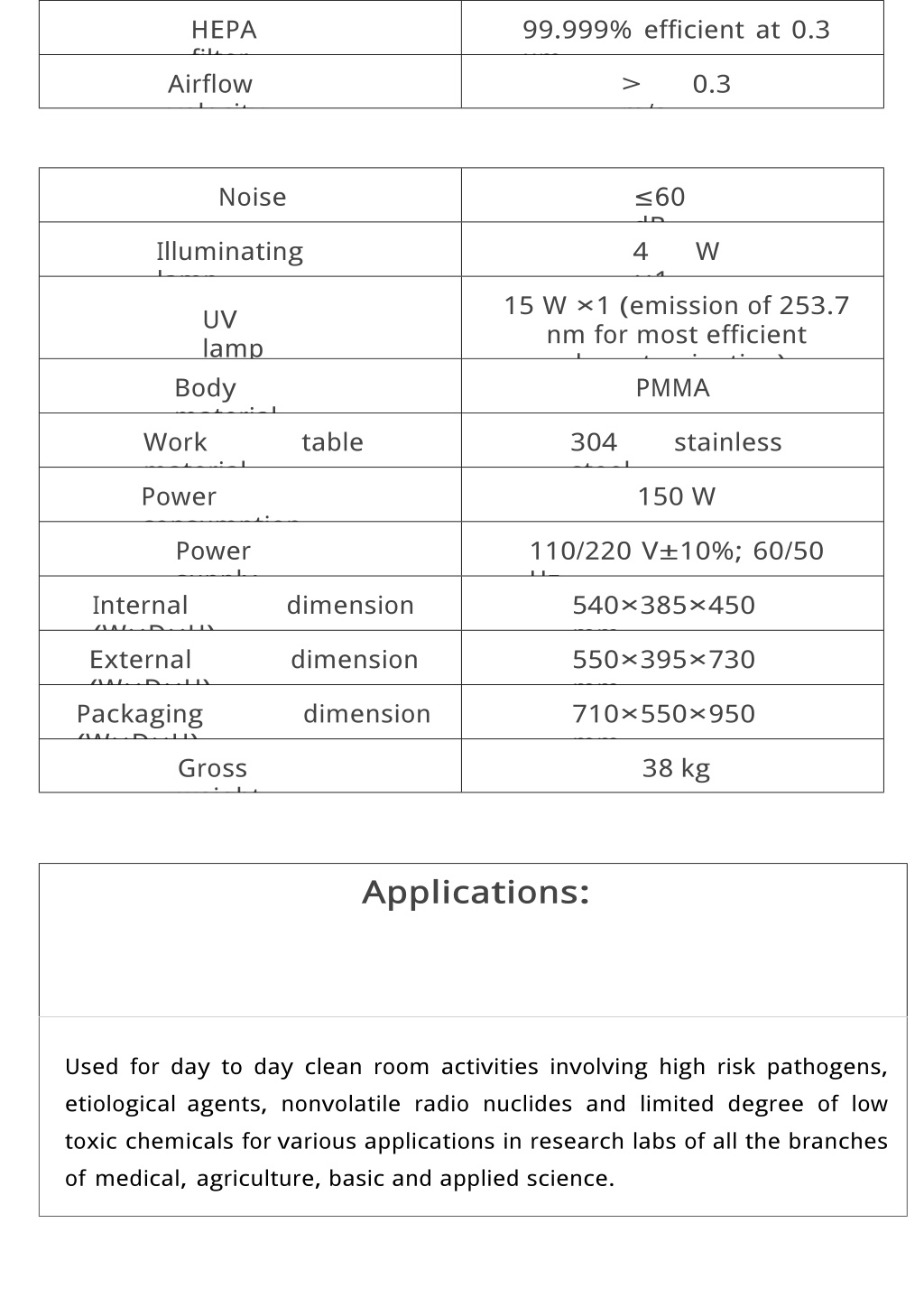

  3. HEPA filter Airflow velocity 99.999% efficient at 0.3 µm > m/s 0.3 Noise ≤60 dB 4 × 1 Illuminating lamp UV lamp Body material Work material Power consumption Power supply Internal (W× D× H) External (W× D× H) Packaging (W× D× H) Gross weight W 15 W × 1 (emission of 253.7 nm for most efficient decontamination) PMMA table 304 steel stainless 150 W 110/220 V± 10%; 60/50 Hz 540× 385× 450 mm 550× 395× 730 mm 710× 550× 950 mm 38 kg dimension dimension dimension Applications: Used for day to day clean room activities involving high risk pathogens, etiological agents, nonvolatile radio nuclides and limited degree of low toxic chemicals for various applications in research labs of all the branches of medical, agriculture, basic and applied science.

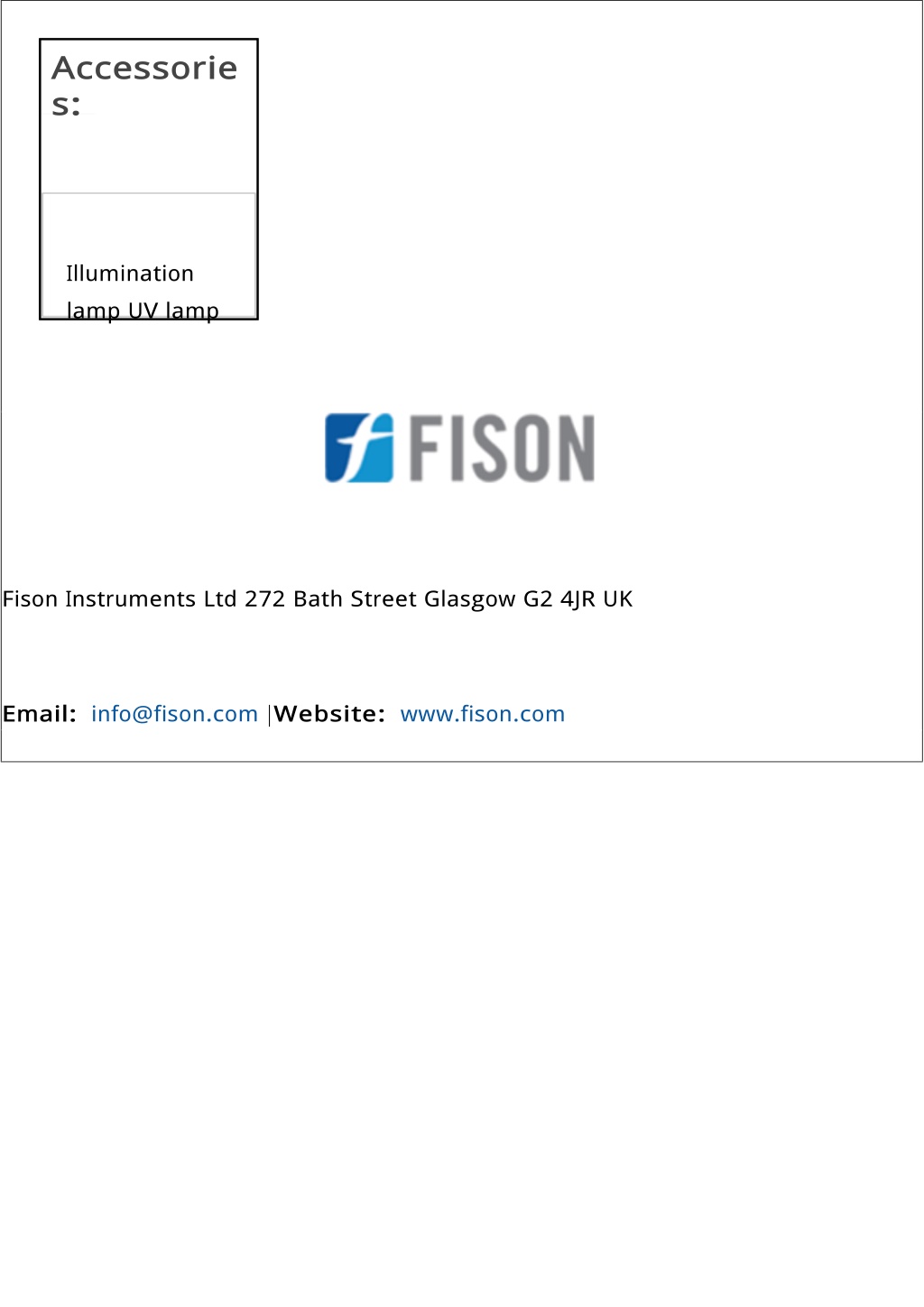

  4. Accessorie s: Illumination lamp UV lamp Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email: info@fison.com |W ebsite: www.fison.com
