Bilirubinometer

Fison Bilirubinometer is a compact lightweight system works on direct photometry principles and can handle samples ranging from 40 to 45 u00b5L. Operating within a temperature range of 10 to 30 u2103. Equipped with a disposable 75mm/60u00b5L capillary and a bi-chromatic photometer, it ensures accurate measurements.<br>

Anthony128
Download Presentation

Bilirubinometer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

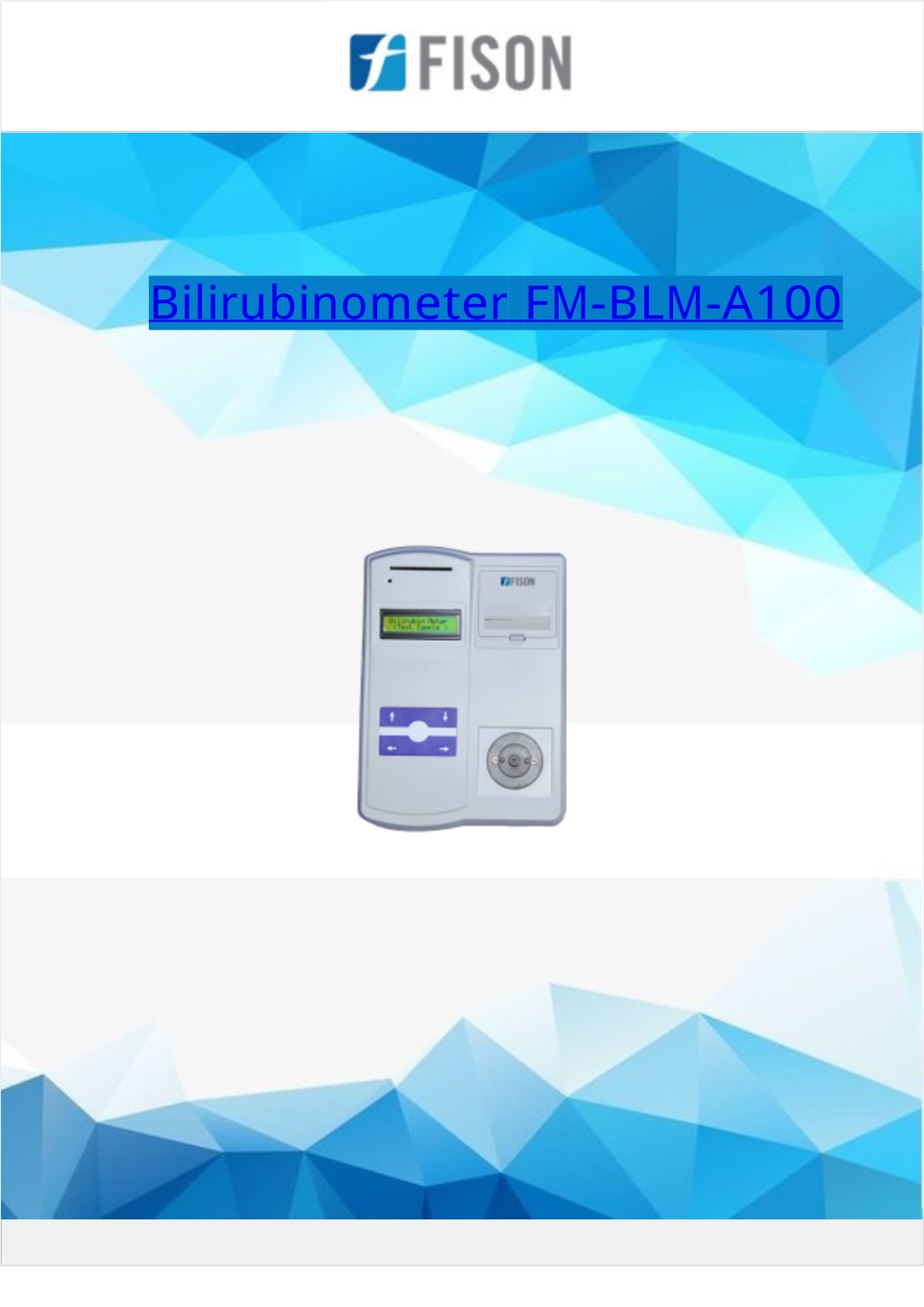

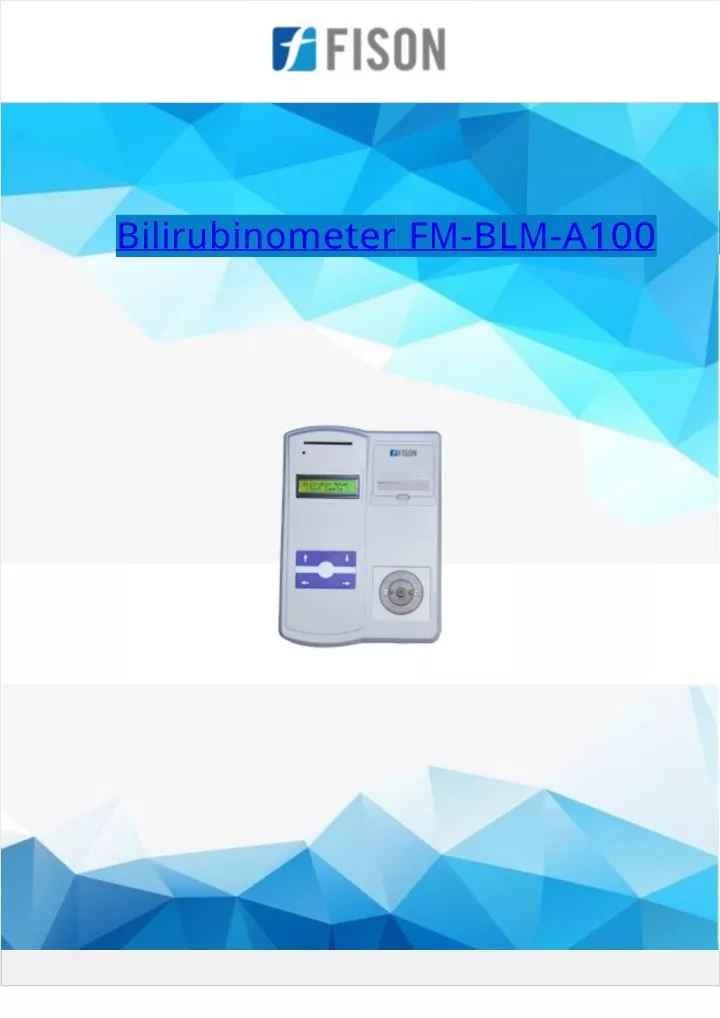

  1. Bilirubinometer FM-BLM-A100

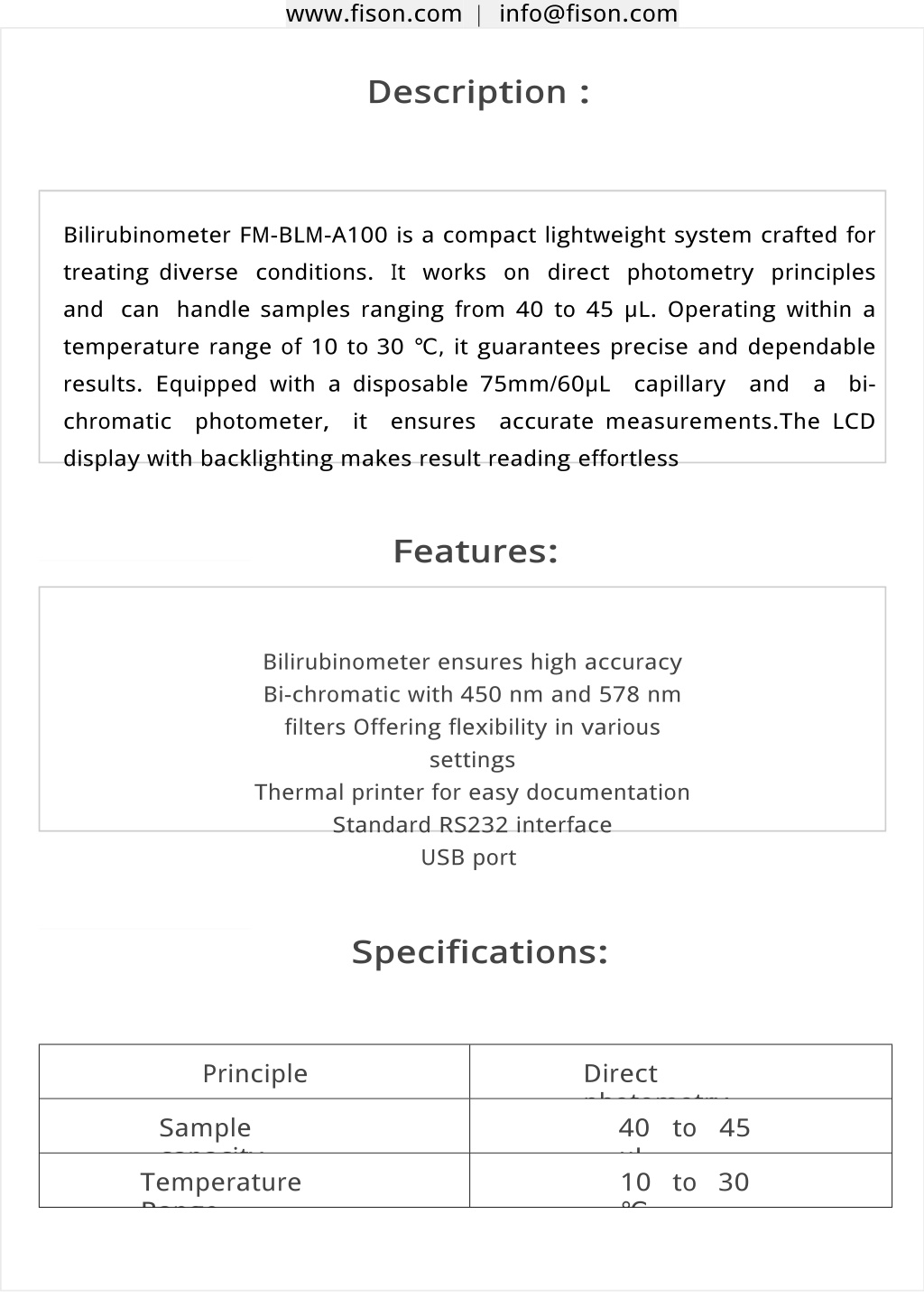

  2. www.fison.com | info@fison.com Description : Bilirubinometer FM-BLM-A100 is a compact lightweight system crafted for treating diverse conditions. It works on direct photometry principles and can handle samples ranging from 40 to 45 µL. Operating within a temperature range of 10 to 30 ℃, it guarantees precise and dependable results. Equipped with a disposable 75mm/60µL capillary and a bi- chromatic photometer, it ensures accurate measurements.The LCD display with backlighting makes result reading effortless Features: Bilirubinometer ensures high accuracy Bi-chromatic with 450 nm and 578 nm filters Offering flexibility in various settings Thermal printer for easy documentation Standard RS232 interface USB port S pecifications: Direct photometry 40 to 45 µL 10 to 30 ℃ Principle Sample capacity Temperature Range

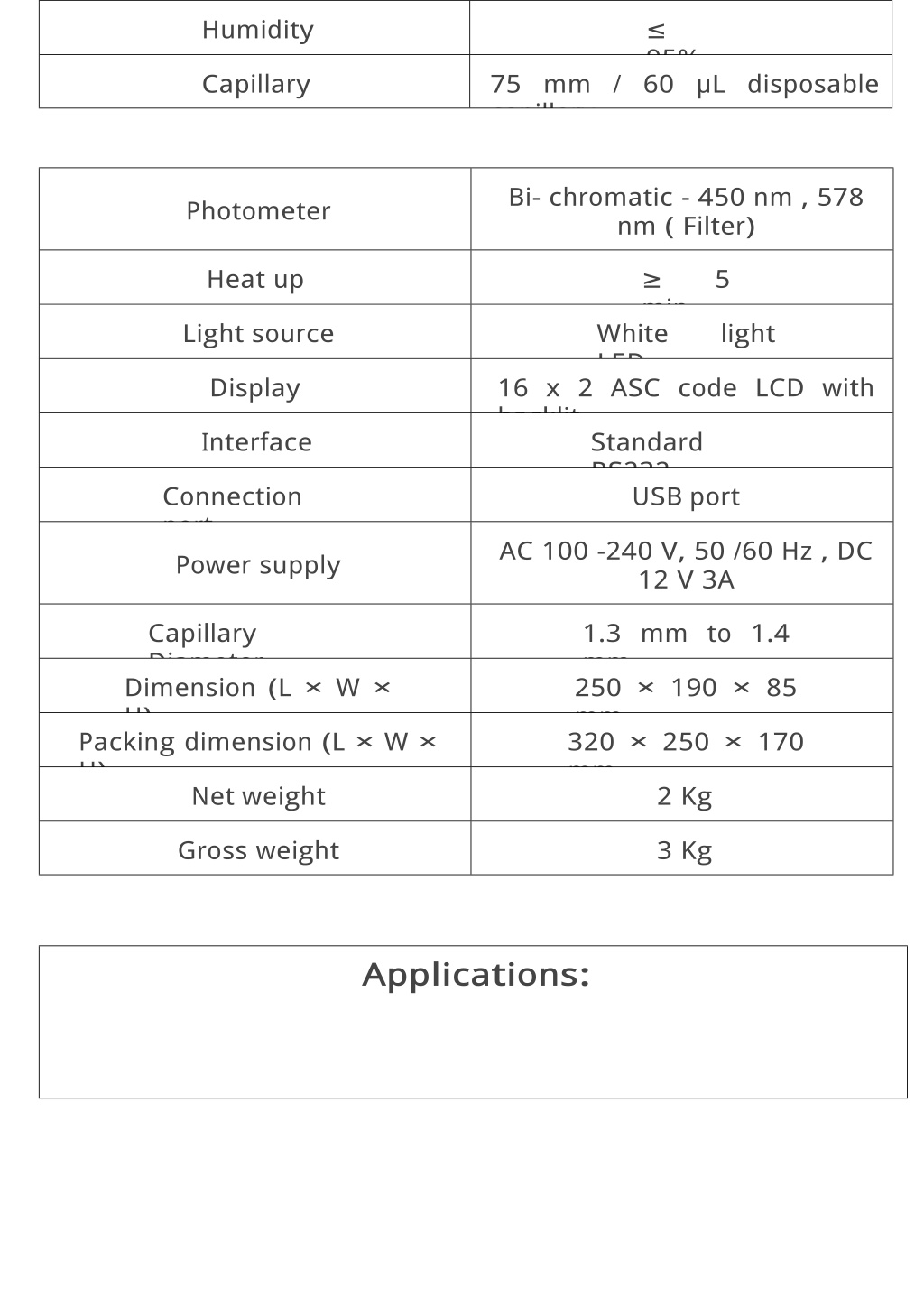

  3. Humidity ≤ 95% Capillary 75 mm / 60 µL disposable capillary Bi- chromatic - 450 nm , 578 nm ( Filter) Photometer Heat up ≥ min 5 Light source White LED light Display 16 x 2 ASC code LCD with backlit Standard RS232 USB port Interface Connection port Power supply AC 100 -240 V, 50 /60 Hz , DC 12 V 3A Capillary Diameter Dimension (L × W × H) Packing dimension (L × W × H) Net weight 1.3 mm to 1.4 mm 250 × 190 × 85 mm 320 × 250 × 170 mm 2 Kg Gross weight 3 Kg Applications:

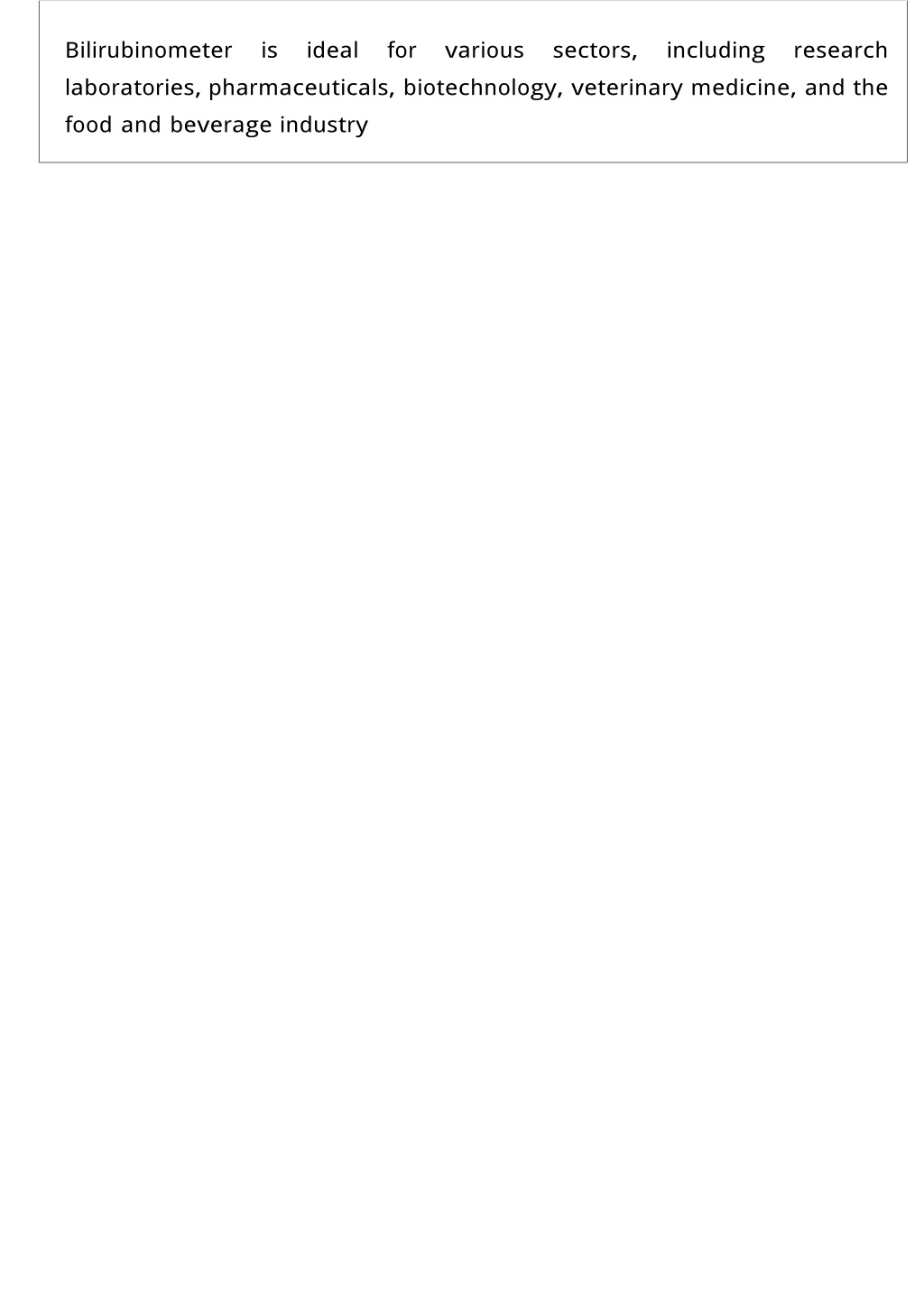

  4. Bilirubinometer is ideal for various sectors, including research laboratories, pharmaceuticals, biotechnology, veterinary medicine, and the food and beverage industry

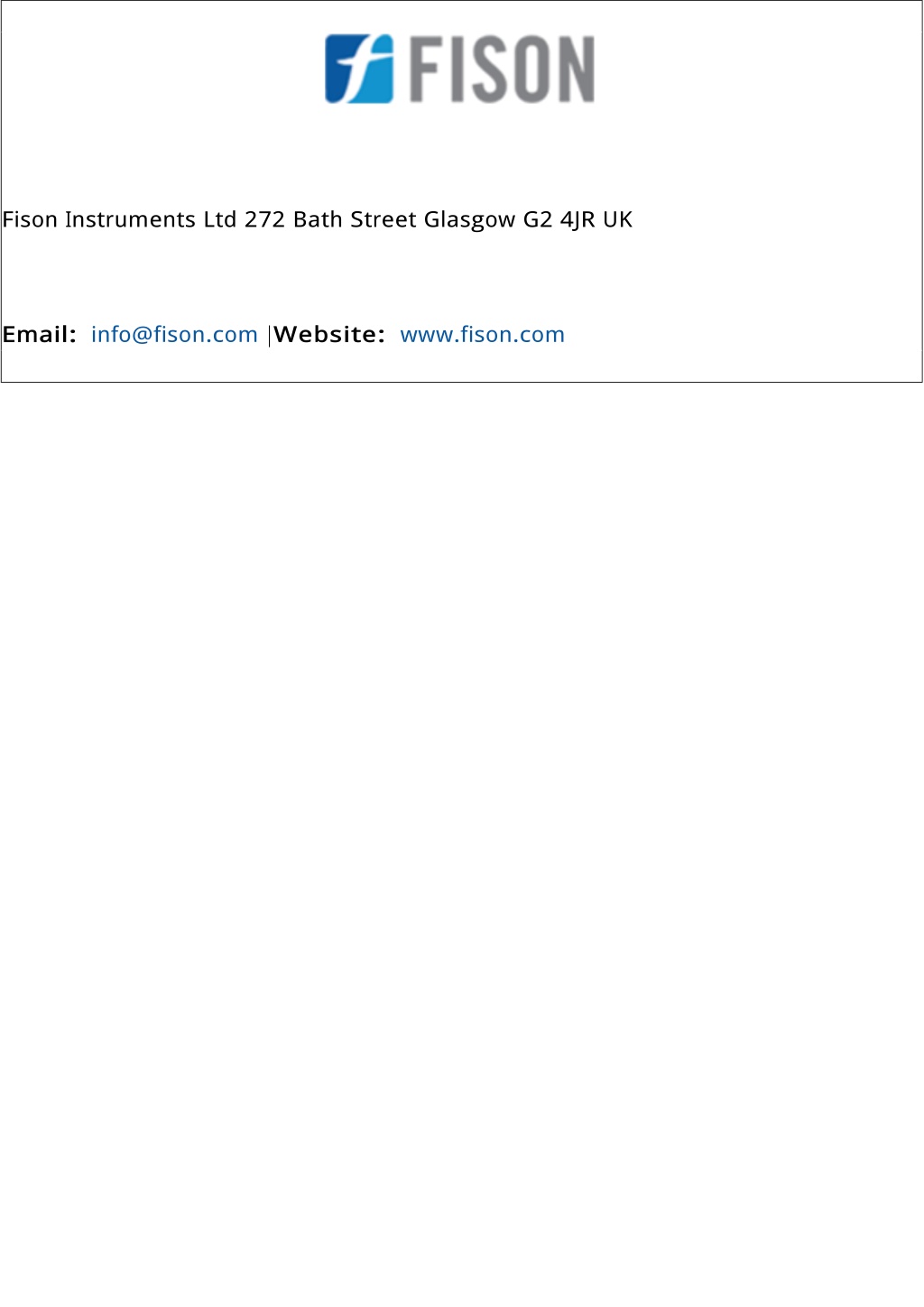

  5. Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email: info@fison.com |W ebsite: www.fison.com
