Presentation Transcript
measuring coagulation status
Measuring Coagulation Status
  • Why do it?
  • Benefits
  • Need to understand the position of TEG in coagulation assessment

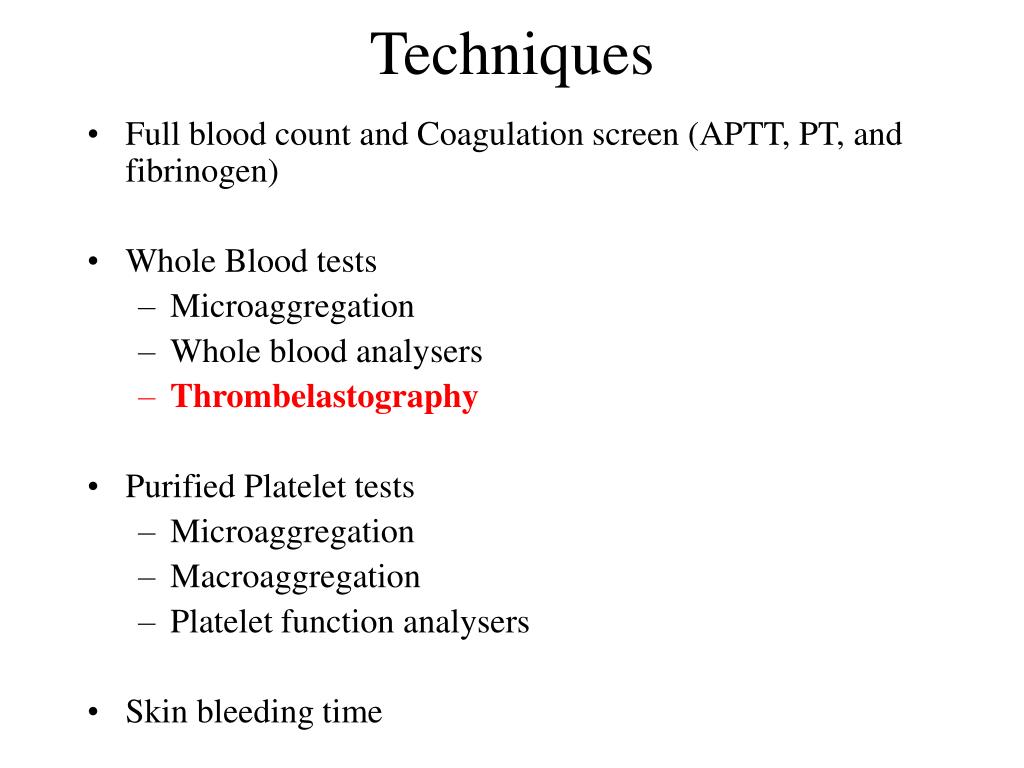

techniques
Techniques
  • Full blood count and Coagulation screen (APTT, PT, and fibrinogen)
  • Whole Blood tests
    • Microaggregation
    • Whole blood analysers
    • Thrombelastography
  • Purified Platelet tests
    • Microaggregation
    • Macroaggregation
    • Platelet function analysers
  • Skin bleeding time

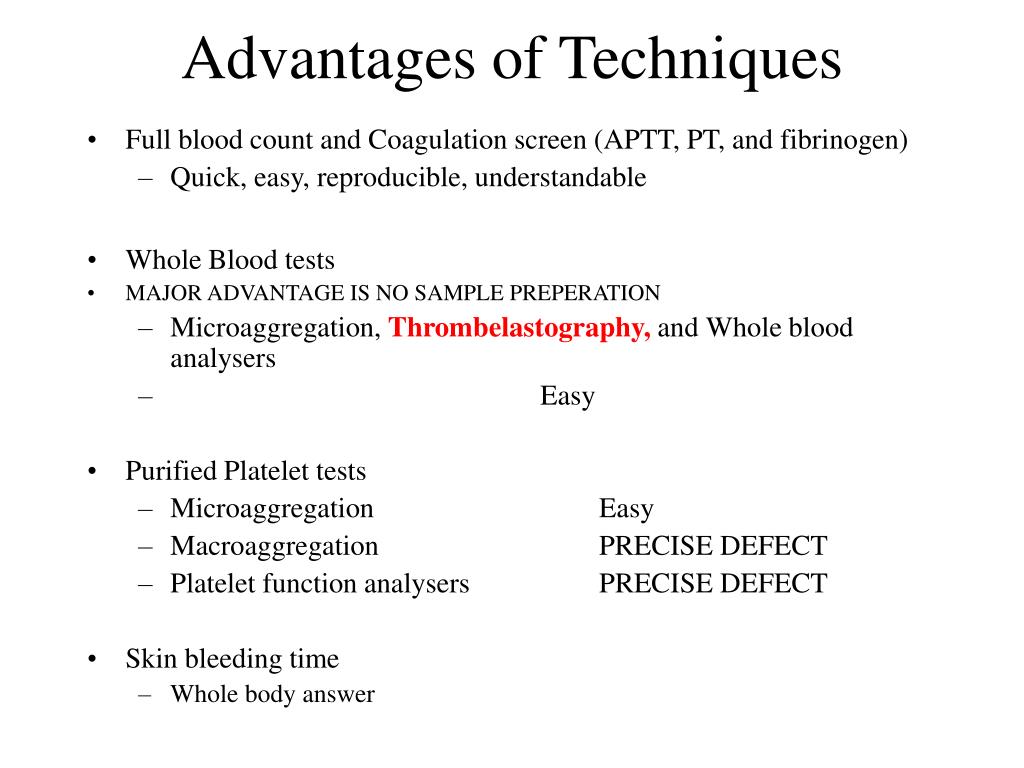

advantages of techniques
Advantages of Techniques
  • Full blood count and Coagulation screen (APTT, PT, and fibrinogen)
    • Quick, easy, reproducible, understandable
  • Whole Blood tests
  • MAJOR ADVANTAGE IS NO SAMPLE PREPERATION
    • Microaggregation, Thrombelastography, andWhole blood analysers
    • Easy
  • Purified Platelet tests
    • Microaggregation Easy
    • Macroaggregation PRECISE DEFECT
    • Platelet function analysers PRECISE DEFECT
  • Skin bleeding time
    • Whole body answer
limitations of techniques
Limitations of Techniques
  • Full blood count
    • Number not function
  • Coagulation screen (APTT, PT, and fibrinogen)
    • 20 to 30 minutes, no fibrinolytic assessment
  • Whole Blood tests
    • Microaggregation No commercial kit
    • Thrombelastography ?sensitivity
  • Purified Platelet tests
  • YOU HAVE TO PREPARE THE PLATELETS
    • Microaggregation No commercial kit
    • Macroaggregation Experienced technician
    • Platelet function analysers ?
  • Skin bleeding time
    • Invasive, not specific
principles of thrombelastography
Principles of Thrombelastography

Celite (Kaolin) activated

Low shear environment

resembling sluggish

venous flow

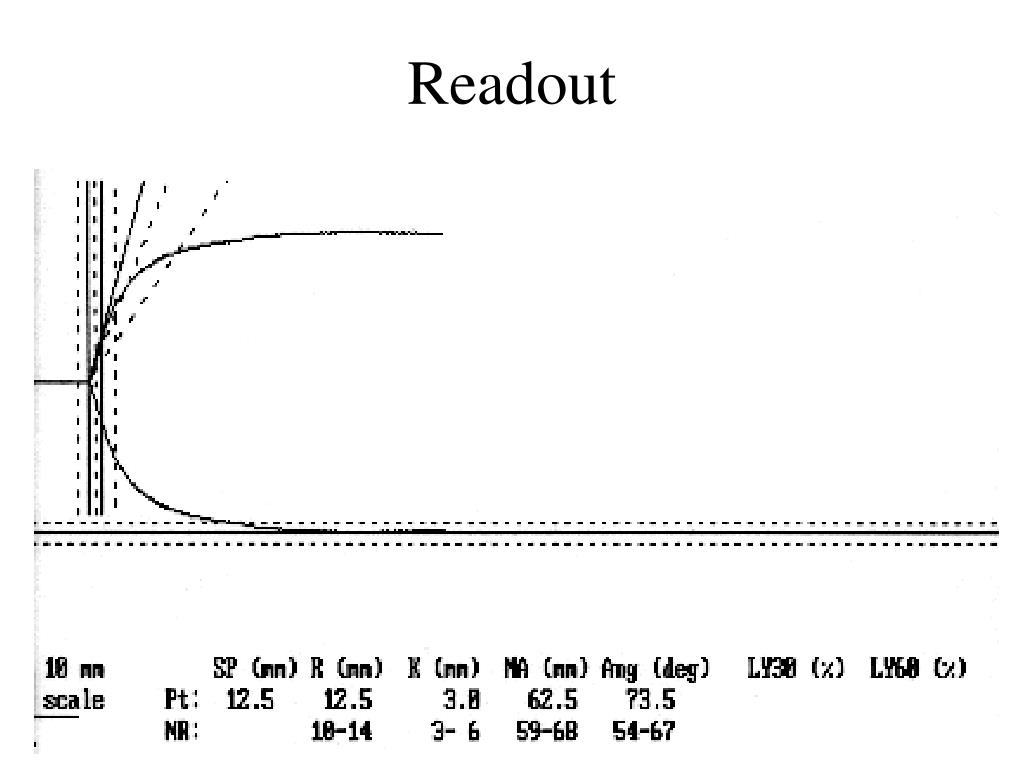

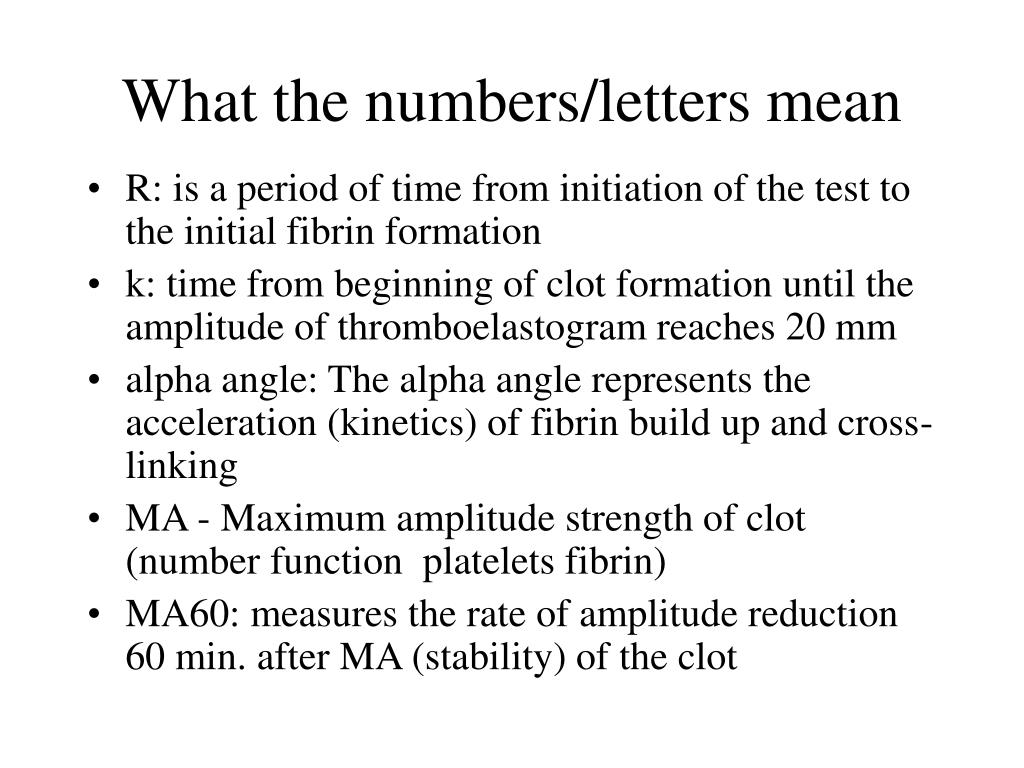

what the numbers letters mean
What the numbers/letters mean
  • R: is a period of time from initiation of the test to the initial fibrin formation
  • k: time from beginning of clot formation until the amplitude of thromboelastogram reaches 20 mm
  • alpha angle: The alpha angle represents the acceleration (kinetics) of fibrin build up and cross-linking
  • MA - Maximum amplitude strength of clot (number function platelets fibrin)
  • MA60: measures the rate of amplitude reduction 60 min. after MA (stability) of the clot
tips and tricks
Tips and Tricks
  • Heparinase
  • Adding c7E3 Fab (ReoPro) to the TEG sample will eliminate platelet function from the thromboelastogram.
  • Antifibrinolytic agents such as Epsilon-Aminocaproic Acid, Tranexamic acid and Aprotinin

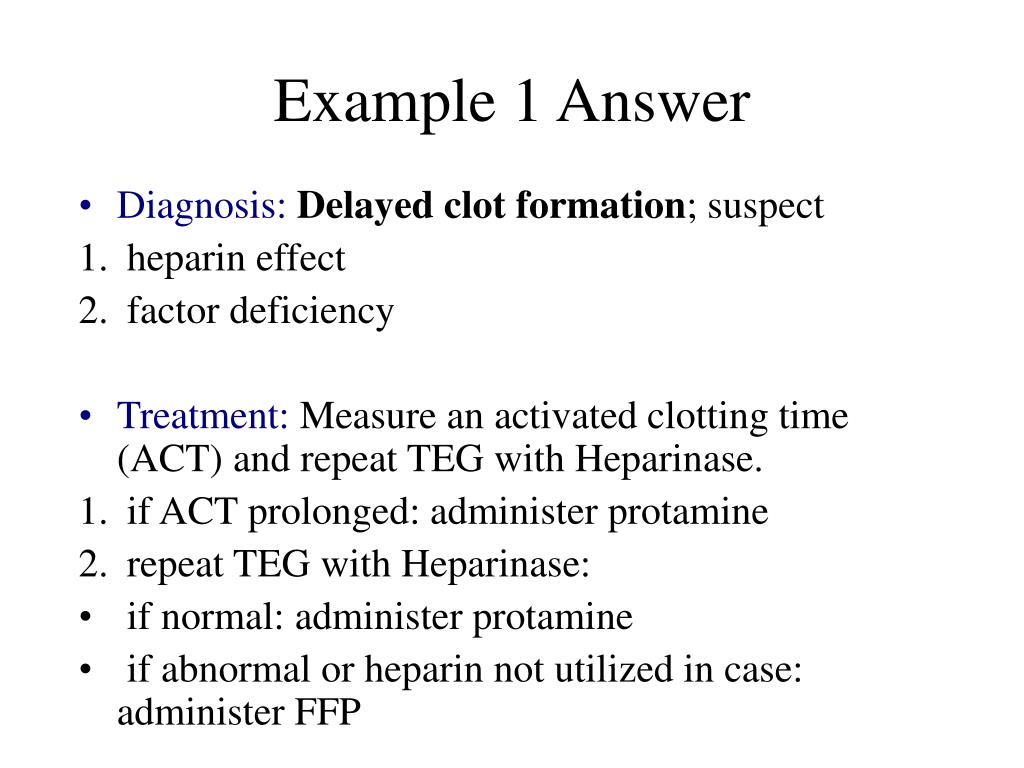

example 1 answer
Example 1 Answer
  • Diagnosis:Delayed clot formation; suspect
  •  heparin effect
  •  factor deficiency
  • Treatment: Measure an activated clotting time (ACT) and repeat TEG with Heparinase.
  •  if ACT prolonged: administer protamine
  •  repeat TEG with Heparinase:
  •  if normal: administer protamine
  •  if abnormal or heparin not utilized in case: administer FFP

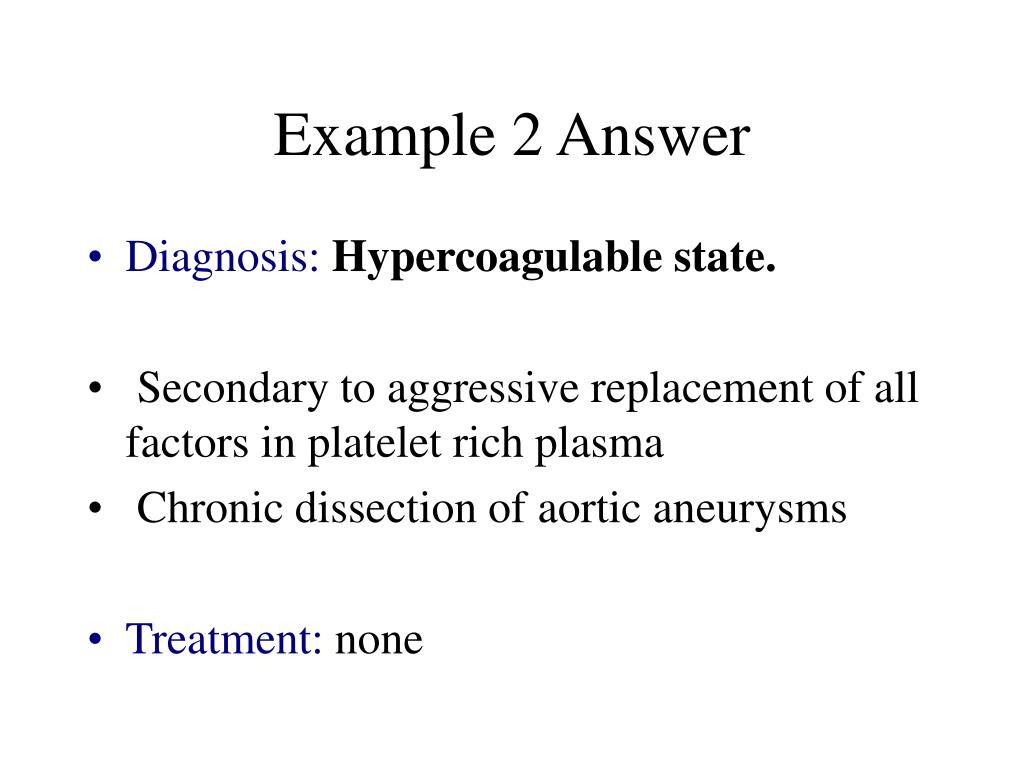

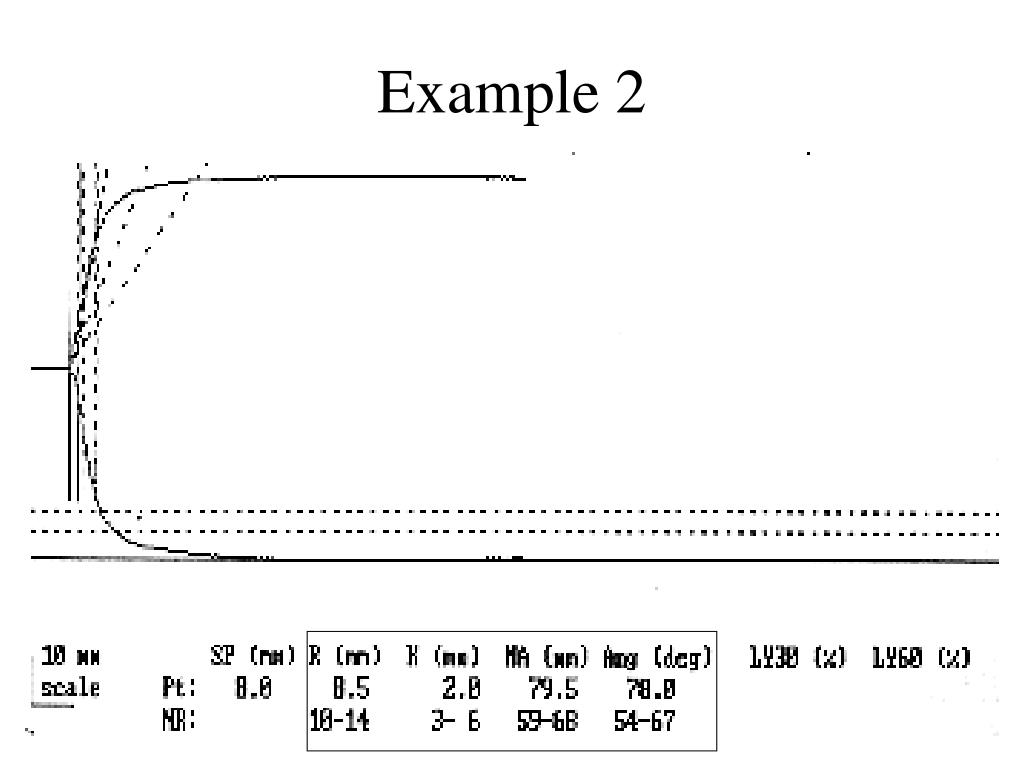

example 2 answer
Example 2 Answer
  • Diagnosis:Hypercoagulable state.
  •  Secondary to aggressive replacement of all factors in platelet rich plasma
  •  Chronic dissection of aortic aneurysms
  • Treatment: none

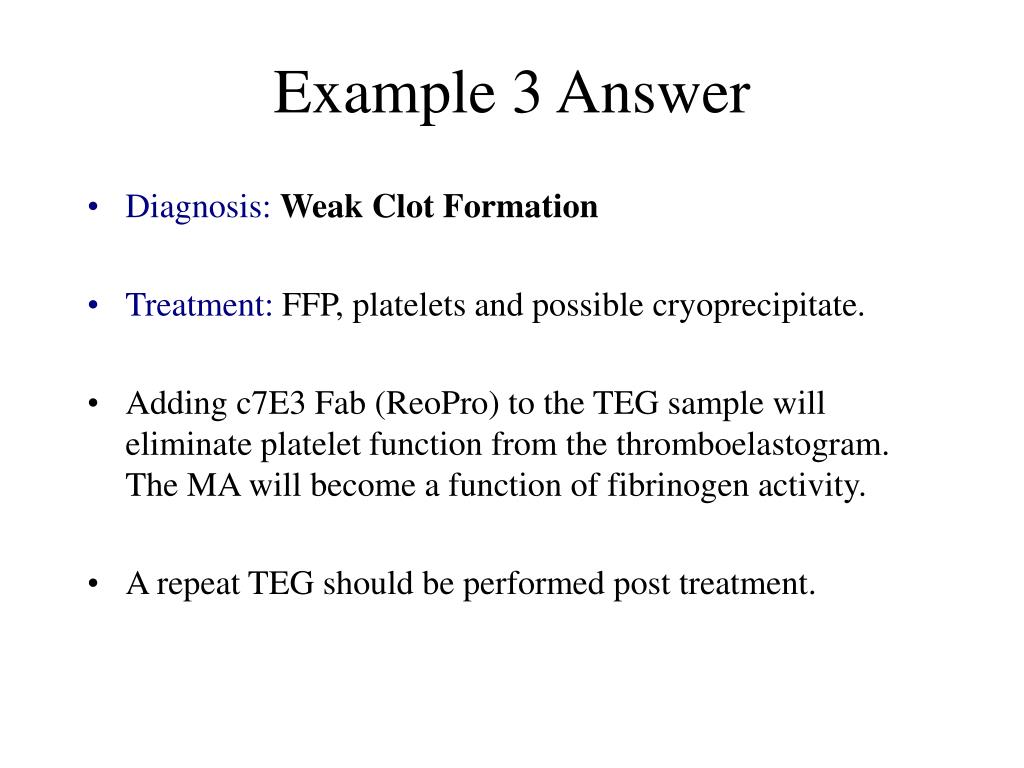

example 3 answer
Example 3 Answer
  • Diagnosis:Weak Clot Formation
  • Treatment: FFP, platelets and possible cryoprecipitate.
  • Adding c7E3 Fab (ReoPro) to the TEG sample will eliminate platelet function from the thromboelastogram. The MA will become a function of fibrinogen activity.
  • A repeat TEG should be performed post treatment.

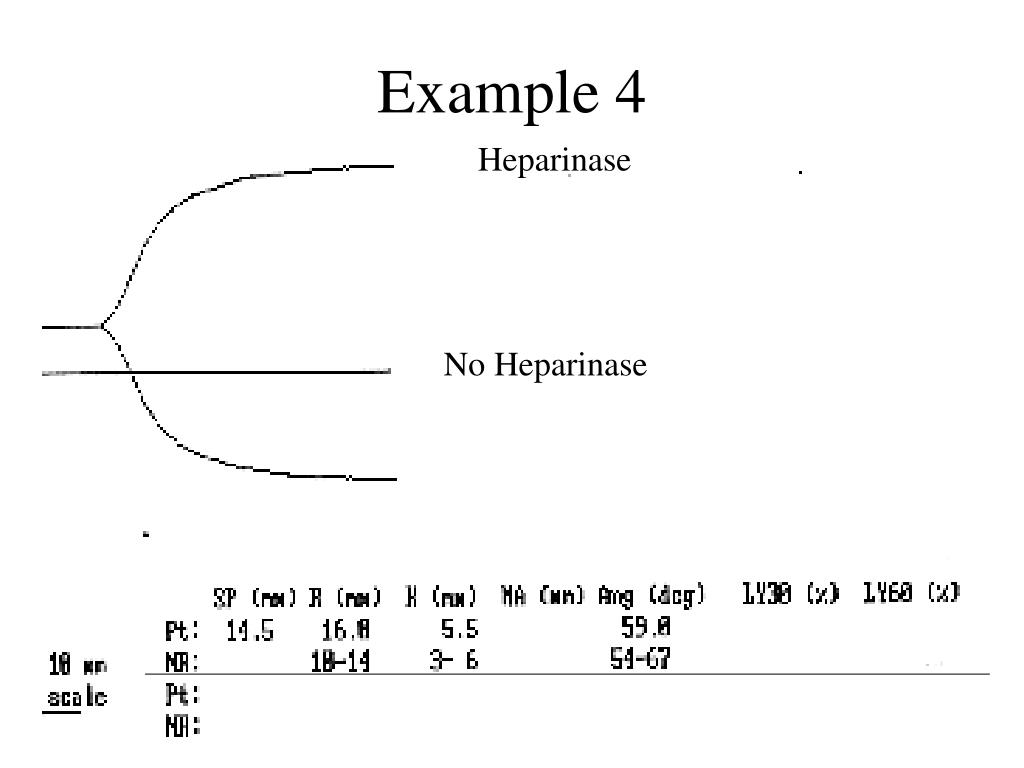

example 4
Example 4

Heparinase

No Heparinase

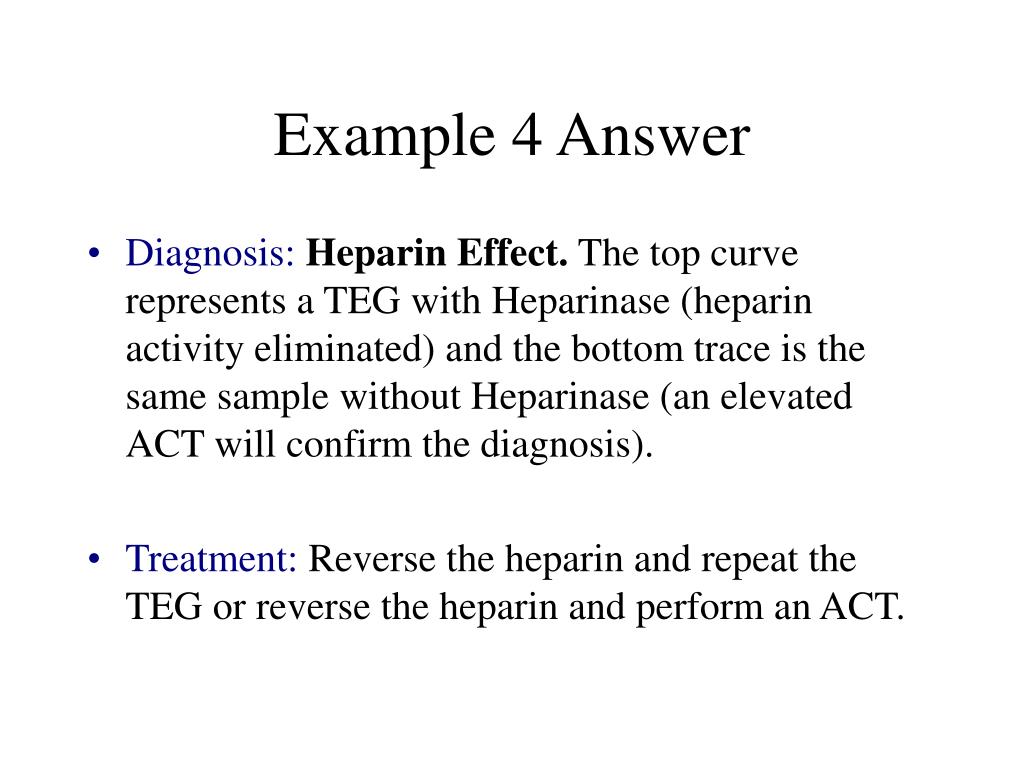

example 4 answer
Example 4 Answer
  • Diagnosis:Heparin Effect. The top curve represents a TEG with Heparinase (heparin activity eliminated) and the bottom trace is the same sample without Heparinase (an elevated ACT will confirm the diagnosis).
  • Treatment: Reverse the heparin and repeat the TEG or reverse the heparin and perform an ACT.
example 5
Example 5

Heparinase

No Heparinase

example 5 answer
Example 5 Answer
  • Diagnosis:Normal Coagulation Profile. This is a TEG from the same patient shown in example 4. The heparin was reversed with protamine. The top curve represents a TEG with Heparinase (heparin activity eliminated) and the bottom trace is the same sample without Heparinase. Since both traces are identical all heparin was reversed by protamine.
  • Treatment: If there is still bleeding its surgical!

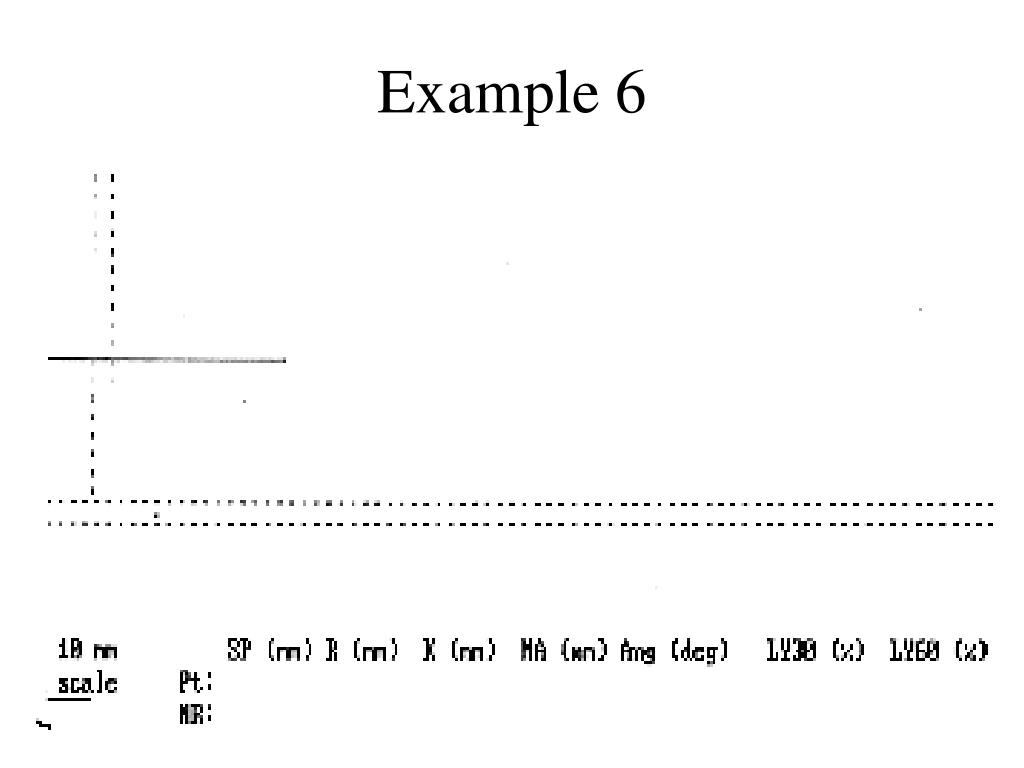

example 6 answer
Example 6 Answer
  • Diagnosis:No clot formation
  •  Very low factor levels
  •  Heparin effect
  • Treatment:
  •  repeat TEG with Heparinase :
  •  if TEG normal: reverse heparin with protamine
  •  if TEG abnormal: administer FFP

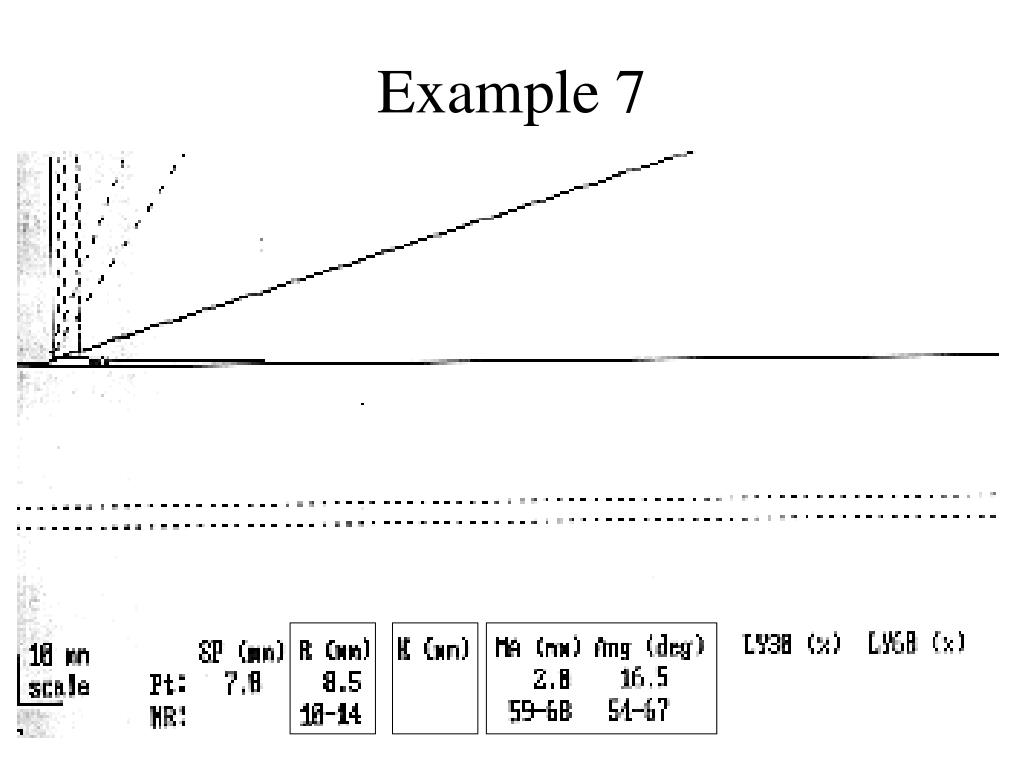

example 7 answer
Example 7 Answer
  • Diagnosis:Poor coagulation and fibrinolysis
  • Treatment: Administer coagulation factors and antifibrinolytics (Tranexamic Acid or Aprotinin).
  • The antifibrinolytics can be added to the TEG to pre-evaluate their effectiveness.
  • Repeat the TEG post treatment.

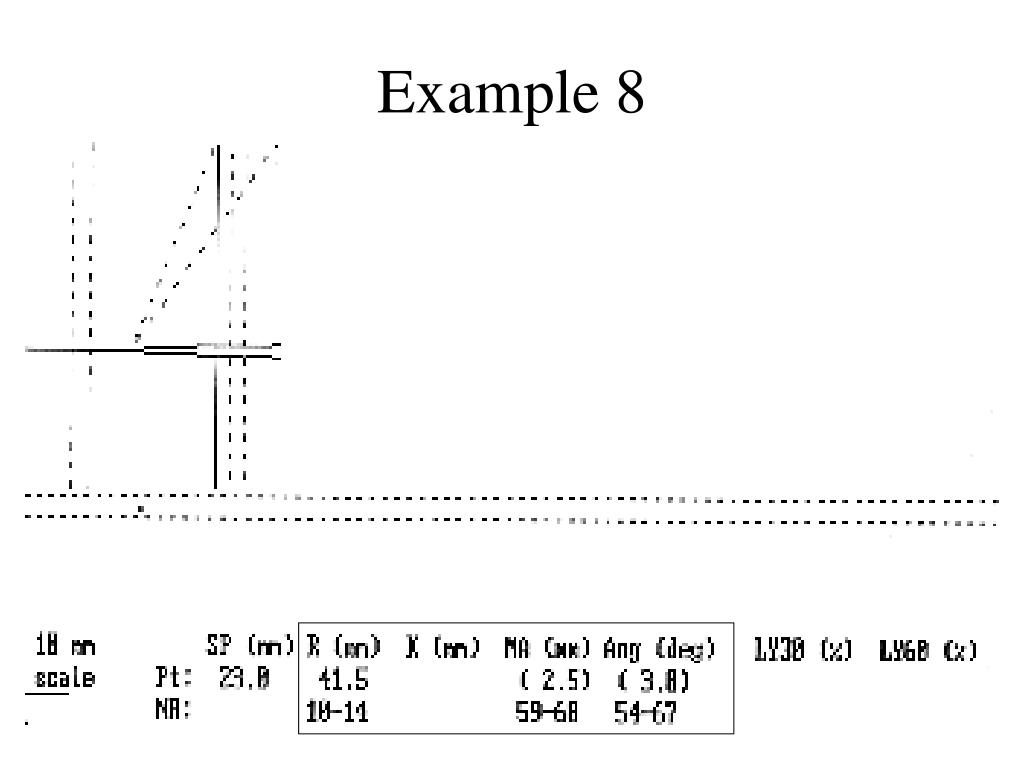

example 8 answer
Example 8 Answer
  • Diagnosis:Technical error in processing TEG or severe coagulopathy (correlate with clinical scenario)
  • Treatment: Repeat TEG
  •  if normal: do nothing
  •  if grossly abnormal and clinical bleeding: administer all products (FFP, platelets, cryoprecipitate) and repeat TEG.
limitations
Limitations
  • Still being evaluated
  • Paired pre and post operative TEGs
  • Still do lab tests
  • Celite and mechanical activation not biochemical
  • Wythenshaw, and Blackpool have TEG but no communication on experience!
clinical common sense
Clinical Common Sense
  • Use same clinical skills to assess the bleeding patient
  • On Aspirin, Clopidogrel and Fragmin
  • IGNORE THE TEG
