slide1
SE 435 – Distributed Systems

Marshalling – Background Principles

Version 2.0

Clark Elliott

DePaul University

slide2
Preliminary slides cut from excellent materials at:

http://www.cs.wpi.edu/~fcco/classes/cs4515-2005/lectures/cs4515-06.ppt

By Fernando C. Colon Osorio

Augmented by Elliott

some essential background principles
Some Essential Background Principles

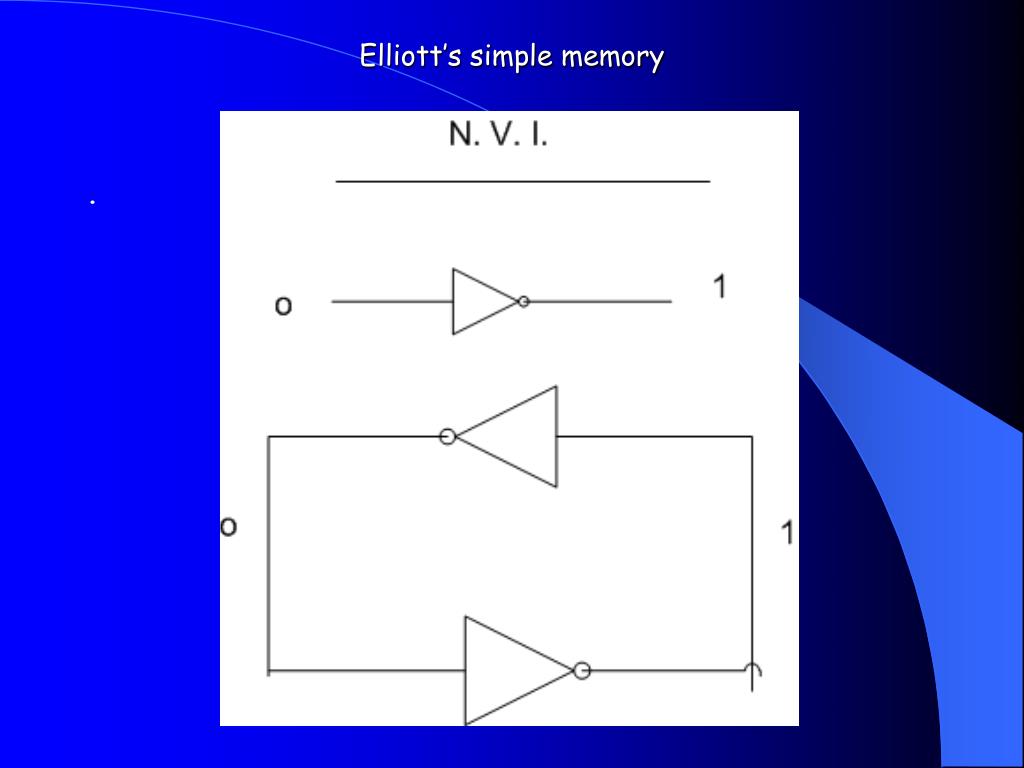

  • From transistors to memory
  • Binary Arithmetic
  • Designing the ALU – arithmetic and logic not just arithmetic
  • From bit strings to architectures
  • Process
  • Memory is only on loan
  • Processes, context switching, symbol tables
  • Marshalling
  • Summaries
instruction register
Instruction Register

.

  • So ADD R1,R2,R3 is assembled into 0110
instruction register with clock
Instruction Register with Clock

.

Let the register settle, then pull the trigger

slide9

BUS A

BUS B

What’s Missing?

I/O: both input and output

DECODE UNIT

(INSTRUCTION

BOX – IBOX)

ARITHMETIC &

LOGIC UNIT –

EXECUTE UNIT

(ALU – EBOX)

MEMORY UNIT

(STORED PROGRAM)

FETCH 1

INSTRUCTION

DECODE 1

INSTRUCTION

EXECUTE 1

INSTRUCTION

T0 + 1 CYCLE

T0 + 2 CYCLES

T0

T0

T0 + 3 CYCLES

symbolic values
Symbolic Values
  • Bits are just bits -- they have no inherent meaning
  • Conventions define relationship between bits and numbers, bits and characters, etc.
  • 1010 could mean one eight and one two.
  • 1010 could mean one two, but it is negative
  • 1010 could mean zero eights, one four, zero twos, and one one.
  • 1010 could mean the letter “a”
  • 1010 could mean…
  • That is, until we lay some interpretation over a string of bits they have no value to us.
numbers
Numbers
  • Binary numbers (base 2)0000, 0001, 0010, 0011, 0100, 0101 0110 0111 1000 1001...
  • decimal: 0, 1, 2, 3,...2n-1 [In this case, n=4]
  • Of course it gets more complicated: numbers are finite (overflow) fractions and real numbers --- (Introduce Floating Point) negative numbers
  • So, how do we, e.g., represent negative numbers? That is, which bit patterns will represent which numbers?
numbers12
Numbers
  • E.g., 1 1 0 02 = 8 + 4 + 0 + 0 = 12 base ten

2322

2120

slide13
MIPS
  • 32 bit signed numbers:0000 0000 0000 0000 0000 0000 0000 0000two = 0ten0000 0000 0000 0000 0000 0000 0000 0001two = + 1ten0000 0000 0000 0000 0000 0000 0000 0010two = + 2ten...0111 1111 1111 1111 1111 1111 1111 1110two = + 2,147,483,646ten0111 1111 1111 1111 1111 1111 1111 1111two = + 2,147,483,647ten1000 0000 0000 0000 0000 0000 0000 0000two = – 2,147,483,648ten1000 0000 0000 0000 0000 0000 0000 0001two = – 2,147,483,647ten1000 0000 0000 0000 0000 0000 0000 0010two = – 2,147,483,646ten...1111 1111 1111 1111 1111 1111 1111 1101two = – 3ten1111 1111 1111 1111 1111 1111 1111 1110two = – 2ten1111 1111 1111 1111 1111 1111 1111 1111two = – 1ten

max integer

min integer

two s complement operations
Two's Complement Operations
  • Negating a two's complement number: invert all bits and add 1
    • remember: “negate” and “invert” are quite different!
  • Converting n bit numbers into numbers with more than n bits:
    • Vax-11, ALPHA, MIPS & Most other ISA’s, 16 bit immediate gets converted to 32 bits for arithmetic
    • copy the most significant bit (the sign bit) into the other bits

0010 -> 0000 0010 1010 -> 1111 1010

    • "sign extension" (lbu vs. lb)
addition subtraction
Addition & Subtraction
  • Just like in grade school (carry/borrow 1s) 0111 0111 0110+ 0110 - 0110 - 0101
  • Two's complement operations easy
    • subtraction using addition of negative numbers 0111 + 1010
  • Overflow (result too large for finite computer word):
    • e.g., adding two n-bit numbers does not yield an n-bit number 0111 + 0001 note that overflow term is somewhat misleading, 1000 it does not mean a carry “overflowed”

Two Positive

#’s Result in

negative

overflow
Overflow

Decimal

Binary

Decimal

2’s Complement

0

0000

0

0000

Examples: 7 + 3 = 10 but ...

- 4 - 5 = - 9 but ...

1

0001

-1

1111

2

0010

-2

1110

3

0011

-3

1101

4

0100

-4

1100

5

0101

-5

1011

6

0110

-6

1010

7

0111

-7

1001

-8

1000

0

1

1

1

1

0

1

1

1

7

1

1

0

0

– 4

3

– 5

+

0

0

1

1

+

1

0

1

1

1

0

1

0

– 6

0

1

1

1

7

let s design an alu
Let’s Design an ALU

Recall:

  • Key arithmetic: 12 + 12 = 102 or 02 and carry the 12
  • Consider a logic function to implement above. See logical table:

A B C

0 0 0

0 1 1

1 0 1

1 1 0 and carry the 1

  • Show an implementation consisting of inverters, AND, and OR gates.

0101 0011

+ 0011 +1111

1000 0010

310 - 110 = 310 + (- 110)

510 + 310 =

let s design an alu18
Let’s Design an ALU

Sum:

A B Sum Carry (cout)

0 0 0 0

0 1 1 0

1 0 1 0

1 1 0 1

sum = a b + a b = XOR

cout = a b

1-bit adder

a

Sum

a

Sum

Cout

b

b

Cout

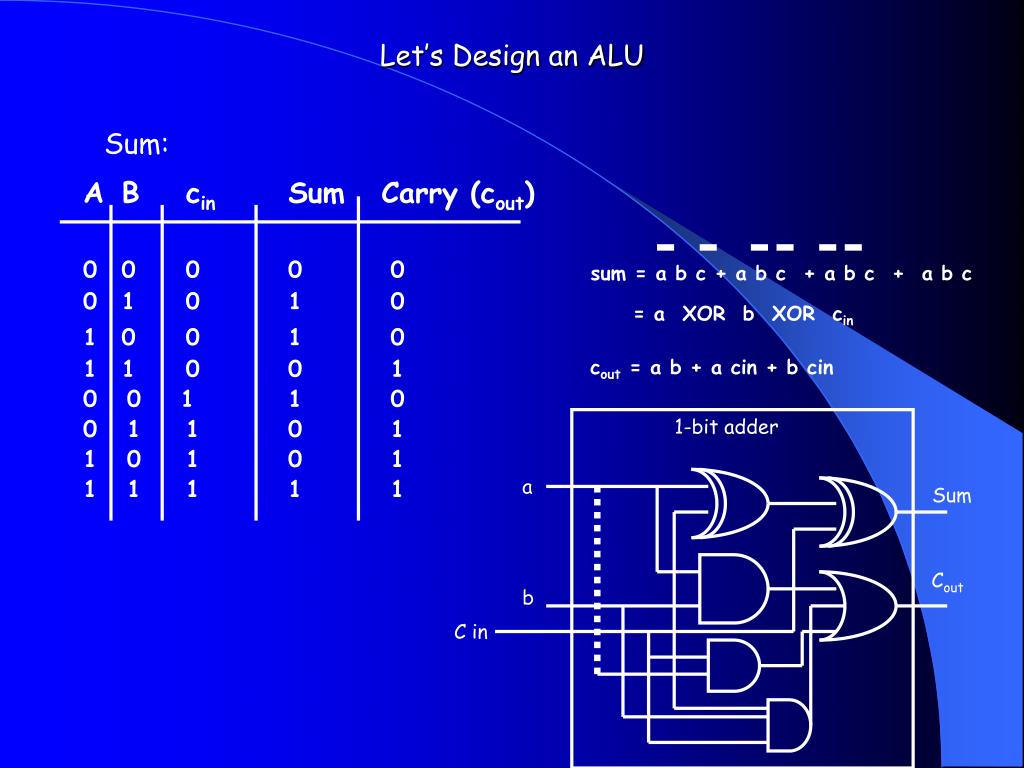

let s design an alu19
Let’s Design an ALU

Sum:

A B cin Sum Carry (cout)

0 0 0 0 0

0 1 0 1 0

1 0 0 10

1 1 0 0 1

0 0 1 1 0

0 1 1 0 1

1 0 1 0 1

1 1 1 1 1

sum = a b c + a b c + a b c + a b c

= a XOR b XOR cin

cout = a b + a cin + b cin

1-bit adder

a

Sum

Cout

b

C in

building a 32 bit alu
Building a 32 bit ALU

Adder function

assembly language from c code
Assembly Language From C code

/* File is junk.c */

int main(int argc, char **argv)

{

int x;

x = 3 + 2;

return (0);

}

-------------------------------------

> gcc -s junk.c

intel windowsassembly language output
Intel WindowsAssembly Language output

.file "junk.c"

gcc2_compiled.:

___gnu_compiled_c:

.text

.align 2

.globl _main

_main:

pushl %ebp

movl %esp,%ebp

subl $4,%esp

call ___main

movl $5,-4(%ebp) <-- compiler smart enough to create a constant

xorl %eax,%eax

jmp L1

.align 2,0x90

L1:

leave

ret

intel windows assembly language output
Intel Windows Assembly Language output

.file "junk.c"

gcc2_compiled.:

___gnu_compiled_c:

.text

.align 2

.globl _main

_main:

pushl %ebp

movl %esp,%ebp

subl $4,%esp

call ___main

movl $5,-4(%ebp) <-- compiler smart enough to create a constant

xorl %eax,%eax

jmp L1

.align 2,0x90

L1:

leave

ret

intel linux assembly language output
Intel Linux Assembly Language output

.file "junk.c"

.text

.globl main

.type main,@function

main:

pushl %ebp

movl %esp, %ebp

subl $8, %esp

andl $-16, %esp

movl $0, %eax

subl %eax, %esp

movl $5, -4(%ebp)

movl $0, %eax

leave

ret

.Lfe1:

.size main,.Lfe1-main

.ident "GCC: (GNU) 3.2.2 20030222 (Red Hat Linux 3.2.2-5)"

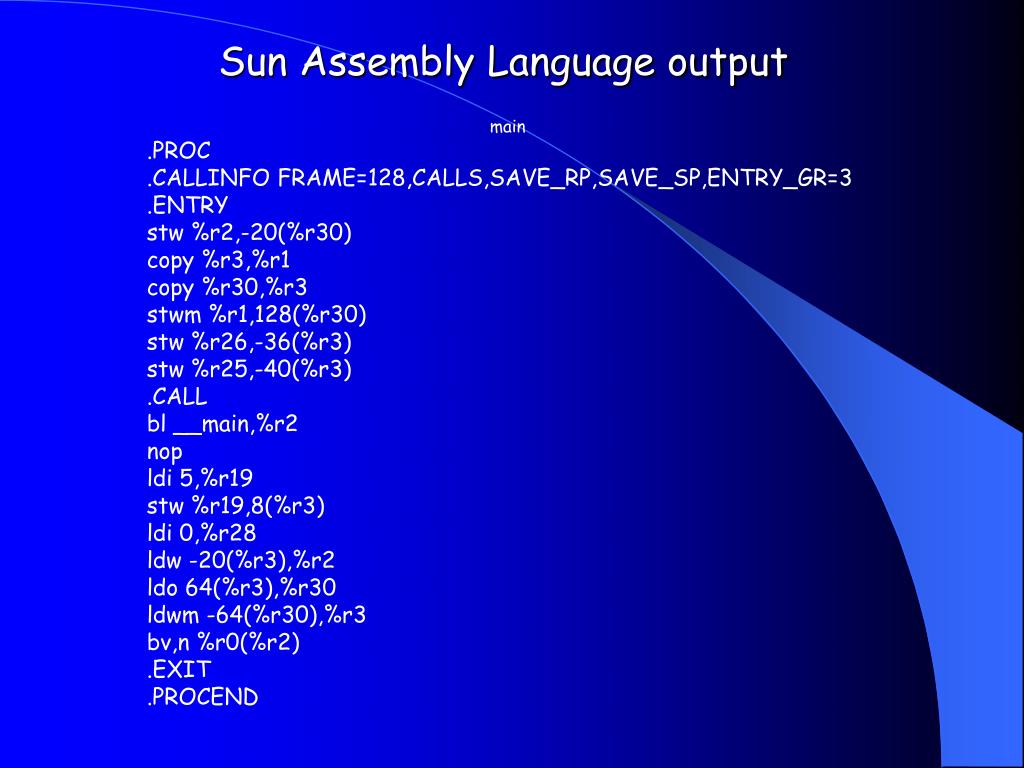

sun assembly language output
Sun Assembly Language output

main

.PROC

.CALLINFO FRAME=128,CALLS,SAVE_RP,SAVE_SP,ENTRY_GR=3

.ENTRY

stw %r2,-20(%r30)

copy %r3,%r1

copy %r30,%r3

stwm %r1,128(%r30)

stw %r26,-36(%r3)

stw %r25,-40(%r3)

.CALL

bl __main,%r2

nop

ldi 5,%r19

stw %r19,8(%r3)

ldi 0,%r28

ldw -20(%r3),%r2

ldo 64(%r3),%r30

ldwm -64(%r30),%r3

bv,n %r0(%r2)

.EXIT

.PROCEND

different systems different architectures
Different Systems / Different architectures

All architectures implement data types, and instructions.

How they implement them is up to the designers of the underlying hardware (and also the operating system).

Data types from one system may be implemented far differently from another system, even though symbolically they are the same.

This is why Windows programs are often shipped as binary files ready to run (same Intel architecture) but Unix programs must fist be compiled on each machine (different architectures – Sun, Intel, HP, IBM…).

different systems different architectures27
Different Systems / Different Architectures

Distributed systems that interoperate between machines by shipping data and code to different processors must take into account the differences in

Architectures.

The process of translating bit representations from one system to another (as well as some intermediate state) is called marshalling and unmarshalling.

With multicomputer Distributed Systems we often think of marshalling data from the source system into a serial form for network transmission, and then unmarshalling it from the network into the destination format.

virtual memory ouch
Virtual Memory -- ouch

But wait – that’s not all!

We forgot about memory addressing.

real addresses just temporary
Real addresses – just temporary

Note that in NONE of the assembly code is there any reference to the variable “x”.

X is a symbolic name which is translated into the address of a piece of memory big enough to hold an integer. (4 bytes? 8 bytes?)

At run time the loader assigns a temporary location in memory which will hold the value of x. We then refer to x by the address of that piece of memory.

But – If the operating system needs the memory it will write the whole (running) program out to disk for a short time, then load it back in again later, often at a different location.

memory it s ephemeral
Memory – it’s ephemeral!

When studying Distributed Systems we must have an understanding of concepts such as:

Architectures

Context Switching – process control blocks

Data formats

Memory Addressing

Dynamically linked data structures

http://condor.depaul.edu/~elliott/420/ppt/memory/

http://condor.depaul.edu/~elliott/420/ppt/memory/MIPS-memory.pdf

http://condor.depaul.edu/~elliott/420/ppt/memory/MemoryAddressing.ppt

memory only on loan when you need it
Memory – only on loan when you need it

When a process is swapped out it’s memory might be needed by other processes. When this happens, all of the real addresses become meaningless, and will have to be replaced by new addresses when the process is swapped back in. The operating system keeps symbol tables to know where the value of a program’s symbols (remember “x”?) reside. When a process is restored to the CPU so that it can continue running, all of the values of its symbols (variables…) are retrieved from disk and placed back into new temporary memory locations.

A new symbol table is created to bind the symbols to real memory locations.

the program counter
The program counter

A process is a program in execution. That is, the step-by-step execution of a set of instructions, in order.

At any given moment, the process is executing one instruction. This instruction was loaded into the instruction register from a location in memory. That memory location is stored in the program counter, or “PC”.

The program counter is incremented, and the instruction at the next memory location is loaded.

When a process is swapped out, the PC is saved; when restarted thePC (updated to point to the new memory locations) tells us at which instruction to start.

no symbol table on remote machine
No symbol table on remote machine

Generally speaking the symbol table that the operating system keeps for our local process allows us to relocate linked structures in memory after a context switch.

However, a remote system has no symbol table for the local process.

For this reason, marshalling can get very complex, if not impossible, for dynamically linked structures.

summary bits
Summary -- bits

Transistors put out 5 volts, or no volts.

Combinations of transistors give us persistent memory.

Symbolically, we see a memory location as a bit: either 1 or 0

Bit strings do not mean anything without an interpretation. Interpretations are arbitrary.

System architects, who generally are interested in speed, speed, and speed, tell us what the bit strings mean.

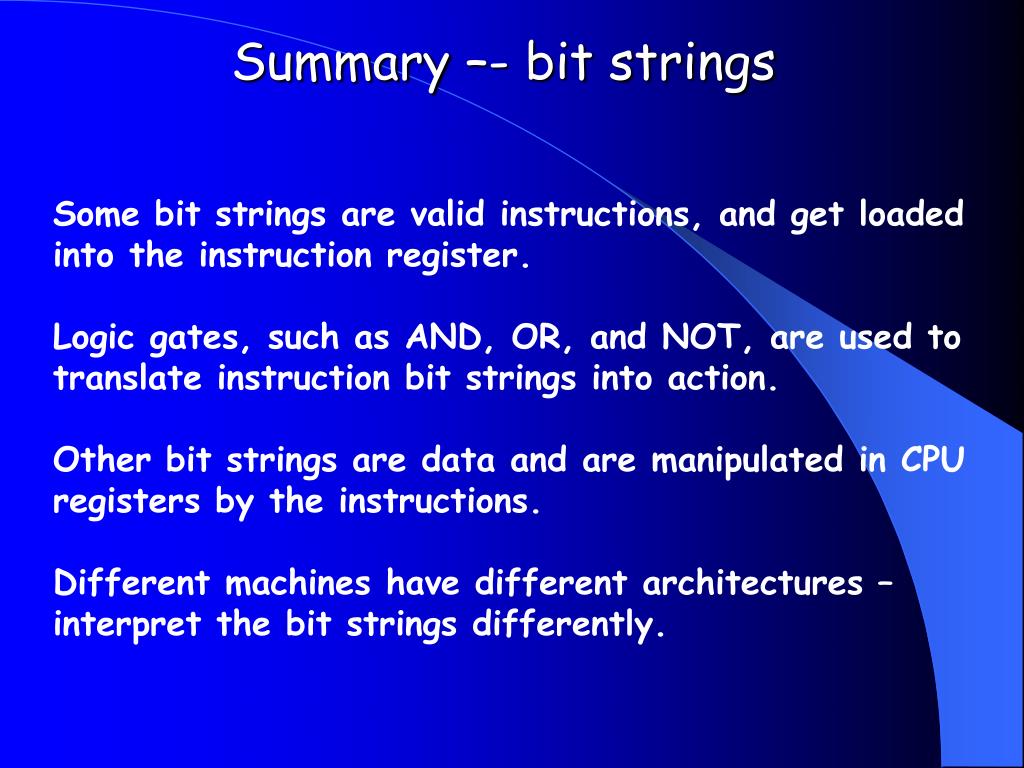

summary bit strings
Summary –- bit strings

Some bit strings are valid instructions, and get loaded into the instruction register.

Logic gates, such as AND, OR, and NOT, are used to translate instruction bit strings into action.

Other bit strings are data and are manipulated in CPU registers by the instructions.

Different machines have different architectures – interpret the bit strings differently.

summary memory
Summary -- memory

Data and instructions are stored in memory.

At link-time all symbolic addresses are translated into offsets from the beginning of the program.

Symbolic values, such as variables, are translated into real addresses in memory at run time by adding offsets from the starting address of the program’s temporary memory location.

Processes share the CPU. When a process is swapped out it may have to give up its memory.

summary symbol tables
Summary – symbol tables

The operating system keeps a symbol table for each process, which binds symbolic values in a program to real memory locations. When a process is restored from disk, back into real memory, the symbol table is updated.

The program counter is also restored –- but adjusted to the new location of the program in memory -- and execution continues where it left off.

summary architectures
Summary -- architectures

Assembly language is generally translated line for line into bit strings.

The same C program will produce very different assembly language for different machines because the underlying architecture (meaning of the bit strings) is very different.

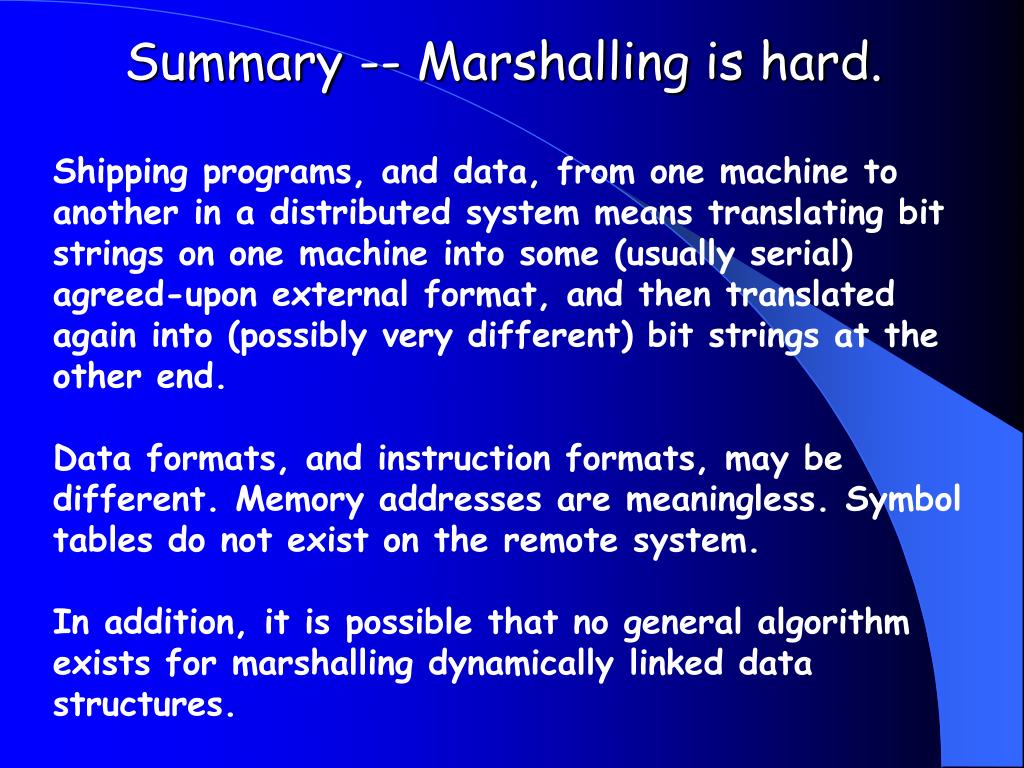

summary marshalling is hard
Summary -- Marshalling is hard.

Shipping programs, and data, from one machine to another in a distributed system means translating bit strings on one machine into some (usually serial) agreed-upon external format, and then translated again into (possibly very different) bit strings at the other end.

Data formats, and instruction formats, may be different. Memory addresses are meaningless. Symbol tables do not exist on the remote system.

In addition, it is possible that no general algorithm exists for marshalling dynamically linked data structures.
